Smartenit ZOE-RE 5010R Manuel utilisateur
2014 Compacta International, Ltd. - Rev. 5/2014
ZOE-RE and Smartenit are trademarks of Compacta International, Ltd.
ZigBee is a registered trademark of the ZigBee Alliance
Attaching device to the Home Area Network (HAN)
The ZOE-RE must be joined to the HAN so it can communicate with the electric utility to receive load events and price
information. Ensure the device is powered and that the HAN coordinator or a router is open for joining. Then proceed as
follows:
1. Once the ZOE-RE is plugged in and reset, it will begin searching for a an open network. LED is ashing rapidly.
2. After the device completes the joining process, the Status LED will be lit solid unless the coordinator (ESP or Smart
Meter) requests the device to open permit join. The LED will remain ashing fast if the device is unable to join the
HAN. (Refer to LED pattern chart on pg.2)
(949) 429-3303
Technical Support
Smartenit.com

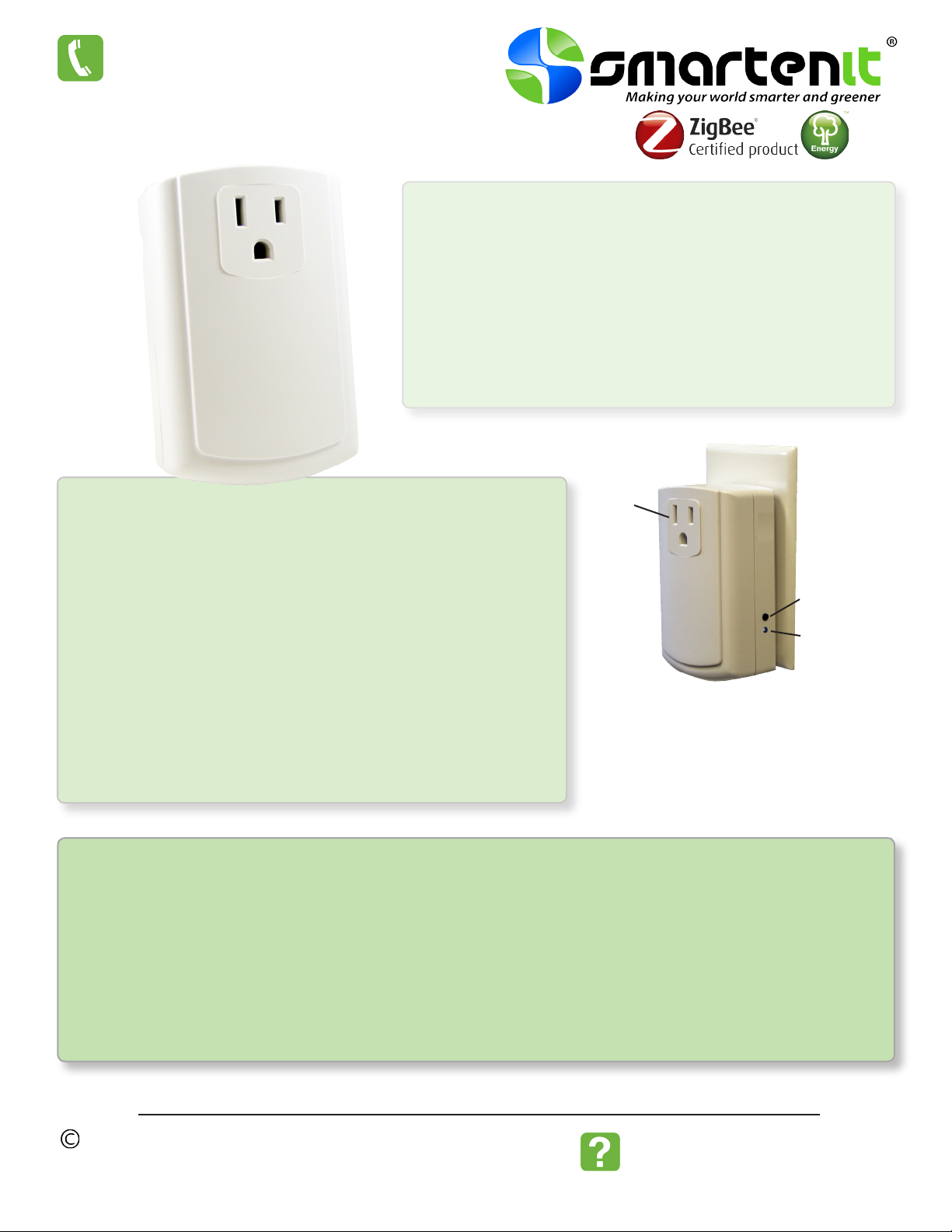

Quick Start Guide - ZOE®-RE Model # 5010R
Product Brief
Installation
Set-up
For more information, please visit our Wiki
http://wiki.smartenit.com
Smart Energy HAN Range Extender
1. Register ZOE-RE with Utility
• Register the device with your electric utility using the included
installation code and the instructions provided by the utility.
Each code is unique to a particular controller, so please ensure
the provided numbers are entered correctly.
2. Reset to Factory Defaults
• Press and hold the Program Button while plugging the ZOE-RE into
a 120V* AC receptacle and release after 1-2 seconds.
• The Status LED will blink rapidly indicating the ZOE-RE has been
reset and is searching for an open SE network to join.
(*240VAC input is acceptable, but the unit is equipped for North American receptacles)
The ZOE-RE provides the means to easily extend the range of your
ZigBee®Smart Energy devices as well as increase the strength of your
ZigBee SE wireless network.
The built-in high power ZigBee SE certied radio joins the SE network
as a ZigBee Pro router and then facilitates the joining of devices that
may not be within range of the Energy Service Portal (ESP-usually
the smart meter.) Use of the ZigBee SE Prole ensures compatibility
with the emerging standards for smart homes/buildings being deployed
around the world.
Always ON
Outlet
Program
Button
Status LED
The ZOE-RE must be installed indoors or in a weather proof enclosure
2014 Compacta International, Ltd. - Rev. 5/2014
ZOE-RE and Smartenit are trademarks of Compacta International, Ltd.
ZigBee is a registered trademark of the ZigBee Alliance
(949) 429-3303
Technical Support
Smartenit.com
For more information, please visit our Wiki
http://wiki.smartenit.com
Program Button Additional Operation
Desired Operation Action on Pushbutton Device Behavior
Leave Network
Press and hold for 15
seconds (works like a
factory reset)
Status LED will begin
Fast Flashing
Close Join
Press and hold for 3 seconds
when device is in Open Join
Status LED will stop
ashing
Request New Firmware
via OTA
Tap 6 times LED will quick blip
off, once every second
while OTA update is in
progress
Soft Reset
Tap 10 times both LEDs will go out
for about a second and
then device will rejoin
network
Status LED Indication
Pattern Indication
Fastest ashing Searching for open HAN
Solid HAN joined and Permit Join
is closed
Flash once per second Permit Join is open
Two blips per second Device cannot nd “Parent
Device” and/or network it
was joined to
Rejoin
If the ZOE-RE loses power or needs to be moved to a new location, the device will rejoin the network automatically
once power has been restored. The Status LED will ash fast until the device re-establishes communication with the
network. After the ZOE-RE rejoins the network, it will go into Open Permit Join mode, and ash once for second
for ~4 minutes.
If the device cannot establish connection with the network, the Status LED will blink two quick blips per second to
indicate that it cannot nd the network and will automatically try to rejoin again in 15 minutes. Alternatively, the
Program Button can be held for ~3 seconds to force rejoin.
Open Permit Join
In addition to extending the range of ZigBee SE devices, the ZOE-RE also serves as a router and allows other
ZigBee SE devices to join the HAN. After the ZOE-RE has already joined the network (LED is solid), proceed as
follows:
1. Press and hold the Program Button for 6 seconds. The Status LED will begin to ash once per second.
The ZOE-RE will allow joining of other devices for up to 4 minutes. Pressing the Program button for ~3
seconds while in permit join mode will close join.
2. Join the new ZigBee SE device to the network according to the join method of that device.
3. When the ZOE-RE has timed out for join permission, the Status LED will return to solid.
