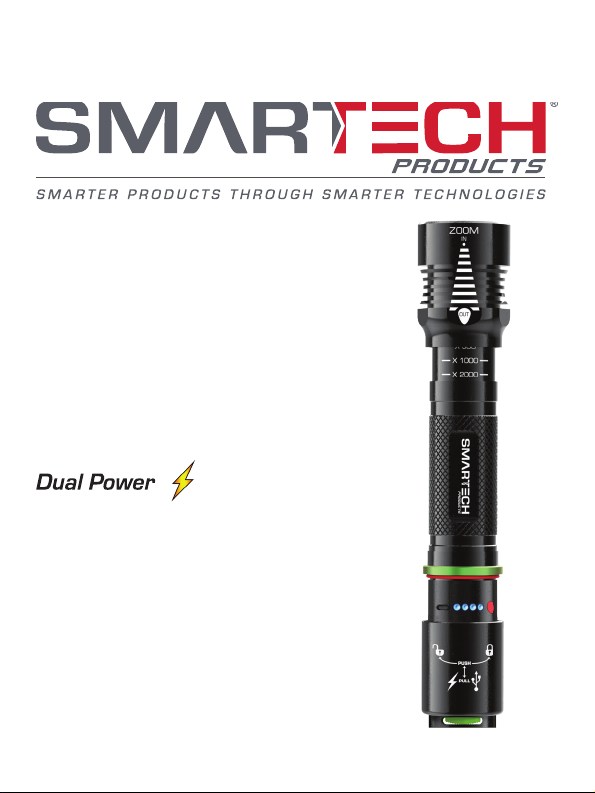

Smartech DuoTec RR-2000 Manuel utilisateur
Model: DuoTec RR-2000
Rechargeable LED Flashlight /
Portable Power Bank
MAX. FLASHLIGHT LUMENS: 2000
5 FLASHLIGHT MODES
ADVANCED FOCUS SYSTEM
BATTERY CAPACITY: 5000mAh
USB OUTPUT: 1A
Lithium or Alkaline Battery
User Guide
Smartech RR-2000 USER GUIDE PAGE 2
What’s included with the DuoTec RR-2000
RR-2000: 2000 Lumen Rechargeable
Flashlight / Power Bank
USB
RECHARGING CABLE
MULTI DEVICE
USB OUTPUT CABLE
3 COLOR LENSES
WALL CHARGER
Alkaline AAA
Battery Cartridge +
(4) AAA batteries
5000mAh Rechargeable
Lithium Ion Battery Pack
INCLUDED ACCESSORIES
Smartech RR-2000 USER GUIDE PAGE 3
About the DuoTec RR-2000
Advanced Focus
System
Adjustable Focus
Ultra Bright
2000 Lumen LED
Integrated
Heat-Sink
Power/Mode
Button
LED Charge Level
Indicator
Power Indicator
Button
USB Charging
Input
USB Output
Port
Aircraft Grade
Aluminum Construction
Dual Power
5000mAh Lithium Ion
Rechargeable
Battery Pack
OR
Alkaline AAA
Battery Cartridge
(AAA batteries included)
Slip Resistant
Grip
Smartech RR-2000 USER GUIDE PAGE 4
RECHARGEABLE POWER
HIGH
2000
lumens 1000
lumens 100
lumens
620m
1H 3.25H 8H
440m 140m
MEDIUM LOW
HIGH
1500
lumens 700
lumens 80
lumens
540m
.4H 6H 23H
370m 125m
MEDIUM LOW
ALKALINE POWER
Caution:
Risk of explosion if battery is replaced by an incorrect type.
Warning:
• Do Not Immerse in water or drop into re.
• Do Not disassemble the product.
• Do Not look directly into the light, eyesight damage
might occur.
• Please charge the ashlight once a month in order to
keep the battery fully charged and ready for use at all
times.
• The USB charging cable is for indoor use only.
• Use only the Micro USB charging cable for charging
this ashlight
• Securely close the USB cover on the barrel of the
ashlight to keep out foreign debris and moisture.
1.6”
7.1”
RR-2000 Product Specications:
Smartech RR-2000 USER GUIDE PAGE 5
Flashlight Features:
• Utilizes Luminous LED.
• Maximum output of 2000 lumen.
• 5000mAh lithium Ion rechargeable battery pack
• Dual Power technology: lithium or alkaline battery
• Advanced focus system with zoom in/out capability
• 5 ashlight modes:
High power
Medium power
Low power
Strobe
SOS
• Provides a beam intensity of 2000 lumens and a throw
distance of up to 620 meters.
• LED charge level indicator
• USB output port to power/charge USB devices
• Maximum runtime of 23 hours.
• Reverse polarity protection prevents damage from
incorrectly inserted battery.
• Toughened ultra-clear glass lens.
• Integrated heat sink.
• Built-in slip resistant grip
• Aircraft grade aluminum construction.
• Water resistant to 1 meter
Smartech RR-2000 USER GUIDE PAGE 6
Flashlight Operation:
1. To turn on the ashlight, push in the green power
mode button on the bottom of the ashlight.
2. Pressing the power button repeatedly will cycle
through the 5 light modes (High, Medium, Low, Flash,
Strobe) followed by the off mode.
3. To turn off the ashlight without cycling through the
modes, hold down the green power button for 2
seconds.
Using The Adjustable Light Focus:
To adjust the width and intensity of the ashlight beam,
grasp the front of the ashlight and pull.
To narrow the beam, pull the front of the ashlight
outwards and the beam will decrease in size and increase
in intensity.
Smartech RR-2000 USER GUIDE PAGE 7
Figure D.
3 Color Lenses
(Included)
Lenses attach to front of
ashlight via pre-threaded lenses
To widen the beam push the front of the ashlight inwards
and the beam will increase in size and decrease in
intensity.
Figure D.
Using The Colored Lenses:
Three colored lenses have also been included: red, blue
and green. These lenses thread directly onto the front of
the ashlight without having to add or remove secondary
attachments.
See Figure D.
Smartech RR-2000 USER GUIDE PAGE 8

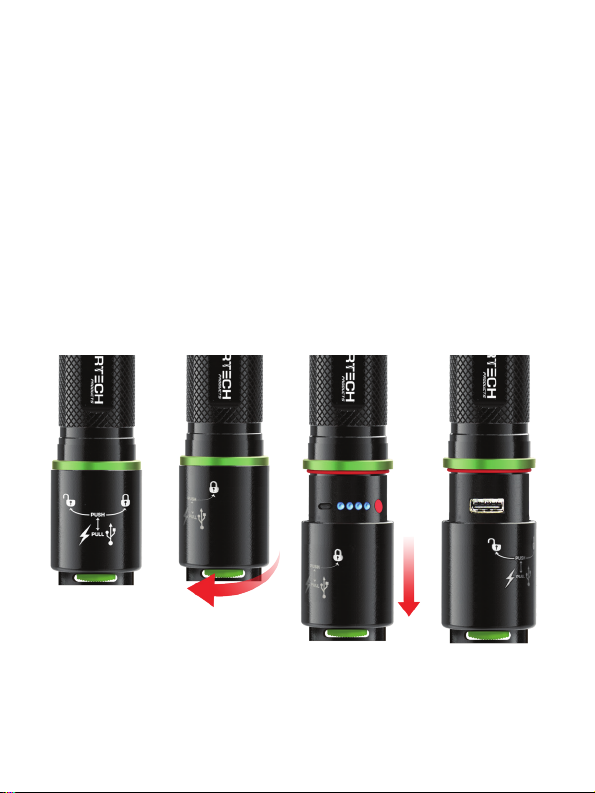

Power/Charge USB Devices:
The RR-2000 Flashlight includes a USB charge/power port
to charge/power USB devices. See Figure E.
1. 2. 3.
1. Turn the bottom of the ashlight towards the left in
order to unlock it.
2. Pull the bottom of the ashlight down to expose the
charging and USB ports.
3. The USB port is to the left of the smaller charging port.
Figure E.
Smartech RR-2000 USER GUIDE PAGE 9
Battery Power
Check Button
Checking The DuoTec Battery Power Level:
To check the battery level of
the internal lithium battery,
open the bottom of the
ashlight as per the previous
USB section and press the
red battery power check
button. The blue battery
power level indicators will
show the internal battery level.
See Figure G.
Figure F.
Multi Device
USB Output Cable
(Included)
RR-2000
USB Port
Mobile Phone
(Not Included)
4. Plug the USB end of the multi device USB Output
Cable (included) into the DuoTec RR-2000 USB port.
5. Plug the compatible end of the multi device USB
Output cable to your USB device. See Figure F.
Figure G.
Battery Power
Level Indicators
Smartech RR-2000 USER GUIDE PAGE 10
Charging The DuoTec Lithium-Ion Battery:
Use the included USB charging cable to charge the
ashlight. Plug one end of the cable into the micro USB
input port on the ashlight and the other end to a USB
charger or the included wall charger adapter.
See Figure H.
Wall Charger
(Included)
USB Recharging Cable
(Included)
RR-2000 - Duotec
Flashlight
Figure H.
Micro USB
Charging
Port
Battery Power
Check Button
Battery Power
Level Indicators
