SMART TL-2109 Manuel du produit
TL-2109, TL-2109V Chair Belts
WARNING: Failure to comply with warning may result in injury or death. This device is not suitable for all individuals. Other devices may be required.
This device is not a substitute for visual monitoring by caregiver. The manufacturer does not claim that this device will stop elopement and/or stop
falls. This device is designed to augment caregivers’ comprehensive resident mobility management program. THIS DEVICE IS NOT DESIGNED
TO RESTRAIN OR HOLD INDIVIDUALS IN POSITION IN THEIR CHAIRS. Test this device before each use. Read the instructions and Legal
Disclaimer.
The Smart Caregiver Corporation TL-2109 and TL-2109V Chair Belts are designed to be installed by the end user. As such, it is the entire responsibility of the
buyer to insure that the system is properly installed and tested. Further, the system is not designed to replace good caregiving practices including, but not
limited to:
A.) Direct patient supervision
B.) Adequate training for sta personnel for fall prevention and elopement
C.) Testing of the system before each use
WHERE PERMISSIBLE, IT IS THE SELLER’S INTENT TO LIMIT ANY LIABILITY FOR SPECIAL, CONSEQUENTIAL OR INCIDENTAL ECONOMIC DAMAGES TO
REFUND OF THE PURCHASE PRICE OR REPLACEMENT OF THE GOODS. SELLER DISCLAIMS ANY LIABILITY FOR COMPENSATORY OR OTHER DAMAGES
ARISING OUT OF THE USE OF THE GOODS.
WARNING: The manufacturer does not claim that this device will stop elopement and/or stop falls. This device is designed to augment caregivers’
comprehensive resident mobility management program. This product is to be used by a licensed caregiver only.
Limited Warranty: Seller warrants that the goods sold will be free from defects of workmanship and manufacturing, for a period of one year from
the date of sale. Other than this limited warranty, seller makes no express or implied warranties. Except for this limited warranty, NO EXPRESS OR
IMPLIED WARRANTIES ARE GIVEN AND NO AFFIRMATION OF SELLER, BY WORDS OR ACTION, WILL CONSTITUTE A WARRANTY. THE GOODS BEING
PURCHASED ARE BEING SOLD ON A “WITH ALL FAULTS” BASIS. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE GOODS IS WITH THE
BUYER. SHOULD THE GOODS PROVE DEFECTIVE FOLLOWING THEIR PURCHASE, THE BUYER, AND NOT THE MANUFACTURER, DISTRIBUTOR OR RETAILER,
ASSUMES THE ENTIRE COST OF ALL NECESSARY INSTALLATION, SERVICING OR REPAIRS.
SMART CAREGIVER CORPORATION
1229 North McDowell Blvd., Petaluma, CA. 94954 | Tel: 800-650-3637
sales@smartcaregivercorp.com | www.smartcaregivercorp.com
Seat Belts
SEAT BELT PLACEMENT
• Unscrew one screw on either side of wheelchair that holds the seat in place.
• Attach the seat belt to wheelchair by lining up the grommet holes on the seat
belt with the screw holes. Re-insert the screws through both the seat belt and
wheelchair to hold the seat belt in place. Make sure the screws are tightened.
• Adjust the seat belt to the desired length using the black buckle that holds
the adjustment strap in place.
• Connect the seat belt cord to the monitor.
• Place the monitor out of reach of the resident. Suitable mounting
locations include the back of the wheelchair, or on the chair handle so
that the resident cannot tamper with the monitor.
TEST THE SYSTEM
• Buckle and unbuckle the seat belt to set o the alert. The monitor is
now active. The alert will sound whenever the seat belt is unbuckled.
• When the alert is activated, press the “Reset” button on the front of the
monitor to silence the alert or use the Caregiver Key, depending on your
reset setting. The status light on front of monitor will blink when the
seat belt is plugged into the monitor and buckled.
NOTE: THIS DEVICE IS NOT DESIGNED TO RESTRAIN OR HOLD INDIVIDUALS IN
POSITION IN THEIR CHAIRS.
Need Set-up Help? (800) 650-3637
TL-2109 & TL-2109V
Chair Belts
Non Restraint Chair Belts
for use with Smart Caregiver
Fall/Mobility Monitors
TL-2109
One Finger, Easy Release Buckle
Chair Belt
TL-2109V
Hook and Loop, Quick
Release Strap
Installation and Use Instructions
SMART CAREGIVER CORPORATION
Unscrew one screw on either side of the
wheelchair that holds the seat in place.
Attach the seat belt to the chair by lining up
the grommet holes with the screw holes.
Re-insert the screws through both the seat
belt and the chair to hold seat belt in
place. Make sure that the screws are
tightened securely.
Adjust the Seat Belt to the desired length by using
the black buckle that holds the adjustment
strap in place.

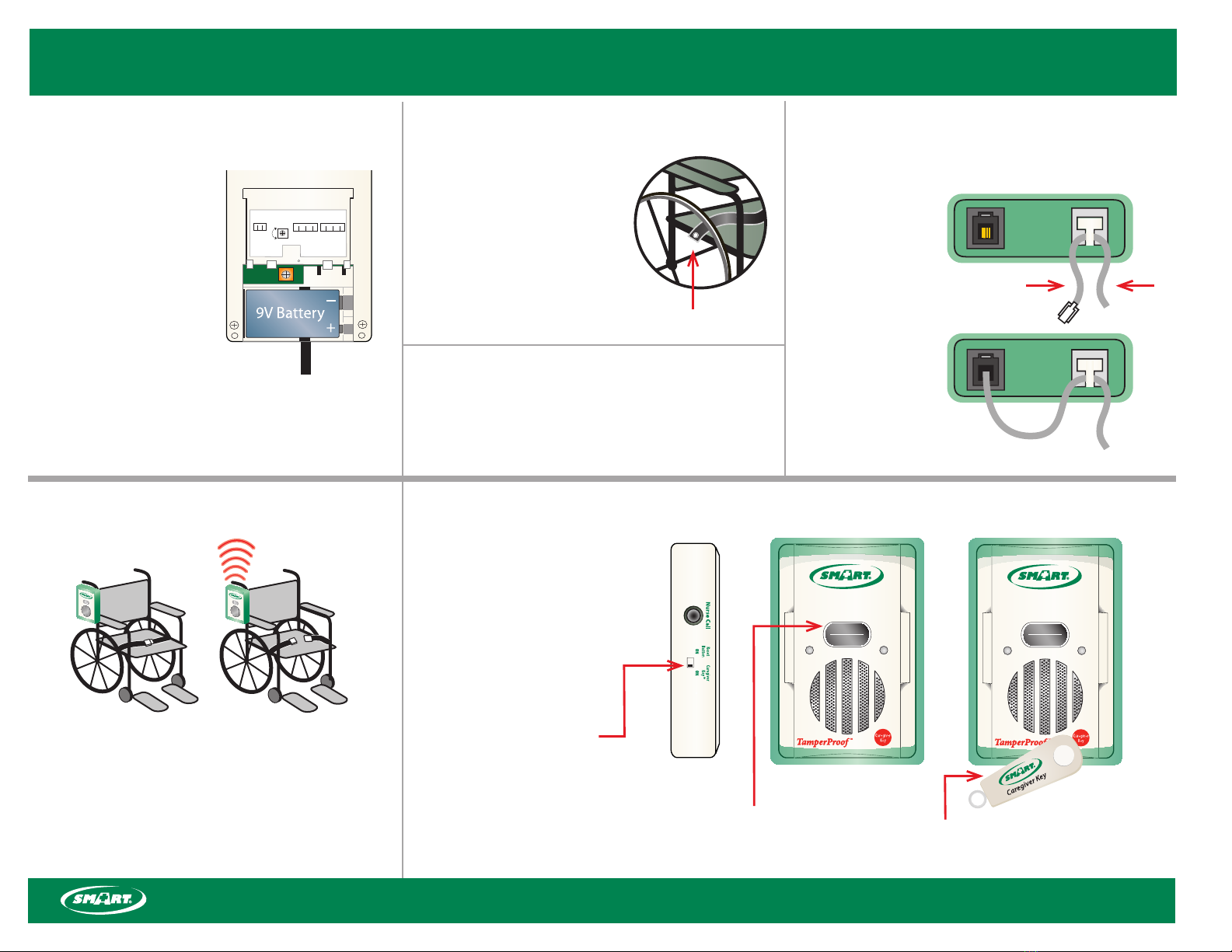

Quick Start Instructions TL-2109 & TL-2109V
Need Set-up Help? (800) 650-3637
Seat Belt Installation
24
Mount the Fall Monitor
5Test the System
Unfasten and fasten seat belt to set o the monitor.The monitor is
now active. The monitor will sound an alert whenever the Seat Belt
is unfastened.
When the monitor is activated press the “Reset” button. This will reset
the monitor and silence the alert.
3
Place the monitor out of reach of the resident. Suitable mounting
locations include the back of wheelchair or chair handle, so that the
resident cannot tamper with monitor or reach the “Reset” button.
Connect the Seat Belt to the
Fall Monitor
A.
B.
Install a 9 Volt Battery
1
VR1
Volume
Tones
Decrease
Increase
Tone 3
Tone 2
Tone 1
Delay
2 Sec.
1 Sec.
0 Sec.
NO NC
Seat Belt Closed Seat Belt Opened
TL-2100SE
Bottom of
monitor
Pinch the cord together
and route it through the
strain relief recess.
Plug the cord
into the monitor.
Note: The black ribbon
goes underneath battery
for easy removal.
The battery compartment
door is secured with the
included Phillips-head screw
Note: Refer to your Smart
Monitor instructions for
setting options for your
Smart monitor
SMART CAREGIVER CORPORATION
Tel: 800-650-3637 | www.smartcaregivercorp.com
Reset
Status
Pad
Lost
Low
Battery
Safety Auto-Reset™
Pad and Monitor
Active when Blinking
Resetting the Monitor/ Tamper Proof™ Mode with Caregiver Key™ (Optional)
Caregivers can choose to reset Smart Fall
Monitors in either of two ways:
1. Pressing the Reset/Status button on
the front of the monitor (“Reset Button
ON” mode).
2. Placing the optional Caregiver Key™
over the red dot on the front of the
monitor (“Caregiver Key™ ON” mode).
This mode allows only the caregiver to
reset the monitor.
Select either “Reset Button ON” or
“Caregiver Key™ ON” with the switch
on the side of the Fall Monitor.
“Reset Button ON” Mode
Press the Reset/Status button to
reset the monitor.
“Caregiver Key™ ON” Mode
Place the Caregiver Key™ over the red dot to reset the monitor.
For more information about the
Caregiver Key,™ and how it can be used in
your facility’s Fall Assessment Program
call 800-650-3637
Reset
Status
Pad
Lost
Low
Battery
Safety Auto-Reset™
Pad and Monitor
Active when Blinking
Optional
Setting Adjustments
* Tamper Proof mode not available on TL-2100E
