Smart view ISC-NVR2316-T Manuel utilisateur

SmartVIEW NVRs

Quick Installation Guide

iSC-NVR2316-T / iSC-NVR2532-T

iSC-NVR2532-U /SC-NVR2532-R

iSC-NVR2532-A / iSC-NVR2532-D

Version 1.5

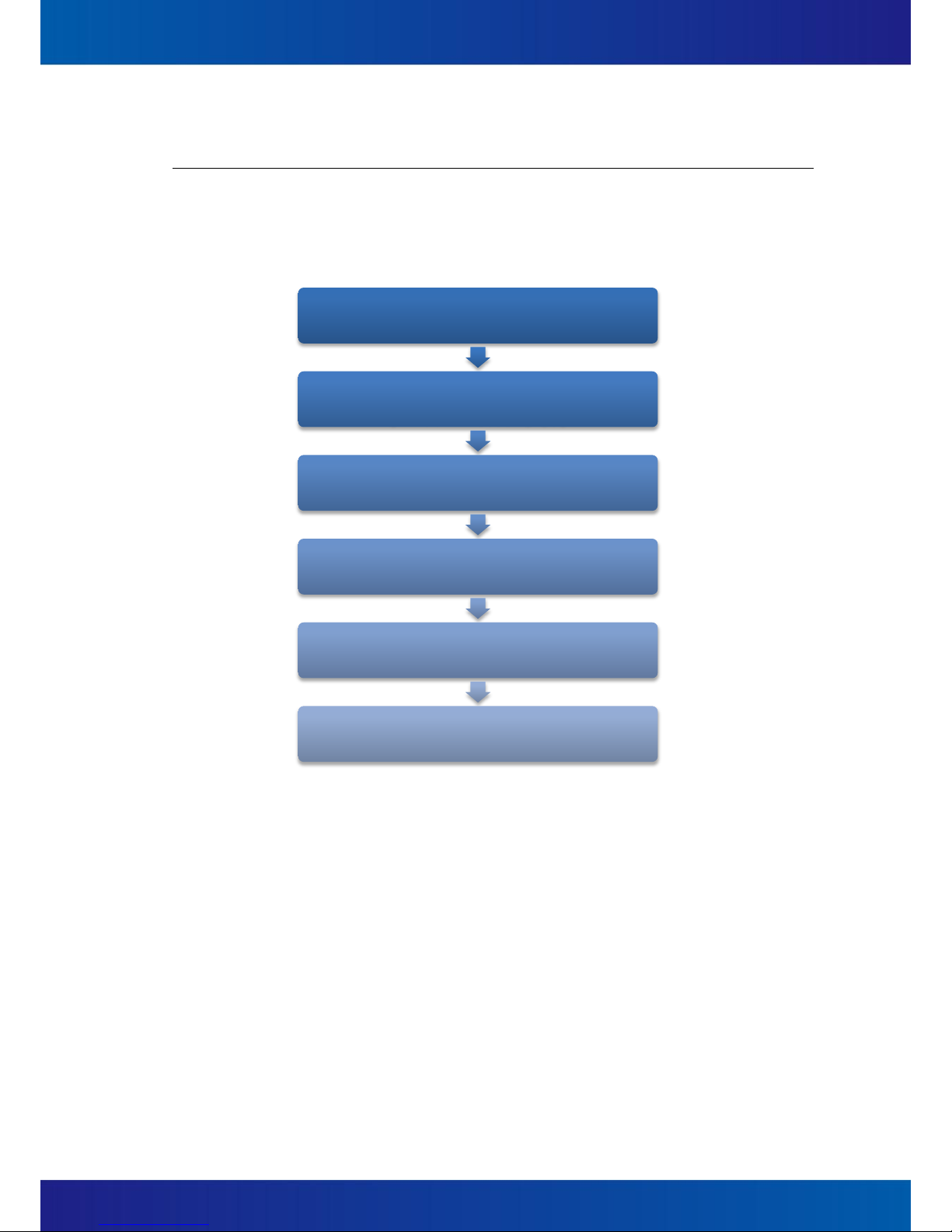

1. How to Start?

Thank you for using SmartVIEW NVR.

Following steps are for bringing on this system from storage setting to starting recording and

live viewing. Details will be described in following contents.

Hardware preinstall & power on

RAID setting

(for iSC-NVR2532-R/A/D)

Windows partition setting

Enable SysGuard

NVR quick setting by Installation wizard

Enjoy your surveillance system

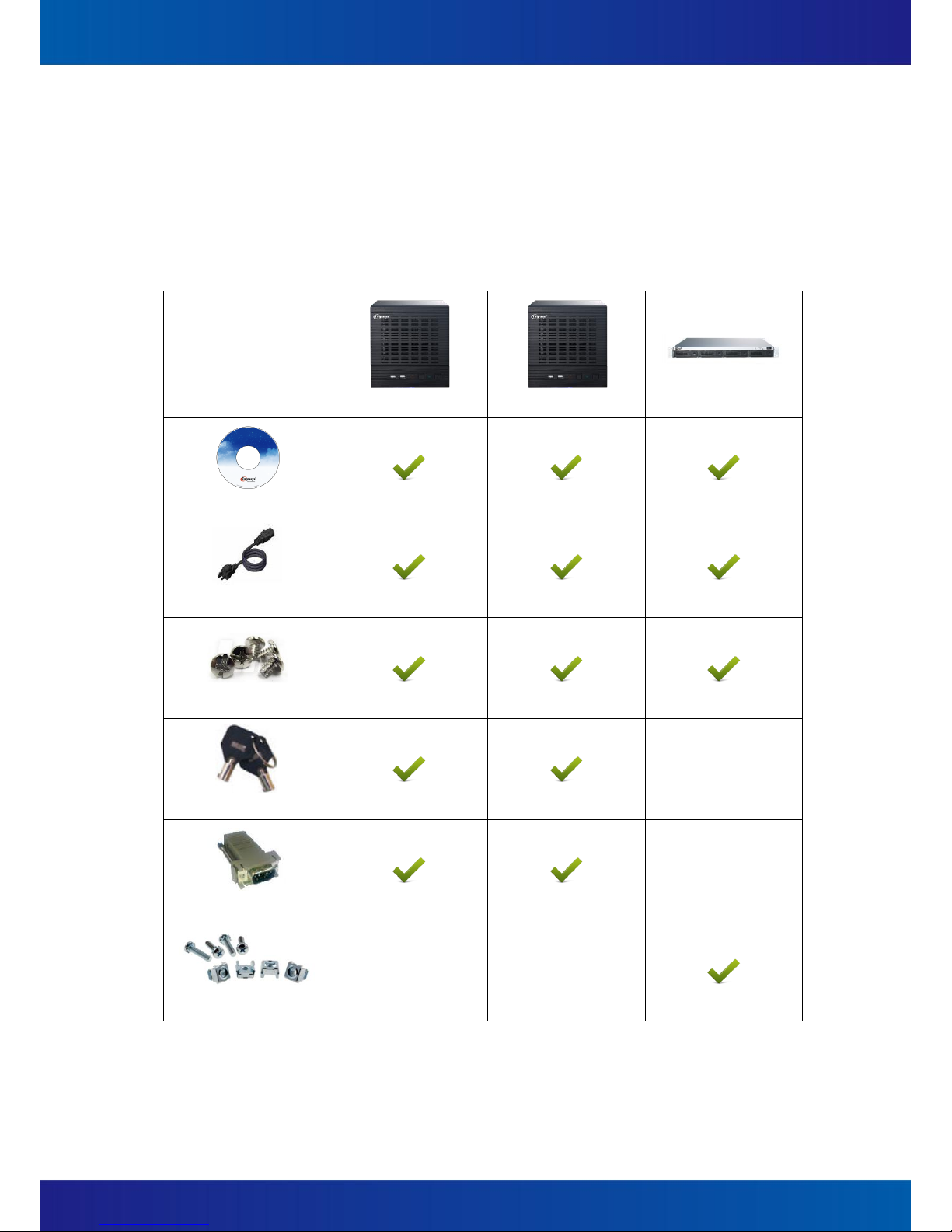

2. Package Contents

Following items should be included in your SmartVIEW NVR’s accessory content. If any

component is missing in your SmartVIEW NVR package, please contact Ingrasys Technology

Inc.

Model No.

iSC-NVR2316-T

iSC-NVR2532-T

iSC-NVR2532-U

DVD-ROM

Power Cord

HDD Srews

HDD tray keys

RJ45 to RS232(option)

Rackmount screw set

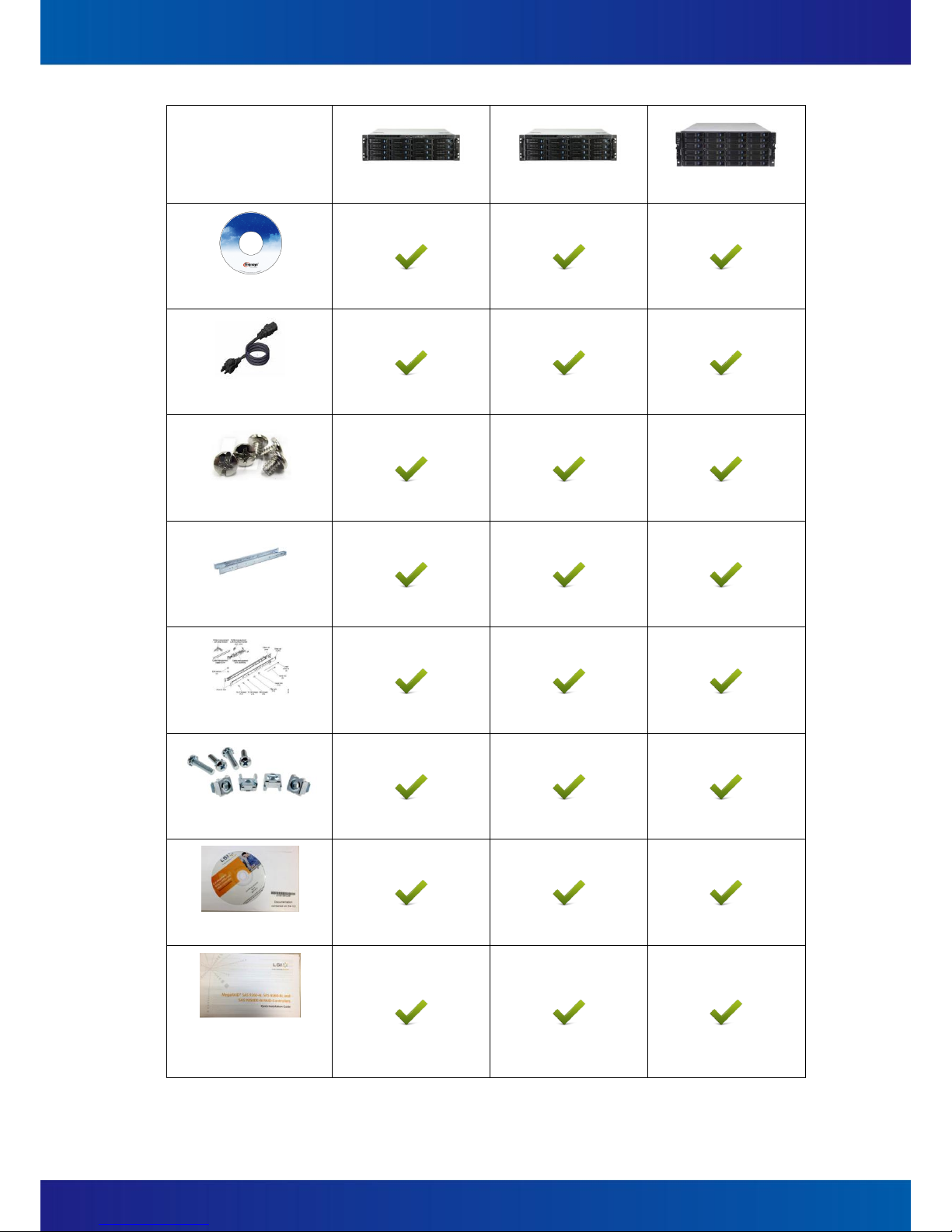

Model No.

iSC-NVR2532-R

iSC-NVR2532-A

iSC-NVR2532-D

DVD-ROM

Power Code

HDD Srews

Slide Rail

Slide Installation Guide

Rackmount screw set

RAID card driver

RAID card Quick

Intallation Guide

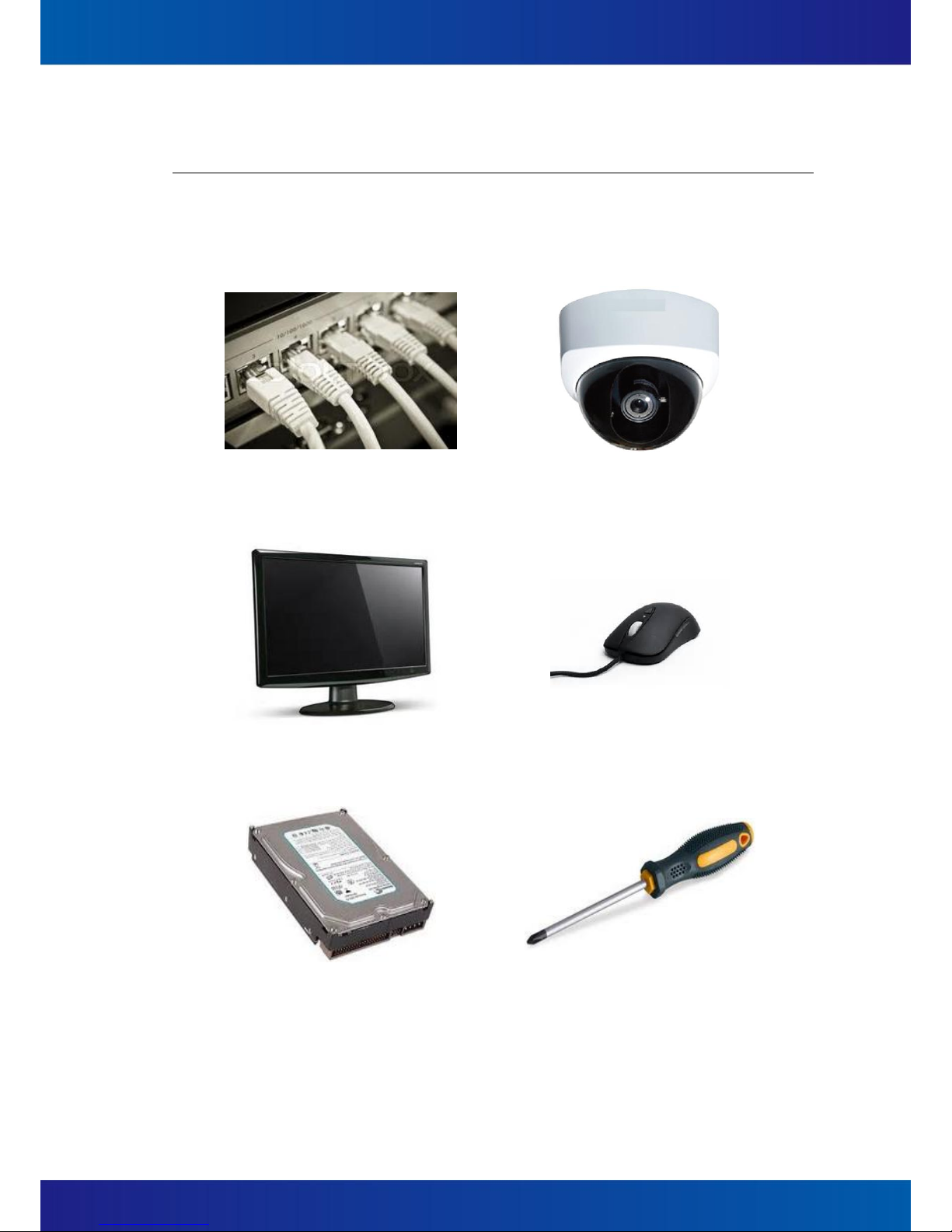

3. Pre-install Notice

Before installing SmartVIEW NVR, please make sure the following items are ready.

Network connection

Well-configured IP camera(s)

A computer monitor with VGA interface

A USB mouse

1~24 3.5”hard disk(s)

A screwdriver

4. Hardware Interface

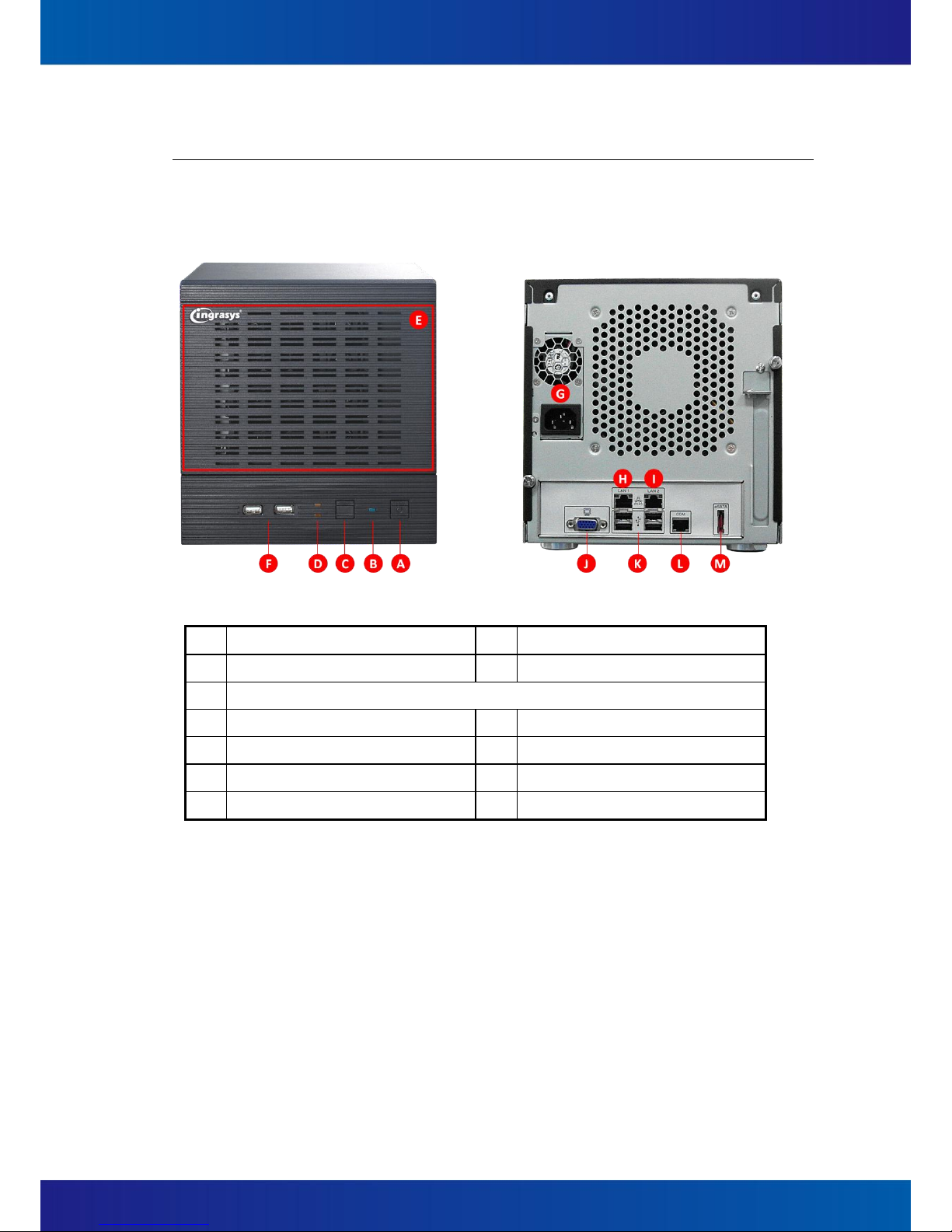

4.1 NVR2316-T

Power switch

Power LED

Reset button

System read/write LED

Front cover for 4 x 3.5”lockable HDD trays

2 x USB 2.0

Power socket

LAN

VGA

4 x USB 2.0

COM

E-SATA

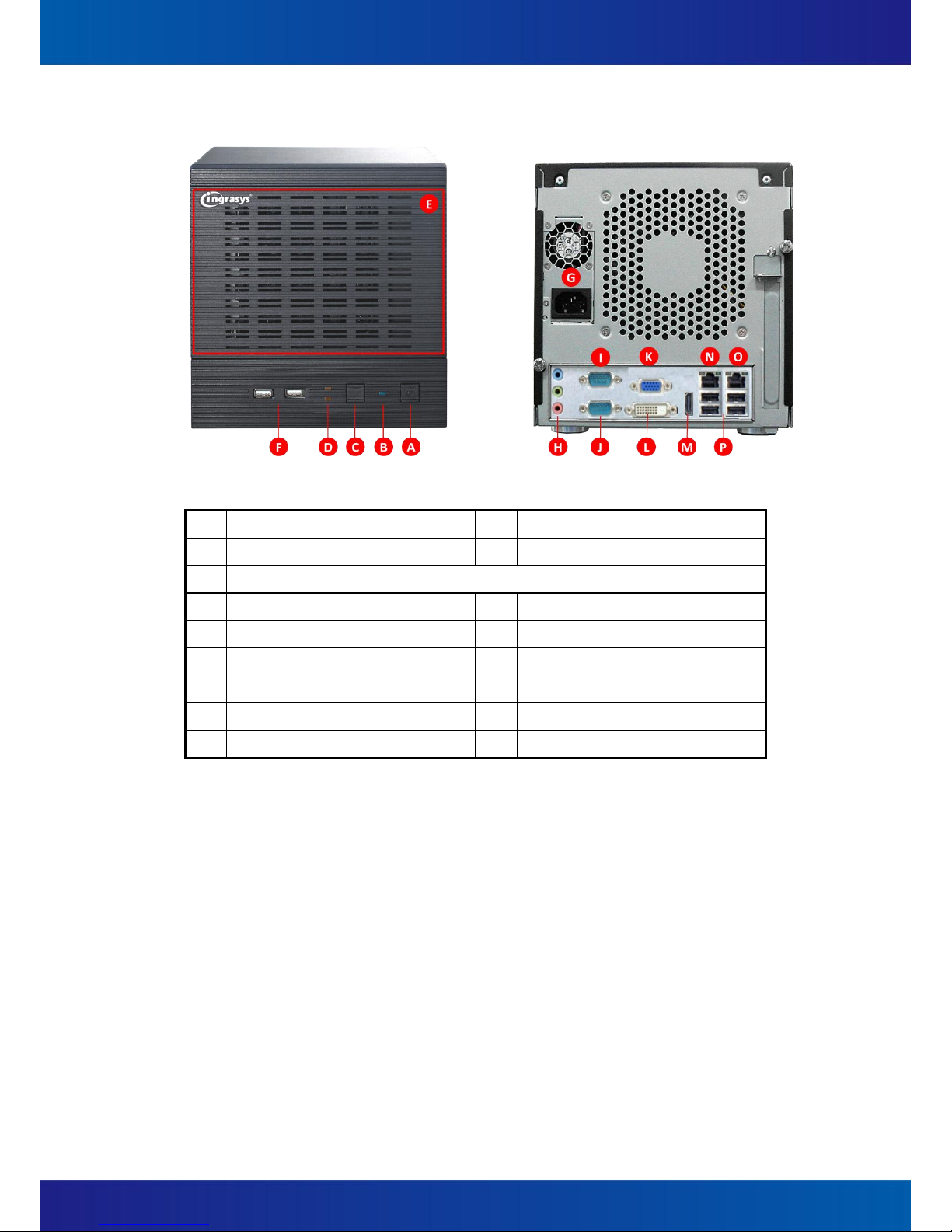

4.2 NVR2532-T

Power switch

Power LED

Reset button

System read/write LED

Front cover for 4 x 3.5”lockable HDD trays

2 x USB 2.0

Power socket

Audio Jack

COM1

COM2

VGA

DVI-D

HDMI

LAN

4 x USB 2.0

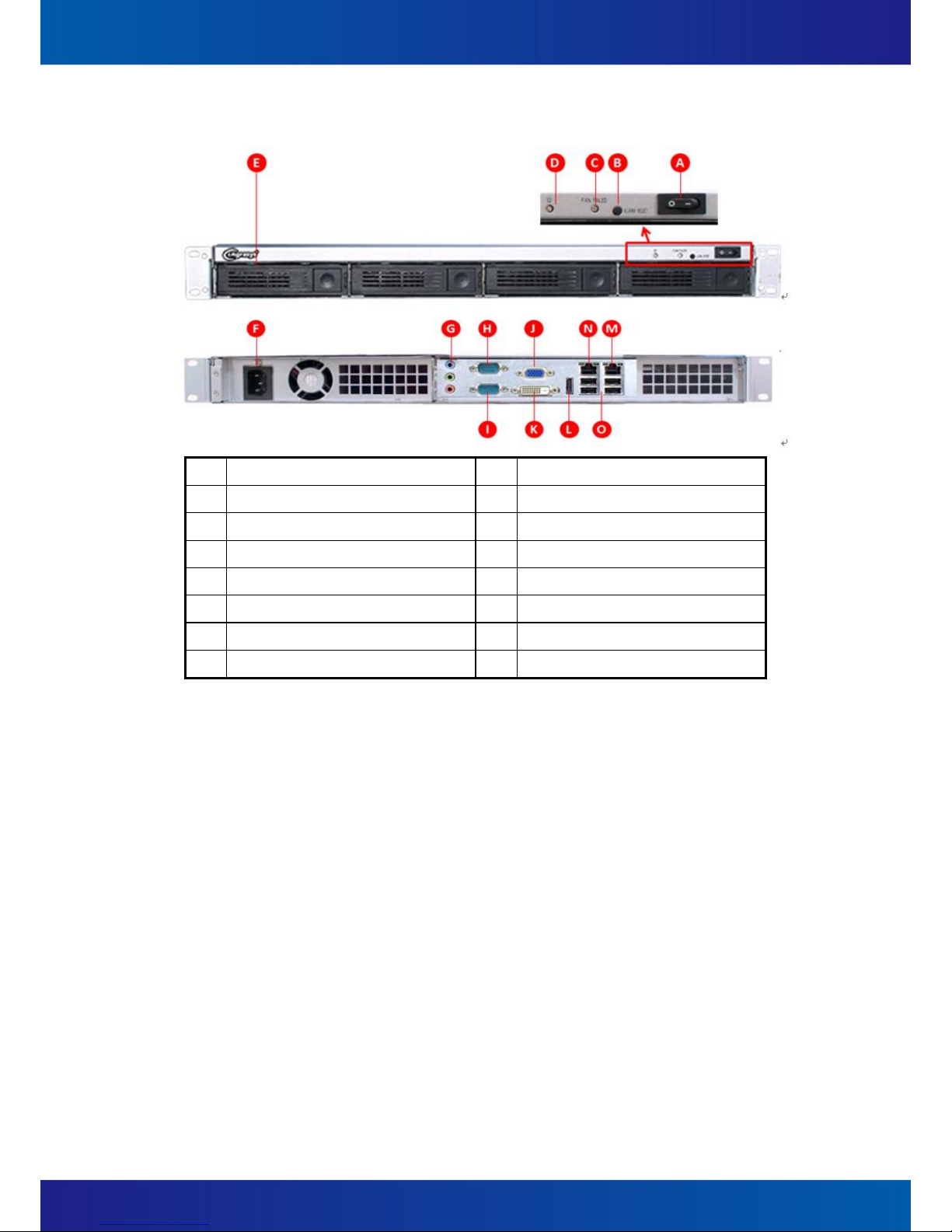

4.3 NVR2532-U

Power switch

Alarm mute button

Fan failed LED

Power LED

4 x 3.5”HDD tray

Power socket

Audio Jack

COM1

COM2

VGA

DVI-D

HDMI

LAN

4 x USB 2.0

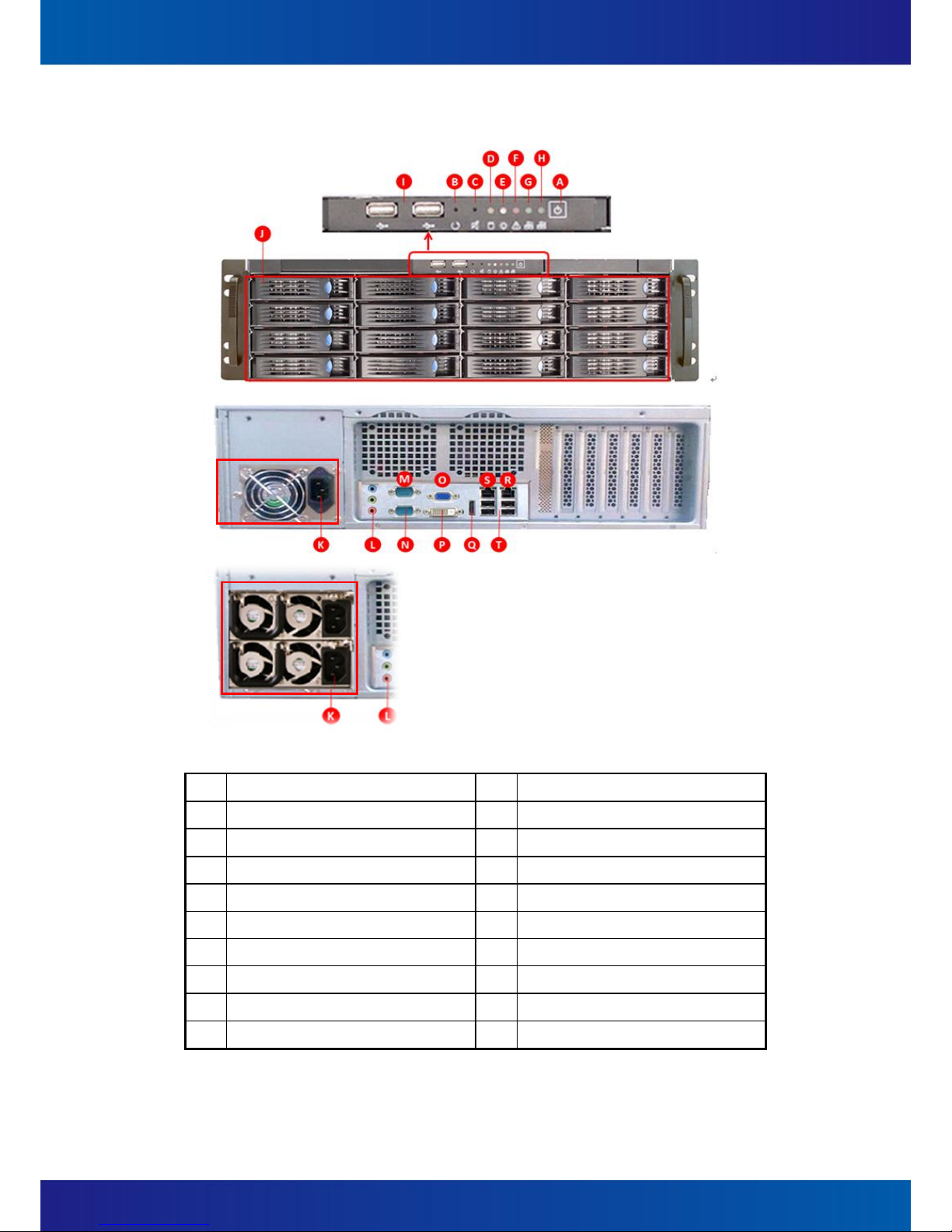

4.4 NVR2532-R / NVR2532-A (Redundant PSU)

Power switch

System reset button

Alarm mute button

System read/write LED

Power LED

System alarm LED

LAN1 LED

LAN2 LED

2 x USB 2.0

16 x 3.5”HDD tray

Power socket

Audio Jack

COM1

COM2

VGA

DVI-D

HDMI

LAN

4 x USB 2.0

NVR2532-R

NVR2532-A (Redundant PSU)

4.5 NVR2532-D

Power button

System reset button

Alarm mute button

Power LED

System alarm LED

LAN1 LED

LAN2 LED

2 x USB 2.0

24 x 3.5”HDD tray

Power socket

Audio jack

COM1

COM2

VGA

DVI-D

HDMI

LAN

4 x USB 2.0
