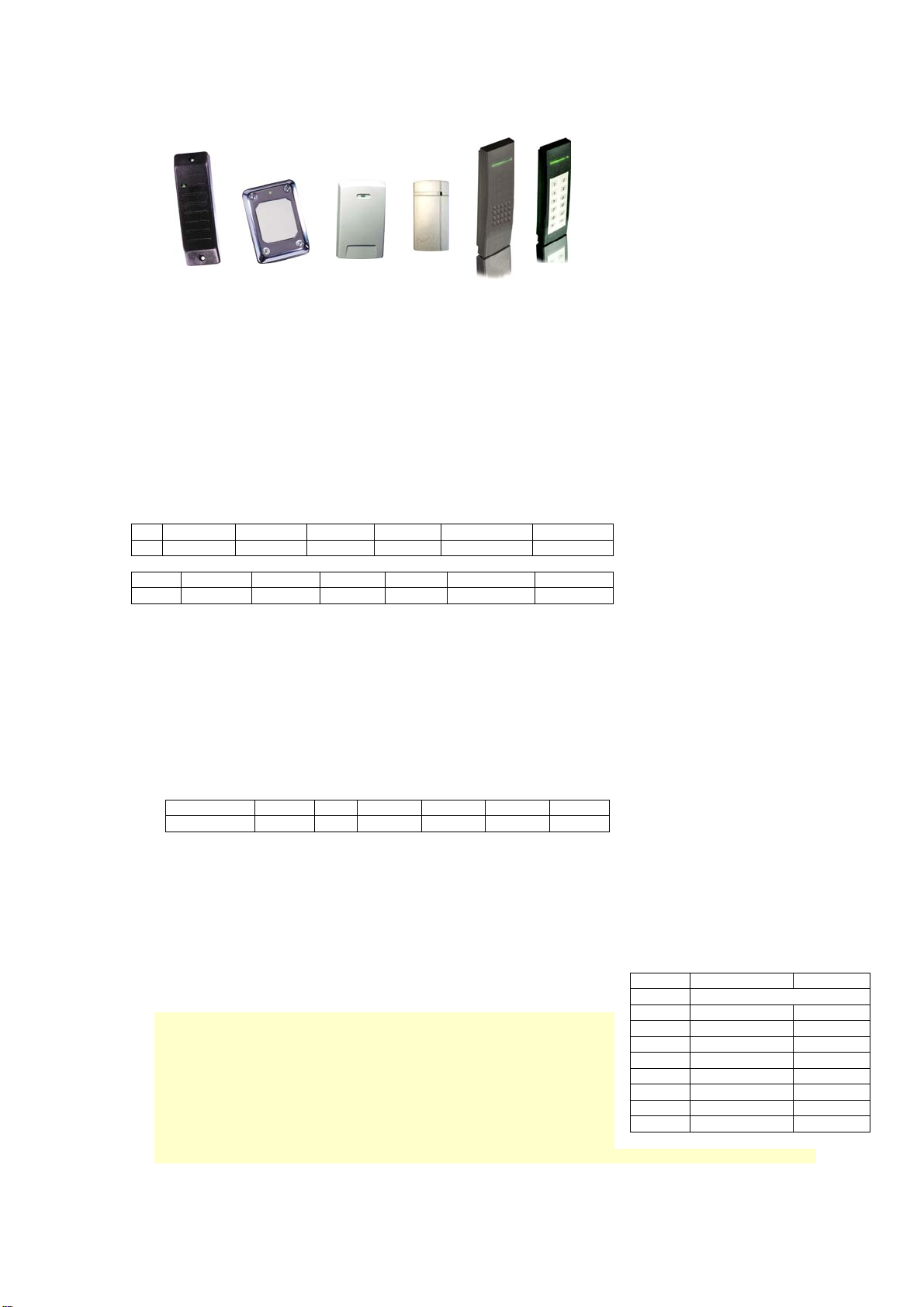

- Using the body reader as a template mark and then drill two (four) openings 6mm in diameter and 35mm
deep
- Secure the mounting plate on a wall using plastic nailing plugs and screws
To mount the iPR-6, iPR-7 readers proceeds as follows:
- Remove cover from reader
- Connect the reader to the control panel's cable
- Secure the mounting plate on a wall using plastic nailing plugs and screws
- Secure cover to the reader. Ensure thet all locking tabs are securely.
To mount the iPR-8, iPR-9 readers proceeds as follows:
- Remove the boot in the bottom part of the reader with loosing the screw
- Push mounting panel towards the screw and remove it from the reader
- Using the mounting panel as a template mark and then drill two openings 6mm in diameter and 35mm deep
- Pass the wire through central opening
- Secure the mounting plate on a wall using plastic nailing plugs and screws
- Connect the reader to the control panel's cable
- Put on the reader on the mounting plate, push the case down against stop and secure the reader with the
screw
- Put on the boot
The Reader Operation
Reading of identificator code
The code reading is annunciated by built-in buzzer and two-color LED according to interface type and
annunciation mode (refer to «Data transfer and Annunciation»).
Repeated reading will be available after 0.8 sec if the identificator is moved away from the reader sensing
area.
Hold Mode
Reader is turned to the hold mode while yellow wire is closed to the ground. In this mode reader does not
read cards, thus current consumption decreases to 25mA.
! Do not apply voltage to hold outlet!
Data transfer and Annunciation
The reader is provided with two-color LED and built-in buzzer. LED and buzzer function according to interface
type programmed and annunciation mode.
Wiegand or TouchMemory Interface
Engaging of LED and buzzer is possible automatically or by closing of corresponding wire to the black wire
(GND) according to Table 2.
Table 2. Annunciation mode:
хBuzzer Red LED Gren LED
00 Beep on card read Normally ON, switched OFF
at reading
Blinks at reading
01 Outside control Normally ON, switched OFF
at reading
Blinks at reading
02 Beep on card read Switched OFF Blinks at reading
03 Outside control Switched OFF Blinks at reading
04 Beep on card read Normally ON, switched OFF
at reading
Outside control
05 Outside control Normally ON, switched OFF
at reading
Outside control
06 Beep on card read Outside control Outside control
07 Outside control Outside control Outside control
08 Beep on card read.
Availability to switch ON
from outside
Normally ON, switched OFF
at reading. Availability to
switch OFF from outside
Blinks at reading.
Availability to switch
ON from outside
Data transmissions from reader comply with the standard specified. Protocol for TouchMemory interface from
family 01 (to satisfy the requirements DS1990).
RS232 interface
To control annunciation send three-byte control packet to the reader. Packets should be transmitted with 2
400 bits per second, 8 bit data, no parity, 1 stop bit.
Packet format:
Bit 7 6 5 4 3 2 1 0
byte 0 0 1 0 0 1 0 0 1
byte 1 - - red
blinks
- red
steady
- - -
byte 2 green
steady
- green
blinks
- - buzzer
pulsatory
- buzzer
uninterruptedly
2
m
r
Inn
v
i
n
