SAFETY
MARK
1128
USER GUIDE SMART ROOM
SH - CB6
Bkav SmartHome technology company limited

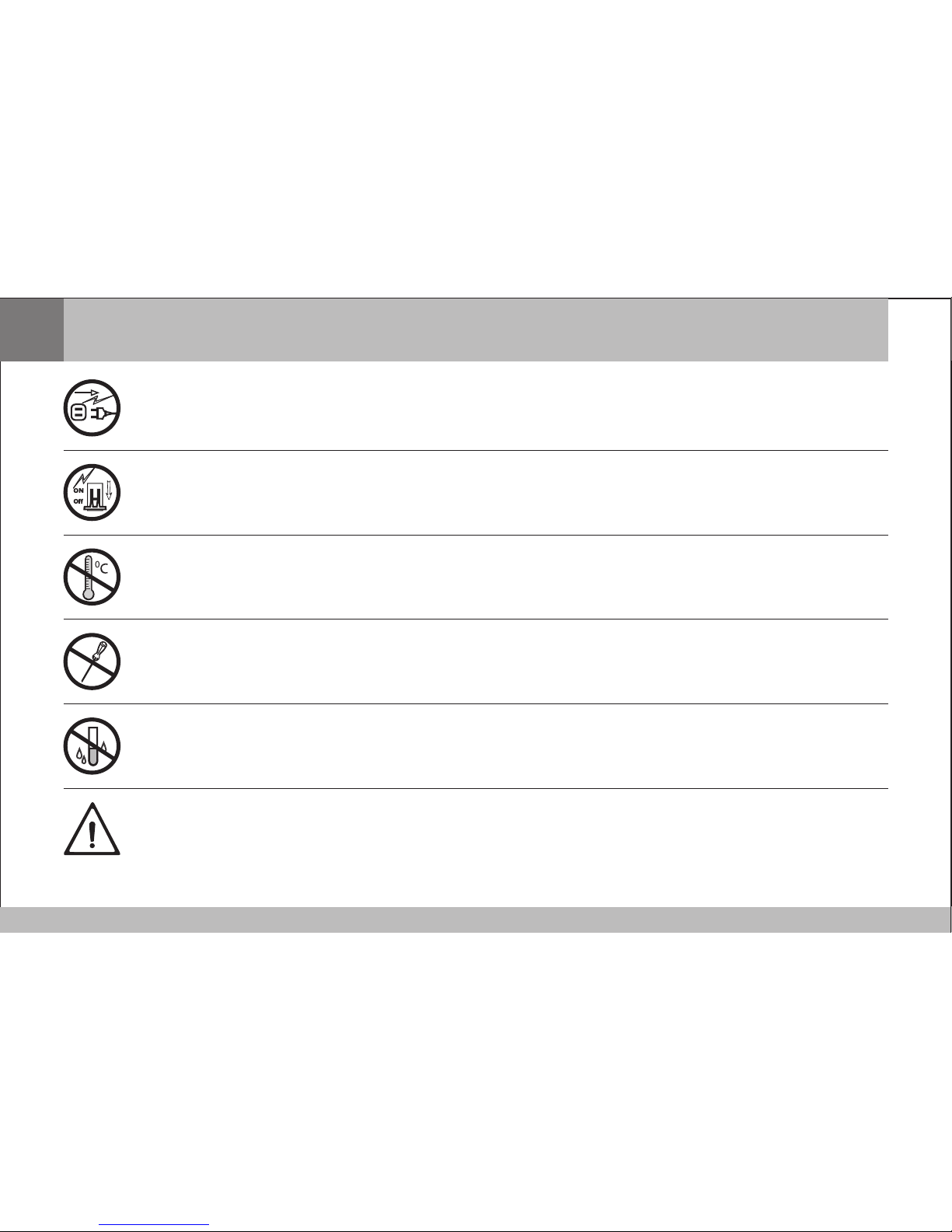

Electric shock may cause injuries or death. Before installing, repairing or cleaning the device, you
must ensure that the device’s power has been disconnected.
This work should be done by technicians or Customer Contact Center to avoid electric related
accidents.
The environmental regulations must be complied when discarding or recycling the device or its
wrapping.
Thank you for choosing Bkav SmartHome’s Smart room product SH - CB6. When choosing Bkav SmartHome’s
product, you will get the best warranty service and installation support from our technicians.
This document gives useful information during installation and usage time. You should read carefully the manual
and keep it in case you need.
The Smart room SH – CB6 is the product of Bkav SmartHome Company and has been registered regarding
designs, utility solutions and quality certification. All violations such as copying designs and product ideas are
subject to the current copyright laws of the Socialist Republic of Vietnam.
Copyright © 2014 Bkav SmartHome Co., Ltd. All rights reserved.
1
Usage notice
Warning
Usage notice
Safety instruction
Introduction
General introduction
Product package
Specifications
Device usage
Overview of function
LCD screen
Standby screen
Turn on/off the device
Set forcible turn off time
Set forcible turn on and auto mode
Set forcible turn on time
Turn on/off Relay channels
Turn on/off Triac channels
Preset favorite mode
Change preset favorite mode
Set up schedule
View schedules
Turn on/off schedule based operating mode
1
4
5
5
6
7
8
8
9
10
11
11
12
12
13
13
14
14
15
16
16
2Table of Contents
Set date and time
Set auto turn on time for control channels
Usage of remote control SH - RM6
Turn on/off the device
Select favorite scenario
Wiring diagram
Installation instruction
Mount the power control box into in-wall box
Mount stainless steel mounting frame
Place touch control screen onto stainless steel band
Contact information
17
18
19
19
19
20
21
21
24
25
26
3
Warning
Do not use the device at the different voltage from that specified on the device.
Disconnect the device’s power before installing, uninstalling or repairing the device.
Do not leave the device in high-temperature environment.
Do not demount the device if not necessary.
Do not clean the device with corrosive substances.
Comply with the safety instructions and warnings of this manual.
4Safety instruction
General introduction
5
Introduction
Smart Room device SH - CB6 is a control panel supporting the control of 6 power channels with remote control
function.
Designed with capacitive touch technology, anti-scratch Gorilla Glass, aluminum monolithic cover, LCD screen,
the device will make your house modern and luxurious. In addition, the remote control function combined with
human sensor SH – D1 will bring comfort in daily use.
Device’s functions:
Capacitive touch technology.
Remote control.
Supports 6 power channels
Supports 4 favorite scenario modes.
Supports 24 programs scheduling operation for 6 channels.
Supports human sensor so that the device’s operation is completely automatic.

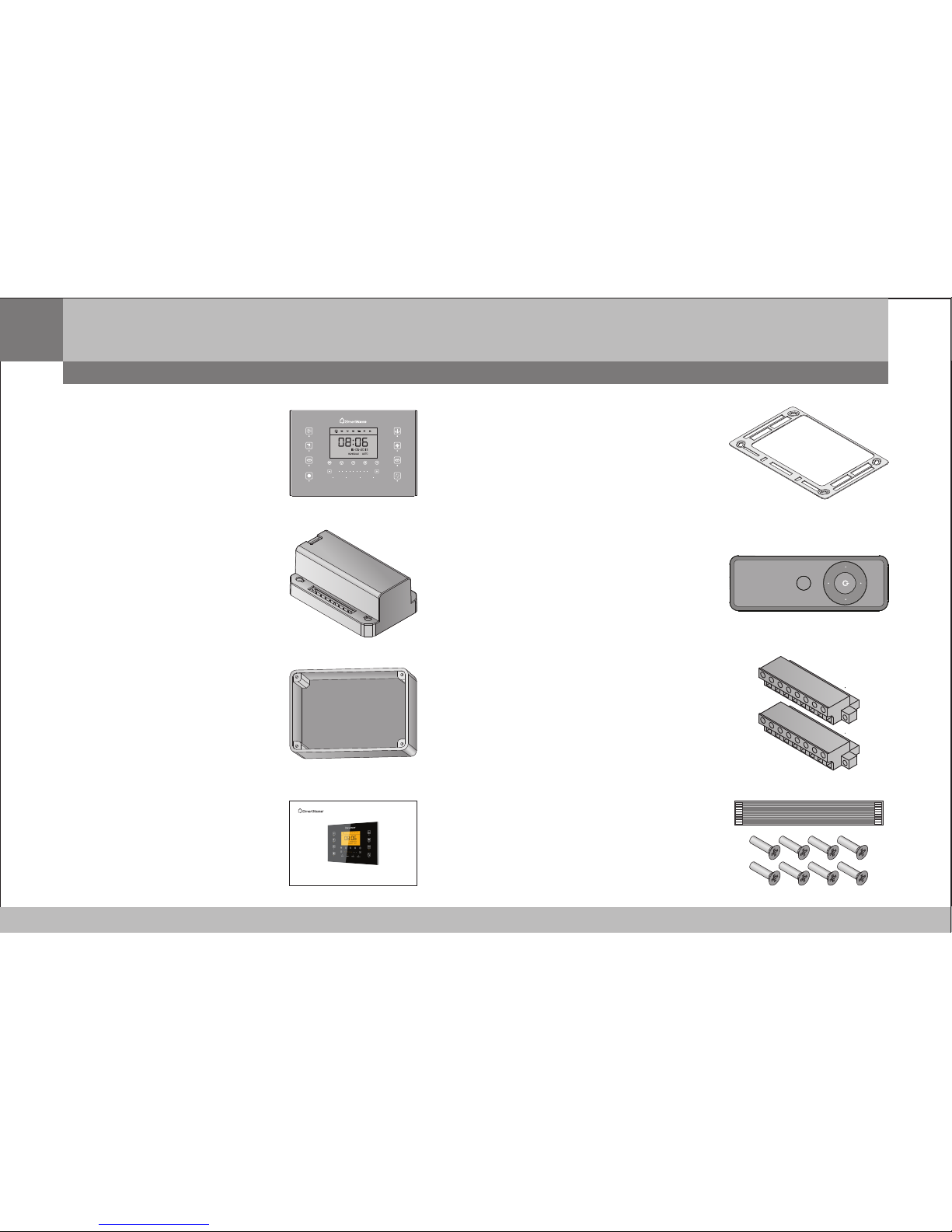

Product package
Power control box
In-wall box
Stainless steel
mounting frame
Touch control screen
User’s guide (book) Signal cable
and screws
Remote control
SH - RM6
(Battery included)
2 wire connectors
6
MODE 1 MODE 2 MODE 3 MODE 4
SET
MODEL: SH - CB6
by Bkav
Specifications
Voltage
Dimensions of power control box (L x W x H)
Weight of power control box
220VAC - 50/60Hz
140 x 90 x 55 mm
420 gram
Dimensions of touch control screen (L x W x H)
Weight of touch control screen
180 x 120 x 8,6 mm
290 gram
Operating temperature 60ºC max
Output power rating 4 Relay channels 220VAC 15A max
2 Triac channels 220VAC 5A max
7
