Smart Eye Aurora Manuel utilisateur
Aurora
User Guide
Version 9.2
Contents
1 Introduction ......................................... 1
1.1 Intendeduse ...................................... 1
2 Software and System Requirements ........................... 2
2.1 Systemrequirements ................................. 2
2.2 Compatiblesoftware.................................. 2
3 Aurora Hardware ...................................... 3
3.1 What’sinthebox.................................... 3
3.2 Productcare ...................................... 3
4 Setup ............................................. 4
4.1 Softwareinstallation .................................. 4
4.2 Mounting ........................................ 5
4.3 Eyetrackercalibration ................................. 6
5 Software Update ...................................... 8
5.1 Upgradefirmware ................................... 8
6 Support ............................................ 10
6.1 Troubleshooting..................................... 10
6.2 Customersupport ................................... 10
Appendix A Safety and Compliance ............................ 11
A.1 Compliance....................................... 11
A.2 OperatingTemperature ................................ 11
Appendix B Technical Specifications ........................... 12
1 Introduction
The Smart Eye Aurora is an eye tracker designed to deliver insights wherever you are. The
small size of the Aurora makes it easy to switch between different screens and projects, without
compromising on the performance. If your needs change in the future, the existing Aurora can
be upgraded to deliver higher framerate.
This manual contains useful information about the Aurora eye tracker, ranging from safety and
compliance to product care. It also contains information about the mounting procedure and
software setup. If any questions or difficulties arises, do not hesitate to contact the support.
1.1 Intended use
The Aurora is primarily designed for fixation-based eye tracking on screens, such as laptop
screens and other monitors. The Aurora works well in all indoor illumination conditions, and of-
fers precise and accurate tracking on screens up to 24”. In addition to eye tracking, the Aurora
also delivers precise head tracking and eyelid tracking.
The Aurora is designed for collaboration, and can be integrated with other sensors and bio-
measuring systems.
Smart Eye Aurora eye tracker
2 Software and System Requirements
2.1 System requirements
Operating System Windows 10 Anniversary Update (version 1607) or newer
RAM 4 GB
CPU Quad core 6th generation Intel Core or Intel Xeon processor
or newer
Camera Interface USB 3.0 (for 60 Hz), USB-C (for 120 Hz)
Maximum Screen Size 24” (16:9 aspect ratio)
2.2 Compatible software
iMotions www.imotions.com
3 Aurora Hardware
3.1 What’s in the box
Aurora eye tracker
Two Chem Pad™ wipes for cleaning the mounting area
Two mounting brackets with tape
Safety and setup info note
Textile travel bag
USB-C cable, 2 m
3.2 Product care
The front glass of the eye tracker needs to be clean in order to ensure optimal tracking. If dirt
or dust ends up on the front glass, the eye tracker has to be cleaned in a correct manner.
To clean the front glass use a dry microfiber cloth intended for cleaning cameras, camera
lenses, or eyeglasses and carefully wipe the front glass. If unsupported cleaning methods are
used the eye tracker might be damaged.
Warning! Do not use alcohol to clean the front glass, as it may damage the eye tracker!
4 Setup
This section describes the steps needed to setup your eye tracker. Install required software,
mount the eye tracker on the screen and calibrate the eye tracker.
4.1 Software installation
The software Smart Eye Tracker needs to be installed before using your eye tracker. Follow
the installation steps below.
1. Launch the Smart Eye Tracker installer by double clicking it.
2. Click the Install button to start the installation.
3. A User Account Control window will be opened, click Yes to continue.
4. A Windows Security window will be opened, click Install to install eye tracker drivers. The
installation may take a while.
5. Click the Close button when the installation has finished to exit the installer.

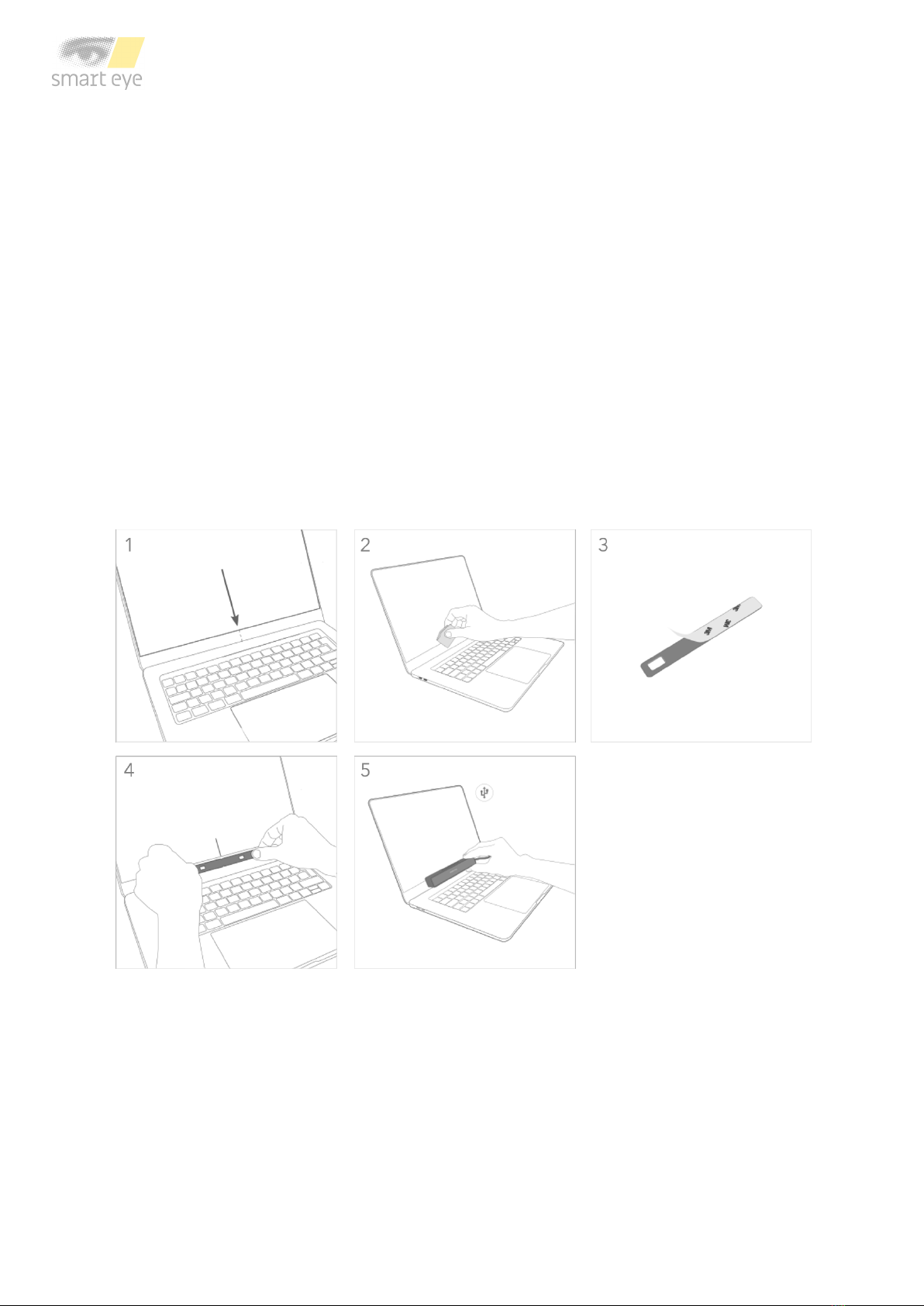

4.2 Mounting
The mounting bracket and Chem Pad™ wipe can be found in the box. To mount the eye tracker
follow the steps below:
1. Find the center of the lower screen edge by marking manually or by using the center
marker in the Smart Eye Setup Tool.
2. Clean the mounting area around the center with the Chem Pad™ wipe.
3. Remove the adhesive tape cover from the bracket.
4. Align the center of the bracket with the center of the lower screen edge. Make sure the
bracket is straight. Press and hold for 30 seconds.
5. Attach the eye tracker to the bracket and connect the eye tracker to the computer using
the supplied cable. If the cable is of type USB-A, make sure to connect it to a USB 3.0
port on the computer.
4.3 Eye tracker calibration
1. Run the Smart Eye Setup Tool. The Smart Eye Setup Tool is found in the Windows Start
Menu.

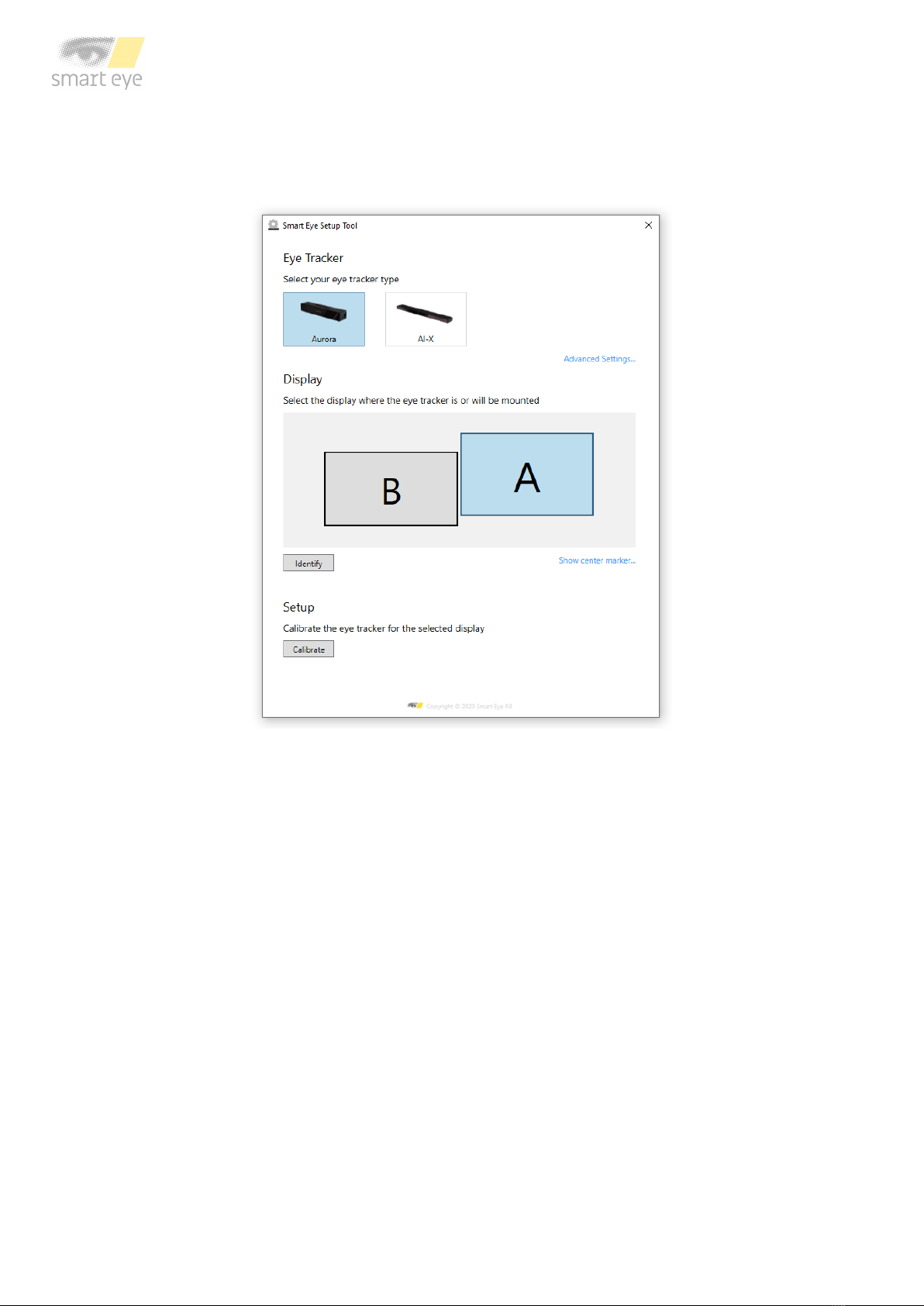

Smart Eye Setup Tool
2. Select your eye tracker.
3. Specify on which screen your eye tracker is mounted (if you have a single screen setup,
this step is not necessary). Click the Identify button if you are not sure which screen
your eye tracker is mounted to. To be able to identify your screen a unique letter will be
displayed on each screen connected to your computer.
4. Click the Calibrate button. The calibration window will be opened in full screen mode on
the screen that your eye tracker is mounted to.

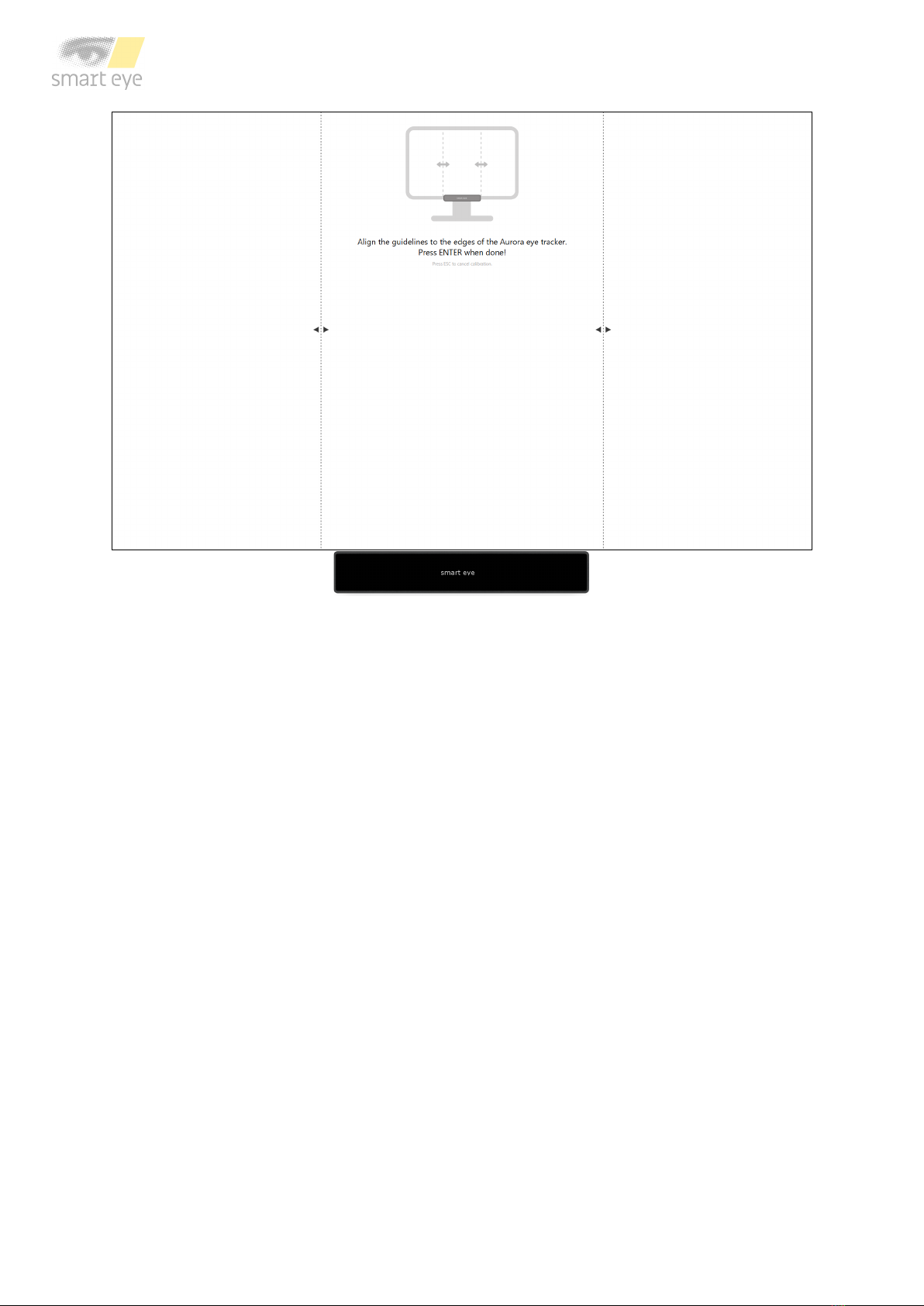

Calibration window
5. Calibrate your eye tracker by aligning the dashed lines to the edges of the eye tracker.
Confirm the calibration by pressing Enter. Once confirmed, the calibration is saved, and
the Smart Setup Tool can be closed.
