SMARDY UF 2000 Manuel utilisateur

Ultrafiltration system

Instruction manual EN

Contents

1. Unpacking

2. Scope of supply

3. Insertion of the membrane

4. Connecting the lines

5. Installation

6. Technical data

7. Fist commisioning

8. Consumables

9. Filter change

10. Filter change

11. Filter order

Note:

This system is equipped with plug connectors. These enable an easy and secure

connection of the hose lines. Insert the hose into the respective opening of the

connector until you notice a resistance. Only after the resistance, the hose will be

fixed in the anchor.

•In order to be able to remove the

hose again, you will first have to

remove the safety clamp

•On the connector you will see a small

white plastic ring. Push it evenly in

the direction of the connector and

simultaneously pull the hose.

1. Unpacking

Remove all packaging material. Make sure that the reverse osmosis system does not

show any external damage.

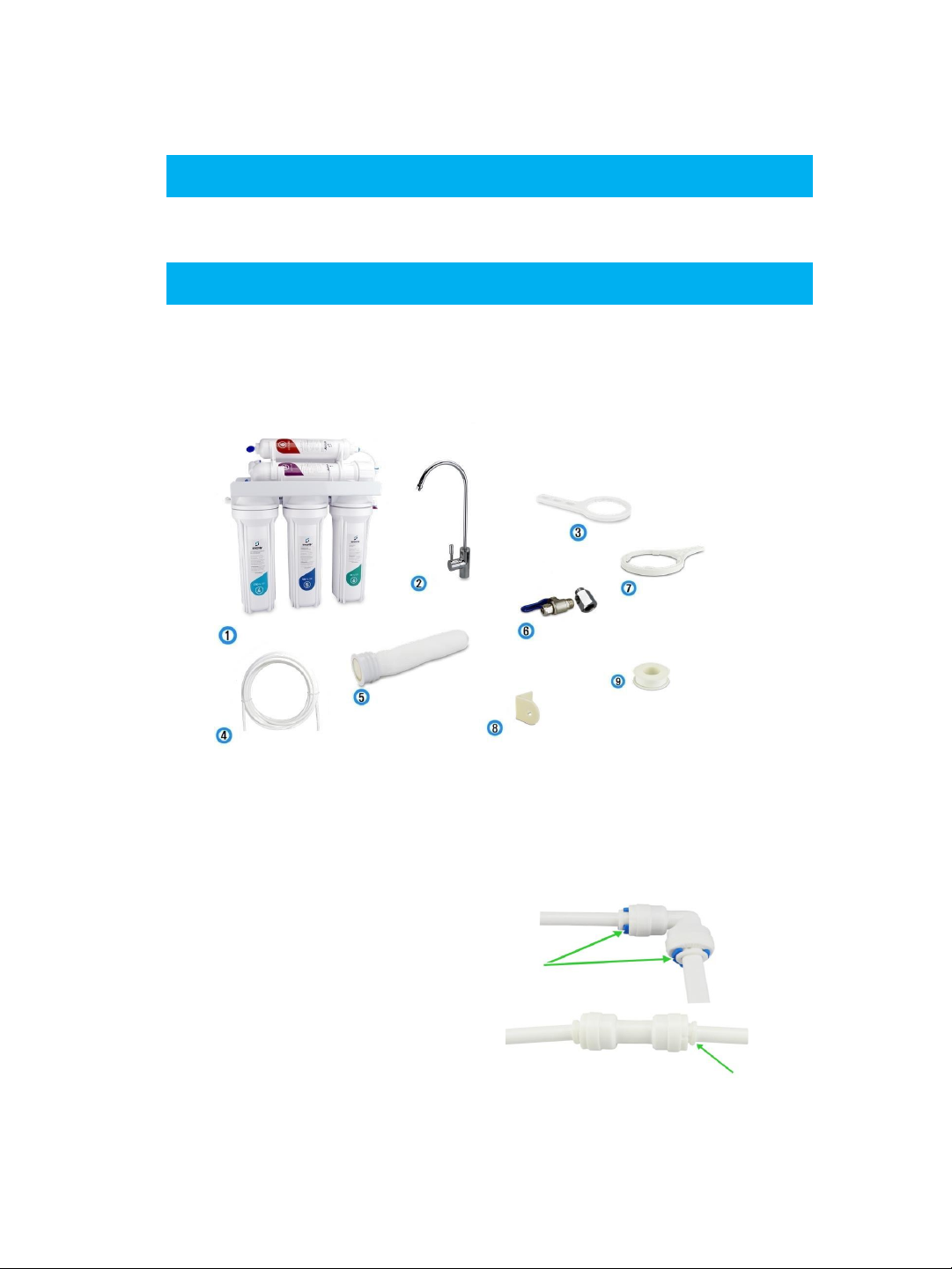

2. Scope of supply

1. smardy UF 2000

2. Water tap

3. Key for membrane housing

4. Hose line

5. Ultrafiltration membrane

6. Angle valve connection adapter 3/8”

x 3/8” + stopcock

7. Key for filter housing

8. Fixing material

9. Teflon tape

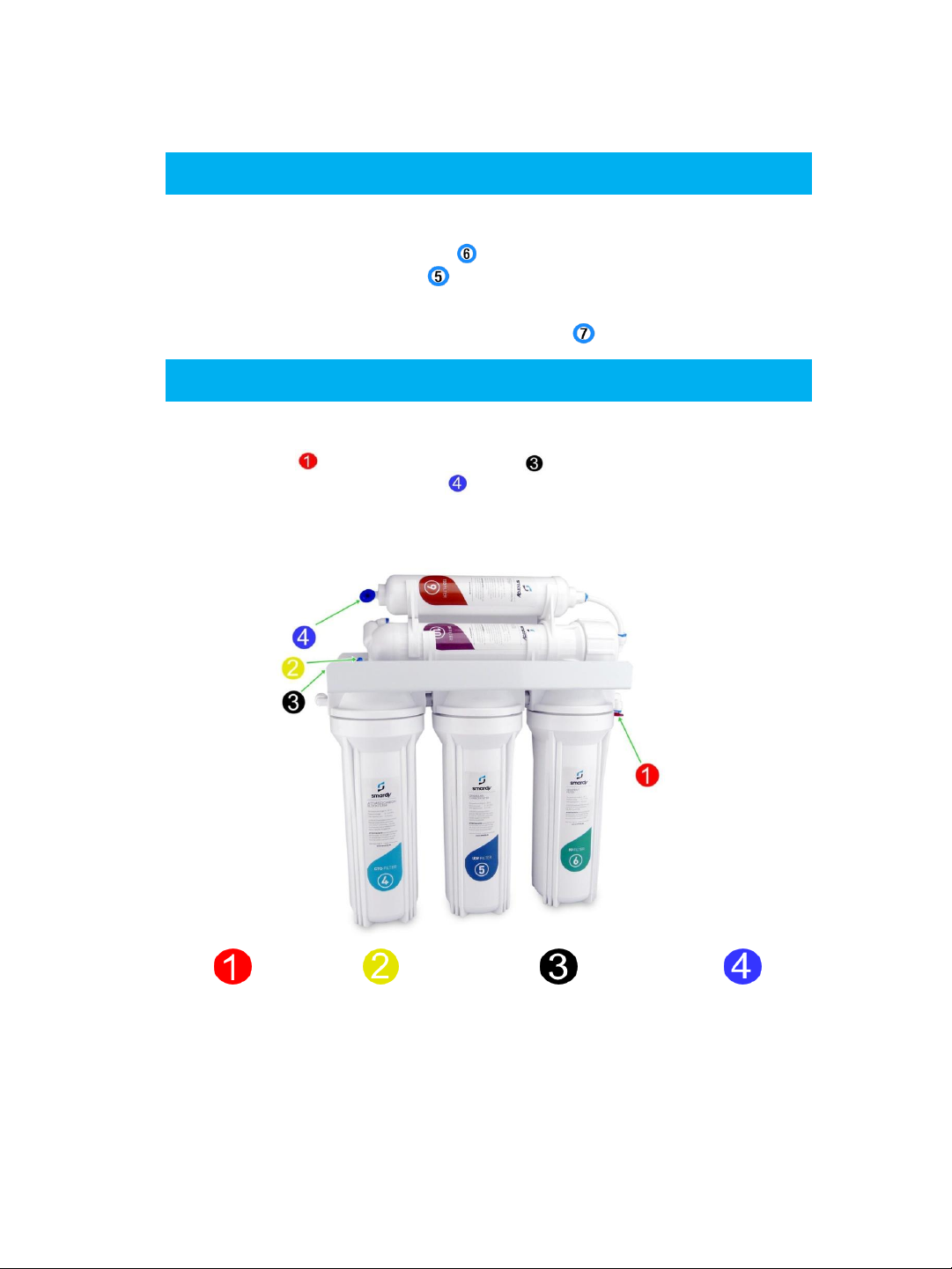

4. Connecting the lines

•Please connect hose lines as follows:

Remove the blue retaining rings from the plug connectors at the

Water inlet rinsing water drainage

and Water armature connector

•Now insert the hoses into the connectors.

•Fasten the blue retaining rings back onto the connectors

3. Insertion of the membranes

•Remove the hose from the membrane housing.

•Unscrew the cover from the membrane housing.

(Tool: Key for membrane housing)

•Then first insert the membrane the housing up to the stop

•Srew the cover back on to the membrane housing.

•Insert the hose back into connector.

•Insert filters 4, 5 and 6. (Tool: key for filter housing

Water inlet

Membrane flush

valve

Rinsing water

drainage

Water armature

connector

The scope of supply includes 1 roll of hose, please cut it to the appropiate length

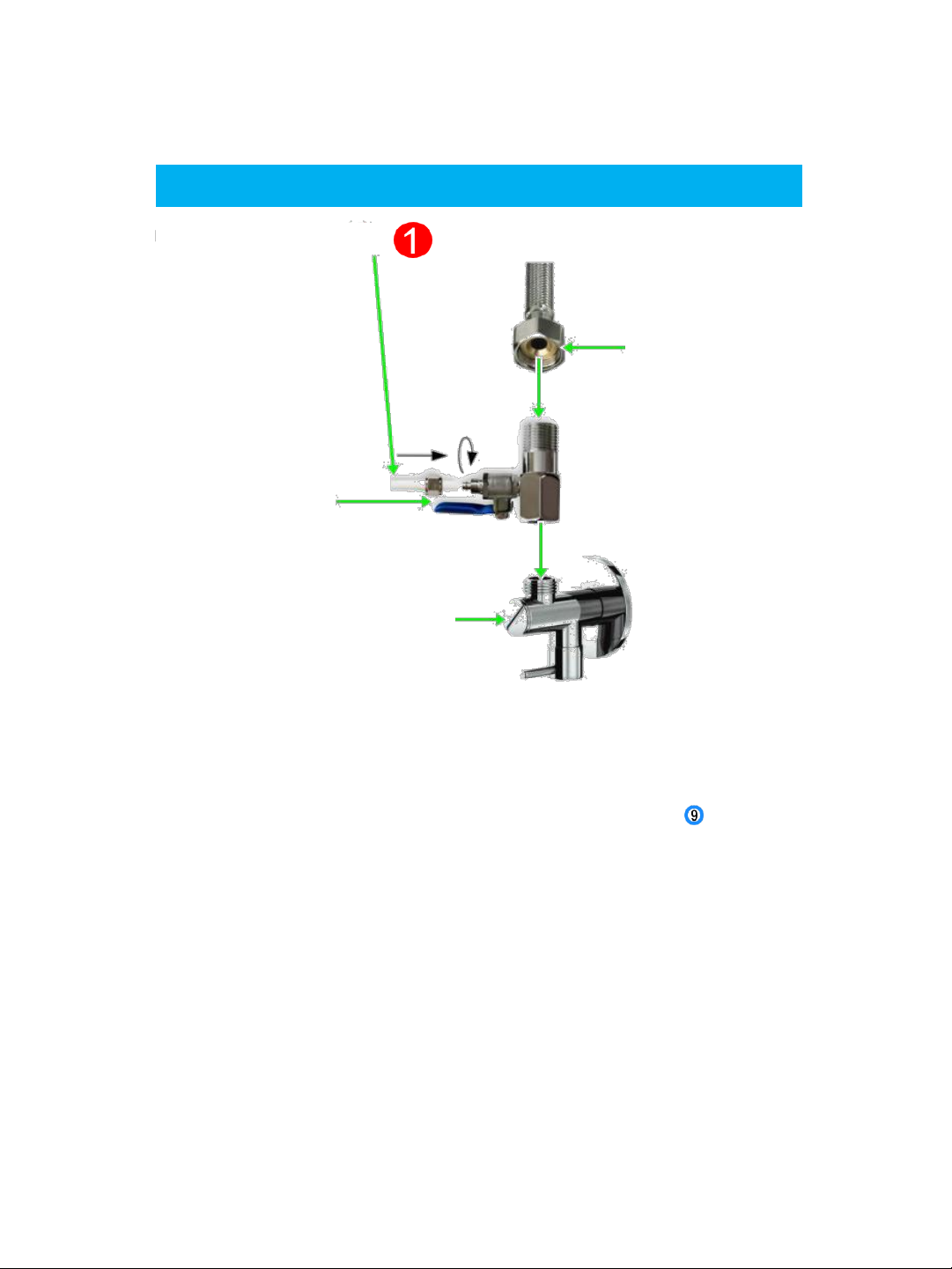

5. Installation

•The scope of supply includes a connector for the water supply as well as the

corresponding stopcock.

•Close the water supply on your angle valve and unscrew the cold water pipe. Then

screw the connector for the water supply onto the angle valve.

•Place 9 to 10 layers of teflon tape around the thread of the stopcock.

Then screw the stopcock into the lateral screw opening of the water connection

component.

•On the other side of the connector for the water supply, screw the cold water pipe

back on.

•Now remove the nut from the cockstop and put it over the white hose, which

supplies the osmosis system with tap water.

•Then put the white hose onto the stopcock, the hose has to be put over the

protruding ring.

•Screw the nut back onto the stopcock.

Connect the line with the system

Cold water pipe

Stopcock

Connection water supply

Angle valve

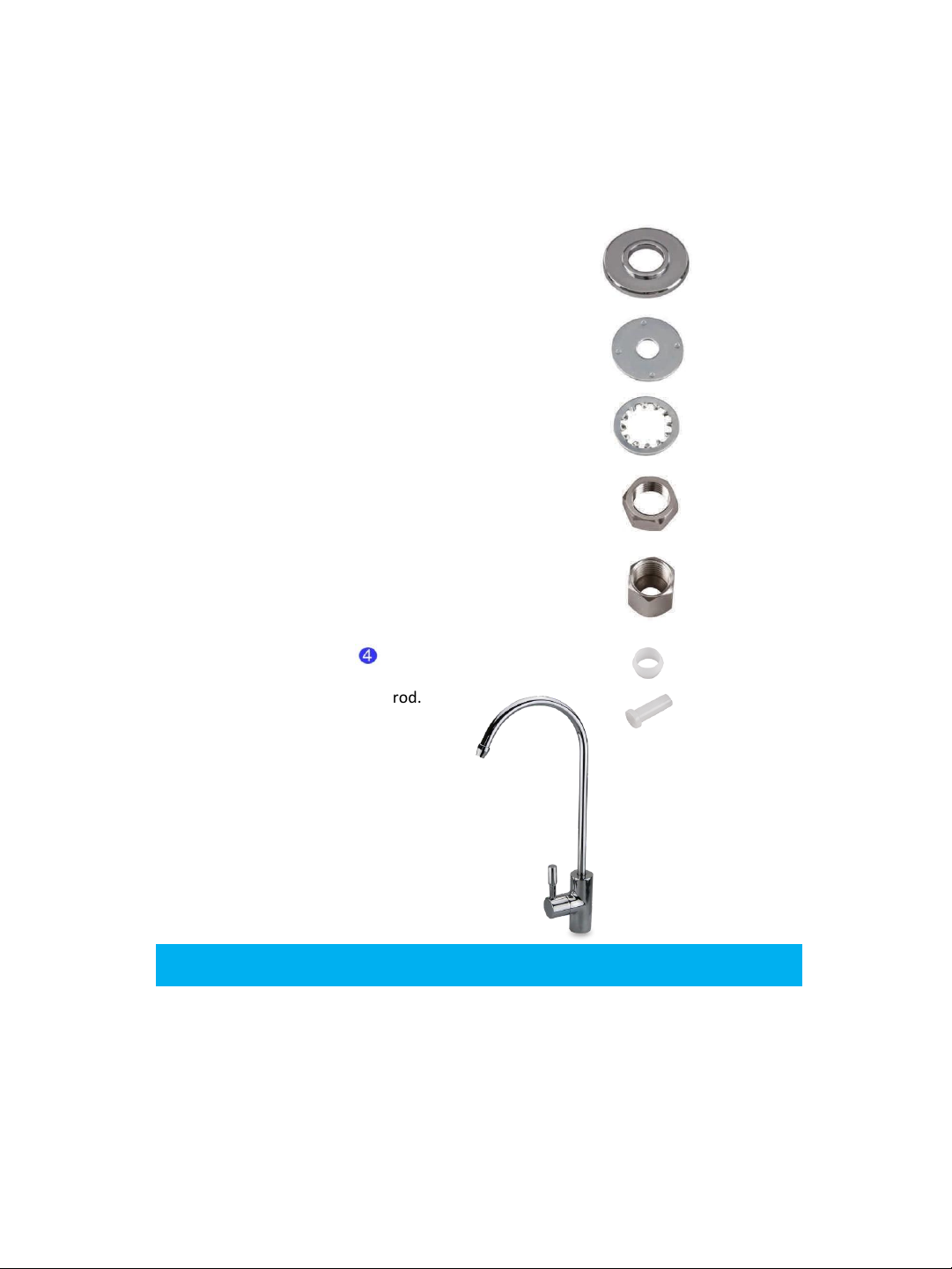

Installation of the water armature:

•Drill a 12 mm hole through the sink.

1. Put the cover over the threaded rod of the

water tap.

2. Put the threaded rod through the drilled

hole in the kitchen countertop.

3. Slide the locking washer from underneath

over the threaded rod.

4. Now slide the snap ring onto the threaded

rod.

5. Screw the lock nut onto the threaded rod

and screw down the water tap.

6. Then take the blue hose and put the nut

over the hose.

7. Take the sleeve and put it onto the hose.

8. Subsequently take the insert sleeve and

stick it into the hose.

9. Now insert the hose into the inner

line of the threaded rod and then screw

the nut onto the threaded rod.

6. Technical data

•Dimensions: 40cm x 13cm 43cm (LxWxH)

•Daily filter performance: up to 2000 liters

•Water purification without electricity–only 3 bar tap water pressure required

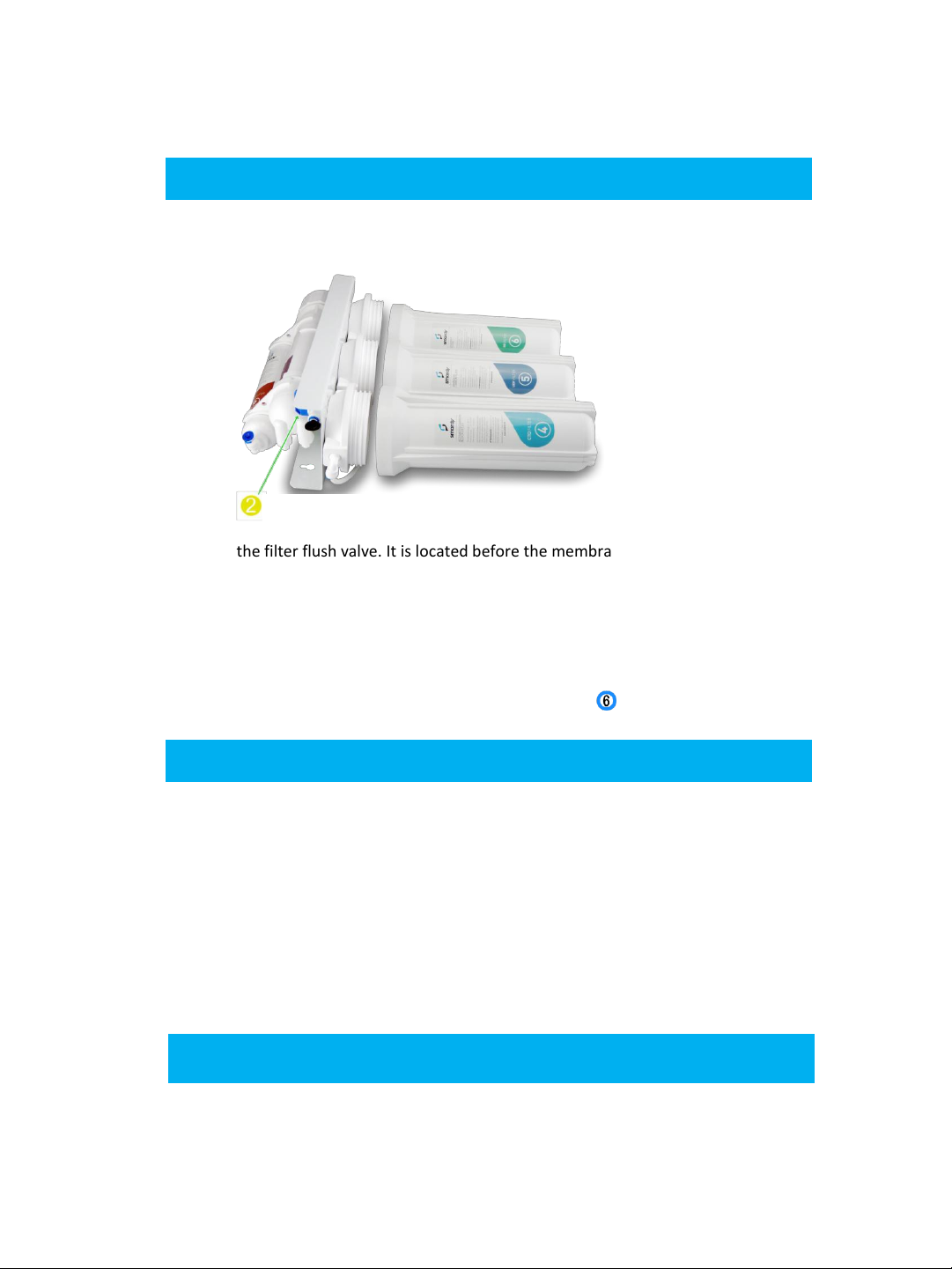

•Open the filter flush valve. It is located before the membrane.

•Open the water supply (shown here in the green circle) and check all the

connections for tightness.

•Leave the filter flush valve in an open position for approx. 10 minutes.

•Close the filter flush valve.

•Open the water tap for 5 min to flush all the lines once again.

•Subsequently you can enjoy fresh osmosis water

•After the last daily use of the filters, the shut-off-valve ( ) should be closed to

protect the system against nocturnal pressure surges.

7. First commissioning

Before you open the water supply, please double-check all the hose lines.

These must have been laid absolutely free of kinks.

8. Consumables

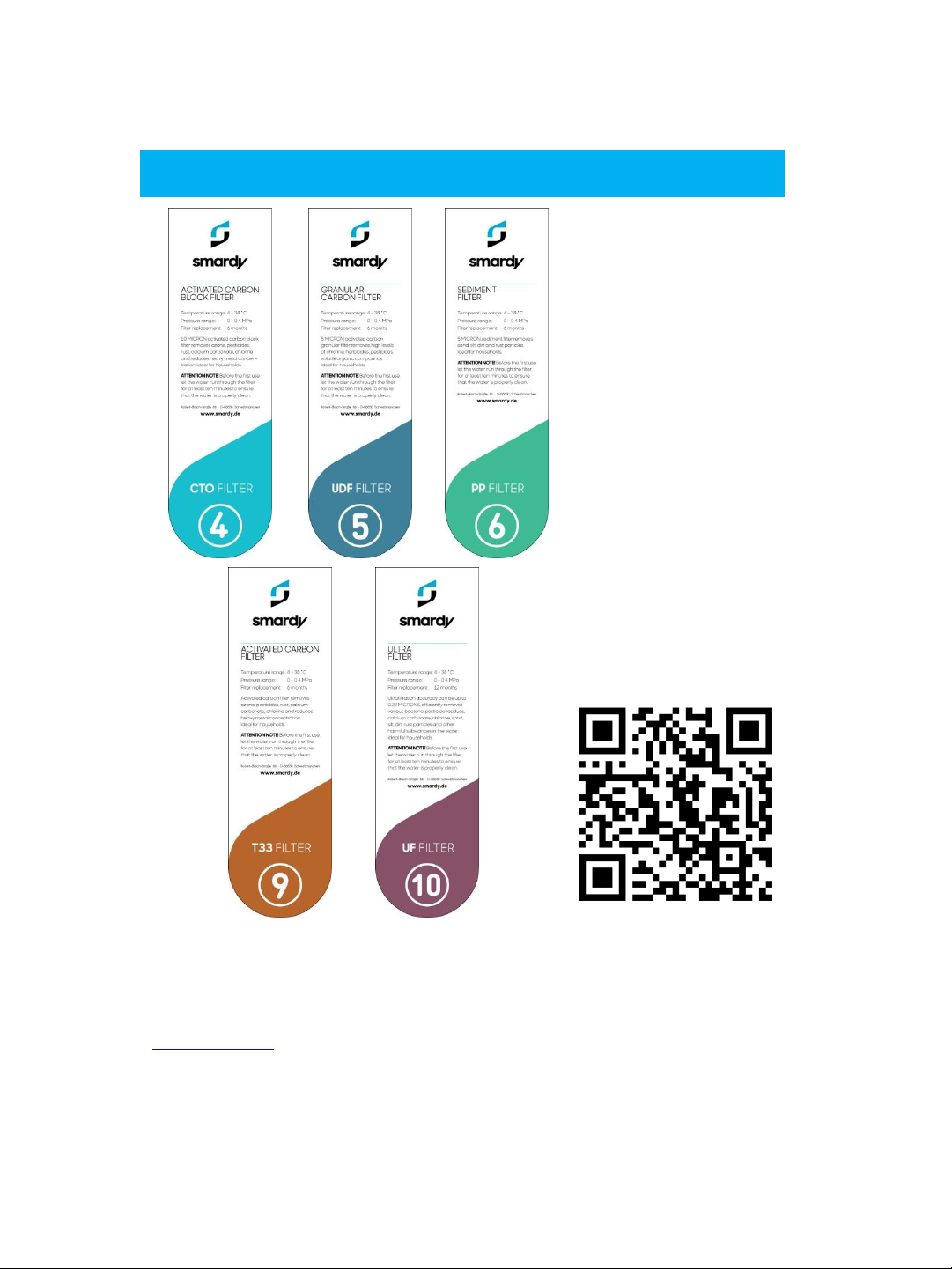

For your system you need the following replacement filters and membranes:

item N°

Description

Change interval

Daily output

up to 2000 L

N° 4

Activated carbon block filter

Every 6 months

N° 5

Granular carbon filter

Every 6 months

N° 6

Sediment filter

Every 6 months

N° 9

Activated carbon afterfilter

Every 12 months

N° 10

Ultrafilter membrane

Every 24 months

Just smardy original ﬁlters ensure a trouble-free functioning!!

Membran flush valve

9. Assembly and instructions

•We recommend, to let an installer perform the installation. Incorrect assembly can

lead to water damage in the house!

•The connecting parts are tested and standards compliant. Should you wish to obtain

other connecting parts, you can acquire them from us, or from any installation

specialist shop.

•The installation instructions are implementing recommendations for a standard

connection. Local regulations for installation and building standards can contain

other or additional requirements.

•The executing installer is responsible for the compliance with applicable rules.

10. Filter change

Recommended change interval

N° 4 6 months

N° 5 6 months

N° 6 6 months

N° 9 12 months

N° 10 24 months

Date:

oN° 4 Activated carbon block filter

oN° 5 granular carbon filter

oN° 6 Sediment filter

oN° 9 Activated carbon afterfilter

oN° 10 Ultrafilter membrane

Date:

oN° 4 Activated carbon block filter

oN° 5 granular carbon filter

oN° 6 Sediment filter

oN° 9 Activated carbon afterfilter

oN° 10 Ultrafilter membrane

Date:

oN° 4 Activated carbon block filter

oN° 5 granular carbon filter

oN° 6 Sediment filter

oN° 9 Activated carbon afterfilter

oN° 10 Ultrafilter membrane

Date:

oN° 4 Activated carbon block filter

oN° 5 granular carbon filter

oN° 6 Sediment filter

oN° 9 Activated carbon afterfilter

oN° 10 Ultrafilter membrane

11 Filter order

smardy©

Robert-Bosch-Str. 6b

86830 Schwabmünchen

Germany

[email protected]

Link for accessories:

https://www.amazon.co.uk/dp/B06Y16H1NM
