English –Version 1.5 –January 2022

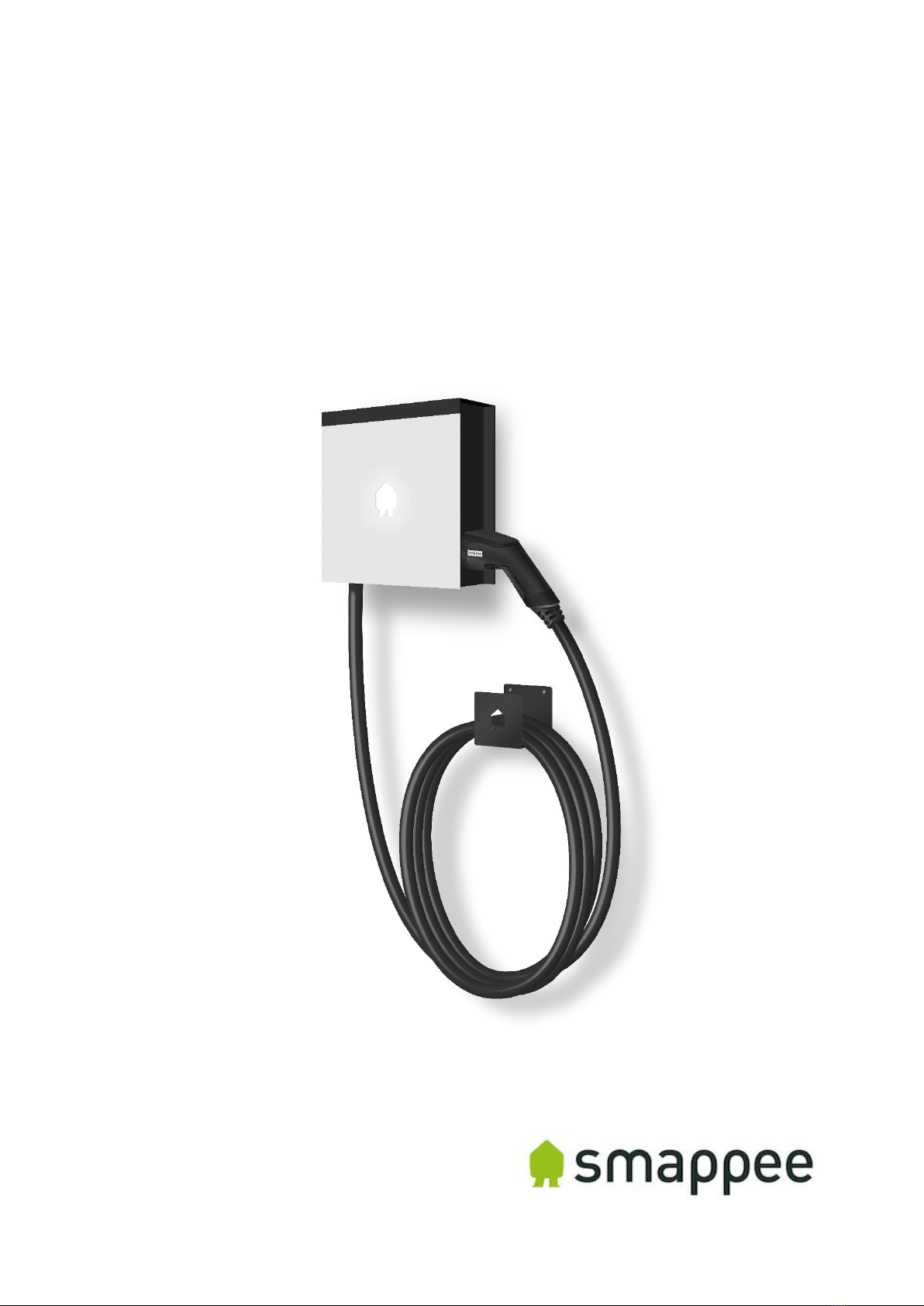

Smappee EV Wall
Installation manual
Smappee EV Wall –Installation manual - English
2
Table of contents
1. Introduction ....................................................................................................3
2. Safety instructions...........................................................................................4
3. Models ............................................................................................................6
4. Components....................................................................................................7
5. Technical specifications.................................................................................10
6. Preparing the installation..............................................................................13
7. Installation and activation.............................................................................16
8. Using the EV Wall..........................................................................................32
9. Declaration of conformity.............................................................................36
Smappee EV Wall –Installation manual - English
3
1. Introduction
Thank you for purchasing this Smappee EV Wall charging station for electric vehicles, the smartest
charging station for charging at home.
This installation and user manual tells you how to install and use the Smappee EV Wall. We advise
you to read the contents of this manual carefully, to ensure a safe and proper installation and enable
you to use all the advanced features of this product to their full extent.
Support
Only qualified electricians or equivalent may install the Smappee EV Wall. If you have any questions,
please contact your service partner.
Please have the following information ready to hand to speed up the process: Article number and
serial number which you can find on the identification label of the charging station.
Should your local distributor be unable to help you, or you have a suggestion for us, you can contact
Smappee at: support@smappee.com.
Smappee n.v.
Evolis 104
8530 Harelbeke
Belgium
Smappee EV Wall –Installation manual - English
4
2. Safety instructions
Safety warning
Fully read and follow the safety instructions below before you install, service or use your Smappee
EV Wall. The installer must ensure that the charging station is installed in accordance with the
relevant national and local regulations.
Carrying out activities on this charging station without the relevant knowledge and qualifications can
lead to serious accidents and death. Only carry out tasks for which you are qualified and have been
fully instructed.
Incorrect installation, repairs or modifications can result in danger to the user and may void the
warranty and liability.
Safety precautions
CAUTION: Risk of electric shock.
CAUTION: Refer to the accompanying documentation whenever you see this symbol.
Please observe the following safety precautions to avoid potential electric shock, fire, or personal
injury:
•The charging station is intended exclusively for charging electric vehicles and, when installed
correctly, may be used by untrained individuals.
•Switch off electrical power supply to your charging station before installation or maintenance
work.
•Do not use the charging station if damaged / defective.
•Do not immerse the charging station in water or any other liquids.
•Do not expose the charging station to heat, flame or extreme cold.
•Do not attempt to open, repair, or service any parts. Contact Smappee or your service partner
for further information.
•Only use the charging station under the specified operating conditions.
•Do not allow children to operate a charging station.
•When a charging station is in use, adult supervision of any children present is required.
•While charging the charging cable must be completely unwound and connected to the electric
car without overlapping loops. This to avoid the risk of overheating the charging cable.
Maintenance
•Observe the maintenance schedule.
•Clean the outside only with a dry, clean cloth.
•Do not use abrasive agents or solvents.
•May not be carried out during rain or if air humidity exceeds 95%.
Smappee EV Wall –Installation manual - English
5
Keeping order
•After charging store the charging cable properly so it does not present a tripping hazard.
•Make sure the charging cable cannot become damaged (kinked, compressed or driven over).
•Do not place any objects on the charging station.
Transport and storage
•Disconnect electrical power supply before removing the charging station for storage or
relocation.
•Only transport and store the charging station in its original packaging. No liability for damage
incurred will be accepted if the charging station is transported in non-standard packaging.
•Store the charging station in a dry environment within the temperature range specified in the
technical specifications.
Smappee EV Wall –Installation manual - English
6
3. Models
Article no.
EAN
Description
EVW-132-BR-E-W
5425036931916
EV Wall White 1-Phase 7.4 kW Socket
EVW-132-BR-E-W-100A
5425036932524
EV Wall White 1-Phase 7.4 kW Socket (100A version)
EVW-132-BSR-E-W
5425036932722
EV Wall White 1-Phase 7.4 kW Socket with shutter
EVW-132-C8R-E-W
5425036931992
EV Wall White 1-Phase 7.4 kW Type 2 cable 8m with
cable holder
EVW-132-C8R-E-W-
100A
5425036932548
EV Wall White 1-Phase 7.4 kW Type 2 cable 8m with
cable holder (100A version)
EVW-332-BR-E-W
5425036932036
EV Wall White 3-Phase 22 kW Socket
EVW-332-BR-E-W-100A
5425036932555
EV Wall White 3-Phase 22 kW Socket (100A version)
EVW-332-BSR-E-W
5425036932739
EV Wall White 3-Phase 22 kW Socket with shutter
EVW-332-C8R-E-W
5425036932111
EV Wall White 3-Phase 22 kW Type 2 cable 8m with
cable holder
EVW-332-C8R-E-W-
100A
5425036932579
EV Wall White 3-Phase 22 kW Type 2 cable 8m with
cable holder (100A version)
Smappee EV Wall –Installation manual - English
7
4. Components
Components included

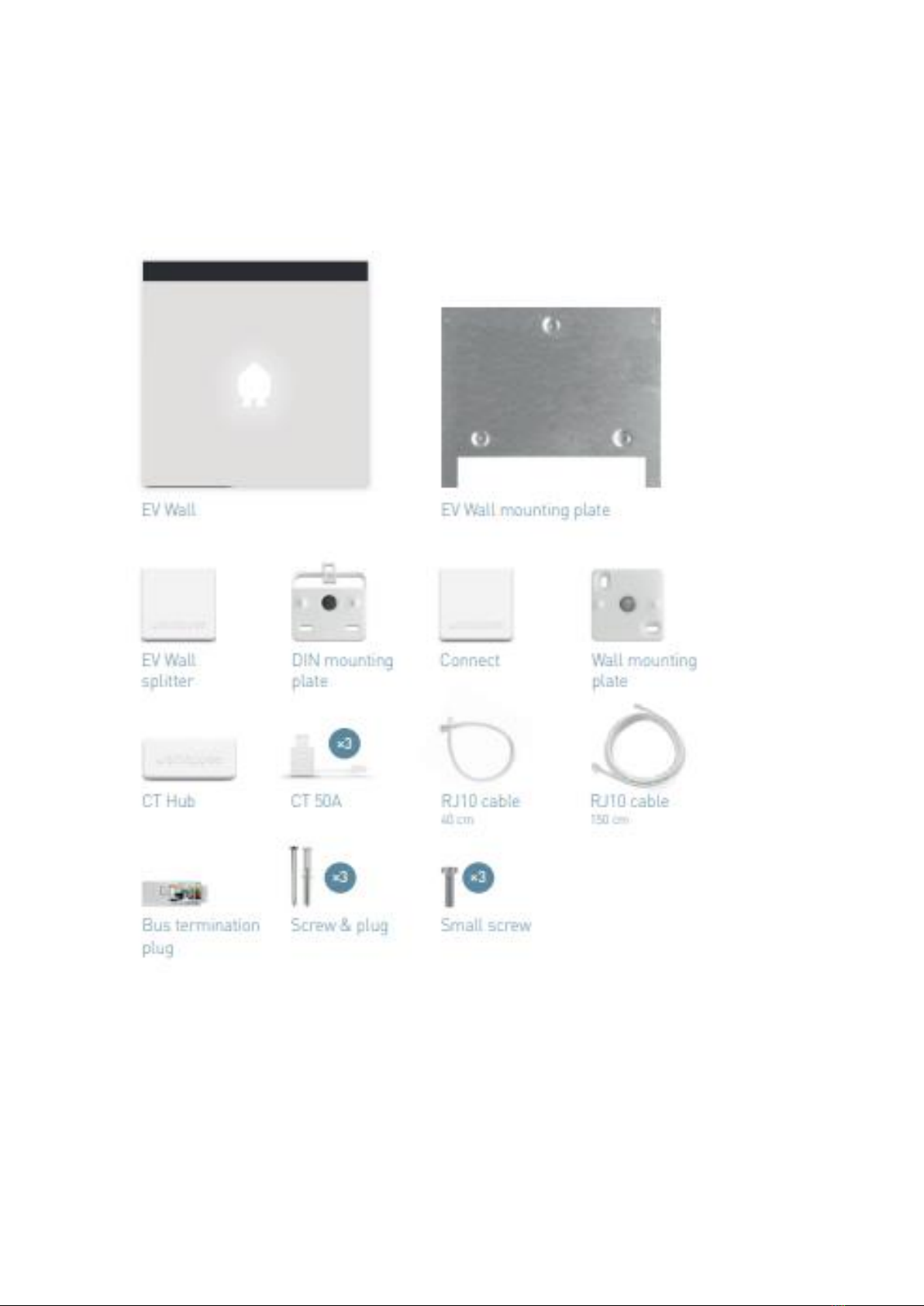

Single phase
Smappee EV Wall –Installation manual - English
8

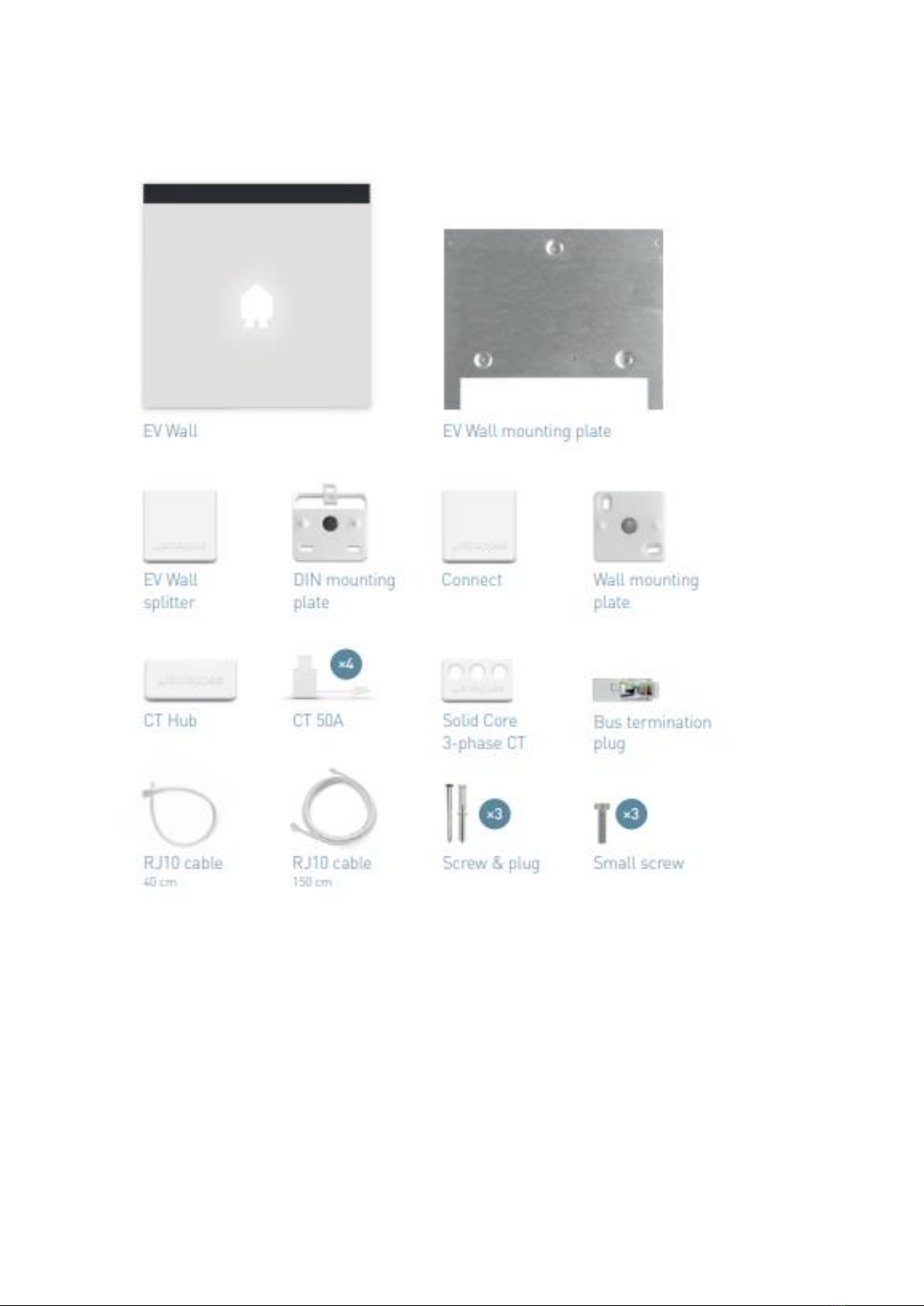

Three phase
Smappee EV Wall –Installation manual - English
9
Type 2 EV charging cable
In case of a fixed cable version the cable is supplied in a separate box.
1. 1 x 8 m open-ended to type 2 EV charging cable
2. 1 x cable tie for strain relief
3. 1 x EV cable holder + 2 x screws + 2 x plugs

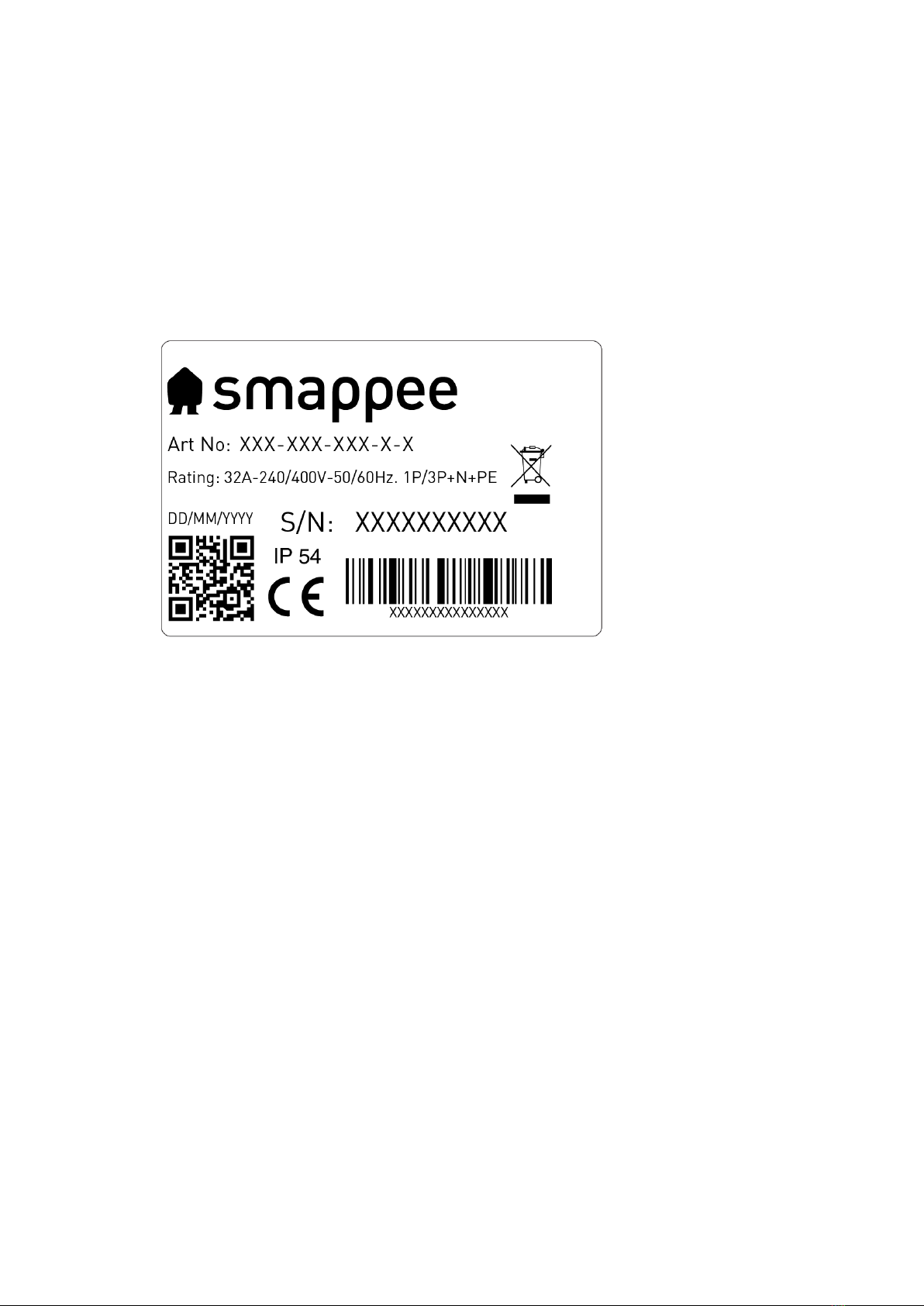

Identification label
The identification label of your charging station is located on the left inside of the EV Wall.
1. Manufacturer
2. Article number
3. Rating
4. Manufacturing date
5. QR code containing article number and serial number
6. Serial number
7. Degree of protection
8. EAN code
Smappee EV Wall –Installation manual - English
10
5. Technical specifications
Feature
Description
Socket
Type 2 cable
Technical features
Charging capacity
Single or triple phase, 7.4 to 22 kW
Output power
1-phase or 3-phase, 230 V –400 V, 16 A or 32 A
Charge mode
Mode 3 (IEC 61851)
Connection case
1 x Case B (Socket type 2)
1 x Case C (Fixed cable with
type 2 connector)
Metering
kWh meter compliant with IEC 62053-21
Integrated Residual Current
Monitor
Rated operating residual current detection : 6 mA DC / 30 mA AC
Supported power systems
TN-C, TN-C-S, TT, IT*
* Caution: not all vehicles support the IT system. In that case, or
with 3-phase charging a voltage transformer is required.
Grounding
TN system: PE wire
TT system: Independently installed ground electrode < 100 Ohm
spreading resistance
IT system: connected to a shared reference (common earth) with
other metal parts
Rated voltage (Un)
230 V –400 V
Rated insulation voltage (Ui) of
a circuit
500 V
Rated impulse withstand
voltage (Uimp)
4 kV
Rated frequency (fn)
50 Hz / 60 Hz
Rated current (Ina)
32 A
Rated current (Inc) of a circuit
32 A
EMC classification
Class B
Connection method
AC, permanently connected
Short circuit protection
One connector:
Single power supply, 1-phase, 32A: 1 x 40 A max 1P, car. B or C
Single power supply, 3-phase, 32A: 1 x 40 A max 3P, car. B or C
Interfaces & Connectivity
Information status
RGB LED
Session activation
Plug and charge, Scan QR code, Swipe RFID card, Smart EV
schedules
