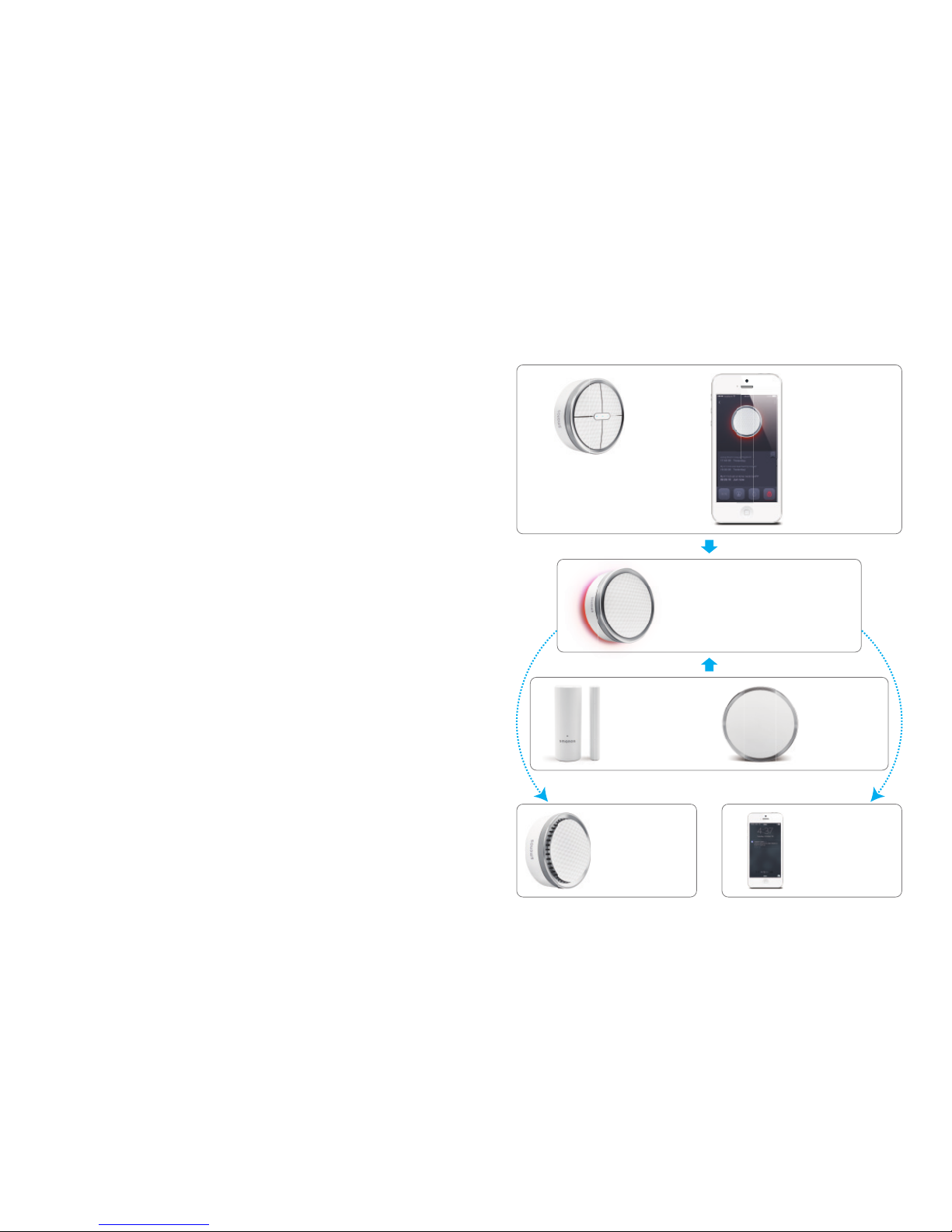

How the K1 System Works

K1 sends push

notification to your

phone

When Motion

Sensor detects

motion it sends

signal to K1 Hub

When

Door/Window

Sensor detects

door/window

opening, it sends

signal to K1 Hub

When K1 Hub has been set to Arm

Mode (The red indicator is on)

Through the

“smanos home”

app, put the

system in Arm

Mode (Please

refer to System

Statuses to see

how)

Through the Keypad, put the

system in Arm Mode

(Please refer to System Statuses

to see how)

K1 sends signal to

sound Indoor Siren

at 90dB on-site

Things to Note before Getting Started

Thank you for choosing smanos help you take control of your home. The

smanos family of Home Alarm Systems are designed to be self-monitored alarm

systems and help you become more active in securing your home without a high

investment. We aim to provide a safe, easy & cost effective solution for you to

protect your home & loved ones 24/7/365.

This system is an auxiliary system, it is not designed to provide complete protection

from property loss. smanos will not be held responsible in the event that property

loss occurs while this system is in operation.

High-speed WiFi Internet Connection

One critical factor that can affect the performance of your device is the position

between your home WiFi router and the K1 Hub. Set up your K1 Hub in an open

space (DO NOT place it directly on the oor); the closer the K1 Hub is to the router,

the stronger the WiFi signal will be.

Please be sure to connect you K1 Hub to WiFi using the 2.4GHz spectrum as this

is a larger spectrum and the K1 Hub does not support the 5GHz option which has

been found to be the most common mistake when setting up the K1 for the rst

time.

SSID and Password

- Have your WiFi network name and password handy. The WiFi network name is

normally referred to as the SSID. The password or security ID is normally the next

line or two down from the WiFi/SSID network name. These can be easily found on

your WiFi router if you did not change them when you rst installed the WiFi router,

for example:

- WiFi/SSID Network Name: XXXX

WiFi/SSID Network Password/Security Key: XXXXXXXXXXXXXX

Operating System Requirements

- iOS 8.0 or above with iPhone 5 or above;

- Android 5.0 or above

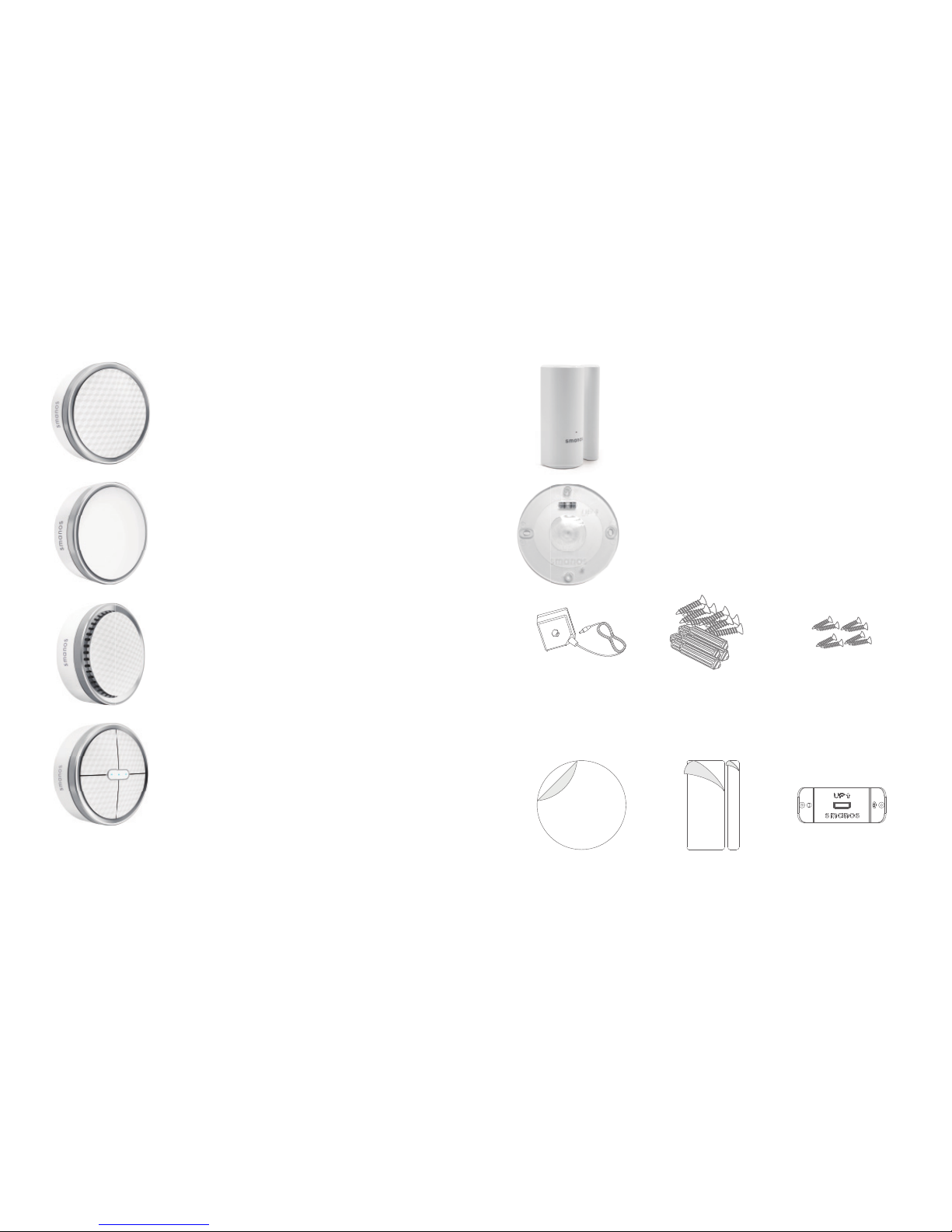

Included in Your K1 Smart Home System

The accessories in this kit are already paired with your K1 Smart Hub.

K1 Smart Hub x 1

- The heart of the system that receives, processes

and sends signals from & to the wireless sensors.

MD-20 Pet Friendly Motion Sensor x 1

- A sensor that detects suspicious motion while

ignoring motion from your furry little ones under

50 lbs / 23 kg.

SS-20 Indoor Siren x 1

- The siren will go off on-site, with a loud 90dB

siren sound, to deter any would-be intruder

after a sensor has been triggered.

KP-20 Security Keypad x 1

- A device with 4 non-numeric keys (password

customizable directly on the app) that can be

used to control the entire system.

DS-20 Door/Window Sensor x 2

- A sensor that detects the open/close status of a

door or window being protected.

Mounting Base x 4

- Wall-mount bases for the K1 Hub and wireless

accessories (with corresponding model numbers

on them.)

K1 Hub Power Adapter

Double Sided Tape for the

Hub/Motion/Siren/Keypad

Double Sided Tape for the

Door/Window Sensor

Corner Mounting Bracket

for the Motion Sensor

Screw set for the Door

Sensor. (optional – double

sided tape can also be

used & is included)

Screw set for the

Hub/Motion/Siren/Keypad

(optional – double sided

tape can also be used & is

included)

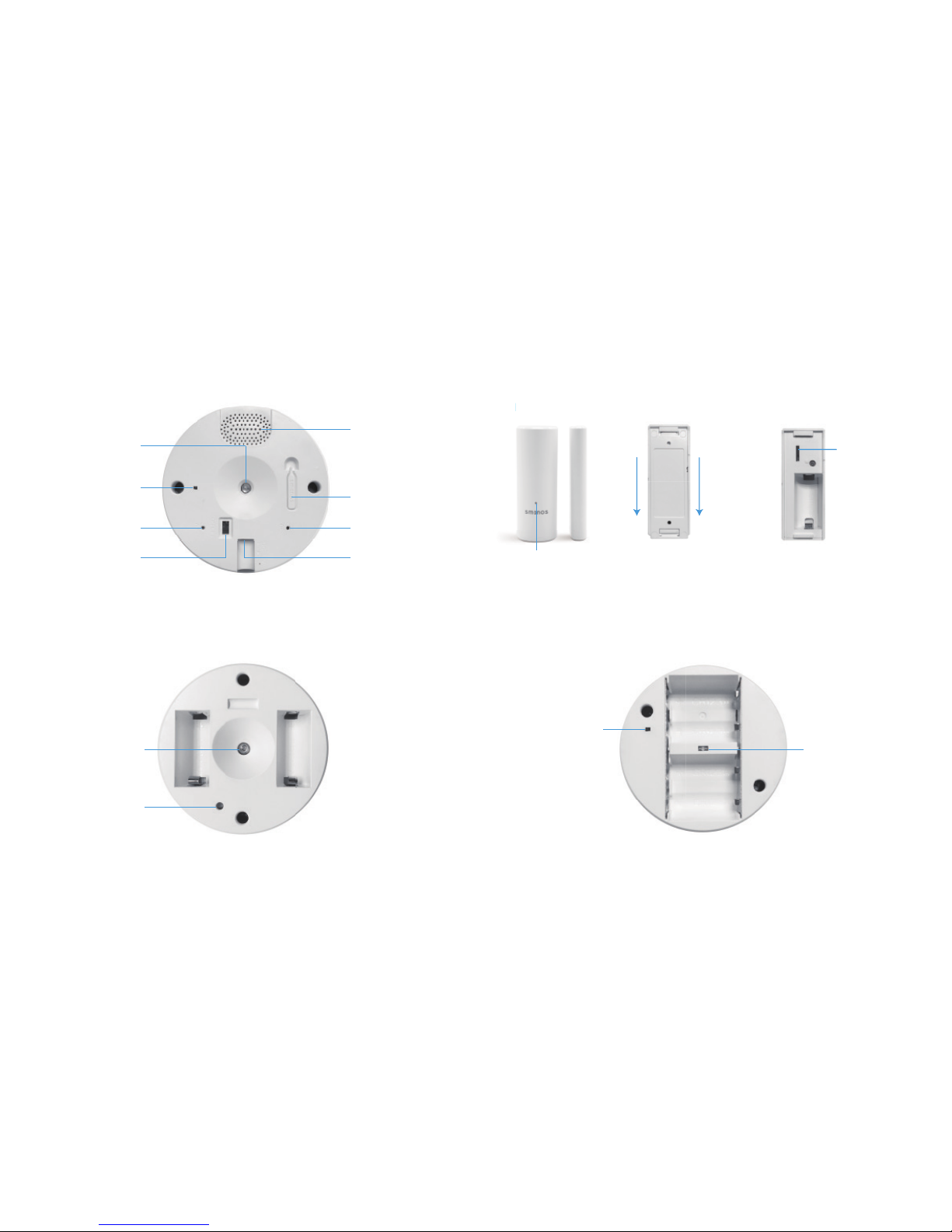

Devices Overview

* Anti-tampering protection ensures that any attempts to move the device results in

an alarm and push notification.

Tampering

Switch

K1 Hub Rear View

MD-20 Motion Sensor Rear View SS-20 Indoor Siren Rear View

Slide to Open

Front View

Tampering

Switch

DS-20 Door/Winsow Sensor Overview

Inside ViewRear View

View

LED Indicator LED Indicator

Tampering

Switch

LED Indicator

Pairing Button

Speaker

LED Indicator

Power PortPower ON/OFF

WiFi Button

Tampering

Switch*

Advice before Setting Up

Make installing easier and quicker by putting all the devices on a flat surface

first. Check all options and how to set it up properly. Then install them on

their assigned places.

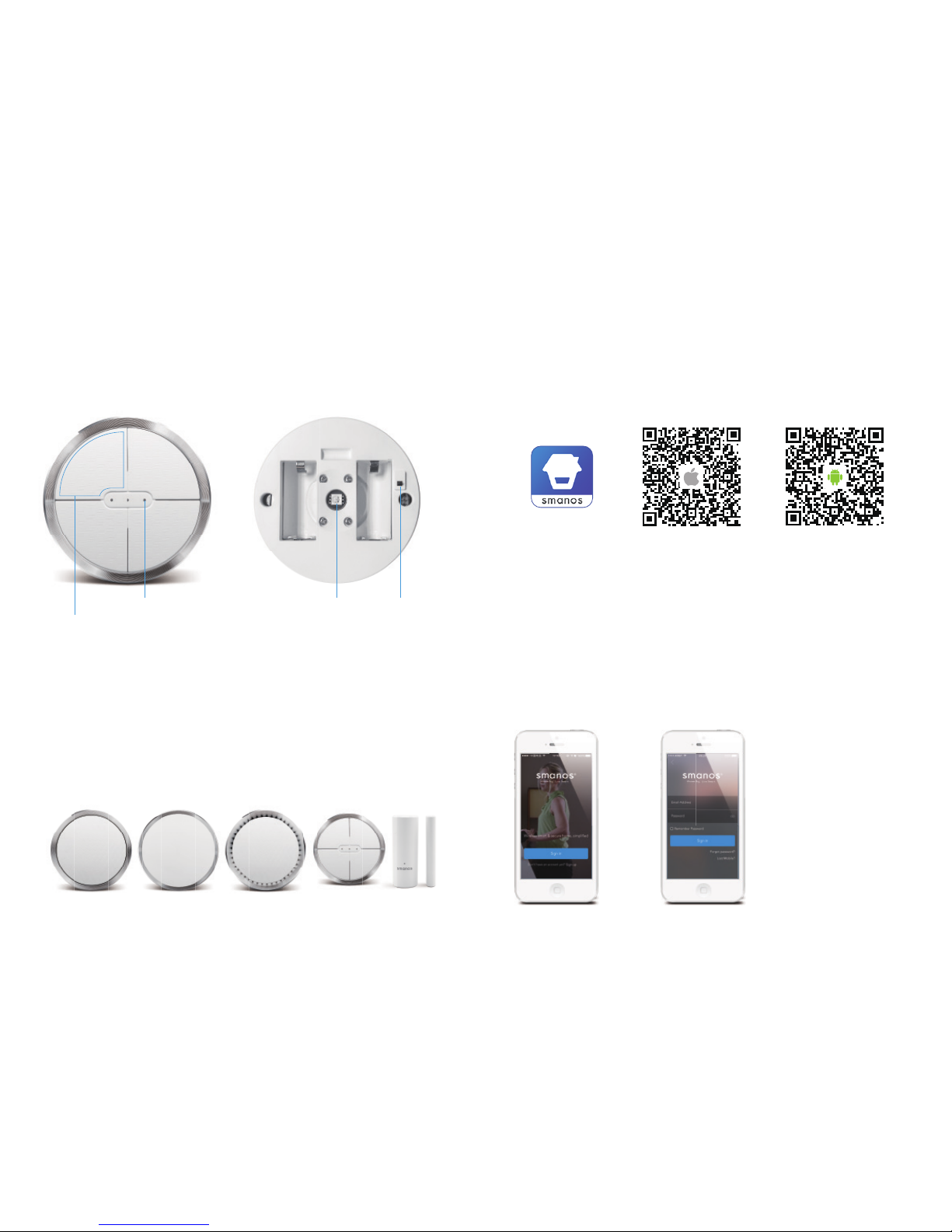

Four Non-numeric Keys

Front View

KP-20 Keypad Overview

Rear View

Download the “smanos home” App

You can search “smanos home” in App Store or Google Play Store or scan

the QR codes as below:

If you have not registered an account with smanos, please press “Sign up”

just below the “Sign in” icon on the app, and follow the instructions to

create your account first.

★If you do not receive an account verification code in your email inbox

during the registration process, please remember to check your spam/junk

folder and make sure the notice has not been blocked by your service

provider.

Once you have an account with us, please select the “Sign in” icon and

enter your email address and password to log in.

ront

LED Indicator Tampering

Switch

LED Indicators

* Non-numeric Keys are used to set the password for changing the status of

K1 system.

Four Non-numeric Keys *

Add the K1 System to the “smanos home” Ap

pShare Your Device to Family Accounts

Add Device

Press the “+” button on the Device List. Tap on [K1 Smart Hub], or tap on the

scan icon at the bottom of this page to scan the QR code on the back of

your K1 Hub; then follow the configuration steps to set up your K1 Hub with

your home WiFi.

Tap on [ ] on the main page to enter the Account Menu.

By choosing “My Shares” on the menu and pressing the [ + ] button, you

can share access to your device(s) with other registered smanos accounts

who may not own a smanos product. Enter the email address and nickname

of the account you want to share with, and then select the device(s).

It is highly recommended that you set access limits to those who you may

share your camera(s) with. In choosing not to do so, you grant your family

and/or friends continual access to the camera(s) you have shared.

The user who receives the shared device can only mark the name of the

device, sharing of the device to other users or changing the settings of the

device can not be done.

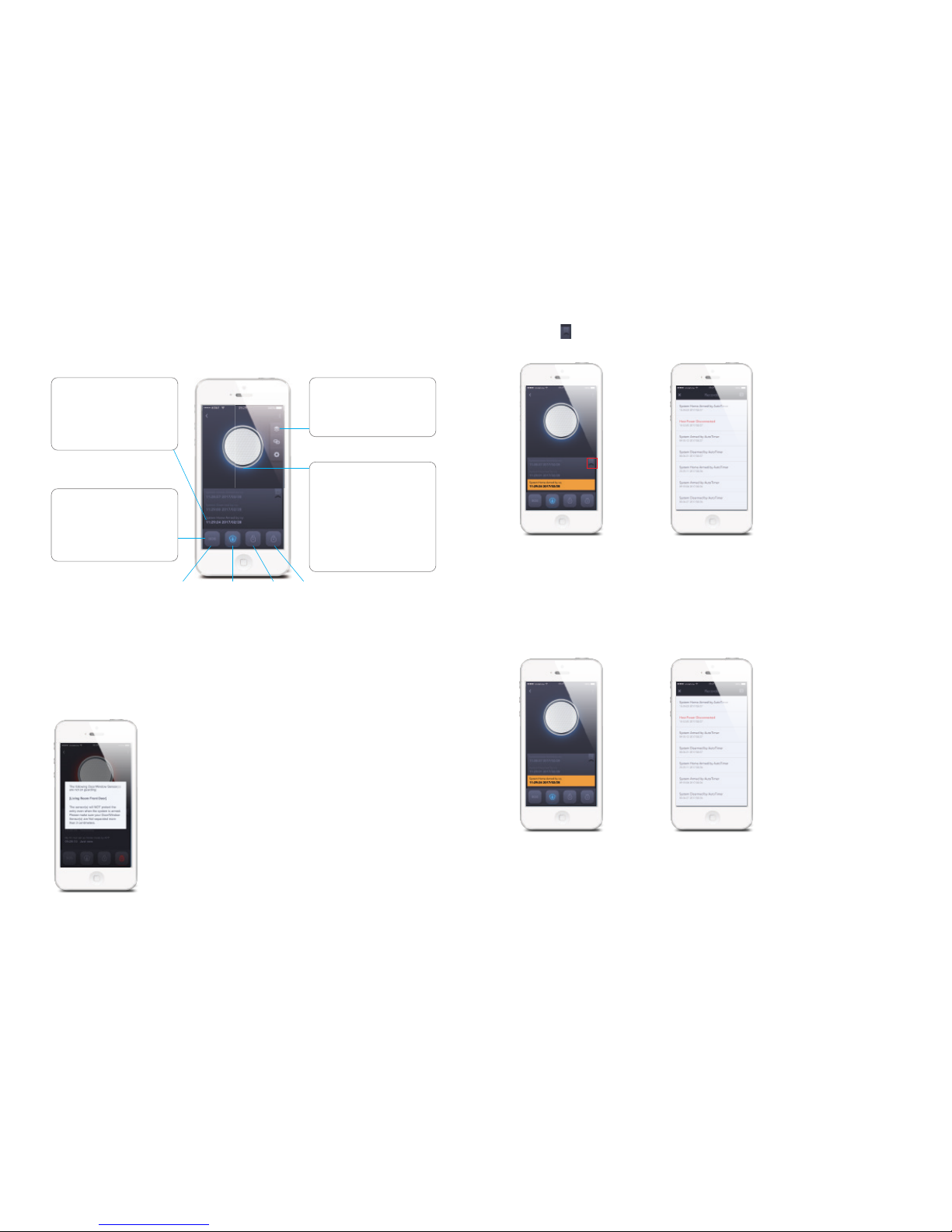

K1 Main Page

Review the latest

operations or alerts. These

will appear here with the

bottom one being the

most recent.

Change the status of the

K1 system by pressing 1 of

the 4 corresponding icons

of the Alarm Status you

wish to select.

Accessories

Accessory Linkage

System Settings

Colors of the background

will indicate the

corresponding System

Status:

blue: Home Mode

red: Armed

green: Disarmed

SOS Home Mode Disarm Arm

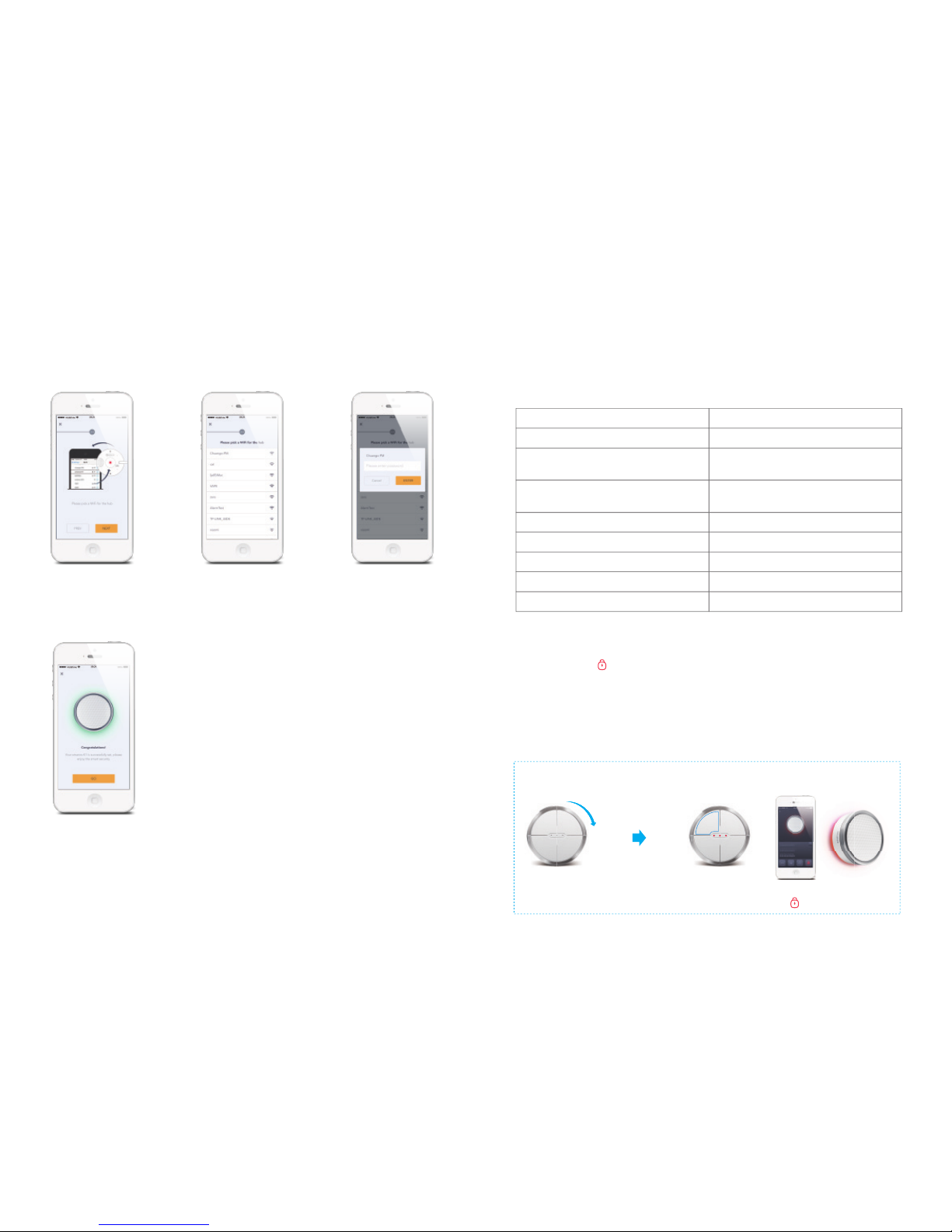

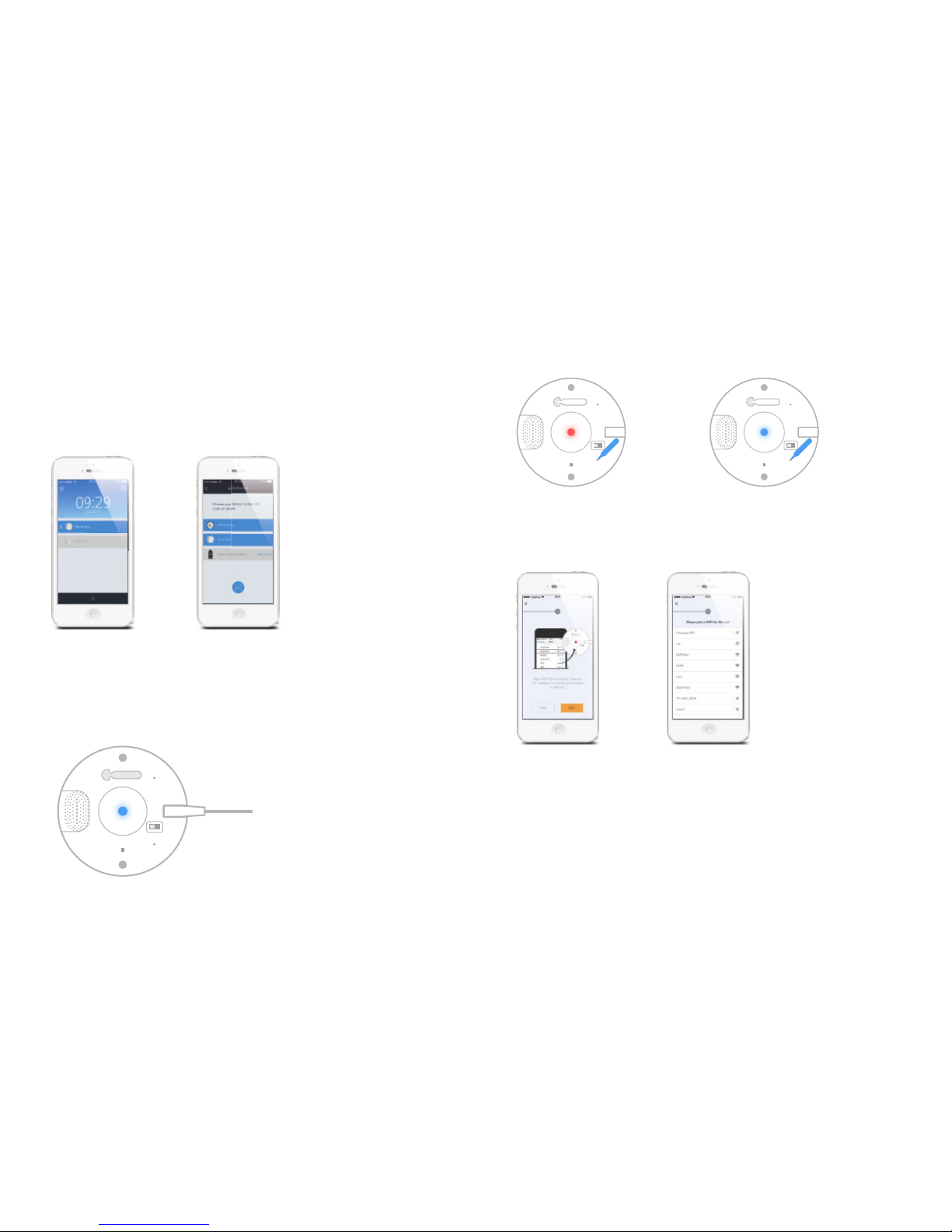

Set Up Your K1 Smart Hub

1. Plug the power adapter into a wall socket and into the K1 Hub, slide the Power

Switch from OFF to ON, wait until the white light ashes blue.

2. Connect the K1 to Your Smartphone

Use the Pin to press the WiFi Conguration Button for 3 seconds, the light will ash

red and blue alternately.

3. Go to your phone’s WiFi settings, look for and select "smanos K1" hotspot to

connect your mobile to the Hub. When connected, return to your “smanos home”

app.

4. Enter WiFi Details for Your K1 Smart Hub

Select your 2.4GHz WiFi network from the display list, and enter the WiFi network

password. The Hub will connect to the selected WiFi network. This binding process

should take about one minute.

When a successful connection is established, the indicator will stop blinking.

Now, your smanos K1 Hub is successfully set, enjoy a smart and secure life!

Rotate the Keypad ring to the left, and then enter the

Keypad password (Press the left top key for 6 times).

Rotate the Keypad ring to the right, and then enter the

Keypad password (Press the left top key for 6 times).

Rotate the Keypad ring to the right first, then to the left, and then

enter the Keypad password (Press the left top key for 6 times).

System Disarmed

All the sensors stop detecting except any sensors that you may have set to

24 Hour Mode. Sensors in the 24 Hour Mode are continuously monitoring a

particular area, entrance or item for you such as a water detector a

door/window. Some examples would be a WI-20 Water Sensor near a

washing machine, hot water heater or dishwasher or a DS-20 Door Sensor

on a gun or medicine cabinet or your safe. Any sensor placed in 24 Hour

Mode will keep working regardless of system status.

Note: The Keypad password can be changed on the “smanos home” app.

KP-20 Keypad Operating Steps APP Operating

Step

K1 Hub

Indicator

System

Disarmed

Press

the icon

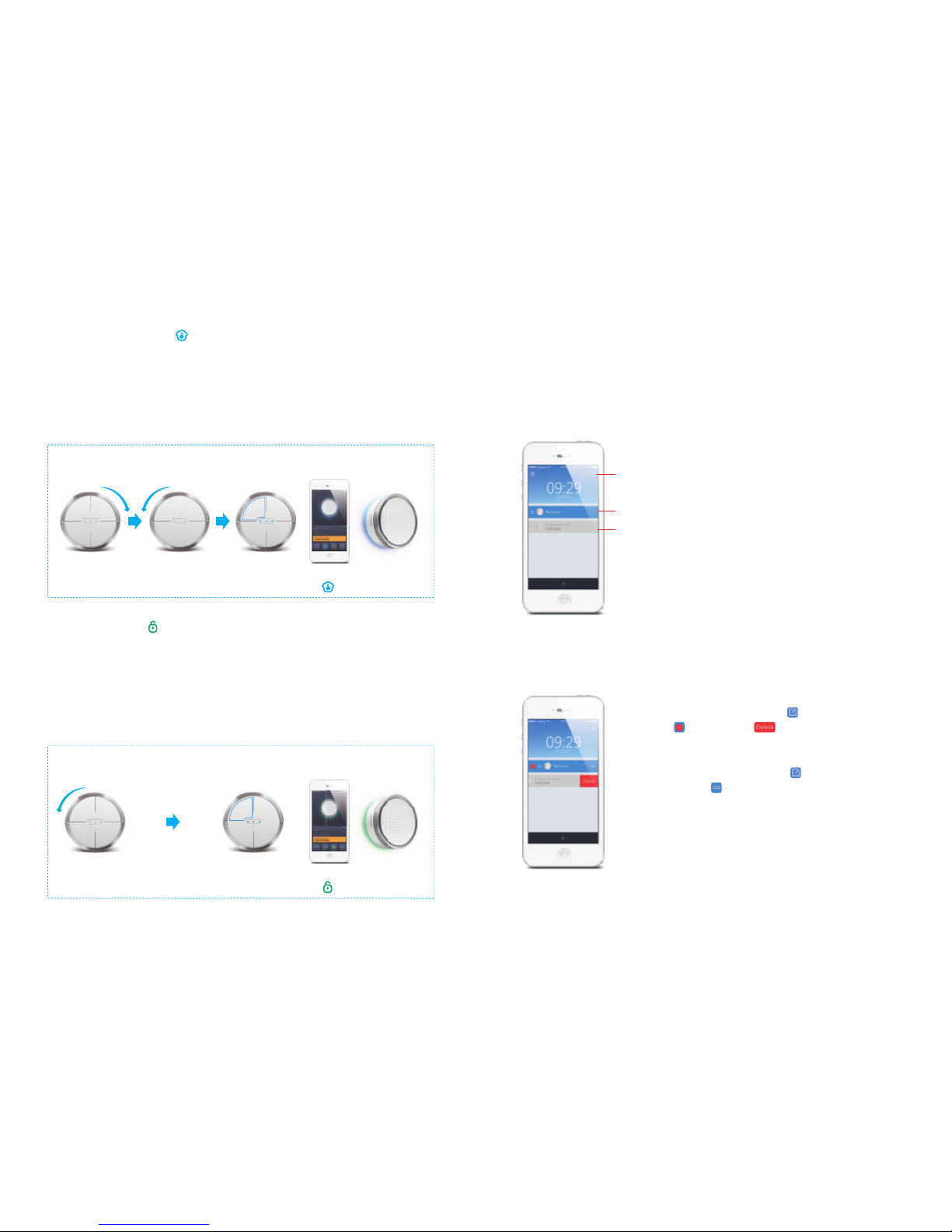

System Statuses

System Armed

All the K1 sensors detect for anomalies; the indoor siren will sound

immediately when a sensor is triggered. You and other pre-authorized users

will receive push notifications on your/their phone.

This mode is recommended for when no one is at home, and can be easily

set from the Keypad or app.

KP-20 Keypad Operating Steps APP Operating

Step

K1 Hub

Indicator

System

Armed

Press

the icon

System in Home Mode

Only the Motion Sensor in this kit will stop detecting (default setting; can be

changed on the app), which enables you and your family to move freely

inside your home without triggering the motion sensor yet your

door/window sensors are still alert and protecting the perimeter.

This mode is recommended for when someone is at home, such as during

the night, and can be set from the Keypad or the app.

KP-20 Keypad Operating Steps APP Operating

Step

K1 Hub

Indicator

System in

Home Mode

Press

the icon

Recommended Placements

DS-20 Door/Window Sensor:

Can be installed on a door/door

frame, window/window frame or

any other object that can be

opened/closed and needs

detection. There are aligning marks

on the sides of the transmitter and

magnet; make sure the marks face

each other and within the range of

1 cm (0.4”).

MD-20 Pet Friendly Motion

Sensor:

Place the sensor at a location that is

critical for home security at a height

of 2-2.2 meters (6.6'-7.3') from the

ground. Avoid facing swinging

objects, heat, window and door.

K1 Smart Hub:

Place your K1 Hub in an open area

that is located centrally to the whole

smart home system, and within line

of sight of your WiFi router.

KP-20 Security Keypad:

Place the Keypad near the entry of

your home that is convenient for

you to control the system on your

way out/in.

PET-FRIENDLY

MOTION SENSOR

Installation

Step 1: Unlock the base from your

device.

Step 2: Place the base on the wall; make

sure the “UP” arrow on the base is

pointing vertically to the ceiling; use the

provided screws or double sided tape to

install it properly (the green “Level” is a

good reference to keep your device

leveled).

Ste p 3: Lock your device onto the base.

K1 Smart Hub Light Indicator Color Meanings

The different colors shown on the light indicator on the back of the K1 Hub

tell you the device’s current status. Here is a list of what each color or pattern

means:

Pattern Description

The indicator blinks in a white color

Red and blue blink alternately

Red, blue and green blink alternately

Red indicator

Blue indicator

Green indicator

The blue indicator blinks slowly

(once every 2 sec)

The indicator shows a steady light

Meaning

Hub is booting up

Hub is in WiFi Configuration Mode

Hub is in Accessory Pairing Mode

System is armed

System is armed in Home Mode

System is disarmed

Hub is disconnected from a viable

WiFi network

Hub is connected with a viable WiFi

network

;6ɑ

Rotate the Keypad ring to the left, and then enter the

Keypad password (Press the left top key for 6 times).

Rotate the Keypad ring to the right, and then enter the

Keypad password (Press the left top key for 6 times).

Rotate the Keypad ring to the right first, then to the left, and then

enter the Keypad password (Press the left top key for 6 times).

System Disarmed

All the sensors stop detecting except any sensors that you may have set to

24 Hour Mode. Sensors in the 24 Hour Mode are continuously monitoring a

particular area, entrance or item for you such as a water detector a

door/window. Some examples would be a WI-20 Water Sensor near a

washing machine, hot water heater or dishwasher or a DS-20 Door Sensor

on a gun or medicine cabinet or your safe. Any sensor placed in 24 Hour

Mode will keep working regardless of system status.

Note: The Keypad password can be changed on the “smanos home” app.

KP-20 Keypad Operating Steps APP Operating

Step

K1 Hub

Indicator

System

Disarmed

Press

the icon

System Statuses

System Armed

All the K1 sensors detect for anomalies; the indoor siren will sound

immediately when a sensor is triggered. You and other pre-authorized users

will receive push notifications on your/their phone.

This mode is recommended for when no one is at home, and can be easily

set from the Keypad or app.

KP-20 Keypad Operating Steps APP Operating

Step

K1 Hub

Indicator

System

Armed

Press

the icon

System in Home Mode

Only the Motion Sensor in this kit will stop detecting (default setting; can be

changed on the app), which enables you and your family to move freely

inside your home without triggering the motion sensor yet your

door/window sensors are still alert and protecting the perimeter.

This mode is recommended for when someone is at home, such as during

the night, and can be set from the Keypad or the app.

KP-20 Keypad Operating Steps APP Operating

Step

K1 Hub

Indicator

System in

Home Mode

Press

the icon

App Operation

Device List Page

Once you nished the network setting for your K1 Smart Hub, it will appear on the

Device List Page.

Edit the devices

When the status bar turns into blue, it means the device

is ONLINE and available.

If it's gray, it means the device is OFFLINE and cannot be

accessed.

Edit Your Device(s)

Delete Devices

Tap on the right top Edit button[ ], press the Delete

button [ ] and choose [ ].

Sorting

Tap on the right top Edit button [ ], press and hold the

Sorting button [ ], drag it up or down to the position

where you want it to be located and then release.

K1 Main Page

Add the K1 System to the “smanos home” AppShare Your Device to Family Accounts
