Smad JC-95E Manuel utilisateur

JC-95E

Wine Cooler

Owner’s Manual

Table of Contents

I. General Safety Precautions….............................................2

II. Parts List……………………………………..........................3

III. Electrical Diagram………..……………….…….……………3

IV. Operating Your Wine Cooler…………………….………… .4

V. Optimizing Performance.……………………………………..6

VI. Maintenance ………………………………..………………...6

VII. Troubleshooting...................……………………………..…7

I. GENERAL SAFETY PRECAUTIONS

Before Using Your Wine Cooler for the First Time:

Carefully read all instructions before using this wine cooler for the first time. Also make

sure the wine cooler stays in an upright position during transportation. After removing the

appliance from its packaging, make sure it is in good condition. If there are any issues with

the wine cooler, please contact an authorized service center immediately.

Place the appliance on a level floor surface that will be strong enough to support it

when it is at full capacity. To level the wine cooler adjust the leveling feet located at

the bottom of the appliance.

Do not use this wine cooler in applications for which it is not intended. Damage that

occurs from improper use or from unauthorized repairs will void the warranty.

For proper air circulation, please maintain a 50mm minimum clearance in between

the back of the wine cooler and the wall.

Do not operate this wine cooler in excessively moist or humid environments.

Keep the wine cooler away from direct sunlight.

Keep the wine cooler away from hazardous materials or combustible/flammable

substances.

★CAUTION:

This wine cooler is only designed for freestanding applications.

DANGER: RISK OF CHILD ENTRAPMENT: An empty wine cooler can be

dangerous to children. Remove any latches, lids, locks, and/or doors from unused

or discarded appliances to prevent child entrapment and suffocation. Never allow

children to operate, play with or crawl inside this appliance.

II. PARTS LIST

1. Temperature Control and light

2. Hinge Cover

3. Glass Door

4. Recessed Handle

5. Door Seal

6. Bottle Holder

7. Leveling Leg

8. Shelf

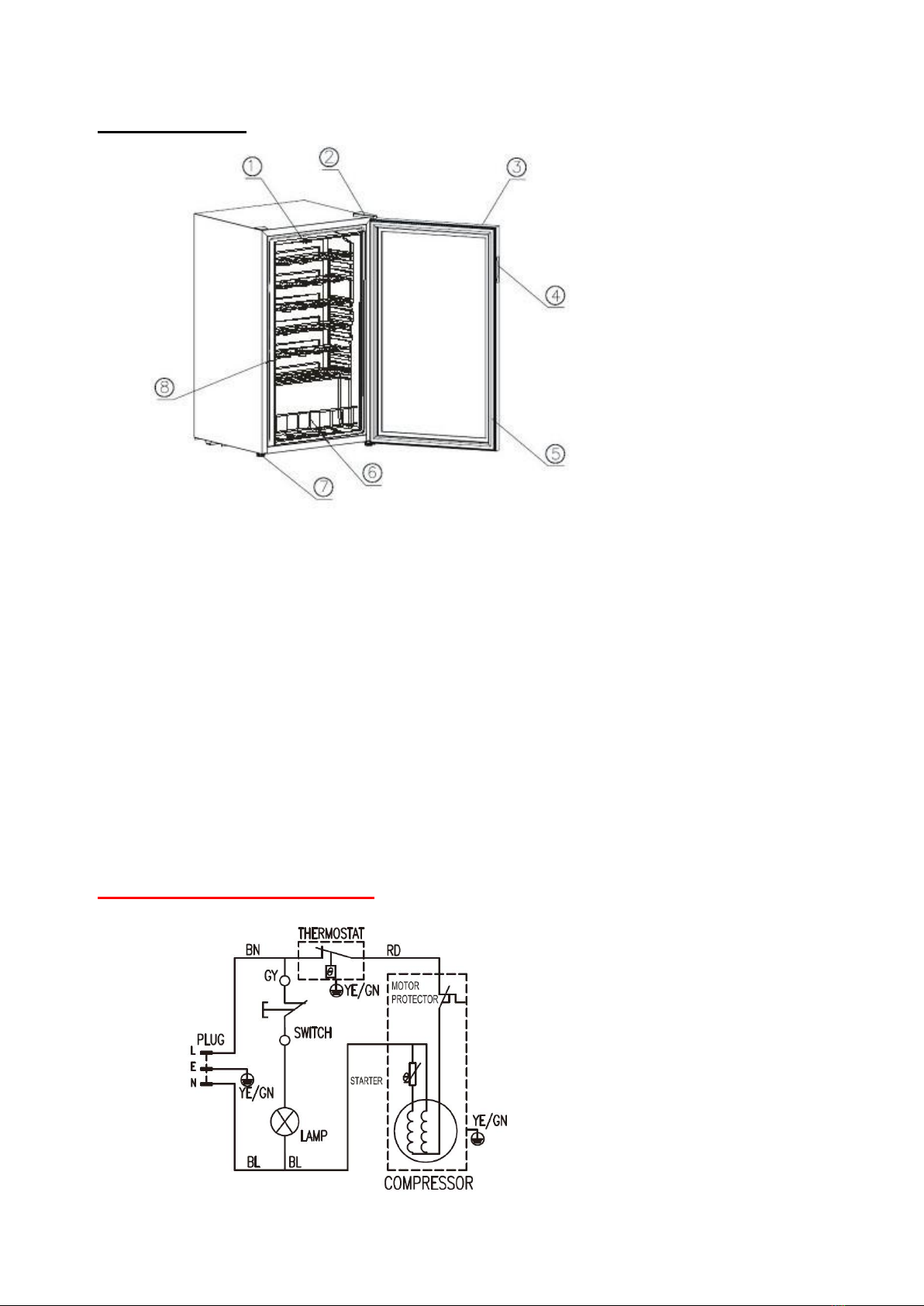

III. ELECTRICAL DIAGRAM

IV. OPERATING YOUR WINE COOLER

Initial Setup

Remove exterior and interior packing materials and connect the wine cooler to a power

supply. Once it is plugged in, let it run for at least 30 minutes. Do not change the

temperature or adjust any settings at this time.

Temperature Adjustment

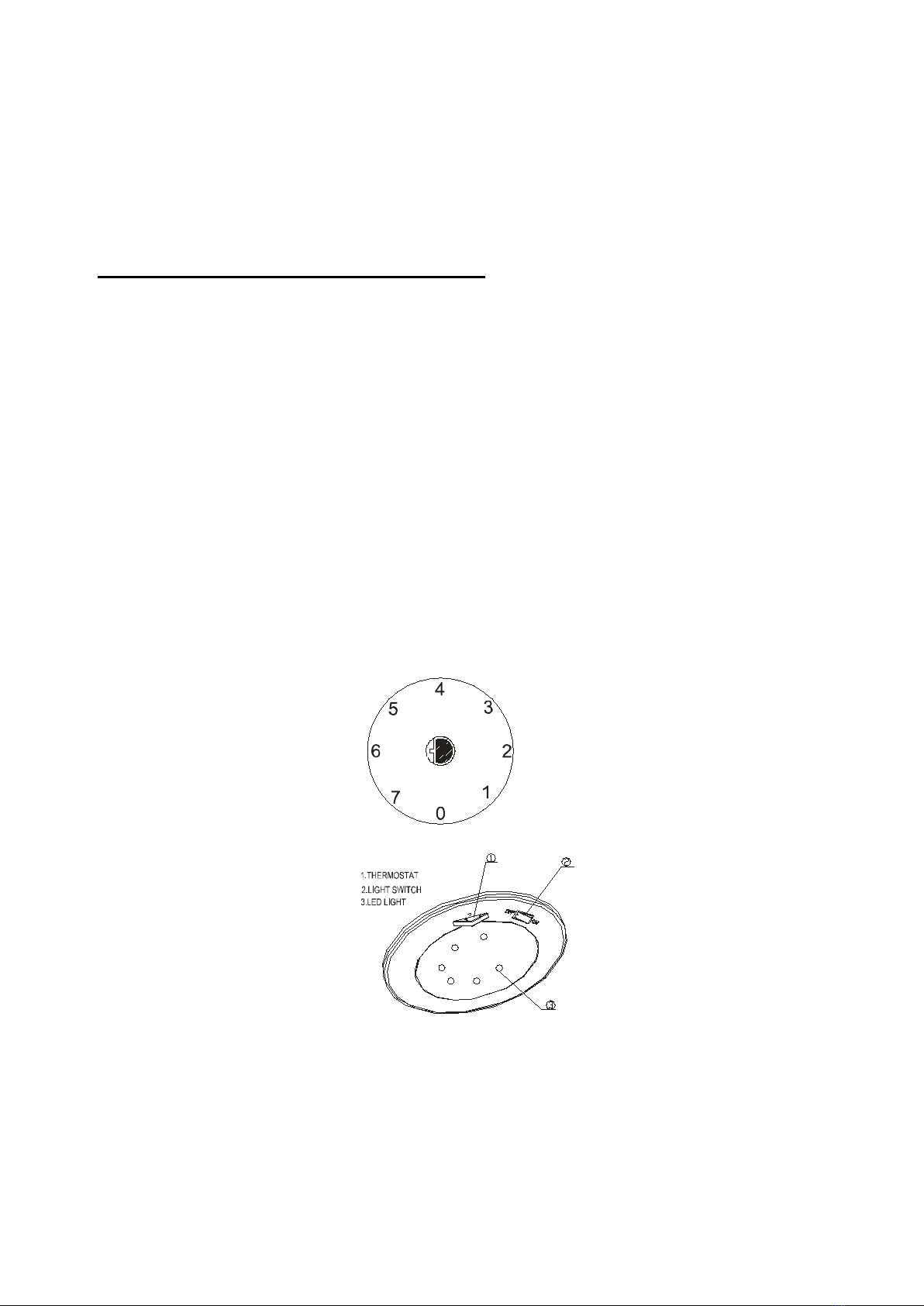

Your wine cooler can be set to your desired temperature. The unit’s temperature range is

4°C to 18°C (39°F to 65°F).

Avoid setting the thermostat too high or the wine cooler may be unable to achieve

satisfactory cooling temperatures. The temperature scale runs from 1, the warmest setting,

to 7, the coldest. The 0 position is an OFF setting which can be used when the wine cooler

is standing empty. When storing wines in the wine cooler, keep them away from the rear

wall. To allow free circulation of cold air don’t pack wines too tightly on the shelves and

never put hot food in the wine cooler.

CHANGING THE REVERSIBLE DOOR

This appliance is designed with a reversible door feature. You have the option of

configuring the door to open/close either from the left or the right side. In order to reverse

the opening direction of your door, please follow these simple instructions.

NOTE: If desired, please change the door swing prior to installation.

CAUTION: To avoid personal injury to yourself and/or damage to property, it is highly

recommended that someone assist you during the door reversal process.

Door Removal

Turn off the unit and disconnect the power plug from the wall outlet.

Tilt the unit backwards and secure at an angle of 45 degrees.

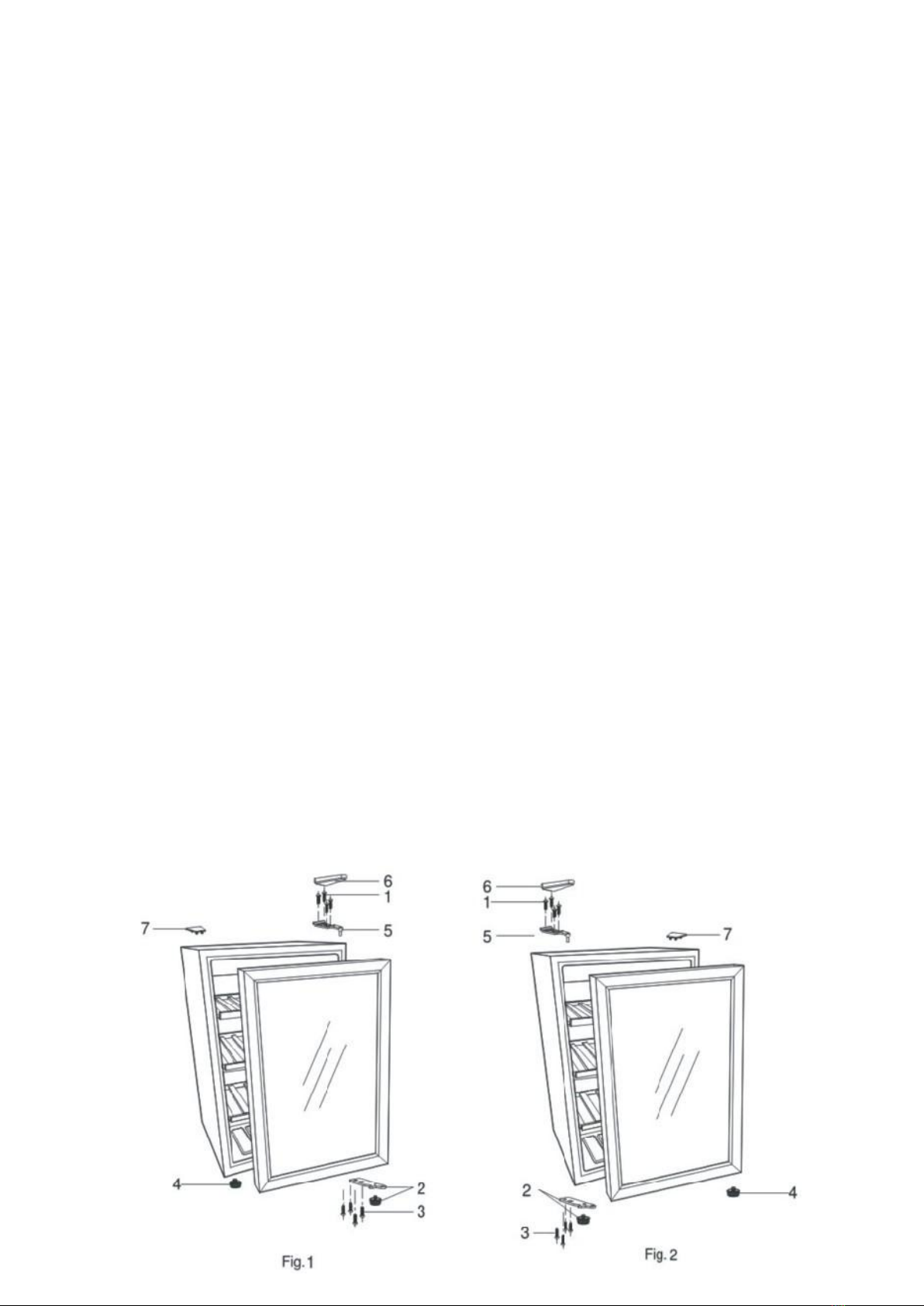

Remove the upper hinge cover (Fig.1: No.6).

Remove the screws (Fig.1: No.1) that secure the upper hinge (Fig.1: No.5) to the frame.

Remove the upper hinge (Fig 1: No. 5).

Lift the door, remove from lower hinge and place it on a padded surface to prevent

damage and scratches.

Remove the screws (Fig 1: No.3) that hold the lower hinge, front leg (Fig.1: No.2).

Remove the lower hinge, front leg (Fig. 1: No.2).

Remove the front leg (Fig. 1: No. 4) and transfer to opposite side.

Door Installation

Remove the cover plate (Fig. 2: No.7) covering the upper hinge holes.

Reverse the direction of lower hinge (Fig. 2: No. 2).

Install the lower hinge, front leg (Fig. 2: No. 2) on the lower frame with screws (Fig. 2:

No. 3).

Secure door onto lower hinge.

Holding the door in the closed position, secure the upper hinge (Fig. 2: No. 5) to the

door and screw into the frame (Fig. 2: No. 1).

Note: Do not fully tighten the screws (Fig. 2: No. 1) until the top of the door is level with

the top of the unit.

Install upper hinge cover (Fig. 2: No. 6) over the upper hinge.

V. OPTIMIZING PERFORMANCE

To ensure maximum performance and efficiency, be sure to place your wine cooler

in an area where there is proper air circulation. Also make sure the plumbing and

electrical connections are correct.

Allow for proper clearance around the wine cooler. Below are the recommended

clearances:

Sides: 3/4" (19 mm)

Top: 4” (100 mm)

Back: 2” (50 mm)

For proper internal air circulation, do not overfill your wine cooler.

Do not place the unit in direct sunlight.

Do not place heated wines in your wine cooler.

Do not store perishable food in your wine cooler. The unit’s interior temperature may

not be low enough to prevent spoilage.

Do not place heavy objects on top of the wine cooler.

VI. MAINTENANCE

Shut off the power supply before cleaning the unit’s cabinet.

Remove all wines and storage shelves.

Clean the unit’s interior with a warm water and neutral detergent solution.

Thoroughly dry all surfaces.

Please Note:

a. Do not use abrasive cleaners to clean the wine cooler.

b. Use mild, soapy water to clean the unit’s door seal.

c. To ensure efficient operation, also thoroughly clean the back and bottom of the

wine cooler.

VII. TROUBLESHOOTING

Many common wine cooler problems can be easily solved, saving you the cost of a

possible service call. Try the suggestions below to see if you can solve your problem

before calling customer service.

Symptoms

Possible cause

Solutions

The wine cooler

does not cool.

The unit is not

plugged in.

The voltage is

incorrect.

A fuse may be

broken.

Plug in the unit.

Ensure proper voltage.

Have the unit’s fuse replaced.

The wine cooler

does not get cold

enough.

The temperature

setting may be

incorrect.

The wine cooler may

be placed too close to

a heat source.

There is insufficient

ventilation.

The door is not

completely closed or

the door seal is not

working properly.

Make sure the set temperature is

correct.

Keep the wine cooler away from

direct sunlight or other heat sources.

Place the wine cooler in an area with

proper ventilation and clearances.

Close the door tightly. Do not open

the door frequently and do not keep

the door open for extended periods

of time.

The wine cooler

seems to make

too much noise

The unit is not leveled

or positioned

properly.

There is insufficient

ventilation.

The unit is too close

to a wall or another

surface.

Adjust the unit’s feet and ensure the

product is level.

Allow sufficient clearance around the

unit.

Allow sufficient clearance around the

unit.

Frost is building

up in the unit.

There is excess

humidity or the

interior temperature is

too low.

Turn off the wine cooler, unplug it

and remove the frost buildup

manually. Reconnect the power

once the ice has thawed.

LIMITED MANUFACTURER’S WARRANTY

This appliance is covered by a limited manufacturer’s warranty. For one year from the

original date of purchase, the manufacturer will repair or replace any parts of this appliance

that prove to be defective in materials and workmanship, provided the appliance has been

used under normal operating conditions as intended by the manufacturer.

Warranty Terms:

During the first year, any components of this appliance found to be defective due to

materials or workmanship will be repaired or replaced, at the manufacturer’s discretion, at

no charge to the original purchaser. The purchaser will be responsible for any removal or

transportation costs.

Warranty Exclusions:

The warranty will not apply if damage is caused by any of the following:

Power failure

Damage in transit or when moving the appliance

Improper power supply such as low voltage, defective household wiring or

inadequate fuses

Accident, alteration, misuse or abuse of the appliance such as using non-approved

accessories, inadequate air circulation in the room or abnormal operating conditions

(extreme temperatures)

Use in commercial or industrial applications

Fire, water damage, theft, war, riot, hostility or acts of God such as hurricanes,

floods, etc.

Use of force or damage caused by external influences

Partially or completely dismantled appliances
