SMA MULTICLUSTER BOX 36 Manuel utilisateur
MC_BOX_36-BE-en-20 | Version 2.0 ENGLISH
Operating Manual
MULTICLUSTER BOX 36
Legal Provisions SMA Solar Technology AG
2 MC_BOX_36-BE-en-20 Operating Manual
Legal Provisions
The information contained in this document is the property of SMA Solar Technology AG. Publishing its content, either partially or
in full, requires the written permission of SMA Solar Technology AG. Any internal company copying of the document for the
purposes of evaluating the product or its correct implementation is allowed and does not require permission.
SMA Factory Warranty
The current warranty conditions come enclosed with your device. These are also available online at www.SMA-Solar.com and can
be downloaded and are available on paper from the usual sales channels if required.
Trademarks
All trademarks are recognized even if these are not marked separately. Missing designations do not mean that a product or brand
is not a registered trademark.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by
SMA Solar Technology AG is under license.
QR Code® is a registered trademark of DENSO WAVE INCORPORATED.
SMA Solar Technology AG
Sonnenallee 1
34266 Niestetal
Germany
Tel. +49 561 9522-0
Fax +49 561 9522-100
www.SMA.de
E-mail: info@SMA.de
© 2004 to 2013 SMA Solar Technology AG. All rights reserved
SMA Solar Technology AG Table of contents
Operating Manual MC_BOX_36-BE-en-20 3
Table of contents
1 Information on this Document. . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.1 Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2 Skills of Qualified Persons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.3 Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3 Scope of Delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4 Additionally Required Materials. . . . . . . . . . . . . . . . . . . . . . . . 11
5 Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.1 Multicluster Box 36 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.2 Type Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
6 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
6.1 Choosing a Mounting Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
6.2 Preparing the Mounting Location. . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6.3 Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6.3.1 Transport Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6.3.2 Attaching the Lifting Lugs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6.3.3 Transporting and Mounting the Multicluster Box . . . . . . . . . . . . . . . 18
7 Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
7.1 Overview of the Connection Area. . . . . . . . . . . . . . . . . . . . . . . . . . . 20
7.1.1 Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
7.1.2 Cable Entries in the Floor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
7.1.3 Grounding Busbar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
7.2 Opening the Multicluster Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
7.3 Removing Protection against Contact . . . . . . . . . . . . . . . . . . . . . . . . 23
7.4 Inserting and Preparing the Connection Cables . . . . . . . . . . . . . . . . 24
7.5 Connecting the Generator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
7.6 Connecting the Loads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
7.7 Connecting the PV Plant. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
7.8 Connecting the Sunny Island Inverters. . . . . . . . . . . . . . . . . . . . . . . . 31
Table of contents SMA Solar Technology AG
4 MC_BOX_36-BE-en-20 Operating Manual
7.9 Grounding the Multicluster System . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7.10 Connecting the Control, Measuring and Data Cables . . . . . . . . . . . 34
7.11 Mounting the Contact Hazard Protection Cover. . . . . . . . . . . . . . . . 35
7.12 Protecting the Door Seals from Freezing . . . . . . . . . . . . . . . . . . . . . . 35
7.13 Mounting the Kick Plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
8 Commissioning the Multicluster Box. . . . . . . . . . . . . . . . . . . . . 36
9 Disconnecting the Multicluster System from
Voltage Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
10 Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
11 Decommissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
11.1 Disassembling the Multicluster Box . . . . . . . . . . . . . . . . . . . . . . . . . . 40
11.2 Storing the Multicluster Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
11.3 Disposing of the Multicluster Box. . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
12 Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
13 Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
SMA Solar Technology AG 1 Information on this Document
Operating Manual MC_BOX_36-BE-en-20 5
1 Information on this Document
Validity
This document is valid for the device type MC-BOX-36.3-11 (Multicluster Box 36).
Target Group
This document is intended for qualified persons. Only persons with the appropriate skills are allowed
to perform the tasks described in this document (see Section2.2 "Skills of Qualified Persons", page8).
Additional Information
You can find more information on the SMA multicluster technology and the configurable parameters
of the Sunny Island in the documentation of the Sunny Island 5048 / 6.0H / 8.0H.
Symbols
Nomenclature
Symbol Explanation
Indicates a hazardous situation which, if not avoided, will result in death
or serious injury
Indicates a hazardous situation which, if not avoided, can result in death
or serious injury
Indicates a hazardous situation which, if not avoided, can result in minor
or moderate injury
Indicates a situation which, if not avoided, can result in property damage
Information that is important for a specific topic or goal, but is not
safety-relevant
Indicates a requirement for meeting a specific goal
Desired result
✖ A problem that might occur
Complete designation Designation in this document
Multicluster Box 36 Multicluster Box
Sunny Island multicluster system Multicluster system
1 Information on this Document SMA Solar Technology AG
6 MC_BOX_36-BE-en-20 Operating Manual
Abbreviations
Abbreviation Designation Explanation
AC Alternating Current -
DC Direct Current -
EMC Electromagnetic Compatibility -
MSL Mean Sea Level -
PV Photovoltaics -
SOC State of Charge State of charge of the battery
SOH State of Health Battery capacity available for consumption
SMA Solar Technology AG 2 Safety
Operating Manual MC_BOX_36-BE-en-20 7
2 Safety
2.1 Intended Use
The Multicluster Box is a component of the SMA multicluster technology for off-grid systems. The
Multicluster Box is a main AC distribution board to which you can connect up to twelve three-phase
clusters. Each cluster consists of three Sunny Island inverters of the same device type with parallel
DC-side connection.

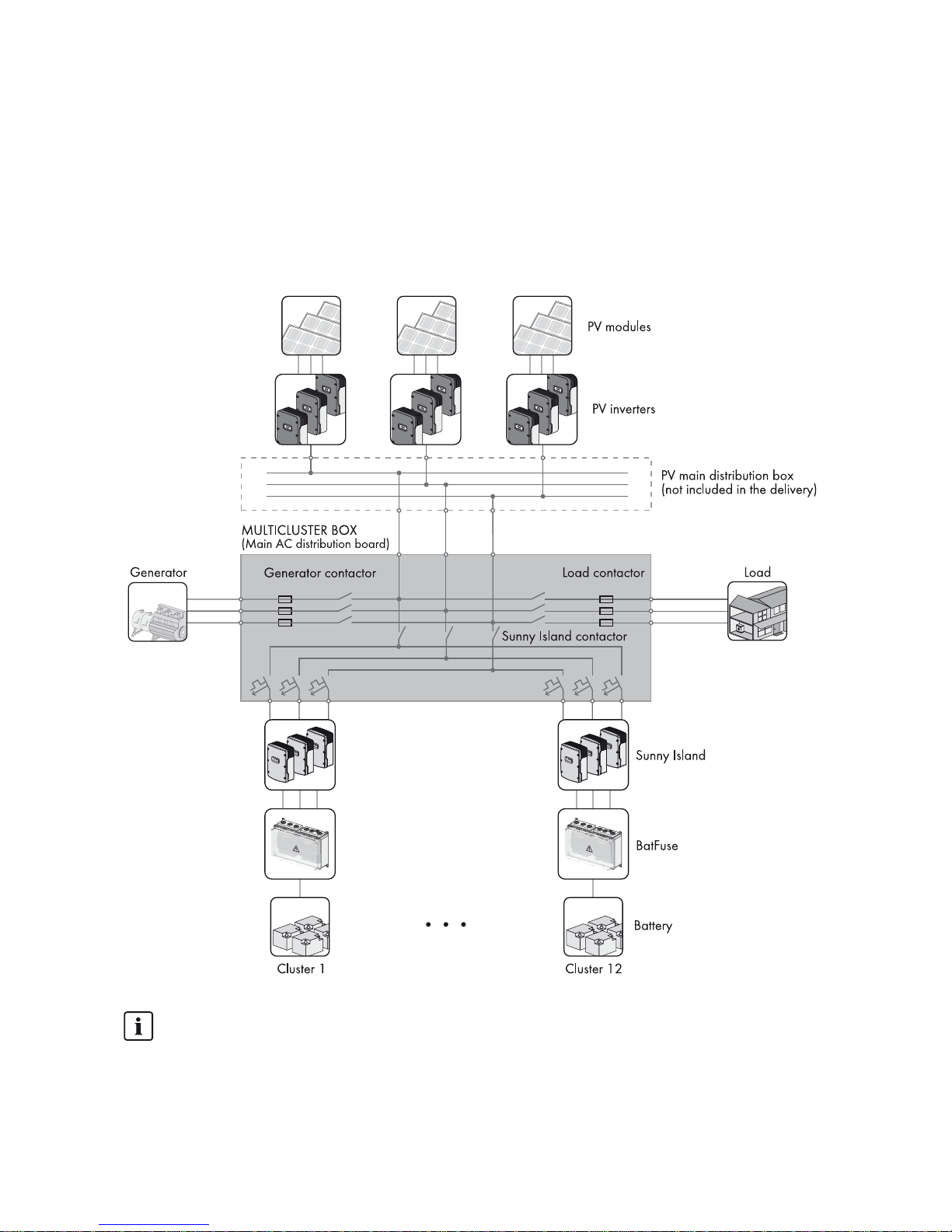

Figure1: Circuitry principle
Connection requirements
The Multicluster Box is designed for connection to TN systems. The Multicluster Box must
be grounded prior to commissioning (see Section7.9, page33).
2 Safety SMA Solar Technology AG
8 MC_BOX_36-BE-en-20 Operating Manual
Do not exceed the maximum AC connection power of the Multicluster Box.
Only operate the Multicluster Box in conjunction with Sunny Island inverters of type Sunny Island
5048 / 6.0H / 8.0H. Always take the maximum AC connection power and the permitted
Sunny Island combinations into account.
Permitted Sunny Island combinations
Α Only Sunny Island inverters of the same device type are permitted to operate in one cluster.
Α Different clusters may be equipped with different device types.
The Multicluster Box is designed for use at altitudes of up to 2,000 m above mean sea level. If you
wish to use the Multicluster Box at altitudes above 2,000 m, contact SMA Solar Technology AG
(see Section13 "Contact", page44).
The product is designed for indoor use only.
The product is designed for EMC environment A* . In EMC environment B*, the product can cause
undesired electromagnetic interference.
Α If the product is operated in EMC environment B, take protective measures against
electromagnetic interference in accordance with the locally applicable standards and
directives.
For safety reasons, it is not permitted to modify the product or install components that are not explicitly
recommended or distributed by SMA Solar Technology AG for this product.
The type label must be permanently attached to the product.
Use this product only in accordance with the enclosed documentation and with the local standards
and directives. Any other application may cause personal injury or property damage.
The enclosed documentation is an integral part of this product.
Α Read and observe the documentation.
Α Keep the documentation in a convenient place for future reference.
2.2 Skills of Qualified Persons
The tasks described in this document must be performed by qualified persons only. Qualified persons
must have the following skills:
Α Training in off-grid systems from SMA Solar Technology AG
Α Training in how to deal with the dangers and risks associated with installing and operating
electrical devices and batteries
Α Training in the installation and commissioning of electrical devices
Α Knowledge of and adherence to the local standards and directives
Α Knowledge of and adherence to this document and all safety precautions
* in accordance with IEC 61439-1:2011
SMA Solar Technology AG 2 Safety
Operating Manual MC_BOX_36-BE-en-20 9
2.3 Safety Precautions
This section contains safety precautions that must be observed at all times when working on or with
the product.
To prevent personal injury or property damage and to ensure long-term operation of the product, read
this section carefully and follow all safety precautions at all times.
Danger to life due to electric shock
High voltages are present in the Multicluster Box. Touching live components results in death or
serious injury due to electric shock.
Α Disconnect the Multicluster Box from all voltage sources before carrying out any work.
Α Switch off all loads.
Α Switch off the master of the main cluster.
Α Disconnect all Sunny Island inverters in the Multicluster Box and secure against
reconnection.
Α Disconnect the PV main distribution board and secure against reconnection.
Α Shut down the generator and secure against unintentional reconnection.
3 Scope of Delivery SMA Solar Technology AG
10 MC_BOX_36-BE-en-20 Operating Manual
3 Scope of Delivery
Check the scope of delivery for completeness and any external damage. Contact your distributor if
the scope of delivery is incomplete or damaged.
Figure2: Components included in the scope of delivery
Object Number Description
A1Multicluster Box
B 1 Switch cabinet key
C4Lifting lug
D 1 Data cable: 10 m, black
E 3 Control and measuring cable: 10 m, red
F 15 Cable clamp with counter sleeve (26 mm to 30 mm)
G 3 LV/HRC fuse link 500 A
H 1 Operating manual
I 1 Document "Installation - Circuitry Overview"
K 2 Set with adhesive web for marking the cables
