SM Pro Active-1 Manuel utilisateur
Active Monitor Controller
!
Operating Manual
V1.1
!
SM Pro Audio Page 2 of 16 ACTIVE-1 manual
!
!
Contents
1 SAFETY INSTRUCTIONS............................................................................................................ 3
2 FOREWARD................................................................................................................................. 4
2.1 Important Notes: .................................................................................................................. 4
3 INTRODUCTION .......................................................................................................................... 5
3.1 Unboxing .............................................................................................................................. 5
4 CONNECTIONS (rear panel) ...................................................................................................... 6
4.1 Mains Power......................................................................................................................... 6
4.2 Sources (Inputs) .................................................................................................................. 6
4.3 Outputs ................................................................................................................................. 7
4.4 Footswitch (TALK BACK CONTROL)................................................................................. 7
4.5 +4/-10DB Switch................................................................................................................... 8
5 FRONT PANEL ............................................................................................................................ 9
5.1 Input Selector....................................................................................................................... 9
5.2 Headphone Amplifiers ........................................................................................................ 9
5.3 Dim ...................................................................................................................................... 10
5.4 Mute .................................................................................................................................... 10
5.5 Mono ................................................................................................................................... 10
5.6 Volume control................................................................................................................... 10
5.7 Talkback ............................................................................................................................. 11
5.8 Monitor Select.................................................................................................................... 11
6 APPLICATION ........................................................................................................................... 12
7 SPECIFICATIONS...................................................................................................................... 13
8 WARRANTY............................................................................................................................... 14
8.1 Warranty Registration ....................................................................................................... 14
8.2 Warranty ............................................................................................................................. 14
8.3 Return Authorization Number .......................................................................................... 14
8.4 Warranty Regulations........................................................................................................ 14
8.5 Claim for Damages ............................................................................................................ 15
8.6 Other Warranty Rights ...................................................................................................... 15
9 FCC and CE Regulation ........................................................................................................... 16
10 CORRESPONDENCE .............................................................................................................. 16
SM Pro Audio Page 3 of 16 ACTIVE-1 Manual
!
!
1SAFETY INSTRUCTIONS
!
CAUTION: To reduce the risk of electrical shock, do not remove the cover or rear panel of this unit.
No user serviceable parts inside. Please refer servicing to qualified personnel only.
WARNING: To reduce the risk of fire or electrical shock, do not expose this appliance to rain or
moisture.
DETAILED SAFETY INSTRUCTIONS:
All safety and operation instructions of this manual should be read and adhered to before
operation.
Retain Instructions:
Please retain all safety and operating instructions for future reference.
Follow instructions:
All operation and user instructions should be followed.
Water, liquid and Moisture:
The appliance should not be used near water, rain or other liquids. Make sure that no liquid can
leak, spill or otherwise seep into the appliance.
Ventilation:
Please place the appliance so no obstacles interfere or impede the flow of air through the
ventilation openings.
Heat:
The appliance should be situated away from other heat sources such as heaters, radiators, ovens,
or other appliances that produce heat.
Power Source:
Make sure your appliance is set to the correct voltage for the country in which it will
be use before switching the device ON.
Grounding and Polarization:
Precautions should be taken so that the grounding or polarization means of an appliance is not
defeated.
Power-Cord Protection:
Power supply cords should be routed so that they are not likely to be walked on, pinched,
damaged, worn, or rubbed by any other device or obstacle.
Cleaning:
The appliance should be cleaned only with a light soft cloth. Do not use any damaging
or corrosive products on the unit.
Periods of inactivity:
The power cord of the appliance should be unplugged from the outlet when left unused
for a long period of time or in case a lightning storm occurs.
Damage Requiring Service:
The appliance should be serviced by qualified service personnel when:
• The power supply cord or the plug has been damaged; or
• Objects have fallen, or liquid has been spilled into the appliance; or
• The appliance has been exposed to rain; or
• The appliance does not appear to operate normally or exhibits a marked change in
performance; or
• The appliance has been dropped, or the enclosure damaged.
Servicing:
The user should not attempt to service the appliance beyond that is described in the Operating
Instructions.
All other servicing should be referred to qualified service personnel.! !
SM Pro Audio Page 4 of 16 ACTIVE-1 manual
!
!
!
2FOREWARD
!
Dear Customer,
Thank you for purchasing this SM Pro Audio product. The ACTIVE-1 is designed to be a
comprehensive studio monitor controller for home, project and professional studios, sound
equipment rental companies, repair centers, schools and fixed installations — in short, virtually any
and all venues where audio products are used.
Drawing on years of hands-on experience in the audio industry and valuable suggestions from our
customers, our engineers have developed a product that we are certain will more than meet your
expectations. As with all SM Pro Audio equipment, the ACTIVE-1 was designed to provide you with
superb performance, excellent technical specifications, and uncompromising audio quality at an
extremely affordable price.
We hope you enjoy making music with SM Pro Audio!
!
2.1 Important Notes:
!
Every effort has been made to ensure all information provided in this manual is accurate at the
time of writing.
SM Pro Audio is not liable for any incorrect information contained in this manual and extends no
liabilities in regard to this manual other than those required by local law.
SM Pro Audio may update the contents of this manual at any time without prior notice. The latest
version of this manual is available from the SM Pro Audio website at all times.
http://www.smproaudio.com!
!
!
! !
08!
Fall$
SM Pro Audio Page 5 of 16 ACTIVE-1 Manual
!
!
!
3INTRODUCTION
!
Designed to provide the lowest noise operation possible in an active monitor controller, the
ACTIVE-1 is ideal for applications where both signal attenuation and boost is needed.
Building on the feature set of the PASSIVE-1, the ACTIVE-1 also includes LED level-metering and
convenient switch selectable +4dBu/-10dBV input stage operation. The ACTIVE-1 is automatically
recognized by the host computer as a USB device for easy DAW recording and playback via the
on-board USB I/O.
It allows you to connect multiple input signals, route them to various destinations, and control their
levels. The ACTIVE-1 is an ideal centerpiece for monitor control in home, professional, and project
studio applications.
3.1 Unboxing
!
Your SM Pro Audio ACTIVE-1 was carefully packed in the factory and the packaging was designed
to protect the unit from rough handling. Nevertheless, we recommend that you carefully examine
the packaging and its contents for any signs of physical damage, which may have occurred in
transit.
If the unit is damaged, please do not return it to us, but notify your dealer and the shipping
company immediately, otherwise claims for damage or replacement may not be granted. Shipping
claims must be made by the consignee.
!
!
!
SM Pro Audio Page 6 of 16 ACTIVE-1 manual
!
!
4CONNECTIONS (rear panel)
!
!

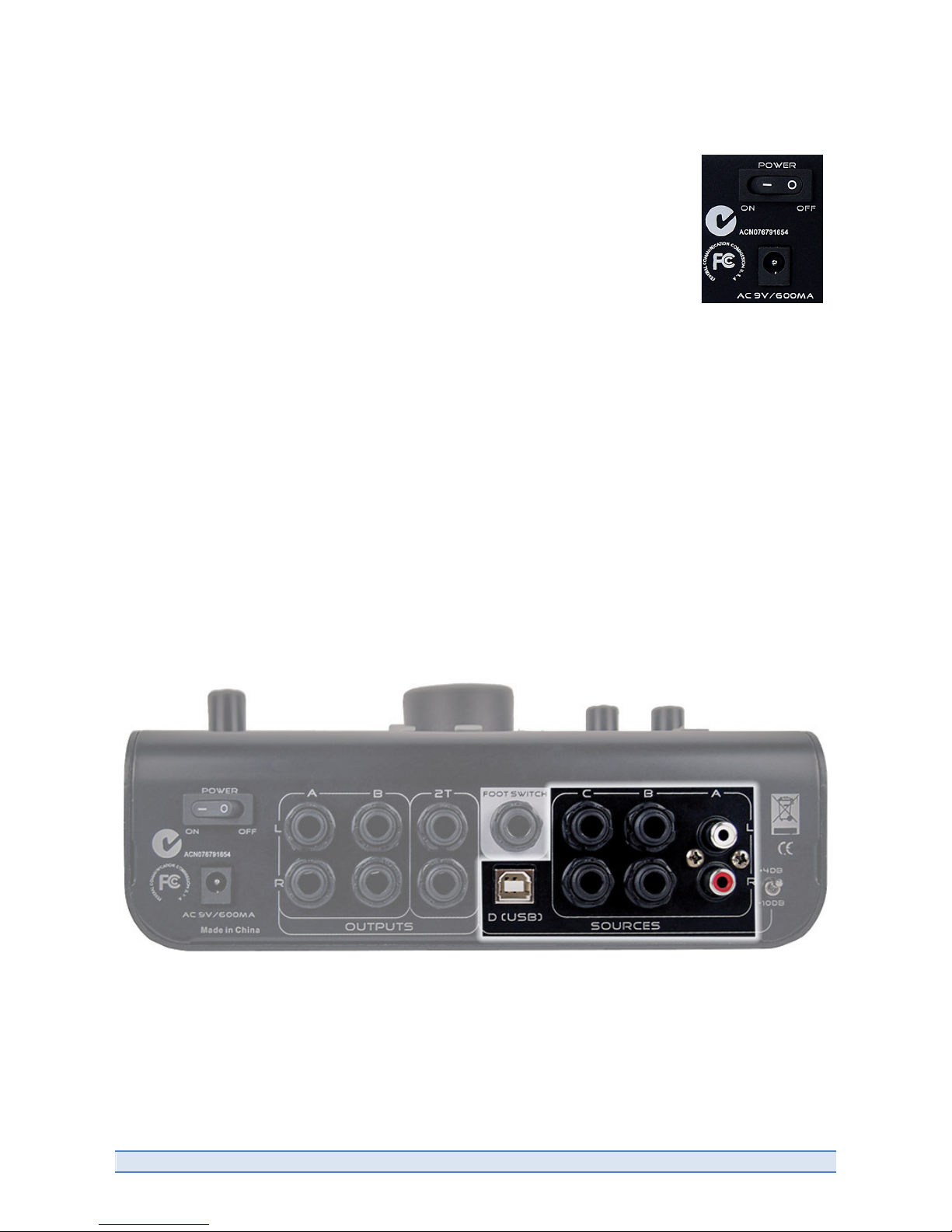

4.1 Mains Power
The ACTIVE-1 includes a 9V mains power supply. The power LED on the front
panel (to the left of the volume knob) will illuminate when the external power
supply is connected and mains power is present. Please ensure the correct
power supply is used with the ACTIVE1 and that the power rating on the
provided power supply suites your AC power outlet. Please make sure your
Mains voltage is compatible with the provided adaptor.
!
!
!
4.2 Sources (Inputs)
!
Sources is the description of the 4 INPUT connectors.
•Source A is the stereo RCA inputs
•Sources B and C are the 6.5mm or ¼inch stereo input jacks
•Source D is the USB input. The USB input has a built in Legacy compatible driver for simple
plug & play operation. The USB input does not need mains power to operate. An ASIO
driver is also available for download from our website.
!
!
!
!
!
!
!
SM Pro Audio Page 7 of 16 ACTIVE-1 Manual
!
!
!

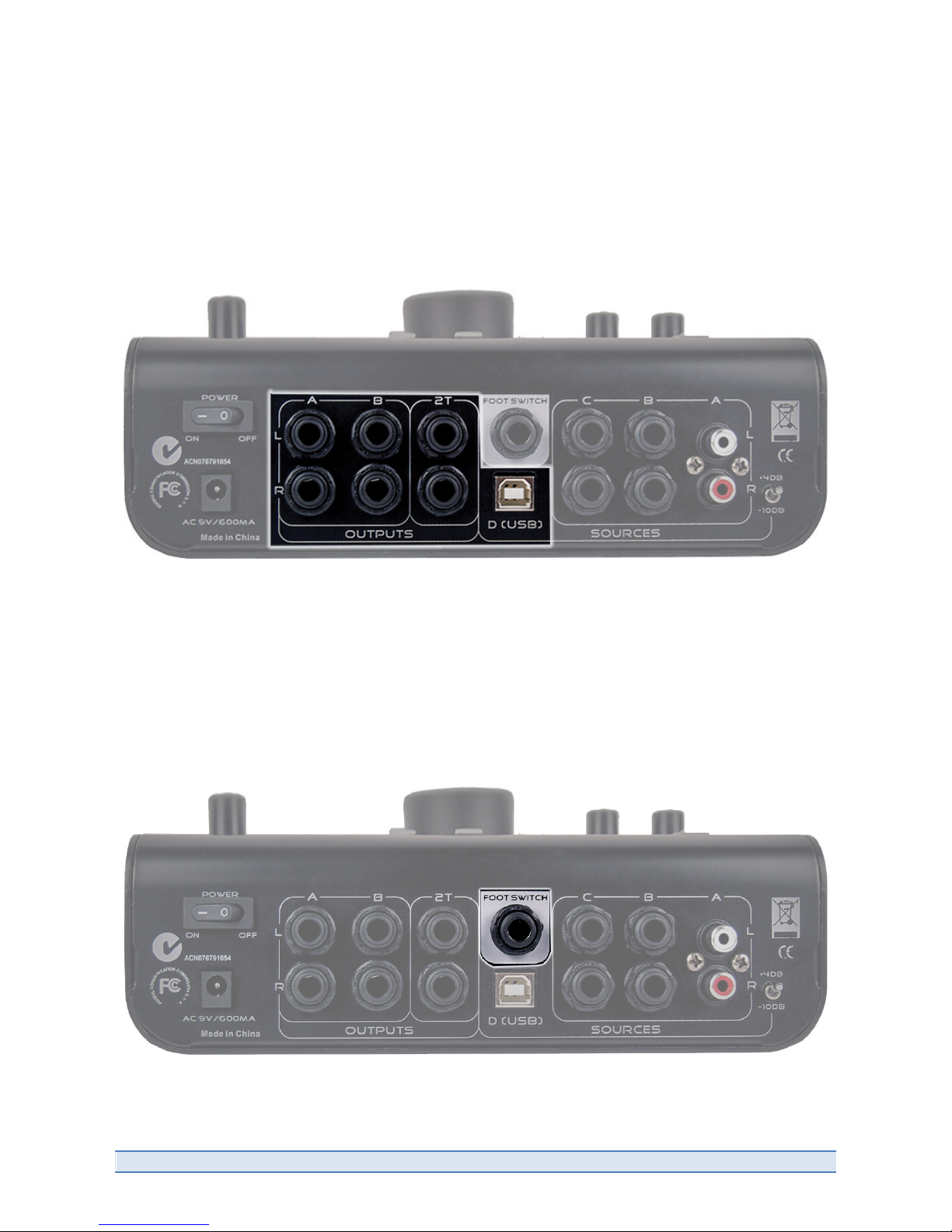

4.3 Outputs
Outputs is the description of the 4 output connectors. They are line level signal for plugging in your
active studio monitors or to the inputs of a power amplifier that is driving your passive monitors.
•Outputs A and B are stereo 6.5mm or ¼inch jacks
•Output 2T (2 Track) is the 6.5mm stereo output that includes the talkback signal
•Source D is the USB output with Legacy driver built in. USB does not need mains power to
operate. USB output always records what is selected on the MAIN SOURCE input.!
!
!
!
!
4.4 Footswitch (TALK BACK CONTROL)
Plug a 6.5mm or ¼inch jack footswitch into this socket. Pressing the footswitch initiates hands-
free activation of the talkback feature.
!
!
!
SM Pro Audio Page 8 of 16 ACTIVE-1 manual
!
!
!

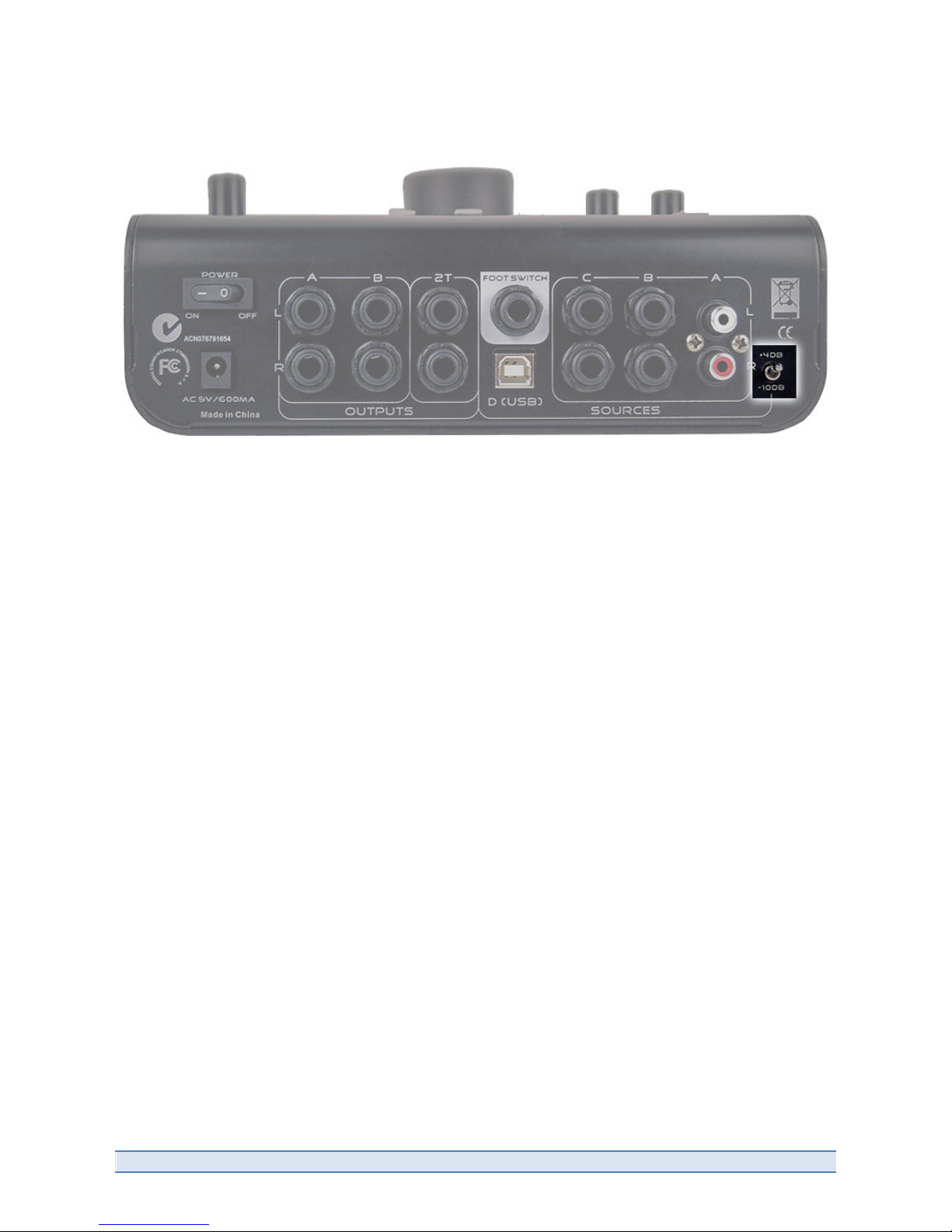

4.5 +4/-10DB Switch
!
The selector switch in the bottom right rear corner changes the output level compatibility
SM Pro Audio Page 9 of 16 ACTIVE-1 Manual
!
!
5FRONT PANEL
!

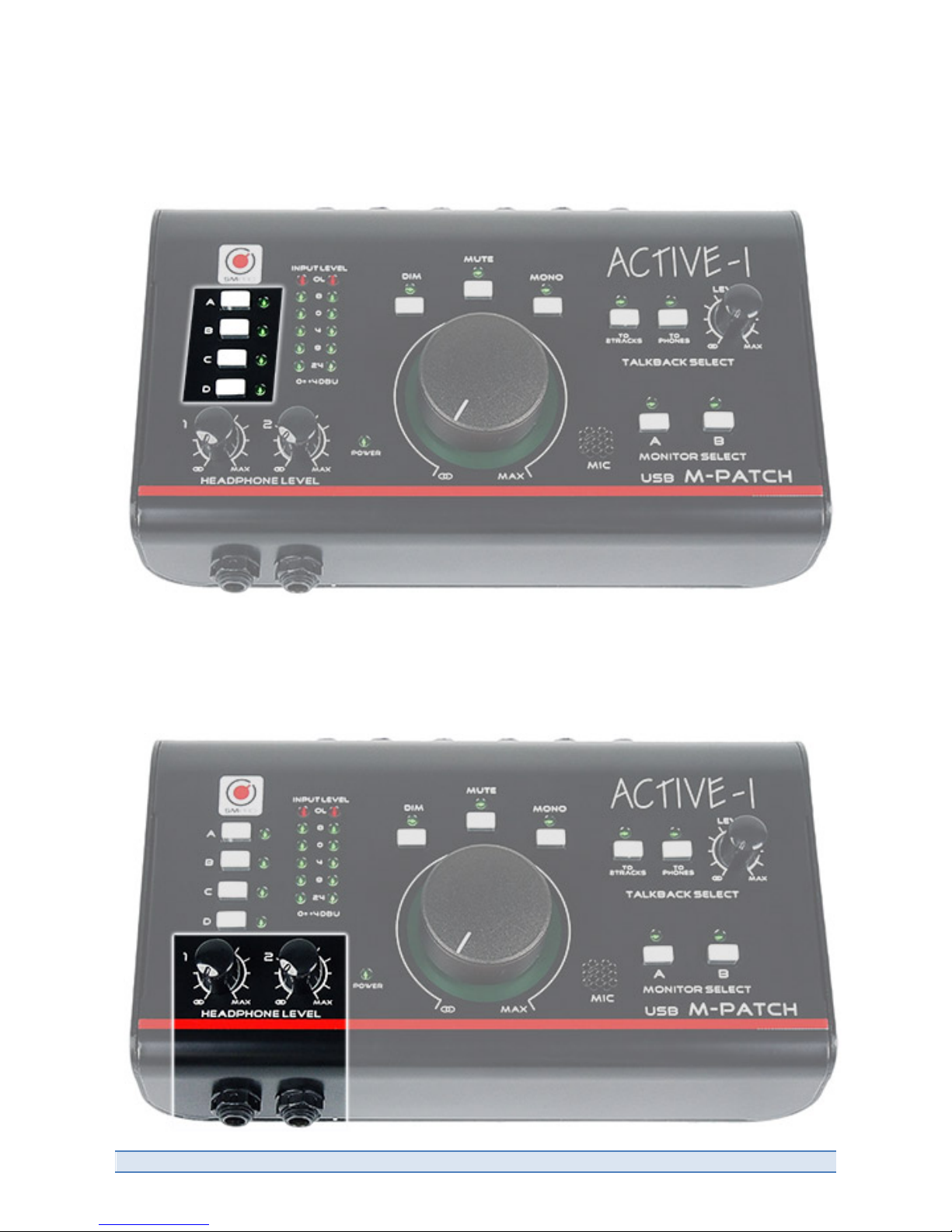

5.1 Input Selector
The ACTIVE1’s input selector chooses the input signal you wish to monitor.
5.2 Headphone Amplifiers
There are two independent headphone amplifiers provided on the ACTIVE-1.
Each with their own volume control.
SM Pro Audio Page 10 of 16 ACTIVE-1 manual
!
!
5.3 Dim
Activate this switch to decrease the listening level of the outputs by 20db. This is helpful to allow
discussion in the studio without having to change the position of the volume knob.
5.4 Mute
Activate this switch to mute the signal from the outputs.
5.5 Mono
Activate this switch to listen to the audio outputs in monophonic mode. This combines the stereo
audio signal into a monophonic signal, which helps to check for any phase cancellation issues in
the stereo signal.

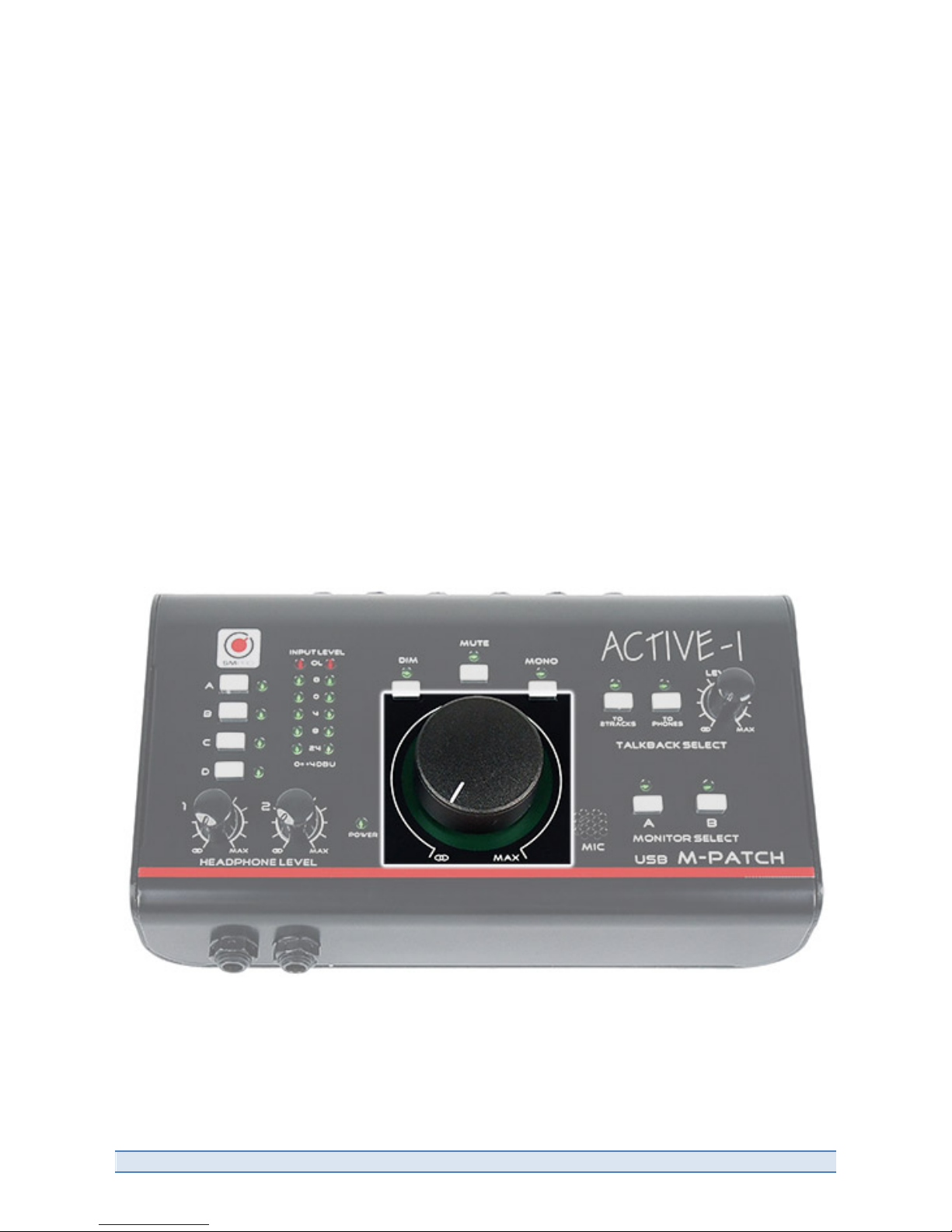

5.6 Volume control
As it is an ACTIVE device, the ACTIVE-1’s Volume control, controls an electronic circuit, which in
turn adjusts the level of the audio going through the device.
