Sloan_07_MA_117 03 025_022_14A

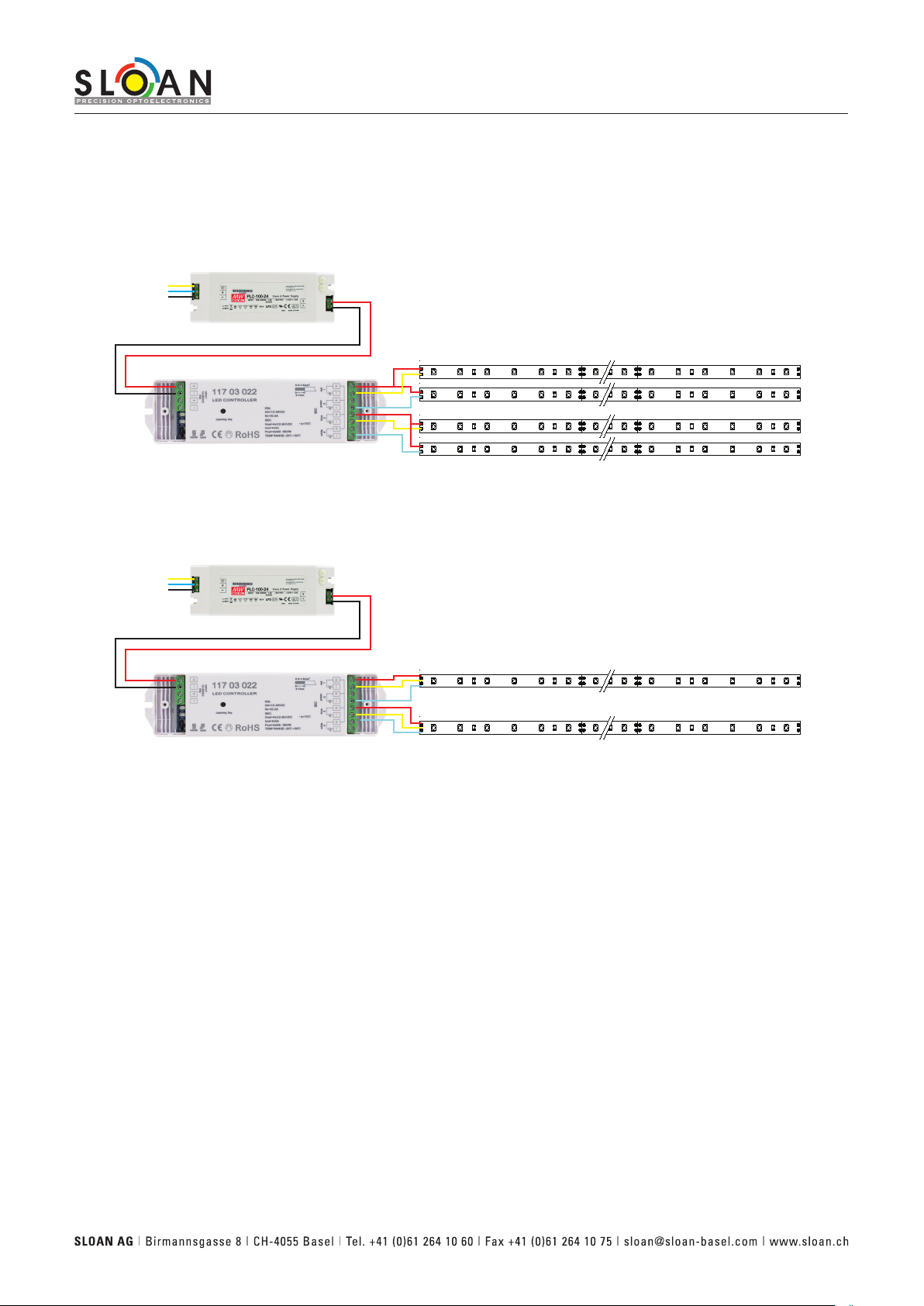

1. Do wiring according to wiring diagram and install battery into remote control.
2. How to learn ID process?
a. Wake up the remote by pressing any button (except touch colour wheel). If controller is switched off press Power button .
When indicator is red, then the remote is active.
(Remote will fall into sleep mode after 10sec. of no action)
b. Press any zone button ... (which you desire to control) on remote.

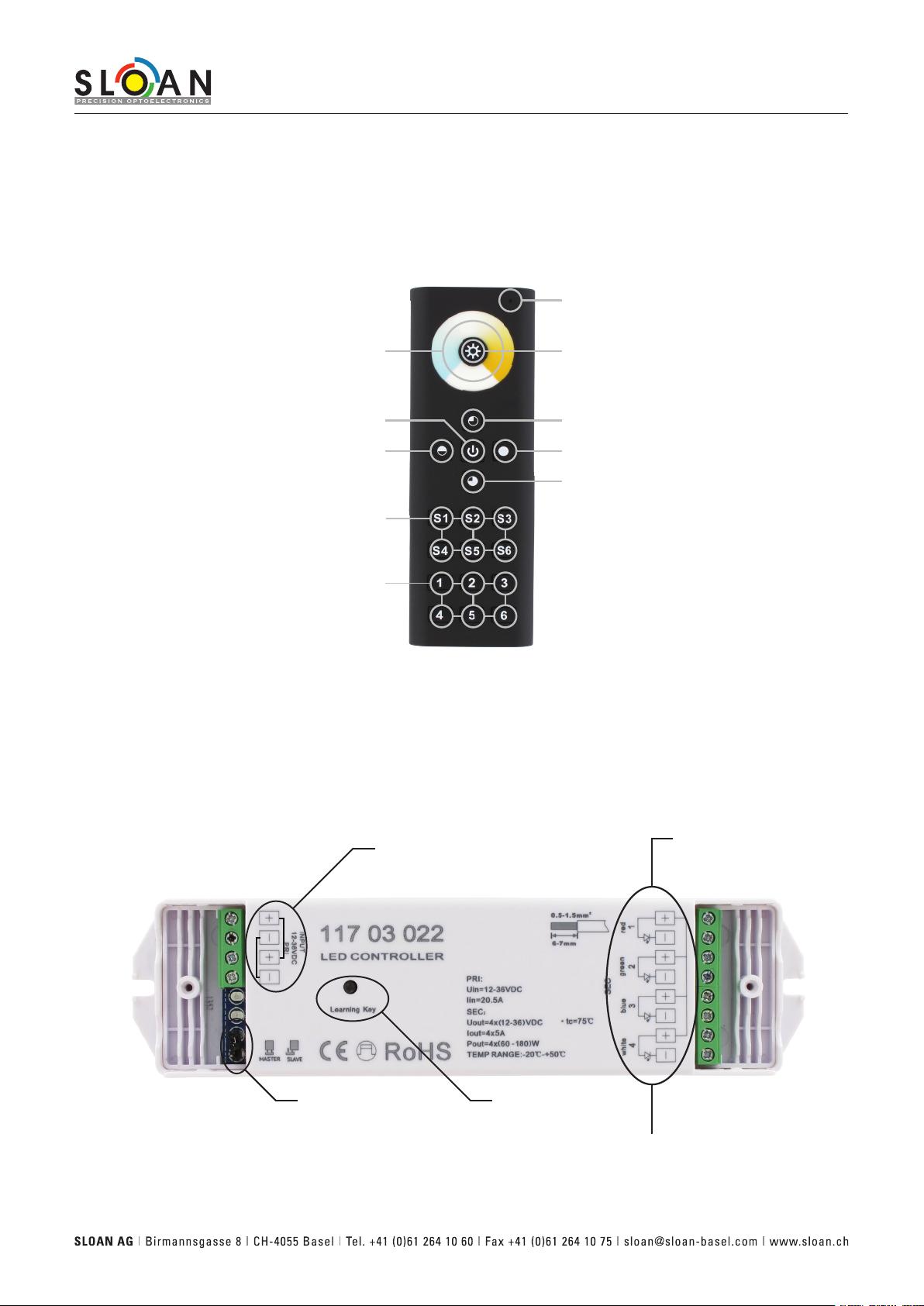

c. Press learning button on controller (receiver).
d. Then touch colour wheel.
e. ConnectedLEDlightwillashtoconrmzonedesignation.

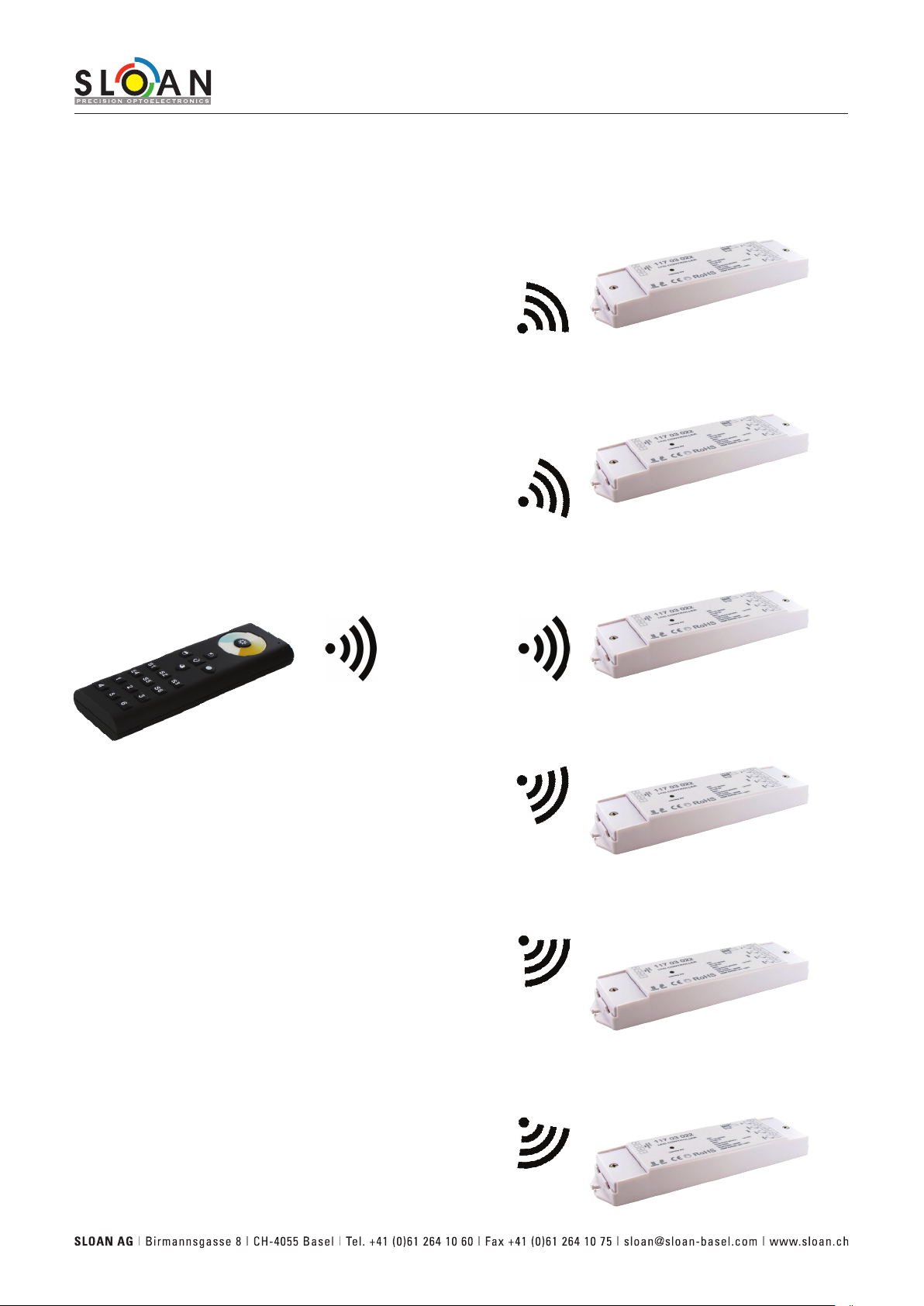

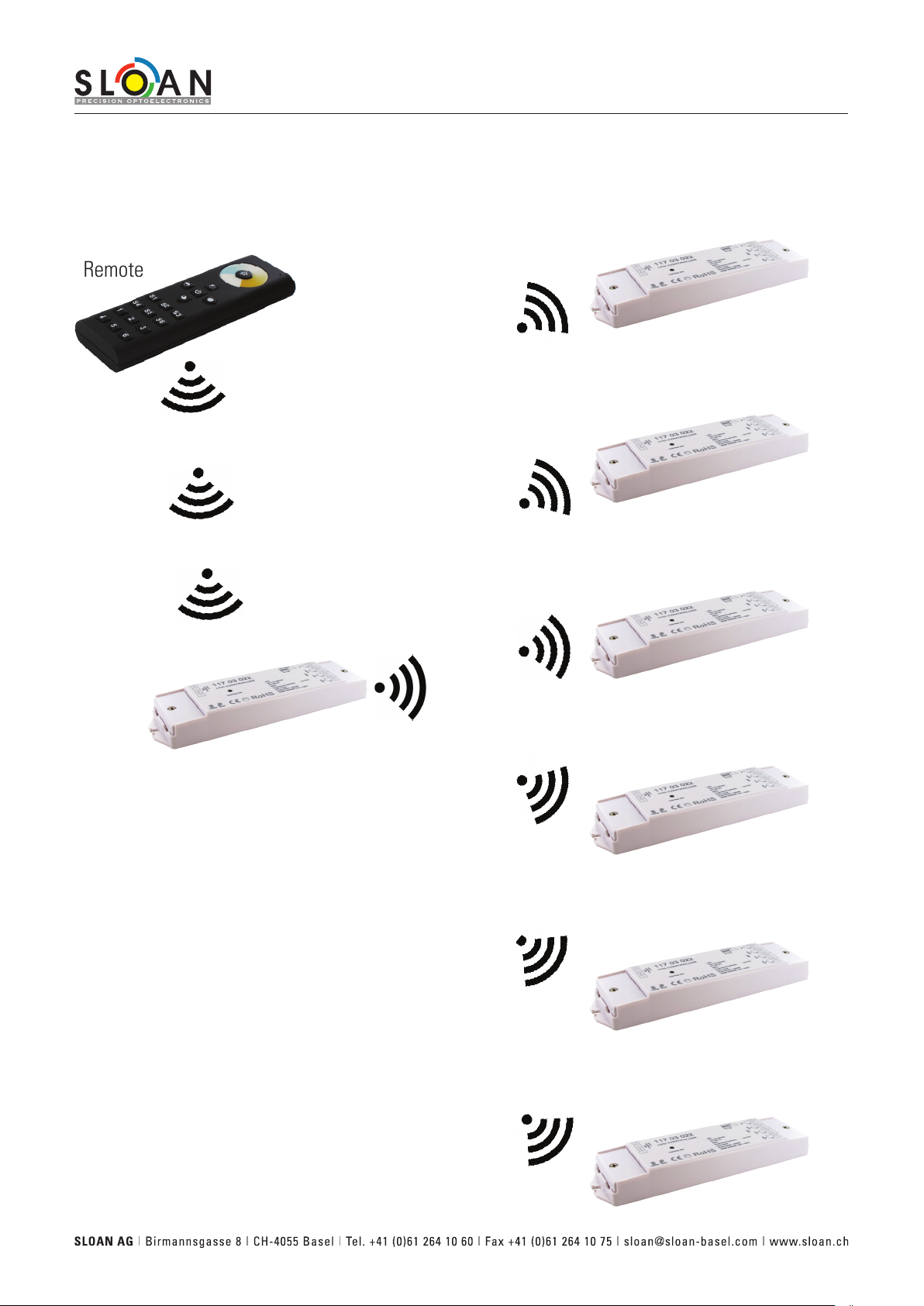

Note: Set for each zone a master, set all others on the same zone as slaves.
Set the jumper on the controller for this selection. Short circuit for master, open circuit for slave.
Each zone can set only 1 controller to be a master. After a period of time, the master will do
synchronization operation to keep the same colour or colour changing mode of all slaves in one zone.
3. How to delete ID process
Note: During this procedure remote must be switched off. ( not only in sleep mode )
a. Presslearningbuttononcontroller(receiver)forover5secondsuntilconnectedLEDlightwillash,theIDisnowdeleted.
If you want to learn controller (receiver) into another zone, please follow learning ID process operation 2.
4.How to choose colour by colour wheel?
a. Wake up the remote by any pressing button (except touch colour wheel). If controller is switched off press Power button .
Press any zone button ... (which you desire to control) on remote.
b. Touch colour wheel , you can get any color you want.
c. You can save colours into different zone. Please refer to point (6) .
5. How to dim brightness?
a. Wake up the remote by pressing any button (except touch colour wheel). If controller is switched off press Power button .
Press any zone button ... (which you desire to control) on remote.
b. Press to get directly presets brightness. for 25%, for 50%, for 75%, for 100%.
c. Long press on button to set brightness manually from 10%-100%.
6. How to save colour-temperature into different position per zone?
Wake up the remote by pressing any button (except touch colour wheel). If controller is switched off press Power button .
Press a zone button ... (which you desire to control) on remote.
Touch colour wheel for select an ideal colour-temperature, to select brightness refer to point (5)
Long press on button ... forsaving.ConnectedLEDlightwillashtoconrmsuccessfulsaving.
For example, press zone button , then touch colour wheel for warmwhite colour, then long press button.
Now the selected colour is saved in zone 1 in position 1.
So each zone can save 6 colours. 6 zones can save 36 colours.
7. How to recall saved colour-temperature?
Wake up the remote by pressing any button (except touch colour wheel). If controller is switched off press Power button .
Press a zone button ... , then press ... to get the saved colour-temperatures.
8. How to switch on and off zones?
Wake up the remote by pressing any button (except touch colour wheel). If controller is switched off press Power button .
Long press on a zone button ... switch on/off a single zone.
Only one zone can be switched on/off at the same time by zone buttons ...
To switch off all zone at the same time press .
