Slinex XR-30IP Manuel utilisateur

XR-30IP

{ Design. Uniqueness. Innovations }

IP converter

User manual

Link AP Power

SERIES

ACCESSORIES

Thank you for

choosing our equipment

{ Design. Uniqueness. Innovations }

1 2

Table of contents

1. Device functions .........................................................................................................................................................................2

2. Package ..........................................................................................................................................................................................3

3. Specication.................................................................................................................................................................................3

4. Description....................................................................................................................................................................................4

5. Installation.....................................................................................................................................................................................5

5.1 Cable requirements.....................................................................................................................................................5

5.2 Schematic diagrams....................................................................................................................................................6

5.3 Unit mount .....................................................................................................................................................................7

6. Software.........................................................................................................................................................................................8

6.1 Creating account..........................................................................................................................................................8

6.2 Wired network connection steps............................................................................................................................8

6.3 Wireless Wi-Fi network connection steps......................................................................................................... 10

6.4 Operation.....................................................................................................................................................................12

6.5 Notication messages.............................................................................................................................................13

7. Limited Warranty......................................................................................................................................................................14

1. Device functions

XR-30IP main function is to connect 4-wire door panels to the local network and internet. This function

enables to answer incoming calls from the door panel, view the image from the door camera, talk to visitors

and open lock from mobile devices, tablets or personal computers.

One door panel and door monitor can be connected to XR-30IP converter. It provides a possibility to use this

converter in systems where door panel and monitor are already installed for more convenient

communication with the visitors.

XR-30IP converter can be connected to the local network by wired (twisted pair) or wireless (Wi-Fi)

connection.

Attention!

As a result of continuous upgrades and functionality improvements, technical

characteristics of the device can be changed without any preliminary declaration.

This manual can contain some inaccuracy or misprint. The owner reserves the right to

make corrections to the information described in the user manual and device package.

The last revision of this manual is available on www.slinex.com

Safety instructions

Read and keep that manual.

The device installation process should be carried out by the qulied specialists.

Use the device from the –10 ˚C to +55 ˚C, always keep it within that temperature range.

Installation surface should be free from vibration and impact inuence.

Keep this device far from open sources of heat, such as radiators, heaters, and ovens.

The device can be installed near other electronic equipment in case if the temperature of the environment

does not exceed previously mentioned range.

The device should be protected from the direct inuence of the natural phenomena, such as direct sunlight,

rain or snow.

Don’t use aggressive or abradant detergent for the device surface cleaning.

Use soft wet cloth or tissue to remove strong dirt.

Don’t overpower outlets. It can cause re or electric shock.

Nature protection

Don’t throw away the device with other industrial or nutritive trash if you see that

symbol. Some regions have separation and recycling systems for the electronic

equipment. Connect with local authorities to receive information about recycling of

electronic equipment for your region.

Rights and limitation of liability

languages or reproduced in any way including electronic or mechanical.

Document recording and copying is strictly denied without owner permission.

SERIES

ACCESSORIES

Rev. 2.0

{ Design. Uniqueness. Innovations }

3 4

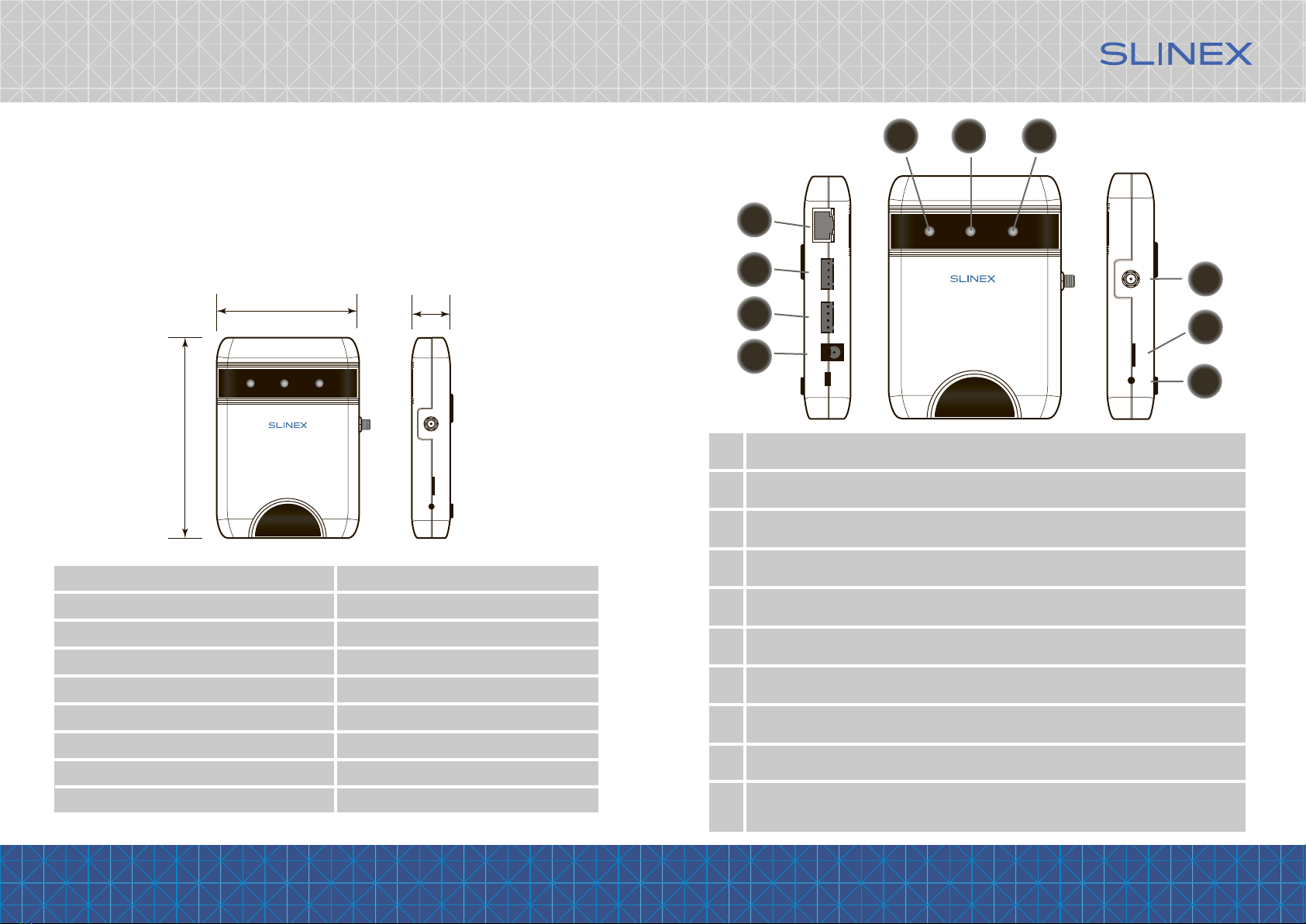

Video system

Power consumption (standby mode)

Power consumption (working mode)

Power supply

Network interface

Memory

Working temperature

Mount type

Size

PAL/NTSC

2 W

5 W

External, +12 V, 1 А

Ethernet 10/100M, Wi-Fi

MicroSD card slot, up to 32GB

−10...+55 ˚C

Surface mount

80×120×22 mm

DC power supply input +12 V, 1 A

Indoor monitor plug

Outdoor panel plug

Local area network RJ-45 plug (10/100M base T Ethernet)

Network LED. If device is connected to wired or wireless Wi-Fi network then LED is active.

«Access point» mode LED. If «Access point» mode is active then LED is blinking.

Power LED. If the device is powered up then LED is active.

SMA plug for the external antenna connection.

MicroSD card slot

«Access point» mode button. Push and hold that button until «Access point» mode LED

becomes active. «Access point» mode will be activated after reboot for 10 minutes.

Link AP Power

Antenna

AP MicroSD

120 mm

80 mm 22 mm

Link AP Power

6 7

Lan

Outdoor Indoor +12 V

Antenna

AP MicroSD

1. Package

XR-30IP converter – 1 pc.

Power supply – 1 pc.

Connection wires – 2 pcs.

Mounting screws and nuts – 1 pkg.

User manual – 1 pc.

2. Specication

4. Description

SERIES

ACCESSORIES

{ Design. Uniqueness. Innovations }

5 6

5. Installation

5.1 Cable requirements

Disconnect all power cables before device installation.

XR-30IP connects into breakup between door monitor and door panel.

This device can be connected with such cable types depends on the distance between door monitor and

door panel:

) Use 4-wire cable with such parameters:

• distance up to 25 meters use a cable with 0,22 mm square of one wire;

• distance 25 to 50 meters use a cable with 0,41 mm square of one wire;

• distance 50 to 100 meters use a cable with 0,75 mm square of one wire.

b) If the distance between door monitor and door panel is between 80 and 100 meters then use a 3-wire

cable with 0,75  square of one wire and RG-59 or RG-6 coaxial cable for the video signal.

c) Local network connection should be made with shielded or non-shielded twisted pair:

• distance up to 25 meters non-shielded twisted pair can be used;

• distance 25 to 100 meters shielded twisted pair should be used.

Also, wireless Wi-Fi connection can be used for the local network. In that case, there is no need to use

twisted pair cable. Instead of twisted pair cable, use Wi-Fi antenna connected to the SMA plug of the IP

converter.

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

0 - 50 m

Shield

50 - 80 m

80-100 m

RG-59 or RG-6

5.2 Schematic diagrams

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Lock

Door

panel

Door monitor

Lock power

supply

Power supply

~ 220V / +12V

XR-30IP

converter

Diagram 2. XR-30IP network interface connection by the wired method.

Diagram 1. XR-30IP door panel and monitor connection.

Lan

Outdoor Indoor +12 V

Door 1

Door 2

Camera1

Camera 2

Input

Output

PowerTV-otput

Door panel

Android / iOS

Internet

3G / Wi-Fi

XR-30IP

converter

Router

Door monitor

WAN 1 2 3 4

Link AP Power

RJ-45

Twisted pair

cable pinout

Type 

8 7 6 5 4 3 2 1

White & Green

Green

White & Orange

Orange

White & Orange

Orange

White & Green

Green

Type B

8 7 6 5 4 3 2 1

SERIES

ACCESSORIES

{ Design. Uniqueness. Innovations }

7 8

Diagram 3. XR-30IP network interface connection by wireless method.

Door panel

Android / iOS

Internet

3G / Wi-Fi

Wi-Fi (LAN)

AP mode

(Access point)

XR-30IP

converter

Router

Door monitor

WAN 1 2 3 4

Android / iOS

5.3 Unit mount

1) Mark and drill two halls in the wall.

2) Take two nuts from the kit and hammer them into the drilled halls.

3) Fix XR-30IP on the wall by the screws from the kit.

4) Connect all communication wires to the IP converter.

Antenna

AP MicroSD

Link AP Power

SERIES

ACCESSORIES

6. Software

Enter «Google Play»(for Android) or «Apple App Store»(for iOS) and search for «Cloud Call»application,

then install this applicationи on your mobile device.

Below you can nd basic steps how to add new device to «Cloud Call» application.

Full manual on «Cloud Call» application you can nd on www.slinex.com

6.1 Creating new account

1) Start «Cloud Call» application on your mobile device and press «NEW USER» button to create an account;

2) Fill in «Email» box and press «GET CODE» button;

3) Check for a new message with activation code on your Email account and enter it into «Verication

Code» box;

4) Fill in «Password» and «Conrm Password» boxes and press «CONFIRM» button to create new account.

That password will be used to login into created account.

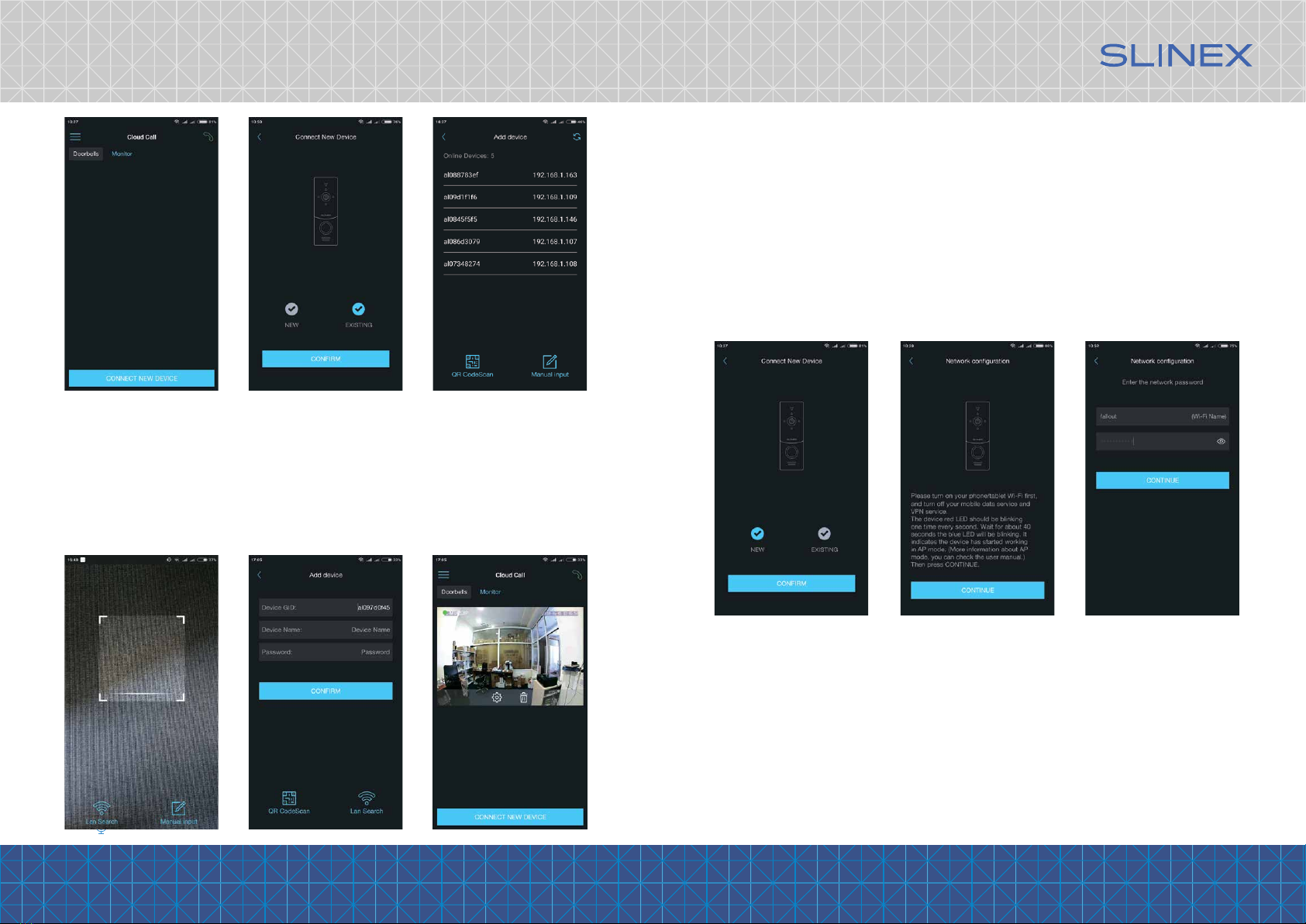

6.2 Wired network connection steps

1) Use twisted pair CAT5 or CAT6 cable to connect device to the router;

2) Connect mobile device into the same local network;

3) Press «CONNECT NEW DEVICE» button, then choose «EXISTING» check box and press «CONFIRM»

button;

4) New devices search will be applied and you will see the list of the devices, connected to the local

network;

{ Design. Uniqueness. Innovations }

9 10

SERIES

ACCESSORIES

5) Tap on UID in the left column, corresponding to the device sticker or press «QR CodeScan» button and

then scan QR code on your device sticker if device UID isn’t in the list;

6) Fill in device information:

Device UID: unique identication number of the device (already lled);

Device Name: any name you like;

Password: 888888 (by default);

then press «CONFIRM» button and you will see added device on the main bar.

6.3 Wireless Wi-Fi network connection steps

1) Connect mobile device into the Wi-Fi network you want to connect the monitor;

2) Disable 3G/4G internet connection on your mobile device;

3) Press «CONNECT NEW DEVICE» button, then choose «NEW» check box and press «CONFIRM» button;

4) On the converter enter into «Access point» mode following next steps:

press&hold «AP mode»button on the right side of the converter until blue AP LED will be activated. Then

release «AP mode»button and converter will be rebooted. After a minute converter will enter «Access

point» mode, indicated by AP LED;

5) Press «CONTINUE» button on the mobile device screen to go to the next step;

6) Enter password of the Wi-Fi network which you want to connect to and press «CONTINUE» button;

{ Design. Uniqueness. Innovations }

11 12

SERIES

ACCESSORIES

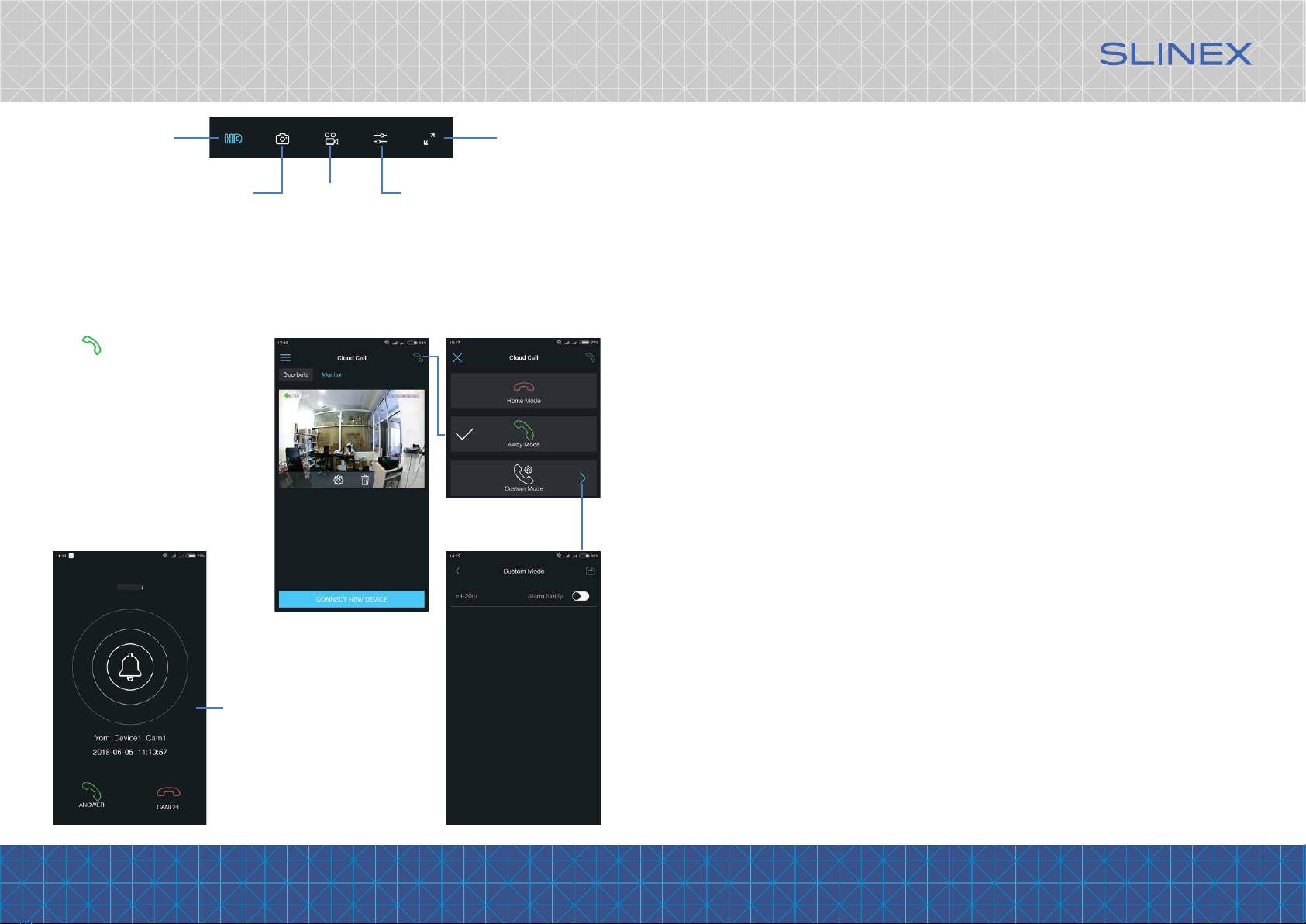

6.4 Operation

Tap on the device

image to start

monitoring

Main bar Device bar

Tap on the recycle

bin to delete

this devise from

the account

Talk with

the visitor

Hang on

Door unlock

(Default password:

888888)

Disable

monitoring

Tap on settings icon

to enter device

settings

Change default

device password

Motion detection

settings

SD card

information

Door panel/

monitor

rmware update

List of

shared

devices

Change

default

unlock

password

Time sync

with mobile

device

Default

settings/

reboot

device with

other

account

7) Fill in device information:

Device UID: unique identication number of the device (already lled);

Device Name: any name you like;

Password: 888888 (by default);

then press «CONFIRM» button and you will see added device on the main bar.

Notes:

1) If there is no LAN cable connected to the converter on the rst boot then it automatically goes into «Access

point» mode and you can skip 4th step of section 6.3.

2) If device is already added to some account, you can’t add it to another one, only can share it with other

account.

{ Design. Uniqueness. Innovations }

13 14

7. Limited warranty

Manufacturer guarantees product normal functioning during the warranty period if the user keeps all safety

instructions described in that manual.

Warranty period is 12 months from the moment of the product purchasing (warranty period could be

extended up to 24 months or more, depending on the local regulations).

Warranty period allows user to make guarantee repair in cases when normal functioning of the product was

violated by the fault of manufacturer and the user haven’t oend transporting, installation and working

conditions.

This limited warranty does not cover any damage to the product that results from improper installation,

accident, abuse, misuse, natural disaster, insucient or excessive electrical supply, abnormal mechanical or

environmental conditions, or any unauthorized disassembly, repair or modication.

Warranty void in such cases:

• the product was damaged by the fault of the customer;

• the product wasn’t properly installed according reccomendations from the manual;

• the sticker on the backside of the product was broken;

• the product was not used for its intended function.

This limited warranty covers only repair, replacement, refund or credit for defective products, as provided

above. Manufacturer is not liable for, and does not cover under warranty, any damages or losses of any kind

whatsoever resulting from loss of, damage to, or corruption of, content or data or any costs associated with

determining the source of system problems or removing, servicing or installing products. This warranty

excludes third party software, connected equipment or stored data. Manufacturer is therefore not liable for

any losses or damage attributable to third party software, connected equipment or stored data.

In the event a product has been discontinued, manufacturer shall either repair the product, oer to replace

it with a comparable product or provide a refund at the lesser of the purchase price or the product’s current

value.

Repaired or replacement products will continue to be covered by this limited warranty for the remainder of

the original warranty term.

SERIES

ACCESSORIES

8.5 Notication messages

Press button to activate notification

messages preset.

Home mode – notification messages

are disabled;

Away mode – notification messages are

enabled;

Custom mode – notification messages

can be enabled or disabled depending

on the settings inside that preset;

In case notification messages are

enabled then you wil receive push

message if somebody presses call

button on the outdoor panel.

Press «ANSWER» button to start talking

with the visitor or «CANCEL» button to

stop the call.

Take a

snapshot Record

video

Speaker volume/

microphone

sensitivity

Full screen

mode

Image quality:

HD or SD

Note:

While device monitoring, one way audio is constantly active from the outdoor panel side so you can hear

what hapens nearby. To activate two way communication press «Talk with the visitor» button in the

application.

Call

Autres manuels pour XR-30IP

Table des matières

Autres manuels Slinex Convertisseur de média

Slinex

Slinex XR-40IPHD Manuel utilisateur

Manuels Convertisseur de média populaires d'autres marques

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuel utilisateur

SPROLINK

SPROLINK VA1 Manuel utilisateur

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuel utilisateur

Nikon

Nikon AF-S TC-20E III Manuel utilisateur

Axis

Axis AXIS Q7406 Manuel utilisateur

Omega

Omega TAC80B-J Manuel utilisateur

Zoom

Zoom Thunderbolt TAC-2R Manuel utilisateur

OST

OST iConverter 10/100M Manuel utilisateur

Vertiv

Vertiv Netsure Manuel utilisateur

birddog

birddog MINI Manuel utilisateur

Roland

Roland GI-10 Manuel utilisateur

Wallenstein

Wallenstein WX310 Manuel utilisateur

Pace

Pace MSS 200-1 Manuel utilisateur

Solar Converters

Solar Converters EQ 12/24-50 Manuel utilisateur

CYP

CYP EL-7400V Manuel utilisateur

TIE

TIE MIDI 1i1o Manuel utilisateur

DCS

DCS Vivaldi Upsampler Manuel utilisateur

Westermo

Westermo MCW-211 SERIES Manuel utilisateur
