AREA LIGHT INSTALLATION GUIDE
Page 1/2
ALW.V21.02
物料名称：Area Light(MAL07 100W-350W)安装说明书(常规)
物料编码：G-UM-AL0000019
规格尺寸：210X297mm
材料工艺：80G书纸(双面印刷)
G-UM-AL0000019
GUMAL0000019-4001DS
2020/07/22
卢昭燕
0
Installation Guide
210mm
正面 背面
297mm
LED AREA LIGHT
Installation Guide

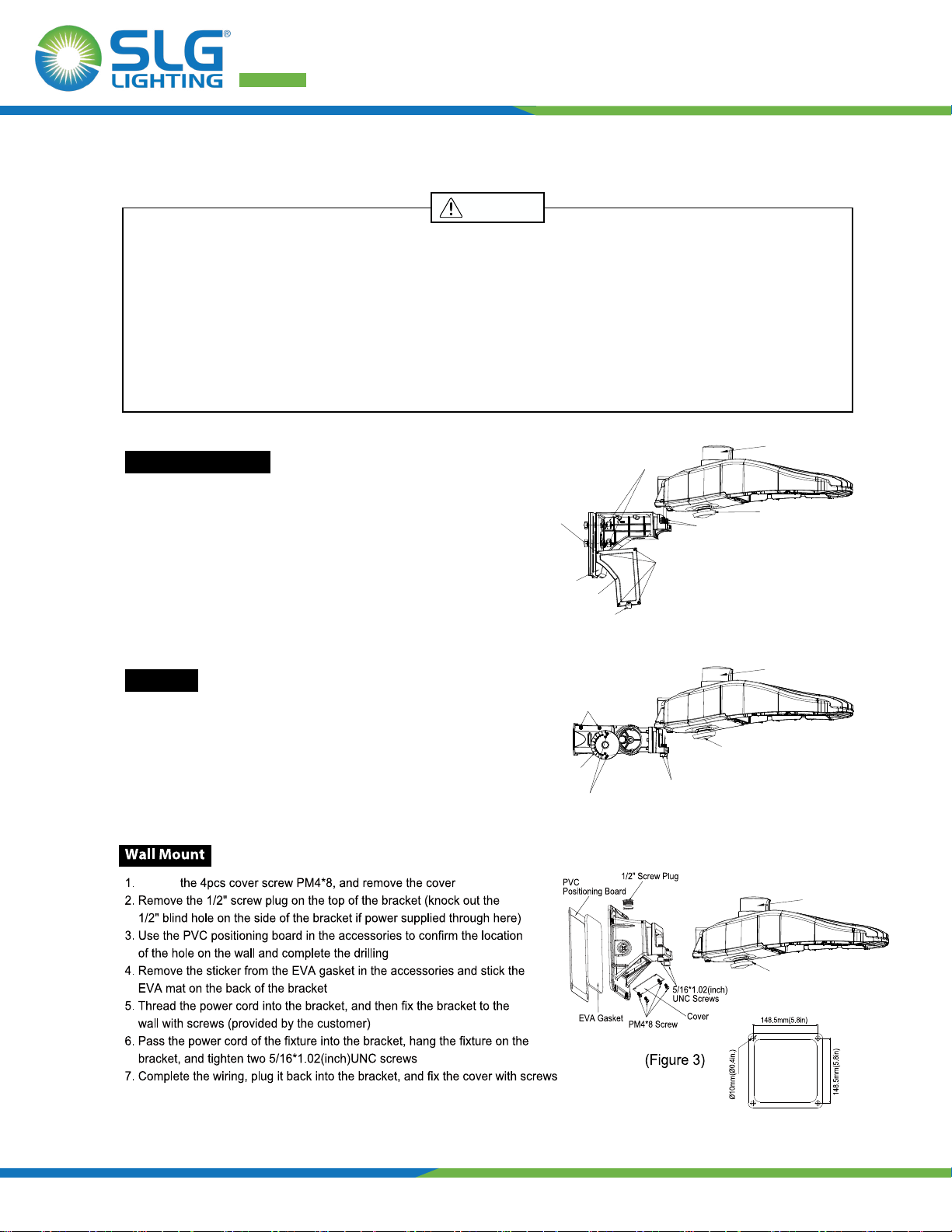

WARNING
- To prevent personal injury or product damage only licensed electricians should install.
- To avoid electric shock or component damage disconnect power before attempting installation or servicing.
- This product must be installed in accordance with the national electric code (NEC) and all applicable federal, state and local electric codes and safety standards.
- Disconnect product and allow cooling prior to servicing.
- Any alteration or modification of this product is expressly forbidden as it may cause serious personal injury, death, property damage and/or product malfunction.
- To prevent product malfunction and/or electrical shock this product must be properly grounded.
- This luminaire is designed to operate in ambient temperatures ranging from -40°C to 45°C and to be horizontally mounted with the LEDs facing down.
- This product must be installed in accordance with the applicable installation code by a Person familiar with the construction and operation of the product and
the hazards involved.
- MIN 75°C SUPPLY CONDUCTORS
- CONSULT A QUALIFIED ELECTRICIAN TO ENSURE CORRECT BRANCH CIRCUIT CONDUCTOR
- CAUTION - RISK OF FIRE
- Slipfitter Mounted with PHOTOCELL function elevation angle should not exceed 15 degrees
- This product is not available for several special environments, such as places with corrosive gas liquids or high pressure water vapor.
PLEASE READ ALL INSTRUCTIONS BEFORE ATTEMPTING INSTALLATION
Square/Round Pole
Slipfitter
Wall Mount
BLACK
BLACKBLACK
INPUT
LAMPLOAD
RED
PHOTOCONTROL
MOTION SENSOR
WHITE
WHITEWHITE
1. Connect the wires to L / N / GND
2. Remove the cover and adjust the bracket to the desired angle
3. Install the bracket on the pole and fix it with screws
(Figure 1)
(Figure 2)
1. Remove the side plate from mounting bracket. Please skip to step 3
if mounted onto the square Pole.
2. Attach round pole mounting plate on mounting bracket.
3. Route the cord into mounting bracket through the hole for wiring,
slide the fixture onto the bracket and tighten 2 bottom screws.
4. Slightly drag the wires to make sure the hole on bracket is sealed
by silicon gasket.
5. Make wiring connection as per wire diagram below, replace the
side plate and fasten screws.
1. Remove the side plate by loosening the screws.
2. Fix the back plate onto the arm bracket with screws provided.
3. Use the metal template provided to locate footprint on the wall
to drill the holes, then fix the bracket on the wall with screws.
4. Route the power cord into wall mount bracket, slide the fixture
onto the mounting bracket, then tighten bottom screws.
5. Make wiring connection inside of bracket and replace the side
plate with screws.
210mm
297mm
Slipfitter mount

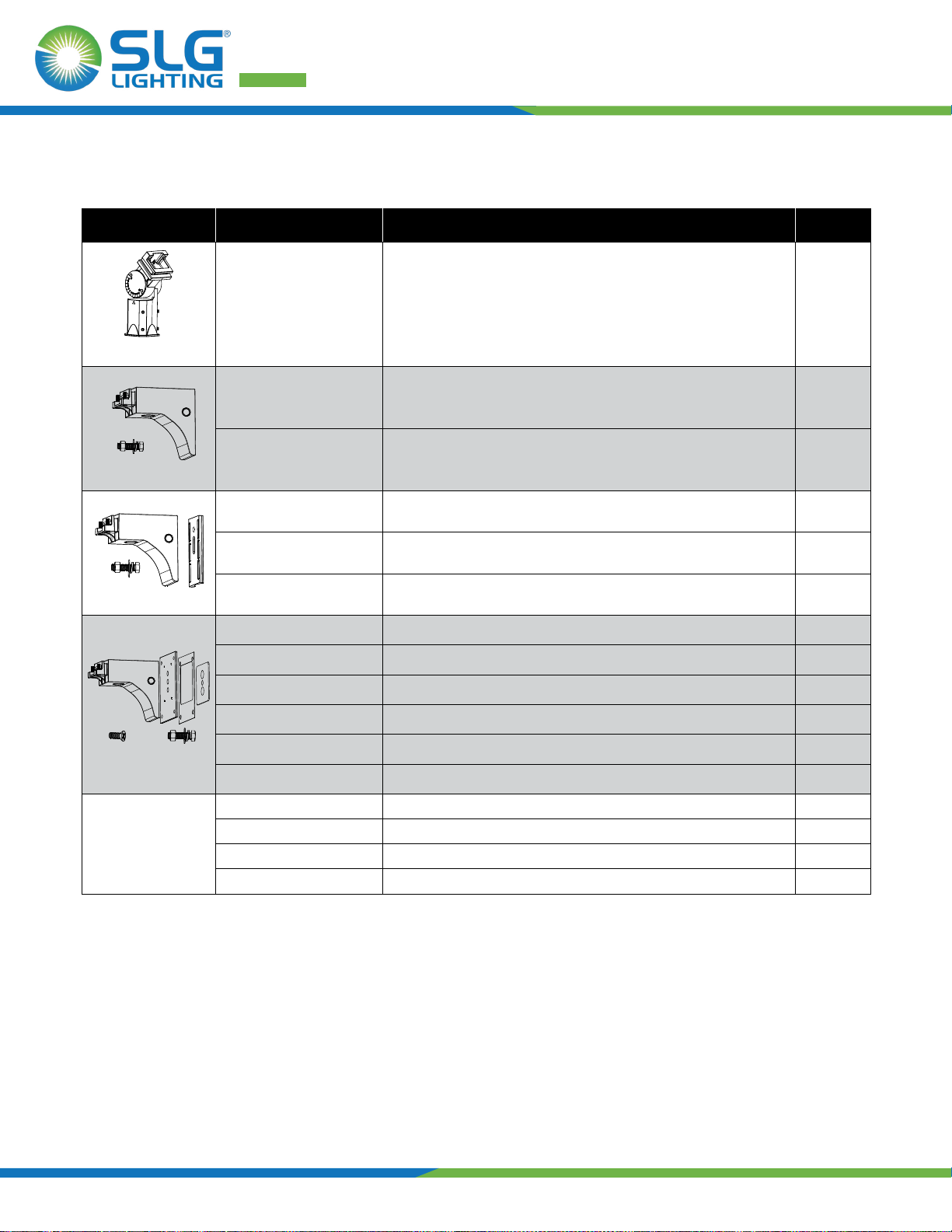

Mounting Type Specifications Quantity
ACCESSORY LIST
Adjustable slipfitter 1
Square mount
Round mount
# 1/2'' x 1.97'' Stainless Steel Hexagon Hexagon head bolt 2
# 1/2'' x 1.97'' Stainless Steel Hexagon Hexagon head bolt 2
19.9 x 17.7 x 9cm Square pole mount arm 1
17.7 x 8.8 x 1.3cm Round pole adaptor 1
①
①③
③
②
②
②
②
Accessory
Slipfitter
Bolt
# 1/2'' x 1.46'' Stainless Steel Hexagon head bolt 2Bolt
KM4 x 10'' Stainless Steel flat head bolt 4Bolt
20.3 x 15.2 x 0.5cm Steel Plate 1Wall Mount Plate
18.8 x 14.4 x 0.05cm Back Plate 1Wall Mount Template
19.9 x 17.7 x 9cm Square pole mount arm 1Pole Mount Arm
120-277V 3-Pin
3-Pin receptacle
PM4 x 8 Stainless Steel, Round Flat bottom Bolt 2
120-277V 0-10V Bi-level
1
1
1
Others
Twist-lock photocell
Receptacle
Bolt
Occupancy Sensor
Bolt
Pole Mount Arm
Adaptor
Pole Mount Arm 19.9 x 17.7 x 9cm Square pole mount arm 1
①
①
⑤
⑥
①
②
③
L119W119H3,40°EVA Gasket 1EVA Gasket
④
Wall mount
①②
③④
⑤⑥
Note: Two dimming wiresin the driver box
Black
White Neutral
Green/Yellow Green
Ground
Line
Purple
Gray
Wire Connection
Side plate
PM4*12(mm) Screws
5/16’’*1.02(inch)
UNC Screws
M8*20(mm)
Screws
Twisted photocell (optional)
Motion Sensor (optional)
5/16’’*1.02(inch)
UNC Screws
PM4*12(mm)
Screws
KM4*10(mm)
Screws
Steel plate
OPEN
Side plate
Back plate
1/2’’1.46(inch)
UNC Screws
EVA Gasket
Twisted photocell (optional)
Motion Sensor (optional)
Side plate
5/16’’*1.02(inch)
UNC Screws
Round pole
mounting plate
PM4*12(mm)
Screws
1/2’’*1.97(inch)
UNC Screws
OPEN
Twisted photocell (optional)
Motion Sensor (optional)
PM4*12(mm)
Screws
Twisted photocell (optional)
Motion Sensor (optional)
Twisted photocell (optional)
Motion Sensor (optional)
ALW G1 Area Light Wave Series
