Manual Electric Combo

PRODUCT & ASSEMBLY GUIDE

SleepSafe (Low Bed)

SleepSafe II (Medium Bed)

SleepSafer (Tall Bed)

 Dual View

SleepSafer with Extension

Dual View with Topper

FOUNDATION

ELECTRIC ARTICULATION HI-LO FIXED MANUAL

The Manual Electric Combo foundation elevates the head and knee sections of the bed, electrically

with a corded remote. The Hi-Lo feature uses a manual crank to raise and lower the foundation.

Table of Contents

MANUAL ELECTRIC COMBO

Tools

Needed

for

Assembly

1. Pre-Assembly Information

2. Component Chart #1

3. Component Chart #2

4. Assembly Guide: SleepSafe Low Bed

5. SleepSafe II Medium Bed

6. Assembly Guide: SleepSafer Tall Bed

7. SleepSafer Tall Bed Dual View

8. Assembly Guide: SleepSafer Tall Bed

9. with Extension / Top

10. Safety Rail Adjustment Instructions

11. Padding Information

12. Mattress Information

13. Final Installation Checklist

14. Operator’s Guide

15. Maintenance / Popular FAQ’s

16. Warranty Information

17. DME Provider / Technical Support

18. Serial Number

Allen and Torx Wrenches

(Supplied)

Flat and Phillips Head

Screwdrivers

3/8” Open or Closed

End Wrench

Two People for Assembly

This guide is available as a PDF. Contact Customer

Service at 866.852.2337 for more information.

Note! Read Before Assembly

• KEEP THIS PRODUCT & ASSEMBLY GUIDE.

IT CONTAINS THE SERIAL NUMBER

-------------------------------------

• CAREFULLY REMOVE AND LAY OUT ALL

COMPONENTS. FAMILIARIZE YOURSELF

WITH INSTRUCTIONS TO FACILITATE THE

ASSEMBLY OF YOUR BED.

-------------------------------------

• CHECK COMPONENTS AND CONTENTS

OF ENCLOSED HARDWARE BAG WITH THE

HARDWARE LIST ON FOLLOWING PAGES.

-------------------------------------

• KEEP THE FOUR CARDBOARD STANDS FOR

ASSEMBLY AND POSSIBLE FUTURE USE.

-------------------------------------

DUE TO THE PRESENCE OF SMALL PARTS

DURING ASSEMBLY, KEEP OUT OF REACH

OF CHILDREN.

-------------------------------------

• IMPORTANT: FOLLOW THE INSTRUCTIONS

IN THE SPECIFIED ORDER TO ENSURE THE

BED IS PROPERLY ASSEMBLED.

-------------------------------------

• COMPLETE ASSEMBLY. ENSURE EACH

COMPONENT IS INSTALLED. DO NOT OMIT

ANY COMPONENT FROM INSTALLATION.

-------------------------------------

• NEVER USE THIS BED IF THERE ARE ANY

MISSING FASTENERS, LOOSE JOINTS,

BROKEN PARTS, TORN MESH, OR PADDING

INADEQUACIES. CONTACT SLEEPSAFE

BEDS AT 866.852.2337 FOR ASSISTANCE.

SleepSafeBed.com | 866.852.2337

3629 Reed Creek Drive | Bassett, VA 24055 | FDA Registered

• NEVER SUBSTITUTE OR ALTER PARTS, THE

PRODUCT INCLUDING SIDE RAILS, MUST

BE FULLY INSTALLED PRIOR TO USE.

-------------------------------------

• IF BED IS PADDED, CHECK THAT ALL

PADDING IS FIRMLY ATTACHED.

-------------------------------------

• DO NOT USE POWER TOOLS DURING

ASSEMBLY OR DISASSEMBLY

-------------------------------------

• WARNING STRANGULATION HAZARD:

STRINGS CAN CAUSE STRANGULATION!

NEVER PLACE BED NEAR WINDOW WHERE

CORDS FROM BLINDS OR DRAPES MAY

STRANGLE A CHILD.

-------------------------------------

• KEEP REMOTE CONTROL CORD AWAY

FROM BED WHILE MOVING THE SAFETY

RAIL UP OR DOWN TO PREVENT PINCHING

OF THE CORD.

-------------------------------------

• KEEP REMOTE CONTROL CORD AWAY

FROM BED’S INTERIOR TO PREVENT

ENTANGLEMENT AND STRANGULATION

-------------------------------------

• AN UNINTERUPTED POWER SUPPLY (UPS)

UNIT IS RECOMMENDED FOR MISSION

CRITICAL CONTROL OF BED FOR USER

-------------------------------------

• DO NOT SUBSTITUTE MATTRESS. IT IS

SPECIFICALLY DESIGNED AND FITTED FOR

A SLEEPSAFE® BED AND ITS USER.

MANUAL ELECTRIC COMBO

SleepSafeBed.com

1-866-852-2337

3629 Reed Creek Dr. | Bassett, VA 24055

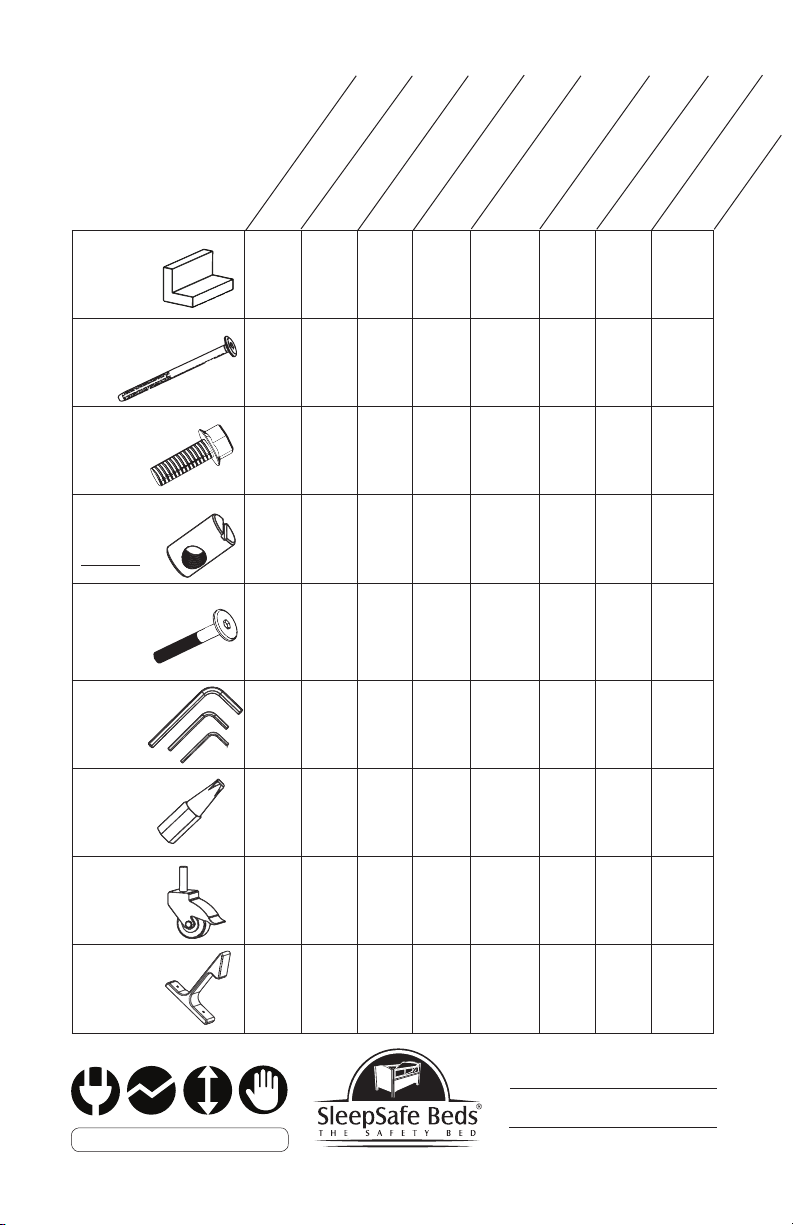

Included

Components

for

Assembly

Cardboard

Spacer 4 4 4 4 4 4 4 4

90 mm

Allen Bolt 8 12 16 28 28 12 28 28

3/4”

Hex Bolt 8 8 8 8 8 8 8 8

Barrel Nut

(If the bed is

unpadded)

8 12 16 28 40 12 28 40

40 mm

Allen Bolt

T-12

F-18

Q-18

T-12

F-18

Q-18

Allen / Torx

Wrench Set

(Various

sizes)

1 1 1 1 1 1 1 1

Square

Bit Driver 1 1 1 1 1 1 1 1

Casters

(Attached) 4 4 4 4 4 4 4 4

Extension

Safety Latch

& 2 Screws 1 1 2 2

SLEEPSAFER (w/Ext. & Top)

SLEEPSAFER (Dual View)

SLEEPSAFE (Low Bed)

SLEEPSAFE II (Medium Bed)

SLEEPSAFER (Tall Bed)

SLEEPSAFER (w/Extension)

SSR (Dual View w/Ext. & Top)

SSR (Dual View w/Extension)

SSR (Dual View w/Ext. & Top)

Manual

Electric

Combo

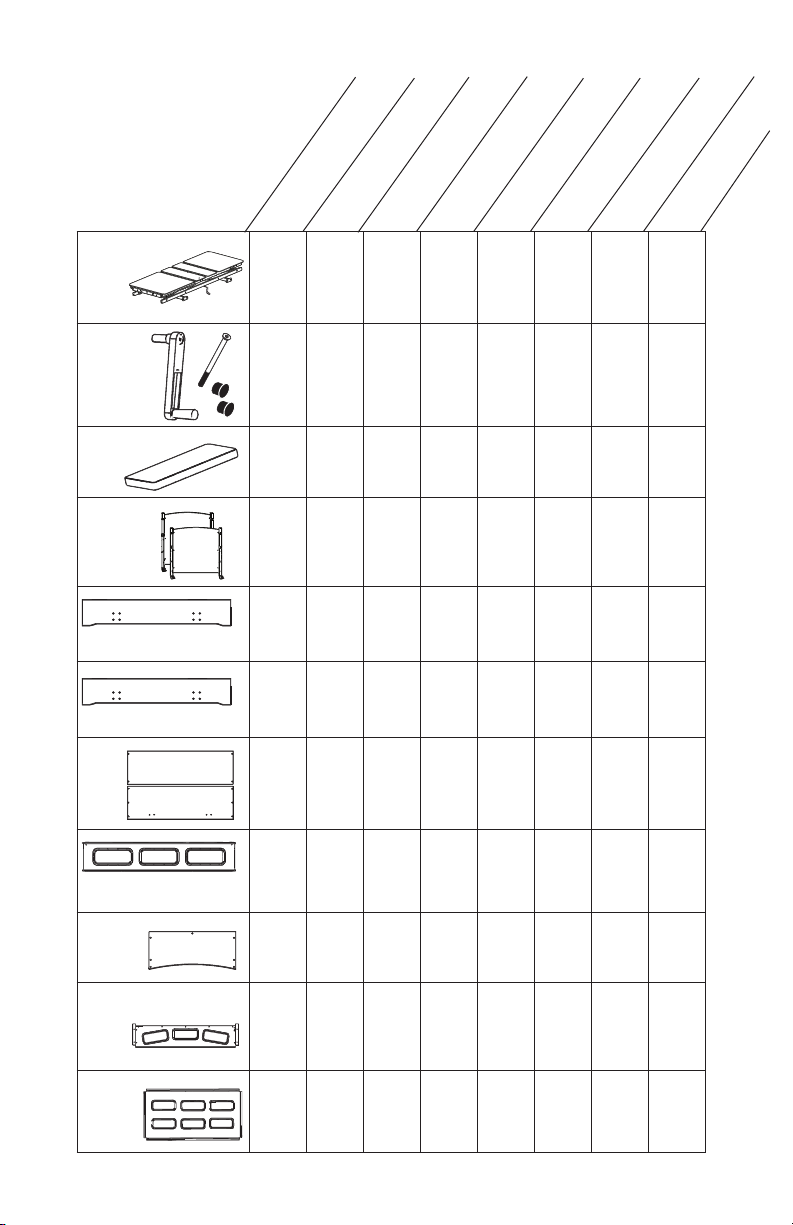

Frame

11111111

Crank Set:

Extension,

Crank, Bolt,

Plugs

11111111

Mattress

11111111

Headboard

and

Footboard

Set

1111111 1

Side Panel 2 2

Front Panel 1 1 1 2 2 2

Back

Panel 222

Safety Rail 222224 4

Extension

End Panel 2 2 2 2

Extension

Side

Panel

2 2 2 2

Extension

Topper 1 1

SLEEPSAFER (w/Ext. & Top)

SLEEPSAFER (Dual View)

SLEEPSAFE (Low Bed)

SLEEPSAFE II (Medium Bed)

SLEEPSAFER (Tall Bed)

SLEEPSAFER (w/Extension)

SSR (Dual View w/Ext. & Top)

SSR (Dual View w/Extension)

Included

Components

for

Assembly

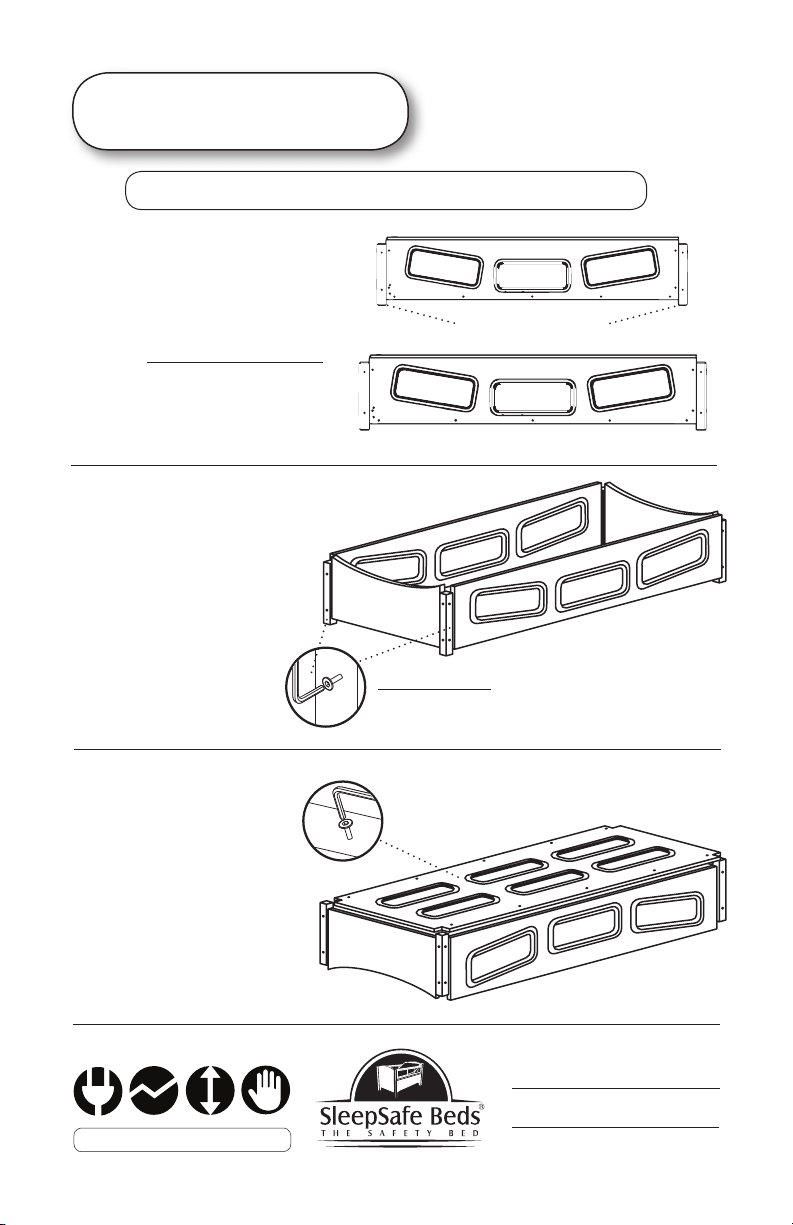

Assembly Guide SleepSafe (Low Bed)

SleepSafe II (Medium Bed)

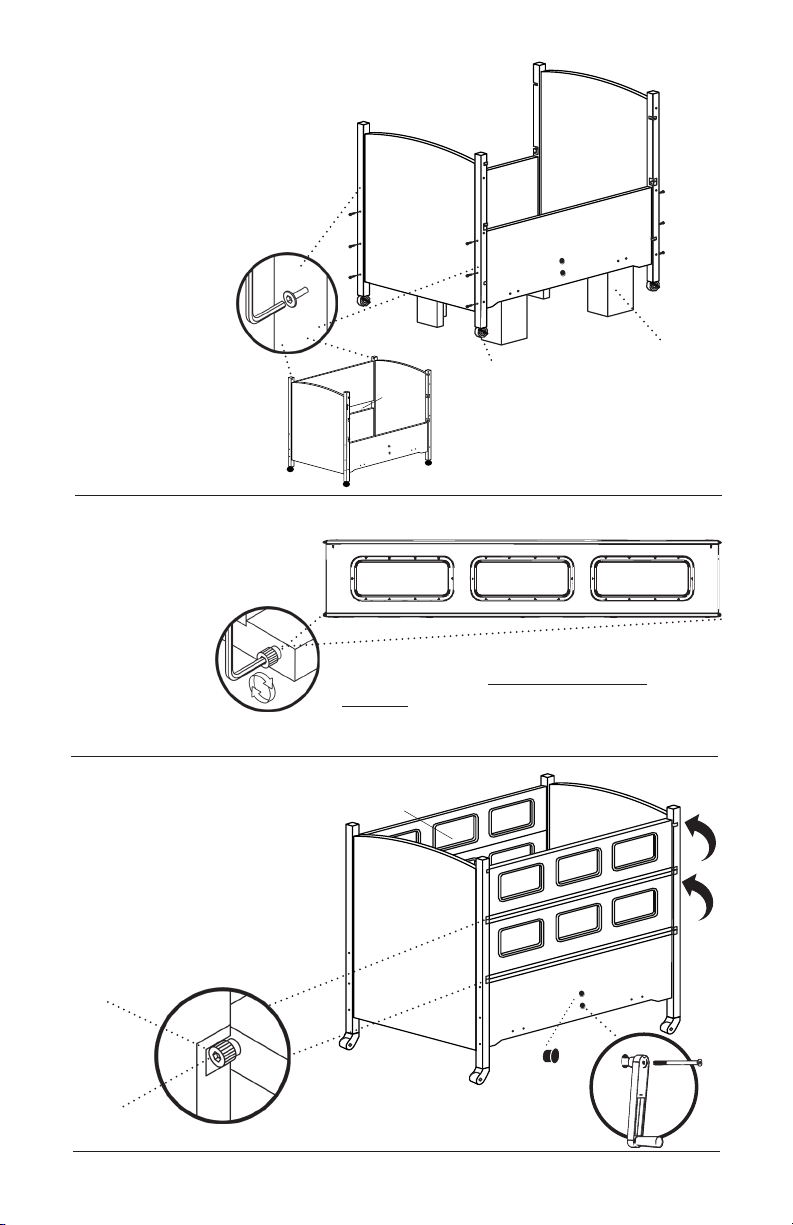

After unpacking bed and checking the contents







Set Manual

Electric Combo

Foundation on

4 provided

cardboard spacers.

Insert Barrel Bolts

into Side Panels.

(Note: Barrel Bolts

are pre-inserted on

padded beds)

Align and push

in Barrel Nut

as shown.

Use flathead

screwdriver for

assistance.

Attach Side

Panels to

foundation.

(Use 3/8” wrench

to install eight

3/4” Hex

Bolts inside

the panel)

SleepSafe Bed (Low Bed) Side Panels use 8 Barrel Bolts

SleepSafe II (Medium Bed) Side Panels use 12 Barrel Bolts

When placing spacers beneath

foundation, allow room for both

side panels to be attached.

Use 4 Hex Bolts

inside each panel.

IMPORTANT!

First choose depth for mattress to

floor height. High setting adds height.

MANUAL ELECTRIC COMBO

SleepSafeBed.com

1-866-852-2337

3629 Reed Creek Dr. | Bassett, VA 24055

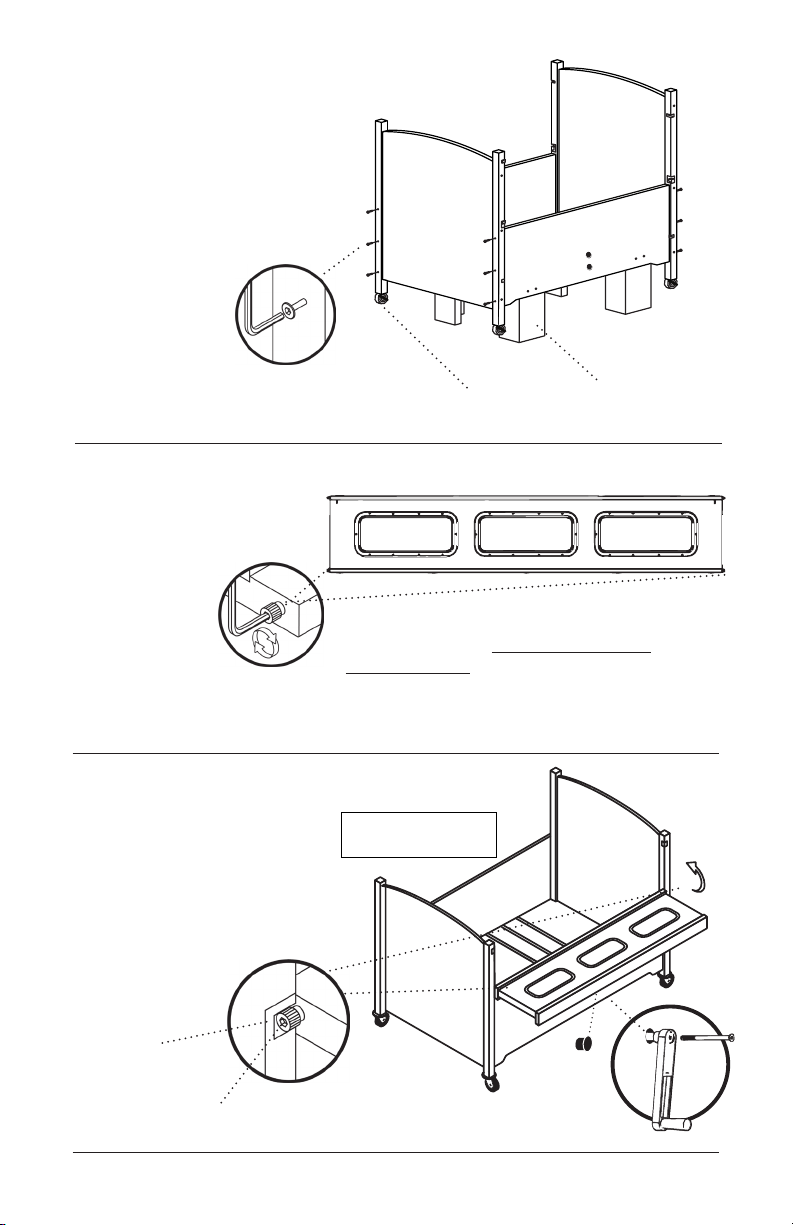

HEAD

FOOT

IMPORTANT!

CHECK THE BED ORDER FOR THE

DESIRED LOCATION OF THE CRANK. In this diagram, the front crank

has been mounted to the left of the head. The front crank position

may have been mounted to the right of the head.

Reference

Only.

Crank installed

in later step.







Attach

Headboard and

Footboards

to Side Panels.

(Use 4mm Allen Wrench

to fasten 90mm

Allen Bolts to

Side Panels)

Once headboard

and footboards are

attached, remove

cardboard spacers.

Save for future use.

Casters

are pre-installed

Prepare Safety

Rail Hinge Pins

for Installation.

Factory preset has hinge pins that may be extended.

These pins need to be adjusted evenly on both

sides to fit properly when inserted into the posts.

NOTE: Full instructions for safety rail adjustment are found on page 10.

SleepSafe Bed (Low Bed) uses (8) 90mm Bolts

SleepSafe II (Medium Bed) uses (12) 90mm Bolts

Install

Crank Handle,

Safety Rails,

and Mattress.

Insert the safety rail hinge

pins into both posts when

safety rail is in the down

position.

CLOCKWISE

INCREASES play.

COUNTER-CLOCKWISE

DECREASES play.

Strike

Hinge Pin

Once installed, use both hands to pivot the

safety rail up to attach it securely to the posts.

Same rail installation

for both sides of the bed.

Fasten Crank.

Install plug in

unused opening.

Use 4 Hex Bolts

inside each panel.

IMPORTANT!

First choose depth for mattress to

floor height. High setting adds height.

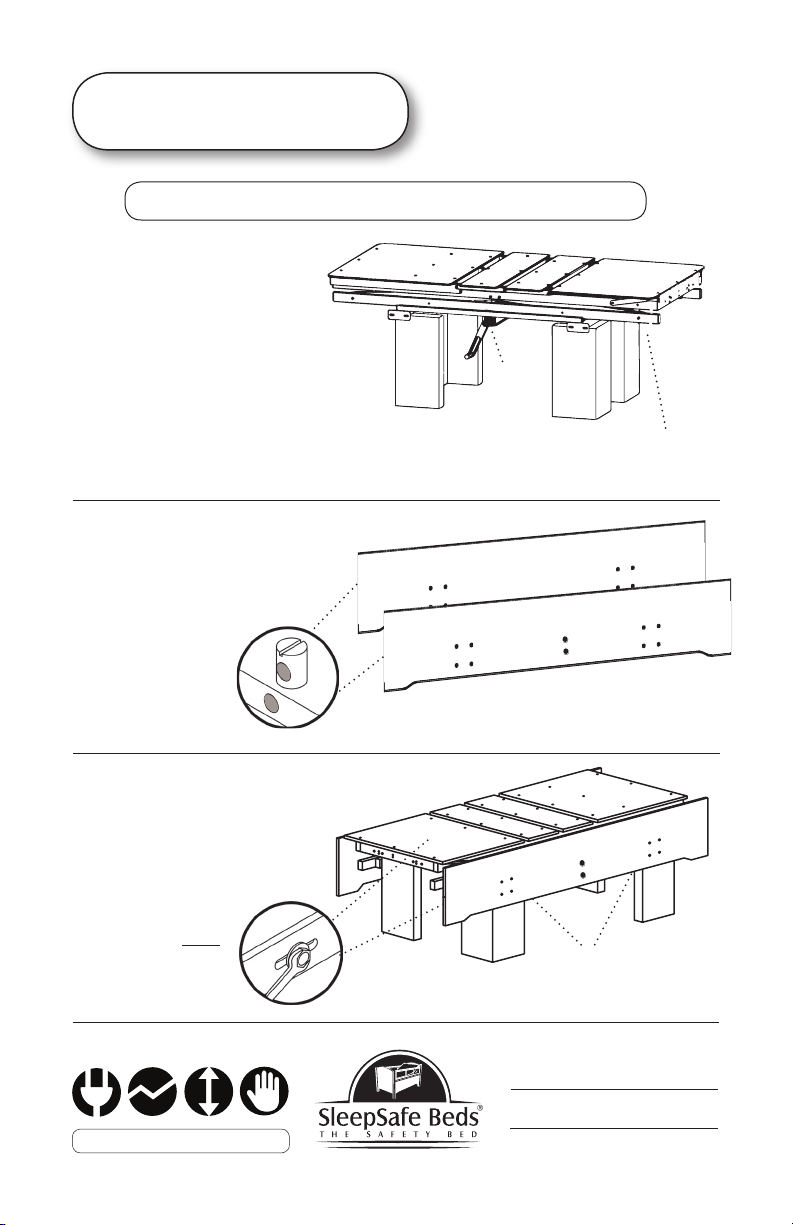

Assembly Guide SleepSafer (Tall Bed)

SleepSafer (Dual View)

After unpacking bed and checking the contents







Insert Barrel Bolts

into Back and

Front Panels.

(Note: Barrel Bolts

are pre-inserted in

padded beds)

Align and push in

Barrel Nut as shown.

Use flathead

screwdriver for

assistance.

Attach Panels

to foundation.

(Use 3/8” wrench

to install eight

3/4” Hex

Bolts inside

the panel))

SleepSafer Bed (Tall Bed) Back Panels uses 10 Barrel Bolts

SleepSafer Bed (Tall Bed) Front Panel use 6 Barrel Bolts

* Dual View Option uses 2 Front panels only. No Back Panels.

BACK PANEL*

FRONT PANEL

MANUAL ELECTRIC COMBO

SleepSafeBed.com

1-866-852-2337

3629 Reed Creek Dr. | Bassett, VA 24055

Set Manual

Electric Combo

Foundation on

4 provided

cardboard spacers.

When placing spacers beneath

foundation, allow room for both

side panels to be attached.

HEAD

FOOT

IMPORTANT!

CHECK THE BED ORDER FOR THE

DESIRED LOCATION OF THE CRANK. In this diagram, the front crank

has been mounted to the left of the head. The front crank position

may have been mounted to the right of the head.

Reference

Only.

Crank installed

in later step.





Prepare Safety

Rail Hinge Pins

for Installation.

Factory preset has hinge pins that may be extended.

These pins need to be adjusted evenly on both

sides to fit properly when inserted into the posts.

NOTE: Full instructions for safety rail adjustment are found on page 10.

CLOCKWISE

INCREASES play.

COUNTER-CLOCKWISE

DECREASES play.

Install

Crank Handle,

Safety Rails,

and Mattress.

Insert the safety rail

hinge pins into both

posts when safety rail is

in the down position.

Strike

Hing Pin

Install Four Rails

for DUAL VIEW option.



Attach Headboard

and Footboards

to Panels.

Fasten (6) 90mm

Allen Bolts to each panel

with 4mm Allen Wrench.

Once headboard and

footboards are attached,

remove cardboard spacers.

Casters are

pre-installed

IMPORTANT: When installing the Back Panel

the Barrel Bolts need to be away from the frame

or, in other words, toward the wall.

Install

Back

Panel.

Set in place

with alignment

pins, then fasten with

(2) 90mm Allen Bolts

to each post.

NOTE: This step not

necessary for

Dual View option

ALIGNMENT

PINS



Fasten Crank.

Install plug in

unused opening.

Once installed, use both hand-

sto pivot the safety rail up to

attach it securely to the posts.

Attach

Extension Ends

to Side Rails.

Flip Assembly

Over.

Illustration shows

assembly upside down.

Flip unit over when

assembly completed.

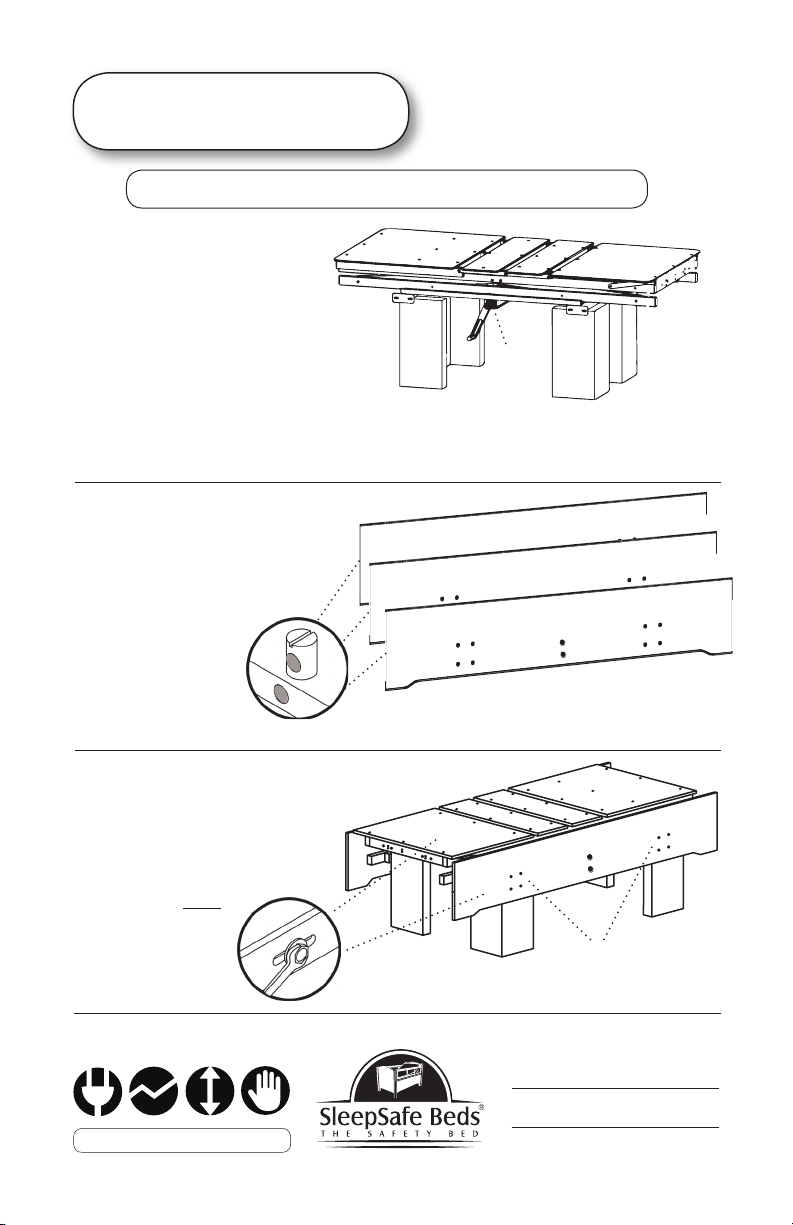

Assembly Guide SleepSafer (Tall Bed)

Open & Closed Extensions

After unpacking bed and checking the contents







Set Extension

Side Rails

Upside Down

and on their Legs.

Assemble this with two people,

otherwise one person can

assemble one panel at a time

after the the rest of the bed

is assembled.

If Applicable,

Attach the

Top to the

Extension.

Use 4mm Allen

Wrench to attach

Extension Top

with (12) 40mm

Allen Bolts.

Before flipping over use 4mm Allen Wrench to fasten

(8) 90mm bolts, 2 per post, on each side of the

Legs are upside down.

MANUAL ELECTRIC COMBO

SleepSafeBed.com

1-866-852-2337

3629 Reed Creek Dr. | Bassett, VA 24055

Autres manuels pour SleepSafe

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels SleepSafe Beds Mobilier d'intérieur

SleepSafe Beds

SleepSafe Beds SleepSafe Manuel utilisateur

SleepSafe Beds

SleepSafe Beds II Articulated Manuel utilisateur

SleepSafe Beds

SleepSafe Beds SleepSafer Fixed Manuel utilisateur

SleepSafe Beds

SleepSafe Beds Dreama RETROFIT KIT Manuel utilisateur

SleepSafe Beds

SleepSafe Beds Electric HiLo Combo FOUNDATION SleepSafe Manuel utilisateur

SleepSafe Beds

SleepSafe Beds SleepSafe II Medium Bed Manuel utilisateur

SleepSafe Beds

SleepSafe Beds SAFETY RAIL PADDING KIT Mode d’emploi

SleepSafe Beds

SleepSafe Beds SleepSafer Hi Lo Manuel utilisateur

SleepSafe Beds

SleepSafe Beds SleepSafer Hi-Lo Safety Bed Manuel utilisateur

SleepSafe Beds

SleepSafe Beds SleepSafe II Bed Manuel utilisateur

SleepSafe Beds

SleepSafe Beds SleepSafer Articulated Manuel utilisateur

SleepSafe Beds

SleepSafe Beds Electric HiLo Combo SleepSafe Manuel utilisateur

SleepSafe Beds

SleepSafe Beds SleepSafe Manuel utilisateur

SleepSafe Beds

SleepSafe Beds SUPER SCREEN Top Manuel utilisateur

SleepSafe Beds

SleepSafe Beds SleepSafe Manuel utilisateur

Manuels Mobilier d'intérieur populaires d'autres marques

Homelegance

Homelegance California 1662PEK-1CK Manuel utilisateur

Osmond Ergonomics

Osmond Ergonomics FLO Manuel utilisateur

OVE

OVE ELOISE 42 Manuel utilisateur

overstock

overstock MF286255 Manuel utilisateur

Sonoma

Sonoma 160-801 Manuel utilisateur

BOLERO

BOLERO Wicker Side Chair CF158 Guide d'installation

Coaster

Coaster 4799N Manuel utilisateur

Stor-It-All

Stor-It-All WS39MP Manuel de programmation

Lexicon

Lexicon 194840161868 Manuel utilisateur

Next AMELIA NEW 462947 Manuel utilisateur

Furinno

Furinno 18089 Manuel utilisateur

Munchkin

Munchkin Push to Close MK0001 Manuel utilisateur

impekk

impekk Manual II Manuel utilisateur

Elements

Elements Ember Nightstand CEB700NSE Manuel utilisateur

JWA

JWA CARY 68429 Manuel utilisateur

VIPACK

VIPACK AMORI AMKB9014 Manuel utilisateur

Anthro

Anthro GT03 Series Manuel utilisateur

Rowico

Rowico SANNA Manuel utilisateur
