Slate MTi Manuel utilisateur
MTi
A PRODUCT OF:
USER GUIDE
VOL. 1
Updated 10/24/13
Table of Contents
Important Safety Notes Before You Start.......................................................................2
Warranty Information..............................................................................................................2
Maintenance and Care ............................................................................................................2
•Cleaning the RAVEN MTi.....................................................................................2
•Revitalizing the RAVEN MTi Glass .......................................................................2
•System requirements..........................................................................................2
•RAVEN MTi Dimensions ......................................................................................2
•Attaching The MTi To Its Stand...........................................................................2
•Connecting RAVEN MTi to your computer ...........................................................2
•Software Installation and Touch Calibration........................................................2
•Connecting RAVEN MTi to Pro Tools ...................................................................2
•Launching RAVEN MTi Software ..........................................................................2
Review of Touch Calibration ...............................................................................................2
INSTALLING RAVEN MTi: ........................................................................................................2
Setting Up & Aligning Pro Tools With RAVEN ..............................................................2
RAVEN MTi Software Features ............................................................................................2
•The RAVEN Mixer ...............................................................................................2
•RAVEN Channel Strip ..........................................................................................2
•Automation Modes .............................................................................................2
•Icons ..................................................................................................................2
•RAVEN Toolbar...................................................................................................2
•RAVEN Settings ..................................................................................................2
•Saving a Pro Tools Session .................................................................................2
•Saving a RAVEN Session .....................................................................................2
•Restoring to Factory Default ...............................................................................2
•Edit window .......................................................................................................2
Working with Plugins..............................................................................................................2
•Loading Plugins:.................................................................................................2
•Controlling Plugins:............................................................................................2
•Closing a Plugin: ................................................................................................2

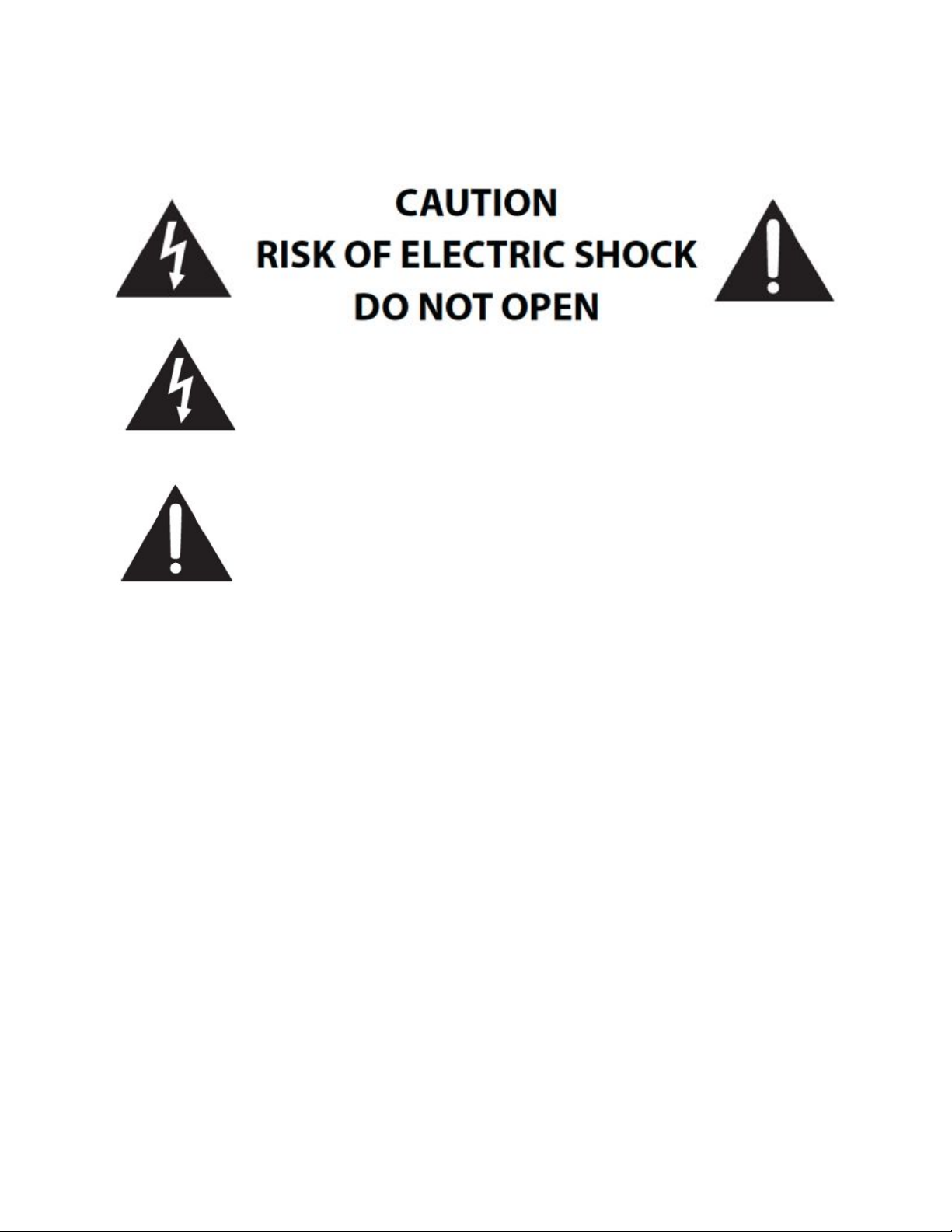

Important Safety Notes Before You Start
This symbol indicates that dangerous voltage constituting a
risk of electric shock is present within your RAVEN MTi.
This symbol indicates there are important operating and
maintenance instructions in the literature accompanying your RAVEN MTi.
1. Read these instructions
2. Keep these instructions
3. Regard all warnings
4. Follow all instructions
5. Do not use this apparatus near water
6. Do not block any ventilation openings. Install in accordance to the
manufacturer’s instructions
7. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
8. Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
device.
9. Only use attachments/ accessories specified by the manufacturer.
10. Unplug this apparatus during lightning storms or when unused for
long periods of time.
11. Do not press strongly on the panel with a hand or sharp object
such as a pencil, pen, or nail.
12. Do not stick metal objects or conductive material in the device,
power chord, or power inlet.
13. Make sure you connect the earth ground wire to prevent electric
shock. A cable with a three-pronged grounded AC Plug must be
connected to a three-pronged AC outlet.
Power Source
Operate your RAVEN MTi only from the power source included.
Servicing
Servicing of the RAVEN MTi is to be done by qualified service personnel only. To
reduce the risk of electric shock, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so.
DAMAGE REQUIRING SERVICE
Unplug the device from the power outlet and refer servicing to qualified service
personnel under the following conditions:
•When power supply is damaged
•If liquid has been spilled or objects have fallen into the RAVEN MTi.
•If your RAVEN MTi has been exposed to rain or water.
•If your RAVEN MTi has been dropped or damaged in any way.
•When your RAVEN MTi exhibits a distinct change in performance.
Important Note About DVI Cables
As in many studios, your computer may be located in a room far away from
your console. For DVI cable lengths over 15ft, a DVI signal booster is required.
This will ensure the video signal reaches the display with no signal degradation.
Warranty Information
Hardware Limited Warranty
A. Limited Warranty
Slate Media Technology (SMT) warrants that its hardware will be free from
defects in materials and workmanship, for one (1) year after it has been
acquired by the first user when given normal, proper and intended usage. SMT
will repair or replace nonconforming product (or a component thereof) that is
returned to SMT within the warranty term at no charge.
This warranty applies to products purchased anywhere in the world. You may
have additional consumer rights under local laws. SMT will provide the
minimum warranty term required by applicable law.
B. Warranty Recipient
The limited warranty applies only to genuine SMT products when sold by an
SMT reseller, distributor or dealer.
C. Exclusions from Warranty
This warranty does not cover problems caused by your acts, the acts of others,
or events beyond SMT’s reasonable control.
SMT does not warrant that use of SMT products will be uninterrupted or error-
free. This limited warranty does not apply to expendable components and is
void if the product serial numbers have been removed. SMT has no obligation
under this warranty to repair or replace products damaged as a result of 1)
normal wear and tear, 2) improper or unauthorized use or repair, 3) customer
fault or negligence, 4) natural or manmade disaster, or 5) causes external to the
products including, but not limited to, exposure to moisture, extreme
temperatures, power outages, or other customer site conditions.
D. Limitation on and Exclusion of Damages for Breach of Warranty
You may recover from SMT and its suppliers only direct damages up to the
amount you paid for the product.
You cannot recover for loss of present or prospective profits, data loss,
business damage, or any other consequential, special, indirect or incidental
damages.
E. Warranty Procedures
For information regarding your warranty, please contact Slate Media Technology
or your local authorized reseller, distributor, or dealer. Product registration at
www.slatemt.com is required in order to process a warranty claim. You will be
required to provide proof-of-purchase to validate your claim.
Hardware may require return-to-factory, and customer is responsible for
properly packing and labeling and insuring any warranty returns for shipment
to Slate Media Technology. Customer is responsible for any damage or loss
incurred due to improper packaging or labeling. Customer is required to pay
shipping/handling one way for warranty product returns and applicable custom
duties, V.A.T. and other associated taxes and charges for international service.
Maintenance and Care
Cleaning the RAVEN MTi
The RAVEN MTi ships with a NanoGlide™coating, which protects the screen
from oil, water, and dirt. The coating also strengthens the surface of the glass
making it scratch resistant and smooth to the touch.
IMPORTANT
Do not use regular cleaning solutions on the RAVEN MTi
Household sprays and cleaners will affect the touch glass coating, which can
impact performance. We recommend a simple microfiber cloth to clean the
surface of the glass.
If more intensive cleaning is required, use a lightly damp cloth. Make sure that
the cloth is not too wet; the coating will make the water bead and drip. As a
precaution, keep a dry cloth at the bottom of the screen to catch any runoff.
Do not allow moisture from liquids to accumulate on the screen when cleaning.
Accumulation of liquids can damage internal electrical devices. If a damp cloth
must be used, make sure to remove any excess water immediately after
cleaning.
To clean RAVEN MTi’s exterior metal parts use a simple microfiber cloth. If
deeper cleaning is required, a non-abrasive cleaning solution can be used on
the metal parts only. Be sure to not spray cleaner on the RAVEN MTi directly,
rather spray the cleaner on to a cleaning cloth away from the RAVEN MTi, then
use the dampened cloth on the RAVEN MTi’s metal parts.
The high gloss lacquer finish on RAVEN MTi’s side panels can be damaged by
some cleaners. Use a gentle cleaning solution. Test in an inconspicuous area
first.
Revitalizing the RAVEN MTi Glass
The RAVEN MTi comes out of the box with a NanoGlide™ coating that repels oil,
water, and leaves the surface incredibly smooth to the touch.
After some use, it may be necessary to revitalize to bring the glass back to its
original slickness. We recommend using the revitalizing solution when you feel
the glass has substantially more friction than when you first started using your
RAVEN MTi.
The coating process is very easy and can be done following the steps below. All

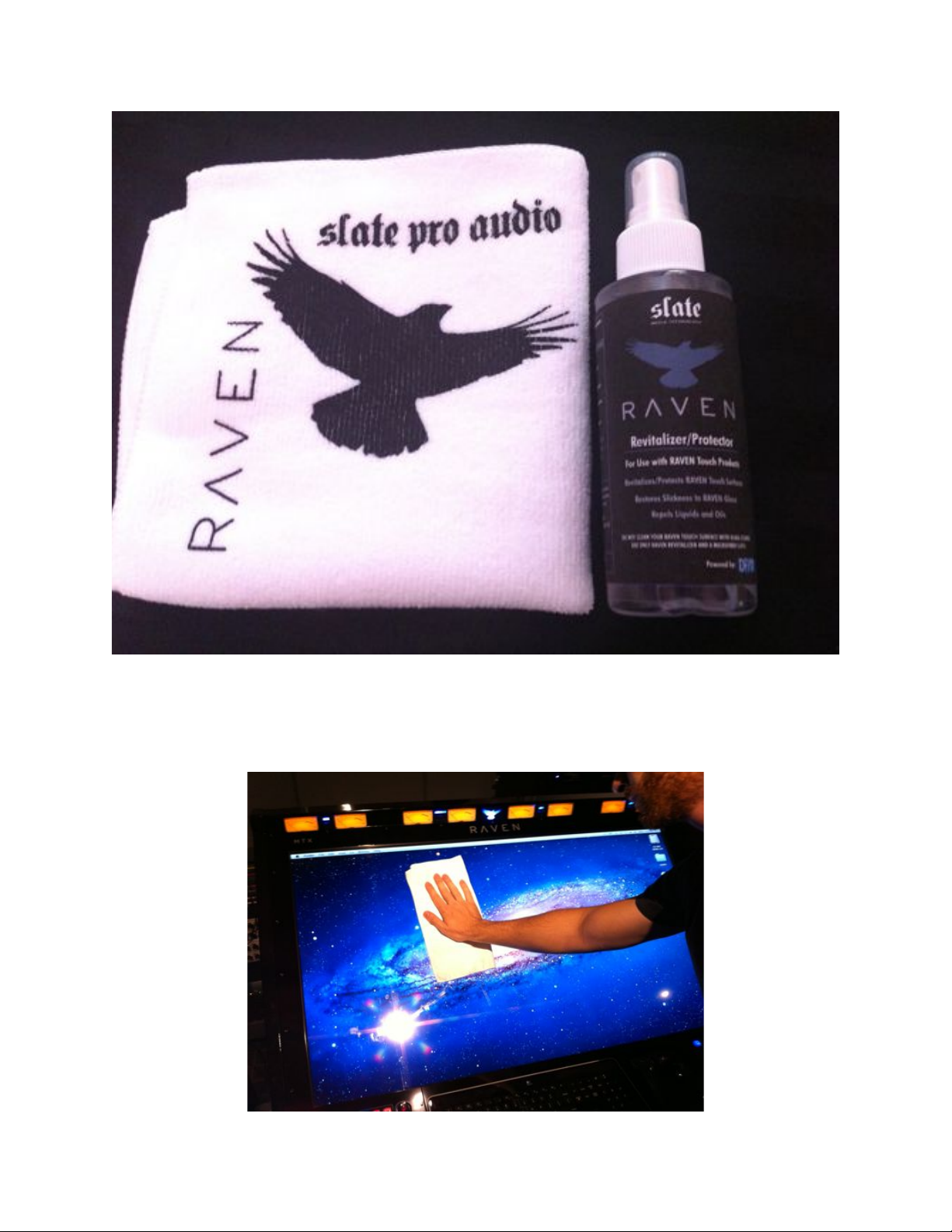

you need is a microfiber cloth and the supplied 4oz bottle of
Revitalizer/Protector solution.
IMPORTANT:
Apply the revitalizer solution in a well-ventilated area
NOTE:
The Revitalizer Solution is not a product of Slate Media Technology. Please read
the Revitalizer label for more information, precautions, and first aid
instructions.

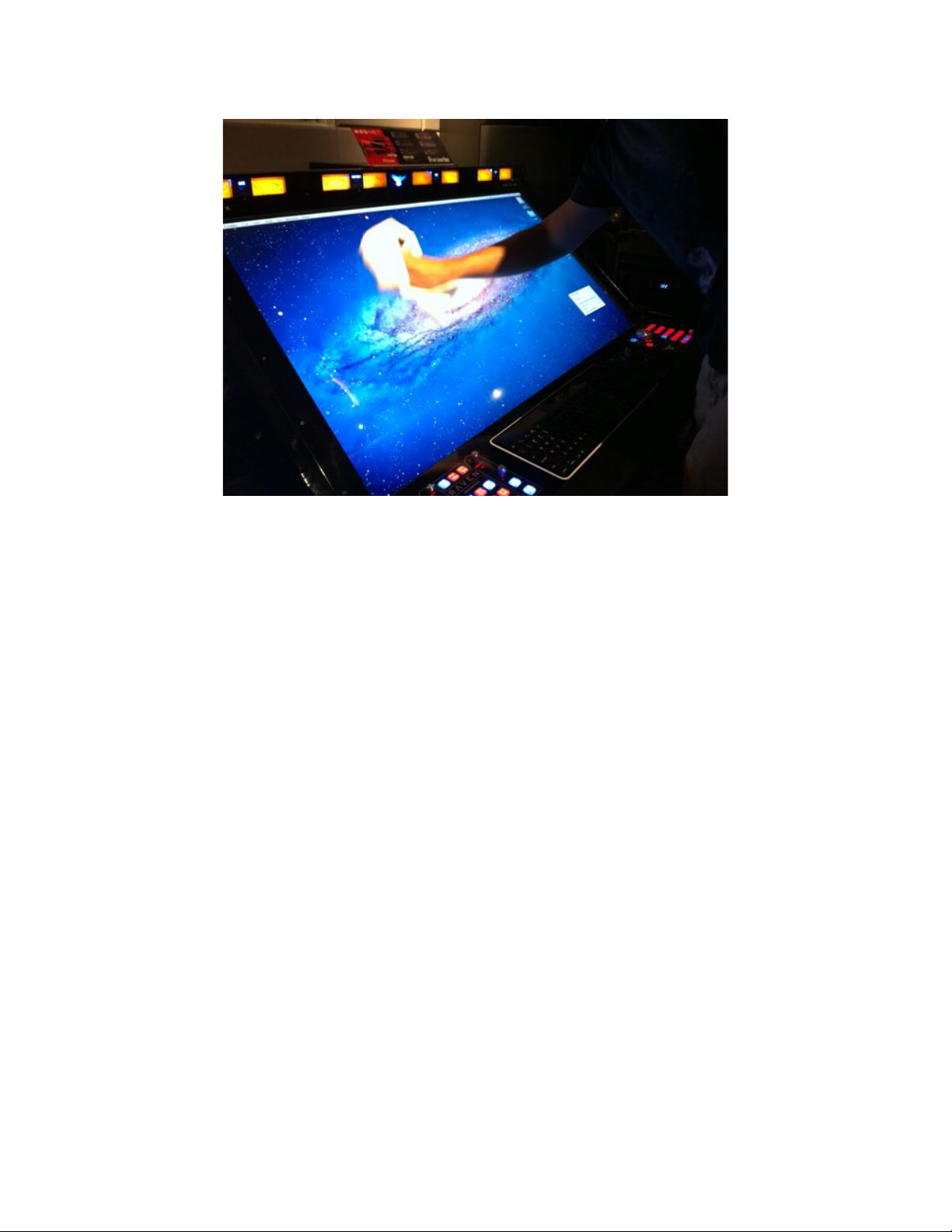

1. Using a microfiber cloth, clean the RAVEN MTi screen to remove dust and
fingerprints.
2. Spray the revitalizer solution directly onto the RAVEN MTi glass. It should
take approximately six sprays to cover the glass completely.
a. IMPORTANT:Do not spray so much that the solution drips down
the screen. Excess moisture could damage the display and touch
system. If you are unsure, place a cloth at the bottom of the screen
to catch any runoff.

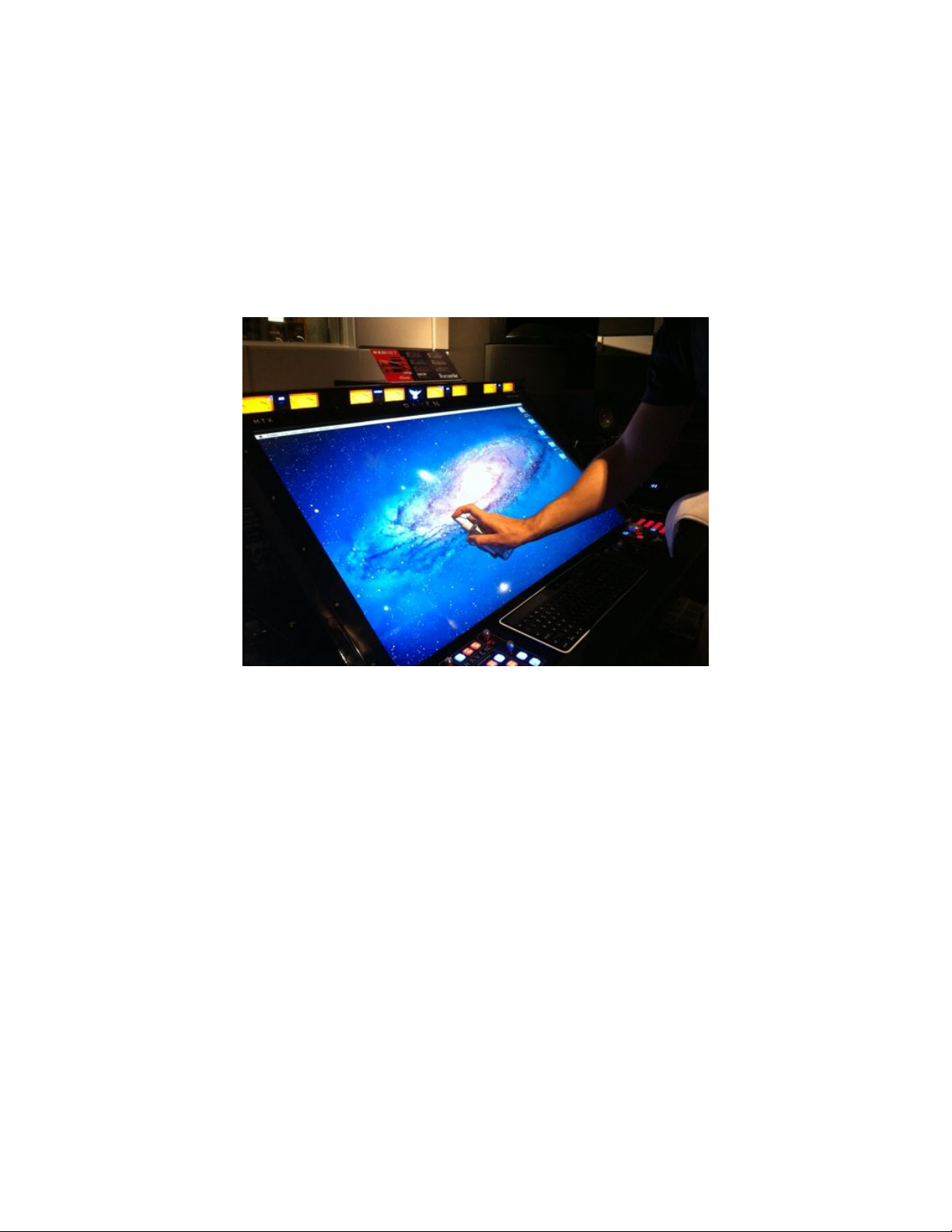

3. Using a microfiber cloth LIGHTLY spread the solution around to cover the
entire screen.
a. IMPORTANT: DO NOT WIPE/BUFF AWAY ALL OF THE
REVITALIZER SOLUTION FROM THE SCREEN. The coating on the
glass leaves a very thin residual layer of Revitalizer, which
significantly adds to the slickness and oil repellency. Removing all
of the product will leave the glass less smooth than desired.
b. USE A LIGHT TOUCH TO APPLY THE REVITALIZER AROUND THE
SCREEN.
NOTE: There will be a residual oil layer on the glass after revitalizing. When the
screen is turned OFF, the glass may appear cloudy. This is OK. You should not
be able to notice this layer when the screen is turned ON. If you do, wipe gently
until you cannot see the oil layer.
Your RAVEN MTi is now back to its original slickness!
Getting Started
System requirements
The RAVEN MTi will run on any Mac computer, however we recommend these
specifications for optimal performance.
- OSX 10.7 (Lion) or 10.8 (Mountain Lion)
- Intel i7 or Xeon processor with a clock speed of at least 2.4 GHz.
- Minimum 2GB RAM
- Graphics card with minimum 512MB memory, though 1GB graphics memory
is recommended
- Any Mac Pro produced after 2010 is ideal and will meet all the requirements,
though MacBook Pro’s, Mac Mini’s and iMac’s meeting the requirements should
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels Slate Équipement d'enregistrement
Manuels Équipement d'enregistrement populaires d'autres marques
Strymon
Strymon NIGHTSKY Manuel utilisateur
Mitsubishi Electric
Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Manuel utilisateur
Tews Technologies
Tews Technologies TPMC465 Manuel utilisateur
Honeywell
Honeywell Excel 50 Manuel utilisateur
SeaLevel
SeaLevel COMM+8.LPCI Manuel utilisateur
Arturia
Arturia AUDIOFUSE STUDIO Manuel utilisateur
