Skywalker sports SSFG9 Manuel utilisateur

USER MANUAL

Skywalker Holdings LLC

P.O. Box 574, Brigham City, UT 84302

ASSEMBLY, MAINTENANCE, &

MODEL #SSFG9

WARNING

Read all precautions and instructions in

this manual before using this equipment.

Save this manual for future reference.

TABLE OF CONTENTS

IMPORTANT

Soccer goals are susceptible to winds.

Be sure to secure your soccer goal. Wind

damage is not covered in the warranty of

your soccer goal.

WARNING

CHOKING HAZARD- Small

parts not for children

under 3 years.

WARNING

Adult assembly required.

STOP EVERYTHING YOU'RE DOING AND REGISTER YOUR TRAMPOLINE

Find our warranty registration online by typing in: www.skywalkertrampolines.com/registration/

You'll need to have the following information handy:

• Name • Email address

• Address • Trampoline model number

• Phone number • Trampoline serial number

• Date of purchase • Retailer the trampoline was purchased from

HEY WE'VE GOT SOMETHING REALLY IMPORTANT TO SAY

And that is... check us out online! We've got assembly videos (for those of you who prefer movies over books), FAQs

(so you know you're not the only one who messed up), fascinating blog posts (did you know jumping burns more

calories than running?), and most importantly... find us on social media! Because we want to be your friend. We'd love

to hear from you, friend.

Website: skywalkertrampolines.com

Facebook: facebook.com/skywalkertrampolines

YouTube: youtube.com/c/SkywalkerTrampolines

Pinterest: pinterest.com/swtrampolines

Twitter: twitter.com/swtrampolines

Instagram: instagram.com/skywalker_trampolines

Part List.....................................................................................................................................................................................3

Part Identiﬁcation........................................................................................................................................................4-5

Exploded Drawing.............................................................................................................................................................6

Assembly...........................................................................................................................................................................7-13

Limited Warranty...............................................................................................................................................................14

PART LIST

ORDERING REPLACEMENT PARTS

We get it... sometimes things happen. But the fun shouldn’t stop just because you need a new bolt or screw! To order

replacement parts, check out our website at: www.skywalkertrampolines.com or call our toll-free Customer Care

Hot-line at 1-866-603-Jump (5867), Monday - Friday, 8 a.m. until 5 p.m. Mountain Time (excluding holidays).

Our customer service team will ask you a few questions in order to get the replacement part sent out as soon as

possible. We’re not trying to complicate your life, we promise.

When calling, make sure to have the following information ready:

• The model # of the product (see the front cover of this manual)

• The key # and description of the part (see the part list above)

• The quantity needed (only you know the answer to that one!)

BEFORE YOU BEGIN

Thanks for choosing Skywalker Sports! We’re just as excited as you are to help your family live an active (but most

importantly FUN) lifestyle. This model is one of our favorites, and we’re conﬁdent you’ll love it too. To make things

easier for you, we’ve listed important information that you (and your little outdoor adventurers) need to know. Make

sure you brush up on the warnings, instructions, assembly, maintenance, and use of your new product... because

there will be a pop quiz at the end! (Okay, not REALLY, but if you’re still reading this, props to you! You’re awesome).

Key No.

Qty.

Description

Top Corner Tube

Cross Bar

Front Side Post (Short)

Front Bottom Corner

Bottom Cross Bar (Long)

Bottom Left Corner

Bottom Right Corner

Back Top Bent Tube

Back Side Post

Anchor Tube

Ground Stake

Bolt

Washer

Arc washer

Net

Soccer Banner

Middle Banner

Clip

Wrench

Sandbag Weight

Before you begin, take a look at the drawings below to make sure you have all the parts! The numbers in the squares

to the left (key numbers) will help you identify the parts during assembly.

PART IDENTIFICATION

12 3

456

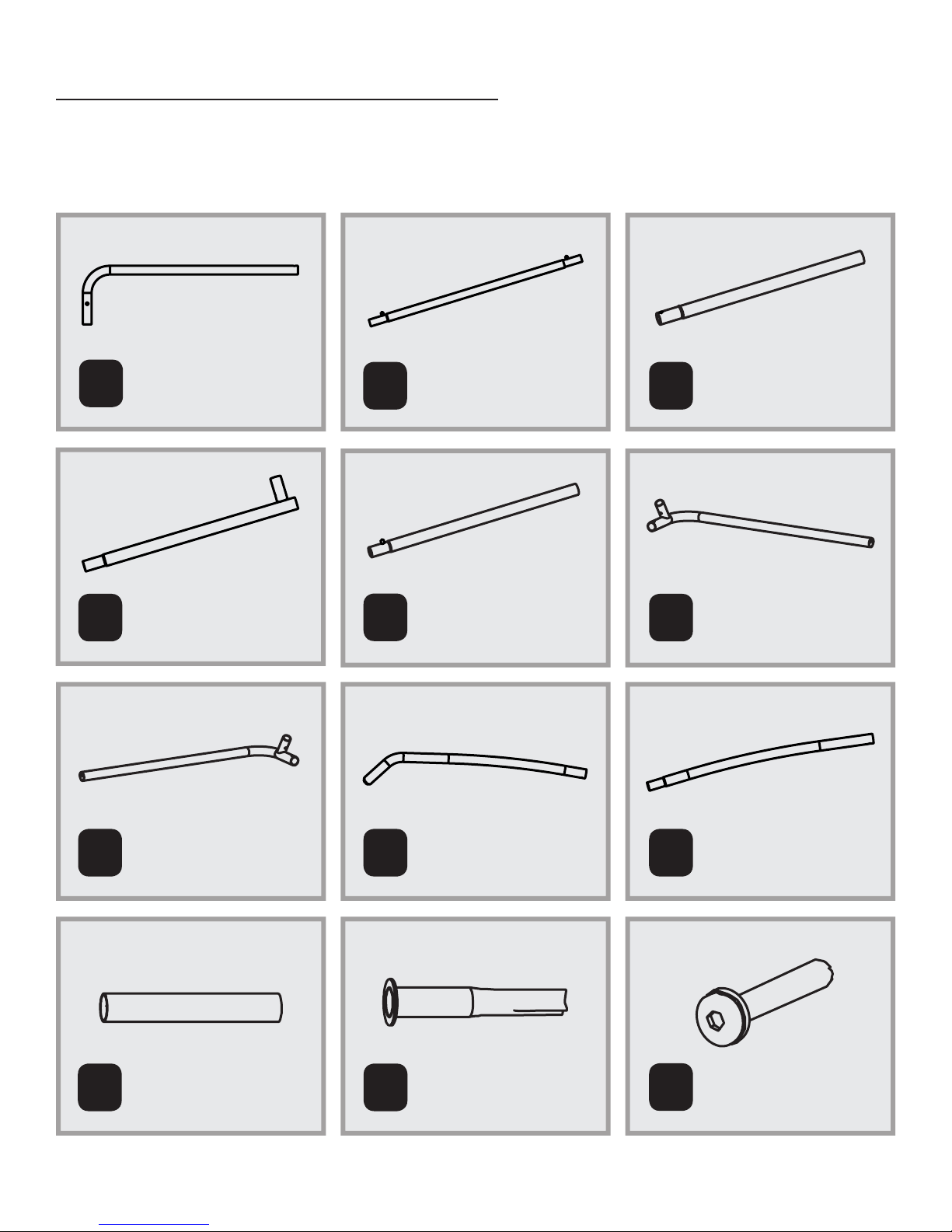

Front Side Post

(Short) (x2)

Front Bottom Corner

(x2)

Bottom Cross Bar

(Long) (x2)

Bottom Left Corner

(x1)

Bottom Right Corner

(x1)

Back Top Bent Tube

(x2) 9Back Side Post (x2)

10 Anchor Tube (x2) 11 Ground Stake (x2) 12 Bolt (x2)

Top Corner Tube (x2) Cross Bar (x2)

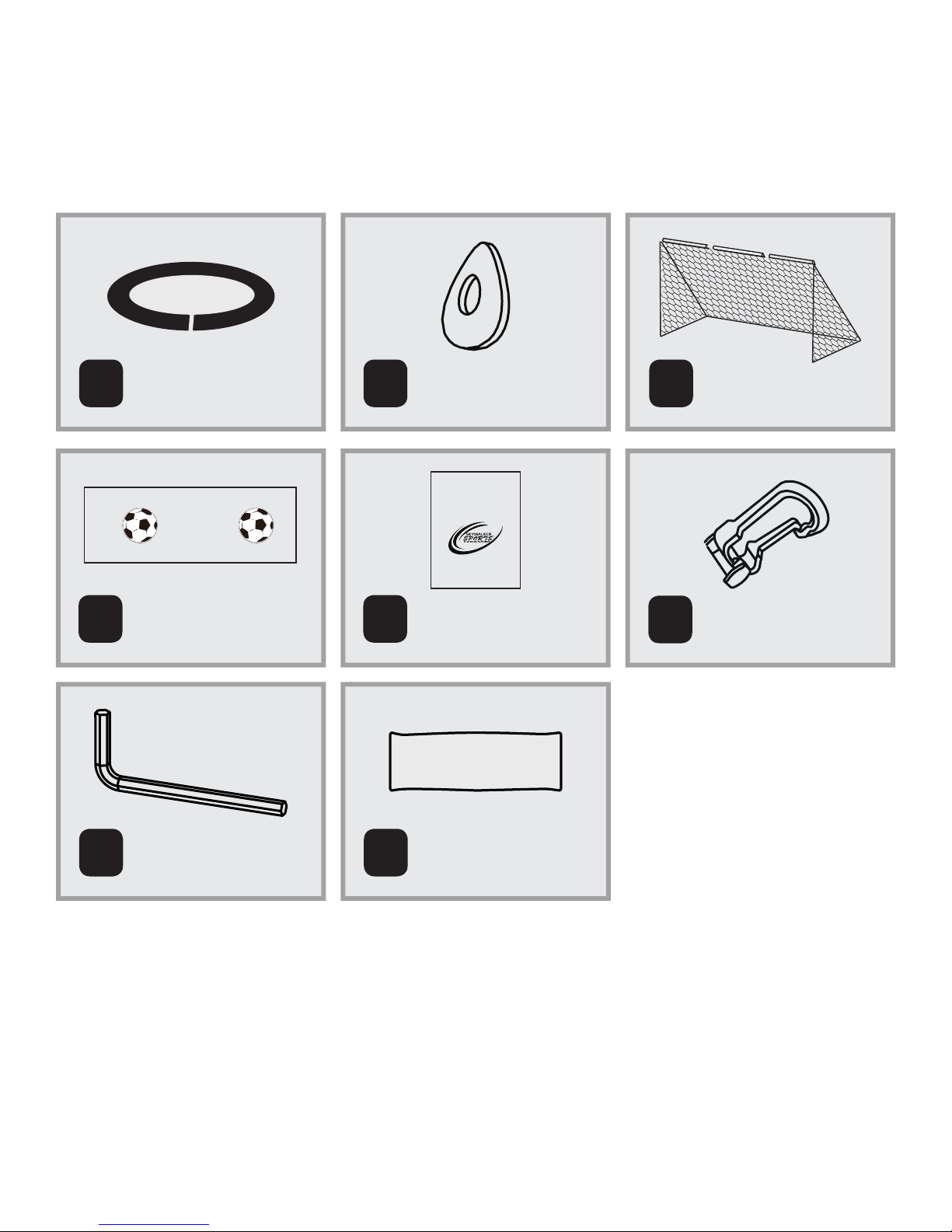

13 14 15 Net (x1)Arc Washer (x2)Washer (x2)

16 17

Soccer Banner (x2) Middle Banner (x1) 18 Clip (x20)

19 20

Wrench (x1) Sandbag Weight (x2)

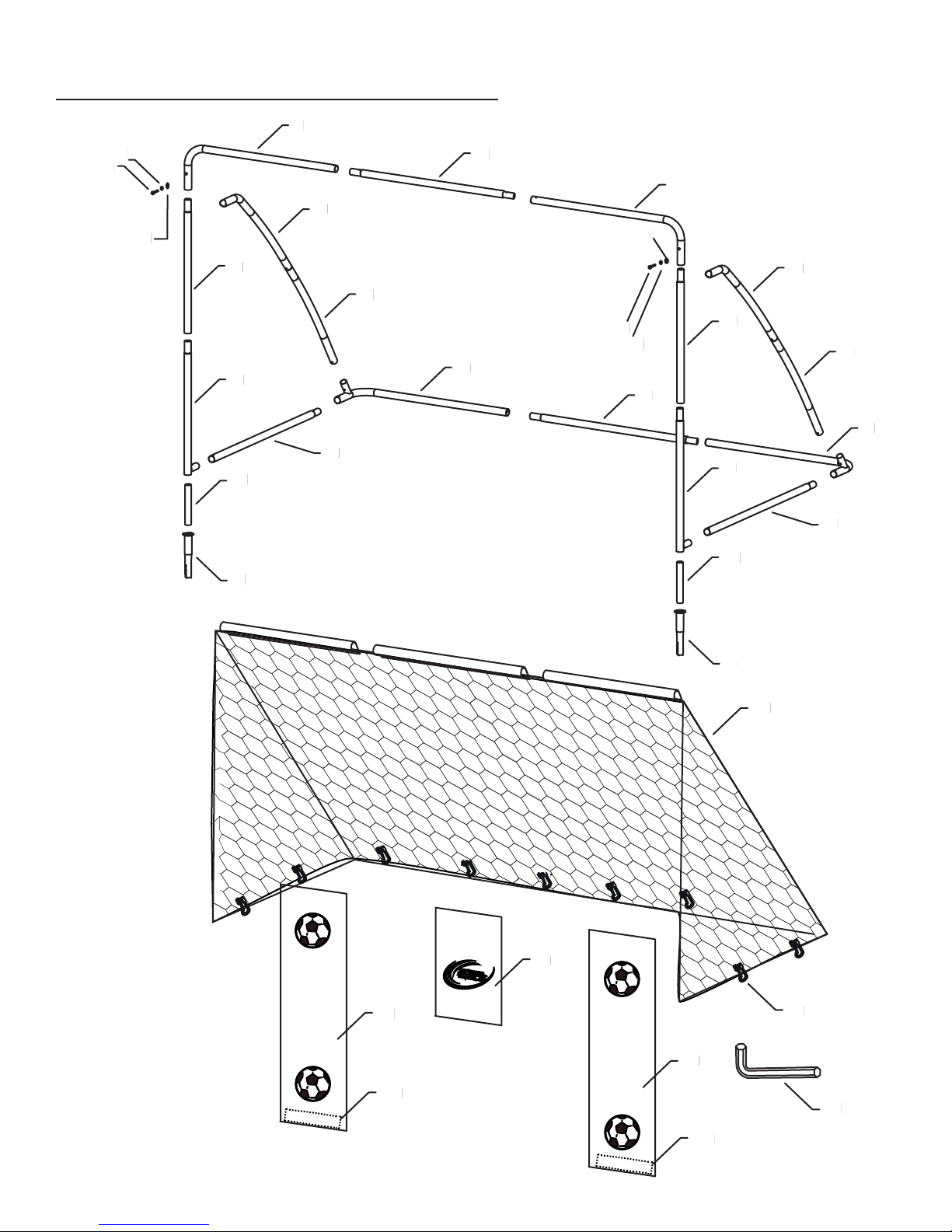

EXPLODED DRAWING

(11)

(10)

(17)

(16)

(19)

(18)

(15)

(16)

(20)

(5)

(4)

(3)

(14) (14)

(1)

(12)

(13)

(3)

(7)

(9)

(8)

(6)

(2)

(8)

(2)

(1)

(11)

READ THIS BEFORE YOU BEGIN

• You’ll probably need at least 2 adults and 2 hours to assemble your soccer goal (of course, that depends on what

model you have, and whether or not you’re secretly a superhero).

• We’ve provided a wrench to help with assembly, but you’re more than welcome to use your own tools.

• Use gloves to protect your hands from pinch points during assembly. Plus, it’s an up-and-coming fashion trend.

• The assembly steps refer to parts by their descriptions and key numbers (see the part list on page 3).

• The assembly steps are written in a speciﬁc order, and if you don’t follow them exactly... you may end up having to

start all over again. We promise we won’t say, “I told you so” but really... we told you so.

• Most importantly... YOU’VE GOT THIS. YOU’RE THE BEST ASSEMBLER AROUND. This may not be the easiest thing

you’ve ever done... but it will be worth it. Trust us.

And if you’re a visual learner, check out our assembly videos!

ASSEMBLY

STEP 1

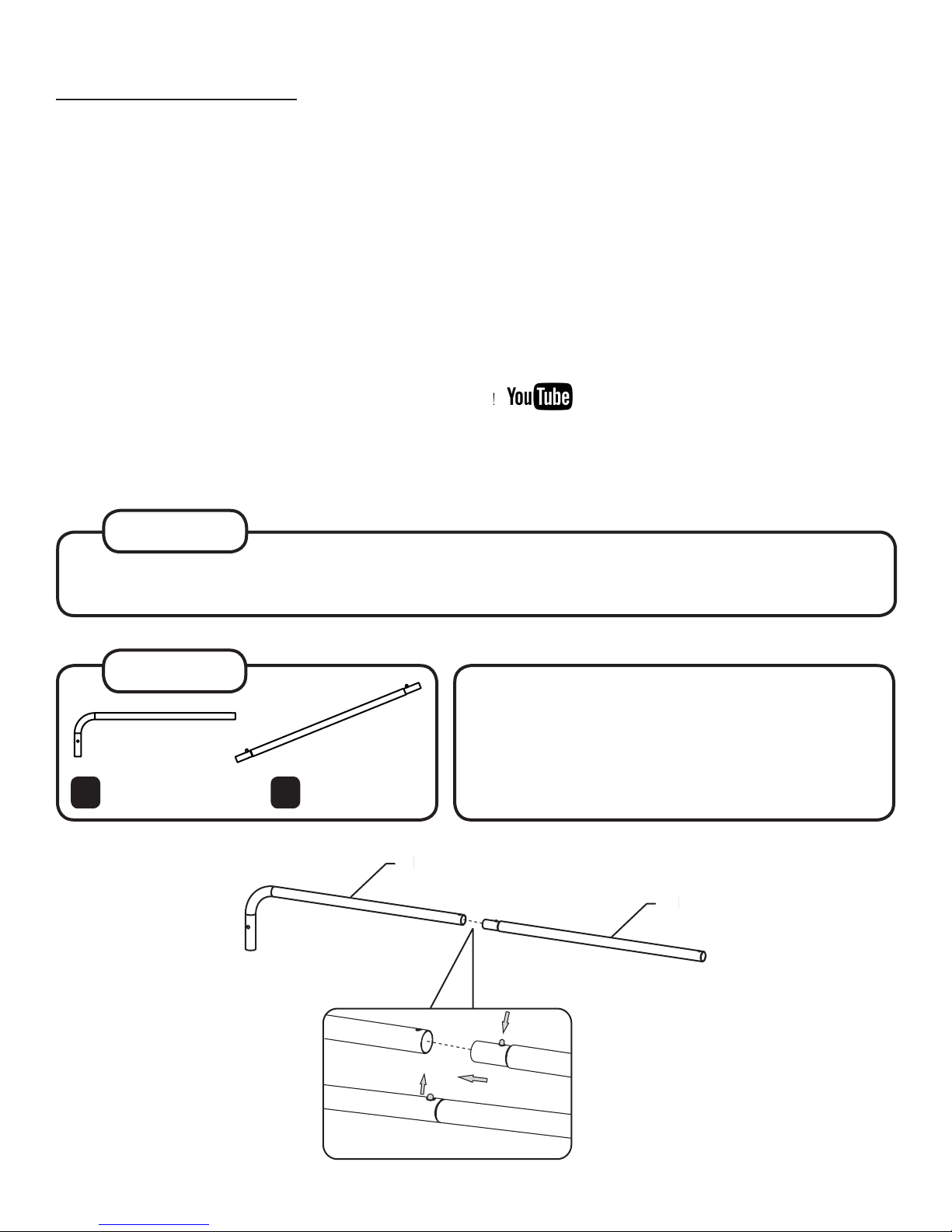

Locate a top corner tube (1) and a cross bar (2).

Insert the cross bar into the top corner tube as shown.

Visit:youtube.com/c/SkywalkerTrampolines

STEP 2

Top Corner Tube (x2) Cross Bar (x2)

(1)

(2)

ASSEMBLY

Slide the tube section from step 1 into the left and middle sleeves on the top

of the net (15) as shown.

Slide the remaining top corner tube (1) through the sleeve on the right side

of the net, and insert into the cross bar (2) as shown.

STEP 3

Net (x1)

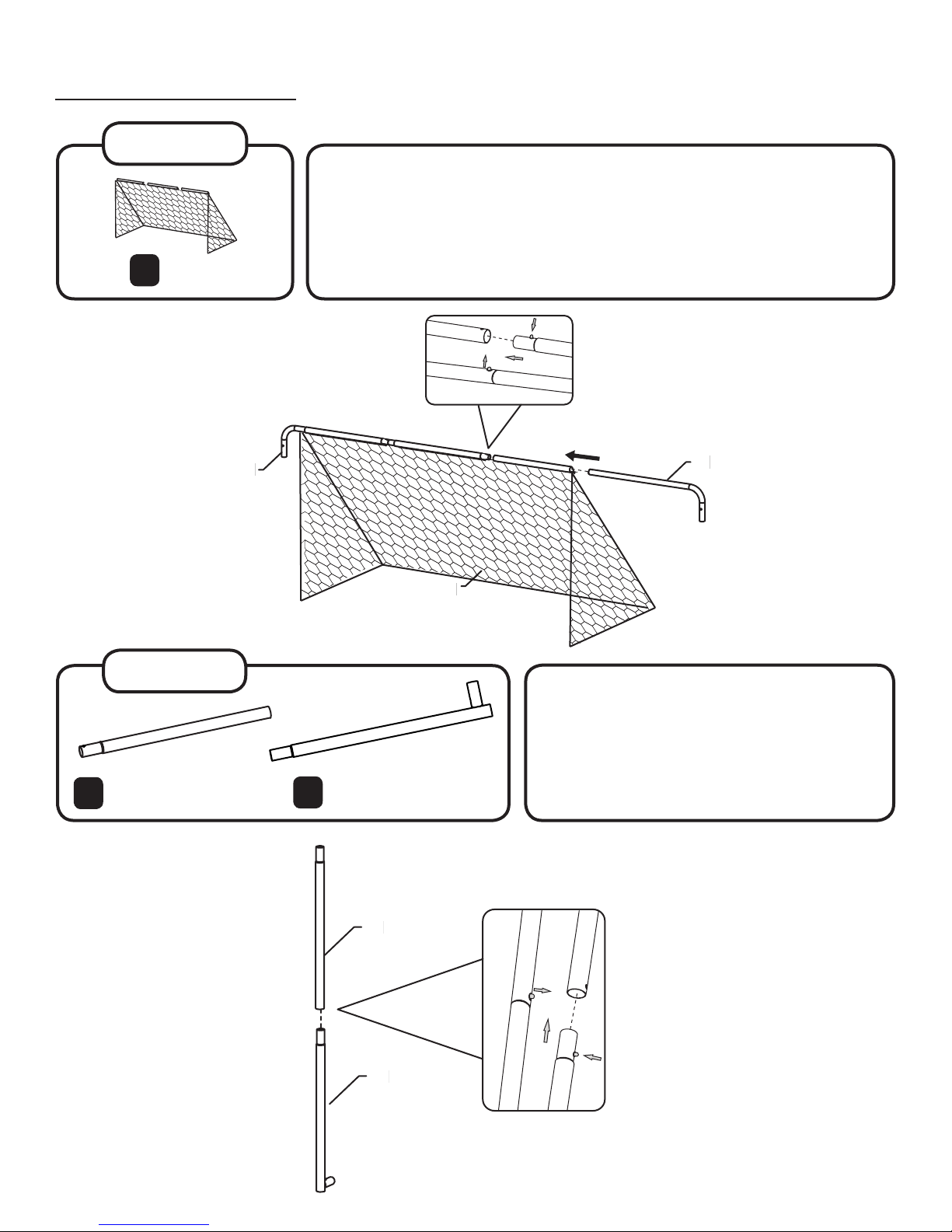

Locate a front bottom corner tube (4) and

a short front side post (3). Insert the front

bottom corner tube into the front side post

as shown. Repeat this step to connect the

other front bottom corner tube to the front

side post.

STEP 4

Front Side Post (Short) (x2) Front Bottom Corner (x2)

(1) (1)

(15)

(3)

(4)

STEP 5

Attach one long bottom cross bar (5) to each of the front bottom corners

(4) as shown.

STEP 6

Bottom Cross Bar (Long) (x2)

(1) (1)

(4)

(5)

Starting at the bottom of the net, weave the assembled tubes from step 4 in and out of the larger holes in the

left side of the net (15) as shown. When you reach the top of the net, insert the assembled tubes into the top

corner tube (1). Before connecting the frame pieces together, be sure to also weave the net over the corner of

the top corner tube. Repeat this step on the other side of the net.

ASSEMBLY

STEP 7

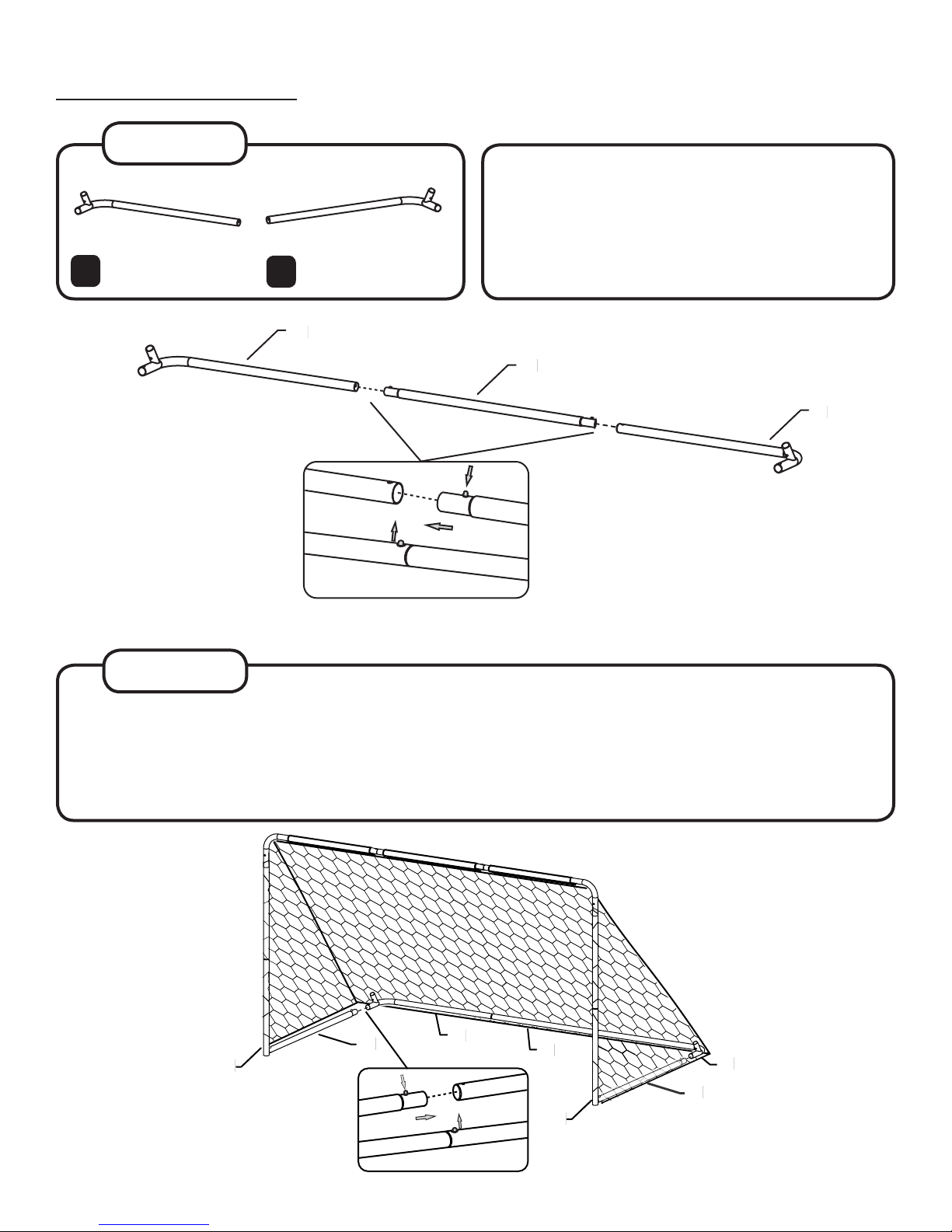

Connect the bottom left corner (6), the cross bar

(2), and the back bottom right corner (7) together

as shown.

Bottom Left Corner (x1) Bottom Right Corner (x1)

(6)

(7)

(2)

STEP 8

Place the assembled tube section from step 7 on the inside of the net (15), and attach to the bottom cross

bars (5).

(4)

(5) (6) (2) (7)

(4)

(5)
