Skynet RED RING Manuel utilisateur
USER MANUAL
RED RING
0201
Specifications
1
2
3
8
9
7
12
10
13 14
15
4
5
12. WiFi Indicator
13. Charging Indicator
14. Working Indicator
15. Docking Connector
6
RECORDING
Video Resolution
Multiple Recording Resolution 2304x1296P(30 FPS)/
1920x1080P(30 FPS)/ 1280x720P(30 FPS)/ 848x480(30
FPS)
Video Format .Mp4
Recording Angle Wide Angle 140 degrees
Audio High Quality Built-in Microphone.
Pre-record Support
Water Mark User ID, Time and Date Stamp Embedded into Video.
Record LED Front Button with LED Indicator
Video Duration 5 mins, 10 mins, 15 mins
Activation prompt Vibrator & Speaker & LED Indicators
Photograph
Camera 32M, 21M, 16M, 12M, 10M, 8M, 5M, 3M
Camera Format JPEG
Snap Shot Capture Photos During Video Recording
Type Built-in 3000mAH Lithium- (LiCoO2) （-20C° ~ 45C°）
Charging Time 180 minutes
Battery Indicator Blue LED with 4 Levels (0~25%~50%~75%~100%)
OTHERS
Storage Capacity 32G
IR Light 2PCS 850nm Infrared LED with Wide Angle
Auto IR Control Support
Night Vision Up to 8 Meters
Waterproof IP66
Clip High Quality Metal Clip with 360° Rotation
Password Protection Requires Password to Access to Video
Stealth Mode Support (Turn off All LED Indicators and Sounds)
Dimensions 80 mm *56 mm *25mm (2.91” * 1.83” *0.93”)
Weight 130 gram
Working Temperature -20C° ~ 45C°
Storage temperature -25C° ~ 50C°
ACCESSORIES
Standard Accessories
04
03

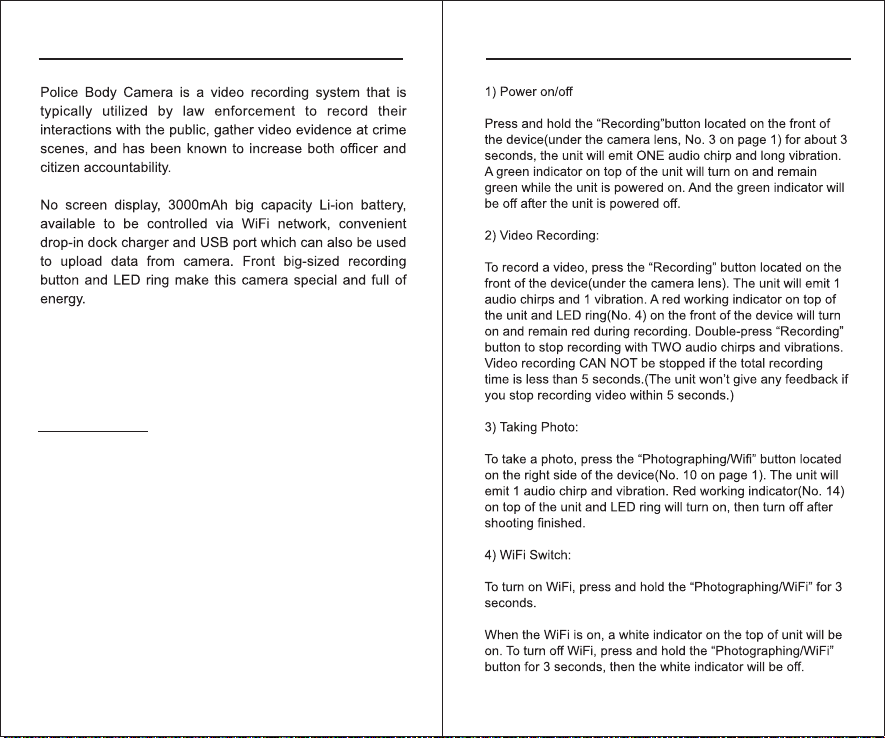

Overview
Prompt Sounds：
Start to record: 1 audio chirp.
Stop to record: 2 audio chirps.
Take a picture: 1 audio photographing chirp.
Turn on/off Wifi: 1 audio chirp.

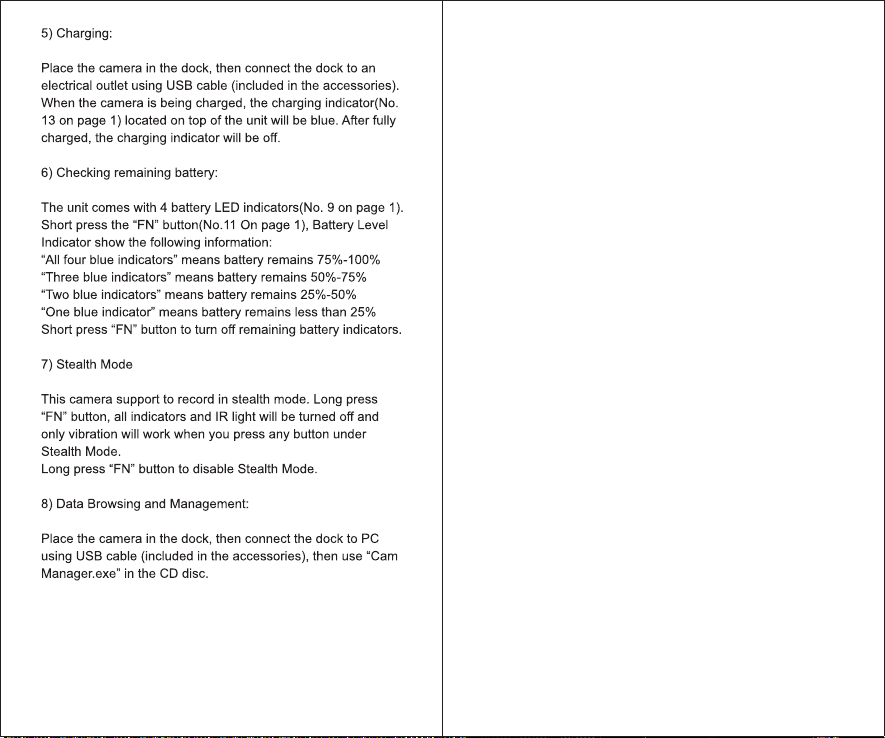

Getting Started
05
9) How to Reset?
If you are having problems with your device, please try and
reset the camera using the reset button(No. 6 on page 1).
Note: Use a paper clip or finger nail to press the reset button.
You will hear a "click" after the button is pressed.
This, isn't a password Reset, if you lose your password pleese
contact our support and create a ticket at this link
06
http://supporto.skynetitalia.net/ticket
Install WiFi APP
Scan QR code below, or search “WanCam” in APP store.
Long press “Photographing/Wifi” button(No. 10 on page 1) to
turn on the WiFi of camera, then open WanCam.
08
07
Android & IOS APP
Find out your body camera’s WiFi SSID (Format:
Camera-xxxx), then input WiFi password (default
12345678) and tap “ADD”, to connect your body camera.

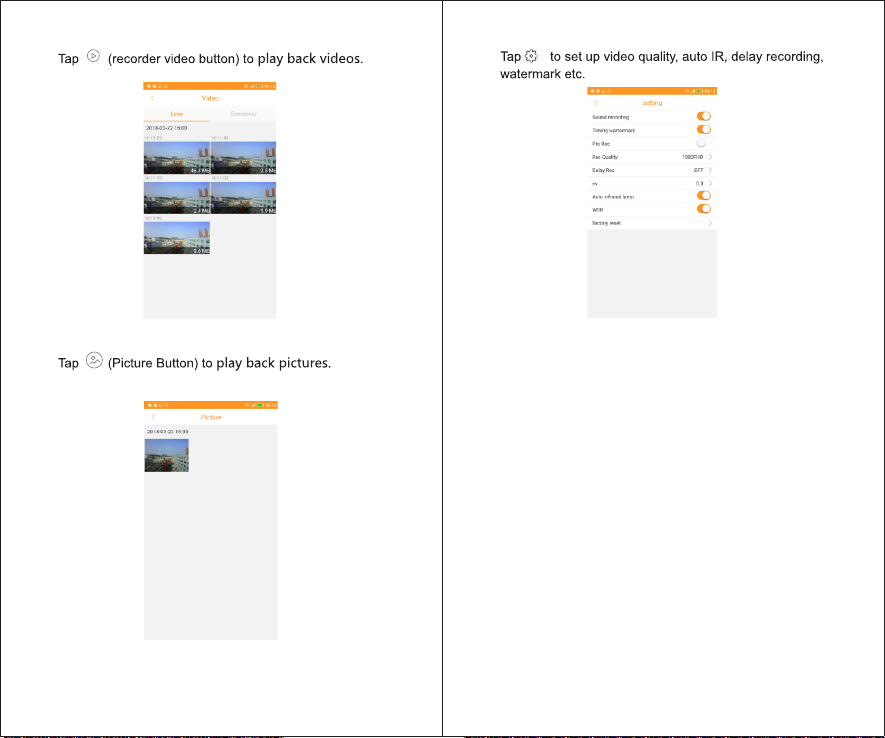

Record
09 10
record video
Files saved in camera are unable to be deleted Note:
in APP. The main function of APP is for reviewing
video and changing some simple settings.
12
Find Cammanager.exe in the CD disc, double click to open it.
PC Software
Default Password is 000000 (six zero).
.
After entering password, then click “Connect Device”.
After login, input new password, then click “Apply” to
Change password
Device ID is with 7 characters. While Police ID is with 6
characters. After setting, click “Apply” to finish.
Device time will be synchronized when user click “Sync
Date&Time”
How to Login?
How to Change Password?
How to Change ID?
Other Settings
13 14
1) Select recording video resolution(from VGA to 1296FHD),
then click Apply to finish.
2) Select on/off and click Apply to turn on/off Loop Video.
3) Select the length of each video(from 5 to 15 Mins),
then click Apply to change each video saving time on
memory card.
1) Select photo resolution(from 3M to 32M), then click Apply
to finish.
2) Select image quality(from low to high), then click Apply to
finish.
Select volume grade(from off to high) then click Apply.
How to Change Photo Parameters?
Click unlock memory card to view video and audio in
U-Disk mode.
Unlock Memory Card
