Skymicro Merlin 2003 Manuel utilisateur

Merlin 2003

DV and MPEG-2 Recorder and Dual Stream Decoder

Users Manual

The Sky is the Limit

means, electronic, mechanical, photocopying, recording, or otherwise, without written permission from Skymicro,

Inc.

Windows® is a registered trademark of Microsoft Corp.

All in Wonder is a registered trademark of ATI Corp.

Norton Utilities is a registered trademark of Symantec Corp.

Premiere is a registered trademark of Adobe Corp.

Skymicro, Inc.

2060D Ave. Los Arboles PMB344

Thousand Oaks, CA 91362-1361

(805) 491-8995

www.skymicro.com

Merlin 2003 DV and MPEG-2 Recorder and Dual Stream Decoder

Page 3

Contents

1. Overview

1.0 Introduction 5

1.1 Features 6

1.2 BlockDiagram 7

2. Getting Ready

2.0 System Requirements 8

2.1 Package Contents 8

2.2 Preparing Your System 9

3. Installing the Hardware

3.0 Computer Installation 10

4. Installing the Software

4.0 Driver Installation 12

4.1 Application Installation 12

5. Quick Start

5.0 Running the Application Software 15

5.1 Recording to files 16

5.2 Playing from files 17

6. Application Software

6.0 The Player Application Window 19

6.1 The Recorder Application Window 31

6.2 The Play List Editor 37

6.3 The Program Stream Generator 40

6.4 The Program Stream Splitter 41

6.5 The Batch Recorder Utility 42

Merlin 2003 DV and MPEG-2 Recorder and Dual Stream Decoder

Page 4

Appendix A. Video Play List File

A.0 Video Play List File Format 45

Appendix B. Audio Play List File

B.0 Audio Play List File Format 46

Appendix C. Writing your own Application

C.0 Example Source Code Using Method 1 47

C.1 Command Line Examples using Method 1 48

C.2 Simpleplay Application using Method 2 48

Appendix D. Cable Pinouts

D.0 Cable Pinouts 49

D.1 Merlin2003 Digital Cable 50

D.2 Merlin2003 Analog Cable 51

D.3 Batch Recorder Serial Cable 52

Merlin 2003 DV and MPEG-2 Recorder and Dual Stream Decoder

Page 5

1. Overview

1.0 Introduction

Skymicro’s Merlin 2003 DV and MPEG-2 Recorder and Dual Stream Decoder board is a complete video capture

and playback solution in a single half-sized PCI card. It is ideally suited for applications such as digital video

broadcast, video distribution applications, authoring, and nonlinear editing.

The Merlin 2003 DV and MPEG-2 Recorder and Dual Stream Decoder includes all the software necessary to

record, compress, process and play back audio and video clips in DV and MPEG-2 formats. The audio and video

are treated separately so audio can be added to video at a later time or vice versa. The Merlin board can also play

audio and video at variable speed. Merlin has many elaborate Non Linear Editing features; one of these is to allow

you to play back two streams of video and then transition from one to the other using many selectable transition

effects. By using a highly sophisticated processor all this can be done in Real Time. Moving from any frame to any

other frame in a video clip is a snap with Merlin. All you need to do is enter a frame number or move a slide control

and you are instantly at the desired frame. You can even give Merlin a play list to specify all the clips you wish to

play, and all the transition effects you wish to occur between your clips with starting and ending frame numbers,

and Merlin will do the rest. Merlin can even convert files to and from DV, MPEG-2 and many other picture and

video formats.

Merlin 2003 DV and MPEG-2 Recorder and Dual Stream Decoder

Page 6

1.1 Key Features

Real Time DV and DVC-PRO50 Play and Record.

Real Time MPEG-1, MPEG-2 and IMX Play and Record.

Real Time 10 Bit Uncompressed Play and Record.

MPEG-2 (4:2:0) and (4:2:2) Chroma sampling supported.

DV (4:2:0), (4:1:1) and (4:2:2) Chroma sampling supported.

Variable and fixed bitrates from below 1 Mbs to 50 Mbs supported.

I - Frame only, IP, IBBP and IB GOP structures supported.

Variable resolutions supported up to 720x512(NTSC), or 720x608(PAL) including the ability to capture

lines in the blanking interval.

Variable Video Play Speed at resolutions as low as 1% normal speed.

Composite analog, S-video analog, Component (YCrCb and RGB), or SDI Serial Digital video selectable

as video input or genlock source.

Composite analog, S-video analog, Component (YCrCb and RGB), and SDI Serial Digital video

simultaneous outputs.

Supports 32K, 44.1K and 48K audio sample rates that can be locked to the video clock.

Up to 3 AES3 digital audio connections supporting PCM, AC-3, DolbyE, etc. (1 AES3 max without Panel)

Up to 8 channels of embedded audio per SDI video connection.

Up to 4 channels of analog audio. (2 channels max without Panel)

Analog video input is Time Base Corrected allowing Merlin to be used as a TBC when in pass through

mode.

SDI Serial Digital video input has jitter reduction allowing Merlin to be used as a SDI video Jitter reducer

in pass through mode.

Merlin can also be used as an Analog to SDI Serial Digital video converter and vice versa.

Decodes two DV or MPEG-2 video streams with the ability to alpha blend the 2 video streams in Real

Time for doing elaborate scene transitions such as fades, wipes, dissolves, etc.

Two independent SDI video outputs that can play 2 separate video streams at the same time.

Logo Inserter, Video Scalar and Video Color Space Converter built in.

VITC and LTC reader and generator on each input and output. VITC reader and generator can even be

used on pass through video.

Simple Play List format for playing long sequences with many video clips and transitions.

Runs on Windows™ 98/NT/2K/XP, Linux™, IRIX™, Solaris™, and Mac OS™.

Support for multiple boards per system to allow simultaneous Record and Play, including support for video

delay applications.

Conversion to and from DV, MPEG-2 and uncompressed formats at rates faster than Real Time.

Merlin can be used for DVD authoring.

Includes all the software needed to Record, Play and Edit Video and Video Play Lists.

Includes a Batch recording utility with VTR control.

Includes a Software Development Kit and many source code examples for custom application developers.

Includes a lot of field programmable logic that can be reconfigured via software allowing for easy feature

request upgrades.

Half sized PCI card that works in both 3.3V and 5 Volt PCI slots.

64 bit PCI interface that works in both 32 bit and 64 bit PCI slots.

Merlin 2003 DV and MPEG-2 Recorder and Dual Stream Decoder

Page 7

1.2 Block Diagram

Merlin 2003 Block Diagram

FPGA 1

(200K Gates)

PCI Bridge,

Audio Crossbar,

Audio DMA

Analog Audio A/D

and D/A

DV and MPEG-2

Video

Encoder/Decoder

64/32 Bit PCI Bus (Host Connection)

Digital Audio

Transceiver

(Used for AES audio or

as a high speed link to

supply up to 10 audio

channels to a Panel Box)

SDI Digital Video

Serializer 2

DRAM

8 Megabytes

VIP Headers and

General Purpose

I/O Header

Video D/A:

C-Video

S-Video

Component

Video A/D:

C-Video

S-Video

Component

SDI Digital Video

Serializer 1

SDI Digital Video

Deserializer

FPGA 2

(300K Gates)

TBC,

Audio Embedder,

Video Processing,

Video DMA

32 Bit PCI Bus

(Secondary Bus)

DRAM

16 Megabytes

EEPROM

Video

PLL

Audio

PLL

SUM

Merlin 2003 DV and MPEG-2 Recorder and Dual Stream Decoder

Page 8

2. Getting Started

2.0 System Requirements

Please make sure your system meets the following requirements before using the Merlin 2003 board.

-Pentium 600MHz CPU or a CPU with higher performance.

-Windows XP, Windows 2000, Windows NT 4.0, Windows 98, or Windows Me Operating System.

-One available Bus Mastering PCI slot (two slots if you are installing a two board configuration).

-At least 128 Megabytes of system DRAM.

-A high performance Disk Drive or Disk Array for storing Audio/Video files.

-At least 10 Megabytes of available Disk space for the Merlin Application Software.

-Approximately 10 to 100 Megabytes of Disk space for each minute of video you plan to store.

-An output monitor or overlay graphics card (such as the ATI All in Wonder) to view video output.

2.1 Package Contents

Please make sure your package includes the following items.

-One Merlin 2003 board.

-One 14 pin cable for Analog Input/Output Connections (Composite, S-VHS, Component, Audio).

-One 9 pin cable for Digital Input/Output Connections (D1 Serial Video, AES Audio).

-Installation Software.

-Documentation.

Merlin 2003 DV and MPEG-2 Recorder and Dual Stream Decoder

Page 9

2.2 Preparing Your System

Before you install your Merlin 2003 Board there are a few guidelines that will help you achieve optimum video

performance. It is important to make sure that there are no other programs running while recording and playing

back video. You should check your system and make sure there are no screen savers, anti-virus programs or

fax/modem utilities that can use up CPU and memory resources. It is also important to make sure your disk drives

will run efficiently. The best way to do this is to defragment your disk drives frequently. If you do not own any

deframentation software, we recommend that you purchase Norton Utilities for Windows from Symantec. This

software package includes a defragmentation program for the most Windows Operating System. Another way to

optimize your disk performance is to have a dedicated partition for Audio and Video files. Here is a list of

recommendations on how to optimize the performance of the Audio/Video (A/V) partition that you use:

-Try not to store anything other that Audio/Video files on your A/V partitions.

-Defragment your A/V partitions frequently.

-Try to use NTFS (WindowsNT, Windows 2000/XP File System) partitions for A/V files.

-Try to use dedicated drives to store your A/V files.

-If possible use a high performance storage system for your A/V files.

A high performance storage system can mean a variety of things. It can be as simple as using a single high quality

IDE, SCSI or Fibre Channel disk drive to using a high performance Disk Array tunes for optimum video

performance. There are lots of storage system options available and lots of companies to choose from. With

MPEG-2 very high quality video can be achieved with a less than 15 megabit per second video stream. This is

easily sustained on even the cheapest IDE drives available today. However, if it is desirable to play multiple video

streams at fast forward play speeds that were recorded at 50 megabit per second record rate, you may want to

consider looking into a higher performance storage system.

Merlin 2003 DV and MPEG-2 Recorder and Dual Stream Decoder

Page 10

3. Installing the Hardware

3.0 Computer Installation

To install the Merlin 2003 Board in you computer follow the directions below:

1. Discharge any electrostatic charge that you may have accumulated by touching the metal case of your

computer.

2. Switch off the computer and disconnect any cables attached to your computer, including the power

cord.

3. Loosen any screws required to remove the computer cover and remove the cover.

4. Position the computer so that the PCI expansion slots are visible. It should look something like this:

5. Select a Slot to install the Merlin board. It is best to space boards 2 apart at first and then fill the

spaces as you use up the slots. This distributes the heat in your computer better.

6. Remove the Slot Cover corresponding to the slot you wish to use.

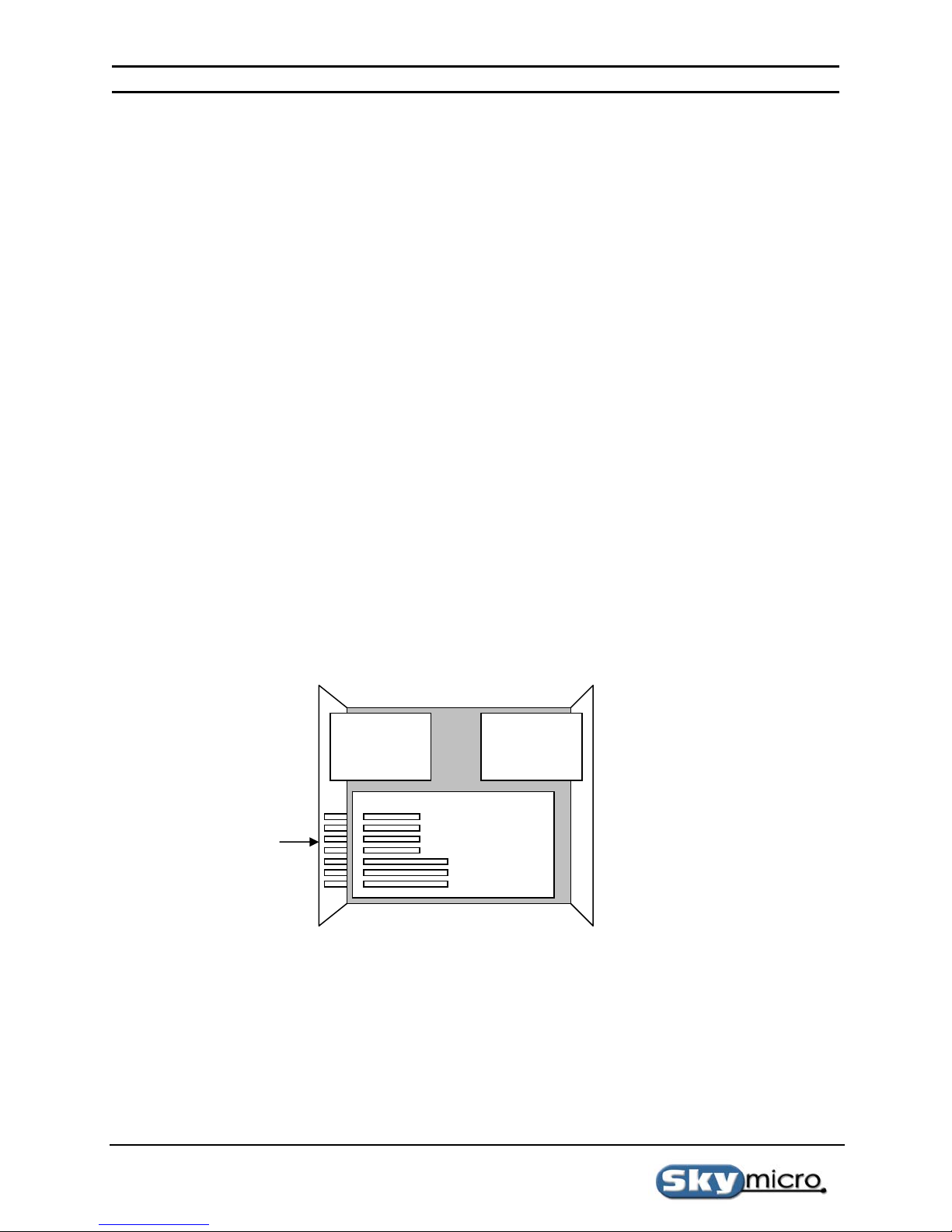

Power

Supply Drive

Bays

PCI

Slots

Slot

Covers

Inside of Computer
