Skyjack SJ16 Manuel utilisateur

VERTICAL MAST

MODELS SJ12 SJ16

171729AC-A March 2016

OPERATING MANUAL (CE)

This manual is based on Serial Number(s):

SJ12 & SJ16 14 005 746 & Above

Please refer to the website (www.skyjack.com) for older Serial Numbers.

Parts (North America)

Toll Free: 1-800-965-4626

Toll Free Fax: 1-888-782-4825

E-mail: [email protected]

Skyjack Australia Pty Ltd.

4 Coates Place

Wetherill Park

New South Wales 2164

Australia

Tel: +61 (0) 28786 3200

Fax: +61(0) 28786 3222

Skyjack Brasil

Indaiatuba, SP, Brasil 13347-653

Tel: +55 19 3936 0132

Alameda Júpiter, 710

Loteamento American Park Empresarial

Skyjack Service Center

3451 Swenson Ave. St. Charles,

Phone: 630-262-0005

Toll Free: 1-800-275-9522

Fax: 630-262-0006

Email: [email protected]om

Illinois, 60174 USA

Parts & Service (Europe)

Unit 1 Maes Y Clawdd

Oswestry, Shropshire SY10 8NN UK

Phone: +44-1691-676-235

Fax: +44-1691-676-238

E-mail: info@skyjackeurope.co.uk

Maesbury Road Industrial Estate

The Safety Alert Symbol identifies important

safety messages on aerial platform, safety

signs in manuals or elsewhere. When you

see this symbol, be alert to the possibility of

personal injury or death. Follow the instructions

in the safety message.

This Safety Alert Symbol means attention!

Become alert! Your safety is involved.

DANGER

DANGER indicates an imminently hazardous situation which, if not avoided,

will result in death or serious injury.

WARNING

WARNING indicates a potentially hazardous situation which, if not avoided,

could result in death or serious injury.

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided,

may result in minor or moderate injury. It may also be used to alert against

unsafe practices.

IMPORTANT

IMPORTANT indicates a procedure essential for safe operation and which,

if not followed, may result in a malfunction or damage to the aerial platform.

Original instructions in English.

Vertical Mast

Page 3

Table of Contents

Section 1 - About Your Aerial Platform ................................................................................................. 5

Read and Heed ....................................................................................................................................................5

Safety Rules ......................................................................................................................................................6

Section 2 - Familiarization ................................................................................................................... 13

2.1 Familiarization of SJ12/16 Series ...............................................................................................13

2.2 Component Identification ...........................................................................................................14

2.3 Visual & Daily Maintenance Inspections ....................................................................................17

2.4 Function Tests.............................................................................................................................23

2.5 Winching and Towing Procedures .............................................................................................31

2.6 Emergency Lowering Procedure ...............................................................................................32

Section 3 - Operation ........................................................................................................................... 33

3.1 General .......................................................................................................................................33

3.2 Major Components.....................................................................................................................34

3.3 Major Assemblies .......................................................................................................................35

3.4 Serial Number Nameplate ..........................................................................................................35

3.5 Component Identification ...........................................................................................................36

3.6 Component Identification (Optional Equipment/Attachments)..................................................38

3.7 Operator’s Responsibility ...........................................................................................................39

3.8 Start Operation ...........................................................................................................................40

3.9 Loading/Unloading.....................................................................................................................43

3.10 Platform Traversing.....................................................................................................................45

3.11 Accessing the Hydraulic/Electrical Compartment .....................................................................45

3.12 Battery Maintenance...................................................................................................................46

Section 4 - Tables.................................................................................................................................. 49

Table 4.1 Standard and Optional Features................................................................................................49

Table 4.2 Owner’s Annual Inspection Record............................................................................................50

Table 4.3 Specifications and Features.......................................................................................................51

Table 4.4 Maximum Platform Capacities (Evenly Distributed)...................................................................52

Table 4.5 Floor Loading Pressure ..............................................................................................................52

Table 4.6 Maintenance and Inspection Schedule......................................................................................54

Table 4.7 Operator’s Checklist...................................................................................................................55

Table 4.8 EC Declaration of Conformity.....................................................................................................56

Section 5 - Labels.................................................................................................................................. 57

Page 4

Vertical Mast

SKYJACK is continuously improving and expanding product features on its equipment, therefore, specifications and

dimensions are subject to change without notice.

Aerial Platform and Mobile Elevating Work Platform Definition

A mobile device that has a positionable platform supported from ground level by a structure.

Purpose of Equipment

The SKYJACK Vertical Mast series aerial platforms are designed to transport and raise personnel, tools and

materials to overhead work areas.

Use of Equipment

The aerial platform is a highly maneuverable, mobile work station. Work platform elevation and elevated driving

must only be done on a firm, level surface.

Manual

The operating manual is considered a fundamental part of the aerial platform. It is a very important way to

communicate necessary safety information to users and operators. A complete and legible copy of this manual

must be kept in the provided weather-resistant storage compartment on the aerial platform at all times.

Operator

The operator must read and completely understand both this operating manual and the safety panel label located

on the platform and all other warnings in this manual and on the aerial platform. Compare the labels on the aerial

platform with the labels found within this manual. If any labels are damaged or missing, replace them immediately.

Service Policy and Warranty

SKYJACK warrants each new Vertical Mast series aerial platform to be free of defective parts and workmanship for

the first 24 months. Any defective part will be replaced or repaired by your local SKYJACK dealer at no charge for

parts or labor. Contact the SKYJACK Service Department for warranty statement extensions or exclusions.

Optional Accessories

The SKYJACK aerial platform is designed to accept a variety of optional accessories.

Scope of this Manual

a. This manual applies to the CE version of the SJ12 and SJ16 Vertical Mast Series aerial platform models listed

on Table 4.1.

Equipment identified with “CE” meets the requirements for the European countries, i.e., Machinery Directive

2006/42/EC and Directive 2004/108/EC and the corresponding EN standards.

b. Operators are required to conform to national, state or territorial/provincial and local health and safety regulations

applicable to the operation of this aerial platform.

Section 1 - About Your Aerial Platform

Read and Heed

Vertical Mast

Page 5

Section 1 - About Your Aerial Platform Read and Heed

WARNING

Failure to comply with your required responsibilities in the use and operation of the aerial platform

could result in death or serious injury!

Operator Safety Reminders

A study conducted by St. Paul Travelers showed that most accidents are caused by the failure of the operator to

follow simple and fundamental safety rules and precautions.

You, as a careful operator, are the best insurance against an accident. Therefore, proper usage of this aerial

platform is mandatory. The following pages of this manual should be read and understood completely before

operating the aerial platform.

Common sense dictates the use of protective clothing when working on or near machinery. Use appropriate safety

devices to protect your eyes, ears, hands, feet and body.

Any modifications from the original design are strictly forbidden without written permission from SKYJACK.

Safety Rules

Page 6

Vertical Mast

Safety Rules Section 1 - About Your Aerial Platform

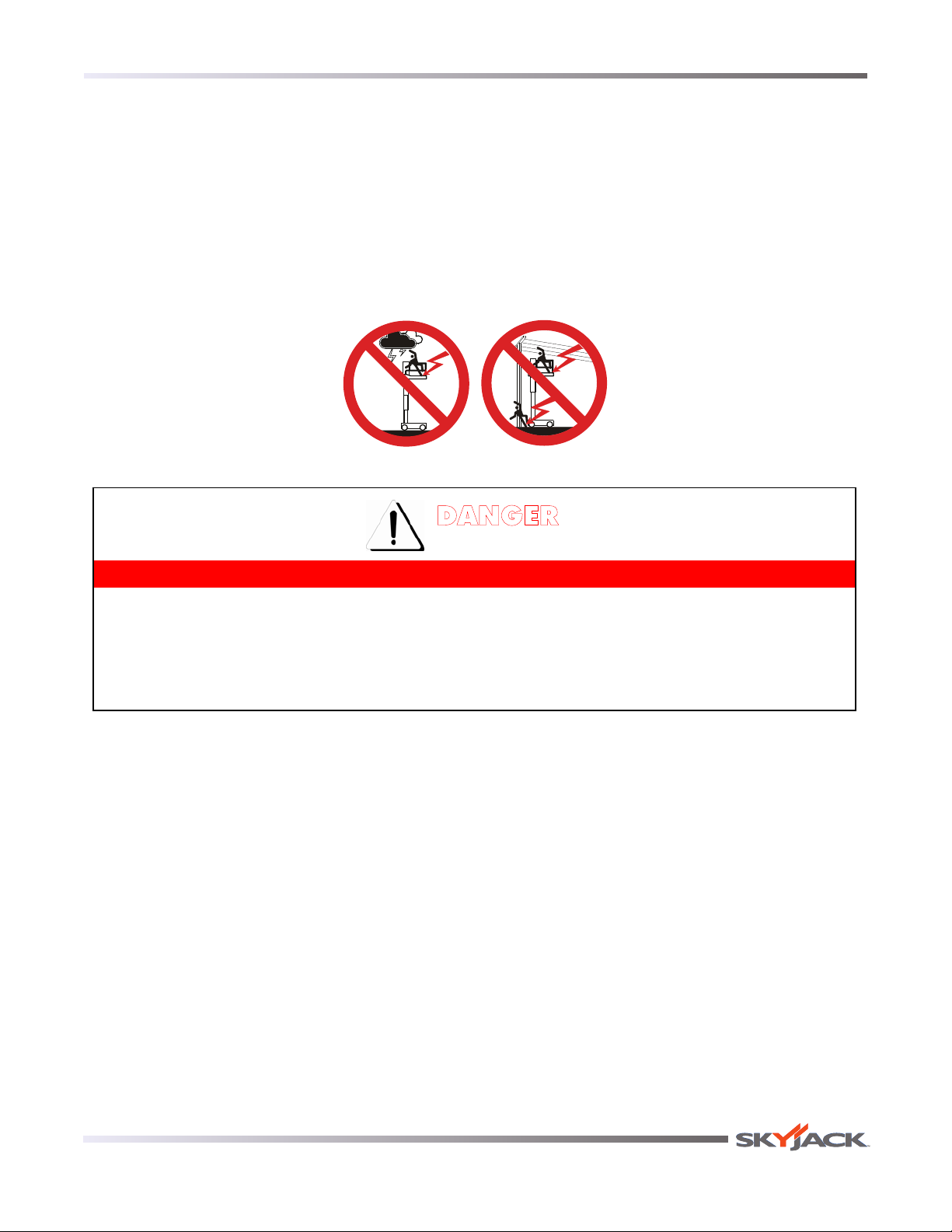

Electrocution Hazard

This aerial platform is not electrically insulated. Maintain a Minimum Safe Approach Distance (MSAD) from

energized power lines and parts as listed below. The operator must allow for the platform to sway, rock or sag.

This aerial platform does not provide protection from contact with or proximity to an electrically charged

conductor.

DO NOT USE THE AERIAL PLATFORM AS A GROUND FOR WELDING.

DO NOT OPERATE THE AERIAL PLATFORM DURING LIGHTNING OR STORMS.

DO NOT OPERATE THE AERIAL PLATFORM NEAR POWER LINES. MAINTAIN A MINIMUM SAFE

APPROACH DISTANCE (MSAD) FROM ENERGIZED POWER LINES.

60023AE-CE

DANGER

Adhere strictly to the governmental rulings and regulations applicable in your country.

FAILURE TO AVOID THIS HAZARD WILL RESULT IN DEATH OR SERIOUS INJURY!

Avoid Power Lines

Minimum Safe Approach Distance

CE Guidance Note

“Avoidance of danger from overhead lines”

Vertical Mast

Page 7

Section 1 - About Your Aerial Platform Safety Rules

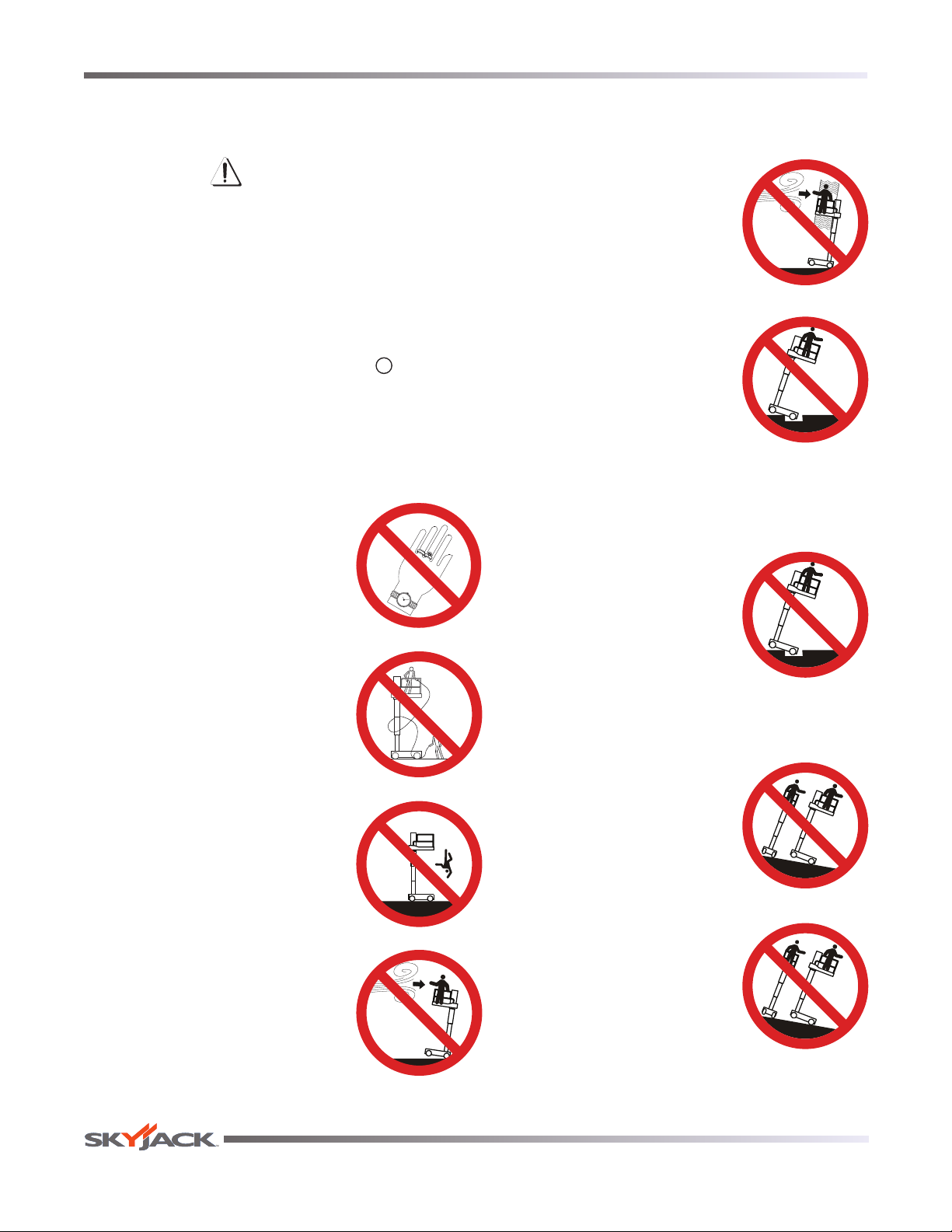

Safety Precautions

Know and understand the safety precautions before going on to next section.

WARNING

Failure to heed the following safety

precautions could result in tip over,

falling, crushing, or other hazards leading

to death or serious injury.

• KNOW all national, state or territorial/provincial

and local rules which apply to your aerial platform

and job site.

• TURN mainpowerdisconnectswitch“ ”offwhen

leaving the aerial platform unattended. Remove

the key to prevent unauthorized use of the aerial

platform.

• WEAR all the protective clothing and personal

safety devices issued to you or called for by job

conditions.

• DO NOT wear loose clothing,

dangling neckties, scarves,

rings, wristwatches or other

jewelry while operating this lift.

• AVOID entanglement with ropes,

cords or hoses.

• AVOID falling. Stay within the

boundaries of the guardrails.

• DO NOT raise the aerial platform

in windy or gusty conditions.

• DO NOT increase the lateral

surface area of the platform.

Increasing the area exposed

to the wind will decrease the

arial platform stability. Avoid

tenting.

• DO NOT drive elevated near

depressions or holes of any

type,loading docks, debris,

drop-offs or surfaces that may

affect the stability of the aerial

platform.

• IF OPERATION IN AREAS

WITH HOLES OR DROP-

OFFS IS ABSOLUTELY

NECESSARY, elevated driving

shall not be allowed. Position

the aerial platform horizontally

only with the platform fully-

lowered. After ensuring that

all 4 wheels or outriggers (if

equipped) have contact with

a firm, level surface, the aerial

platform can be elevated. After

elevation, the drive function

must not be activated.

• DO NOT elevate or drive

elevated on a slope. Elevated

driving must be done on a

firm, level surface.

• DO NOT ascend or descend

a grade when elevated. When

fully lowered, ascending or

descending grades up to

maximum rated inclines listed

in Table 4.3.

Page 8

Vertical Mast

Safety Rules Section 1 - About Your Aerial Platform

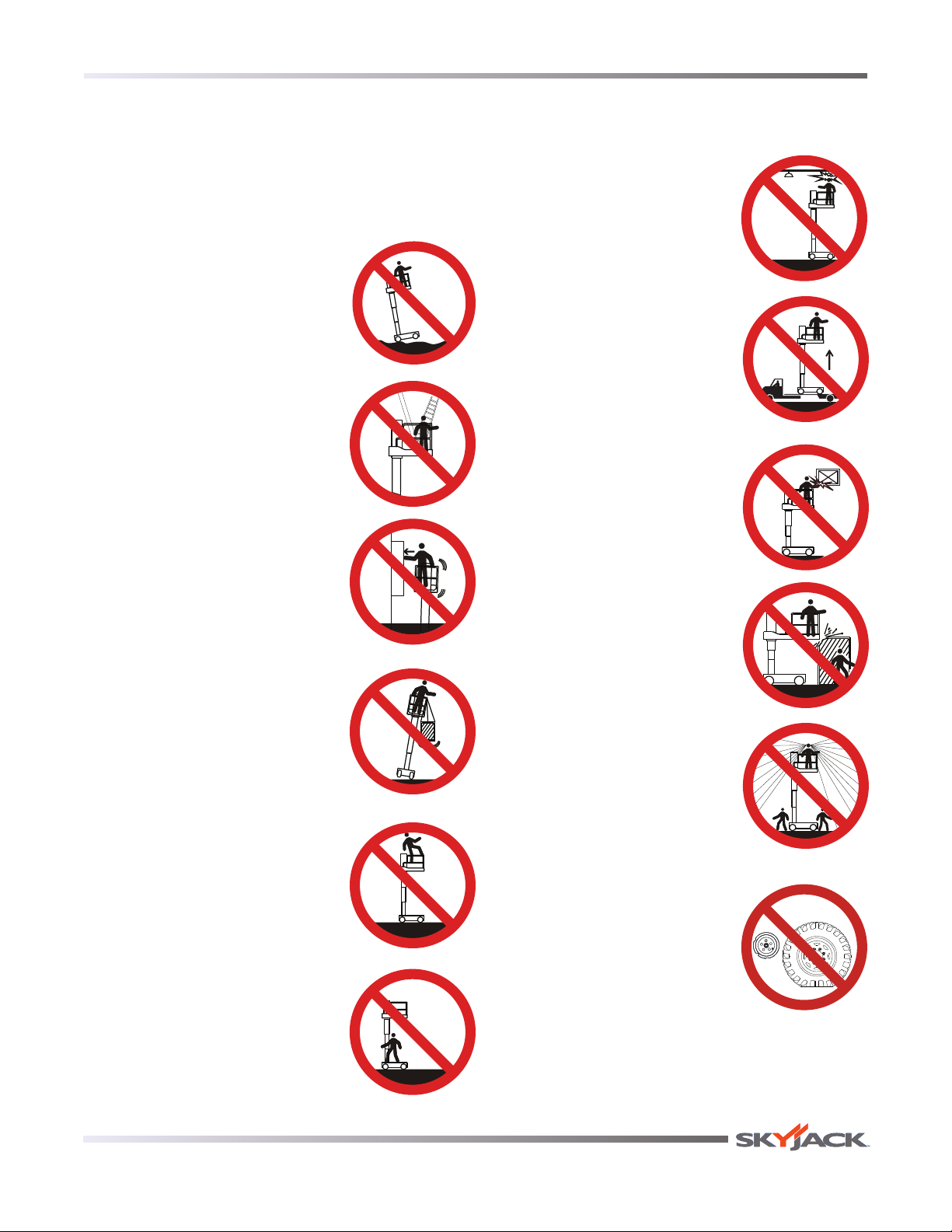

Safety Precautions (Continued)

Know and understand the safety precautions before going on to next section.

• DO NOT operate on surfaces not capable of

holding the weight of the aerial platform including

the rated load, e.g., covers, drains, and trenches.

• DO NOT drive elevated on a

soft or uneven surface.

• DO NOT operate an aerial

platform that has ladders,

scaffolding or other devices

mounted on it to increase its size

or work height. It is prohibited.

• DO NOT exert side forces on

aerial platform while elevated.

• DO NOT use the aerial platform

as a crane. It is prohibited.

• DO NOT sit, stand or climb on

the guardrails. It is prohibited.

• DO NOT climb on base and

mast. It is prohibited.

• AVOID overhead

obstructions. Be aware of

overhead obstructions or

other possible hazards around

aerial platform when lifting or

driving.

• DO NOT raise the aerial

platform while the aerial

platform is on a truck, fork lift

or other device or vehicle.

• AVOID crushing hazards. Be

aware of crushing hazards

when lifting or driving. Keep

all body parts inside the aerial

platform.

• DO NOT lower the platform

unless the area below is clear

of personnel and obstructions.

• ENSURE that there are no

personnel or obstructions in

the path of travel, including

blind spots.

• DO NOT use with improperly

inflated/damaged tires or

wheels. Refer to Section 2:

Wheel/Tire Assembly.

Vertical Mast

Page 9

Section 1 - About Your Aerial Platform Safety Rules

Safety Precautions (Continued)

Know and understand the safety precautions before going on to next section.

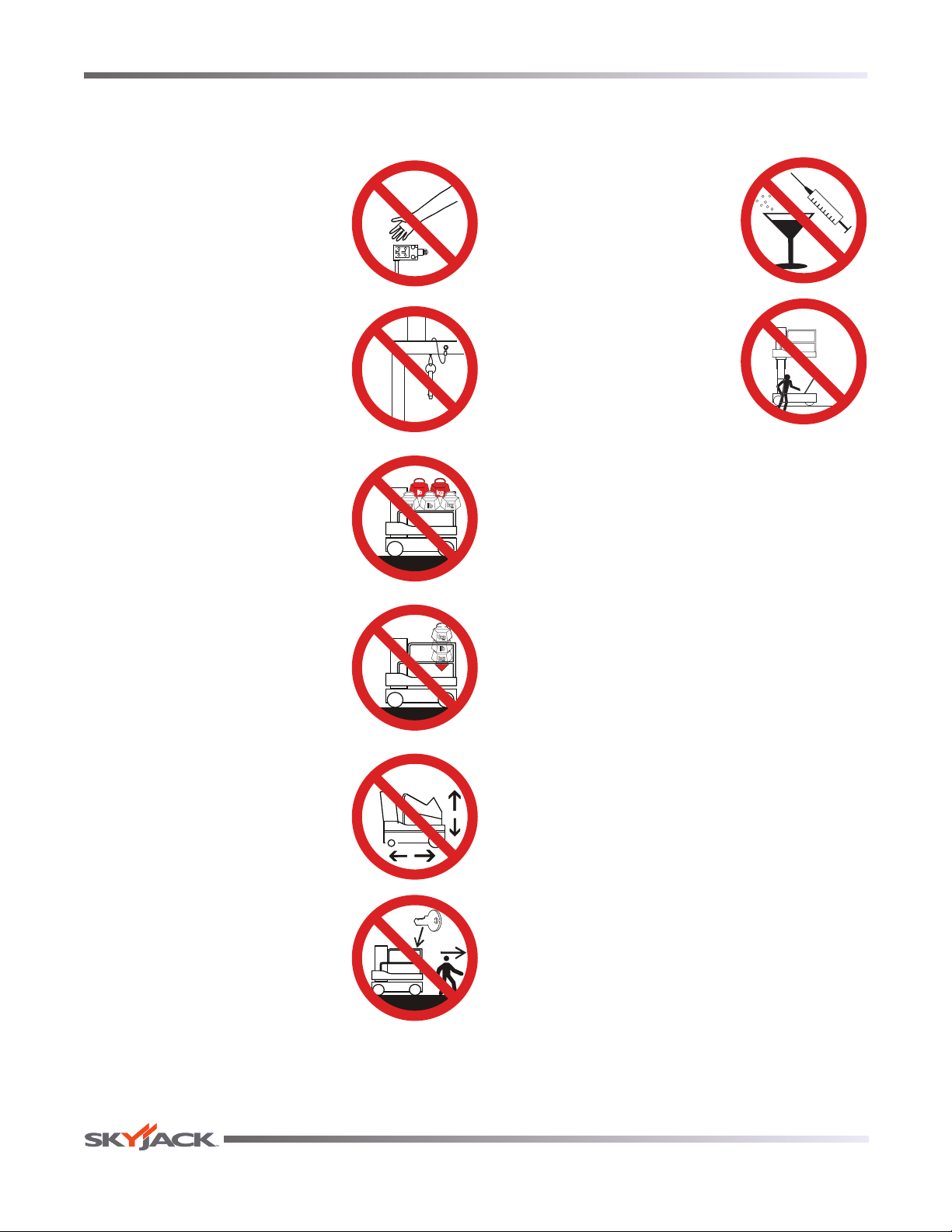

• DO NOT alter or disable limit

switches or other safety devices.

• DO NOT use the aerial platform

without guardrails, locking pins

and the entry gate (if equipped)

in place.

• DO NOT exceed the rated

capacity of the aerial platform.

• DO NOT distribute load

unevenly.

• DO NOT operate if aerial

platform is not working properly

or if any parts are damaged or

worn.

• DO NOT leave aerial platform

unattended with key in key

switch.

• DO NOT use under influence

of alcohol or drugs.

• DO NOTaccess thehydraulic/

electrical compartment while

the platform is raised.

• BE AWARE of blind spots when operating the

aerial platform.

• STUNT driving and horseplay are prohibited.

• DO NOT attempt to free a snagged platform with

lower controls until personnel are removed from

the platform.

• DO NOT position the aerial platform against

another object to steady the platform.

• DO NOT place materials on the guardrails

or materials that exceed the confines of the

guardrails unless approved by Skyjack.

Page 10

Vertical Mast

Safety Rules Section 1 - About Your Aerial Platform

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Skyjack Système de levage

Skyjack

Skyjack 3226 Manuel utilisateur

Skyjack

Skyjack SJ12 Manuel utilisateur

Skyjack

Skyjack 7127 Manuel utilisateur

Skyjack

Skyjack SJ40 T+ Manuel utilisateur

Skyjack

Skyjack SJ-600 Series Manuel utilisateur

Skyjack

Skyjack SJ20 Manuel utilisateur

Skyjack

Skyjack ZB2044 Manuel utilisateur

Skyjack

Skyjack SJ519 TH Manuel utilisateur

Skyjack

Skyjack 3215 SJIII Compact Series Manuel utilisateur

Skyjack

Skyjack SJ12 E Manuel utilisateur

Skyjack

Skyjack 6826El Manuel utilisateur

Skyjack

Skyjack SJ85AJ Manuel utilisateur

Skyjack

Skyjack SJ-8831FE Manuel utilisateur

Skyjack

Skyjack SJ6826 RT Manuel utilisateur

Skyjack

Skyjack SJ 68RT Series Manuel utilisateur

Skyjack

Skyjack SJ12 E Manuel utilisateur

Skyjack

Skyjack SJ 3215 Manuel utilisateur

Skyjack

Skyjack SJIII 6826E Manuel utilisateur

Skyjack

Skyjack SJ 3220 Manuel utilisateur

Skyjack

Skyjack SJ800-E series Manuel utilisateur

Skyjack

Skyjack SJIII Series Manuel utilisateur

Skyjack

Skyjack SJIII 3220 Manuel d'installation et d'exploitation

Skyjack

Skyjack SJ46 AJ Manuel utilisateur

Skyjack

Skyjack SJIII 3220 Manuel utilisateur

Manuels Système de levage populaires d'autres marques

morse

morse 82H-124 Manuel utilisateur

Braun

Braun NL955 Series Manuel utilisateur

haacon

haacon 1889.10 Manuel utilisateur

Protekt

Protekt AT 252 Manuel utilisateur

R. Beck Maschinenbau

R. Beck Maschinenbau HS 600 Manuel utilisateur

Nova Technology International, LLC

Nova Technology International, LLC NAS Series Manuel utilisateur

Genie

Genie Z-60/34 Manuel utilisateur

Screen Technics

Screen Technics INTERFIT Vertical Up Lift Manuel utilisateur

Mortuary Lift

Mortuary Lift ULTIMATE 1000 Manuel utilisateur

Custom Equipment

Custom Equipment Hy-Brid 3 Series Manuel de programmation

Custom Equipment

Custom Equipment Hy-Brid Lifts 2 Series Manuel de programmation

Hy-Brid Lifts

Hy-Brid Lifts HB-P3.6 Manuel de programmation

BERG

BERG BeNomic EasyLeaf Manuel utilisateur

Powermate

Powermate LiftGate LG-3 Manuel utilisateur

Snorkel

Snorkel TM12 Series Manuel utilisateur

Terberg

Terberg OMNIDEKA Manuel utilisateur

Harmar Mobility

Harmar Mobility AL625 Mode d'emploi

Rotary

Rotary SPO16 Manuel utilisateur
