Installation & User Manual
Please setup and register the Skyhawk Hub BEFORE using this device!
In order to receive alerts from your Trapmate device, it must be used in conjunction with
your Skyhawk Hub (sold separately) and the Skyhawk CE smartphone app.
See the Skyhawk Hub user manual for additional information on connecting your devices.
3
Index:
Introduction .......................................................................................................................
Layout Summary.............................................................................................................
Installation .......................................................................................................................
Start-Up Operation ..........................................................................................................
Shut-Down Operation/Reset Operation..............................................................................
Battery Replacement .......................................................................................................
LED Indicators & Sensitivity Adjustment..........................................................................
Safety, FCC and Warranty.................................................................................................
3
4 - 7
8 - 11
12
13
14 - 16
17
18 - 19
Unpacking and Inspection:
Before you begin installation, unpack and verify you have all the correct parts.
(1) Skyhawk Trapmate
(2) AA Alkaline Batteries (pre-installed)
(1) Pull Magnet Kit
(4) Self-Stick Mounting Magnets
(8) Tacky Puddy
(1) Quickstart guide
(1) Warranty card
If you are missing any of these parts STOP, make sure you have your unit’s serial number and request a replacement
on sky-hawk.com/warranty.
In order to receive alerts from your Trapmate device, it must be used in conjunction with
your Skyhawk Hub (sold separately) and the Skyhawk CE smartphone app.
See the Skyhawk Hub user manual for additional information on connecting your devices.
4

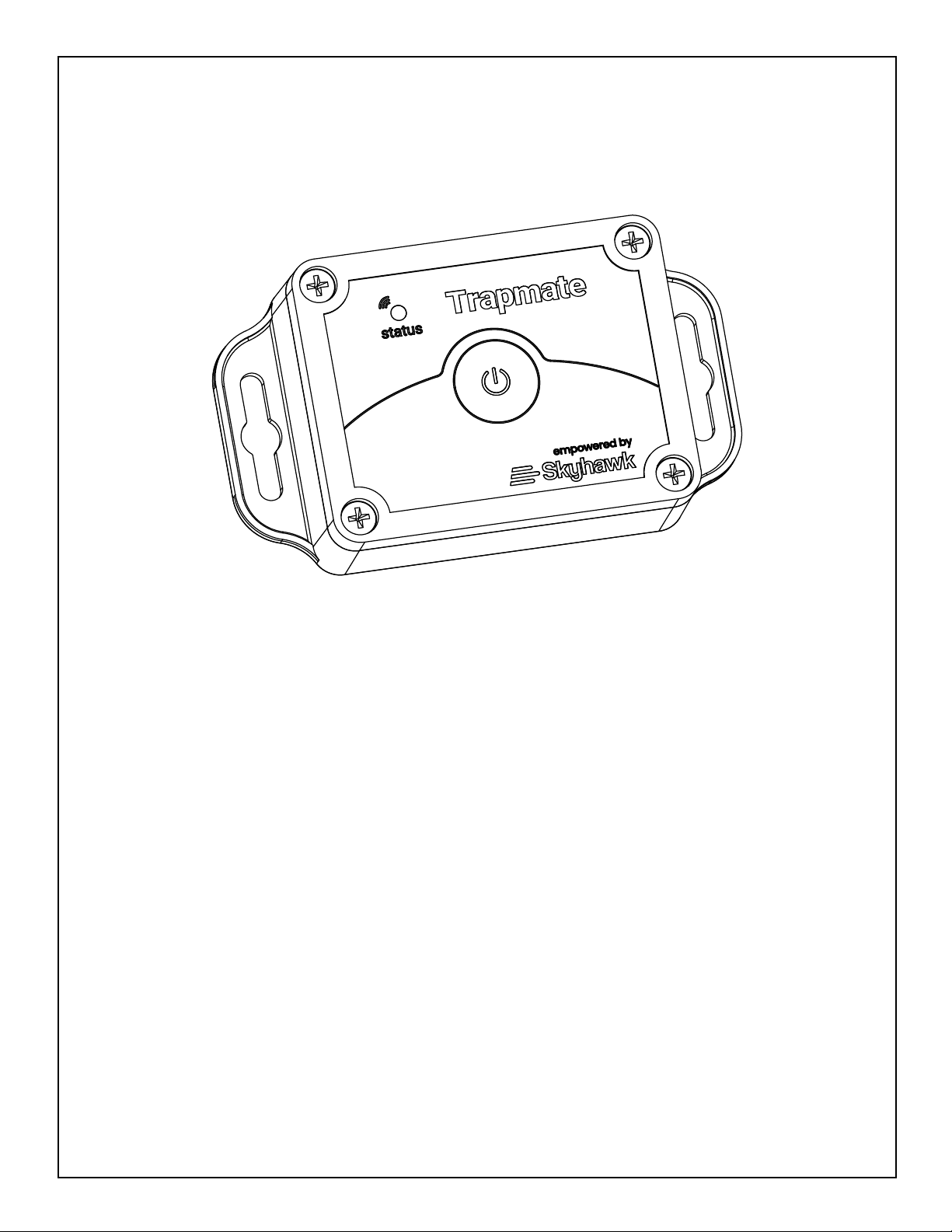

Trapmate Layout Summary:
Front of Unit
LED Indicator - This multicolored LED indicator will indicate when the Trapmate is powering on or o, has
been triggered or is acknowledging a transmission. More details on the indicator colors can be found on page 17.
Function Button - This multi-use button can be used for various functions. See pages 12 and 13 for more details.
Magnet Alignment Notch - This notch shows the center alignment position of the reed switch magnet.
Mounting Cutout - This cutout can be used to mount unit with a screw or attach to a peg or hook.
Cover Screws
Function Button Mounting Cutout
LED Indicator Magnet Alignment Notch
5

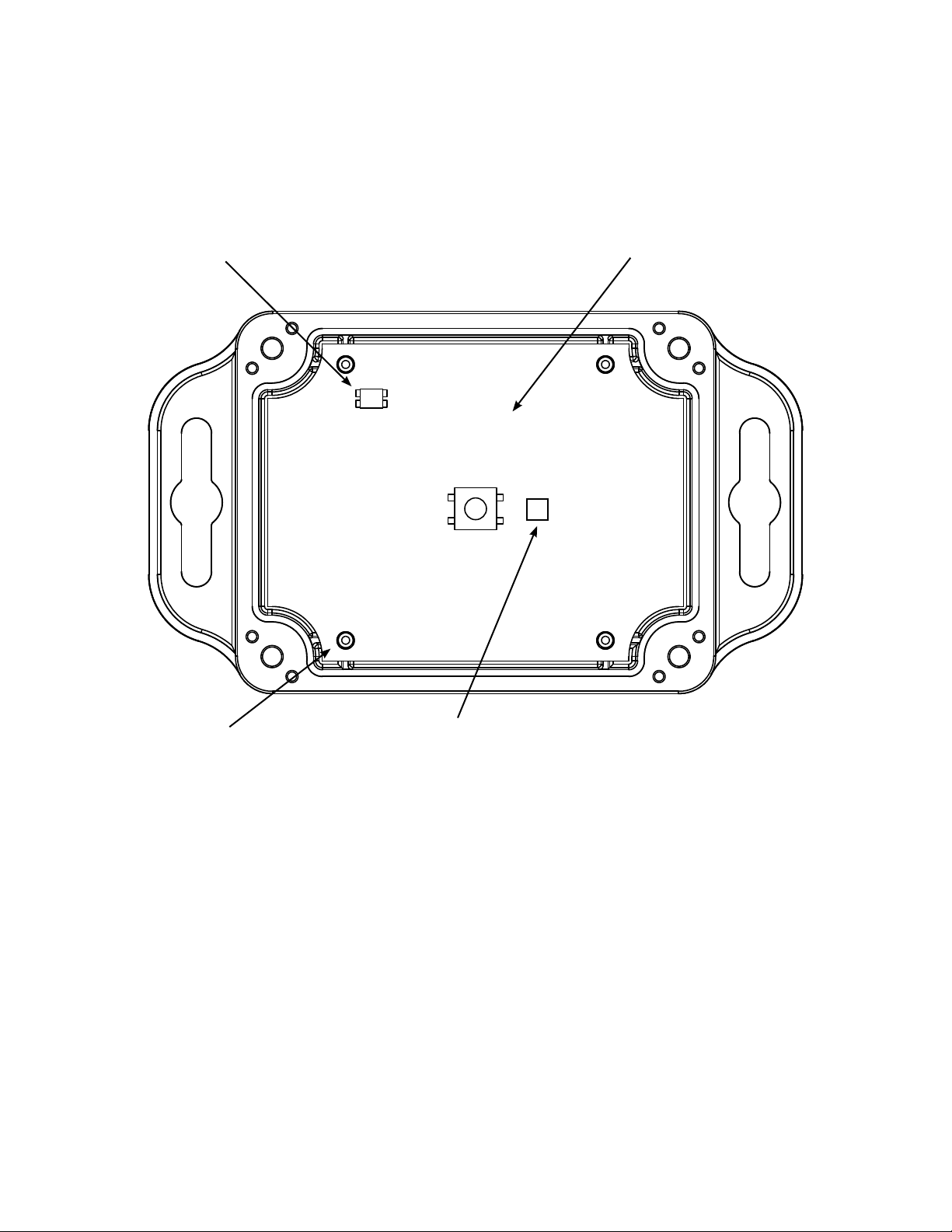

Front of Unit (with cover removed)
LED Indicator
Mounting Pins
Battery Access (from opposite side)
Accelerometer Sensor
Mounting Pins - Once the case is opened the circuit board rests on top of four plastic mounting pins.
Accelerometer Sensor - Used to sense sudden movement or vibration of the monitored item.
Battery Access - The board can be removed to access the battery holder on the opposite side of the circuit card.
6

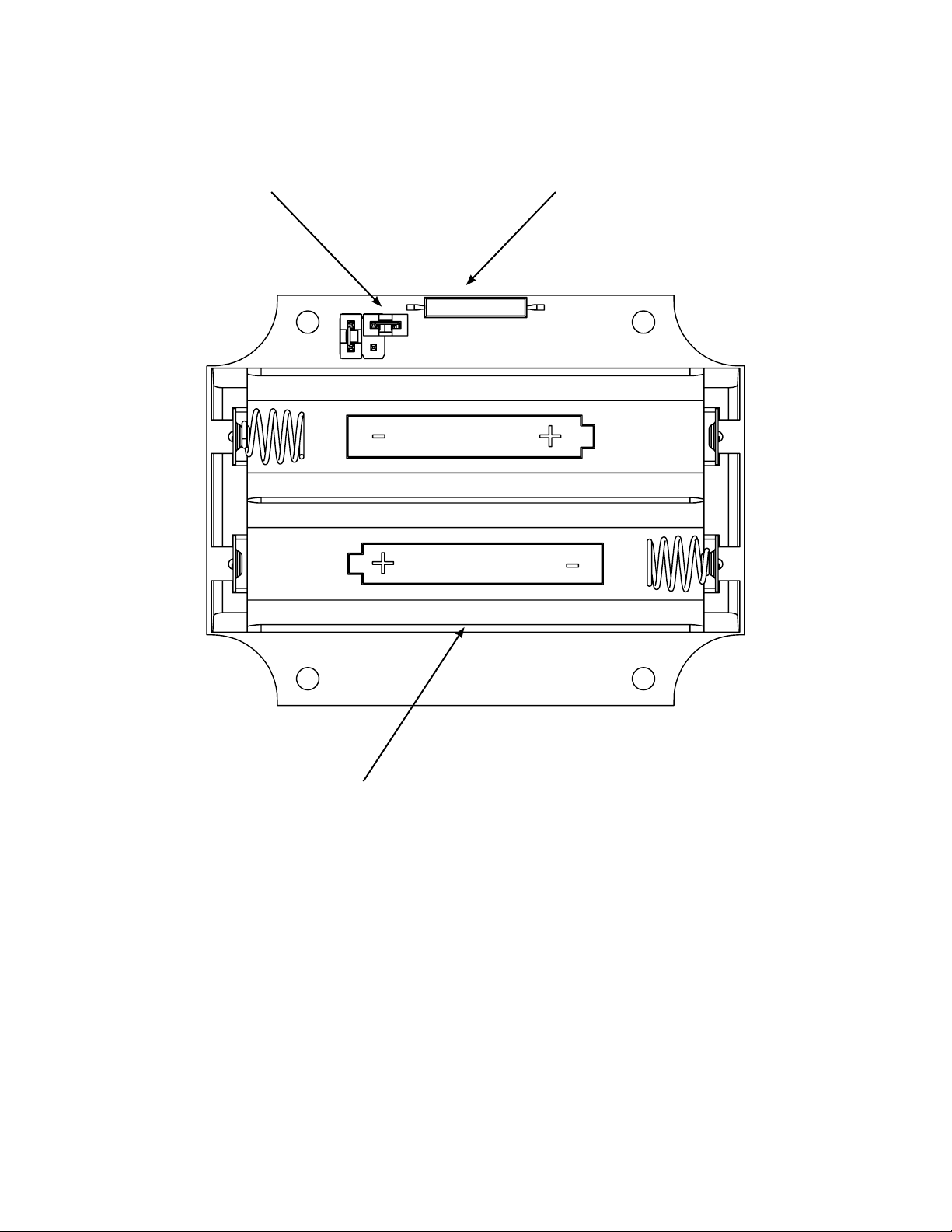

Bottom of Circuit Card (circuit card removed from case)
Battery Holder
Reed SensorFeature Jumpers
Reed Sensor - Used to sense the removal of the supplied pull magnet.
Feature Jumpers - These jumpers allow user-congurable features to be turned ON and OFF. The default
position of the jumpers is shown in the image.
Battery Holder - The battery holder accommodates 2 x AA batteries. It is required that 1.5 volt alkaline batteries
are used for expected life.
7
Trapmate User-Congurable Features:
The Trapmate has two feature jumpers:
Jumper #1 - Not Used
Jumper #2 - Used to enable or disable the accelerometer sensor
Accelerometer Disabled
Step 1: Open case as outlined in the Battery Replacement section of this manual and remove batteries.
Step 2: Remove circuit card from case and locate conguration header as shown below in the dashed circle.
Step 3: Move jumpers to congure settings (if dierent from the factory default settings).
Accelerometer Enabled
Step 4: Install batteries and close case as outlined in the Battery Replacement section of this manual.
Jumper #1
Jumper #2
Jumper #2 Jumper #1
Jumper #2 Jumper #1
8
Trapmate Installation:
The Trapmate can be installed using various methods including, but not limited to, the following two examples
using the supplied mounting accessories:

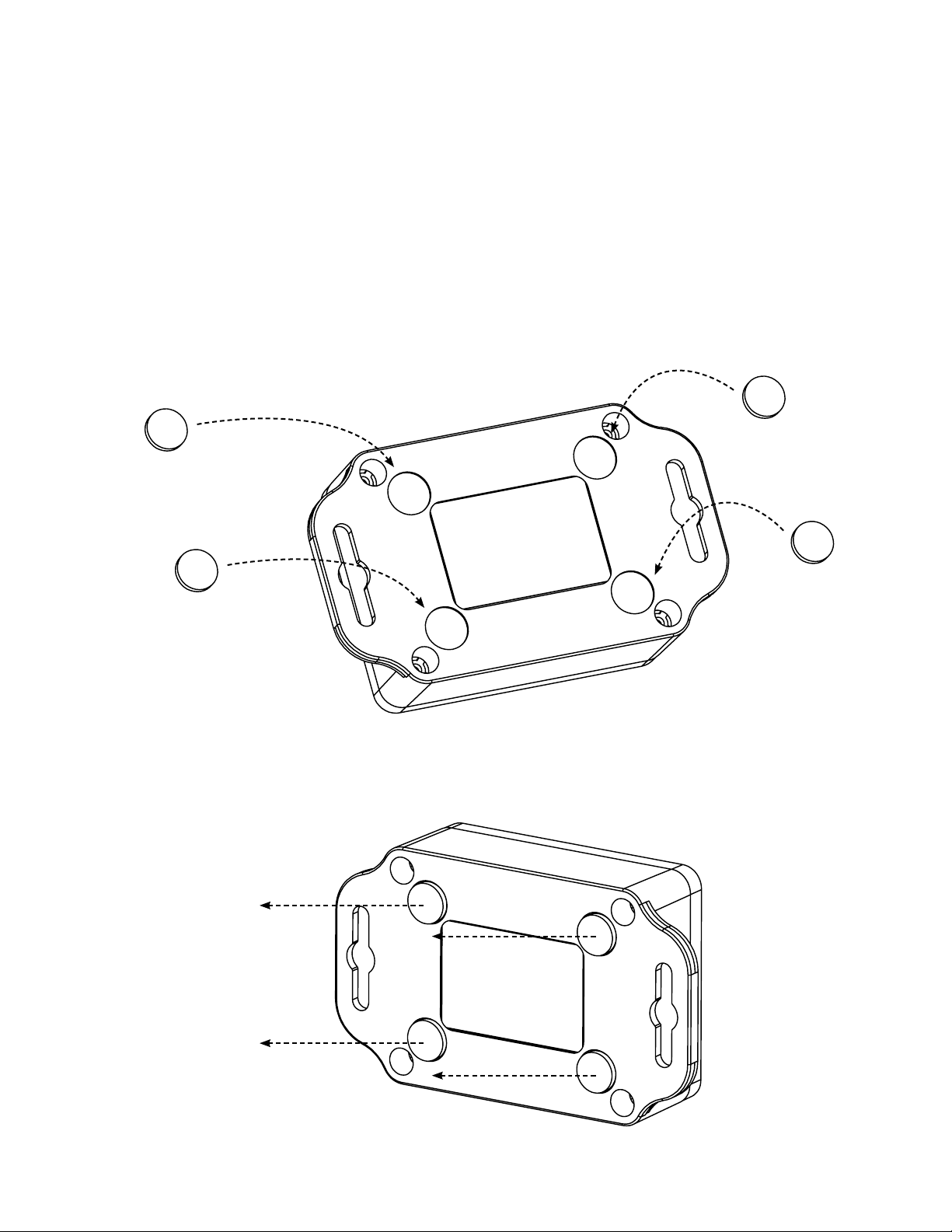

Method 1 : Self-Stick Mounting Magnets
Step 1: In the accessory kit, locate the four self-stick mounting magnets.
Step 2: Clean the four circular recessed areas on the back of the Trapmate with 70% isopropyl alcohol for proper
bonding of the magnets.
Step 3: Peel o the adhesive backing paper on the magnets and ax them to the circular recessed areas cleaned
in Step 2.
Step 4: The Trapmate is ready to be mounted. Make sure the area where the Trapmate will be attached is ferrous,
iron or steel.
Attach to
Iron
or
Steel
9
Prevent Falling Hazard Prevent Unit Fall Damage
Trapmate Installation:
Method 2 : Tacky Puddy
Step 1: In the accessory kit, locate the tacky puddy strip.
Step 2: Tacky puddy can be attached to the bottom or sides of the Trapmate. It is recommended that the tacky
puddy pieces are not attached to the top of the unit since that would limit visibility to the LED indicator and
function button.
Step 3: Attach to the object being monitored.
Installation - Safety Guidelines:
Make sure when placing the Trapmate on an object that it is securely attached and cannot fall o and injure some-
one or fall onto a hard surface and damage the unit.
Make sure that when placing the Trapmate that it will not interfere with other equipment.
!Tacky puddy can damage some surfaces.
10

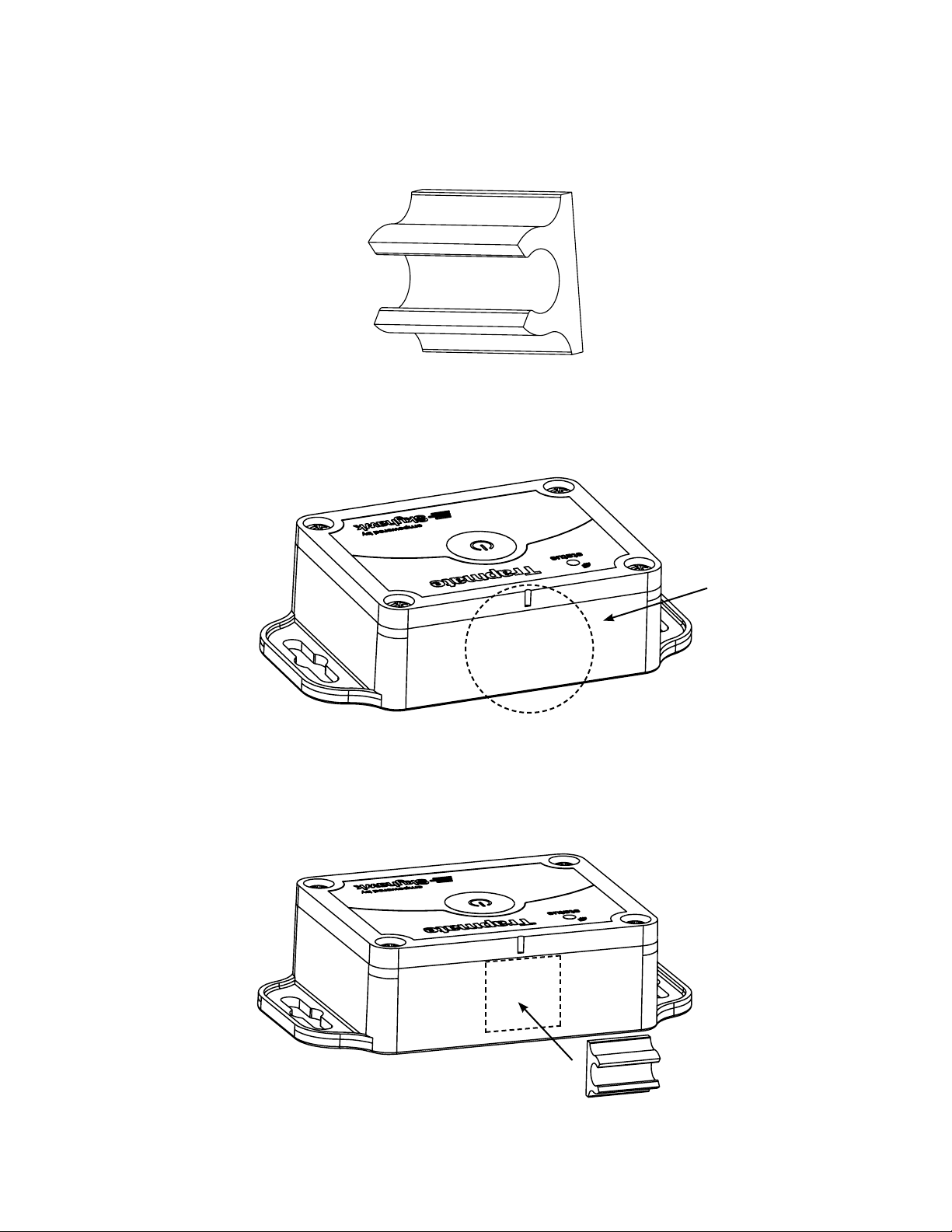

Trapmate Pull-Magnet Installation:
The Trapmate is supplied with a pull-magnet kit for users who choose to use the reed switch option.
Step 1: Locate the pull-magnet kit and take out the magnet mount while setting the other items o to the side.
Step 2: On the back edge of the cover there will be small notch that shows the reed switch centering location.
Clean this area below the notch with 70% isopropyl alcohol for proper bonding of the mount.
Step 3: Peel the backing o the magnet mount and ax to rear of case as shown. The mount should be centered
on the notch and just below the seam of the top and bottom of the case.
Clean Area
