SKY PARAGLIDERS TRANSFORMER Manuel utilisateur

USER MANUAL FOR TRANSFORMER PARAGLIDING HARNESS

Thank you for flying Sky Paragliders products. Thank you for buying TRANSFORMER.

We hope you will be satisfied with this product and wish you a lot of awesome flights. It is strongly

recommended to consult the manual before the first flight. This manual might help you to familiarize

yourself with the product faster.

Team Sky Paragliders

-2-

Manufacturer: Sky Paragliders a.s.

Model & Type: TRANSFORMER/TRANSFORMER XC M, L, XL paragliding harness

Manual Version: V2 10/07/2018

-3-

INTRODUCTION

Congratulations on becoming part of the Sky family. We are

very pleased to welcome you to the world of Sky and hope that

you will enjoy many hours of fantastic flying aboard your Sky

Paragliders harness.

Sky Paragliders is based in the heart of Europe and we pride

ourselves on our own, purpose built, state of the art production

facilities in the Czech Republic.

Our management and development teams are located just 25

steps above the glider production facility. This close contact is

incredibly important to us and helps to ensure that our products

are of the highest quality possible and with minimal air miles on

our raw materials.

DISCLAIMER

Please read this Manual carefully and note the following details:

The purpose of this Manual is to offer guidelines to the pilot

using this harness. We advise that you only fly with this harness

when qualified to do so. Pilots are personally responsible for

their own safety and their equipment’s airworthiness. The use

of this harness is solely at the user's own risk! Neither the

manufacturer nor dealer accept any liability connected with this

activity. This harness, on delivery, meets all the requirements

of the EN 1651 and LTF regulations and has an airworthiness

certificate issued by Sky Paragliders. Any alterations to the

harness will render its certification invalid.

-4-

Contents

Introduction

1. GENERAL INFORMATION

1.1 Product Overview

1.2 Certification

1.3 Pilot´s profile

1.4 Scope of delivery

1.5 Features

2. SET UP

2.1 Fitting the reserve

2.2 Fitting the harness

2.3 Fitting the speedbag (optional)

2.4 Fitting the cockpit (optional)

2.5 Fitting the speed kit

3. TECH. SPEC.

4. CARING FOR YOUR TRANSFORMER

4.1 Use

4.2 Towing

4.3 Maintenance

5. GUARANTEE

6. DISPOSAL

-5-

1. GENERAL INFORMATION

Model name: TRANSFORMER/TRANSFORMER XC M, L, XL

Total maximum weight in flight: see the technical data.

This user manual version dated 10 July 2018.

1.1 Product Overview

TRANSFORMER is a harness with two basic modes. The cocoon/pod harness for long flights, but

removing the speed bag we have a classic, versatile harness which is suitable for recreational flying

to cross-country flying.

TRANSFORMER is designed for pilots whose start-up ambition is to end in beautiful and long flights,

with the ability to transform with the pilot from classic mode to a modern, aerodynamically shaped

harness with speed bag. TRANSFORMER is a modern, technologically advanced harness with a racy

cut, comfort, simplicity and accessibility from our COMFORT LINE series.

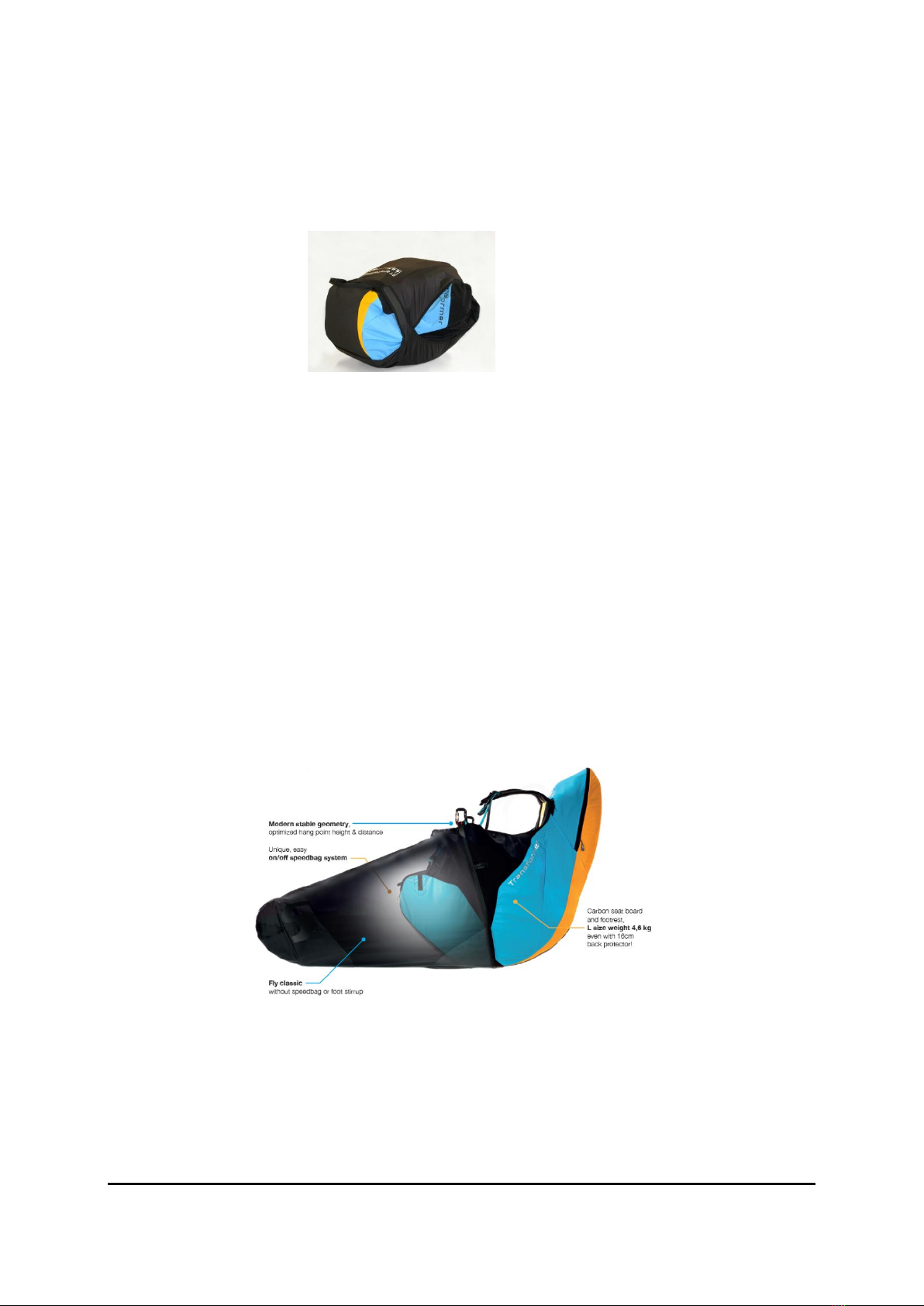

//graphics with description should be attached –like SKYLIGHTER3//

1.2 Certification

TRANSFORMER has passed the certification according to load test EN 1651:1999 and this harness

conforms to the testing criteria of the „Luftfahrt-Bundesamts LTF 91-09 (LTF - Luft Tüchtigkeits

Foderungen, or ”Flying Craft Airworthiness Standard”). Any alteration of the harness can invalidate

all the aforementioned certifications.

Please note: Use of this harness is at your own risk. Any liability of the manufacturer or distributor is

excluded. The pilot is responsible for airworthiness of his flying equipment. The pilot must comply

with legal regulations.

1.3 Pilot’s Profile

Transformer is suitable for all levels of pilot.

Pilots demanding a high comfort level

Pilots who prefer a simple and versatile harness

-6-

1.4 Scope of delivery

Harness is delivered in version TRANSFORMER or TRANSFORMER XC.

TRANSFORMER

Harness

Lightweight speed system

Carabiners

TRANSFORMER XC

Harness with Speedbag

Instrument cockpit

Lightweight speed system

Carabiners

1.5 Features

TRANSFORMER main features are:

Very easy on/off speedbag system.

Option to classic flight without speedbag or foot stirrup.

Low weight –carbon seat board and foot plate, lightweight speedbag (size L is only 4,6kg with speed bag and carabiners).

Slim strap system.

Simple and fast set up with Easy Custom Tuning.

Modern stable geometry (optimized hang point height and distance).

16 cm back protector.

Integrated rescue container.

Functional back pocket with radio pocket and hydration system - camel bag © compatible.

Under seat ballast pocket.

-7-

2. SET UP

2.1 Fitting the reserve

It is highly recommended that the initial installation of the reserve parachute be carried out by a

qualified professional. Ask your paragliding equipment supplier or instructor to do it for you and

familiarise yourself with the process. The size of the reserve pocket on Transformer is suitable for

most current reserve systems. If it is not possible to connect the harness reserve handle to the loops

on the parachute deployment bag inside the pocket, please consult your supplier who may be able to

supply an alternative deployment bag. Loops can be sewn at an appropriate place on any

deployment bag, but this must be carried out by a qualified person only.

1 2 3

4 5 6

-8-

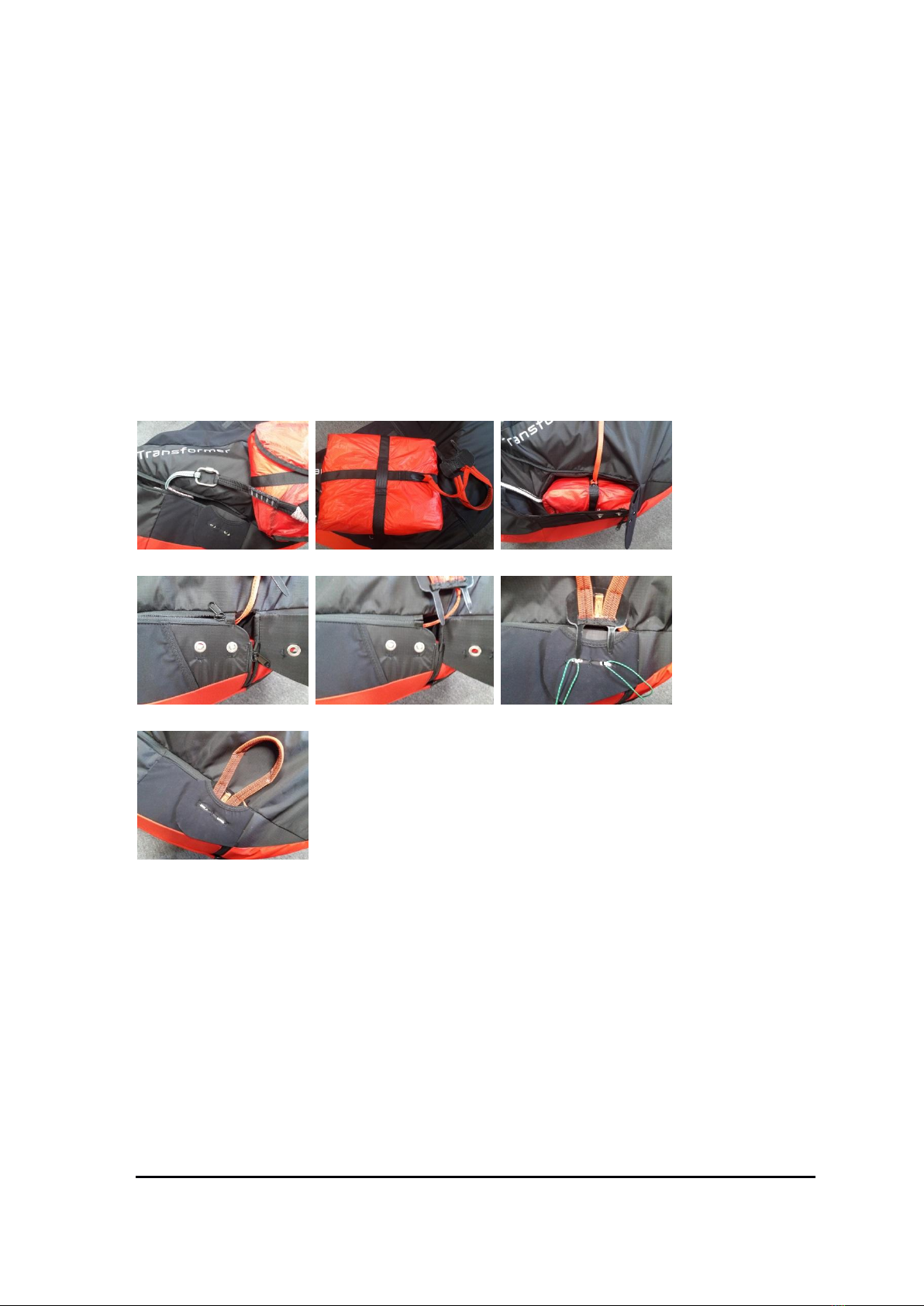

1. Connect the reserve to the rescue parachute risers.

2. Connect the handle to the loop at the end of the reserve container.

3. Insert the reserve into the pocket with the reserve lines towards the outside of the harness.

4. To close zips, first run the slider all the way to the end stop.

5. Then bring the slider back to the closed position.

6. Insert the pins into the loops using a packing line. Note; the long pin locates into the upper

loop. Warning! Be sure to remove the packing lines!

7. Insert the handle into the elastic pocket.

WARNING!

After installation of a reserve parachute in the harness, it is absolutely essential to do a simulated

deployment under a static swing, ensuring that the parachute release system operates correctly

and the parachute comes out easily. The cords which close the reserve pocket must be checked

regularly. If the cord is worn, it must be replaced. Each time a reserve parachute is installed,

check that the cord is in good order by applying a load of 10 kg. Before each flight, check that the

pins and handle are located correctly.

Please note, the parachute can only be deployed with the right hand.

When alternatively front rescue container is used, it should hang on the main carabiners - other

side than carabiner gates.

-9-

2.2 Fitting the harness

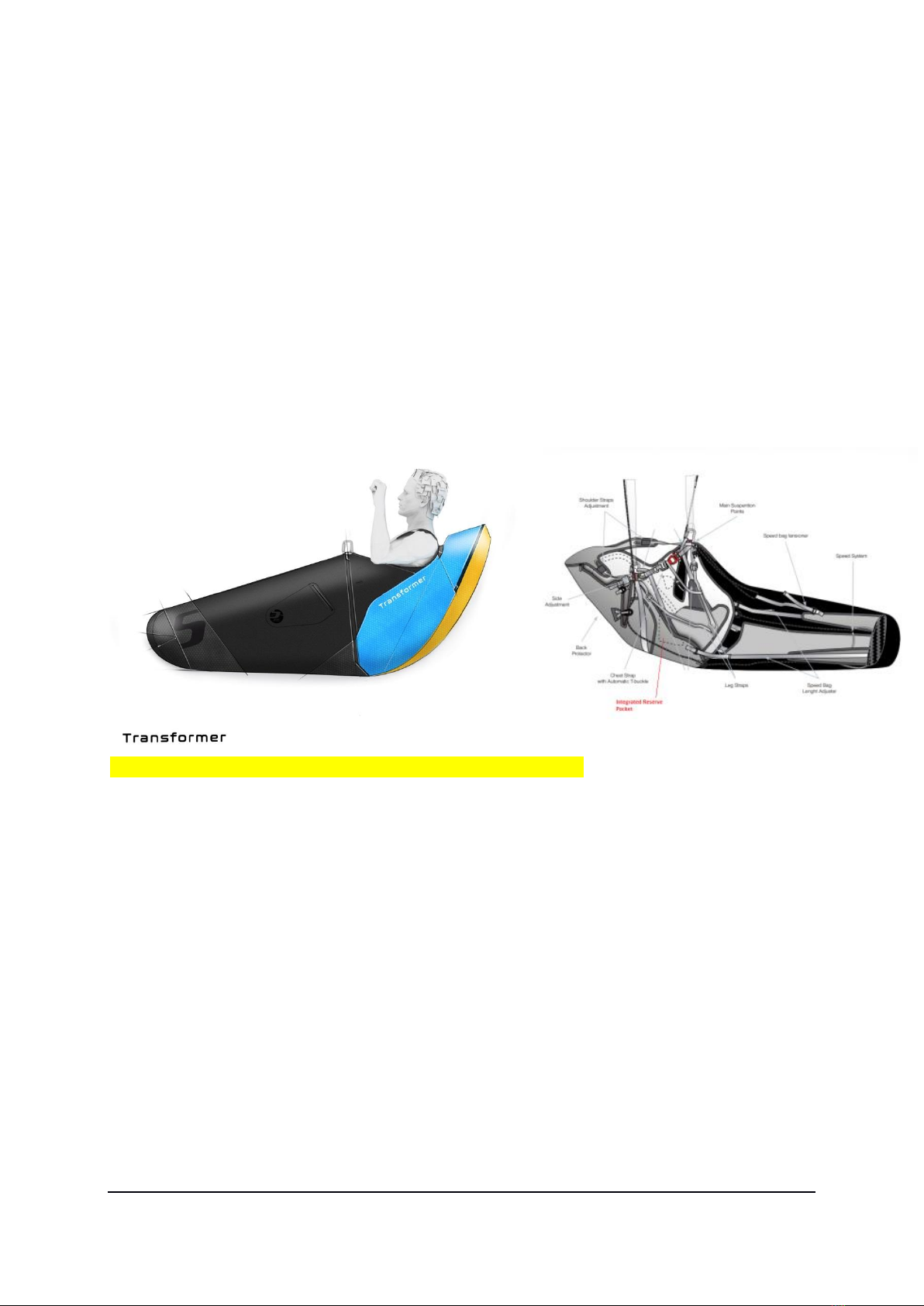

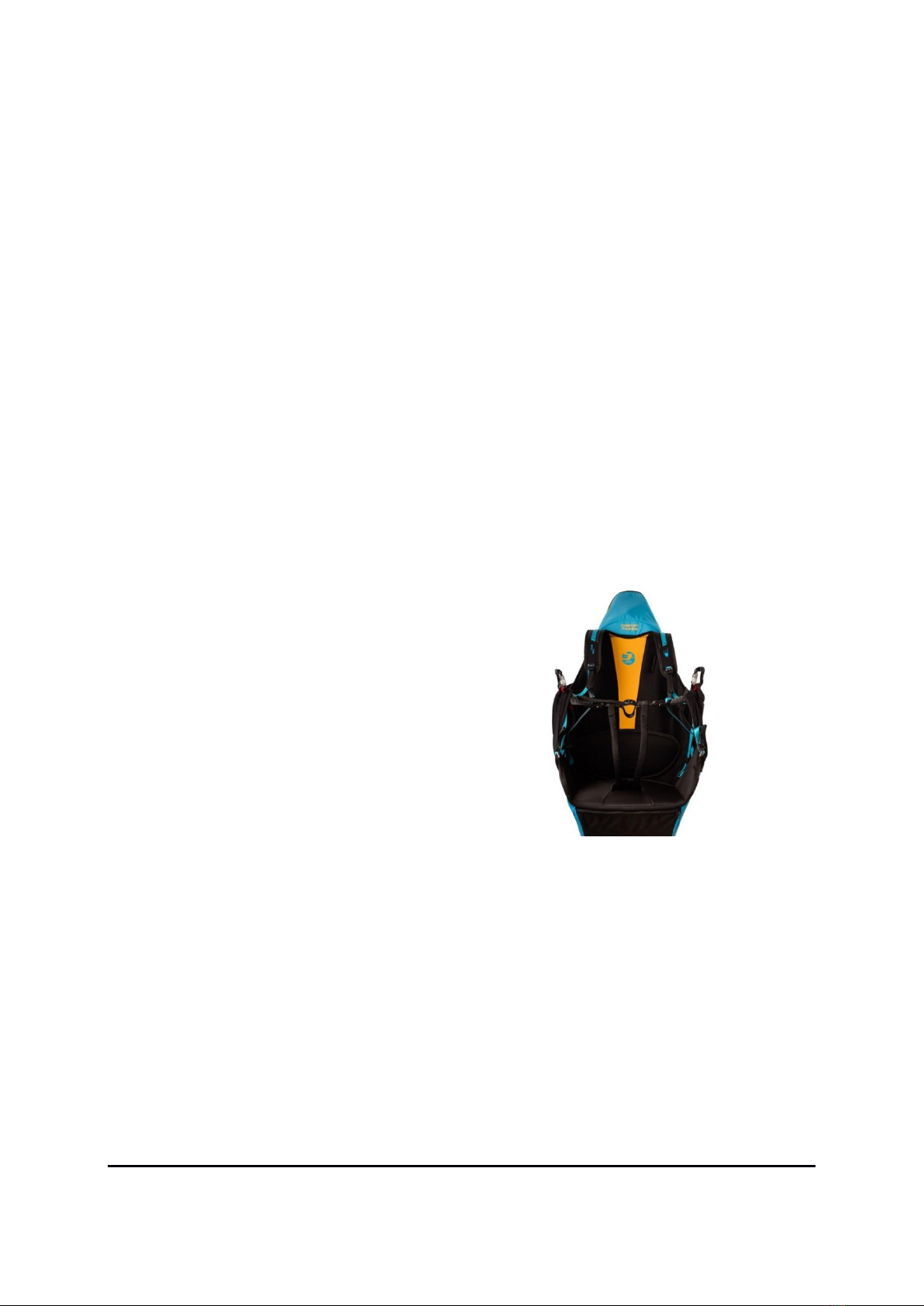

1) Lumbar Adjustment

An excessively reclined position reduces stability and increases the risk of risers twisting in the event

of a spin or side collapse.

2) Shoulder Strap Adjustment

For optimum comfort during take-off and ease of achieving your preferred flying position the

shoulder straps should not be excessively tight. The straps may appear loose while in the seated

position but some play is required to avoid excessive strap pressure in the standing position.

3) Chest Strap Adjustment

Tightening the chest strap increases the efficiency of the Auto Balance System (ABS, i.e. stabilising

system) but decreases the roll response of the wing. The pilot may feel more stable in turbulent

conditions and the wing will be more stable in the event of an asymmetric collapse. However, the

wing may be less inclined to bank when turning. The design of the integrated ABS in the Transformer

means that the range of stabilisation in the chest strap remains reasonable.

Warning: The chest strap adjustment can be quite sensitive and it is best to test first under a static

swing, and then in still air flight, before trying to adjust it during a turbulent flight. Before taking off,

do not forget to pre-adjust your chest strap. This will result in a more comfortable flight.

-10-

2.3. Fitting the speedbag (optional)

TRANSFORMER has very easy on/off speedbag system –TRANSFORMER XC/TRANSFORMER.

For flying with speedbag (TRANSFORMER XC) it is necessary to set up the length, suitable angle of the

speedbag and correct closing of the speedbag after the take off.

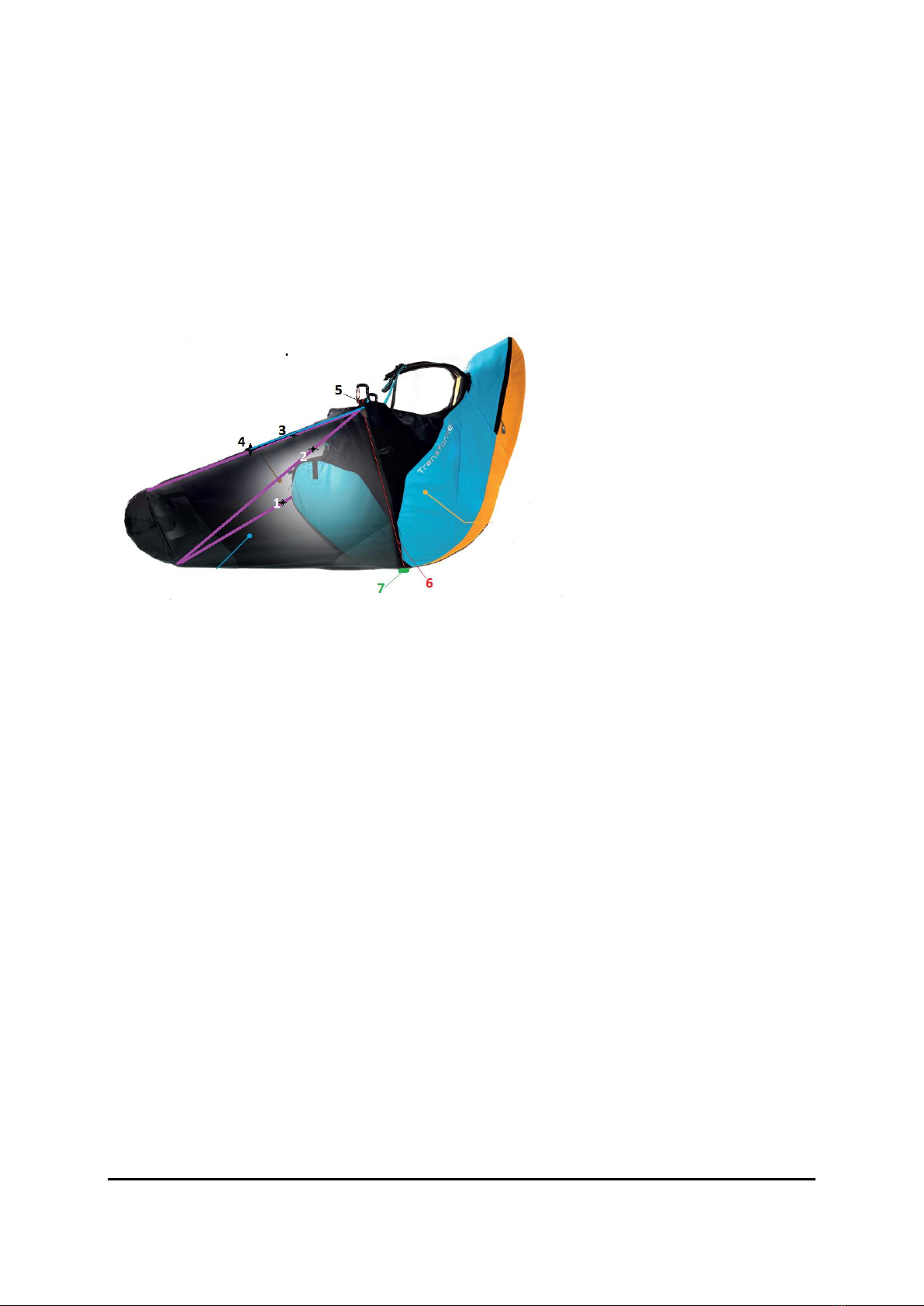

* use loops 1,2 and 3 (violet lines) to set the suitable length and angle of the speed bag

* use loop 4 (blue line on the right and red line on the left side) to set correct closing of the speedbag

The speed bag should be adjusted to the correct setting using a harness simulator.

Removing the speed bag you have a classic, versatile harness which is suitable for recreational flying.

To remove speedbag:

1) Detach loop 1 from the harness

2) Unhook the speedbag from the main carabiners –5

3) Unzip side zippers –6

4) Detach Velcro strap on the bottom of the harness –7

To attach the speedbag back to the harness use reversed procedure. After the attaching of the

speedbag, check the correct length and angle of the speedbag.

-11-
