Sky Climber Air CCB Manuel utilisateur
1
54UME001.docx print date 03/05/2016 Air CCB
User Manual
Air CCB
(For Compact, CX 500 and ALPHA Hoists)
N.V. Sky Climber Europe S.A.
Nijverheidsstraat 23
2570 Duffel
Belgium
Tel. +32 (0)3 887 81 20
Fax +32 (0)3 887 09 94
info@skyclimber.be
www.skyclimber.com
2
54UME001.docx print date 03/05/2016 Air CCB

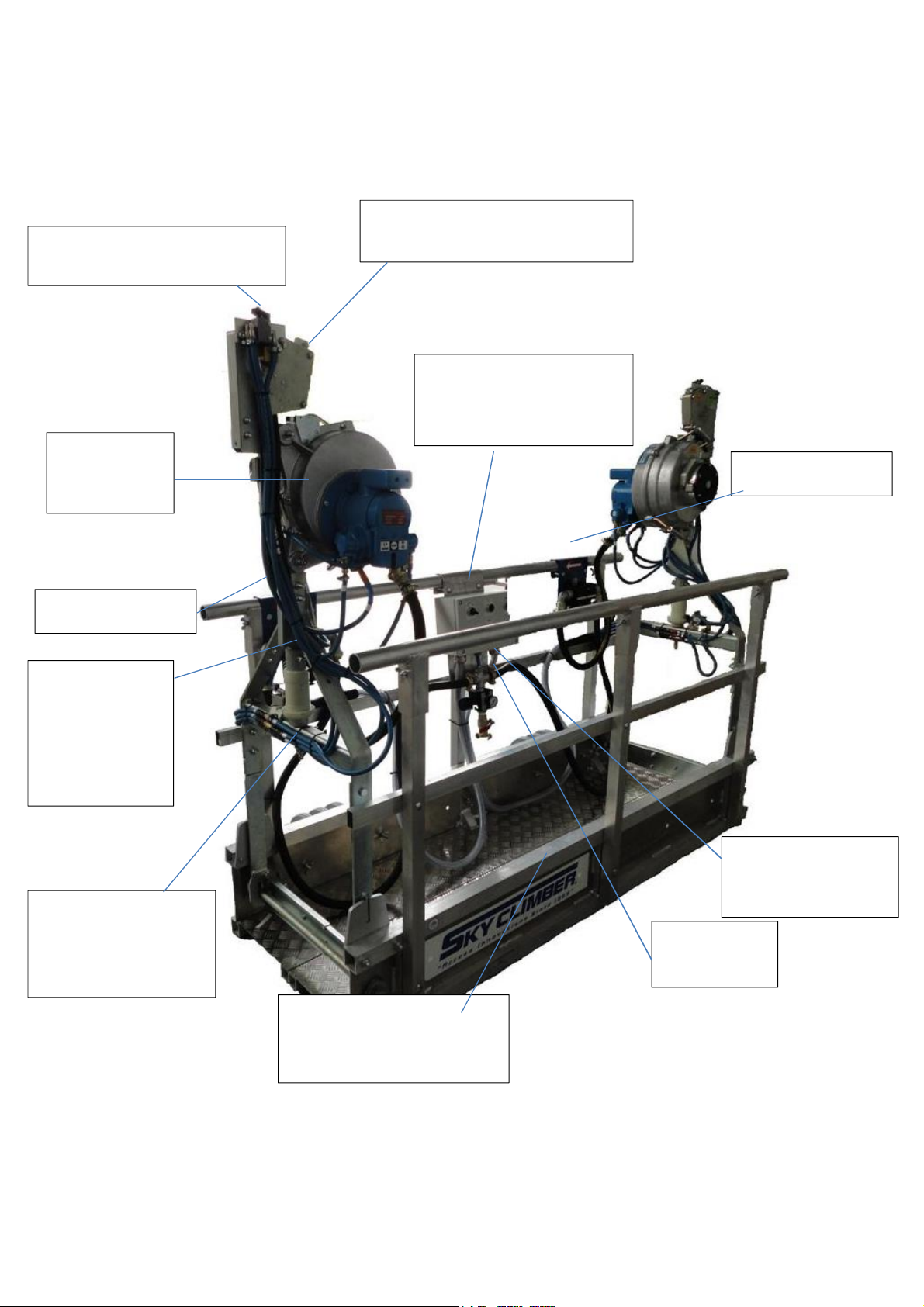

Overview
Sky Grip
with
tilting
device
54005306
CCB
Central Control Box
for multiple hoists
SKY STAGE 500 / 505
LIGHT WEIGHT STAGE
SKY STAGE ULTRA
Under Load
54005304
Over Load
54005303
ALPHA
CX 500
COMPACT
Filter
/
Lubricator
Pressure
regulator for the
system (6 Bar)
Emergency
Stop
Ultimate Top Limit Switch
54005302
All the
connections are
quick connect
couplings
Filter
/
Lubricator
3
54UME001.docx print date 03/05/2016 Air CCB
Pneumatic Hoist
Compact Air
CX 500 Air
Alpha 500 & 800 Air
Anti-tilting Device
Type SKY GRIP 9mm
See user manual ‘SKY GRIP’,56UMM001.pdf

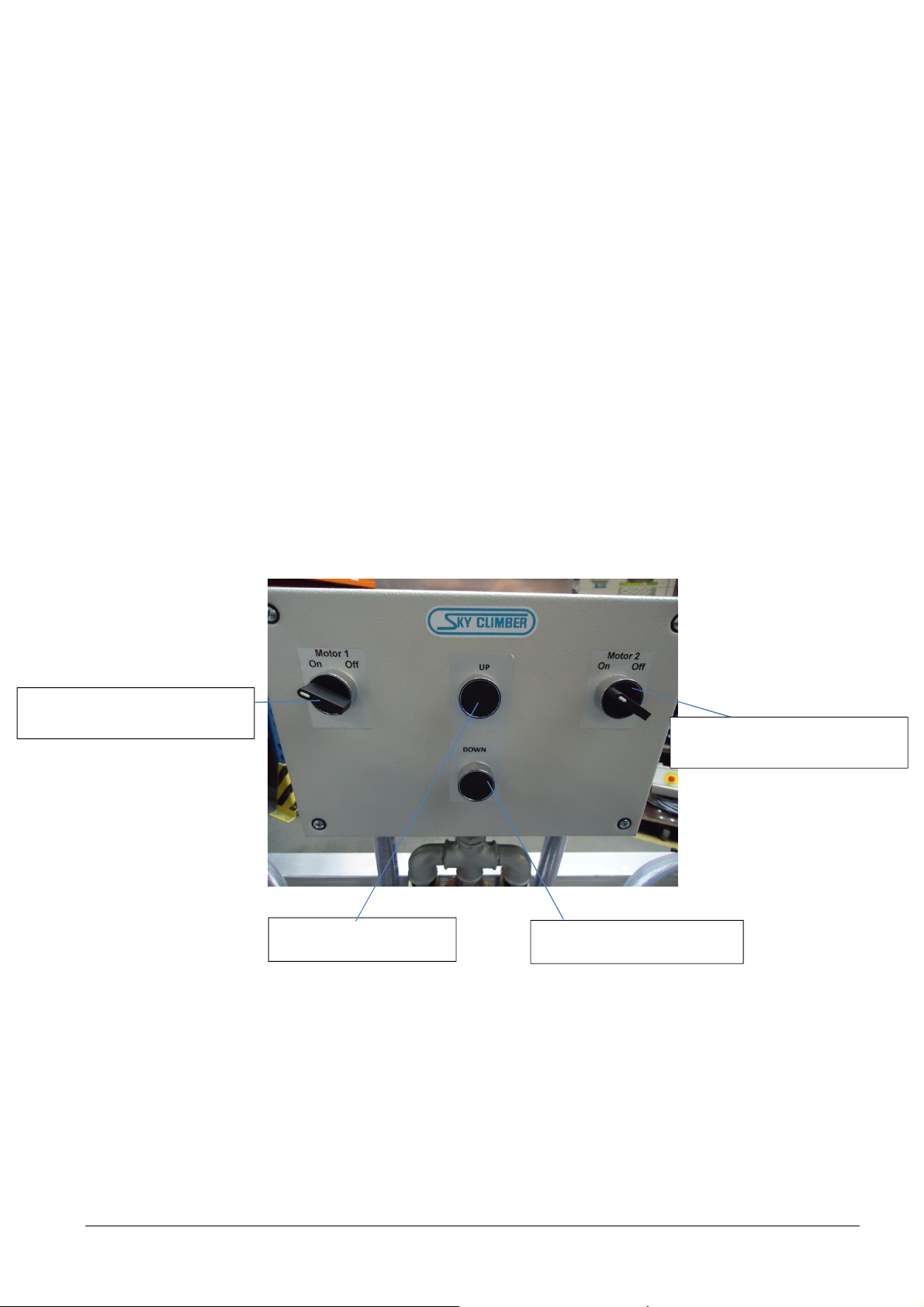

The Central Control Box
Push Button UP
Selector Switch Motor 1 Selector Switch Motor 2
Push Button DOWN
4
54UME001.docx print date 03/05/2016 Air CCB
Wire diagram Air CCB
5
54UME001.docx print date 03/05/2016 Air CCB

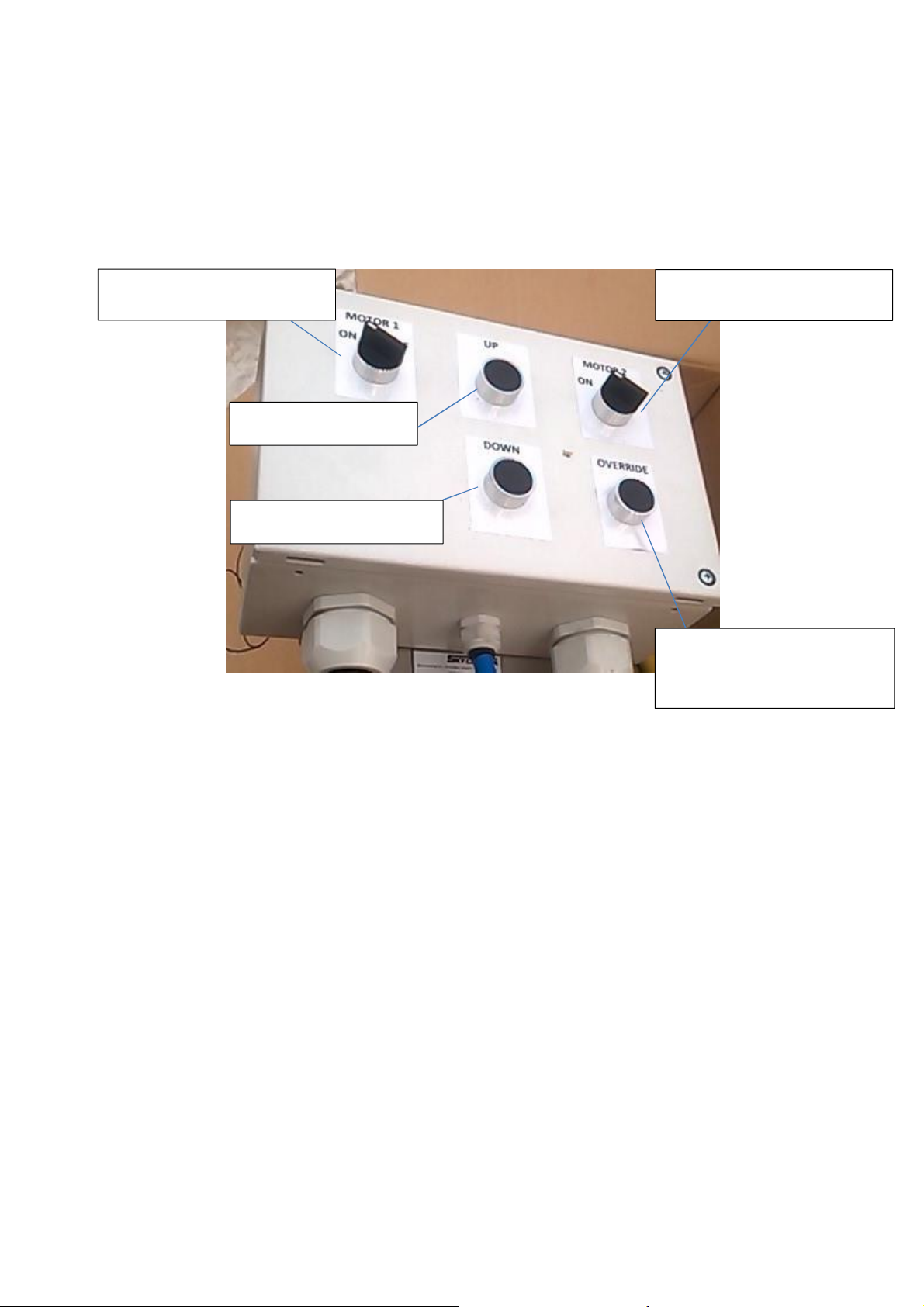

Central Control Box with anti tilting Sky Grip
Push Button UP
Selector Switch Motor 1 Selector Switch Motor 2
Push Button DOWN
Push Button Override
Anti Tilting Sky Grip for
reeving the cable
6
54UME001.docx print date 03/05/2016 Air CCB
Wire diagram Air CCB with anti tilting Sky Grip
7
54UME001.docx print date 03/05/2016 Air CCB

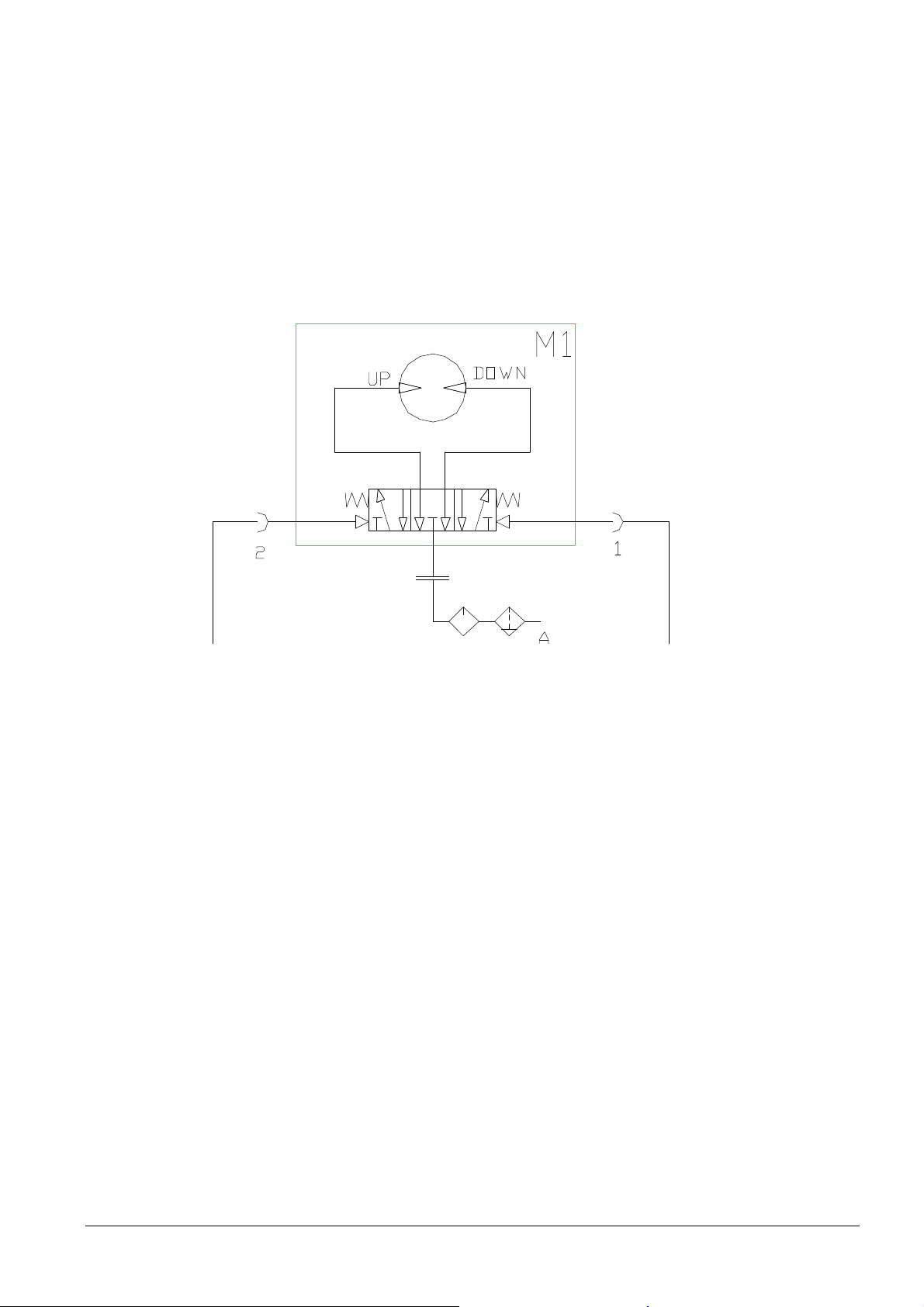

Pneumatic scheme for hoist
FIG.:
41081026
-
f02
