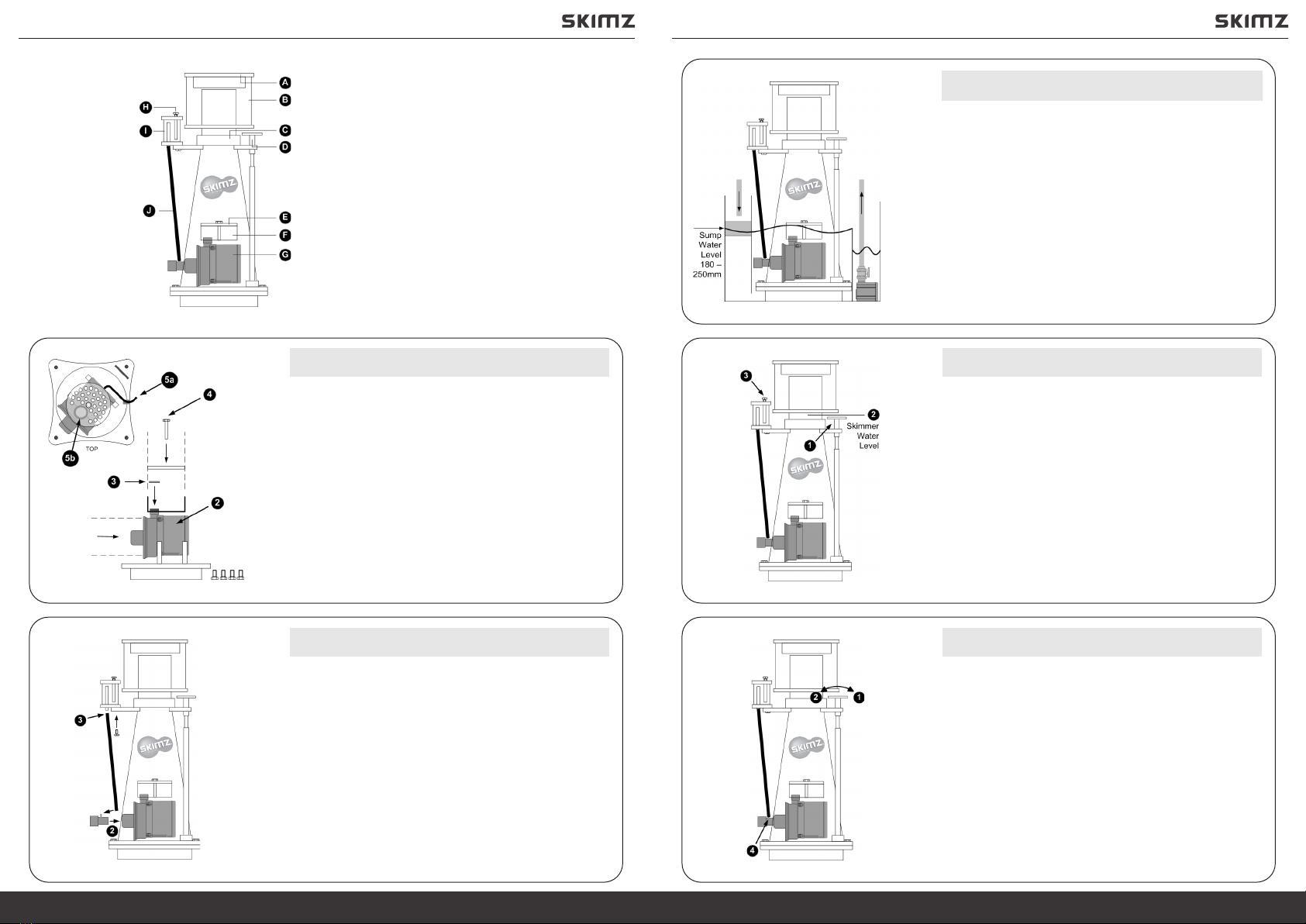

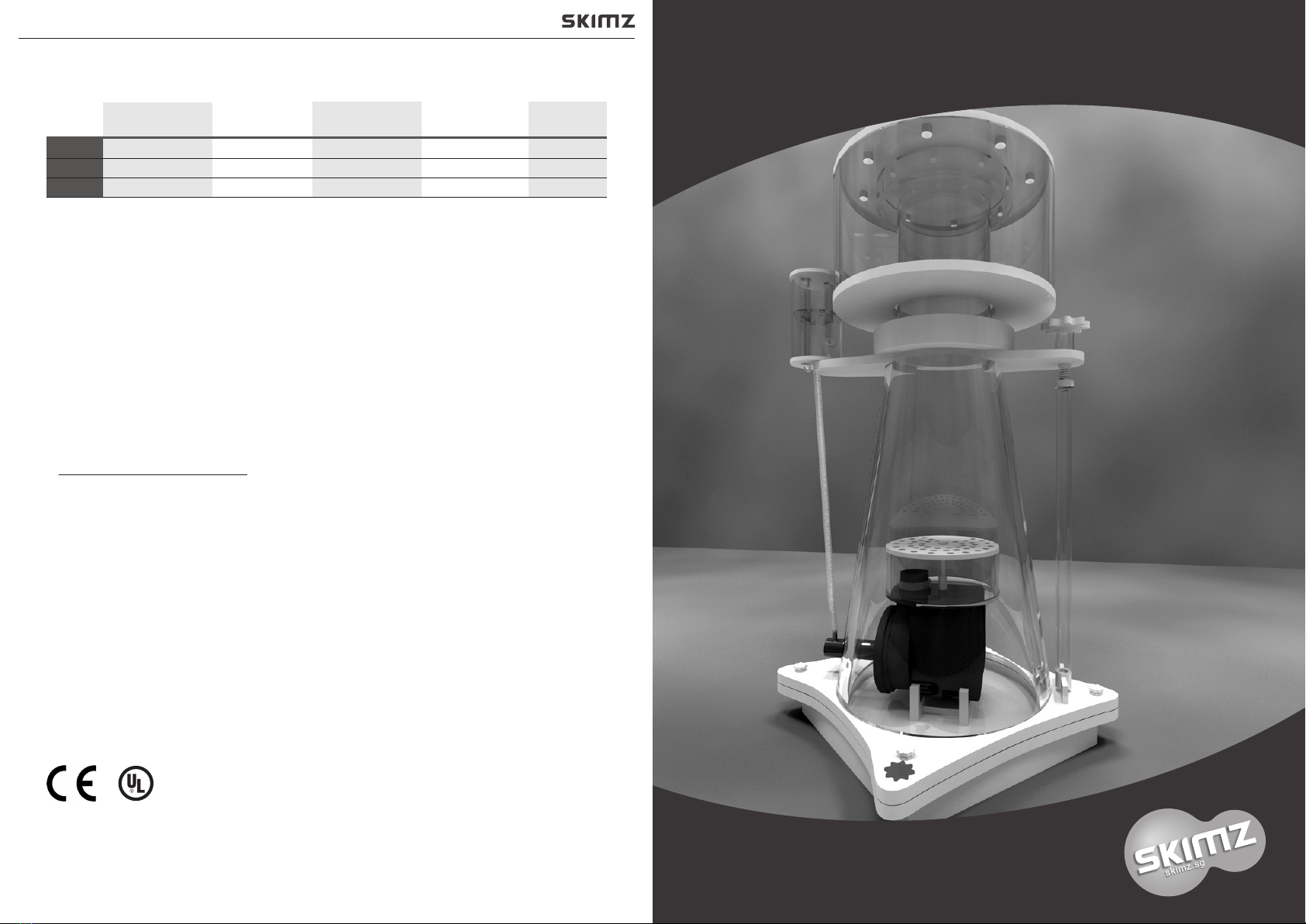

A. Lid for collection cup
B. Collection cup
C. Twist-lock tting (Bayonet)
D. Micro-adjustable valve
E. Bubble plate lid
F. Bubble plate chamber
G. Skimmer pump
H. Air intake tap
I. Air intake silencer
J. Air tube
1. Detach the skimmer body by removing the thumbscrews.
2. Slide the skimmer pump into the mounting support.
3. Attach the bubble plate chamber and tighten it to the
skimmer pump.
4. Assemble the bubble plate lid.
5. Before you reattach the skimmer body, check the following:
a. The skimmer pump wire is inserted into the grove of the
skimmer base.
b. Check the bubble plate lid direction as shown on the
diagram where the holes are away from pump output.
c. Open the micro-adjustable valve fully (clockwise).
STEP 1
1. Reattach the skimmer body and tighten the thumbscrews.
2. Insert the venturi assembly to the intake of the skimmer
pump.
3. Assemble the air intake silencer and connect the air tube
as
shown in the diagram.
STEP 2
1. Ensure that the micro-adjustable valve is fully opened and
start the skimmer pump.
2. Close the micro-adjustable valve until the skimmer water
level is between the bayonet and bottom of the collection cup.
3.
Set the air intake tap halfway and leave it to settle down for a
day or so (initial break-in period).
4.
When foam formation begins after break-in period, ne
adjustment to the skimmer can be done via adjustment of air
intake tap and micro-adjustable valve for optimum
performance.
STEP 4
1. For dry skimming foam, turn the micro-adjustable valve
clockwise.
2. For wet skimming foam, turn anti-clockwise.
3.
Skimz Skimmer can be operated with ozone up to max. 50
mg/h per pump via a suitable silicon hose. The guideline for
ozone dosing is 5 to 10 mg/h for each 100 L of aquarium
water.
4. Install a T-joint to the skimmer pump air inlet. Run one side
of the T to the ozone unit and the other to air intake silencer.
You can adjust the air intake tap to produce sucient suction
on the ozone side to pull the ozone into the skimmer
passively.
STEP 5
1. Position the skimmer in the sump.
2. For optimal performance, the water in the sump should be
between 180 and 240mm.
3. An auto water top up system or a separate skimmer
compartment in the sump is recommended to maintain the
water level and skimmer consistency. Fluctuations in water
level will aect the performance.
STEP 3
