Instructions for use

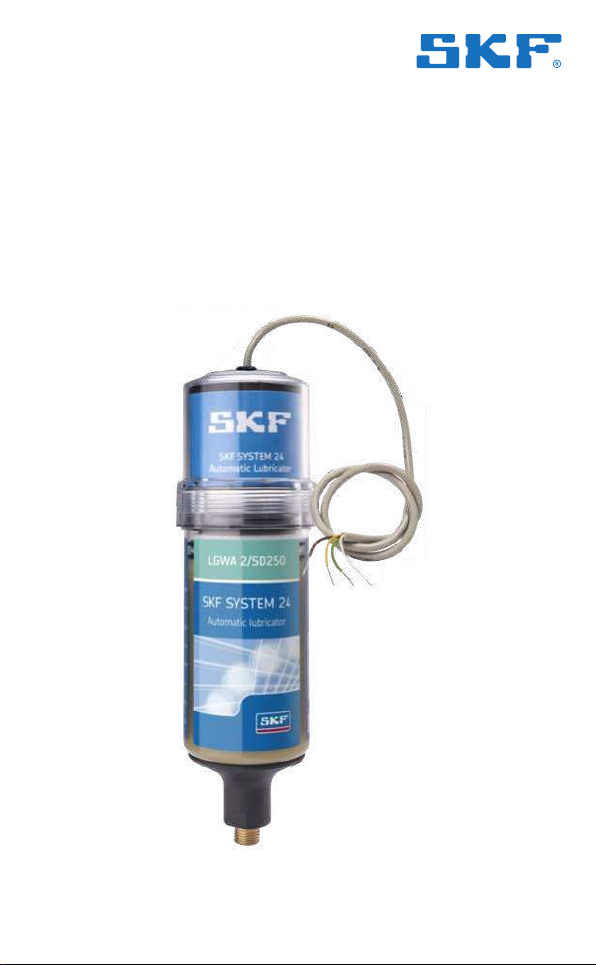

TLSD 1-DK
SKF SYSTEM 24
3EN
Safety recommendations......................................................................4
EU Declaration of Conformity ...............................................................5
UK Declaration of Conformity ...............................................................6
1. Technical data................................................................................7
2. Installation ....................................................................................8
2.1 Installation of new lubricators ..............................................................9
2.2 Replacement of canisters ....................................................................11
3. Troubleshooting...........................................................................21
Table of contents
Original instructions
4EN
Safety recommendations
MP5514
www.skf.com/lubrication
MSDS
+15°C
(59ºF)
+25°C
(77ºF)
Max
3 Years
LGFP 2
LHMT 68
LHFP 150
LHHT 265
Max
2 Years
5EN
EU Declaration of Conformity
TLSD 1-DK
Automatic single point lubricator Cabled TLSD
We, SKF MPT, Meidoornkade 14, 3992 AE Houten, The Netherlands
herewith declare under our sole responsibility that the products described
in these instructions for use, are in accordance with the conditions of the
following Directive(s):
EMC DIRECTIVE 2014/30/EU
RoHS DIRECTIVE (EU) 2015/863
and are in conformity with the following harmonized standards:
EN 61000-6-3:2007/A1:2011/AC:2012:
Electromagnetic compatibility (EMC). Generic standards.
Emission standard for residential, commercial and light-industrial
environments.
EN 61000-6-2:2005/AC:2005:
Electromagnetic compatibility (EMC). Generic standard.
Immunity for industrial environments.
EN 61000-4-2: ESD
EN 61000-4-3: HF Immunity
EN 61000-4-4: EFT
EN 61000-4-5: Surge
EN 61000-4-6: CDN/Clamp Injection
EN 61000-4-8: Power Magnetic field
EN IEC 63000:2018
Technical documentation for the assessment of electrical and electronic
products with respect to the restrictions of hazardous substances.
Houten, The Netherlands, October 2021
Mrs. Andrea Gondová
Manager Quality and Compliance
6EN
UK Declaration of Conformity
TLSD 1-DK
Automatic single point lubricator Cabled TLSD
We, SKF MPT, Meidoornkade 14, 3992 AE Houten, The Netherlands
herewith declare under our sole responsibility that the products described
in these instructions for use, are in accordance with the conditions of the
following Directive(s):
Electromagnetic Compatibility Regulations 2016 (2016 No. 1091)
The Restriction of the Use of Certain Hazardous Substances in Electrical and
Electronic Equipment Regulations 2012 (2012 No. 3032)
and are in conformity with the following harmonized standards:
EN 61000-6-3:2007/A1:2011/AC:2012:
Electromagnetic compatibility (EMC). Generic standards.
Emission standard for residential, commercial and light-industrial
environments.
EN 61000-6-2:2005/AC:2005:
Electromagnetic compatibility (EMC). Generic standard.
Immunity for industrial environments.
EN 61000-4-2: ESD
EN 61000-4-3: HF Immunity
EN 61000-4-4: EFT
EN 61000-4-5: Surge
EN 61000-4-6: CDN/Clamp Injection
EN 61000-4-8: Power Magnetic field
EN IEC 63000:2018
Technical documentation for the assessment of electrical and electronic
products with respect to the restrictions of hazardous substances.
The person authorised to compile the technical documentation on
behalf of the manufacturer is SKF (U.K.) Limited, 2 Canada Close,
Banbury, Oxfordshire, OX16 2RT, GBR.
Houten, The Netherlands, October 2021
Mrs. Andrea Gondová
Manager Quality and Compliance
7EN
1. Technical data
Designation TLSD 1-DK
Automatic single point lubricator Cabled TLSD
Maximum ratings
Voltage supply (VSS-GND) 7 V to 35 V
Current supply up to 1.5 A
Quiescent current
(sleep current)
<10 mA
Relay maximum voltage 35 V
Relay minimum current 100 mA
Ambient temperature range -20 to 50 °C (-4 to 122 °F)
Max. working pressure 5 Bar
Cable
Length 550 mm
Diameter 4.8 mm Max.
Wire size 24 AWG 7/32 (0.25 mm2)
Fig. 1 – WHITE -> +Positive (VCC)
BROWN -> -Negative (GND)
GREEN -> Relay contact 1 (NO)
YELLOW -> Relay contact 2 (NO)
WARNING:
Should the power loss the dispense rate quantity calculation should be
adjusted.
8EN
2. Installation
This user manual provides technical information about:
SKF SYSTEM 24 - Cabled TLSD Series
TLSD 1-DK
See also MP5409:
SKF SYSTEM 24 - TLSD Series
Related documentation:
Document: On-line training Lubrication
Publication
Click here
Selection tools for:
Document: - LubeSelect for SKF greases
Publication
Click here
Document: - Lubricators settings Dial Set
Publication
Click here
Document: On-line DialSet
Publication
Click here
Document:
SKF SYSTEM 24 – Cabled series TLSD 1-DK
Publication MP5514
9EN
2.1 Installation of new lubricators
For installation at the application follow the steps:
1
Clean the lubrication point from dirt and
old grease in such a way that the dirt is not
entering the lubrication point itself.
2
Remove the yellow protection cap from the
new grease cannister.
3
Screw the support flange on the cartridge
until is it is fixed.
If the support flange is mounted already on
the application, don’t remove it. Use sealing
tape on the thread of the new cannister tip.
10 EN
4
Place the drive unit on top of the full grease
cannister and make sure the teeth of both
parts are engaged.
The spindle head should now be inside of the
motor coupler.
5
Screw the drive unit cap onto the cannister.
6
If the support flange is not mounted on the
application, screw the complete lubricator
onto the application. Your lubricator is ready.
If the support flange is mounted already
on the application, the use of sealing tape
(PTFE) on the thread of the new cannister tip
is recommended.
Then screw the cartridge on the support
flange mounted in the application.
Your lubricator is ready.
