SKETCHNBUILD SNB-K3A Manuel utilisateur

SNB‐K3AAUTOMATICEDGEBANDERMANUAL 



SNB-K3A AUTOMATIC EDGE BANDER

Table of Contents

Packing List…………………………………………………………………2

Foreword………………………………………………………………………3

Chapter 1：Safety feature flag graphic………………………………4

Chapter 2: Care and maintenance……………………………………….8

Chapter 3: Mechanical uses and features……………………………10

Chapter 4: Mechanical structure……………………………………….10

Chapter 5: The main technical parameters………………………….11

Chapter 6: Transport……………………………………………………….12

Chapter 7: Equipment Installation…………………………………….12

Chapter 8: Equipment use and adjustment…………………………….14

Chapter 9: Abnormal phenomenon and its elimination……………….23

Chapter 10: Thanks………………………………………………………….24

Packing List

1、 Automatic edge banding machine: 1

2、 Instructions: 1

3、 Tools：

Allen wrench: 1

Cross screwdriver: 1

Flathead screwdriver: 1

Foreword

Thank you for choosing our company's woodworking machinery products.

Automatic edge banding machine Instructions mainly for construction,

performance, safe operation, maintenance, and transportation, storage and so

matters do a comprehensive, detailed, and efficient personnel to manage the

economy, good use of the above equipment, provides the basic knowledge.

This specification rules and guidelines will help you to safe and effective

use of the machine. Before the operation and maintenance manual must be read

and comply with the precautions to prevent accidents due to illegal operation

and maintenance may cause serious injury or death and.

Due to continuous product improvements and do change with the contents of

this manual are subject , without prior notice, please user understanding.

Warning

Before starting operation and maintenance, operation and maintenance

personnel must observe the following:

Before the operation or maintenance, be sure to read and understand this

manual.

To read this manual safety notice and adhere to the mechanical security

identification and must be completely understood.

To save this manual for the specified storage location, and should read the

manual on a regular basis.

If this manual has been lost or defaced can not read, please immediately

contact the company or distributor.

Safety identification and use language

To help you safely use automatic edge banding machine, pasted on the

specification and the signs of the mechanical safety precautions in order to

provide a description and methods to avoid such dangerous situations involving

potentially dangerous.

The following identifies the term indicates that there could cause personal

injury or damage to the potential danger. In the present specification and

mechanical signs, following identification of potential terms used to indicate

the degree of hazard.

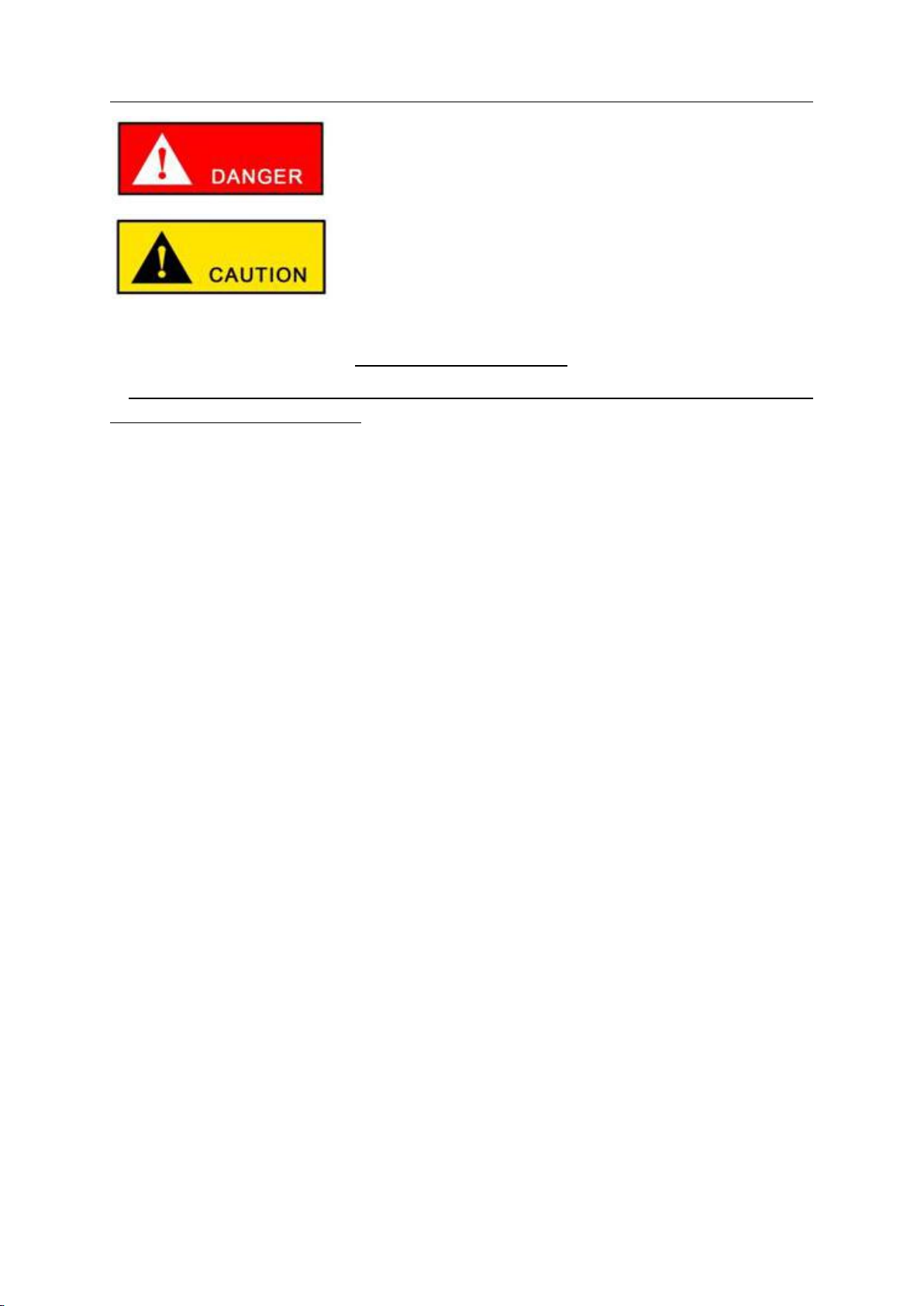

DANGER

Said that if not evade the consequences of the risk

will result in death or serious injury.

CAUTION

Said that if not avoid, potentially dangerous

consequences that may result in lower or moderate

injury or serious injury.

Solemnly declare

Due to property damage and personal injury caused by incorrect operation, the

company is not responsible.

Chapter 1：Safety feature flag graphic

1.1 General Security

（1） Before the operation, the operator must read the instructions carefully and

completely understood. Security managers should confirm skilled operator can

operate the machine.

（2） Operating equipment, maintenance, maintenance personnel must be trained,

familiar with the potential dangers of the machine and obtain the relevant

qualifications.

（3） Assembly, maintenance and repair personnel must fully understand the operating

instructions, and in strict accordance with the requirements of the job.

（4） After the machine stops, adjust or remove the protective device, be sure to pay

attention to some rotation, drive components, due to inertia will continue to

run for some time. Maintenance or adjustment should be in the danger of moving

parts completely stopped.

（5） Once the machine is abnormal or fault, the operator should immediately stop the

machine, cut off the power supply, gas supply, notify promptly repaired by

qualified service personnel.

（6） Handling, disassembly and assembly of the machine must be sufficient bearing

capacity lifting equipment.

（7） The machine must be specified purposes and requirements, otherwise it may cause

serious danger.

（8） Comply with the safety instructions and warnings for all machines, and to

maintain the integrity and clean safety instructions and warnings identified.

（9） Before operating the operator shall conduct a comprehensive safety inspection,

confirm the safety guards and safety devices of the machine before starting the

machine to normal after all.

（10） After machine maintenance, to ensure the safety devices and protective cover,

complete and accurate installation in the original location.

（11） Only off the power, gas supply, all the moving parts of the machine is completely

stopped and disconnect the power before they can repair, maintenance,

replacement and cleaning machine debugging.

（12） Replacement parts must use original parts, otherwise it will cause danger or

damage to the machine.

（13） In the case of the machine must be running unattended operator when the operator

leaves the machine, you must turn off the power.

（14） Always check all power lines and ground lines, ensure that the machine's

electrical system has good insulation and grounded. Not use defective wires.

（15） Prohibiting the use in wet or explosive environment, or they may cause serious

danger.

（16） Keeping the work environment clean, provide adequate lighting.

（17） Prohibit children and visitors close to the machine, the operator at least 18

years of age have the ability to predict the presence of dangerous machines.

（18） Do not drink after fatigue and have a hypnotic effect and taking similar drugs

operate the machine.

（19） The operator must not wear loose clothing, not wearing a tie, gloves or jewelry

(such as rings, bracelets, watches, etc.).

（20） Long hair must be wrapped with a wig and reliable, to prevent hair caught in

the machine inside.

(21) When operating the machine is recommended to wear the necessary personal

protective equipment, such as wearing ear protection to reduce the risk of

hearing loss.

1.2 Equipment usage rules

（1） At the discharge end of the machine should ensure that sufficient space-space

ratio should be at least the length of the longest length of the workpiece large

500mm.

（2） User-equipped blade, cutter and cutter machine sizes must comply with the

requirements of the original configuration, the user must be selected in line

EN847-1: blade and cutter, cutter blade and the rated speed of 1997 standard

requirements should not lower than its maximum speed shaft.

（3） Adjust the machine must be carried out in accordance with the provisions of this

specification by professionals, avoid touching knives and dangerous moving

parts.

（4） The machine must be connected before use and removal dust system must ensure

removal equipment has been working before starting the machine. Vacuum equipment

should be of sufficient air volume and velocity, which air volume of 800m / h,

a flow rate of 25m / s.

（5） Must cut off the power supply, gas supply when changing tools.

（6） Air Ministry during the repair work, disconnect the gas line to prevent

accidental operation of pneumatic components danger.

（7） Should regularly check the safety-related components of each safety interlock

switches, emergency stop switch, gas pressure sensor, temperature controller,

etc., to ensure reliable operation of these components. If abnormal, should be

repaired by qualified service personnel, replacement parts should be used

original parts

（8） Keep knives sharp, should be replaced blunt, deformed, defective blade, cutter

and cutter, otherwise there will be dangerous.

（9） Do not exceed the parameters of the processing specifications and technical

requirements of the deformation of the workpiece.

（10） Saw, milling, polishing wheel rotation direction to the right, should be

consistent with the direction of the machine ID, otherwise it will be dangerous.

（11）After the feeding device and the parts reach the maximum stable speed motor speed

can be fed.

Warning：

Failure to comply with these rules may lead to serious injury.

Machinery and transport dangerous to squeeze between the plate and the pressure

drag wheel, prohibit access to these parts of the machine is running, it may cause

serious injury.

Power supply isolation means does not have a pressure gas source isolation,

maintenance parts when closed pneumatic manifold isolation valve, and release the

residual pressure in the pipeline.

Melt glue pot surface temperature after turning off the power at the surface of

the machine will last longer period of time, prohibit hand directly touch the surface

of the melt glue pot and melt glue pot, to avoid burns.

1.3 Limitations of the surrounding environment：

Place the machine on the operating environment requirements

Power

Referring to the

body stickers

Relative humidity

90% No condensation

Power frequency

Altitude

≤1000m

Ambient temperature

0°C—40°C

Silo temperature

0°C—40°C

1.4 Noise statement：

Noise measurements were performed according to standard IS07960.

The machine noise level when the load is not greater than 82dB (A).

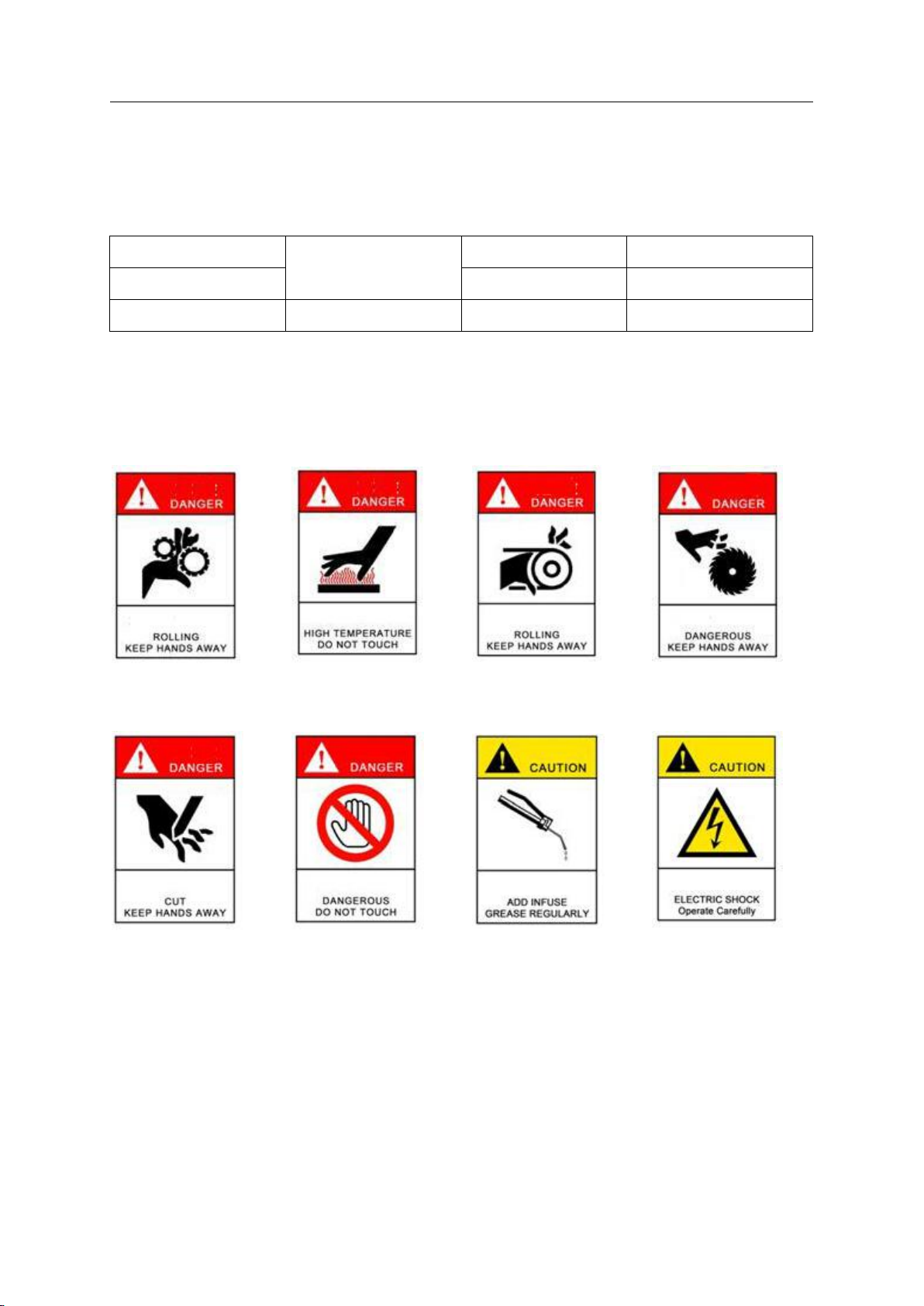

1.5 Logo Graphic:

ROLLING

KEEP HANDS AWAY

HIGH TEMPERATURE

DO NOT TOUCH

ROLLING

KEEP HANDS AWAY

DANGEROUS

KEEP HANDS AWAY

CUT

KEEP HANDS AWAY

DANGEROUS

DO NOT TOUCH

ADD INFUSE

GREASE REGULARLY

ELECTRIC SHOCK

OPERATE CAREFULLY

Chapter 2: Care and maintenance

Disclaimer: This device is a high-precision machinery and equipment, the need for

strict maintenance, strictly in accordance with the requirements of the equipment

necessary maintenance. Due to lack of maintenance failures caused by maintenance, not

free within the service range!

In order to ensure the normal operation of the machine for a long time, it must

perform regular maintenance and upkeep, partly due to the need of production, on the

other hand is the need to device usability and safety.

Before all maintenance, service and repair work, you must turn off the main power

switch and disconnect the power, strictly prevent accidental machine startup.

When the machine work, you must use the vacuum suction device.

Regular cleaning can prolong its life, and is an important prerequisite to ensure

that the workpiece to achieve good results. Therefore, after the class of equipment

must be cleaned and maintenance, for at least a week for a major clean-up equipment

and maintenance.

Regularly check the wear blade, cutter, blade, polishing wheels, so the device is

always kept in good working condition.

Only by mastering the expertise to understand the possibility of dangerous equipment

to allow maintenance personnel.

You can only use the original machine parts for maintenance, or else, it might give

operational risk.

See detailed maintenance schedule

Maintenance schedule

No.

Timetable

Area

Operation

Lubricants /

solvent

After the end

of the work

day

The whole

machine

a. The whole machine

cleaning sweeps, wipe clean

b. Clean up litter on the

chain sprocket crawler

c. Transmission parts

litter cleanup, waste silk

d. Clean up the excess melt

glue pot around

e. Each processing surface

anti-rust oil

f. Each oiling point

refueling

Rust oil/

3﹟Molybdenum

disulfide lithium

grease

Every 80

working hours

Glue pot

High

temperature grease injection

pressure of linear

bearing with grease gun

3﹟Molybdenum

disulfide lithium

grease

Active edge roller

Injection of oil with high

temperature grease gun

3﹟Molybdenum

disulfide lithium

grease

Every 200

working hours

Rubber box

driving chain

plate chain

Check chain tension

Timely adjustment

Every 2

months (400

hours)

Feed track

Using hand pressure pump to

lubricate the moving track

Lubricating oil

Feed track

Check chain tension, if

Table des matières

Autres manuels SKETCHNBUILD Équipement industriel

SKETCHNBUILD

SKETCHNBUILD SNB-K2A Manuel utilisateur

SKETCHNBUILD

SKETCHNBUILD SNB-K96 Manuel utilisateur

Manuels Équipement industriel populaires d'autres marques

ABB

ABB Unifix AD Manuel

Mark 7

Mark 7 Evolution Manuel utilisateur

Husky

Husky HyPET Manuel utilisateur

bora

bora PM-1800 Manuel utilisateur

Grizzly

Grizzly T32428 Manuel utilisateur

Siemens

Siemens 8MF1 Series Manuel utilisateur

ABB

ABB HT610965 Manuel utilisateur

ABB

ABB SafeLink Manuel utilisateur

Phoenix

Phoenix PHX-150 Manuel utilisateur

ABB

ABB A165-L32 Manuel utilisateur

ABB

ABB HT842936 Manuel utilisateur

Rioned

Rioned UrbanJet Manuel utilisateur

Hermetica

Hermetica 10 Series Manuel utilisateur

HORNER

HORNER OEE Solution Manuel utilisateur

Hammerhead

Hammerhead HG375 Manuel utilisateur

SCHUNK

SCHUNK VERO-S NSE-A3 138 Instructions d'utilisation

ABB

ABB HT566657 Manuel utilisateur

Webasto

Webasto GSE CAN Manuel utilisateur
