SJE Rhombus C-Level Manuel utilisateur
The SJE-Rhombus®C-Level™Sensor Simulator is an easy-to-use, hand-held test instrument designed to generate an
adjustable C-Level™simulation signal. The output of the C-Level™Sensor Simulator is adjusted across the full range by turning
the simulators adjustment knob. The C-Level™Sensor Simulator can be used on almost any SJE-Rhombus®C-Level™enabled
device.
SJE-Rhombus®C-Level™Simulator
PO Box 1708, Detroit Lakes, MN 56502
1-888-DIAL-SJE • 1-218-847-1317
1-218-847-4617 Fax
email: customer[email protected]
www.sjerhombus.com
3.39”
2”
1.54”
0.90”
36” Leads
LIQUID LEVEL
RED - POSITIVE
BLACK - NEGATIVE
CLEAR - SIGNAL

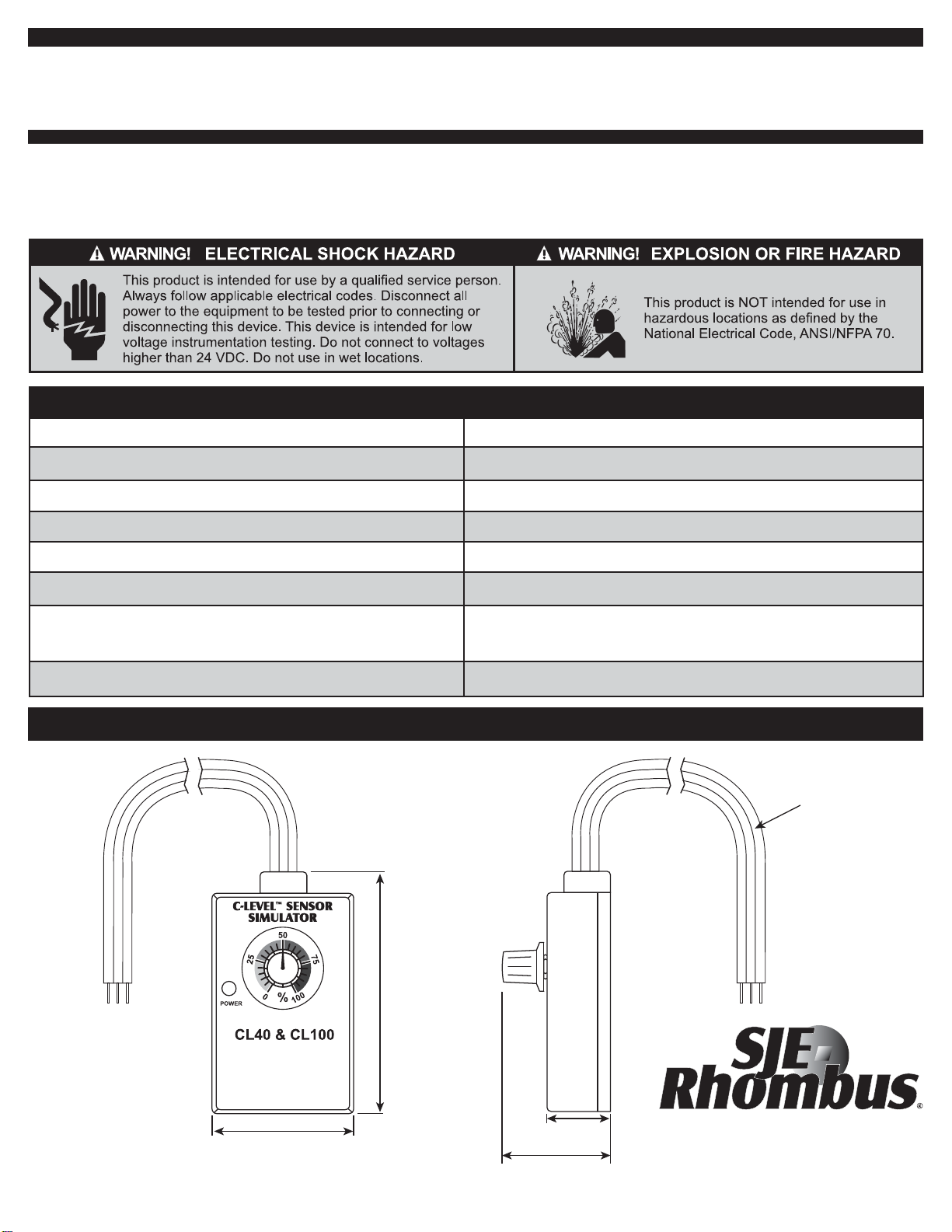

SPECIFICATIONS
SUPPLY VOLTAGE 7-13 VDC ±5%
OUTPUT SIGNAL FREQUENCY (1 kHz to 3 kHz)
ACCURACY ± 5%
OPERATING TEMPERATURE +32º TO +122º F
ENCLOSURE MATERIAL ABS PLASTIC
WEIGHT 5 oz.
CABLE SPEC: 20 AWG, 3 COND.
LENGTH: 36 IN
TERMINATION: FERRULE
FUSE 500mA 5x20MM FAST BLOW
DIMENSIONS
Some states do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to you.
Somestatesdonotallowtheexclusionorlimitationofincidentalor
consequentialdamages,sotheabovelimitationorexclusionmay
not apply to you. This warranty gives you specific legal rights,
andyoumayalsohaveotherrightswhichvaryfromstatetostate.
TO OBTAIN WARRANTY SERVICE: The consumer shall
assumeallresponsibilityandexpenseforremoval,reinstallation,
and freight. Any item to be repaired or replaced under this
warranty must be returned to SJE-RHOMBUS®, or such place
as designated by SJE-RHOMBUS®.
ANY IMPLIED WARRANTIES OF MERCHANTABILITY
OR FITNESS ARE LIMITED TO THE DURATION OF THIS
WRITTEN WARRANTY. SJE-RHOMBUS®SHALL NOT,
IN ANY MANNER, BE LIABLE FOR ANY INCIDENTAL
OR CONSEQUENTIAL DAMAGES AS A RESULT OF A
BREACH OF THIS WRITTEN WARRANTY ORANY IMPLIED
WARRANTY.
SJE-RHOMBUS®warrants to the original consumer that this
product shall be free of manufacturing defects for one (1) year
afterthedateofconsumerpurchase. Duringthattimeperiodand
subject to the conditions set forth below, SJE-RHOMBUS®will
repairorreplace,fortheoriginalconsumer,anycomponentwhich
provestobedefectiveduetodefectivematerialsorworkmanship
of SJE-RHOMBUS®.
ELECTRICALWIRINGAND SERVICING OFTHISPRODUCT
MUST BE PERFORMED BY A LICENSED ELECTRICIAN.
THIS WARRANTY DOES NOT APPLY: (A) to damage due
to conditions beyond the control of SJE-RHOMBUS®; (B) to
defectsormalfunctionsresultingfromfailuretoproperlyconnect
or operate the unit in accordance with printed instructions
provided; (C) to failures resulting from abuse, misuse, accident,
or negligence; (D) to units which are not used in accordance
with applicable local codes, ordinances, or accepted trade
practices, and (E) to units repaired and/or modified without prior
authorization from SJE-RHOMBUS®.
© 2014 SJE-Rhombus® PN 1038327B
SJE-RHOMBUS®ONE-YEAR LIMITED WARRANTY

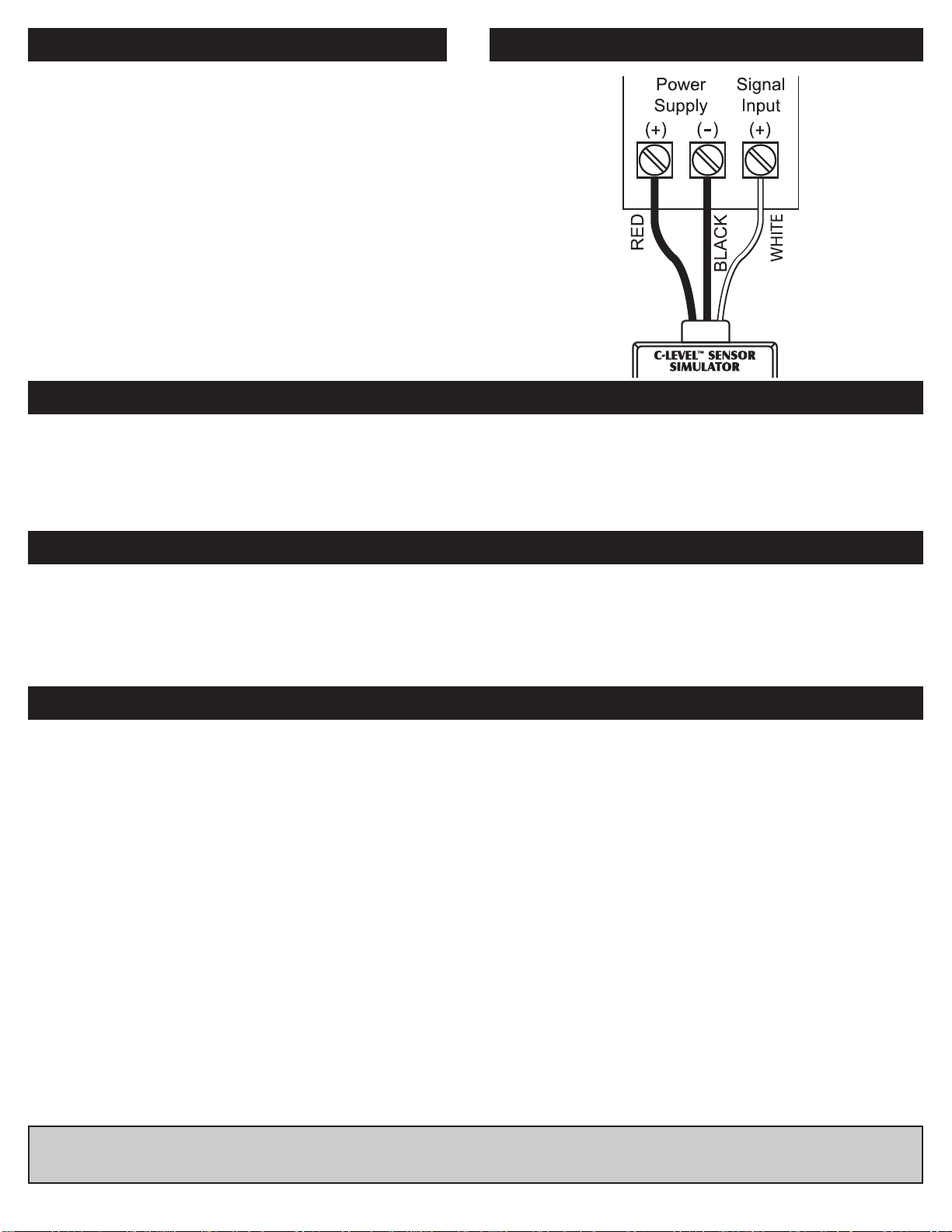

1.Connect the C-Level™Simulator leads to the device
according to Figure A.
2.When connected correctly and power applied, the
green loop power indicator turns on.
1.Verify the device being tested shows a minimum value for the input when the C-Level™Sensor Simulator adjustment knob
is turned fully counter-clockwise, and a maximum value when the adjustment know is turned fully clockwise.
2.Verify the device being tested shows a consistant increase in value while turning the C-Level™Sensor Simulator
adjustment knob from the minimum to the maximum.
If the C-Level™Sensor Simulator power indicator fails to light when connected:
1.Check all wiring connections and verify the power supply voltage is present.
2.Check the C-Level™Sensor Simulator fuse by removing the four screws on the back cover and removing the fuser cover.
3. Contact the factory if the problem persists.
Figure A
TROUBLESHOOTING
TEST THE SYSTEM
USING THE SIMULATOR CONNECTION
NOTICE!
Products returned must be cleaned, sanitized, or decontaminated as necessary prior to shipment to ensure that employees
will not be exposed to health hazards in handling said material. All applicable laws and regulations shall apply.
