Intended use 6
Compatibility 6
Guarantee / Crash Replacement 7
Disassemble the Acros ICR 8-10
Maintenance 11
Assembly of the ICR system 12-19
Adjusting the handlebar height on the bike 20-21
Mounting the stem 22-25
After a crash 26
Care and maintenance 27
Content
Intended use
The Sixpack Millenium ICR stem/Sixpack ICR system is compatible with all
Acros ZS56 ICR headsets. In addition, the Sixpack ICR System can also be
retrotted to Acros 52/52 ICR angle headsets and Acros 52/60 ICR angle head
sets with an aftermarket compression ring (Acros item no. 11.52.106R2AM).
Compatibility
Sixpack components are designed for the following categories according to
ASTM F2043:
• MILLENIUM and EJ Stem: Category 5
Category 5: Extreme use (downhill, freeride, dirt)
Category 5 includes the use of bikes and their components under the
conditions of categories 1, 2, 3 and 4 as well as in demanding, heavily blocked
and extremely steep terrain, which can only be mastered by technically
experienced and very well trained riders. In this category, big jumps are
to be expected as well as intensive use in bike parks or on downhill tracks.
With these bikes it is essential to ensure that after each ride an intensive
check for possible damage is carried out. Predamages can lead to failure
even if further stresses are signicantly lower. A regular replacement of
safetyrelevant components should also be considered. Wearing appropriate
protective gear is absolutely essential. Long travel fullsuspension bikes but
also dirt bikes characterize this category.
6
The statutory warranty applies to all components. If damage occurs
outside the warranty, contact us and we try to nd an individual
solution.
Assembly video
Scan the code and watch
the video.
Guarantee / Crash Replacement
• The tightening torque of the stem must not be exceeded.
• Additionally, check the handlebar manufacturer's instructions for
specic provisions. In particular, the tightening torque may be
restricted by the handlebar manufacturer.
• The assembly sequence must be observed. The clamping points
labeled "NO GAP" must be tightened rst.
• Do not use grease or other lubricants to mount the stem.
DANGER
Danger due to incorrectly mounted stem!
7
Disassemble the Acros ICR
Note: Measure from the highest point of the Acros ICR Topcap to
the end of the steerer tube. The Sixpack ICR system requires at least
47mm free shaft length. With the minimum shaft length, you can no
longer use spacers.
Min. 47mm
8
Disconnect all lines and cables from attachment points such as
brake and shift levers. If necessary, disconnect the cable to your
dropper seatpost or the power supply of an ebike display/control
unit.

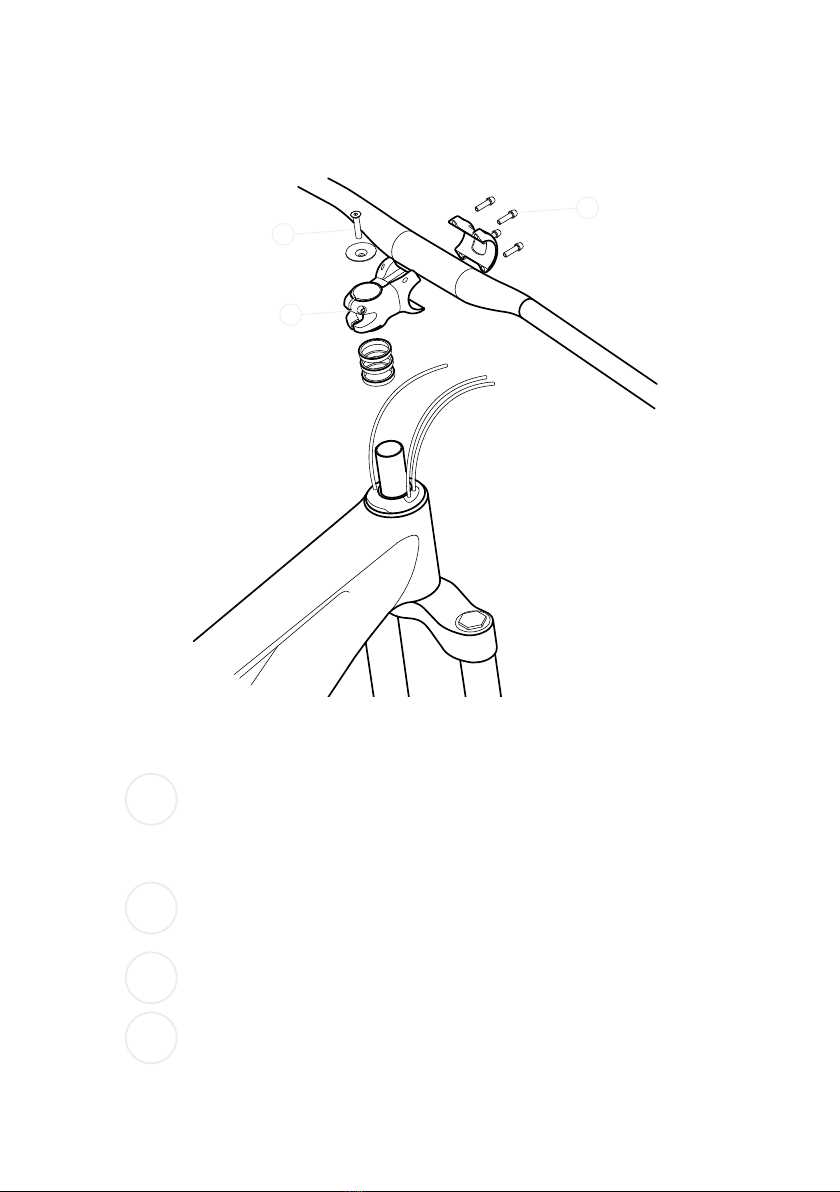

Loosen the handlebar clamp bolts of the stem and remove the
handlebar.
Loosen the headset adjustment bolt.
Loosen steerer tube clamp bolts of the stem and pull the stem and
spacer off the steerer tube.
1
2
2
4
3
3
4
9

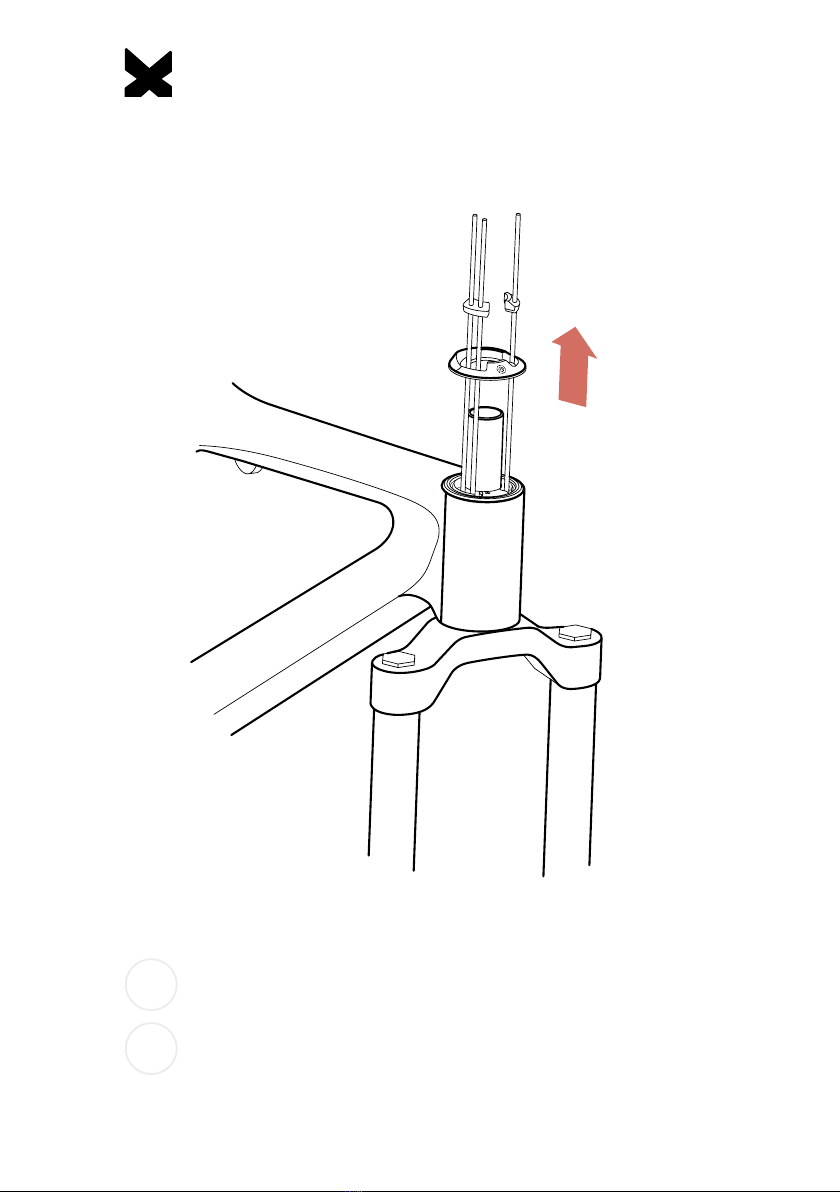

Pull the sealing elements out of the headset cover and from the
lines/cables.
Remove the headset cover from the steerer tube.
5
6
Disassemble the Acros ICR
10

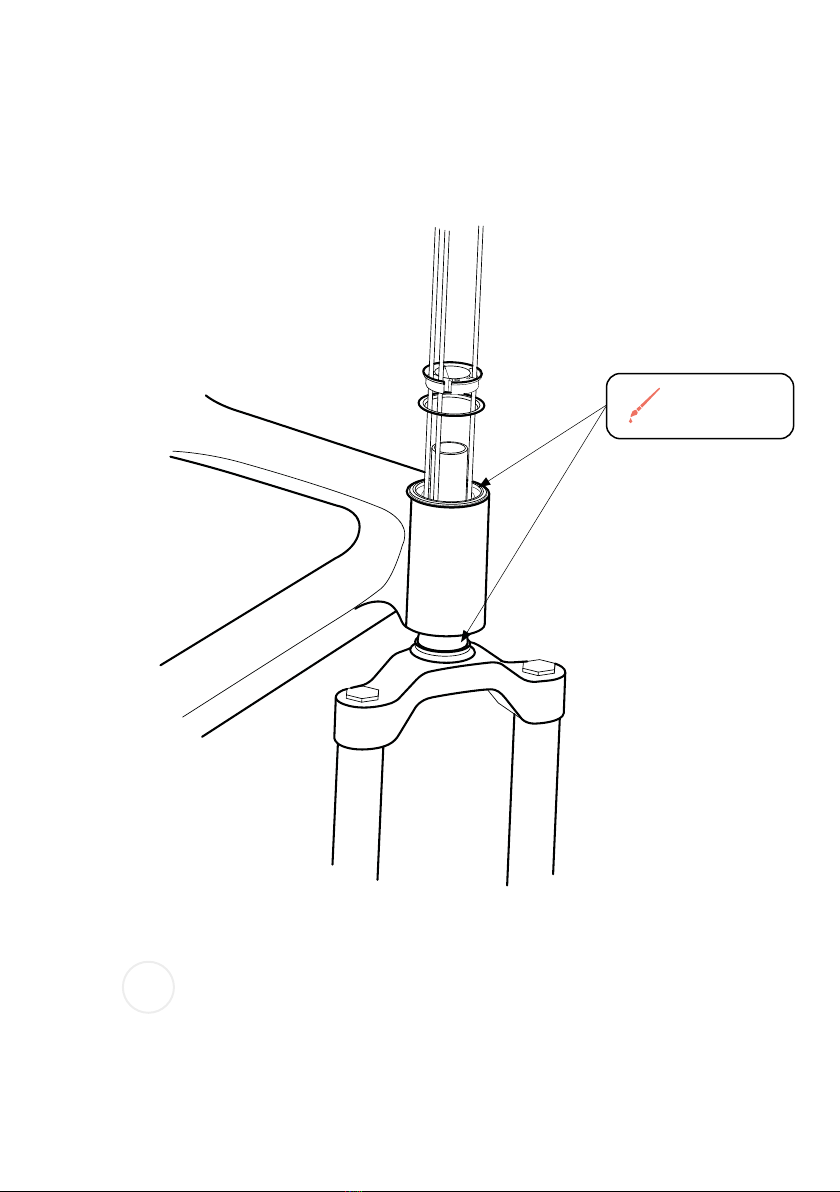

Take the opportunity and clean the headset. To do this, remove the
compression ring and the IPS seal. Lower the fork to have access to
the lower bearing. Clean the bearings and the IPS seal and apply new
grease.
1
Maintenance
Grease
11
