Sixfab Jumpstart 5G Manuel utilisateur

Jumpstart 5G

Product Manual

Sixfab Jumpstart 5G

Release Notes

Date

Version

Description

June 15, 2023

1.0

First Release

June 29, 2023

1.1

Fixed typos and propagation

patterns added

July 31, 2023

1.2

NSA details added

August 29, 2023

1.3

Amended supported bands

Sixfab Jumpstart 5G

1. Product Overview 5

1.1 Description of Sixfab Jumpstart 5G 5

1.2 Target Markets and Applications: 5

1.3 Use Cases and Scenarios: 6

2. Getting Started 7

2.1 Overview of the operating system requirements for the kit 7

2.2 Compatibility with Raspberry Pi OS, necessary drivers, and libraries 7

2.3 Establishing a 5G Connection 8

1. Unplug the USB 3.0 Bridge Connector 8

2. Push to remove top cover 9

3. Plug in the nano type SIM Card (4FF) 9

4. Assemble the top cover 10

5. Connect USB 3.0 Bridge Connector 10

6. Set only your APN to connect the device to network 11

7. Test Cellular Internet Connection 12

2.4 Warnings 13

3. Hardware Specifications 14

3.1 Jumpstart 5G Modem Carrier HAT 14

3.1.2 Pinout 14

3.1.3 Pin Descriptions 15

3.1.4 Layout 16

3.1.5 LEDs 17

3.1.6 Buttons 18

3.1.7 5G Module 19

3.2 Supported frequency bands and modes 19

3.3 Maximum data rates and throughput 20

3.4 Network Protocols 20

3.5 Region 20

3.6 Dimensions 21

3.7 Weight 21

3.8 Raspberry Pi 22

3.9 Power 23

3.10 USB Bridge 23

3.11 Detailed specifications of the internal Antenna 24

3.11.1 Return Loss 25

3.11.2 VSWR 25

3.11.3 Ports Isolations 26

3.11.4 Gains/Efficiencies/Polarizations 26

3.11.5 Propagation Patterns 27

Sixfab Jumpstart 5G

4. Software Specifications 29

4.1 Examples of different network configurations and how to set them up 29

4.1.1 AT+QNWPREFCFG="nr5g_disable_mode" 29

4.1.2 AT+QNWPREFCFG="mode_pref" Network Search Mode Configuration 30

4.1.3 AT+CGDCONT Define PDP Contexts 31

4.2 Detailed network diagnostic and procedures to troubleshoot connection issues 38

4.2.1 AT+QENG Query Primary Serving Cell and Neighbour Cell Information 38

4.2.2 AT+QNWINFO Query Network Information 47

4.2.3 AT+C5GREG 5GS Network Registration Status 48

4.2.4 AT+COPS Operator Selection 50

5. Compliance and Regulatory 51

5.1 Federal Communications Commission (FCC) regulations in the United States 51

5.2 Conformité Européene (CE) regulations in Europe and (UKCA) regulations in the United

Kingdom 52

5.3 Industry Canada (IC) regulations in Canada 52

5.4 International Electro technical Commission (IEC) standards for safety and EMC CB 53

5.5 PCS Type Certification Review Board (PTCRB) standards for cellular devices 53

5.6 Global Certification Forum (GCF) standards for cellular devices 53

6. Warranty and Liability Disclaimers 54

6.1 Description of the warranty provided with the product 54

6.2 Warranty period and limitations 54

6.3 Disclaimer of liability for damages resulting from the use of the product 54

6.4 Limitations on liability for damages caused by defects in the product 54

Reference Documents 56

Sixfab Jumpstart 5G

1. Product Overview

1.1 Description of Sixfab Jumpstart 5G

Sixfab Jumpstart 5G is an IoT computer based on the Raspberry Pi 4, integrated with

the Quectel RM502Q-AE modem, a 5G NR Sub-6GHz variant. It combines the power of

the Raspberry Pi 4 with high-speed 5G connectivity, making it ideal for various IoT

applications. The product features a patent-pending Sixfab designed internal antenna

that delivers excellent performance at Sub-6 frequency bands. The electronics are

enclosed in a custom plastic enclosure with a specially designed thermal system for

optimal performance.

1.2 Target Markets and Applications:

Sixfab Jumpstart 5G is designed to cater to a wide range of markets and applications. It

is particularly suitable for industries and sectors that require high-speed and reliable

connectivity for their IoT projects. The target markets include:

● Network Operators: For network operators, the Jumpstart 5G serves as a

valuable testing and evaluation tool. It allows them to assess the performance

and capabilities of their 5G networks, experiment with different configurations,

and fine-tune their offerings to meet customer demands.

● IoT Solution Providers: The product provides IoT solution providers with a

platform to prototype and validate their 5G-enabled IoT solutions. It enables them

to demonstrate the value and potential of their offerings to potential customers

and partners.

● IoT Developers and Enthusiasts: The Jumpstart 5G empowers IoT developers

and enthusiasts to dive into the possibilities of 5G technology, enabling them to

create innovative applications and solutions that leverage the benefits of

high-speed, low-latency connectivity.

Sixfab Jumpstart 5G

1.3 Use Cases and Scenarios:

Sixfab Jumpstart 5G provides an accessible and comprehensive platform for exploring

and harnessing the capabilities of 5G technology in IoT/eMBB applications. Its flexibility

and ease of use make it an invaluable tool for both individuals and organizations looking

to embrace the potential of 5G connectivity.

Sixfab Jumpstart 5G can be applied in various use cases and scenarios, including:

● IoT Prototyping and Testing: Utilize the Jumpstart 5G to prototype and test new

IoT concepts, ensuring compatibility with 5G networks and exploring the potential

of emerging technologies like edge computing and AI.

● Industrial IoT: Develop industrial IoT applications that harness the power of 5G

for real-time monitoring, predictive maintenance, and remote asset management

in sectors like manufacturing, logistics, and utilities.

● Smart City Solutions: Explore and develop smart city applications that leverage

5G connectivity, such as smart transportation systems, intelligent energy

management, and efficient public services.

● Remote Monitoring and Surveillance: Build solutions for remote monitoring and

surveillance, enabling real-time video streaming, remote control, and situational

awareness across various industries, including security, agriculture, and

infrastructure.

● High-Speed Data Transfer: Test and optimize applications that require

high-speed data transfer, such as multimedia streaming, cloud-based services,

and large-scale data analytics.

● Digital Signage: Jumpstart 5G can be used to power 5G-enabled digital signage

solutions, allowing for dynamic and interactive content delivery in retail,

hospitality, transportation, and other industries. It enables real-time content

updates, remote management, and personalized customer experiences.

Sixfab Jumpstart 5G

2. Getting Started

This section will lead you step by step to create a cellular connection with the Sixfab

Jumpstart 5G.

2.1 Overview of the operating system requirements for the kit

The Jumpstart 5G package includes a pre-configured operating system, which is

Raspberry Pi OS. This ensures you have a seamless experience with the 5G

functionality right out of the box. Hence, there is no necessity for you to install the

operating system image onto the SD card.

2.2 Compatibility with Raspberry Pi OS, necessary drivers, and

libraries

Raspberry Pi OS is based on Debian, so modules that are compatible with

Debian-based systems are generally compatible with Raspberry Pi OS as well. The

cellular module has built-in support in the Linux kernel and is recognized automatically

by the system. No additional drivers are required.

There are specific libraries or software tools available to facilitate communication with

the cellular module such as atcom, minicom etc. are already installed. With these tools,

a user can send AT commands to the cellular module and establish any communication

related to the module.

Sixfab Jumpstart 5G

2.3 Establishing a 5G Connection

Follow the steps below to proceed with the installation of the Jumpstart 5G hardware for

establishing a 5G connection.

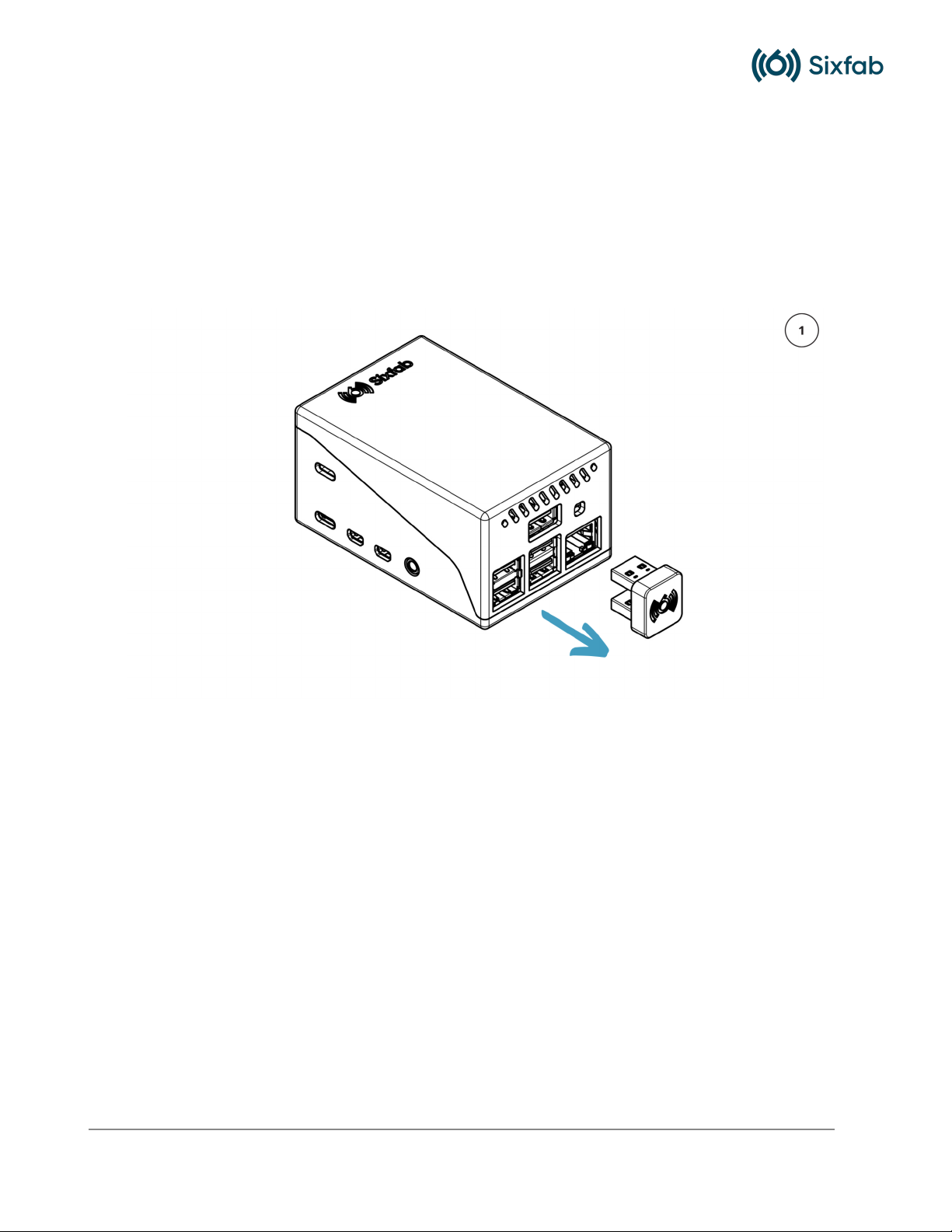

1. Unplug the USB 3.0 Bridge Connector

Sixfab Jumpstart 5G

2. Push to remove top cover

3. Plug in the nano type SIM Card (4FF)

Be careful with corner marking!

Sixfab Jumpstart 5G

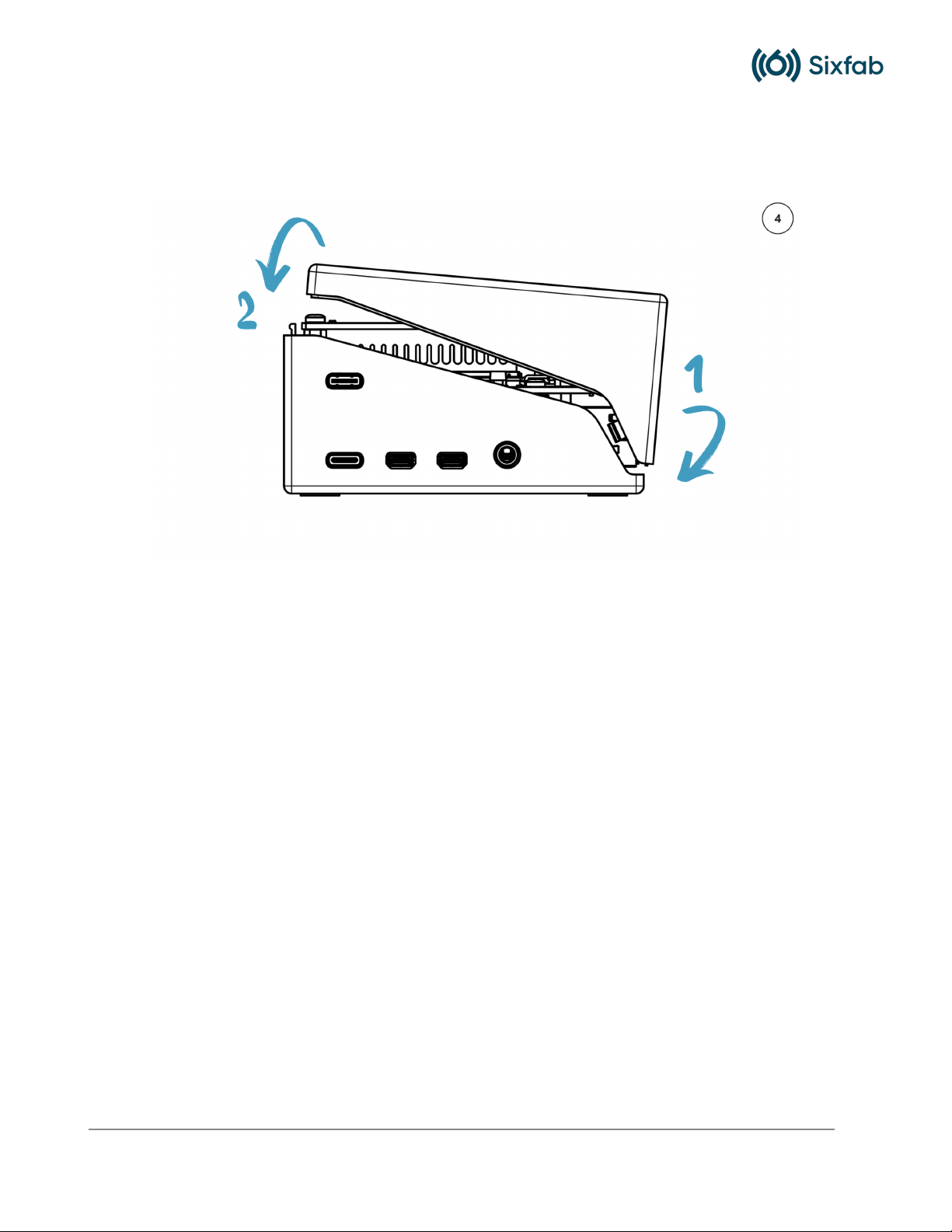

4. Assemble the top cover

Align the bottom edge first!

5. Connect USB 3.0 Bridge Connector

Plug in a micro HDMI and keyboard/mouse to access the desktop GUI and before

powering up the system.

Then plug 2x power adapters in Type-C connectors to power the system on!
