SitOnit Seating WIT Manuel utilisateur

WIT

ASSEMBLY INSTRUCTIONS

Gone are the days when you clock in, stay in your cubicle and clock out. Dynamic

environments call for adaptable seating that rolls with the punches. Our Wit family does

exactly that. Because this is a design inspired by truths about how people work.

C684 Rev. E

To report any issues with this product, please contact our customer service department at (888) 274-8664.

For more information, visit www.sitonit.net

WIT ASSEMBLY INSTRUCTIONS

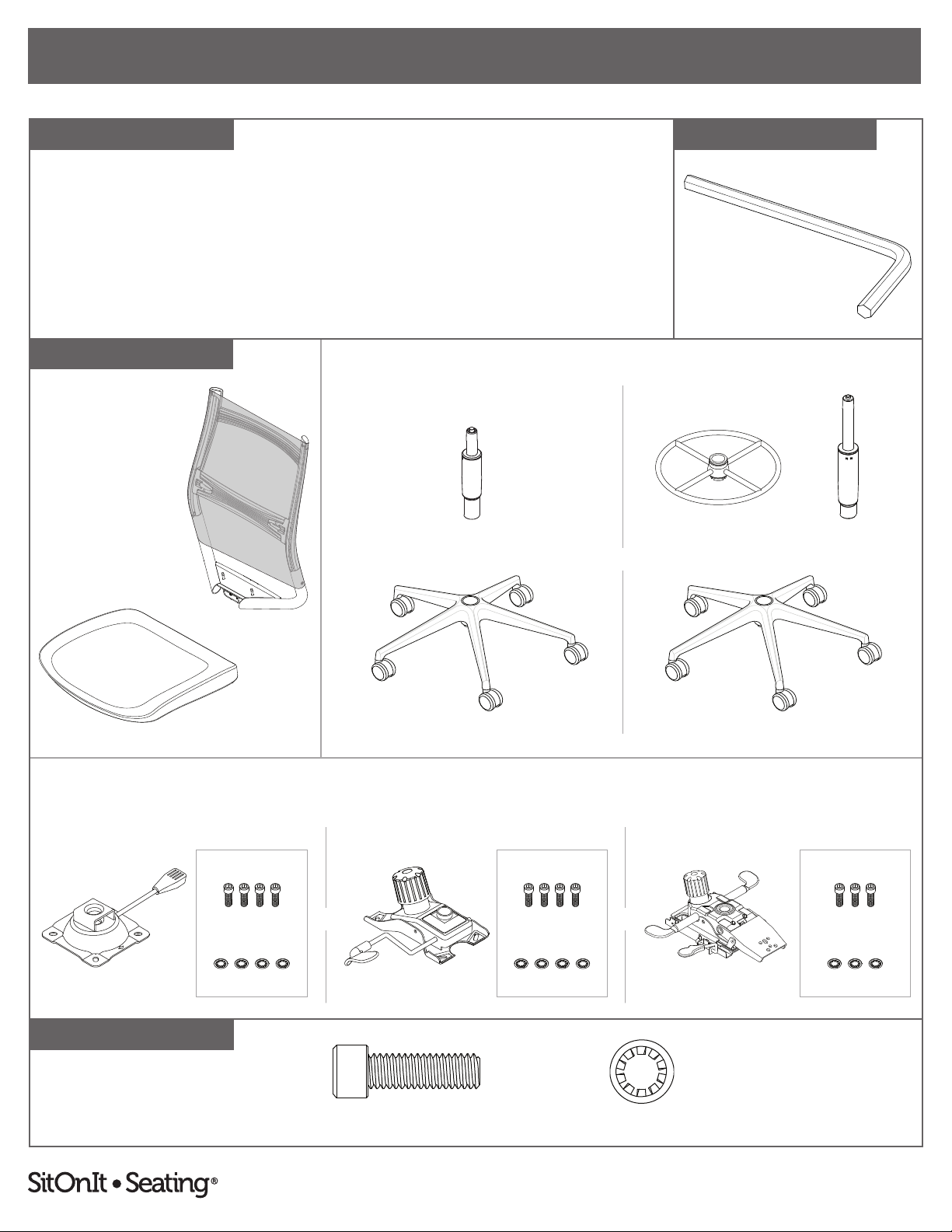

COMPONENT LIST

COMPONENTS

REQUIRED TOOLS

Basic Mechanism

• ⁵⁄₁₆" × 1" Screw (4)

• ⁵⁄₁₆" Washer (4)

• Back Assembly (1)

• Seat Assembly (1)

• Base Assembly (1)

• Cylinder (1)

• Optional Stool Base Foot Ring (1)

Swivel Tilt Mechanism

• ⁵⁄₁₆" × 1" Screw (4)

• ⁵⁄₁₆" Washer (4)

• Back Assembly (1)

• Seat Assembly (1)

• Base Assembly (1)

• Cylinder (1)

Standard Synchro Mechanism

• ⁵⁄₁₆" × 1" Screw (3)

• ⁵⁄₁₆" Washer (3)

• Back Assembly (1)

• Seat Assembly (1)

• Base Assembly (1)

• Cylinder (1)

¹⁄₄" Hex L-Key

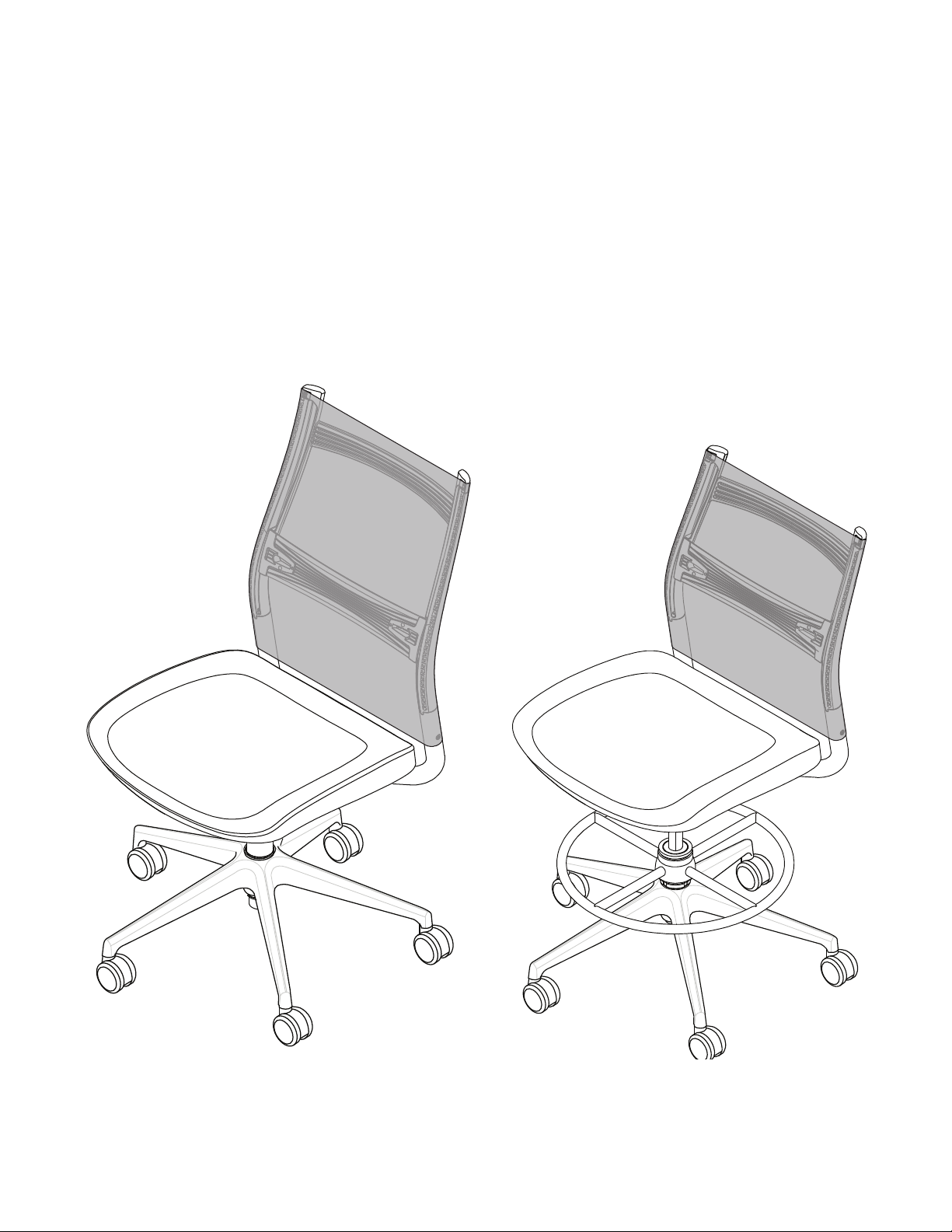

Task Chair Base Option Stool Base Option

Basic Mechanism

Seat Assembly

BASE

OR OR

Back Assembly

⁵⁄₁₆" × 1" Screw ⁵⁄₁₆" Washer

CylinderCylinder Foot Ring

Base AssemblyBase Assembly

HARDWARE KIT

⁵⁄₁₆" × 1" Screws

⁵⁄₁₆" Washers

HARDWARE KIT

⁵⁄₁₆" × 1" Screws

⁵⁄₁₆" Washers

HARDWARE KIT

⁵⁄₁₆" × 1" Screws

⁵⁄₁₆" Washers

Standard Synchro Mechanism

Swivel Tilt Mechanism

1:1 SCALE

MECHANISM

(Mechanism will come attached to seat. Hardware kit is packaged separately.)

To report any issues with this product, please contact our customer service department at (888) 274-8664.

For more information, visit www.sitonit.net

WIT ASSEMBLY INSTRUCTIONS

STEPS

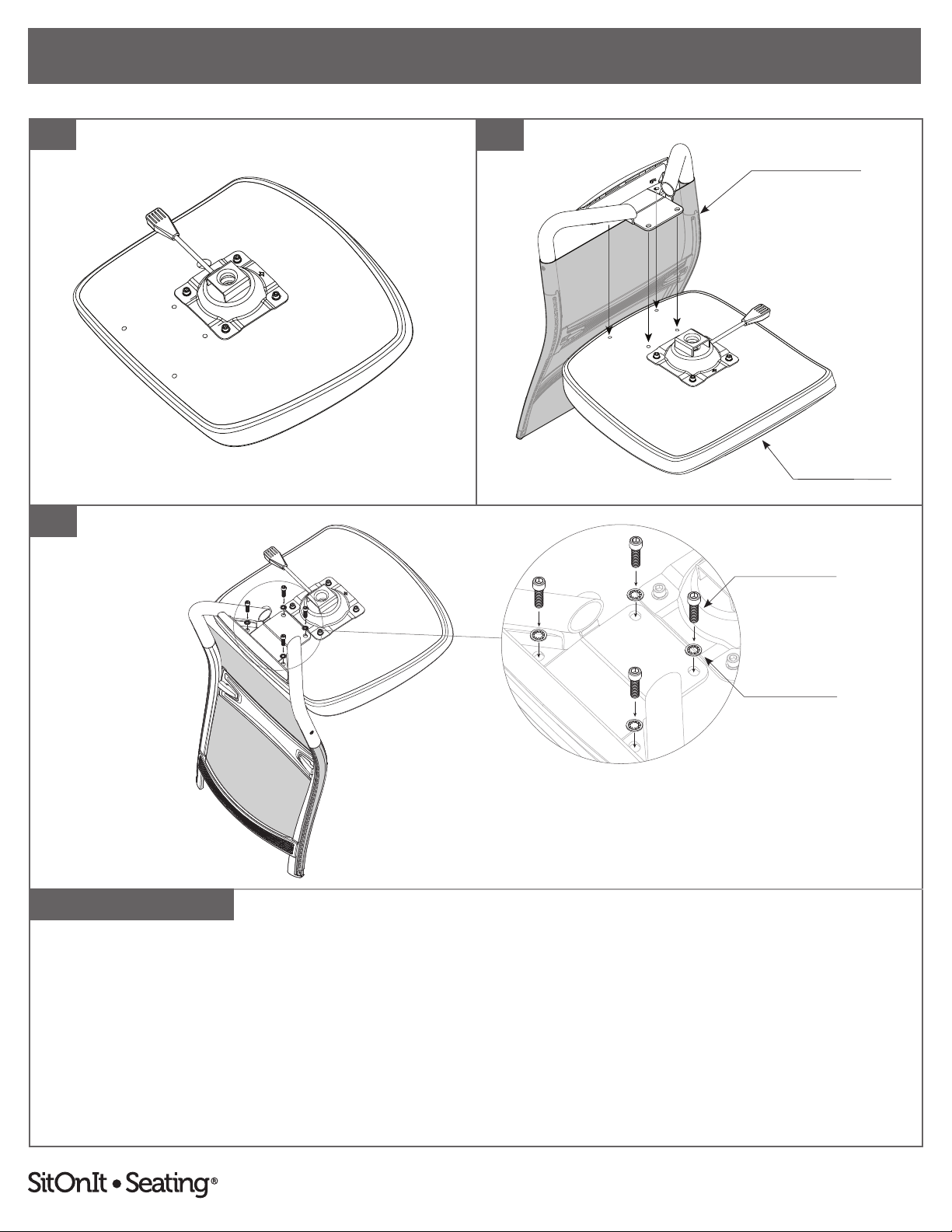

BASIC MECHANISM

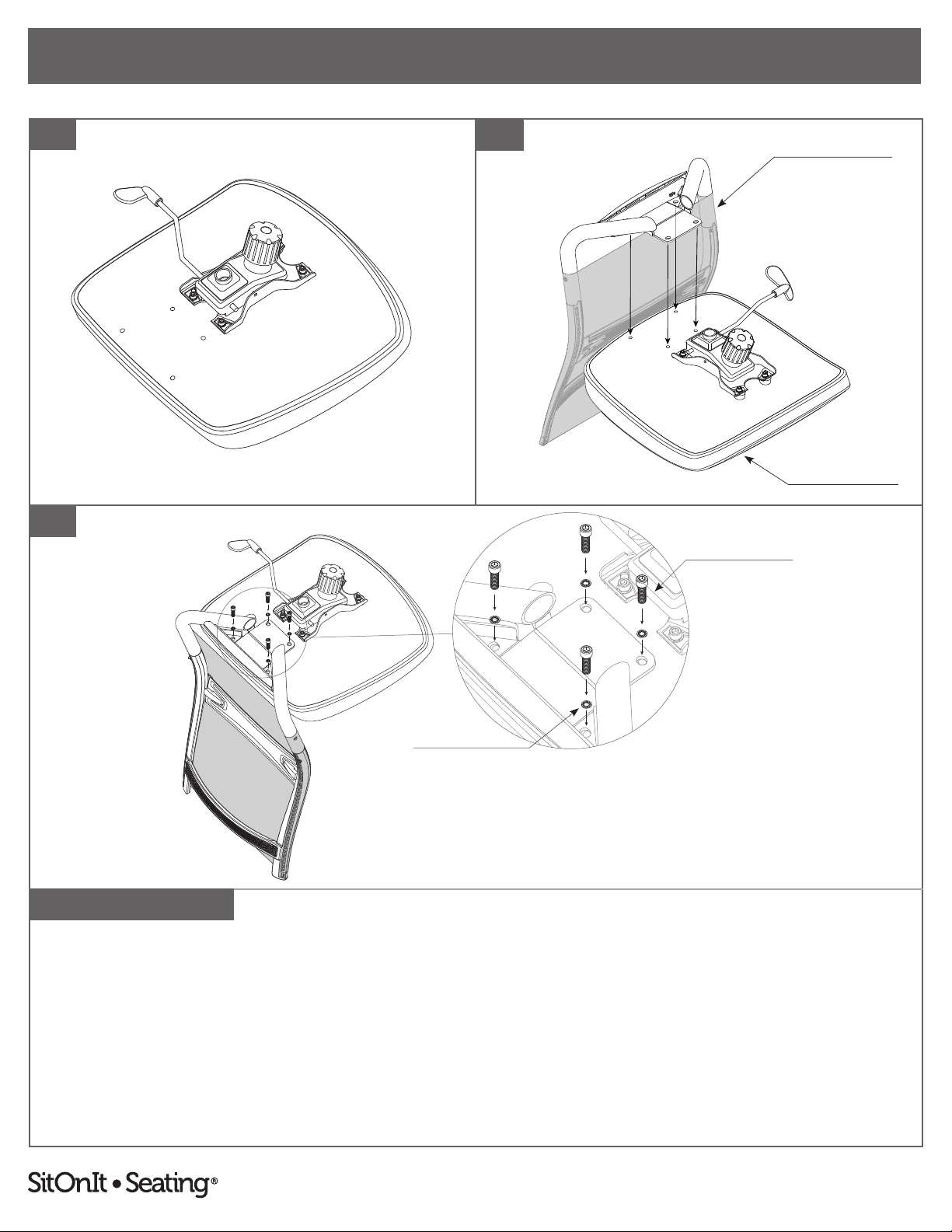

1. Place seat/mechanism assembly on a rm, at surface.

2. Place back assembly over hole pattern.

3. Secure back assembly by tightening four screws and four washers using a ¼" hex L-key to a minimum

torque of 150 in-lbs.

⁵⁄₁₆" × 1" Screw

⁵⁄₁₆" Washer

Back Assembly

Seat Assembly

To report any issues with this product, please contact our customer service department at (888) 274-8664.

For more information, visit www.sitonit.net

WIT ASSEMBLY INSTRUCTIONS

STEPS

1. Place seat/mechanism assembly on a rm, at surface.

2. Place back assembly over hole pattern.

3. Secure back assembly by tightening four screws and four washers using a ¼" hex L-key to a

minimum torque of 150 in-lbs.

1SWIVEL TILT MECHANISM

⁵⁄₁₆" × 1" Screw

⁵⁄₁₆" Washer

Back Assembly

Seat Assembly

To report any issues with this product, please contact our customer service department at (888) 274-8664.

For more information, visit www.sitonit.net

WIT ASSEMBLY INSTRUCTIONS

STEPS

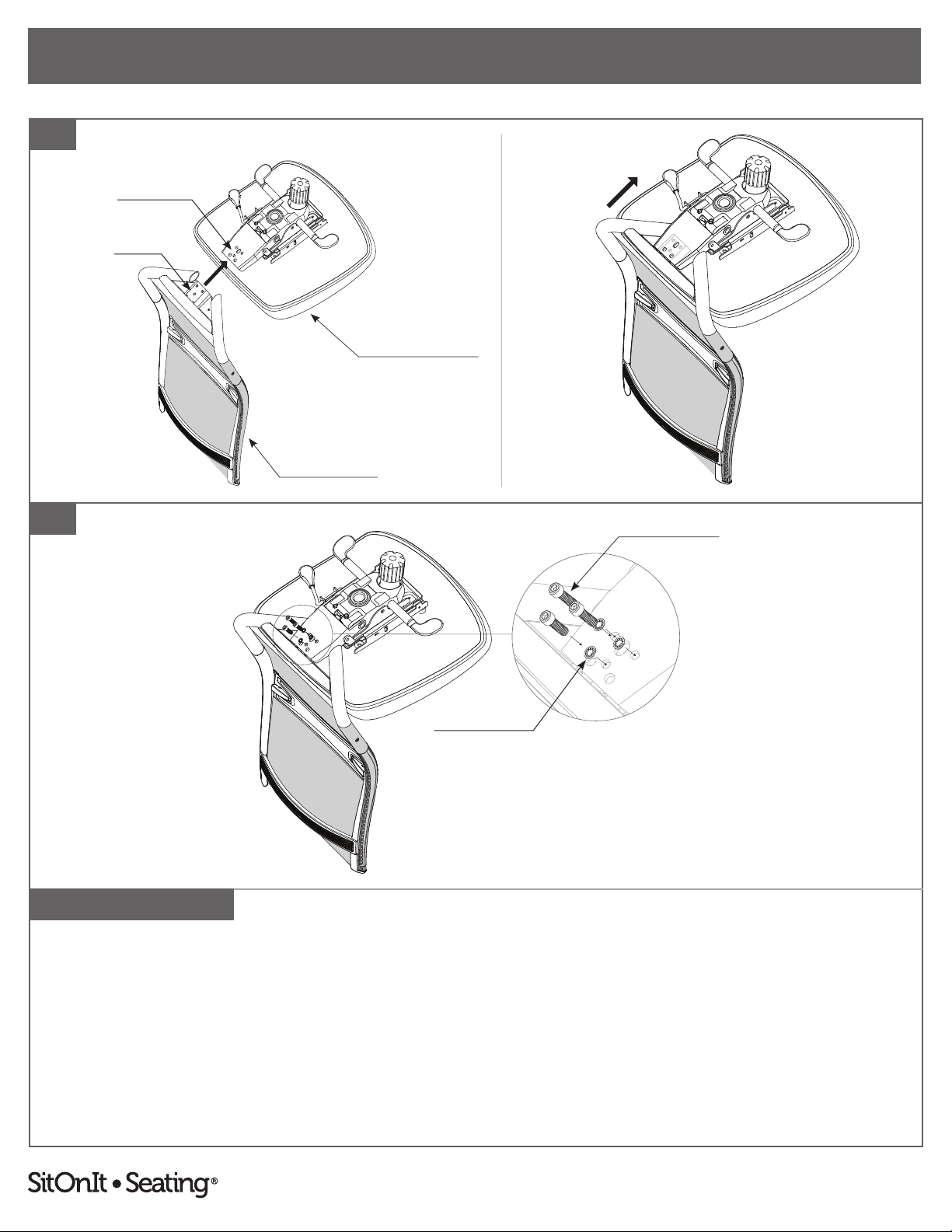

1. Place seat/mechanism assembly on a rm, at surface. Locate yoke by sliding in bracket and

following hole pattern.

2. Secure yoke by tightening three screws and washers using a ¼" hex L-key to a minimum torque

of 150 in-lbs.

STANDARD SYNCHRO MECHANISM

⁵⁄₁₆" × 1" Screw

⁵⁄₁₆" Washer

Yoke

Bracket

Back Assembly

Seat Assembly

To report any issues with this product, please contact our customer service department at (888) 274-8664.

For more information, visit www.sitonit.net

WIT ASSEMBLY INSTRUCTIONS

STEPS

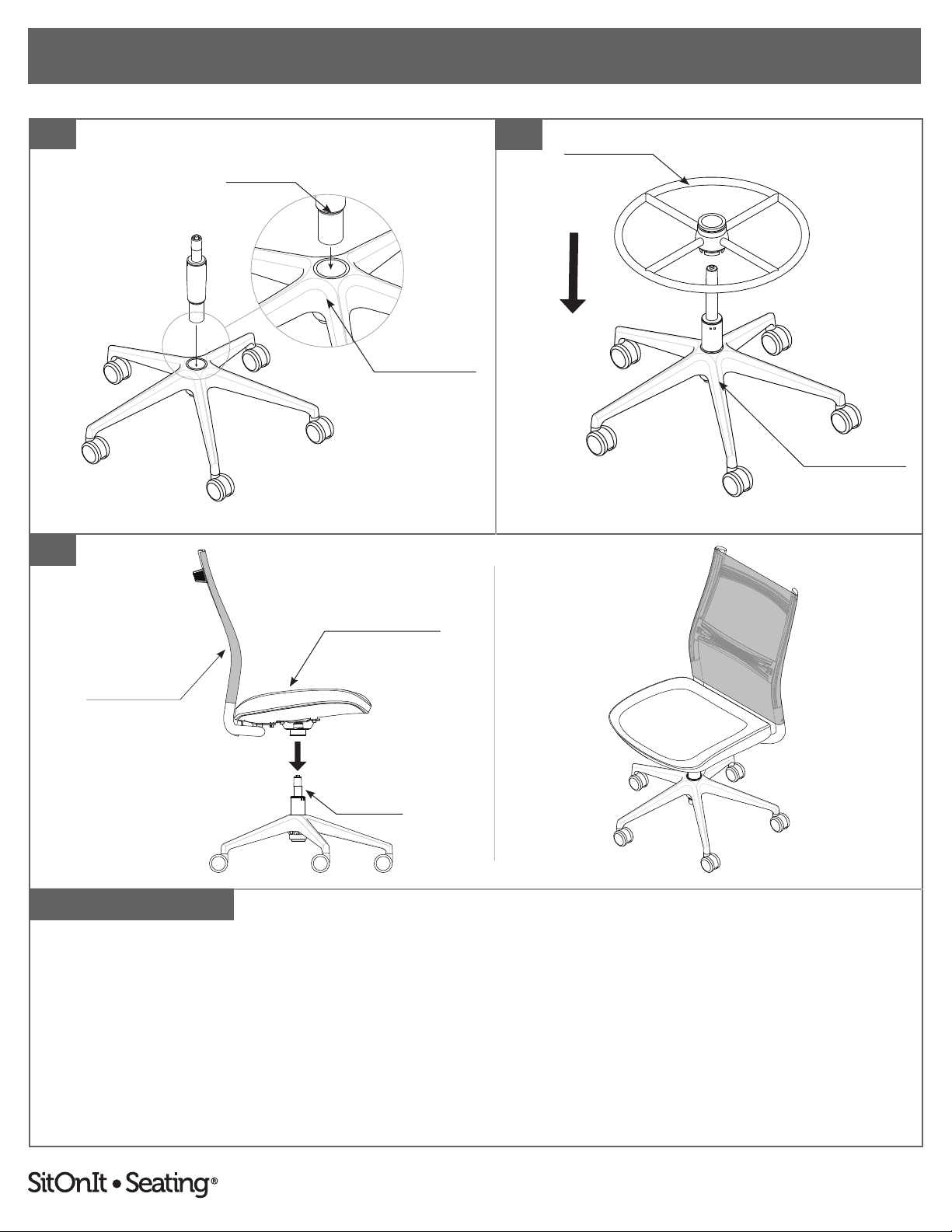

1BASE INSTALLATION

1. Slide the cylinder (for task or for stool) into the center of the base and give it a push to seat it into position.

2. For stool version: Slide the foot ring over the cylinder until it is in the desired position. Follow the instructions in

the foot ring package to tighten into place.

3. With the base assembly sitting on the oor, rmly hold the seat and back assembly, align the mechanism's

cylinder mounting hole with the top of the cylinder and push in place until seated. The cylinder is seated when

you can lift the chair and the cylinder stays attached to the mechanism.

Cylinder

Base Assembly

Cylinder

Seat Assembly

Back Assembly

Foot Ring
