SIT La Precisa spa GT Stove 2 Guide de démarrage rapide

SIT La Precisa spa

Electronics R& D

Viale dell’Industria 31-33 Preliminary

35129 Padova (Italy)

Doc. n.

Rev.

Date

Page

OIM09039

24/06/09

1 of 13

- CONFIDENTIAL -

The content of this document is property of SIT La Precisa that reserves to itself all the rights sanctioned by laws.

OIM09114_01 - User Manual (1).doc

Title

Installation and operational manual

Project

GT Stove 2

RF handset

Written by: C.Menegazzo

Verified by: M. Santello

Approved by: A. Vendramini

SIT La Precisa spa

Electronics R& D

Viale dell’Industria 31-33 Preliminary

35129 Padova (Italy)

Doc. n.

Rev.

Date

Page

OIM09039

24/06/09

2 of 13

- CONFIDENTIAL -

The content of this document is property of SIT La Precisa that reserves to itself all the rights sanctioned by laws.

OIM09114_01 - User Manual (1).doc

1. Revisions index

Rev.

Date

Description

Author

24/04/09

Document emission

C.Menegazzo

01/1209

Regulatory Compliance (FCC)

A.Vendramini

SIT La Precisa spa

Electronics R& D

Viale dell’Industria 31-33 Preliminary

35129 Padova (Italy)

Doc. n.

Rev.

Date

Page

OIM09039

24/06/09

3 of 13

- CONFIDENTIAL -

The content of this document is property of SIT La Precisa that reserves to itself all the rights sanctioned by laws.

OIM09114_01 - User Manual (1).doc

2. Index

1. Revisions index...................................................................................................................................2

2. Index....................................................................................................................................................3

3. Abstract ..............................................................................................................................................5

4. Definitions...........................................................................................................................................5

5. Related document ..............................................................................................................................5

6. Product description ...........................................................................................................................6

6.1 Power supply....................................................................................................................................6

6.2 Environmental conditions.................................................................................................................6

7. Reference drawings ...........................................................................................................................7

7.1 Front view.........................................................................................................................................7

7.2 LCD display view.............................................................................................................................8

8. Use’s instructions...............................................................................................................................9

8.1 Preliminary operations .....................................................................................................................9

9. Operations..........................................................................................................................................9

9.1 Clock regulation...............................................................................................................................9

9.2 Switching ON/OFF...........................................................................................................................9

9.3 Automatic/Manual mode selection.................................................................................................10

9.4 Manual mode burner level selection ..............................................................................................10

9.5 Automatic mode operation.............................................................................................................10

10. Menu navigation ..............................................................................................................................10

10.1 Fan Control .......................................................................................................................11

10.2 Sleep function .....................................................................................................................11

10.3 Crono program function ................................................................................................11

11. Keyboard lock/unlock .....................................................................................................................12

SIT La Precisa spa

Electronics R& D

Viale dell’Industria 31-33 Preliminary

35129 Padova (Italy)

Doc. n.

Rev.

Date

Page

OIM09039

24/06/09

4 of 13

- CONFIDENTIAL -

The content of this document is property of SIT La Precisa that reserves to itself all the rights sanctioned by laws.

OIM09114_01 - User Manual (1).doc

12. °C/°F..................................................................................................................................................12

13. Battery level indication....................................................................................................................12

14. WEEE statement..............................................................................................................................13

15. FCC Notice .................................................................................... Fehler! Textmarke nicht definiert.

SIT La Precisa spa

Electronics R& D

Viale dell’Industria 31-33 Preliminary

35129 Padova (Italy)

Doc. n.

Rev.

Date

Page

OIM09039

24/06/09

5 of 13

- CONFIDENTIAL -

The content of this document is property of SIT La Precisa that reserves to itself all the rights sanctioned by laws.

OIM09114_01 - User Manual (1).doc

3. Abstract

This document describes the installation procedure and the operational requirements to operate

properly the GT Stove 2 system RF handset.

4. Definitions

Automatic mode Thermostatic: the flame level is automatically set by the remote depending on the SET room

temperature and the actual room temperature

Manual mode The flame level is set manually by the user

STANDBY The appliance is off.

CRONO Time program mode: the remote switches ON/OFF the burner depending on the set time

program

5. Related document

Electrical schematic: 7510181

SIT La Precisa spa

Electronics R& D

Viale dell’Industria 31-33 Preliminary

35129 Padova (Italy)

Doc. n.

Rev.

Date

Page

OIM09039

24/06/09

6 of 13

- CONFIDENTIAL -

The content of this document is property of SIT La Precisa that reserves to itself all the rights sanctioned by laws.

OIM09114_01 - User Manual (1).doc

6. Product description

The RF handset is a remote control based on RF transmission, specifically designed to operate

with GT Stove 2 system, in combination with a specific RF receiver module.

6.1 Power supply

Nr. 3 AAA batteries.

6.2 Environmental conditions

Temperature 0°C ÷+50°C

Humidity ≤85%

SIT La Precisa spa

Electronics R& D

Viale dell’Industria 31-33 Preliminary

35129 Padova (Italy)

Doc. n.

Rev.

Date

Page

OIM09039

24/06/09

7 of 13

- CONFIDENTIAL -

The content of this document is property of SIT La Precisa that reserves to itself all the rights sanctioned by laws.

OIM09114_01 - User Manual (1).doc

7. Reference drawings

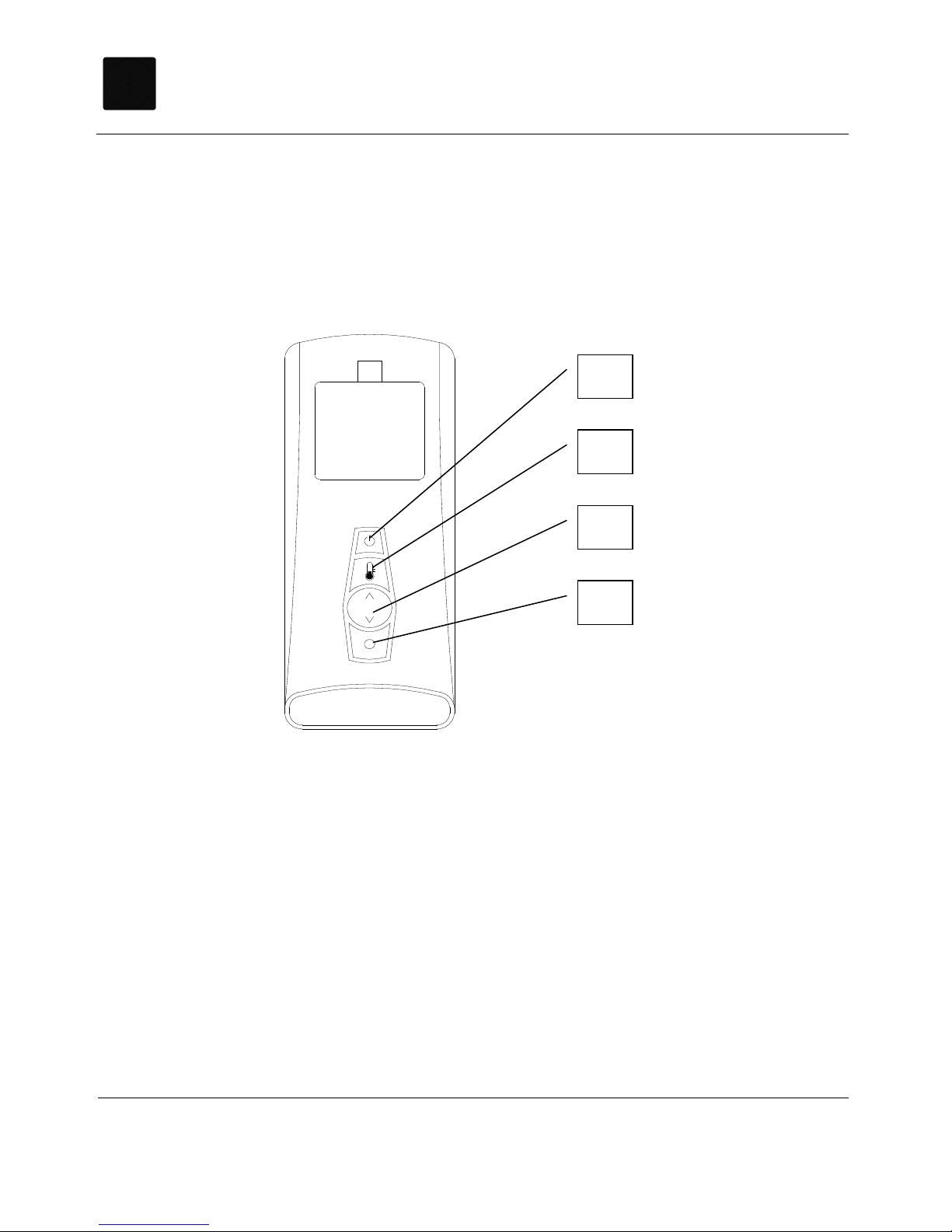

7.1 Front view

SIT La Precisa spa

Electronics R& D

Viale dell’Industria 31-33 Preliminary

35129 Padova (Italy)

Doc. n.

Rev.

Date

Page

OIM09039

24/06/09

8 of 13

- CONFIDENTIAL -

The content of this document is property of SIT La Precisa that reserves to itself all the rights sanctioned by laws.

OIM09114_01 - User Manual (1).doc

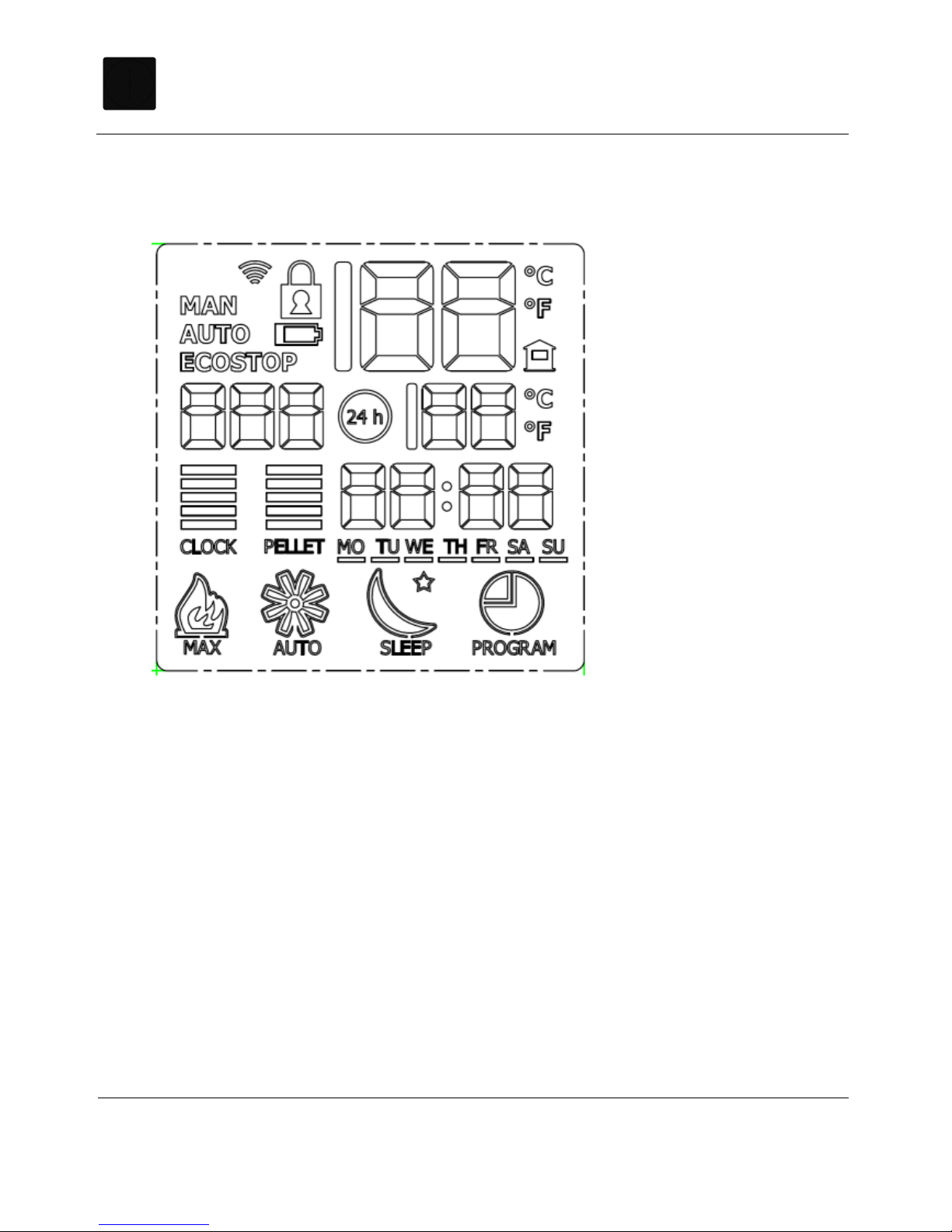

7.2 LCD display view

SIT La Precisa spa

Electronics R& D

Viale dell’Industria 31-33 Preliminary

35129 Padova (Italy)

Doc. n.

Rev.

Date

Page

OIM09039

24/06/09

9 of 13

- CONFIDENTIAL -

The content of this document is property of SIT La Precisa that reserves to itself all the rights sanctioned by laws.

OIM09114_01 - User Manual (1).doc

8. Use’s instructions

8.1 Preliminary operations

Insert the 3 AAA batteries in the back battery seat.

9. Operations

9.1 Clock regulation

Quick description: clock regulation is done by mean of keys C and D.

As soon as the batteries are newly inserted the time’s digits blink.

After first power on (batteries insertion).

The keys “C”, increments (“UP” side) and decrements (“DOWN” side) the hour, minute and week’s day

value, the keys “D” set the on going modification’s value among hour, minutes, and week’s day. After

week’s day regulation, pushing “D” key sets automatically the operational mode “OFF”.

During operation, press contemporarily for 3 seconds the pushbuttons “D” and “B”, the written

“CLOCK” will appear. To change the clock settings, repeat the above described operations.

During operation

9.2 Switching ON/OFF

Quick description: keep key “A” pressed at least 2 seconds.

By pressing the pushbutton “A” for at least 2 seconds, the stove and the handset are switch ON/OFF.

When the remote is switched OFF, the display shows the time, day, room temperature and if enabled,

“CRONO” symbol.

SIT La Precisa spa

Electronics R& D

Viale dell’Industria 31-33 Preliminary

35129 Padova (Italy)

Doc. n.

Rev.

Date

Page

OIM09039

24/06/09

10 of 13

- CONFIDENTIAL -

The content of this document is property of SIT La Precisa that reserves to itself all the rights sanctioned by laws.

OIM09114_01 - User Manual (1).doc

9.3 Automatic/Manual mode selection

Quick description: press “B” key

With stove lighted, by pressing “B” key the operational mode is switched from manual to automatic (see

par. 4) and vice versa.

When automatic mode is active, the display shows the SET temperature value and the “AUTO” icon.

When manual mode is active, the display shows the “MAN” icon, the flame’s icon and the actually

set flame level. If level 5 is currently active, the icon “MAX” below the flame’s icon appears

9.4 Manual mode burner level selection

Quick description: press “C” key

Press “C” (“UP” and “DOWN”) key to move upward and downward in burner flame’s level. The

operation is not cyclic.

In manual mode it’s not possible to have a flame level lower than level 1.

9.5 Automatic mode operation

When automatic mode is selected, the remote checks the room temperature by mean of an internal NTC at

a fixed time interval. Depending on the difference between set room temperature and actual room

temperature, the remote proceeds to modulate the flame increasing or decreasing the flame level with 1

level’s step.

The remote modulates the flame by means of RF signals at 315MHz.

10. Menu navigation

Quick description: by “D” key pressure.

By pressing “D” key, it’s possible to move sequentially to the accessory functions “fan level”,“sleep” and

“program”, in this order; with a further pressure of “D” key the display operation comes back to the active

operational mode

If no key is pressed within 7 seconds from the menu navigation’s activation, the display comes back to

the active operational mode.
