USER GUIDE
Dock & Play Vehicle Kit
2
Table of Contents
Compatibility................................................ 3
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Features ................................................................ 4
Safety and Care Information............................................... 5
What’s in the Box? ....................................................... 7
PowerConnect Vehicle Dock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Vehicle Installation ...........................................10
Step 1: Choose a Location for Your Radio ...................................10
Step 2: Install the Dash or Vent Mount ......................................13
Step 3: Mount the Magnetic Mount Antenna.................................17
Step 4: Route the Magnetic Mount Antenna Cable .......................... 23
Step 5: Connect the Magnetic Mount Antenna and PowerConnect
Power Adapter..........................................................34
Step 6: Connect the Audio ............................................... 35
Troubleshooting ............................................43
Product Specifications ....................................... 47
Patent and Environmental Information .........................48
Patent Information ......................................................48
Environmental Information ...............................................48
FCC Statement .............................................49
Copyrights and Trademarks...................................50
3
Compatibility
This Vehicle Kit is compatible with the following Dock & Play Radios:
•XM XpressEZ
•XM XpressR
•XM XpressRC
•XM XpressRCi
•XM Onyx
•SiriusXM Edge
This Vehicle Kit is not compatible with the following Dock & Play Radios:
•Mirge
•Xpress
•Sportscaster
•All Roady models
•All SkyFi models
4
Introduction
Features
Thank you for purchasing the SiriusXM Dock & Play PowerConnect
Additional Vehicle Kit!
Your new Additional Vehicle Kit has everything you need to use your
compatible SiriusXM Dock & Play Radio in another vehicle.
•Add Satellite Radio to an additional vehicle: No need for a second
subscription. Just install this kit in another vehicle – your spouse’s car,
the family minivan, an RV, or even a boat – and then simply move your
Radio between the two.
•Easy to install: Hear SiriusXM through your existing vehicle radio* with
easy, do-it-yourself installation. The color-coded Vehicle Dock makes it
simple to connect.
For the latest information about this and other SiriusXM products and
accessories, visit www.siriusxm.com or your favorite retailer.
Please read this entire User Guide before installing the Additional Vehicle Kit!
*FM radio required. If your vehicle has an Aux Input, use the included Aux In Cable for
best performance. It will also work with a Cassette Adapter (sold separately).
5
Safety and Care Information
IMPORTANT! Self installation instructions and tips are provided for your
convenience. It is your responsibility to determine if you have the knowledge,
skills, and physical ability required to properly perform an installation.
SiriusXM shall have no liability for damage or injury resulting from the
installation or use of any SiriusXM or third party products. It is your
responsibility to ensure that all products are installed in adherence with local
laws and regulations and in such a manner as to allow a vehicle to be
operated safely and without distraction. SiriusXM product warranties do not
cover the installation, removal or reinstallation of any product.
•Do not expose to extreme temperatures (above 140°F or below -4°F, or
above 60°C or below -20°C).
•Do not expose to moisture. Do not use device near or in water. Do not
touch the device with wet hands.
•Do not let any foreign matter spill into device.
•Do not store in dusty areas.
•Do not expose to chemicals such as benzene and thinners. Do not use
liquid or aerosol cleaners. Clean with a soft damp cloth only.
•Do not expose to direct sunlight for a prolonged period of time, and do
not expose to fire, flame, or other heat sources.
•Do not try to disassemble and/or repair device yourself.
•Do not drop your device or subject it to severe impact.
•Do not place heavy objects on device.
•Do not subject device to excessive pressure.
Introduction
6
Introduction
WARNING!
•Opening the case may result in electric shock.
•Make sure that you insert the PowerConnect Power Adapter’s plug all
the way into the vehicle’s cigarette lighter or power adapter socket.
•If you are using PowerConnect as your audio connection option, it is
advisable not to insert a multi-outlet adapter into the same vehicle
cigarette lighter or power adapter socket to simultaneously power other
devices. Some multi-outlet adapters can prevent the PowerConnect
feature from working properly.
• When using this product, it is always important to keep your eyes on the
road and hands on the wheel. Not doing so could result in personal injury,
death, and/or damage to your device, accessories, and/or to your vehicle or
other property.
• Vehicle installation, service activation, and Radio configuration functions
should not be performed while driving. Park your vehicle in a safe location
before beginning installation.
•This product contains chemicals known to the State of California to
cause cancer and birth defects or other reproductive harm.
Your device should be placed in your vehicle where it will not interfere
with the function of safety features, e.g., deployment of airbags. Failure
to correctly place device may result in injury to you or others, if the unit
becomes detached during an accident and/or obstructs the deployment of
an airbag.
7

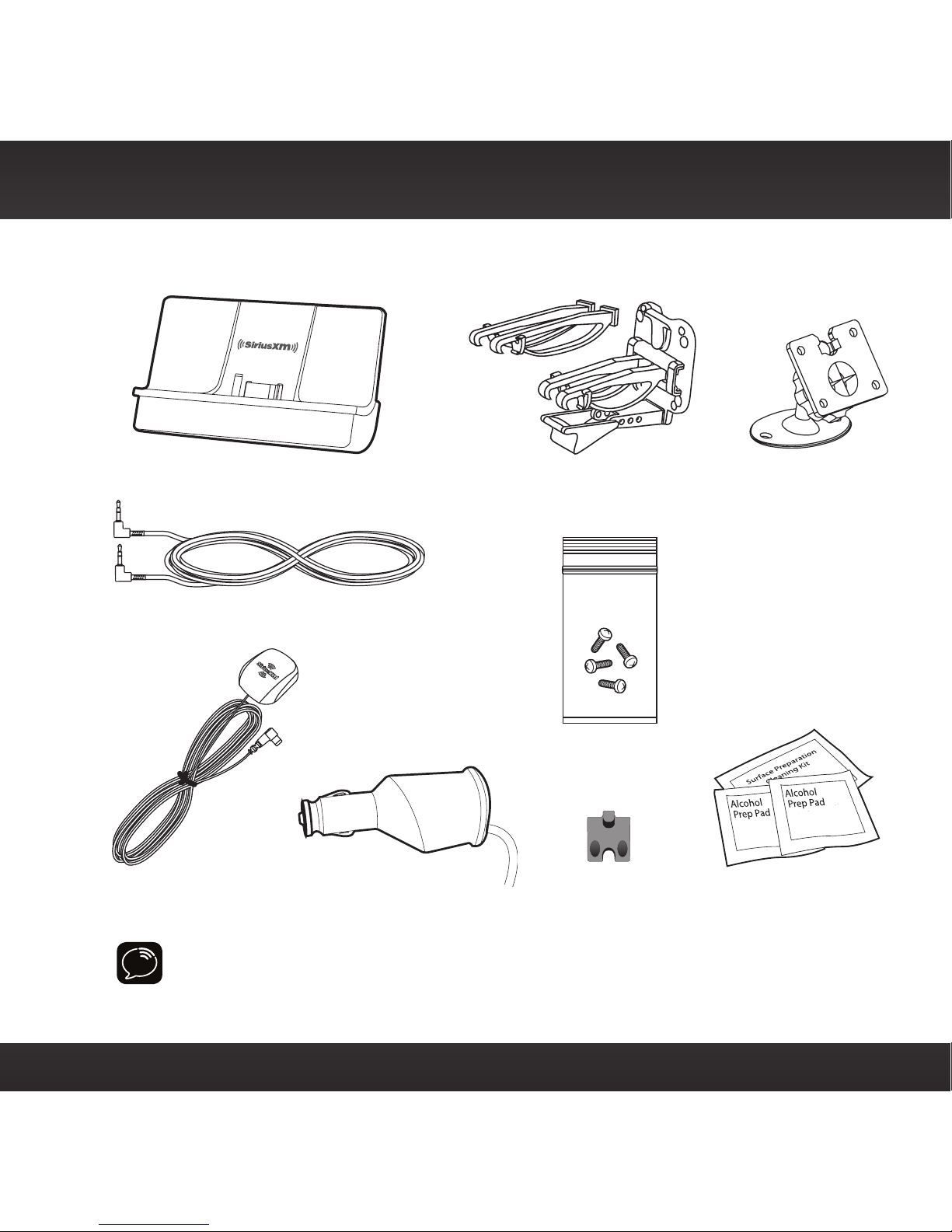

What’s in the Box?
TIP! For other accessories you can add to your Vehicle Kit – from a Remote
Control for ease of use, to a Cassette Adapter for vehicles with a cassette
player, to professional installation if you’d rather leave your in-vehicle setup to
the experts – just visit www.siriusxm.com/accessories or your favorite retailer.
PowerConnect™ Vehicle Dock
Magnetic Mount
Antenna
Alcohol
Preparation Pads
PowerConnect
Power Adapter
Aux In Cable
Dash Mount
Antenna Cable
Routing Adapter
Screws (4)
Vent Mount and
Extended Vent Clamps
Introduction
8
Introduction
PowerConnect Vehicle Dock
Color-Coded Connections
The color-coded PowerConnect Vehicle Dock makes it simple to connect.
Just match the colors on the cable ends to the colors on the dock to see
what goes where.

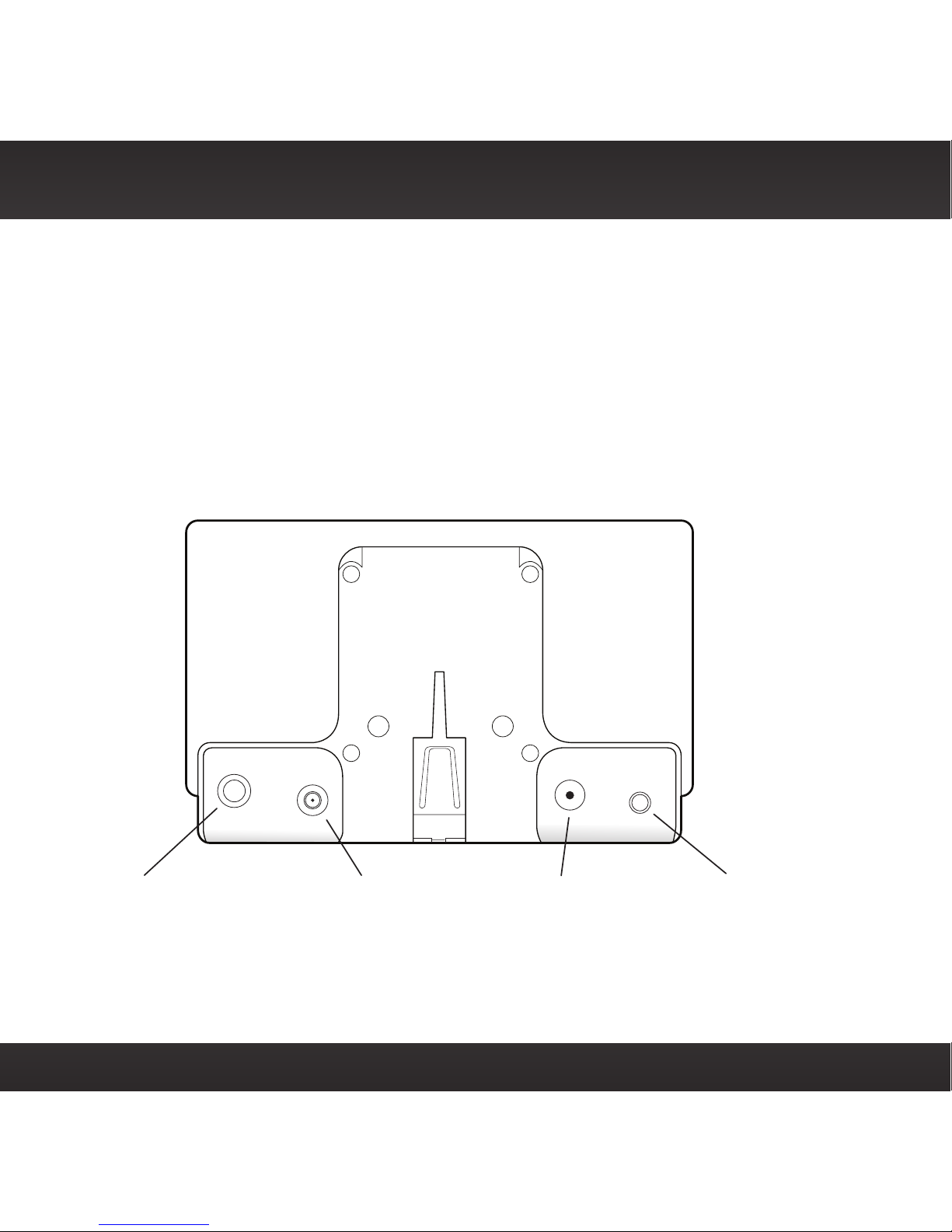

Rear View
AUDIOANT PWRFM
ANT (Silver)
Connection for
the Magnetic
Mount Antenna.
AUDIO (Green)
Connection for Aux In
Cable or optional
Cassette Adapter
(sold separately).
PWR (Red)
Connection for
PowerConnect
Power Adapter.
FM (Blue)
Connection for
optional FM
Direct Adapter
(sold separately).
9
Wire Guide

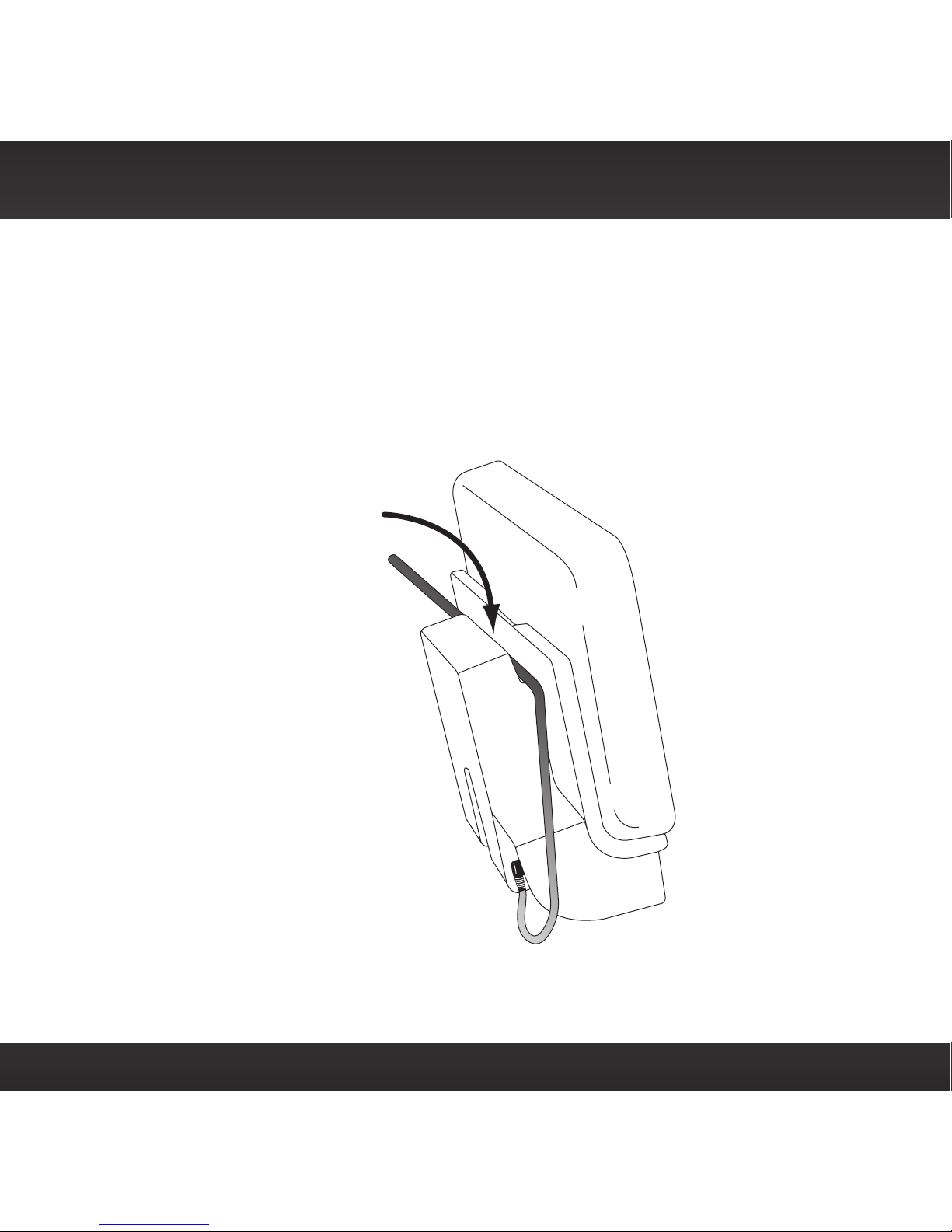

The PowerConnect Vehicle Dock has a wire guide at the top rear to help
organize the cables and wires connected to the dock. If you need to bring
a cable or wire from one side of the dock to the other, utilize the wire guide
by looping the cable though the wire guide as shown.
Wire Guide
Introduction
10
WARNING! DO NOT attempt to install this Vehicle Kit while driving. Park your
vehicle in a safe location before beginning installation.
Step 1: Choose a Location for Your Radio
When installing the PowerConnect Vehicle Dock in your vehicle, choose a
location where it will not block your vision, interfere with the controls, or
obstruct the air bag. The location should be easily accessible and provide
good visibility of the display, and should not be located where it may be in
direct sunlight, which will affect the visibility of the display screen.
Depending on your preference, you can either choose to use the Dash
Mount or the Vent Mount. On the following two pages, several examples
of the PowerConnect Vehicle Dock and Radio mounted in a vehicle are
shown: Ais the on dash method using the Dash Mount, and Bis the vent
clip method using the Vent Mount. You may want to read the installation
instructions for each type of mount in step 2 to help you select which
mount you will use.
NOTE: Your Radio may be a different model than the Radio shown here.
Vehicle Installation
