SIP 01967 Manuel utilisateur

FOR HELP OR ADVISE ON THIS PRODUCT PLEASE CONTACT YOUR DISTRIBUTOR,

OR SIP DIRECTLY ON:

TEL: 01509500400

EMAIL: sales@sip-group.com or technical@sip-group.com

www.sip-group.com

Please dispose of packaging for the product in a responsible

manner. It is suitable for recycling. Help to protect the

environment, take the packaging to the local amenity tip

and place into the appropriate recycling bin.

Never dispose of electrical equipment or batteries in with

your domestic waste. If your supplier offers a disposal facili-

ty please use it or alternatively use a recognised re-cycling

agent. This will allow the recycling of raw materials and help

protect the environment.

Ref: 101212

5 Ton Log Splitter

Please read and fully understand the instructions in

this manual before operation. Keep this manual

safe for future reference

01967

Declaration of Conformity

SIP (Industrial Products) Ltd

Gelders Hall Road

Shepshed

Loughborough

Leicestershire

LE12 9NH

England

As the manufacturer's authorised representative within the EC

declare that the

5 Ton log splitter - SIP Pt. No. 01967

Conforms to the requirements of the following directive(s), as indicated.

2006/95/EC Low Voltage Directive

2006/42/EC Machinery Directive

2004/108/EC EMC Directive

2002/95/EC ROHS Directive

As Amended By

2008/35/EC

And the following harmonised standard(s)

EN 55014-1:2006+A1:2009+A2:2011

EN 55014-2:1997+A1:2001+A2:2008

EN 61000-3-2:2006+A1:2009+A2:2009

EN 61000-3-11:2000

EN 60204-1:2006+A1:2009

EN 609-1:1999+A1:2003+A2:2009

Signed: …………………………………...

Mr P. Ippaso - Director - SIP (Industrial Products) Ltd

Date: 24/10/2012.

DECLARATION OF CONFORMITY

NOTES

CONTENTS

Page No. Description

4 Safety instructions

7 Electrical connection

8 Guarantee

9 Getting to know your log splitter

12 Technical specifications

12 Operating instructions

15 Maintenance

16 Wiring diagram

17 Troubleshooting

18 Exploded diagram

19 Parts list

12 Notes

23 Declaration of conformity

SAFETY INSTRUCTIONS

IMPORTANT: Please read the following instructions carefully, failure to do so could

lead to serious personal injury and / or damage to the Log splitter.

When using your log splitter, basic safety precautions should always be followed to

reduce the risk of fire, electric shock, personal injury and / or damage to the log split-

ter. Read all these instructions before operating the log splitter and save this user man-

ual for future reference.

SIP recommends that this log splitter should not be modified or used for any applica-

tion other than that for which it was designed. If you are unsure of its relative applica-

tions do not hesitate to contact us and we will be more than happy to advise you.

KNOW YOUR LOG SPLITTER: Read and understand the owner's manual and labels af-

fixed to the log splitter. Learn its applications and limitations, as well as the potential

hazards specific to it.

DO NOT USE THE LOG SPLITTER IN DANGEROUS ENVIRONMENTS: Do not use your log

splitter in damp or wet locations, or expose it to rain / water. Always provide adequate

space around the log splitter.

KEEP CHILDREN AND UNTRAINED PERSONNEL AWAY FROM THE WORK AREA: All visitors

should be kept at a safe distance from the work area.

STAY ALERT: Always watch what you are doing and use common sense.

DISCONNECT THE LOG SPLITTER FROM THE MAINS SUPPLY: When not in use.

DO NOT ABUSE THE MAINS LEAD: Never pull the mains lead it to remove the plug from

the mains socket. Keep the mains lead away from heat, oil and sharp edges. If the

mains lead is damaged, it must be replaced by the manufacturer or its service agent

or a similarly qualified person in order to avoid unwanted hazards.

HAVE YOUR LOG SPLITTER REPAIRED BY A QUALIFIED PERSON: The log splitter is in ac-

cordance with the relevant safety requirements. Repairs should only be carried out by

qualified persons using original spare parts, otherwise this may result in considerable

danger to the user, and void your warranty.

DANGER! Check that the log splitter is in sound condition and good working order.

Take immediate action to repair or replace damaged parts.

USE RECOMMENDED PARTS ONLY - Unapproved parts may be dangerous and will

invalidate the warranty.

WARNING! Only operate on a level and stable surface.

WARNING! Do not allow untrained persons to operate the machine and do not oper-

ate the machine without all covers etc. correctly fitted.

WARNING! RISK OF ELECTRIC SHOCK. Do not expose the log splitter to water spray,

rain, dripping water or moisture of any kind.

Do not move the machine when it is running.

Do not leave the machine unattended when in use. Switch the machine off and

unplug from the mains supply before leaving the work area.

Do not allow children or animals near the log splitter, particularly when in use.

Ensure that the log splitter is correctly turned off when not in use and store in a safe,

PARTS LIST….CONT

62 Dipstick Gasket WD03-00062

63 Dipstick WD03-00063

64 Motor with switch WD03-00064

65 Motor WD03-00065

66 Switch box WD03-00066

67 Bolt WD03-00067

68 Nut WD03-00068

69 Spring Washer WD03-00069

70 Bolt WD03-00070

71 Motor Cover WD03-00071

72 Motor Support Shoe - Left WD03-00072

73 Motor Support Shoe - Right WD03-00073

74 Washer WD03-00074

75 Pin WD03-00075

76 Gear Housing Plate WD03-00076

77 Gear WD03-00077

78 Gear Shaft Snap Washer WD03-00078

79 Pin WD03-00079

80 Gear Shaft WD03-00080

81 Sliding Bearing WD03-00081

82 O-ring WD03-00082

83 Pump Cover WD03-00083

84 Bolt WD03-00084

85 Spring washer WD03-00085

86 Washer WD03-00086

87 Bolt WD03-00087

88 Wheel Cover WD03-00088

89 Wheel Shaft Snap Ring WD03-00089

90 Wheel WD03-00090

N/A Switch WD03-00091

PARTS LIST….cont

31 Safety Valve Bolt WD03-00031

32 O-ring WD03-00032

33 Round Head Nut WD03-00033

34 Lever Guard WD03-00034

35 Nut WD03-00035

36 Lever Weldment WD03-00036

37 Lever Head WD03-00037

38 Lever Nut WD03-00038

39 Wheel Frame Plate Weldment WD03-00039

40 Steel Ball, 6 WD03-00040

41 Circlip WD03-00041

42 Restore Valve Spring WD03-00042

43 Valve Rod WD03-00043

44 O-ring WD03-00044

45 Valve Sleeve WD03-00045

46 O-ring WD03-00046

47 Sliding Sleeve Spring WD03-00047

48 O-Ring WD03-00048

49 Sliding Sleeve WD03-00049

50 Washer WD03-00050

51 Valve Plug WD03-00051

52 Lower Plastic Insert WD03-00052

53 Drawing Weldment WD03-00053

54 Loose Nut WD03-00054

55 Hex Bolt WD03-00055

56 Washer WD03-00056

57 Motor Shaft Seal WD03-00057

58 Steel Ball, 2.5 WD03-00058

59 Carriage WD03-00059

60 Support Leg WD03-00060

61 Cylinder Cover - Right WD03-00061

SAFETY INSTRUCTIONS….cont

dry area, out of reach of children.

Do not unplug the log splitter to switch it off - always use the on/off switch.

Never stand on the log splitter.

DO NOT dismantle or tamper with the log splitter, as this may be dangerous and will

invalidate the warranty.

If a problem with the log splitter is experienced, or if the mains lead or plug become

damaged, contact your distributor for repair.

If the log splitter is to be used on business premises - ensure that all local and national

regulations are followed concerning the use of portable appliance at work.

WARNING: Risk of Electric Shock!

Use only the electrical power (voltage and frequency) specified on the model plate

of the log splitter. If in doubt contact the manufacturer.

Use only a three-prong, grounded / earthed mains supply.

ALWAYS unplug the log splitter when not in use.

AVOID DANGEROUS CONDITIONS: Place the log splitter on a 60-75cm high, stable, flat

and level work bench where there is plenty of room for handling, if not possible use the

optional leg stand (SIP code 01971), it must whenever possible bolted to the work

bench, keep your work area clean and free of clutter.

INSPECT THE LOG: Make sure there are no nails or foreign objects in logs to be split, the

end of the log must be cut square, branches must be cut of flush to the trunk.

DO NOT OVER REACH: Floor must not be slippery, keep proper footing and balance at

all times, never stand on the log splitter, serious injury could occur if the tool is tipped

or if the cutting wedge is contacted unintentionally contacted, do not store anything

above or near the log splitter where anyone might stand on the tool to reach them.

DO NOT FORCE THE TOOL: It will do a better and safer job, never try to split logs larger

than those indicated in the technical specifications table, this could be dangerous

and may damage the machine, do not use the log splitter for a purpose for which is

was not designed for.

MAINTAIN YOUR LOG SPLITTER: Keep the log splitter clean for the best and safest per-

formance.

SAFETY INSTRUCTIONS….cont

Safety Symbols Used Throughout This Manual:

Danger / Caution: Indicates risk of personal injury and/or the possibility of

damage.

Warning: Risk of electrical injury or damage!

Note: Supplementary information.

CAUTION: The warnings and cautions mentioned in this user manual can not cover all possible

conditions and situations that may occur. It must be understood by the operator that com-

mon sense and caution are factors which cannot be built into this product, but must be ap-

plied.

PARTS LIST

No. Description SIP Part No.

1 Cylinder WD03-00001

2 Piston O-ring WD03-00002

3 Piston WD03-00003

4 O-ring WD03-00004

5 Spring WD03-00005

6 Piston Rod Weldment WD03-00006

7 Nut WD03-00007

8 Washer WD03-00008

9 Moving Handle WD03-00009

10 Hex Bolt WD03-00010

11 Nut M14 WD03-00011

12 Plastic Seal WD03-00012

13 Bleed Screw WD03-00013

14 O-ring WD03-00014

15 Long Stub WD03-00015

16 Hex Bolt WD03-00016

17 Spring washer WD03-00017

18 Nut WD03-00018

19 Support Plate WD03-00019

20 Oil Tank WD03-00020

21 Hex Bolt WD03-00021

22 Washer WD03-00022

23 Upper Plastic Insert WD03-00023

24 Log Pusher Weldment WD03-00024

25 Nut WD03-00025

26 O-ring WD03-00026

27 Cylinder Cover - Left WD03-00027

28 Copper Gasket WD03-00028

29 Safety Valve Spring WD03-00029

30 Screw WD03-00030

EXPLODED DIAGRAM

ELECTRICAL CONNECTION

WARNING! It is the responsibility of the owner and the operator to read, understand

and comply with the following:

You must check all electrical products, before use, to ensure that they are safe.

You must inspect power cables, plugs, sockets and any other connectors for wear or

damage.

You must ensure that the risk of electric shock is minimised by the installation of appro-

priate safety devices; A residual current circuit Breaker (RCCB) should be incorporated

in the main distribution board. We also recommend that a residual current

Device (RCD) is used. It is particularly important to use an RCD with portable products

that are plugged into a supply which is not protected by an RCCB. If in any doubt

consult a qualified electrician.

Connecting to the power supply:

This SIP log splitter is fitted with a standard 230v ~ 13 amp type plug. Before using the

log splitter, inspect the mains lead and plug to ensure that neither are damaged. If

any damage is visible have the log splitter inspected / repaired by a suitably quali-

fied person. If it is necessary to replace the plug a heavy duty impact resistant plug

would be preferable.

Yellow / green Earth

Blue Neutral

Brown Live

As the colours of the wires may not correspond with the markings in your plug, pro-

ceed as follows: The wire which is coloured blue, must be connected to the terminal

marked with N or coloured black. The wire which is coloured brown, must be connect-

ed to the terminal, which is marked L or coloured red. The wire which is coloured yel-

low / green should be connected to the terminal which is coloured the same or

marked

Always secure the wires in the plug terminal carefully and tight-

ly. Secure the cable in the cord grip carefully.

The wires for the plug are coloured in the following way:

Note: Always make sure the mains supply is of the correct voltage and the

correct fuse protection is used. In the event of replacing the fuse always

replace the fuse with the same value as the original.

Warning: Never connect live or neutral wires to the earth terminal of the plug.

Only fit an approved plug with the correct rated fuse. If in doubt consult a quali-

fied electrician.

GUARANTEE

Guarantee:

This SIP log splitter is covered by a 12 month parts and labour warranty covering failure

due to manufacturers defects. This does not cover failure due to misuse or operating

the machine outside the scope of this manual - any claims deemed to be outside

the scope of the warranty may be subject to charges Including, but not limited to

parts, labour and carriage costs. Consumable items such as fuses and oil are not cov-

ered by the warranty.

In the unlikely event of warranty claims, contact your distributor as soon as possible.

Proof of purchase will be required before any warranty can be honoured.

Note: Proof of purchase will be required before any warranty can be hon-

oured.

ELECTRICAL CONNECTION….cont

Note: If an extension lead is required in order to reach the mains supply;

ensure that this too is rated for the correct voltage and fuse rating.

Note: The cross section of the extension lead should be checked so that it is

of sufficient size so as to reduce the chances of voltage drops.

TROUBLESHOOTING

Fails to split logs

Log is improperly positioned.

The size or hardness of the log

exceeds the capacity of the

machine.

Wedge cutting edge is blunt.

Oil leaks.

Unauthorised adjustment was

made on the max pressure

limit screw.

Refer to operating instruc-

tions (pg13).

Reduce the log size.

Refer to sharpening wedge

(pg16)

Contact the distributor

Log pusher vibrates

or unusual move-

ment.

Lack of hydraulic oil and ex-

cessive air in the system.

Check the oil level for possi-

ble refill, contact the distribu-

tor for repair if oil level is ok.

Oil leaks around

the cylinder ram or

from other posi-

tions.

Air sealed in the hydraulic sys-

tem while operating.

Bleed screw is not tightened

before moving the log splitter.

Oil drain bolt not tight.

Hydraulic control valve as-

sembly or seals worn.

Loosen bleed screw before

operating the log splitter.

Tighten the bleed screw up.

Tighten the oil drain bolt.

Contact the distributor for

repair.

MAINTENANCE INSTRUCTIONS….cont

Sharpening The Wedge:

This log splitter is equipped with reinforced splitting wedge with a blade that is specially

treated. After long periods of operation, and when required, sharpen the wedge using

a fine-toothed file removing any burrs or flat spots on the edge.

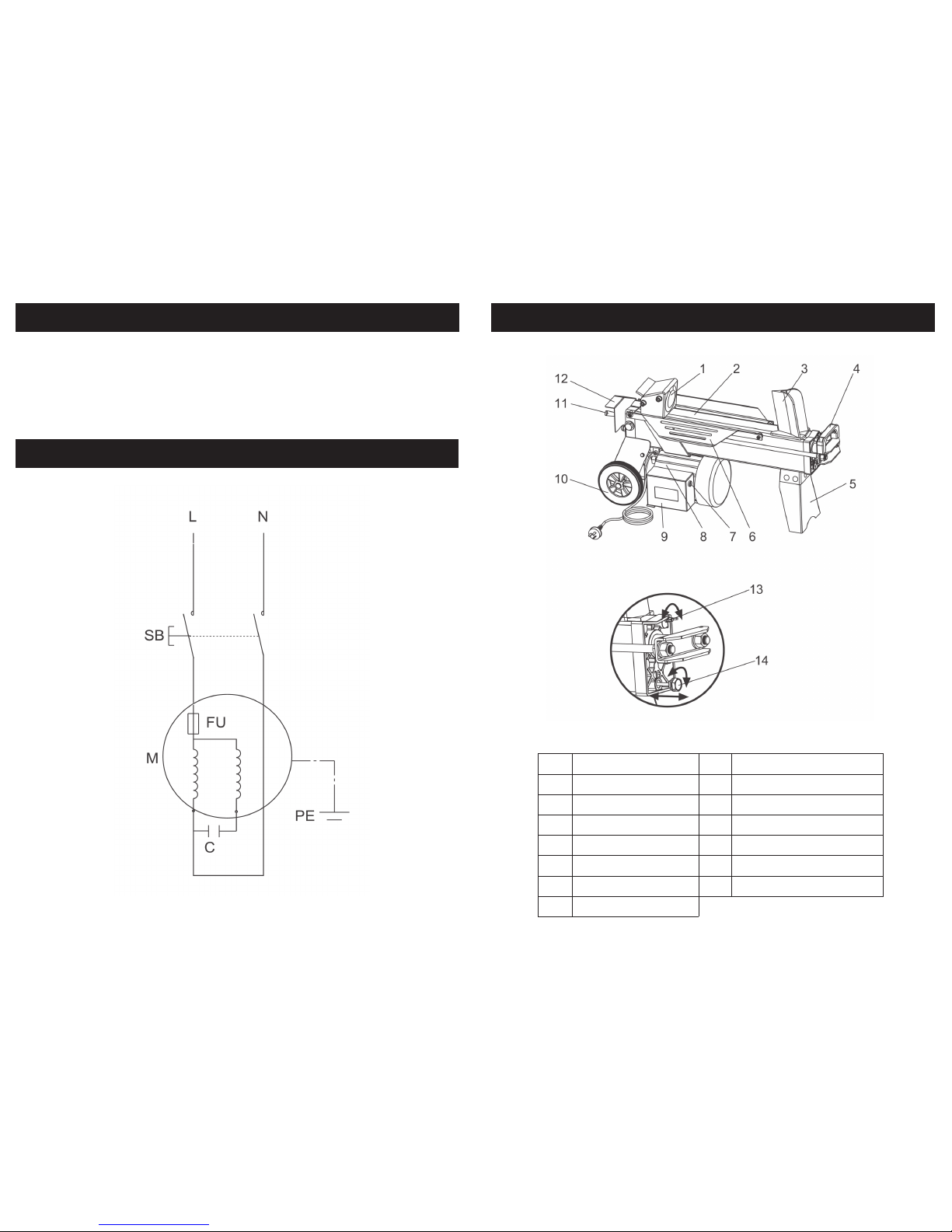

WIRING DIAGRAM

GETTING TO KNOW YOUR LOG SPLITTER

1 Log pusher 9 Switch box

2 Work table 10 Wheels

3 Wedge 11 Hydraulic control lever

4 Lift handle 12 Control lever guard

5 Support leg 13 Bleed screw

6 Log retaining plates 14 Oil drain bolt with dipstick

7 Switch 15 Max. pressure limit screw

8 Motor

Any log splitter may throw foreign objects into the eyes, this can cause

permanent eye damage, always wear safety goggles, everyday eye-

glasses have only impact resistant lenses, they are not safety glasses.

Take used oil to an authorized collection point or follow the stipulations in

the country where the log splitter is used. Do not discharge into drains, soil

or water.

Unplug when not in use, before making adjustments, changing parts,

cleaning, or working on the log splitter.

Read and understand the owner’s manual and labels affixed to the log

splitter. learn its application and limitations as well as the specific potential

hazards peculiar to it.

GETTING TO KNOW YOUR LOG SPLITTER….cont

IMPORTANT: Do not adjust the max pressure limit screw (15), the max pres-

sure was pre-set to 5 tons, unauthorised resetting will the cause the hydrau-

lic pump to fail and will void your warranty.

Warning Labels Attached To The Log Splitter:

MAINTENANCE INSTRUCTIONS

Emptying

Filling

Make sure all moving parts stop and the

log splitter is unplugged.

Unscrew the oil drain bolt (14) and re-

move it.

Pivot the log splitter up onto its leg sup-

port (shown in diagram), and empty the

oil into a 4 litre capacity container.

Emptying.

Filling with fresh hydraulic oil.

Pivot the log splitter onto its motor end.

Refill with fresh hydraulic oil (approx.

3.5 litre).

Clean the dipstick on the oil drain bolt

and put back into the oil tank whilst

keeping the log splitter vertical.

Take out the dipstick and make sure

the oil is just between the two grooves.

Fit the oil drain bolt and retighten, be-

fore returning it to the horizontal posi-

tion.

Replacing The Hydraulic Oil:

CAUTION: At least 2 persons are required to carry out this operation.

Table des matières

Autres manuels SIP fendeuse de bûches

SIP

SIP 01977 Manuel utilisateur

Manuels fendeuse de bûches populaires d'autres marques

Bell

Bell Pickpine VS S9 Manuel d'instructions

ATIKA

ATIKA ASP 5 N-UG Instructions de fonctionnement

Posch

Posch Schälprofi 500 Manuel utilisateur

Champion

Champion 91520 Manuel

Fieldmann

Fieldmann FZLS 1008V-E Manuel utilisateur

Craftsman

Craftsman 247.28775 Manuel utilisateur

Scheppach

Scheppach OX 3-1000 Instructions de montage

Swisher

Swisher 21200 Manuel utilisateur

Elem Garden Technic

Elem Garden Technic FBHT65-22TCH Manuel utilisateur

Champion Power Equipment

Champion Power Equipment 90720 Manuel

Boss Industrial

Boss Industrial ES5T20 Manuel utilisateur

Villager

Villager LSP 12 T Manuel utilisateur

MTD

MTD 242-642A Manuel utilisateur

Rok

Rok 150-51-50255 Manuel utilisateur

Hakki Pilke

Hakki Pilke Raven Manuel utilisateur

Swisher

Swisher LSRB11534 Manuel utilisateur

Hyundai

Hyundai HYLS7TE Manuel utilisateur

Scheppach

Scheppach HL1500M Guide de l'utilisateur
