INSTRUCTION MANUAL.

MODEL 514-4

ELECTRIC

230/3/60

SERIAL.NO. 068955

Source: https://www.industrydocuments.ucsf.edu/docs/yzmx0000

When the liquid in the container becomes to low and is not being deawn up into the pump

the unit will start to cycle very fast. At that time, shut off the air inlet ball valve and

mix another batch of cleaning solution in the drum.

Upon the completion of any foam cleaning using this foamer, clear water should be pumped

through the pump and out the wand. This will greatly enhance the life and performance

of the TEX-O-FOAMER.

To he sure the pump operates smoothly, always maintain an adequate amount of #10 viscosity

lubricating oil in the oiler.

10/84

Source: https://www.industrydocuments.ucsf.edu/docs/yzmx0000

SIOUX PART NO. 10H12

I.•dPORTANT •

READ ALL INSTRUCTIONS BEFORE USING SPRAY GUN

SEE DATA SHEET 18208 AND PARTS LIST PL60,.60W ATTACBED

(FOR 60-H3/8 AND 60-W-B3/8 WITH 3/8" BSPT INLET CONN. Sa"E PL6OS, 60W-B)

S.1FF'_•Y aRECAUTIONc

THIS T5 A HIGH PRESSURE DEVICE WHICH SSOULD ONLY AE USED

•

IN A PIdOP3i

LY ENGI2LERED SYSTEM. THIS SPRAY GUN SHOUL

BE OP='RATED ONLY BY TRAINED OPERATORS ANO %EPT OOT OF

REACB OF CHII,pREN. PL11SE READ THE FOLLOWING.INSTRUCTZON

SSEETS SEFORE ATTEMETING TO OPEBAT£ THE #60 HiGH PRESSURE

GONJSR SPRAY GUN.

c=4 _ THESE WARNINGS OR SERIO275 AND P^

'SMANENT I::JBRY MAY R..SULTf

DO Nor aim gun at any person or any part of the body. Fluids under high

pressure can penetrate the humam skin and can efase se.v-se injury,

possibly resulting in amputation or death. Hot liquids and chemicals

can also cause burns or injury. If any part of the body comes in contact

with the spray stream, immediately consult a physician.

DO NOT at any time olace hand or any other nart of the body in front of

saray nozxle or tip.

DO NOT alter equipment in any mannerr if repairs are necessary, use only

genuine factory repair parts supplied by SPRAYING SYSTEMS CO.

DO NOT exceed mar++•"+m operating pressure of the lowest rated accessory

item within the spray system, even though some of the accessories have

a higher max±+mmm pressure rating.

posit.on Trigger Lockto the "lodced" position.

DO NOT leave equinment under:nressure unattended at any time. Relieve

pressure by shutting off power to niar, turning off the liquid supply to

the pimp, and actuati.ne Trigger •.:nti.l all fluid ceases to _low; then

6.U0 NOT use damaged,pe :orated, or weakened fluid hose.

,^+ONOP usea Gtnjet wi^a a_^^ltf or damaged TricgerLOcfc.

=ittinas, hoses, etc. Fluids which are under high pressure can penetrate

skin, cloth, etc. and cause serious injury.

DO NOT operate a snray gun itthere are any leaks from the aackazngs,

DO NOT touch any metal _ar=s of the .^an or accesseries when s_ra_ving hot

^_:

_ S:HEI:.:. •,.... .'n; .. _ Ci- ... U_% i::.SIC :FYOVl=, 4 9PR?Y G:IIi 3ECOCF'S

RP. D,l'niZROUS B:CnUS: A:?.E.-.

' •^3 VOLL°5E OF LIOLZD CAN BE r'•ff'I'TSD

?RO^? THE CU_7-°'^ OF THE :,0.1 AT fil.;ii VELCCITY.

(C-14-1)

Source: https://www.industrydocuments.ucsf.edu/docs/yzmx0000

dha

so use a"two-nar.ded" control o: 460 Guniet at all times_ :,rasp spray

gun £=-mly with both hands. If an extension is used, grasn the extension.

(Insulated extension if spraying hot liauids) .

DO adopt a secure body stance prior to and during s6ray operation to

safely control the high reactionary force of this unit.

DO impress on other people in the spraying area the importance of

obeying strict safety precautions for everyone's safety.

tnem secure and leakproof.

DO develop a habit of shut..ing off the power to the pump, relieving

fluid pressure from gun and hose by actuating trigger until all fluid

ceases to flow, and setting the Triacer Lock in the locked position,

before attempting to remove the tip, nozzle, gun or any part of the

gun......or when gun is not in use.

Do check oneration of TriggerLock before each spray period. Trigaer

Lock must hold the Trigger to its forward position. (Adjust if

necessary - see section, Trigger Adjustment Procedure.)'

DO carefully check and tighten threadedconnections regularly. Make

Do flush gun after each spray period, vsing the same safety precautions

as used during spraying operations. Always use the lowest possible

pressure for flushing.

-•

DD keep gun clean and dry to allow for oositive grip.

DO use Gunjet in a well ventilated area and aiaice sure snray gun IS

grounded properly when used in a possibly explosive or in?lanmable

environment.

I*TOeTTANT:

IN CASE OF TBE SLIGHTEST APPEAHANCE OF SKIN Pr7ETR71TION FROM

SPRAY. CONSULT A PHYSICIAN IM.MEDIATE..Y.

IN.S'TALLATION•

Before installing Guajet to hose, select Washjet Tip or Washjet Nozzle

and, if desired. an appropriate extension for your application. Install

on gun with t_p or nozzle positioned for your particular spraying needs

and tighten.

Attach Gunjet to hign pressure hosewith rating to meet or exceed the

maxxmum ooera:ing pressure to be used., When _spray gon is beang used

.'_napossibleexclosiveorflaz^^able environment, a grounded zyne hose

saould be used. ^ .

.._

tollon yourpucv andcomconent parts manu=acturer's recommendations for

operation, but in any case, do not exceed the pressure or temperature

of the lowest rated component within the system.

;031176790^

Source: https://www.industrydocuments.ucsf.edu/docs/yzmx0000

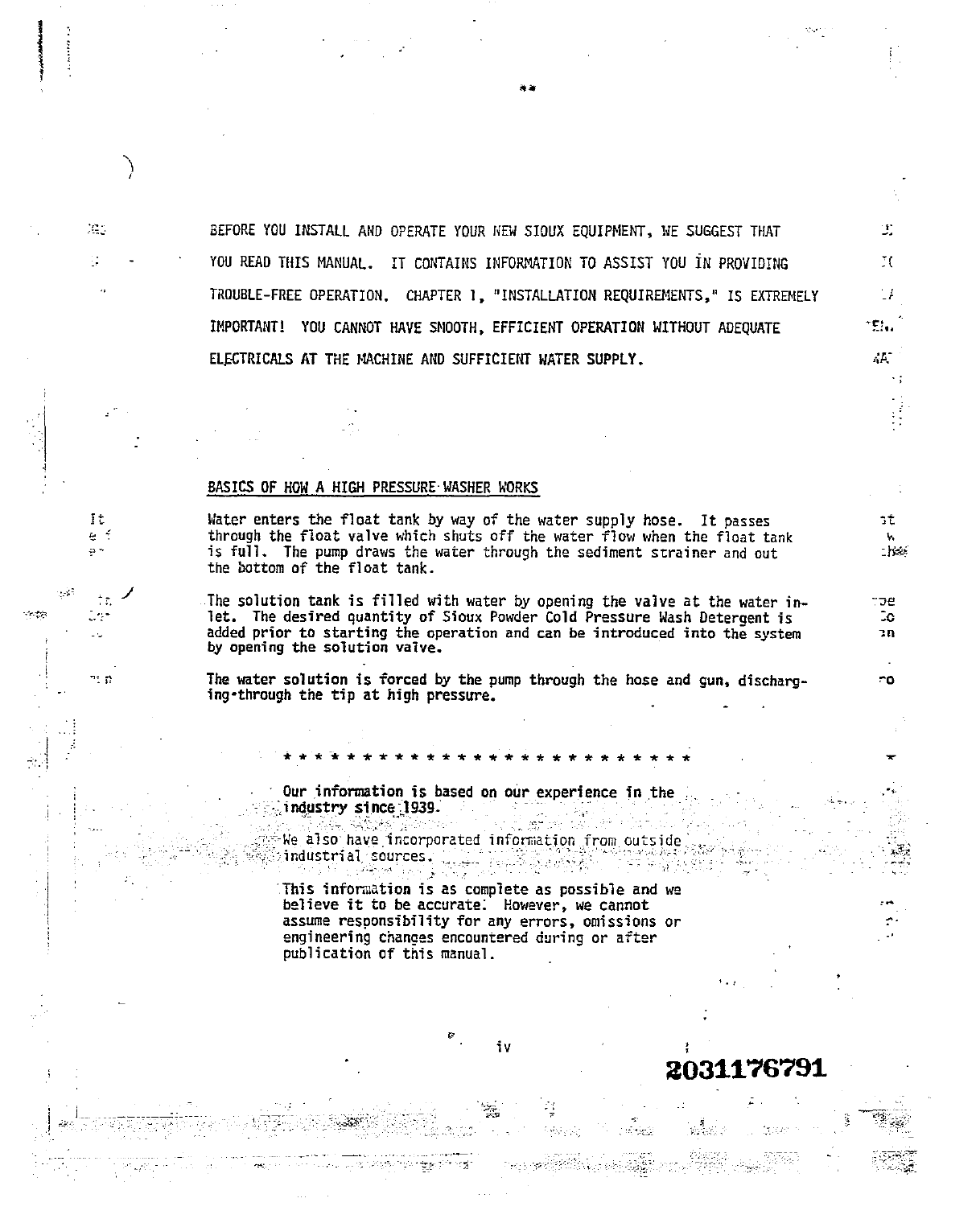

BEFORE YOU INSTALL AND OPERATE YOUR NEW SIOUX EQUIPMENT, WE SUGGEST THAT

YOU READ THIS MANUAL. IT CONTAINS INFORMATION TO ASSIST YOU IN PROVIDING

TROUBLE-FREE OPERATION.

CHAPTER 1, "INSTALLATION REQUIREMENTS," IS EXTREMELY

IMPORTANT!

YOU CANNOT HAVE SMOOTH, EFFICIENT OPERATION WITHOUT ADEQUATE

EL)_CTRICALS AT THE MACHINE AND SUFFICIENT WATER SUPPLY.

'Et.,

BASICS OF HOW A HIGH PRESSURE WASHER WORKS

Water enters the float tank by way of the water supply hose. It passes

through the float valve which shuts off the water flow when the float tank

is full. The pump draws the water through the sediment strainer and out

the bottom of the float tank.

The solution tank is filled with water by opening the valve at the water in-

let.

The desired quantity of Sioux Powder Cold Pressure Wash Detergent is

added prior to starting the operation and can be introduced into the system

by opening the solution valve.

The water solution is forced by the pump through the hose and gun, discharg-

ing•through the tip at high pressure.

* . ^ • * * * x ^ : t : ^ w r ^ x ,t * * ,r t : ^ • •

Our information is based on our experience in the

i ndustry si nce ,1939.

We also have,incorporated information from outside

industrial sources.

;;

This information is as complete as possible and we

believe it to be accurate: However, we cannot

assume responsibility for any errors, omissions or

engineering changes encountered during or after

publication of this manual.

2031176791

-o

Source: https://www.industrydocuments.ucsf.edu/docs/yzmx0000

CHAPTER I - INSTALLATION REQUIREMENTS

Section A - ELECTRICAL REQUIREMENTS

ADEQUATE ELECTRICALS ARE CRITICAL TO SATISFACTORY OPERATION OF

THE EQUIPMENT.

Find the horse power requirements as listed below and provide

the recommended electricals for your unit. The electrical manufacturer,

in accordance with NEMA Standards, requires these electricals:

Total

230/3/50-60 460/3/50-60

Horse Power

Requirements

Wire

Gauge

ircuit

Breaker.

Wire

Gauge

ircuit

Breaker

50 10

INADEQUATE ELECTRICAL CAPACITY WILL

RESULT IN ERRATIC OPERATION,

UNSCHEDULED SHUTDOWNS DUE TO OVER-

LOAD, AND FAILURE OF ELECTRICAL

EQUIPMENT DUE TO OVERHEATING.

Circuit breakers are the transitional equipment built to provide

sufficient power from the main electrical system to the local system

and are designed to take the maximum surge of power required to place

the equipment in operation. (Note: A circuit breaker is the not

same as a fuse.) .

The initial surge of power required when starting up the equipment

is much greater than the operating current requirements.

9oq;he time.trouble with the washer is due to inadequate

electricaL power AT THE EQUIPMENT WHILE UNIT IS OPERATING.

20311I6792_

Source: https://www.industrydocuments.ucsf.edu/docs/yzmx0000

CHAPTER I - SET-UP PROCEDURE

Section B - WATER SUPPLY- REQUIREIENTS

WATER SUPPLY AVAILABLE SHOULD BE 150% OF THE RATING OF THE UNIT AT ALL TIMES,

SUFFICIENT TO KEEP WATER IN THE FLOAT TA14K DURING OPERATION. (i.e., a unit rated

at 2 gallons per minute (GPM) needs a water supply of 3 aallons per minute (GPM).

DO NOT ALLOW DEMAND AT OTHER OUTLETS TO STARVE WATER SUPPLY TO UNIT.

WATER PRESSURE SHOULD NOT BE EXCESSIVE. If water pressure is over 50 Pounds

per square inch (PSI), it may not permit the float valve to seat properly and

a pressure reducing valve should be installed. Contact your local utility,

heating/plumbing wholesaler or Sioux Steam Cleaner Corporation for assistance.

IN SOME AREAS IT IS NECESSARY TO CONDITION THE WATER. Contact your local

water conditioning representative for analysis or recommendations.

DO NOT USE RUSTY OR SANDY WATER.

Water inlet temperature should not exceed 1400F.

Source: https://www.industrydocuments.ucsf.edu/docs/yzmx0000

CHAPTER III - OPERATION

Section A - Set-Up Procedure

To Set-up unit for operation, proceed as follows:

Unpack and inspect unit for damage in shipment. Tighten fittings as

they may have been loosened by vibration during shipment.

Each unit has a washer hose, washer gun, and wash tips of different

spray angles.

Each end of hose is furnished with quick couplers.

Attach the washer gun to the high pressure washer hose. Attach wash

nozzle later after water tanks, pump, hoses, and wash gun have been cleared

of foreign matter.

Connect the washer hose to the discharge outlet of the unit.

Connect water source, preferable an extra-heavy garden hose, to the

float tank inlet. Provide solid brass fittings on garden hose.

Connect the unit TO PROPER ELECTRICAL OUTLET, USING ELECTRICAL CORDS

OF HEAVY-DUTY GROUNDED WIRE OF SUFFICIENT WIRE SIZE TO ASSURE PROPER VOLT-

AGE AT THE MACHINE. Alternatively, equipment can be wired in direct by a

qualified electrician using appropriate conduit wiring. See "Electrical

Requirements," Chapter 1, Section A.

The unit is now ready for operation. Refer to Chapter III, Section 8,

"Operation For High Pressure Washing."

NOTE

BE ABSOLUTELY CERTAIN UNIT HAS ADEQUATE

AND GROUNDED ELECTRICALS AT THE MACHINE,

AND A STEADY SUPPLY OF WATER BEFORE BE-

GINNING OPERATION.

OPERATION FOR HIGH PRESSURE WASHING

Turn on water supply to unit. KEEP WATER SUPPLY ON WHENEVER THE UNIT

IS OPERATING.

Adjust float valve as required to provide CONSTANT SUPPLY OF WATER IN

FLOAT TA1iK.

See CHAPTER V, B-1.

If ueteraent solution is desired, fill solution tank 3/4 full with

water.

Add Sioux Powder Cold Pressure Washer Detergent to Water. See

Section E, Chapter III. Mix well.

Source: https://www.industrydocuments.ucsf.edu/docs/yzmx0000

'V4

CHAPTER III - OPERATION

Section B- OPERATION FOR HIGH PRESSURE WASHING (Cont.)

Lock the washer gun in the open position.

The unit is now ready to operate and can be activiated by turning pump

switch "ON."

This switch is located on the front of the machine.

Prime pump and piping compartments with water, completely replacing all

air in the system until a steady stream of water flows from the washer gun.

a) Turn pump switch "ON."

b) Open solution valve partially to purge air from detergent line.

In extreme cases it may be necessary to remove hose from washer

to get pump to prime. After unit Is primed, turn pump switch

OFF and attach desired wash nozzle.

Keep solution tank strainer covered by water or solution at all times.

On initial start-up, use some detergent solution to loosen check valve.

While it is not necessary to use detergent solution, it is recommended on

initial start-up.

_; v

ad;us>

Regulate amount of detergent solution required by adjusting solution

valve.

C•_*Ve,

10.

When ready for rinsing, simply close solution valve.

11.

Units with trigger guns allow operator to shut off water flow. As

pressure builds up in the unit, the unloader valve opens and by-

passes water back to the float tank.

CAUTION

NEVER RUN THE PUMP WITHOUT WATER.

00 NOT ALLOW PUMP TO UNLOAD WATER

FOR LONG PERIODS OF TIME, AS THIS

WILL CAUSE CAVITATION (THE FORM-

ATION OF A VACUUM) CAUSING PUMP

apter

on D.

. .

--..

- _

..-

^t ^±^'.'.

. _ ..

- .

. .

12.

For_longer life of your unit, we recommend ONLYthe useof SIOUX

-POwDER COLD PRESSURE P4SH D

TER6ENT

''I

TO BIND.

_Section C -..SHUTDOWN PROCEDURE

Allow pressure to expire from gun before closing trigger.

If unit is to be inoperative for an extended period of time, disconnect

water and electrical supply. Also prevent freezing of equipment. See

Chpater IV, Section D.

Shut off solution valve.

Shut off pump switch.

Source: https://www.industrydocuments.ucsf.edu/docs/yzmx0000

* 41

:.iiAPTER I:i

Section D- SIOUX P0I4DER COLD PRESSURE WASHER DETERGENT

Sioux Cold Pressure Washer Detergent is a powdered detergent

formulated for Sioux Steam Cleaner Corporation and is the ONLY

COMPOUND WE RECOMMEND FOR SIOUX EQUIPMENT because:

(a)

Sioux Powerwash is a specially formulated compound designed

to completely remove road film, grime, mud and salt deposits without

spotting or streaking, and leaves no residue.

(b)

Controlled, uniform suds give quick, easy rinsing. Water sheds off

thoroughly.

(c)

Detergent will remove road film and salt deposits without spotting

or streaking.

(d)

Sioux Powerwash is a fast acting bio-degradable detergent that has been

tested exhaustively in actual conditions and proven superior and econ-

omical for all types of Sioux high pressure cold water washers.

(e)

Product is safe for painted wood, glass or metal surfaces.

(f)

Does not harm rubber.

Should you still decide to use another detergent, read the following

requirements carefully to helo you select a compatible pressure washer

cleaning compound.

It must: (a) HE FULLY DISSOLVABLE.

(b)

BE NON FOAMING.

(c)

CONTAIN NO ABRASIVES OR ORGANIC MATERIAL.

(d)

BE STABLE IN SOLUTION.

(e)

CONTAIN NO CORRSIVES.

Section E - CLEANING INSTRUCTIONS

for heavy duty cleaning.

Add Sioux Powder Cold Pressure Washer Detergent to water in solution

tank.

For regular maintenance cleaning, add I to 2 cups or 3'to 4 cups

generously and ailow the solution to. remain on the surface for a few min-

utes, in order to dissolve the.soil and break the surface film.

P.inse completely with clear water before the solution dries, using a

250-400 tip. if solution has dried, respray with solution and than

rinse with clear water.

be mixed with;yrater.from pump through system. Spray the entire surface -"

anen thesolution_valve_and adjust to desired strength of.solution to

zwM^`:.

'•,C.

3.'^Y`1

+^M•-i^S W.°'^

1',v `^'F •ef k3 F':•

Without.opening the solution valve, wet surface with clear water,

starting from the bottom and working"up.

2031276796

Source: https://www.industrydocuments.ucsf.edu/docs/yzmx0000

Table des matières

Autres manuels Sioux Tools Moteur à percussion

Sioux Tools

Sioux Tools IW75BP-6H Caractéristiques techniques

Sioux Tools

Sioux Tools IW750MP-6H Manuel d'utilisation

Sioux Tools

Sioux Tools 8500 Series Manuel d'utilisation

Sioux Tools

Sioux Tools 313 Manuel utilisateur

Sioux Tools

Sioux Tools IW38HBPLT-4F Manuel utilisateur

Sioux Tools

Sioux Tools 5040 Impact Wrench Caractéristiques techniques

Sioux Tools

Sioux Tools IW380MP-3P Manuel d'utilisation

Sioux Tools

Sioux Tools IW1000MH Manuel d'utilisation

Sioux Tools

Sioux Tools IW38TB P-3P Caractéristiques techniques

Sioux Tools

Sioux Tools 5350AP Caractéristiques techniques

Sioux Tools

Sioux Tools 5350A Caractéristiques techniques

Sioux Tools

Sioux Tools IW1000MP Manuel d'utilisation

Sioux Tools

Sioux Tools IW100AI-8H Manuel d'utilisation

Sioux Tools

Sioux Tools IW38HAP-3P Caractéristiques techniques

Sioux Tools

Sioux Tools 5095 Caractéristiques techniques

Sioux Tools

Sioux Tools 5338A Caractéristiques techniques

Sioux Tools

Sioux Tools 5038B Caractéristiques techniques

Sioux Tools

Sioux Tools IW5OHAP-4F Caractéristiques techniques

Sioux Tools

Sioux Tools 322 Manuel utilisateur

Sioux Tools

Sioux Tools 5375A Caractéristiques techniques

Sioux Tools

Sioux Tools 5093L Caractéristiques techniques

Manuels Moteur à percussion populaires d'autres marques

stayer

stayer IW500D Manuel utilisateur

Makita

Makita DTD152 Manuel utilisateur

Milwaukee

Milwaukee M12 FID Manuel utilisateur

Grizzly

Grizzly H6140 Manuel utilisateur

Makita

Makita BTW450 Manuel utilisateur

Ozito

Ozito LID-3000 Manuel utilisateur

Astro Pneumatic Tool

Astro Pneumatic Tool 1812 Manuel utilisateur

Greenlee

Greenlee HW3 Manuel utilisateur

Sthor

Sthor 57091 Manuel utilisateur

Makita

Makita DTD145 Manuel utilisateur

Hilti

Hilti SIW 2-A12 Manuel utilisateur

Ryobi

Ryobi R18IW3 Manuel utilisateur

Parkside

Parkside PDSSA 20-Li A1 Manuel utilisateur

Flex

Flex FX1471 Manuel utilisateur

SATA

SATA 51075C Manuel technique

Cembre

Cembre NR-11P Manuel utilisateur

Makita

Makita BTP131RFE Manuel utilisateur

DeWalt

DeWalt XR Li-ion DCF902 Manuel utilisateur
