SinoCastel IDD-212B Manuel utilisateur

IDD-212B User Manual

(Rev. 2.1)

Sinocastel Co., Ltd

November, 2013

IDD-212B User Manual

Contents

1. Introduction....................................................................................................................................2

2. Specifications ................................................................................................................................3

2.1 External Interface..................................................................................................................................3

2.2 Status Indicator ..................................................................................................................................... 3

2.3 Technical Parameters ............................................................................................................................4

3. Device Configuration .....................................................................................................................5

3.1 PC Tool ................................................................................................................................................5

4. Installation Instruction....................................................................................................................6

4.1 OBD Port..............................................................................................................................................6

4.2 Device Installation ................................................................................................................................7

4.3 Login “VRM Coach” ............................................................................................................................7

4.4 Initialization........................................................................................................................................ 11

5. Functions.....................................................................................................................................15

5.1 OBD Protocols....................................................................................................................................15

5.2 Location Inquiry.................................................................................................................................. 15

5.3 Regular GPS Data Reporting............................................................................................................... 15

5.4 Regular G-Sensor Data Reporting........................................................................................................ 15

5.5 Regular Diagnostic Data Reporting .....................................................................................................15

5.6 DTCs Reporting.................................................................................................................................. 15

5.7 Diagnostic Functions........................................................................................................................... 15

5.8 Data storage/Supplementary Report in Dead zones .............................................................................. 16

5.9 Trip Mileage....................................................................................................................................... 16

5.10 Trip Fuel Consumption...................................................................................................................... 16

5.11 Driving behavior monitoring ............................................................................................................. 16

5.12 Alarms and Events Reporting ............................................................................................................ 16

5.13 Remote Configuration ....................................................................................................................... 16

5.14 PC Tool Configuration ...................................................................................................................... 17

6. Disclaimer....................................................................................................................................18

7. Warranty......................................................................................................................................19

8. Statement....................................................................................................................................20

IDD-212B User Manual

1. Introduction

IDD-212B is an intelligent on-board diagnostic box based on OBD II/EOBD standard with

Bluetooth module, it could read various kinds of data including diagnostic info, mileage, fuel

consumption and driving behavior, and real time display on Android/iOS/WinCE

PND/CPND/Smart phone via Bluetooth.

Packing List

Parts name Quantity Note

IDD-212B OBD Dongle 1 ●

USB Configuration Cable 1 ○

User Manual 1 ●

G-Mouse (HT-166U) 1 ○

OBD extension cable 1 ○

Note: ● Standard configuration ○Optional configuration

(Optional accessories will not be included if there is no indication in the order)

IDD-212B User Manual

2. Specifications

2.1 External Interface

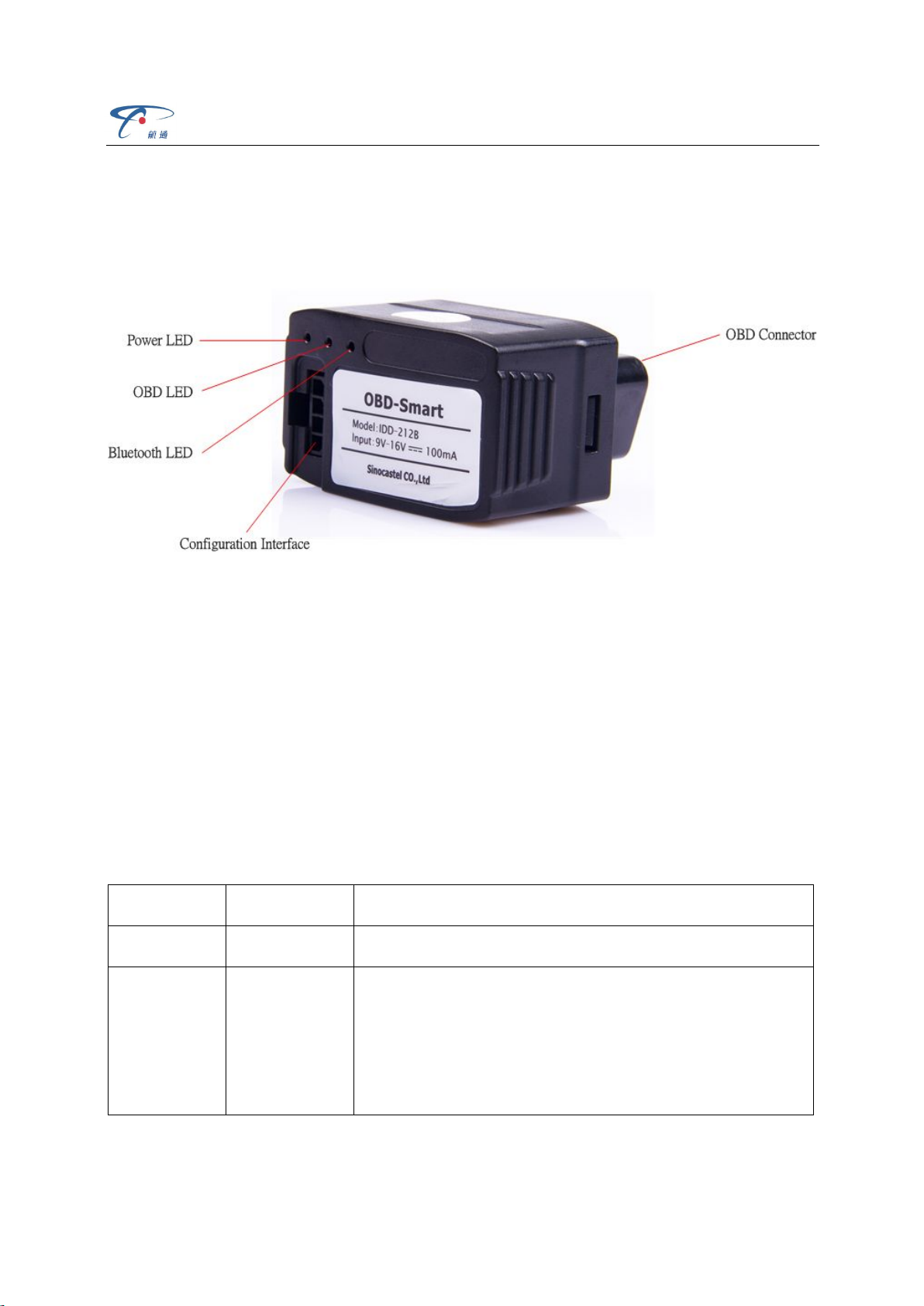

Product appearance as follows：

Standard OBD Connector

It is used to connect to the 16 pin on-board Diagnostic Link Connector (DLC).

The vehicle OBD system is able to communicate with an external device which has the same

protocol via this connector.

G-Mouse /Configuration Interface

This is a multifunction interface which is used for parameters configuration or connecting

the G-Mouse

2.2 Status Indicator

Indicator Color Status

Power LED Red Solid on - Power on

Bluetooth Orange

Blinking every 1 time– Bluetooth try to connect

Blinking every 2 times– Bluetooth connected successfully

Blinking every 3 times– Bluetooth connected failed

Solid off – Bluetooth off

IDD-212B User Manual

OBD LED Green

Blinking – Trying to communicate with on-board system

Solid on – Successful OBD communication

Solid off – No OBD communication

G-Mouse

LED Green

Blinking - GPS signal is good

Solid on - Searching for GPS signal

Solid off – GPS off

2.3 Technical Parameters

Mechanical Size 46mm (L) x 43mm (W) x 26mm (H)

Weight 35g

Interface OBD interface

RS-232 interface

Data transmission Bluetooth

Storage 16MB FLASH, store up to 300 hours trip data

OBD protocol

SAE J1850 PWM

SAE J1850 VPW

ISO 9141-2

ISO 14230-4

ISO 15765-4

Power

Working

Voltage 9-16VDC

Working

Current

Average: <[email protected]

Sleep mode: <20mA@12VDC

Bluetooth

Specification: V3.0/4.0+EDR，Class II

Frequency: 2.4-2.48GHz

Modulation: GFSK、∏/4-DQPSK、8DPSK

Range: 10m (Max. no shield)

Sensitivity: -90dBm@GFSK

-90dBm@∏/4DQPSK

IDD-212B User Manual

-83dBm@8DPSK

-92dBm@BLE

Antenna: built in

3 axis Accelerometer +/-2g, +/-8g, driving behavior detection

LED Indication Bluetooth/OBD/Power indication

Buzzer System status/Alarm indication

Environment

Working

Temperature -30 ~ +70℃ ℃

Storage

Temperature -40 ~ +85℃ ℃

Humidity 5%～95%（no frog）

3. Device Configuration

3.1 PC Tool

Download USB driver and PC Tool at http://www.sinocastel.com/en/Downloads/. Install the

USB driver and PC Tool on your PC.

Connect device to PC through USB configuration cable, open the OBD PC Tool, configure the

parameters refer to the PC Tool User manual.

IDD-212B User Manual

4. Installation Instruction

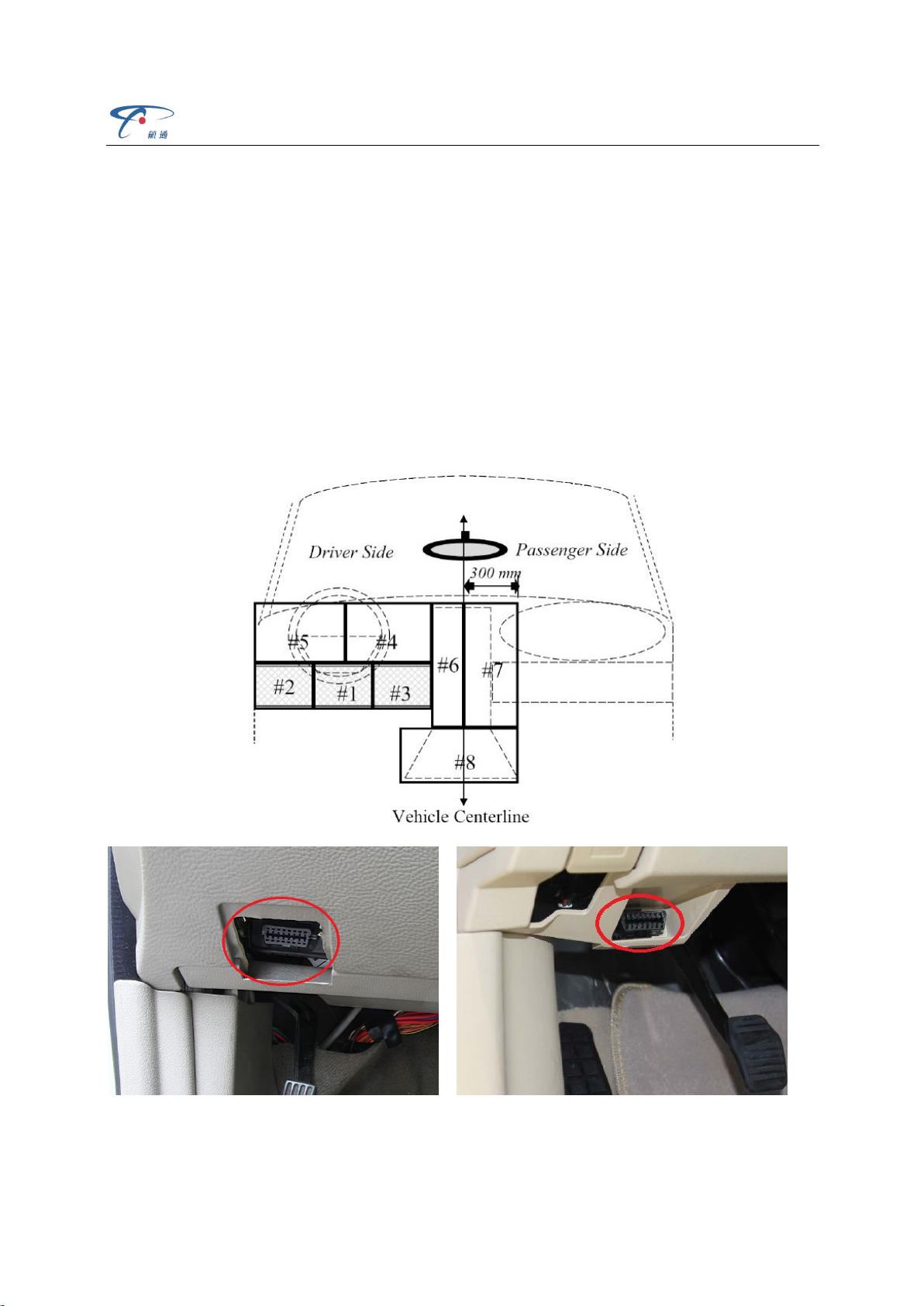

4.1 OBD Port

In general, the OBD port is located in the driver or passenger cabin, from the edge of

dashboard on driver side to the border of 300mm. It is easy to touch by sitting in the driver's seat;

the preferred location is within the area from steering post to the vehicle centerline.

IDD-212B User Manual

4.2 Device Installation

Before installing the device, please make sure device has been configured with necessary

parameters including network parameters and other parameters.

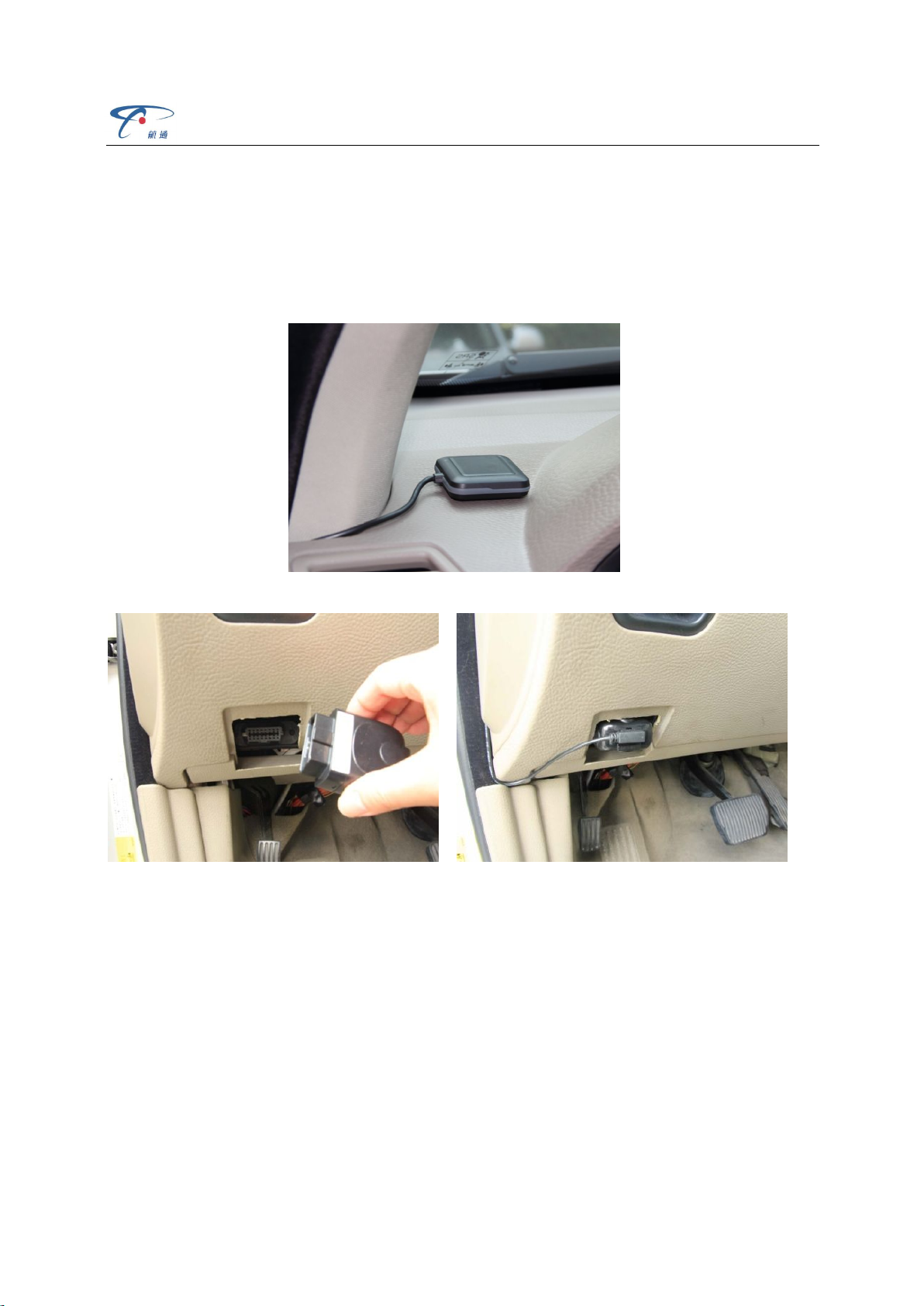

Park the car and make sure engine is off, connect the G-Mouse to the device. Fix the

G-Mouse above the dashboard horizontally; make sure no mental shielding above them.

Plug the device into OBD port

Start engine, with successful OBD communication the OBD light changes its status to solid

on and comes 2 beeps. Then device begins to connect VRM Coach, with successful network

registration the Bluetooth light change its status to slow blinking, and with successful login there

comes 3 beeps. GPS light blinking indicates that the device has got its location.

If OBD light keeps blinking and comes 6 beeps it means that device is not compatible with

the vehicle.

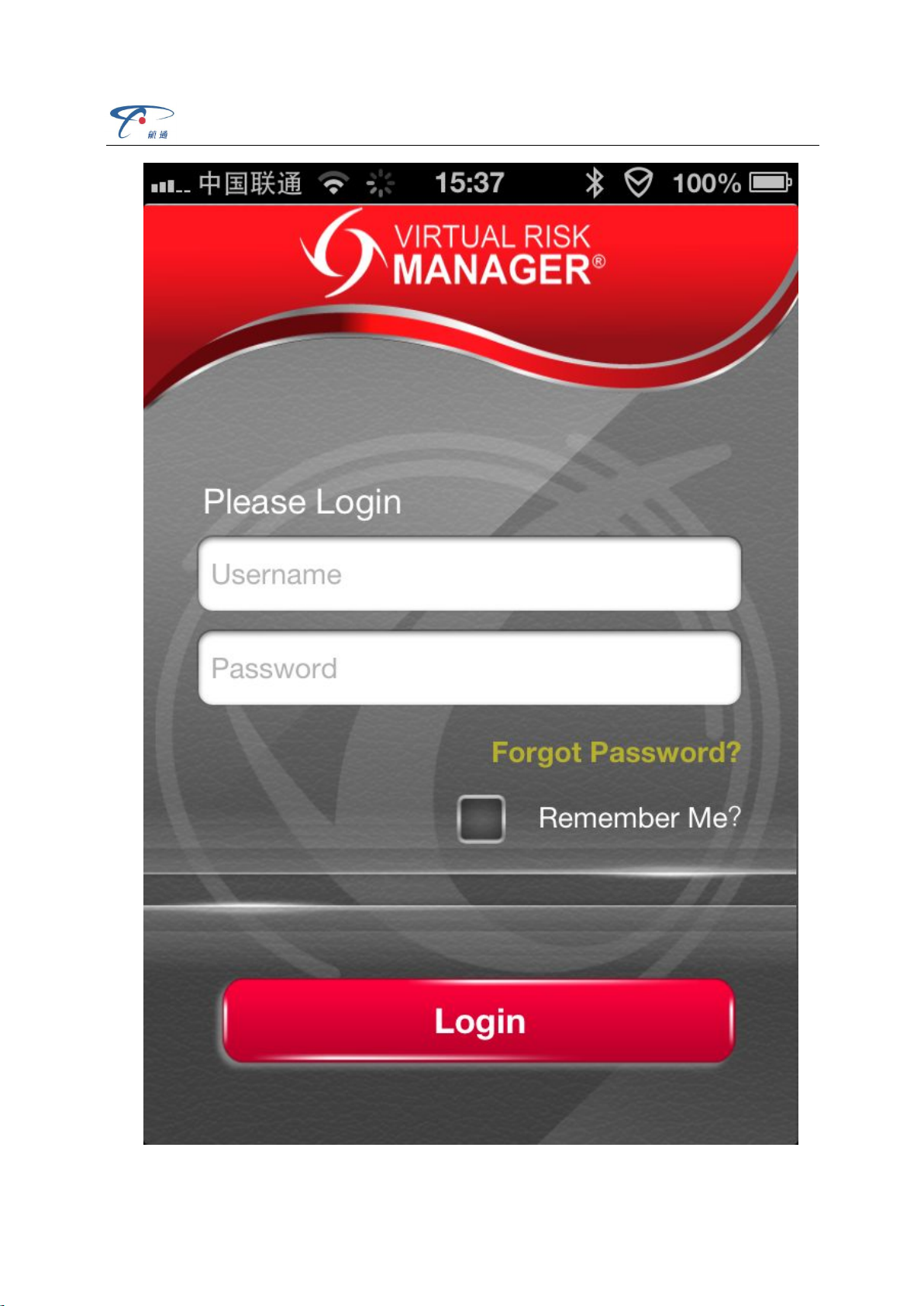

4.3 Login “VRM Coach”

IDD-212B User Manual

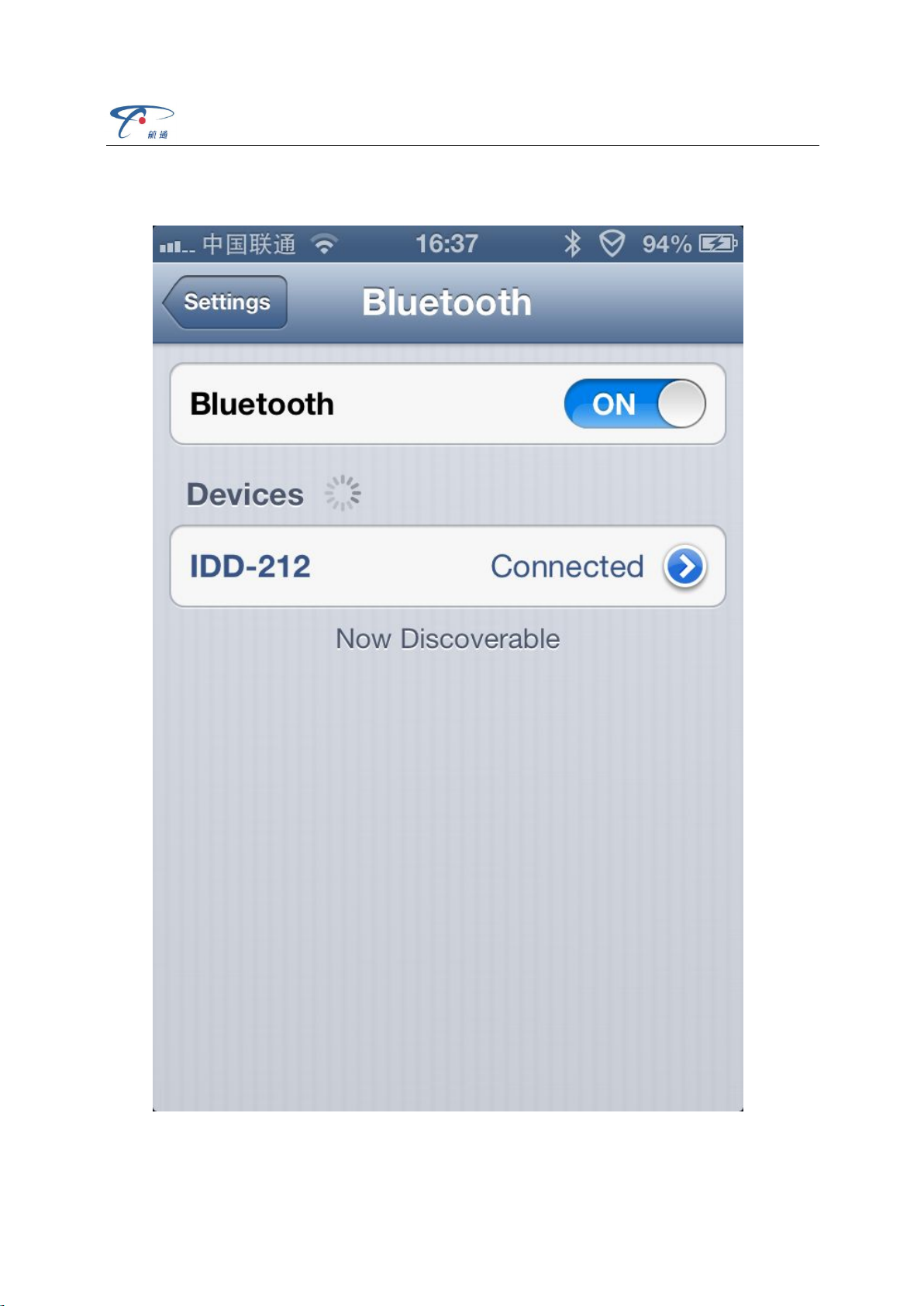

Before login “VRM Coach”, need to disconnect other devices via Bluetooth connection and

pair with IDD-212B.

IDD-212B User Manual
