Singer Stitch Sew Quick Manuel utilisateur

Stitch Sew Quick Handheld Mending Machine

Instruction Manual

English

When using the device for the rst time, run it for 10

seconds and then wait for 5 seconds. Then you can

use it continuously.

Lift the xing plate and pull out the test material.

Cut the thread close to the test material.

BEFORE FIRST USE:

INSTRUCTIONS FOR USE:

Figure #1

Figure #2

Figure #3

Using Your Stitch Sew Quick Handheld Mending Machine

Note: Always use the rotang dial to move the needle. To avoid damaging the inner mechanism,

never directly press on or pull the needle arm.

PARTS DIAGRAM

Make sure that the appliance is in Off position.

(See Figure #1. The On/O buon should be slid

towards the back of the appliance).Turn the rotating

dial to set the needle arm to the highest position.

Note: The rotating dial can be turned to either

direction. (See Figure #1)

Using Your Stitch Sew Quick Handheld Mending Machine

Figure #4

Figure #5

Lift the xing plate, making sure that you do not

push down the needle arm (it is possible to move

the arm by hand even when the appliance is locked).

Place the fabric under the xing plate. (See Figure #2)

Release the xing plate.

Before starting to sew, thread at least 5cm from the

needle back to the front. If it is necessary to thread

the needle, see “Threading” section.

Hold Stitch Sew Quick™with your right hand.

Supporting the appliance from below with other

ngers, place your thumb on the On/Off button.

(See Figure #3)

Slide the On/Off button forward with your thumb

to turn on the appliance. Use your left hand to

hold the fabric and control the direction and speed

of the fabric as you pull it out from the appliance.

Make sure that you do not pull the material from the

appliance too quickly. If you need larger stitches

are required, pull the fabric a little to the left while

continuing the sew. To get a straight stitch, follow

the middle line on the fabric xing plate. (See Figure 4)

To End Sewing - After completing the sewing

process, turn the rotating dial to raise the needle

to the highest position, then pull the thread out by

around 7.5cm with the help of the back of a seam

ripper or scissors. (See Figure #5)

Figure #6

Figure #7

Figure #8

KNOTTING THE THREAD

Turn the fabric inside out and guide the spare thread

of 7.5cm according to the directions stated and the

relevant gures.

Slide the threader down the last stitch. (See Figure #6)

Thread around 2.5cm of thread from top to

the bottom. (See Figure #7)

Pass the thread through the loop and pull it tightly to

tie a knot. (See Figure #8)

Pull out the threader slowly down the stitch.

(See Figure #9)

Cut off the extra thread.

Figure #10

Figure #11

Figure #9

Figure #12

Figure #13

Figure #14

Correct

Direcon

Incorrect

Direcon

Lower the needle to the fabric and turn the rotating dial

until the needle arm is in the highest position again.

Lift the xing plate and pull the fabric to the left,

MAKING SURE THAT YOU DO NOT PULL THE THREAD

TO THE EXTENT THAT IT IS RIPPED FROM THE SEAM.

THREADING

Note: The thread should ow through the upper right side of

the bobbin or the cone. The spring should be in place before the

bobbin is aached.

Attach the thread to the appliance according to

Figures 10, 11 and 12.

Pass the thread through the hole upwards.

(See Figure #10)

Pass the thread over the tension control between two silver-coloured

discs. (See Figure #11)

Pass the threader through the needle hole from the front to the back.

Pass the thread through the eyelet of the threader.

Pull the threader from the end of the thread towards the hole of

the needle, from the back to the front. (See Figure #12) Remove the

threader.

3 ]

ADJUSTING THE THREAD TENSION

If the stitch is too tight, slightly turn the tension control to the left.

If the stitch is too loose, slightly turn the tension control to the right.

ATTACHING A REGULAR THREAD CONE (See Figure #10)

Loosen the bobbin nut and remove the bobbin.

Slide the thread cone to the extension shaft.

Connect the extension shaft to the bobbin shaft.

REPLACING THE NEEDLE

Loosen the set screw with a screwdriver and remove the old needle.

Always use a Singer®2020 90/14 needle.

The needle should be attached with the correct side of the needle

shaft, making sure that it faces the front side of Stitch Sew Quick™.

(See Figure #14)

REPLACING THE BOBBIN

When purchasing a replacement Singer®bobbin for this appliance, keep in

mind that your appliance uses a Class 15 metal bobbin.

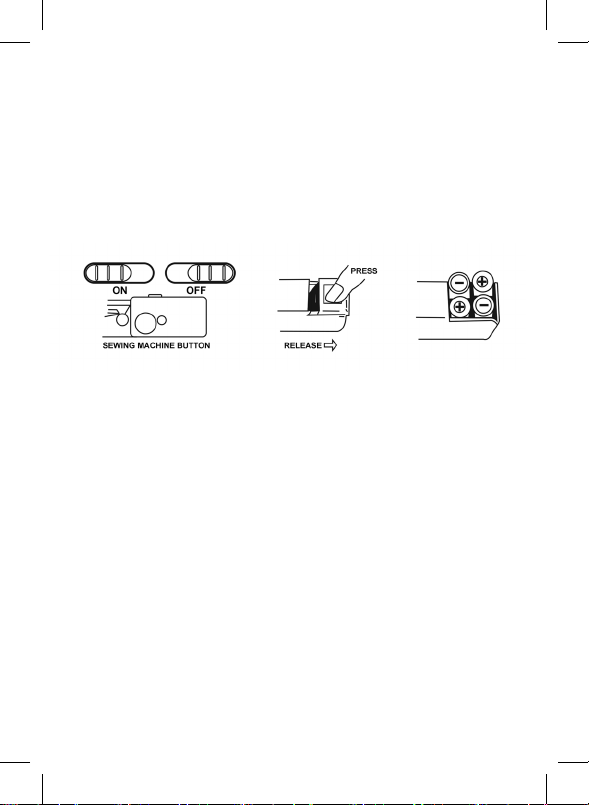

Replacing the Batteries (4AA Batteries - Not supplied with the product)

Note: Before replacing the baeries, make sure that the appliance is O.

AC/DC ADAPTER (NOT SUPPLIED WITH THE APPLIANCE)

Adapter should be of 6V 800mA. A plug with a diameter of 1/8"

(3.175mm) should be used with the adapter. Plugging the adapter

to a socket with different values may cause damage to the socket or

the adapter. Make sure that you adjust the end polarity of the adapter

according to the diagram at the bottom of the DC input jack of the

sewing machine.

ATTENTION: The needle is sharp. Be very careful when working with

the needle to avoid the risk of injury. Keep it away from children.

When not in use, the appliance should always be Off.

This appliance is not suitable for use by persons with limited physical,

sensory or mental capabilities (including children) or by persons who

lack knowledge and experience, unless they are supervised by a person

responsible for their safety or they are instructed on how to use the

appliance safely. Children should always be supervised to ensure that they

do no play with the appliance.

WARNINGS FOR HANDLING AND TRANSPORT:

Carry the product in its original packaging. Pay maximum attention to the

product during loading, unloading and transport. Make sure that the packing

is completely closed during handling and transport. Protect the packaging

against harmful factors such as humidity, water, impact, etc. During use,

make sure that the product does not break, is not deformed, harmed,

damaged during transport, or harmed due to external factors such as hitting

or dropping.

TECHNICAL SPECIFICATION

Nominal Voltage

Power

Sewing Speed

Safety Class

Weight

Length

Width

Height

4.8 W

250 rpm

0.263 kg / 0.370 kg

205mm

50mm

75mm

Please remember that this product should be recycled in a safe manner

according to the national law on electrical/electronic products. Do not dispose

electrical products as unsorted municipal waste; take them to designated

waste collection points. Please contact local authorities to get information

about existing waste collection systems. The dealer may be liable to dispose

the product free of charge while replacing used appliances with new ones.

If electrical appliances are disposed of in municipal landlls, hazardous

substances can leak into the water, thus the food chain, damaging your health.

SINGER and Cameo “S” Design are the exclusive trademarks of

The Singer Company Limited, S.a.r.l. or its subsidiaries.

Manufacturer

Singer Sourcing LLC

Made in CHINA

Stitch Sew Quick

Máquina manual para reparaciones

Manual del usuario

Español

Cuando utilice el dispositivo por primera vez, póngalo

en funcionamiento durante 10 segundos y luego espere

5 segundos. Entonces puede utilizarlo continuamente.

Levante la placa de jación y saque el material de

prueba. Corte la rosca cerca del material de prueba.

ANTES DEL PRIMER USO:

INSTRUCCIONES DE USO:

Figure #1

Figure #2

Figure #3

Using Your Stitch Sew Quick

Máquina manual para reparaciones

Nota: Ulice siempre el dial giratorio para mover la aguja. Para evitar que se dañe el mecanismo

interno, nunca presione o re directamente del brazo de la aguja.

DIAGRAMA DE PIEZAS

Asegúrese de que el aparato esté en posición Off. (Vea la

Figura #1.) El botón de encendido y apagado debe deslizarse

hacia la parte posterior del aparato. Gire el dial giratorio

para colocar el brazo de la aguja en la posición más alta.

Nota: El dial giratorio puede ser girado en cualquier dirección.

(Vea la Figura #1)
