Singer 5160 Manuel utilisateur

THESINGERCOMPANY

2004SINGERDOBRASIL

ALLRIGHTSRESERVED

CPRINTEDINBRAZIL

P/N358420-001

2004

PARTSLIST

SEWINGMACHINE

INDEX

PAGE NBR. SUB-ASSEMBLY

01 - 02 ATTACHMENT SET

03 - 04 OPTIONAL ACCESSORIES (OVER-THE-COUNTER)

05 - 06 ARM, BED, THROAT PLATE & BOBBIN VISOR

07 - 08 COVERS

09 - 10 OTHERS COVERS

11 - 12 NEEDLE BAR

13 - 14 PRESSER BAR

15 - 16 ARM SHAFT DRIVE

17 - 18 HAND WEEL

19 - 20 TENSION MECHANISM

21 - 22 HOOK SYSTEM

23 - 24 BIGHT AMPLITUDE

25 - 26 NEEDLE POSITION

27 - 28 PATTERN SELECTOR

29 - 30 CAM STACK

31 - 33 BUTTONHOLER & FEED REGULATOR CAM

34 - 35 CAM CONTROLLED FEED

36 - 38 FEED SYSTEM

39 - 41 ELECTRICAL EQUIPMENT

5160 Model

P/N 358420-001 Adopted

REV.:_______________

DATE:______________

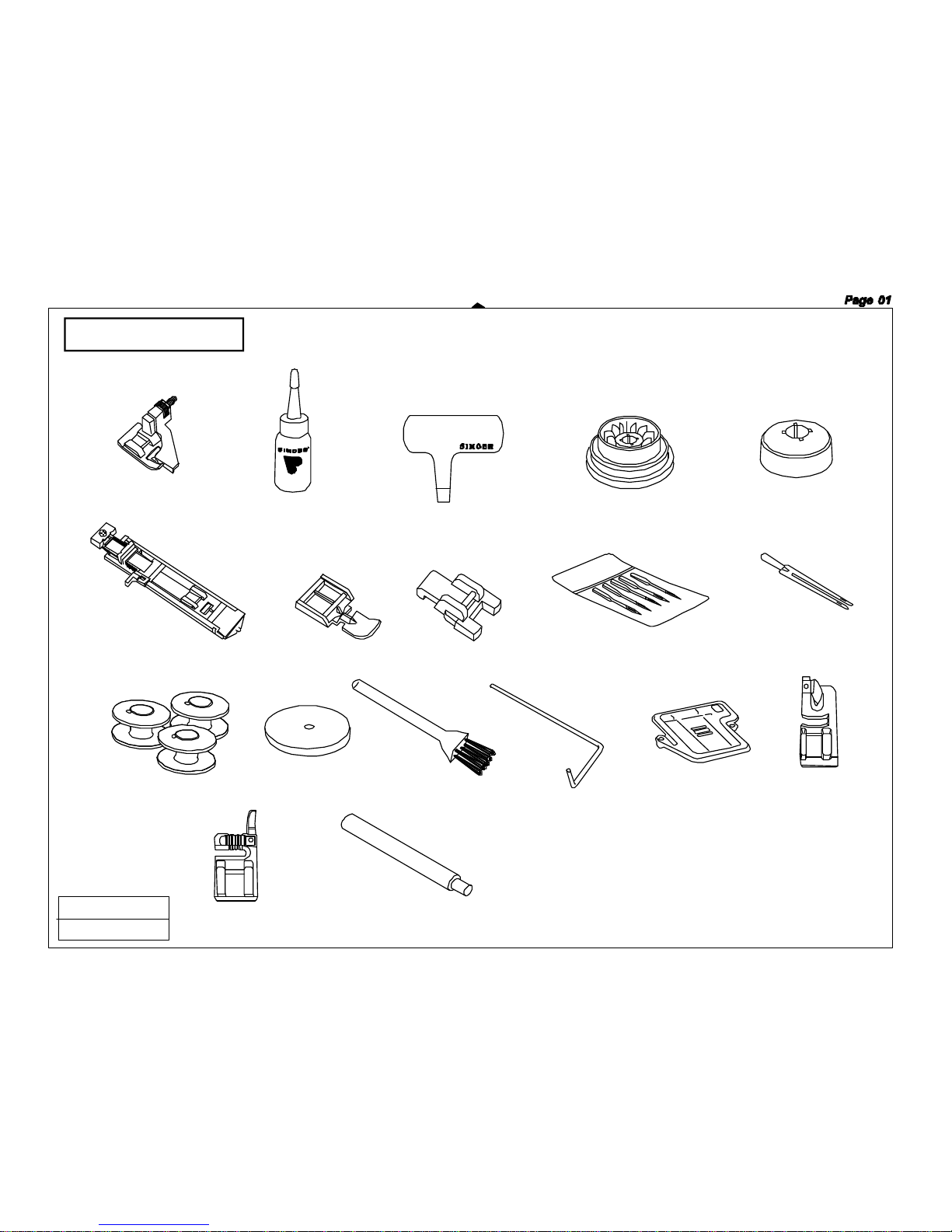

ATTACHMENTSET

3456

789

10 11

12 13

16 17

18 19

Page 02

REF. PART NBR. DESCRIPTION

1 358190000 ATTACHMENT SET COMPLETE

2 357990901 BLIND HEM PRESSER FOOT

3358129001 SINGER OIL

4357306000 SCREWDRIVER

5507664467 SPOOL PIN HOLDER (LARGE)

6179967461 SPOOL PIN HOLDER (SMALL)

7358120900 BUTTONHOLE PRESSER FOOT

8357992900 ZIPPER FOOT

9357991900 BUTTON SEWING PRESSER FOOT

10 353364000 NEEDLE PACK

11 531868000 TWIN NEEDLE

12 172336000BUY BOBBIN (3 UNITS)

13 8879656 FELT FOR SPOOL PIN

14 546358000 LINT BRUSH FOR CLEANING

15 357993900 FABRIC GUIDE

16 313117000BUY FEED COVER PLATE

17 358364900 ROLLED HEM

18 358365900 CORDING FOOT

19 356942453 SPOOL PIN

ATTACHMENT SET

Model 5160

P/n: 358420-001 Adopted

REV.:_______________

DATE:______________

OPTIONALACCESSORIES

Page 04

REF. PART NBR. DESCRIPTION

1358078-900 FINGER GUARD

2357792-452 SOFT VINYL COVER WITH SINGER LOGO

OPTIONAL ACESSORIES

Model 5160

P/N: 358420-001 Adotpted

REV.:_______________

DATE:______________

ARM,BED,THROATPLATE&BOBBINVISOR

Page 06

REF. PART NBR. DESCRIPTION

1357745-001 THROAT PLATE FOR ZIG-ZAG

2 357191-001 ROTATING HOOK BOBBIN VISOR

3 358138-451 THROAT PLATE SET SCREW

4 357974-900 MACHINE HANDLE

5357996-000 MACHINE HANDLE MOUNTING BRACKET COMPLETE (LEFT)

6 113424-451 ARM TOP COVER HANDLE SUPPORT PROLONGER SET SCREW

7357995-000 ARM TOP COVER HANDLE SUPPORT PROLONGER ASSEMBLY

8 446138-000 SPOOL PIN SCREW WASHER

9 357714-000 MACHINE HANDLE MOUNTING BRACKET (LEFT)

10 358000-000 MACHINE HANDLE MOUNTING BRACKET COMPLETE (RIGHT)

11 445486-000 BOBBIN WINDER RETAINING RING

12 514698-451 CONNECTING STOP SCREW NUT

13 357999-000 MACHINE HANDLE MOUNTING BRACKET ASS'Y (RIGHT)

14 357998-000 BOBBIN WINDER ASSEMBL

15 357997-000 BOBBIN WINDER SPINDLE COMPLETE

16 931744-103 BOBBIN WINDER SPINDLE WASHER

17 357082-452 BOBBIN WINDER FRAME

18 44440-001 BOBBIN WINDER PULLEY

19 15287-01 BOBBIN WINDER FRICTION RING (RUBGER)

20 531766-000 BOBBIN WINDER HINGE STUD SPRING

21 445486-000 BOBBIN WINDER RETAINING RING

22 446375-000 THREAD TAKE-UP LEVER LINK HINGE STUD

23 357438-001 TENSION RELEASING LEVER HINGE PIN

24 357464-002 TENSION RELEASING LEVER HINGE PIN WASHER

25 355250-451 BED (BOTTON) COVER & CABINET BOLT

26 357020-451 ARM SHAFT (REAR) HOUSING MOUNTING BOLT

27 353375-451 BED (BOTTON) COVER & CABINET BOLT WASHER

28 514608-000 BED (BOTTON) COVER & CABINET BOLT NUT

29 357017-002 ARM SHAFT (REAR) HOUSING ASSEMBL

30 357019-000 ARM TOP COVER SUPPORT STUD

31 113455-006 ARM SHAFT (REAR) HOUSING MOUNTING SCREW

32 357956-451 CONNECTING STOP SCREW

ARM, BED, THROAD PLATE & BOBBIN VISOR

Model 5160

P/N: 358420-001 Adopted

REV.:_______________

DATE:______________

COVERS

Page07

654

Page 08

REF. PART NBR. DESCRIPTION

1358058-001 REAR COVER COMPLETE

2 357961-900 REAR COVER WITH GRAPHICS

3 357704-900 SPOOL PIN

4 356116-451 SPOOL PIN SCREW

5 446138-000 SPOOL PIN SCREW WASHER

6 357705-900 THREAD GUIDE

7 357718-900 BOBBIN WINDER STOP

8 113375-452 BOBBIN WINDER STOP SCREW

9358055-001 FRONT COVER COMPLETE

10 358056-001 FRONT COVER WITH GRAPHICS

11 358057-001 CONTROL PANEL COMPLETE

12 356047-000 BOBBIN WINDER TENSION COMPLETE

13 141936-833 BOBBIN WINDER TENSION BRACKET ADJUSTING SCREW

14 44794-000 BOBBIN WINDER TENSION BRACKET ADJUSTING SCREW RETAINING CLIP

15 356127-000 RETAINING RING

16 357734-004 TENSION MECHANISM DIAL WITH GRAPHICS

17 355263-451 REAR COVER MOUNTING SCREW

18 113455-001 REAR COVER SCREW

19 357944-900 BIGHT AMPLITUDE CONTROL LEVER KNOB

20 357979-900 BIGHT AMPLITUDE CONTROL LEVER KNOB RETAINING

21 354895-453 REAR COVER SCREW

COVERS

Model 5160

P/N:358420-001 Adopted
