Sineoji PT308IP Manuel utilisateur

User Manual

Night Vision & Remote Operation for

Wireless Pan & Tilt IP Camera

Model: PT308IP, PT312IP, PT315V, PT324IP, PT325IP, PT331V

(Applicable for Windows XP, Windows Vista, Windows 7 and Windows 8)

Packing Contents

● Sineoji IP Camera

● User Manual

● Power Adapter

● Mounting Bracket

● Ethernet cable

● Software CD

● Mounting Bracket

1. Product Introduction

1.1 Safety Instructions

(1). Use the proper power source.

Do not use this product with a power source exceeding the specified voltage (100-240V AC).

(2). Never insert anything metallic into the camera.

Inserting metal object into the camera can be a source of dangerous electric shock.

(3). Do not operate in wet or dusty environment.

Avoid places like a damp basement or dusty hallway.

(4). Do not attempt to disassemble the camera.

You may be subjected to severe electrical shock if you attempt to take apart the camera while

the camera is connected to its power source. If there are any unusual sounds or smells coming

from the camera, unplug it immediately and contact the Customer Service.

(5). Handle the camera carefully

Dropping the camera on any hard surface may cause a malfunction. If the camera does not

work properly due to physical damage, please contact the Customer Service for repair or

exchange.

(6). Apply to FCC and CE Rule

This device complies with part 15 of the FCC and CE Rules. Operation is subject to the following

two conditions:

1: This device may not cause harmful interference.

2: This device must accept any interference received, including interference that may cause

undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment. This equipment complies with FCC

and CE radiation exposure limits set forth for uncontrolled environment. This equipment

should be installed and operated with minimum distance 20 cm between the radiator & your

body.

This transmitter must not be co-located or operating in conjunction with any other antenna or

transmitter.

1.2. Product Specifications

 High sensor CMOS

 Adopt optimized MJPEG video compression algorithm, realize high-definition images

transmission in narrow bandwidth;

 Maximum support 4 users viewing at the same time, no limit for users if using forwarder

Server function

 Built in Web Server, convenient for users to use standard browsing for

real time monitoring and setting administration;

 Support WIFI:802.11 b/g/n wireless networking;

 Support remote system update;

 Support DDNS analysis, support LAN & Internet

 Support variety of network protocol: TCP/IP, UDP, SMTP, PPPoE, Dynamic DNS,

 DNS Client, SNTP, BOOTP, DHCP, FTP, SNMP, WIFI/802. 11b/g

 Support one/ two way audio, talkback;

 Support motion detection alarm function (area & sensitivity Configurable);

 Support image snapshot

 Abnormal automatic recovery function, auto reconnection available when network

Interruption occurred.

 Dynamic alarm function, alarm time-schedule configurable.

1.3. System Requirements

CPU : 2.06GHZ or above

Memory : 265M or above

Network Card : 10/100/1000

Display Card : 64M or above

Operating System : Windows XP/Vista/Windows 7/Windows 8 (32 bit)

Internet Explorer : Version 5.0 or above

DirectX : Version 8.0 or above

Audio Card : Microphone and speaker output

Network Protocol : TCP/IP, UDP, SMTP, PPPoE, Dynamic DNS, DNS

Client, SNTP,BOOTP, FTP, SNMP, WiFi 802.11 b/g/n

1.4. Product Views

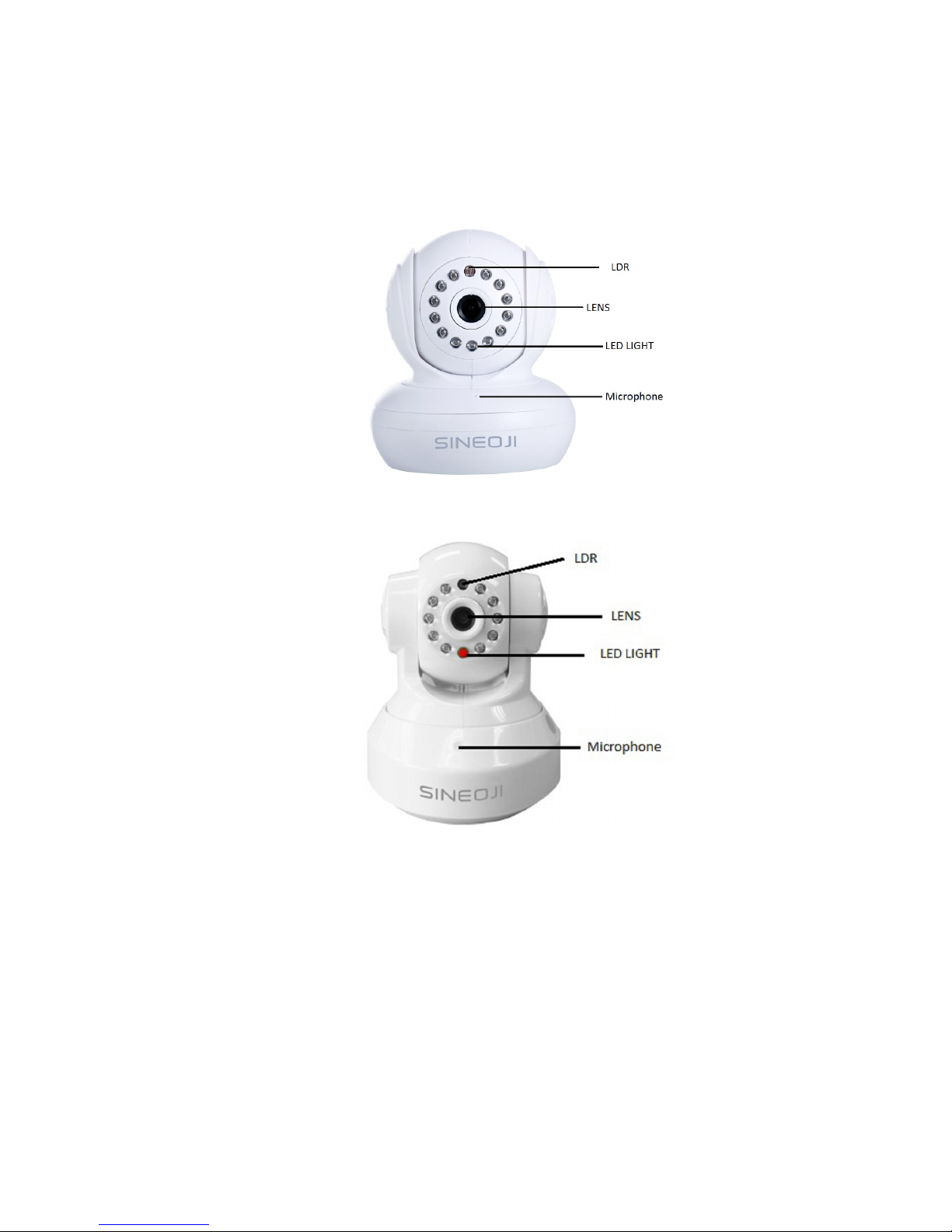

1.4.1 Front View

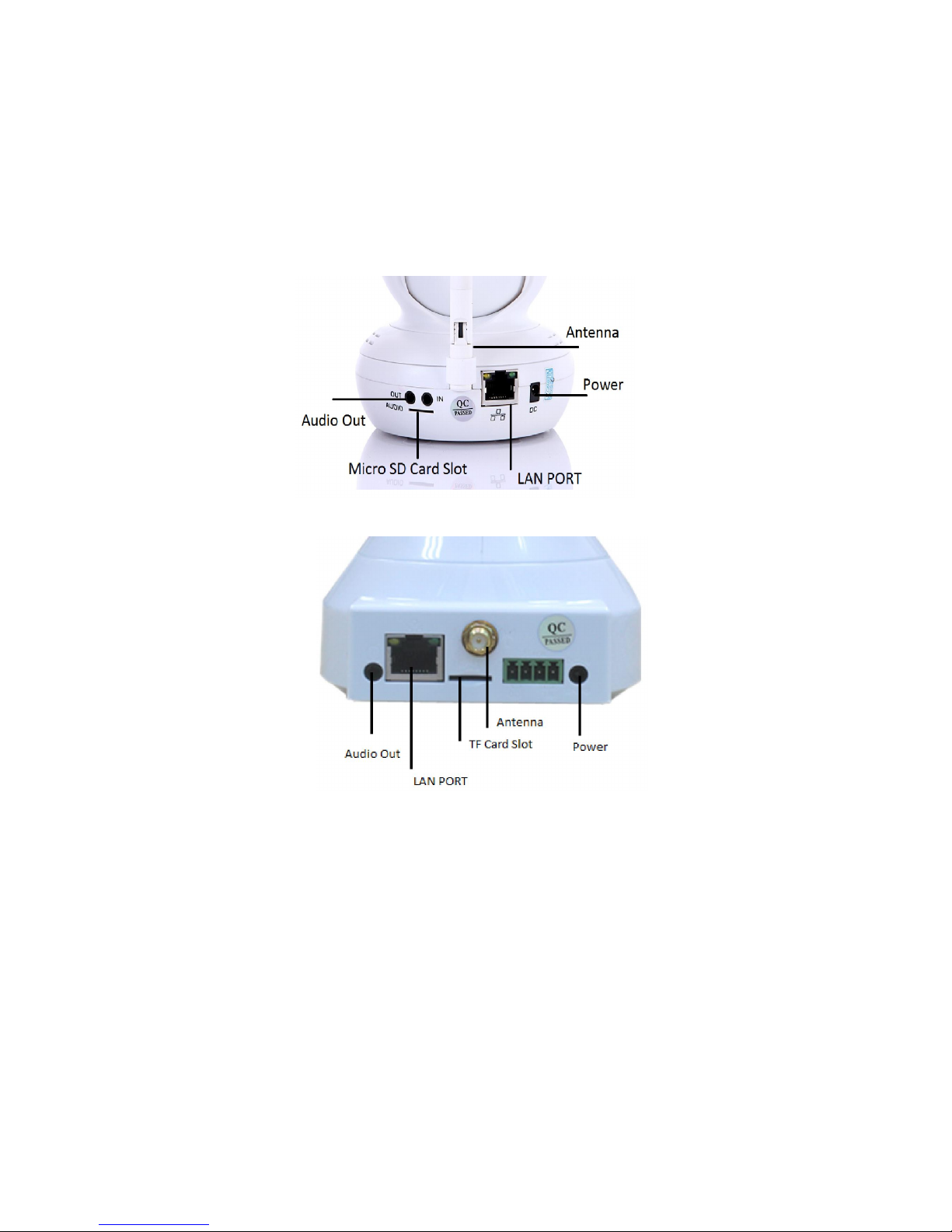

1.4.2 Rear View

Figure 1.2

 Audio Out

 LAN PORT: RJ-45 interface.

 Antenna:

 Power input interface: connect direct current 5V Power

 TF Card Socket: Only applicable for models PT312IP, PT315V, PT325IP, PT331V

1.5 Hardware Installation

Follow the steps below to set up your camera hardware. Make sure to follow each step carefully

to ensure that the camera operates properly

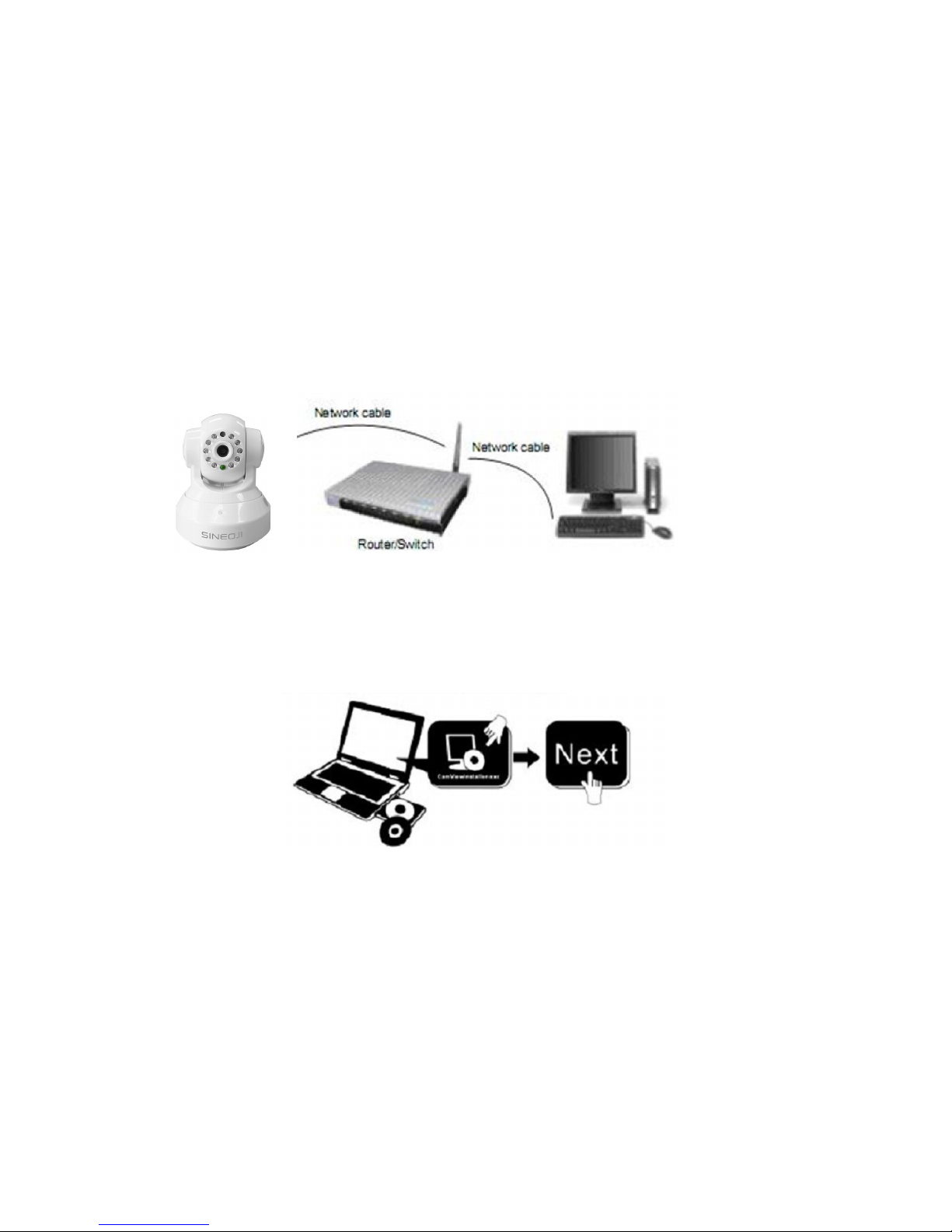

1. Install the Wi-Fi antenna (For wireless model).

2. Plug the power adaptor into camera

3. Plug the network cable into camera, the other side to the router/switch

4. It takes approx. 30 seconds to boot up the camera, then you will find the IP address from

“Search Tool” (Figure: 1.8)

5. When the power is on and the network cable connected, the green led at the real panel will

be on; the yellow led will be blinking.

Figure 1.3

1.6 Software Installation

Figure 1.4

1. Browse the CD content and select “English”. Click on the “Search Tool”

2. Software operation

1.1 Search Tool Software

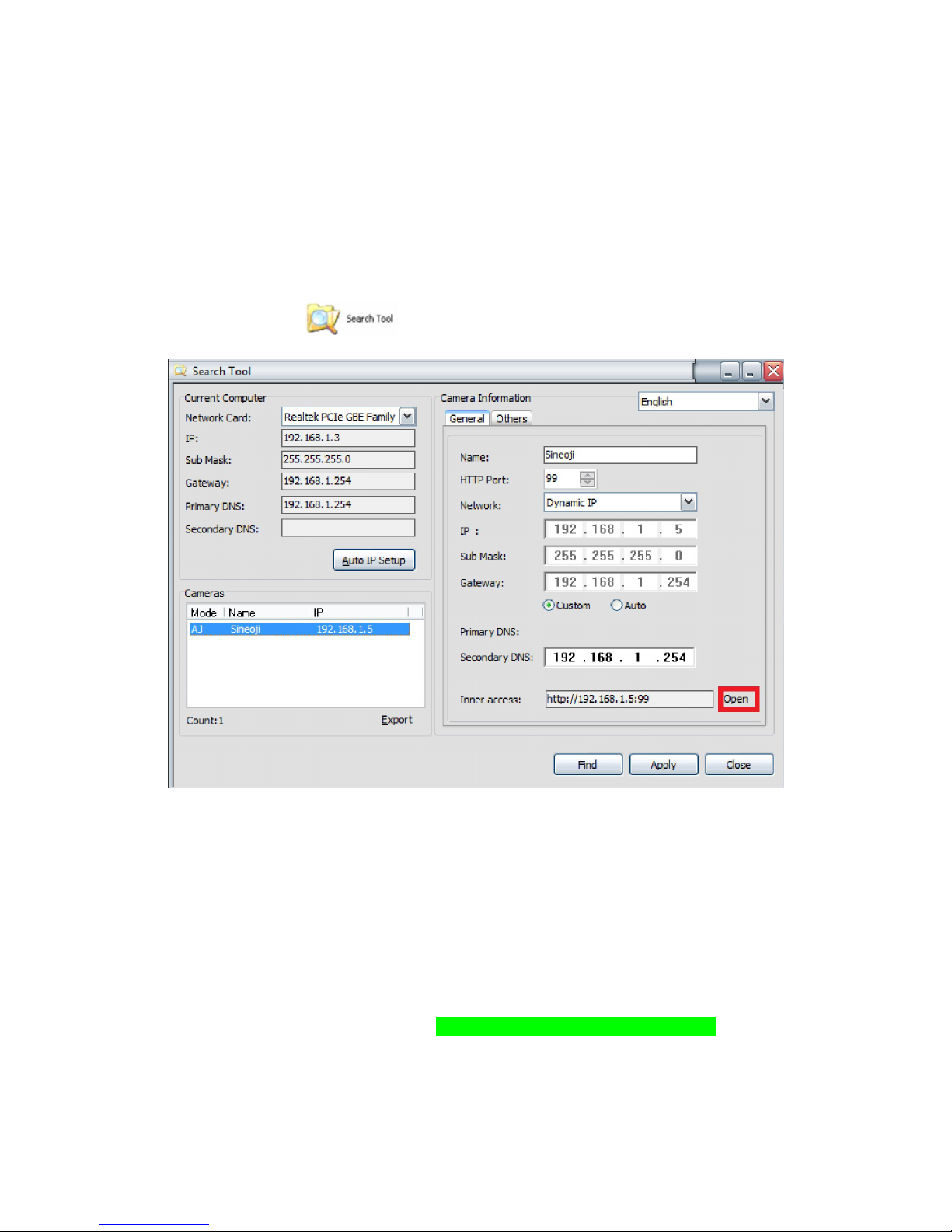

1.1.1 Search the IP address of the camera.

Double click the Icon “ ” run this IP address search tool.

Figure 2.1

Note: The software searches IP Servers automatically over LAN.

There are 2 scenarios:

1. No IP Cameras found within LAN. After about 1 minute search, the Cameras List Field does

not show the IP address.

2. IP Cameras have been installed within the LAN. All the IP Cameras will be listed and the total

number is displayed in the Cameras list field as shown in Figure 2.1

Note：

1. Current Computer indicates the Computer’s IP Address information.

2. Equipment information indicates the IP camera’s IP Address information.

3. If you find that the camera’s “Subnet Mask”, “Gateway”, “DNS Server” does not

correspond to your current computer’s values, you need try to change the camera’s IP

address.

Make sure the “Subnet Mask”, “Gateway”, “DNS Server” is the same as your router or your

current computer.

4. If you do not know how to configure your camera’s IP address. You can click “Update”

button. The Search Tool software will assist you to configure a usable IP camera automatically.

2.1.2 Configuration of the Network

Once your camera’s IP address’ Subnet Mask, Gateway, DNS Server is the same as your PC or

router, you need configure the camera’s Network parameter manually.

IP address: Fill in the IP address assigned and make sure it is in the same subnet as the

Gateway, and the subnet should be the same as your computer or router. (I.e. the first three

sections are the same)

Subnet Mask: The default subnet mask of the equipment is: 255.255.255.0. You can find the

subnet mask from your PC or router.

Gateway: Make sure it is in the same subnet with the PC’s IP address. The gateway is the LAN

IP of your router.

Primary DNS: IP address of ISP network provider. You can also set it as the same as the

Gateway.

NOTE: You can find out the Subnet Mask, Gateway, Primary DNS of your PC from the

“Search Tool” software.

Http Port: LAN port assigned for the equipment, default is 99. You can change the port

number to any one you want such as: 98,211,9999 etc.

3: Real-time Video Demonstration.

3.1. Camera Login:

You can access the camera through IP Camera Tool or IE, Firefox, Safari, Google Chrome or

other standard browser directly.

1. Double click the IP address of the IP Camera listed (Figure 2.1). The default browser you

use will run automatically and come to the camera login interface. (Figure 3.1)

2. To access the camera by IE Browser directly, just type the camera’s IP address, for

example, if the camera’s IP address is 192.168.1.99:99:

Figure 3.1

Username: admin

Password: NO PASSWORD.

Input the correct user name and password, the sign In interface will pop-up.

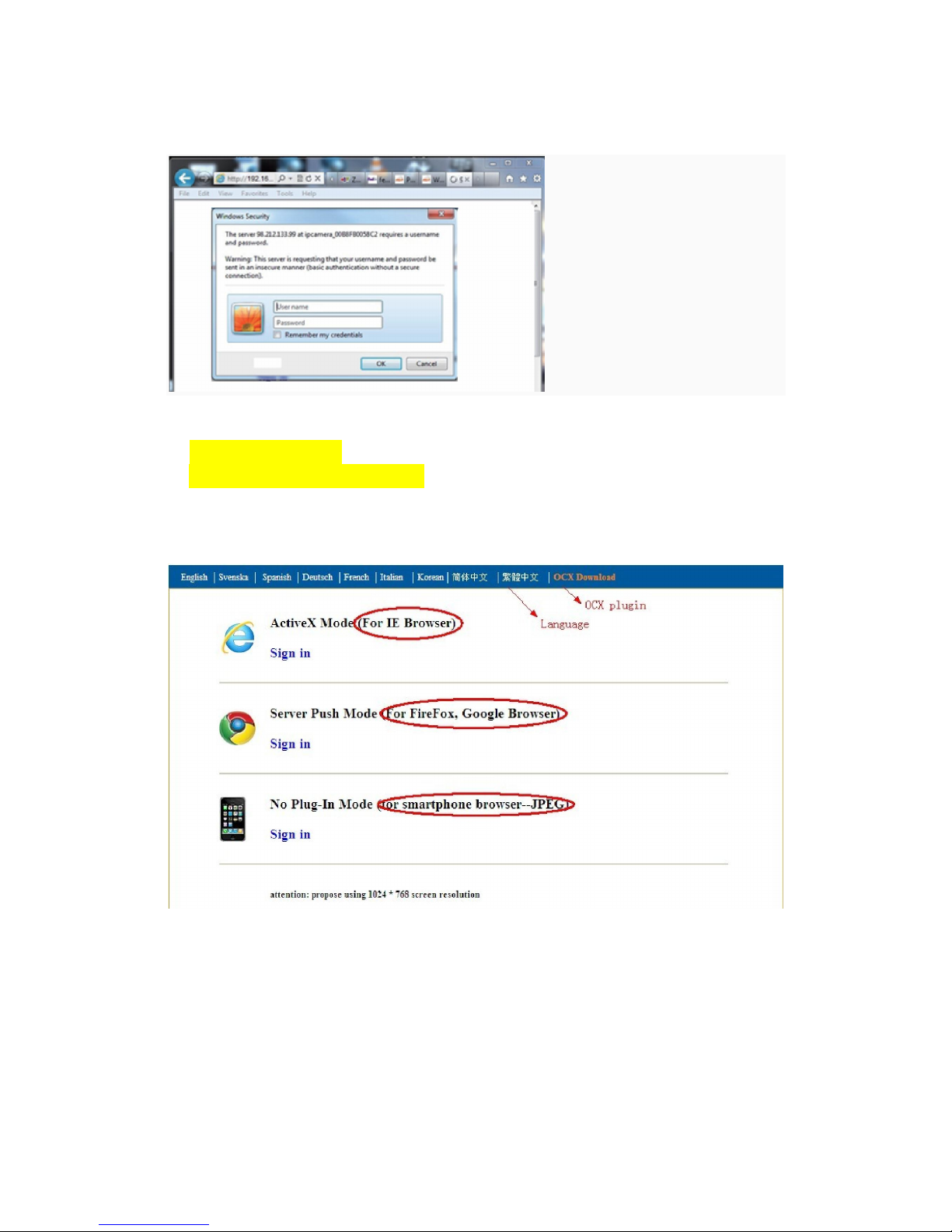

There are three modes to login (figure 3.2).

Figure 3.2

(1) ActiveX Mode (For IE Browser): available in IE6.0 or above explorer

(2) “RTSP Stream Mode”: available in Firefox, Safari, and Google browser.

(3) “No Plug-In Mode”: available in smart phone browser.

(4) SD card video playback online

3.2. View via IE Browser.

Select Active Mode (For IE Browser), and sign in.

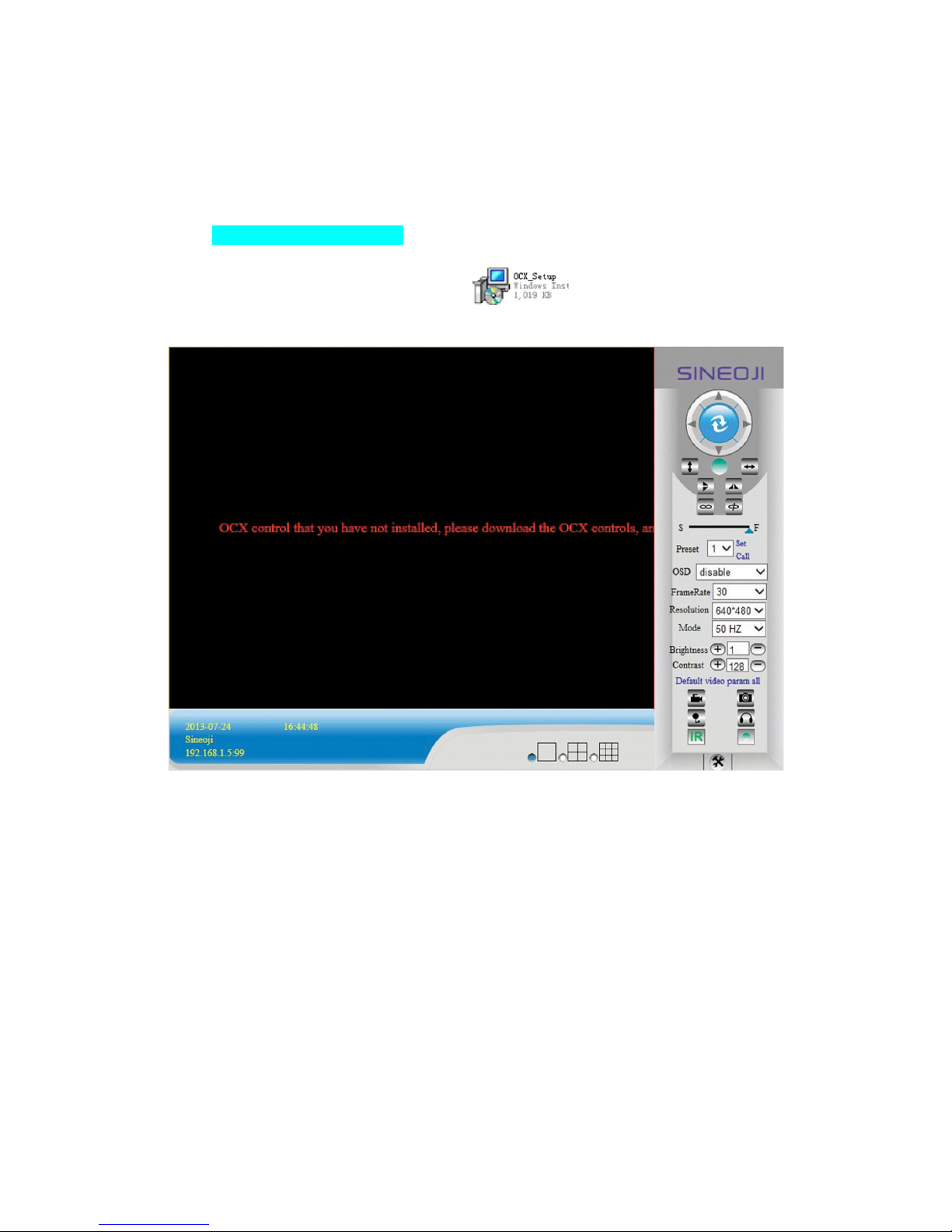

The first time when you login to the camera, you may be prompted with an ActiveX script as

shown below. Please download the Ocx(or run in CD) and install, otherwise, the

camera’s live video will not appear.

Figure 3.3

Installing the Ocx-Setup (oPlayer Software), click ”NEXT” until it is completed.
