Sinclair ASH-09AIM2 PT Manuel utilisateur

USER'S MANUAL

ASH-09AIM2 PT, ASH-13AIM2 PT

ASH-18AIM2 PT, ASH-24AIM2 PT

MATRIX 2 SERIES

outdoor unit

WARNING

● This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory ormental

capabilities or lack of experience and knowledge if they have

been given supervision or instruction concerning use of the

appliance in a safe way and understand the hazards involved.

● Children shall not play with the appliance.

● Cleaning and user maintenance shall not be made by children

without supervision.

● Do not connect air conditioner to multi-purpose socket. Other-

wise, it may cause fire hazard.

● Do disconnect power supply when cleaning air conditioner.

Otherwise, it may cause electric shock.

● Do not spray water on indoor unit. It may cause electric shock

or malfunction.

● Do not spill water on the remote controller, otherwise the rem-

ote controller may be broken.

● Do not repair air conditioner by yourself. It may cause electric

shock or damage. Please contact dealer when you need to re-

pair air conditioner.

● Do not block air outlet or air inlet. It may cause malfunction.

● If you need to relocate the air conditioner to another place, only

the qualified person can perform the work. Otherwise, it may

cause personal injury or damage.

● Do not step on top panel of outdoor unit, or put heavy objects.

It may cause damage or personal injury.

● Do not extend fingers or objects into air inlet or air outlet. It may

cause personal injury or damage.

● Air Conditioner should be properly grounded. Incorrect ground-

ing may cause electric shock.

● Do install the circuit break. If not, it may cause malfunction.

● Installation and maintenance must be performed by qualified pr-

ofessionals. Otherwise, it may cause personal injury or damage.

Precautions

Parts Name

Actual product may be different from above graphics, please refer to actual

products.

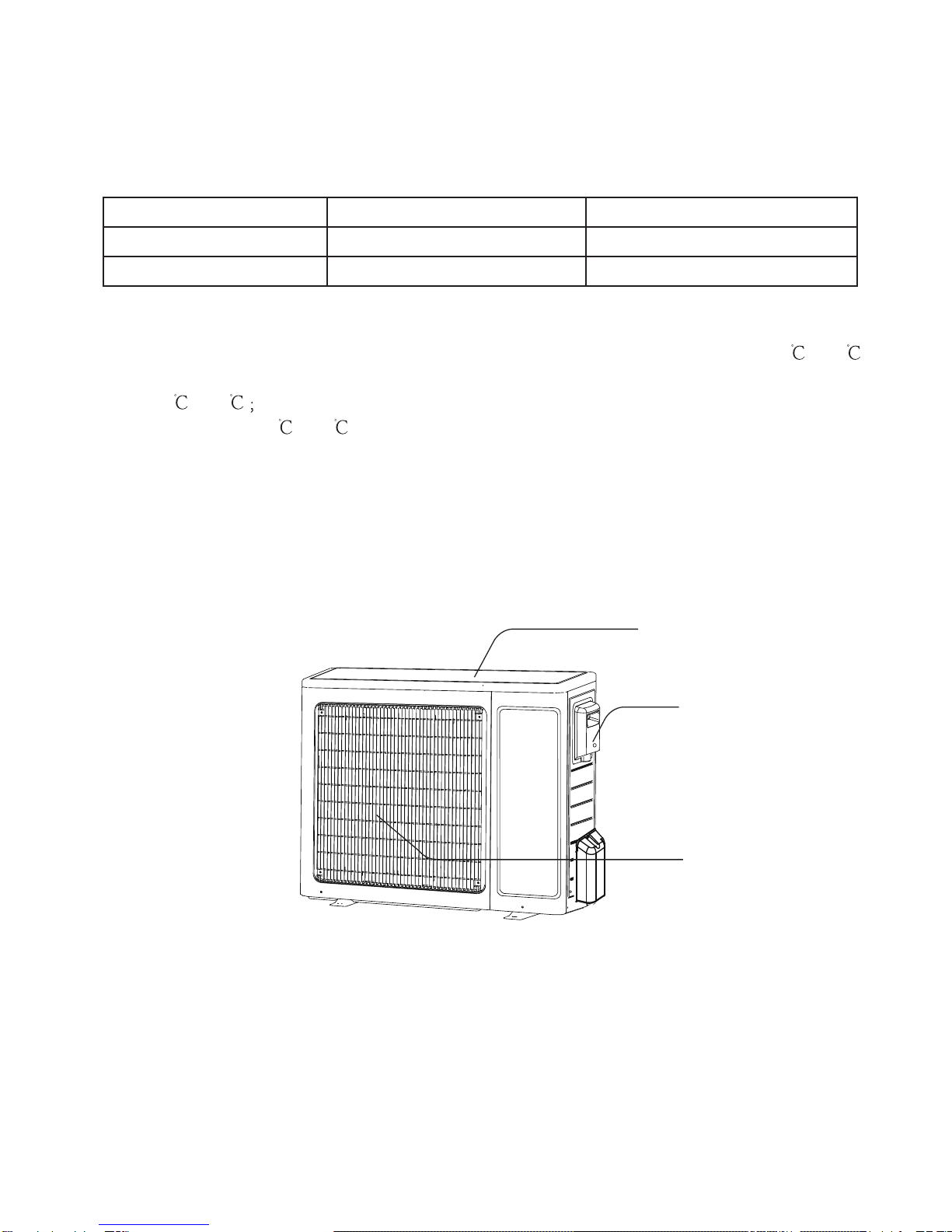

Outdoor Unit

Working temperature range

air inlet

handle

air outlet

Indoor side DB/WB(°C) Outdoor side DB/WB(°C)

Maximum cooling 32/23 48/26

Maximum heating 27/- 24/18

●

The operating temperature range (outdoor temperature) for cooling is -15 ~48;

The operating temperature range (outdoor temperature) for heating is-20°C~24°C

is -15 ~24 Heating temperature range for the model with electric heating belt

for chassis is -20 ~24 .

NOTICE:

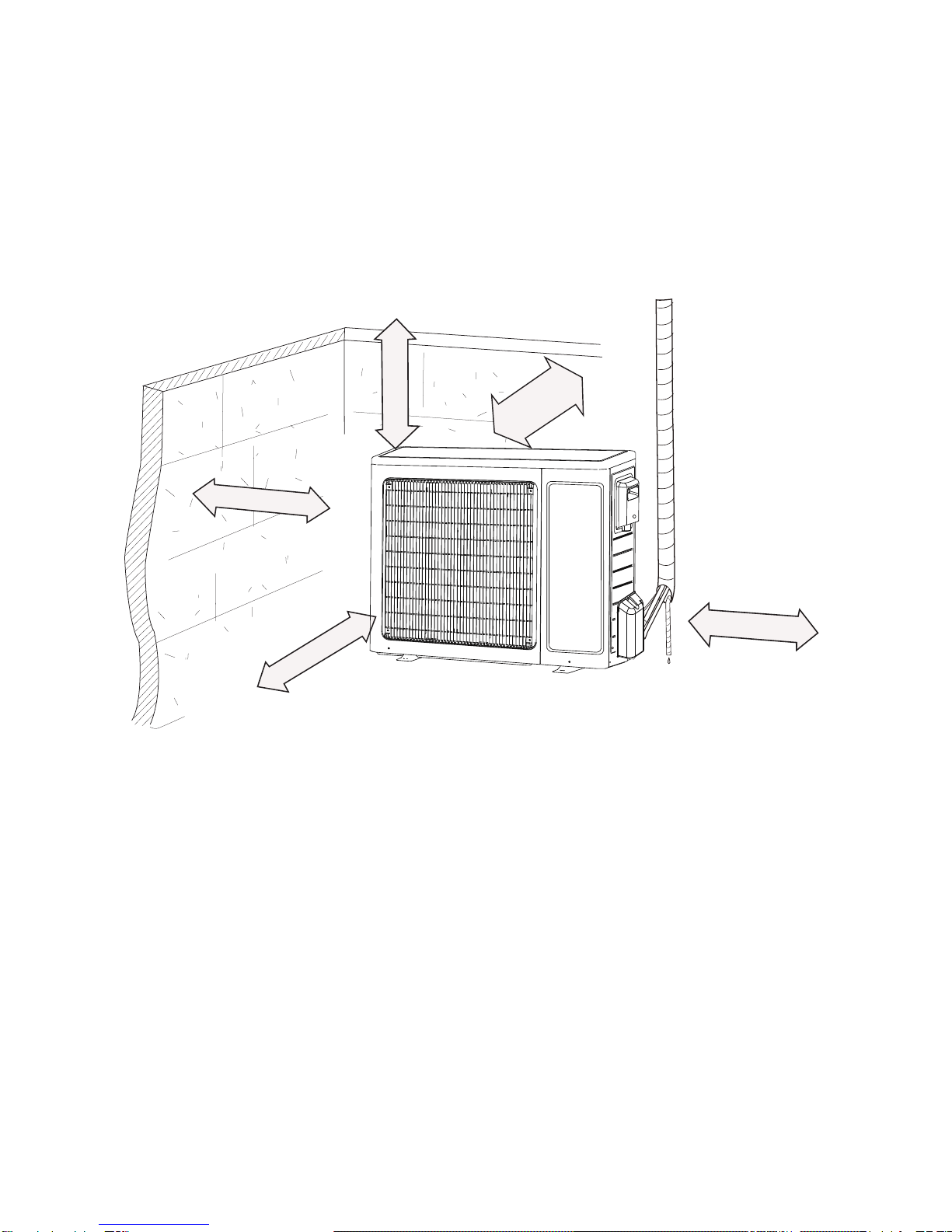

Installation dimension diagram

At least 50cm

At least

30cm

At least 200cm

Space to the obstruction

Space to the

obstruction

Space to the

obstruction

Space to the obstruction

At least 30cm

Space to the wall

Selection of installation location

Basic requirement

Outdoor unit

Installing the unit in the following places maycause malfunction. If it is un-

avoidable, please consult the localdealer:

1.The place with strong heat sources, vapors, flammableor explosive gas, or

volatile objects spread in the air.

2.The place with high-frequency devices (such as welding machine, medical

equipment).

3. The place near coast area.

The place with oil or fumes in the air.

5. The place with sulfureted gas.

6. Other places with special circumstances.

7. The appliance shall not be installed in the laundry.

will not affect neighborhood.

2. The location should be well ventilated and dry, in which the outdoor unit

Tools for installation

1 Level meter 2 Screw driver 3 Impact drill

4 Drill head 5 Pipe expander 6 Torque wrench

7 Open-end wrench 8 Pipe cutter 9 Leakage detector

10 Vacuum pump 11 Pressure meter 12 Universal meter

13 Inner hexagon spanner 14 Measuring tape

Note: ● Please contact the local agent for installation.

won't be exposed directly to sunlight or strong wind.

3. The location should be able to withstand the weight of outdoor unit.

4. Make sure that the installation follows the requirement of installation

dimension diagram.

5. Select a location which is out of reach for children and far away from animals

or plants.If it is unavoidable, please add the fence for safety purpose.

Requirements for electric connection

Safety precaution

Grounding requirement

1. Must follow the electric safety regulations when installing the unit.

air switch.

3. Make sure the power supply matches with the requirement of air conditioner.

Unstable power supply or incorrect wiring or malfunction. Please install proper

power supply cables before using the air conditioner.

4. Properly connect the live wire, neutral wire and grounding wire of power socket.

5. Be sure to cut off the power supply before proceeding any work related to

electricity and safety.

7. If the supply cord is damaged, it must be replaced by the manufacturer, its

8. The temperature of refrigerant circuit will be high, please keep the interconnec-

tion cable away from the copper tube.

9. The appliance shall be installed in accordance with national wiring regulations.

grounding with specialized grounding device by a professional. Please make

sure it is always grounded effectively, otherwise it may cause electric shock.

2. The yellow-green wire in air conditioner is grounding wire, which can't be used

for other purposes.

3. The grounding resistance should comply with national electric safety regulations.

4. The appliance must be positioned so that the plug is accessible.

5. An all-pole disconnection switch having a contact separation of at least 3mm in

all poles should be connected in fixed wiring.

6. Including an circuit break with suitable capacity, please note the following table.

Air switch should be included magnet buckle and heating buckle function, it can

protect the circuit-short and overload. (Caution: please do not use the fuse only

for protect the circuit)

Air-conditioner Circuit break capacity

10A09、13K

18、24K 16A

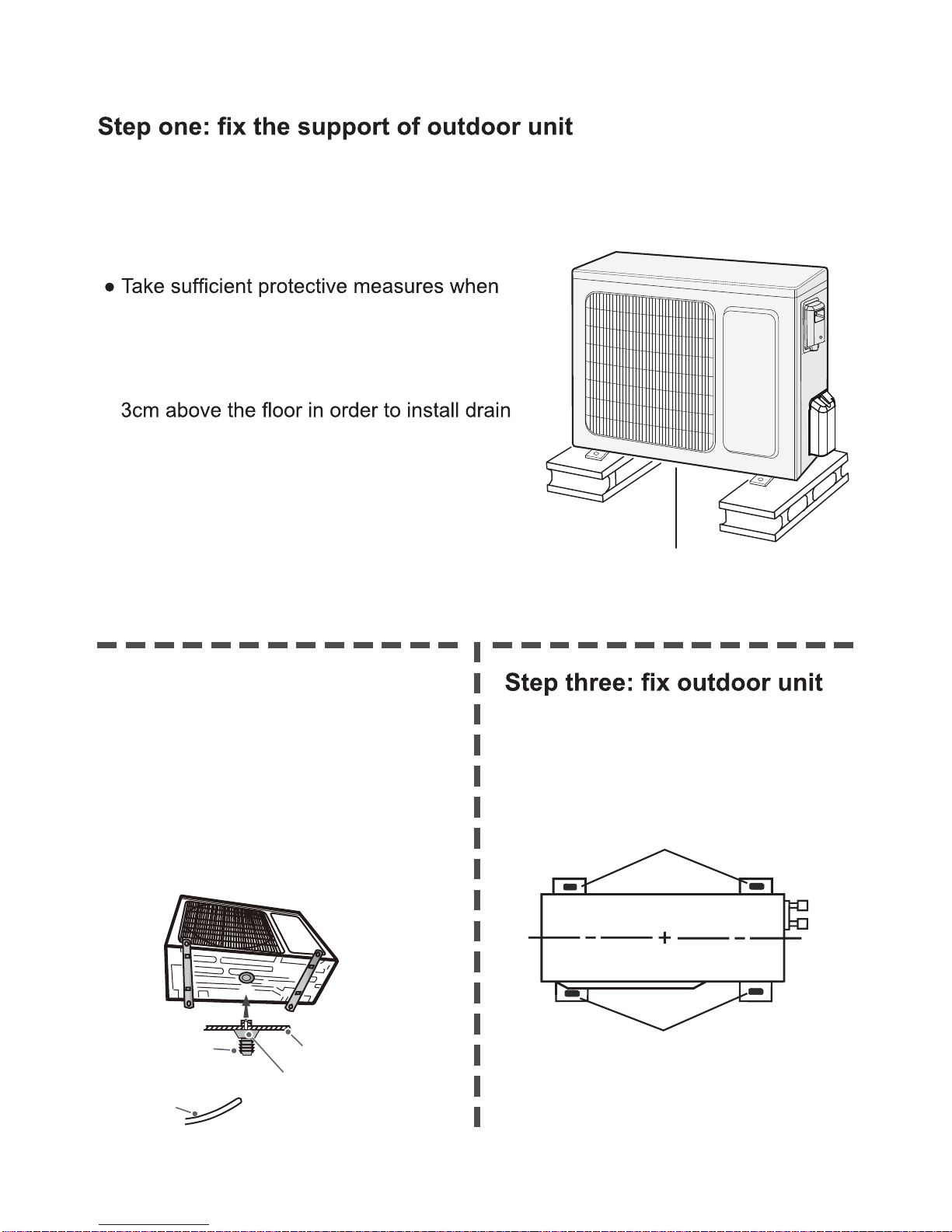

Installation of outdoor unit

(select it according to the actual installation situation)

1. Select installation location according to the house structure.

2. Fix the support of outdoor unit on the selected location with expansion screws.

at least 3cm above the floor

Note:

installing the outdoor unit.

●

Make sure the support can withstand at least

four times of the unit weight.

●The outdoor unit should be installed at least

joint.

● For the unit with cooling capacity of 2300W

~5000W, 6 expansion screws are needed;

for the unit with cooling capacity of 6000W

~8000W, 8 expansion screws are needed;

for the unit with cooling capacity of 10000W

~16000W, 10 expansion screws are needed.

Step two: install drain joint gnitaehdnagniloocrofylnO(

unit)

1. Connect the outdoor drain joint into

the hole on the chassis, as shown in

the picture below.

2. Connect the drain hose into the drain

vent.

chassis

outdoor drain joint

Drain hose

drain vent

1. Place the outdoor unit on the

support.

2. Fix the foot holes of outdoor unit

with bolts.

foot holes

yellow-

green

Installation of outdoor unit

Step four: connect indoor and outdoor pipes

1. Remove the screw on the right han-

dle of outdoor unit and then remove

the handle.

2. Remove the screw cap of valve and

aim the pipe joint at the bellmouth of

pipe.

3. Pretightening the union nut with

hand.

4. Tighten the union nut with torque

wrench by referring to the sheet

below.

gas pipe

liquid pipe

liquid

valve

gas valve

union nut

pipe joint

Hex nut diameter Tightening torque

(N.m)

Φ 6

Φ 9.52

Φ 12

Φ 16

Φ 19

30~40

45~55

60~65

70~75

15~20

handle

screw

handle

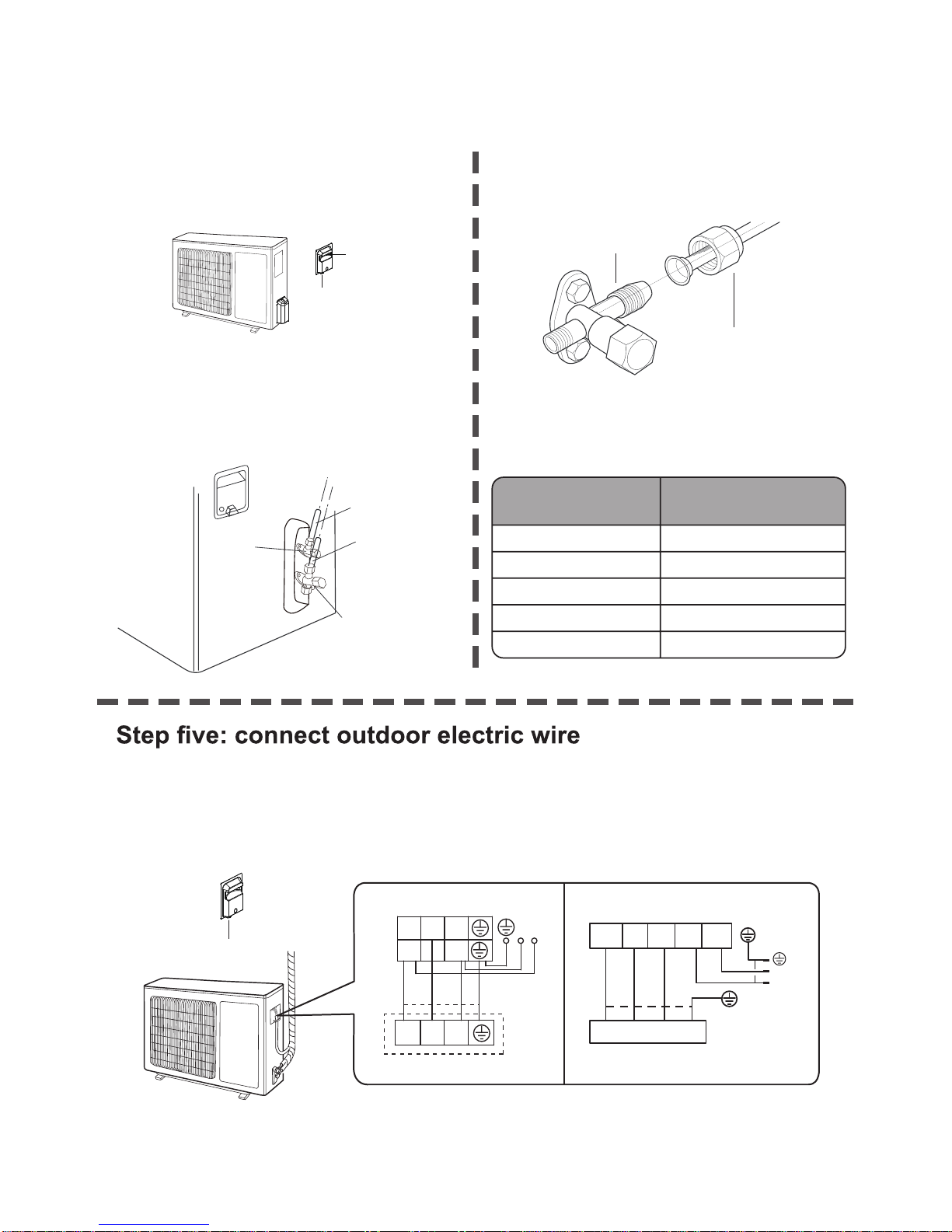

1. Remove the wire clip; connect the power connection wire and signal control

wire (only for cooling and heating unit) to the wiring terminal according to the

color; fix them with screws.

Indoor unit connection

、13

Indoor unit connection

、24

2 3 L

NN(1)

POWER

blue blue

black brown brown

yellow-

green

yellow-

green

L N

2 3

N(1)

blue black brown yellow-

green

Installation of outdoor unit

2. Fix the power connection wire and signal control wire with wire clip (only for

cooling and heating unit).

Note:

● Never cut the power connection wire to prolong or shorten the distance.

Step six: neaten the pipes

1. The pipes should be placed along the wall,

bent reasonably and hidden possibly. Min.

semidiameter of bending the pipe is 10cm.

2. If the outdoor unit is higher than the wall

hole, you must set a U-shaped curve in the

pipe before pipe goes into the room, in

order to prevent rain from getting into the

room.

U-shaped curve

wall

drain hose

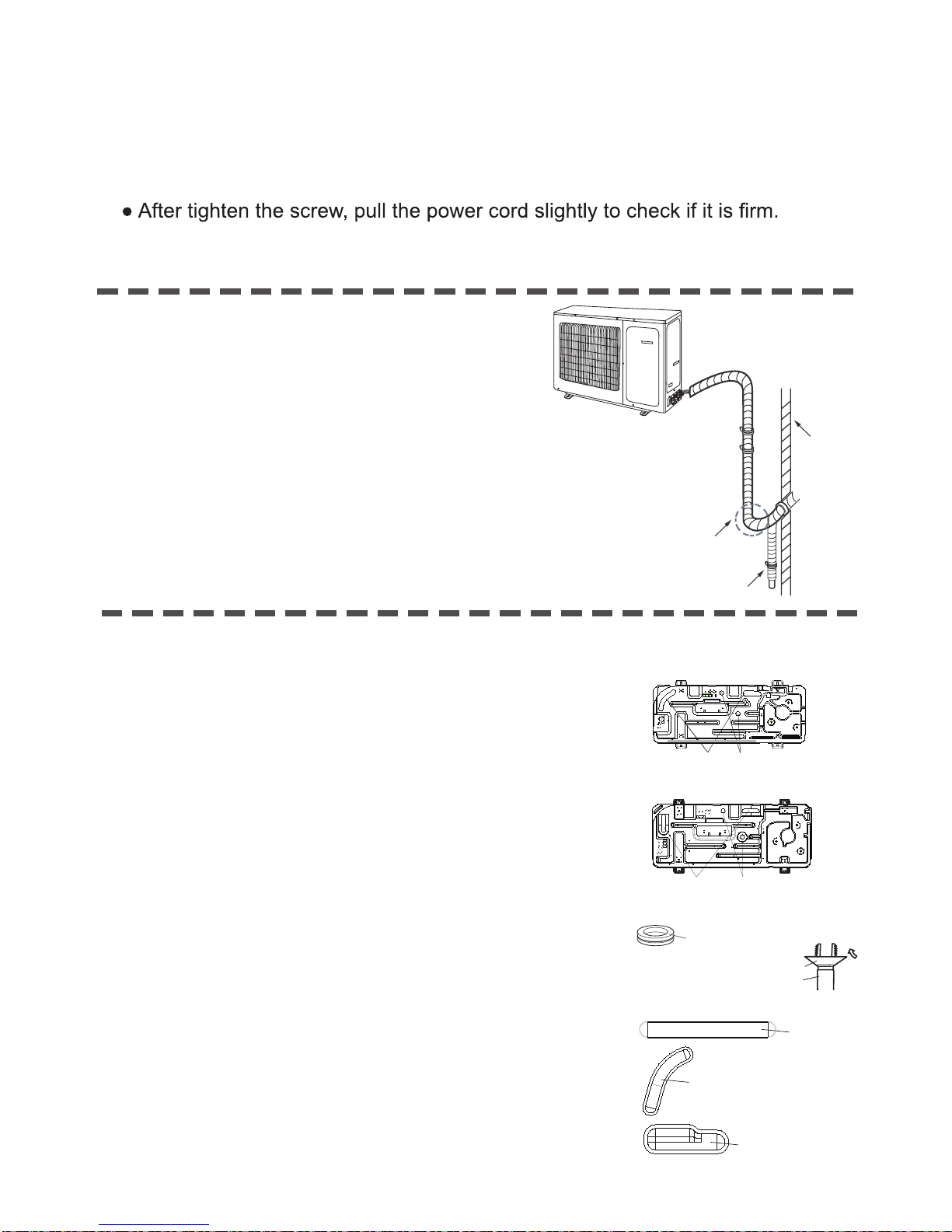

Outdoor Condensate Drainage

During heating operation, the condensate and defrosting

water should be drained out reliably through the drain hose.

Install the outdoor drain connector in a Φ25 hole on

the base plate and attach the drain hose to the connector

so that the waste water formed in the outdoor unit can be

drained out. The hole diameter 25 must be plugged.

(The figures in this manual may be different with the material

objects, please refer to the material objects for reference)

The 18K MC、24K MD UNIT drainage hole consists of two Φ25 and

two kidney holes (see the fig.1). The drain plug consists of one Φ25

and two kidney plugs.

Whether to plug other holes will be determined by the dealers

to actual conditions.

Didney holes

18K MC UNIT:

24K MD UNIT:

Didney holes Drain - water hole

Bottom frame

Didney holes Drain - water hole

Bottom frame

Drain plug

Hose (available commercially,

inner dia. 16mm)

Drain connecter

Fig.1

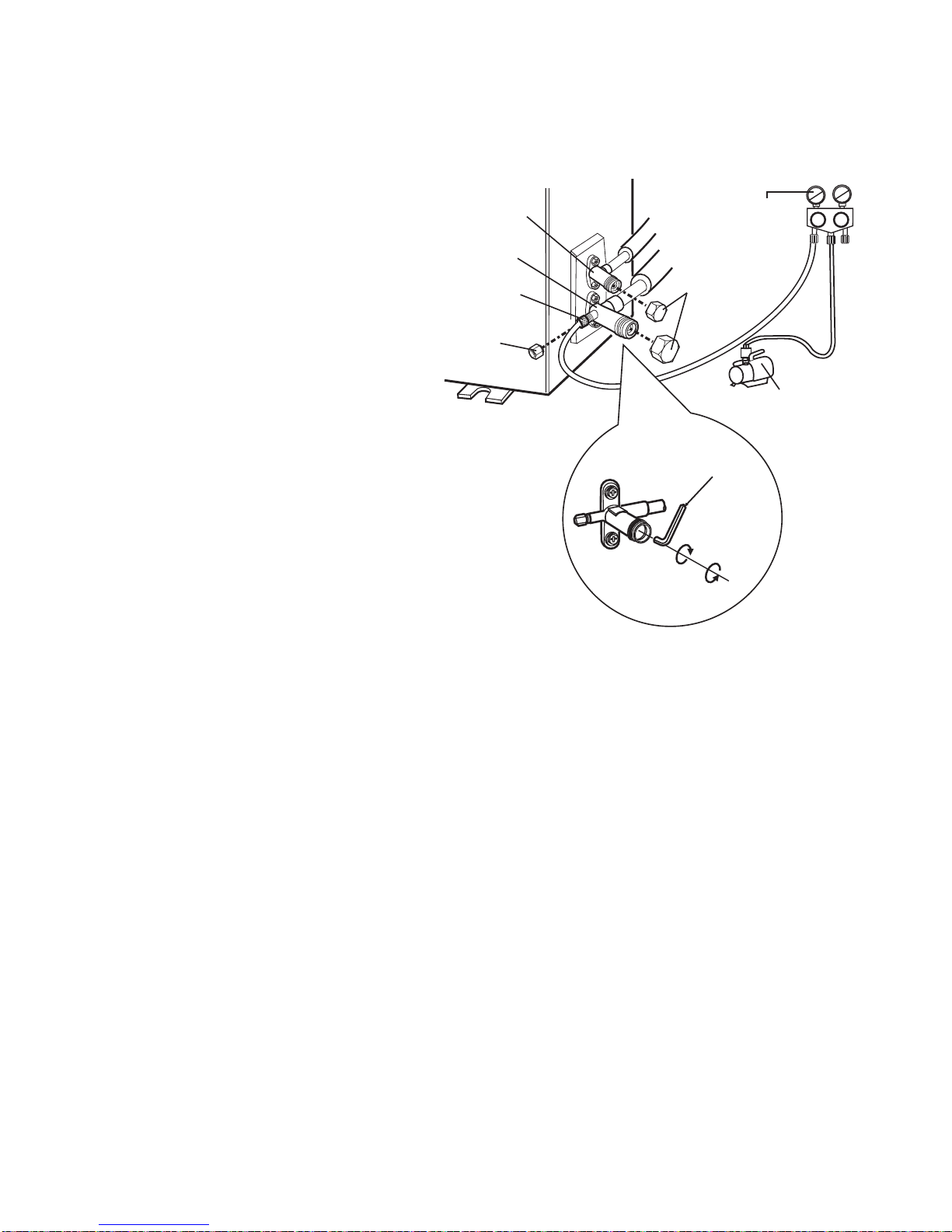

Vacuum pumping

Leakage detection

1. Remove the valve caps on

the liquid valve and gas

valve and the nut of refri-

gerant charging vent.

2. Connect the charging hose

of piezometer to the refri-

gerant charging vent of gas

valve and then connect the

other charging hose to the

vacuum pump.

3. Open the piezometer com-

pletely and operate for

10-15min to check if the

pressure of piezometer re-

mains in -0.1MPa.

4. Close the vacuum pump

and maintain this status for

1-2min to check if the pres-

sure of piezometer remains

in -0.1MPa. If the pressure decreases, there may be leakage.

5. Remove the piezometer, open the valve core of liquid valve and gas valve

completely with inner hexagon spanner.

6. Tighten the screw caps of valves and refrigerant charging vent.

7. Reinstall the handle.

Use vacuum pump

liquid valve

gas valve

refrigerant charging

vent

nut of refrigerant

charging vent

vacuum pump

piezometer

valve cap

Lo Hi

inner hexagon

spanner

open

1. With leakage detector:

Check if there is leakage with leakage detector.

2. With soap water:

If leakage detector is not available, please use soap water for leakage detection.

Apply soap water at the suspected position and keep the soap water for more

than 3min. If there are air bubbles coming out of this position, there's a leakage.

Autres manuels pour ASH-09AIM2 PT

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sinclair Climatiseur

Sinclair

Sinclair SF-C4M Series Manuel utilisateur

Sinclair

Sinclair DUCT ASD-09A Manuel utilisateur

Sinclair

Sinclair MV-E14BI Manuel utilisateur

Sinclair

Sinclair ELEMENT Series Manuel utilisateur

Sinclair

Sinclair AMC-11AN Manuel utilisateur

Sinclair

Sinclair SIH-09BIK Manuel utilisateur

Sinclair

Sinclair ASH-09AIM PT Manuel utilisateur

Sinclair

Sinclair Focus Plus ASH-13BIF2 Manuel utilisateur

Sinclair

Sinclair ASH-09AIP PT Manuel utilisateur

Sinclair

Sinclair KEYON Series Manuel utilisateur

Sinclair

Sinclair ASH-13AIA PT Manuel utilisateur

Sinclair

Sinclair AW-12A Manuel utilisateur

Sinclair

Sinclair MV-F BI Series Manuel utilisateur

Sinclair

Sinclair ASH-24CN Manuel utilisateur

Sinclair

Sinclair MS-P09AI Manuel utilisateur

Sinclair

Sinclair KJR-120A Manuel utilisateur

Sinclair

Sinclair SF2 D3 Series Mode d’emploi

Sinclair

Sinclair AST-24AI Manuel utilisateur

Sinclair

Sinclair ASP-18AI Manuel utilisateur

Sinclair

Sinclair SF-08C Manuel utilisateur

Sinclair

Sinclair SDV4 series Manuel utilisateur

Sinclair

Sinclair ASC BI Series Manuel utilisateur

Sinclair

Sinclair MS-E48AIN Manuel utilisateur

Sinclair

Sinclair MULTI VARIABLE SERIES Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur
