Getting Started

Lamp Module Accessory

For Models UML7 and UML8

Model UML7 Model UML8

Simply Automated Pre-Configured SimplySmart

Series

Utilizes SimplySmart

technology to make installation a breeze. No computer

programming required! Simple-n-easy, ready to use lighting control.

Getting Started

Lamp Module Accessory

For Models UML7 and UML8

Simply Automated, Incorporated

Simply Automated Pre-Configured SimplySmart

Series

Utilizes SimplySmart

technology to make installation a breeze. No computer

programming required! Simple-n-easy, ready to use lighting control.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical products, basic safety precautions should always be followed, including the following:

1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS.

2. Keep away from water. If product comes into contact with water or other liquid, disconnect immediately.

3. Never use products that have been dropped or damaged.

4. Do not use this product outdoors.

5. Do not use this product for other than its intended use.

6. Do not connect multiple lamps that, when combined, exceed the maximum load rating of the product, de-rated for multi-gang boxes.

7. Do not install in areas that can exceed 120°F (e.g., in an attic).

8. To avoid the risk of overheating and possible damage to other equipment, do not use this product to control a receptacle.

9. Do not cover the product with any material when in use.

10. SAVE THESE INSTRUCTIONS

Section 1: Very Important Pre-Installation Notes

•Your home should be no more than 2500 square feet and have only one breaker panel. A phase

coupler is required in some home installations. See Section 5 for more information.

•Not intended for use in multi-dwelling (condo, apartment, duplex) units.

Section 2: Installation of Lamp Module

Locate a lamp you would like to turn ON/OFF. Plug the lamp module into a wall outlet, then plug-in a lamp into

the socket on the bottom of the lamp module. Turn the lamp ON using the lamp’s ON/OFF switch. Leave the

lamp on (do not turn off). You're done with the installation process! Please refer to the User Guide the lamp

module came packaged in or see http://simply-automated.com/documents/452-0112-0201_RevC_UML-E-

W_UserGuide_090512.pdf

Test the lamp module using a 4-button scene controller. Button 3 of the Tabletop Controller with 4-buttons (and

Deluxe Dimmer with 4-buttons) is programmed from the factory to turn on each device (lamp module or dimmer)

at a 100% dim level. Button 4 is programmed from the factory to turn off each device (lamp module or dimmer).

•Button 3 turns on/off the lamp module: Press (tap) button 3 one time to turn on the lamp module, press

(quickly tap) two times to turn off the lamp module.

•Button 4 turns off the lamp module: Press (tap) button 4 one time to turn off the lamp module.

Helpful Hint: If tapping a button does not turn on a lamp, the lamp's switch may be in the off position. Go to the

lamp and turn on using the lamp's on/off switch. Tapping should be done quickly ensuring contact is made from

the button to the base sensor.

The lamp can still be turned ON/OFF manually. For manual operation of either lamp, simply turn the lamp ON,

OFF and ON again using the lamp’s ON/OFF switch.

6108 Avenida Encinas, Suite B, Carlsbad, CA 92011 USA

Technical Support: www.simply-automated.com or 800-630-9234

452-0112-0203 Rev. B Revised: July 7, 2009

Getting Started

Lamp Module Accessory

For Models UML7 and UML8

Simply Automated, Incorporated

Important Note: Each lamp module has a unique ID number. You can find the ID number on the back of

each lamp module. Model UML7 has ID #7 and model UML8 has ID #8. This is important information to

note as it relates to operation with the Scheduler-Timer accessory (sold separately).

Section 3: Editing Buttons (Scenes) on Tabletop Controller (or Deluxe Dimmer) with 4-

Buttons

Each button on the Tabletop Controller (or Deluxe Dimmer) with 4-Buttons controls a SCENE that can easily be

edited from the factory pre-sets. You can change the dimming level or number of lamp modules controlled by

each button to create your own custom scenes!

Section 3.a. Adding a Lamp Module

Button 1. To add a lamp module to button 1:

•Go to the lamp connected to the lamp module. Turn on using the

lamps on/off switch.

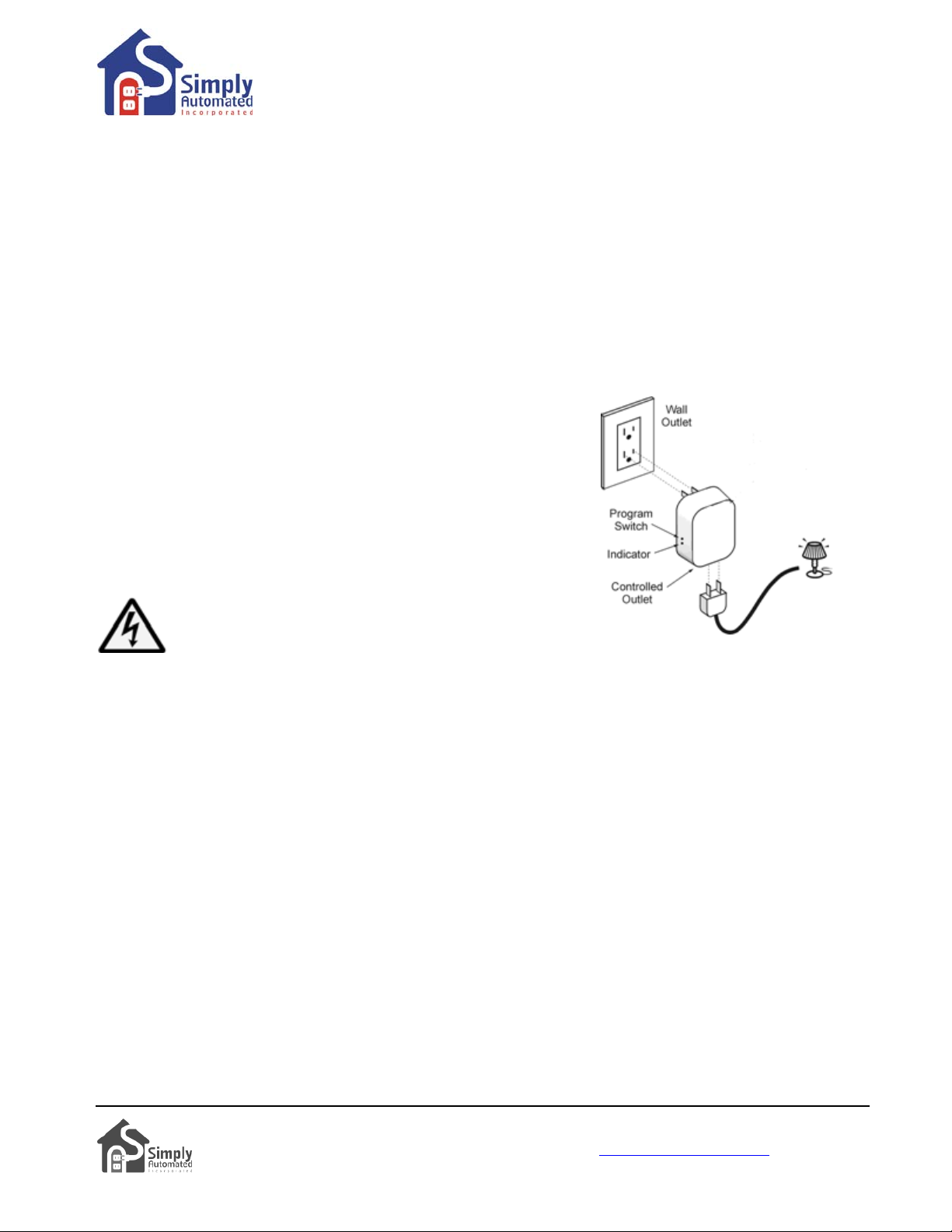

•Go to the lamp module, press (quickly tap) the program switch

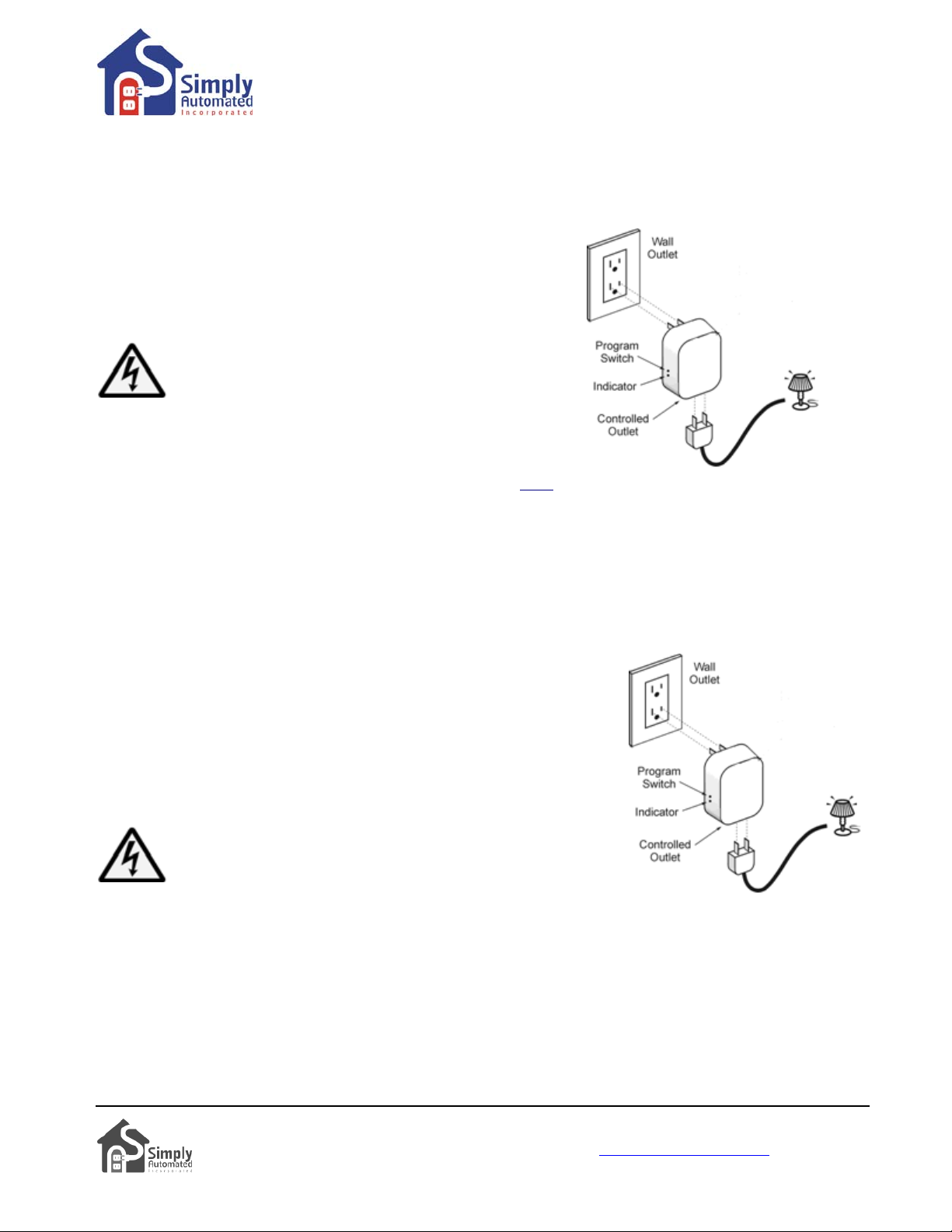

(see illustration) 5 times using a non-metallic toothpick to place in

the program mode. The indicator will continuously blink green

to confirm the lamp module is in the program mode.

CAUTION: When programming the lamp module, do not

insert any metal object (paperclip) into the module while it

is connected to power.

•

Go to the Tabletop Controller (or Deluxe Dimmer), press (quickly tap) button 1 seven times. You have

created a new scene!

Helpful Hint: If tapping button 1 does not turn on the lamp module, the lamp's switch may be in the off position.

Go to the lamp and turn on using the lamp's on/off switch, repeat the three steps outlined above. Tapping

should be done quickly ensuring contact is made from the button to the base sensor.

Button 2. To add a lamp module to button 2, follow the instructions outlined above in Section 3.a. noting you

will need to press (tap) button 2 seven times to program the new scene.

Helpful Hint: After tapping five times, lamp module will stay in the program mode for approximately 5 minutes.

You can always confirm if the lamp module is in the program mode by checking for a blinking green light next to

the program switch. If the indicator is not flashing green, to place in the program mode, quickly tap the program

switch five times. To exit the program mode, quickly tap the program switch two times.

Helpful Hint: The Tabletop Controller can inadvertently be placed in the program mode by tapping button 1 five

times. The indicator above button 1 will continuously blink green for five minutes. To exit the programming

mode, quickly tap the lamp module’s program switch two times.

6108 Avenida Encinas, Suite B, Carlsbad, CA 92011 USA

Technical Support: www.simply-automated.com or 800-630-9234

452-0112-0203 Rev. B Revised: July 7, 2009

Getting Started

Lamp Module Accessory

For Models UML7 and UML8

Simply Automated, Incorporated

Section 3.b. Deleting a Lamp Module

If you would like to edit a scene and delete a lamp module from any button:

•Go to lamp module you would like to delete, press (quickly tap)

the program switch (see illustration) 5 times using a non-metallic

toothpick to place in the program mode. The indicator will

continuously blink green to confirm the lamp module is in the

program mode.

CAUTION: When programming the lamp module, do not

insert any metal object (paperclip) into the module while it is

connected to power.

•

Go to the Tabletop Controller (or Deluxe Dimmer), press (quickly tap)

the button you would like to delete the lamp module from eight times.

Helpful Hint: If you press (tap) a button and the lamp module you deleted still turns on, repeat the two steps

outlined above. Tapping should be done quickly ensuring contact is made from the button to the base sensor.

Section 3.c. Changing the Dimming Level

Important Note: If you are using compact florescent or florescent lighting, you should not attempt to

change the dimming level. Florescent lighting can only be turned on at a 100% dim level.

Button 1. To change the dimming level for button 1:

•

Go to the Tabletop Controller (or Deluxe Dimmer), press and

hold button 1 to the desired dimming level for the lamp module.

•Go to the lamp module, press (quickly tap) the program switch (see

illustration) 5 times using a non-metallic toothpick to place in the

program mode. The indicator will continuously blink green

to confirm the lamp module is in the program mode.

nsertCAUTION: When programming the lamp module, do not i

any metal object (paperclip) into the module while it is

connected to power.

•

Go back to the Tabletop Controller, press (quickly tap) button 1 seven times. You have created a new

scene!

Helpful Hint: If tapping button 1 does not change the dimming level, repeat the three steps outlined above.

Tapping should be done quickly ensuring contact is made from the button to the base sensor.

Button 2. To change the dimming level for button 2, follow the instructions outlined above in Section 3.c. noting

you will need to press (tap) button 2 seven times to program the new scene.

6108 Avenida Encinas, Suite B, Carlsbad, CA 92011 USA

Technical Support: www.simply-automated.com or 800-630-9234

452-0112-0203 Rev. B Revised: July 7, 2009

Getting Started

Lamp Module Accessory

For Models UML7 and UML8

Simply Automated, Incorporated

Important Note: If you would like to program a different dimming level for more than one lamp module,

repeat the procedure outlined above for one lamp module at a time. Go to the Tabletop controller (or

Deluxe Dimmer), press and hold the button to the desired dimming level for lamp module #1. Go to

lamp module #1, place in the program mode, go back to the Tabletop Controller (or Deluxe Dimmer) and

press (quickly tap) the button you want to edit seven times. Follow the same procedure for all other

lamp modules. Note: although all lamp modules will dim up/down, a change will only occur when the

lamp module is placed in the program mode.

Editing buttons 3 or 4. Button 3 is programmed to turn on both lamp modules at 100%. Button 4 is

programmed to turn off both lamp modules. We recommend not editing these buttons since all devices (up to

ten dimmers/lamp modules) in the Pre-Configured SimplySmart

Series have the same settings -- one tap of

button 3 turns all devices on, one tap of button 4 turns all devices off. This pre-programming is a very powerful

and convenient feature using both the Tabletop Controller with 4-buttons and Deluxe Dimmer with 4-buttons.

Example include entering a home (button 3 for ALL ON), leaving a home (button 4 for ALL OFF), bedside for

security and nighttime convenience (button 3 for ALL ON) or (button 4 for ALL OFF).

Important Note: Buttons 1 and 2 operate independently for the Tabletop Controller and Deluxe Dimmer

allowing one touch button control up to 4 unique custom scenes. Create one scene for button 1 of the

Tabletop Controller and a second scene for button 1 of the Deluxe Dimmer. Make a third scene for

button 2 of the Tabletop Controller and a fourth scene for button 2 of the Deluxe Dimmer.

Section 4: Simple-n-Easy Expansion for SimplySmart

Series. Fully Compatible.

Dimmer Starter Kit, Lamp Starter Kit, and Accessories -- Dimmers, Lamp Modules or

Tabletop Controller.

Simply Automated Pre-Configured SimplySmart

Series offers simple-n-easy expansion capability. Begin with

the Dimmer or Lamp Starter Kit, add the other starter kit, (up to) 2 additional standard dimmers, Deluxe Dimmer

with 4-buttons, (up to 2) additional lamp modules or Tabletop Controller with 4-buttons. One touch button

convenience to turn ON/OFF up to ten Simply Automated dimmers or lamp modules – custom scenes you

create!

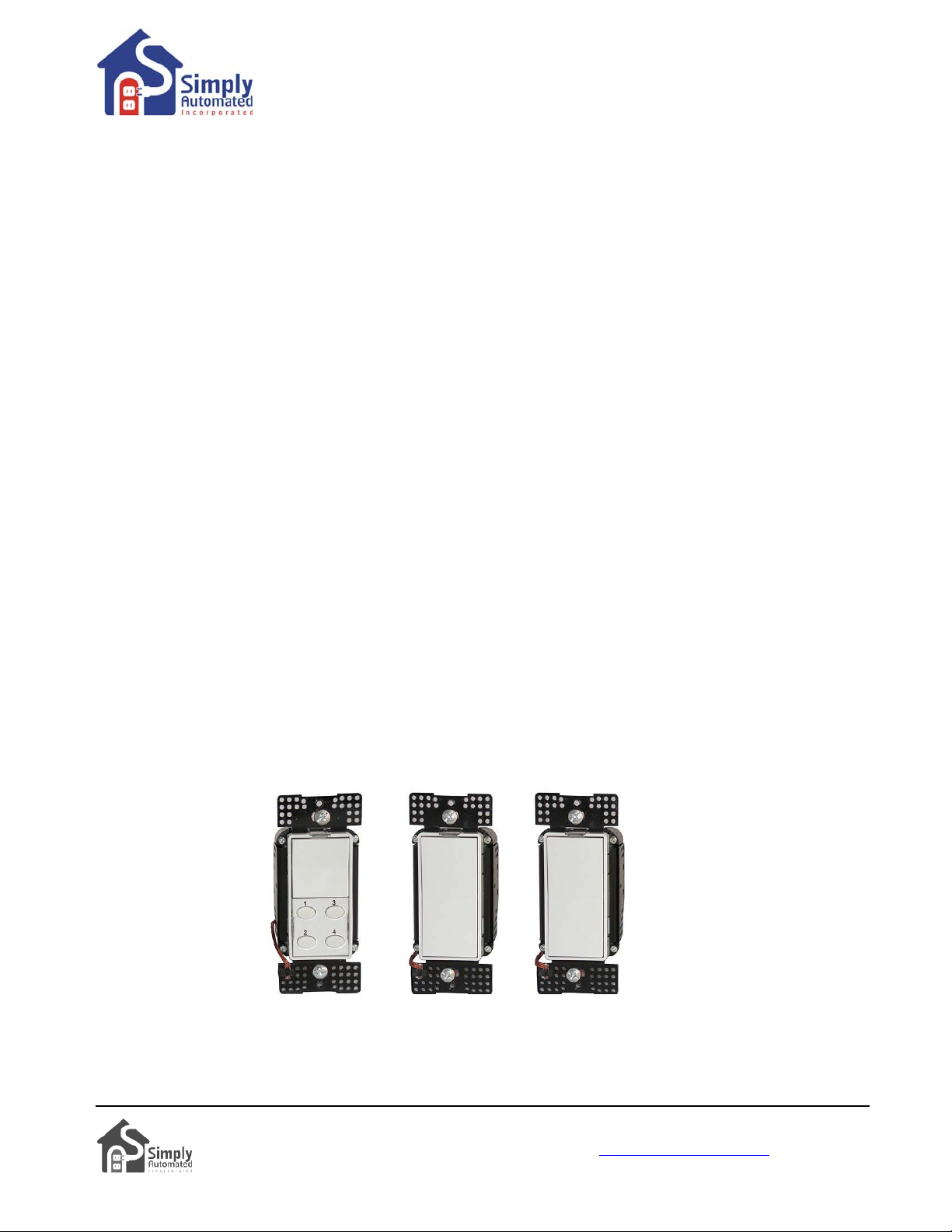

Dimmer Starter Kit

Includes 2 dimmers and deluxe dimmer with 4-button scene controller (PN: DKIT-01).

6108 Avenida Encinas, Suite B, Carlsbad, CA 92011 USA

Technical Support: www.simply-automated.com or 800-630-9234

452-0112-0203 Rev. B Revised: July 7, 2009

Getting Started

Lamp Module Accessory

For Models UML7 and UML8

Simply Automated, Incorporated

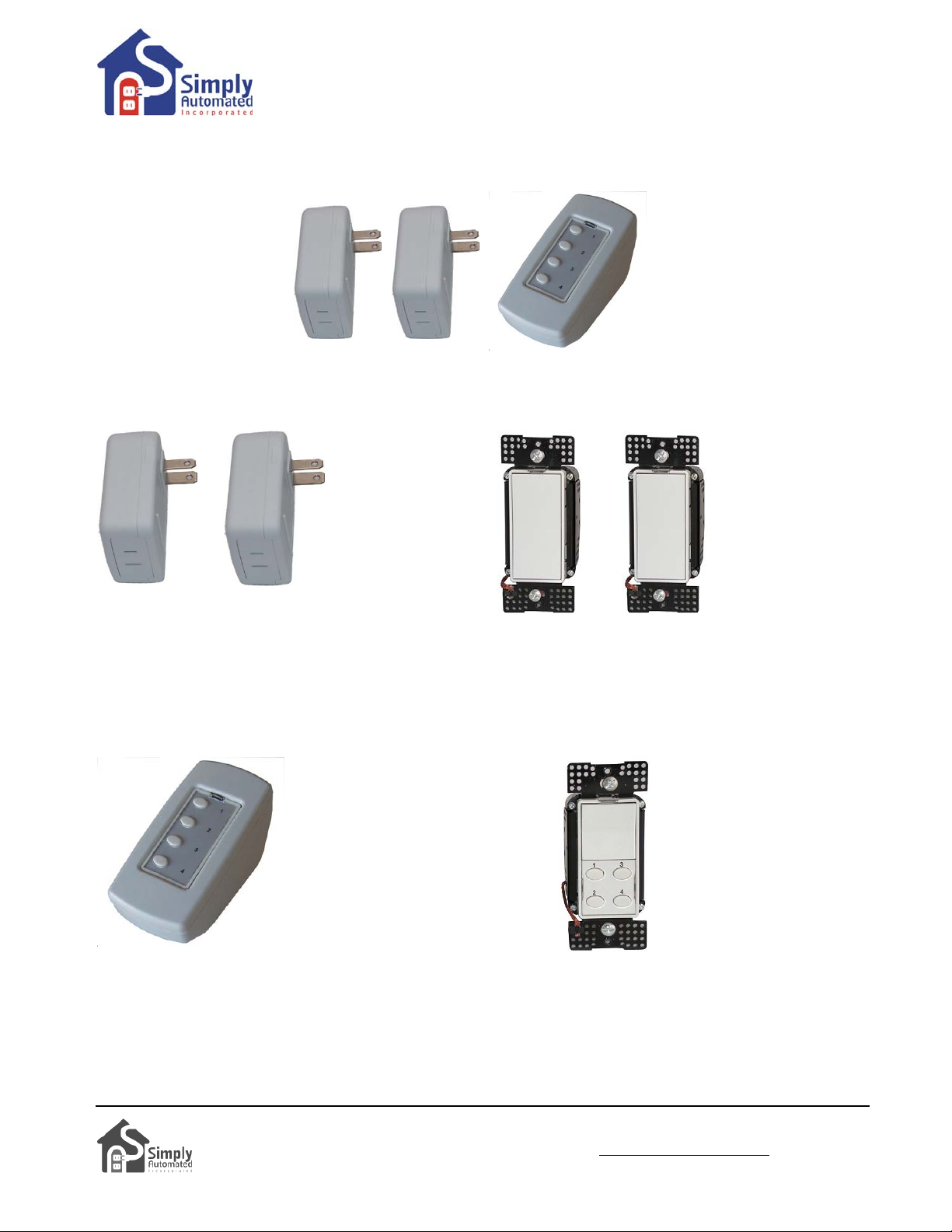

Lamp Starter Kit

Includes 2 lamp modules and tabletop controller with 4-button scene controller (PN: DKIT-02)

Lamp Modules Dimmers

PN: UML7 PN: UML8

PN: US1W8 PN: US1W10

Tabletop Controller Deluxe Dimmer

(with 4-button scene control) (with 4-button scene control)

PN: US2TP11 PN: US2W12

Important Note: only one of each pre-configured accessory PN can be ordered per home installation.

6108 Avenida Encinas, Suite B, Carlsbad, CA 92011 USA

Technical Support: www.simply-automated.com or 800-630-9234

452-0112-0203 Rev. B Revised: July 7, 2009

Getting Started

Lamp Module Accessory

For Models UML7 and UML8

Simply Automated, Incorporated

Add a Scheduler-Timer (PN: UCS-01) to automatically turn ON/OFF indoor or outdoor security lighting. Or to

create night time convenience pathway lighting. Energy savings dimming feature (from 10%, 20%, 30%, 40%,

to 90% dimming levels). Random 'vacation mode' setting. Built-in celestial clock computes sunrise and

sunset. Calculates daylight savings time.

The Scheduler-Timer is easily and quickly programmed -- no PC connection is

necessary. Just set the time, your location (using your zip code), the Network ID #

(250), and you’re ready to input on/off events using the ID # for each dimmer (each

dimmer has a unique ID number). You can find the ID number on the front of each

dimmer. For the Dimmer Starter Kit (DKIT-01), the single rocker dimmers have ID

#1 and #2, the Deluxe Dimmer with 4-buttons has ID #3.

Section 5: In Case of a Problem

Phone: 760-431-2100 Ext. 138 Monday-Friday 8AM-5PM (Pacific Time) for assistance.

Phase Coupler: Your home should be no more than 2500 square feet and have only one breaker panel. A

phase coupler is required in some home installations. If you have tested the rockers for each dimmer, they

work, but the buttons do not turn on all three dimmers, the circuits in your home may be out of phase. All

homes have a 220V feed to the main panel box, where the 220V is separated into 110V in two phases, an A

and B. You will need to install a phase coupler, see http://simply-automated.com/products/sa_zpc.htm for

options.

Model # Description

ZPCI-P30A Plug-In Inverting Phase Coupler, fits a standard (NEMA 10-30) 220VAC clothes dryer

outlet

ZPCI-W Wire-in Inverting Phase Coupler

ZPCI-B Breaker Panel Inverting Phase Coupler

Network ID #: The default Network ID #setting for the Pre-Configured Series is 250. This information is

needed when using the Scheduler-Timer.

6108 Avenida Encinas, Suite B, Carlsbad, CA 92011 USA

Technical Support: www.simply-automated.com or 800-630-9234

452-0112-0203 Rev. B Revised: July 7, 2009

Getting Started

Lamp Module Accessory

For Models UML7 and UML8

Simply Automated, Incorporated

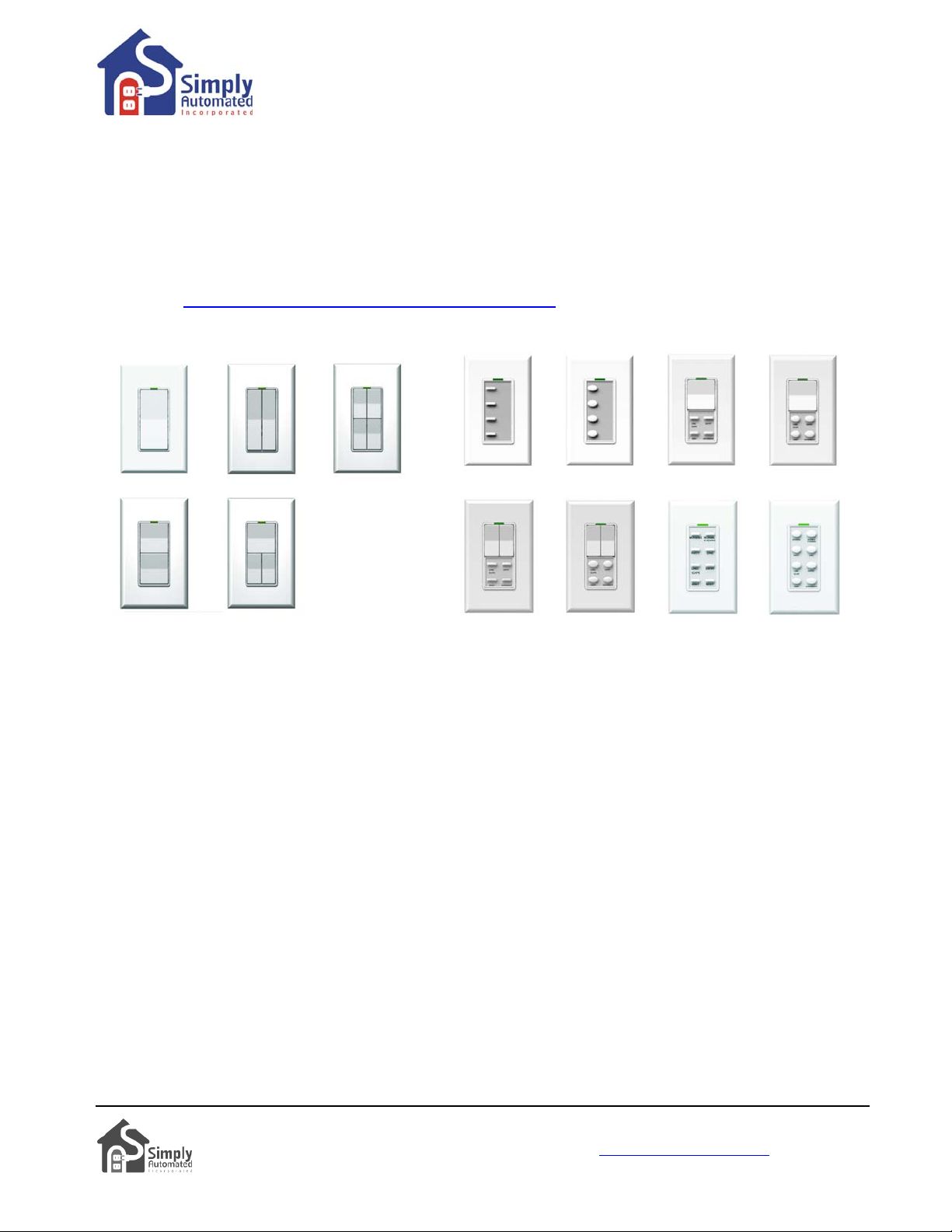

Section 6: Simply Automated Custom Expansion Series

Powerful Custom Expansion Capability – up to 250 devices – using your PC and UPStart software! Devices

include single rocker dimmers, deluxe dimmers with different faceplates (up to 8 buttons), lamp or appliance

modules, tabletop pedestal with 8 buttons, wall receptacle, fixture relay, fixture dimmer or scheduler-timer.

Control lighting and 120VAC appliances, heaters, fans, motors or pumps. Programmable dimming rates (1

second, 5 second, up to 4 hours). Energy saving countdown timer function. Lighting control for your entire

home! Visit http://www.simply-automated.com/products/index.html

6108 Avenida Encinas, Suite B, Carlsbad, CA 92011 USA

Technical Support: www.simply-automated.com or 800-630-9234

452-0112-0203 Rev. B Revised: July 7, 2009

Autres manuels pour DKIT-02

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Simply Automated Domotique

Simply Automated

Simply Automated URD27 Manuel utilisateur

Simply Automated

Simply Automated SimplySmart Series Manuel utilisateur

Simply Automated

Simply Automated SimplySmart Series Manuel utilisateur

Simply Automated

Simply Automated SimplySmart Series Manuel utilisateur

Manuels Domotique populaires d'autres marques

Truth Hardware

Truth Hardware Sentry II Manuel utilisateur

FIBARO

FIBARO FGWPA-111 Manuel utilisateur

Hezborg

Hezborg BGR8016B Manuel utilisateur

MYDLINK

MYDLINK Pro Series Manuel utilisateur

Panasonic

Panasonic KX-HNA101FX Manuel utilisateur

GamaBit

GamaBit Houseper Manuel utilisateur

nedis

nedis WIFILRF10C37 Manuel utilisateur

Veho

Veho TA45 Manuel utilisateur

Nexa

Nexa ZPR-111 Manuel utilisateur

Vimar

Vimar 00801 Manuel utilisateur

Leviton

Leviton 47604-F6 Manuel utilisateur

EVERSPRING

EVERSPRING AN180 Manuel utilisateur

Coltech

Coltech 18-1339 Manuel utilisateur

IDS

IDS NXT vegas Mode d’emploi

Vimar

Vimar 03975 Manuel utilisateur

iNels

iNels RFIM-20B Manuel utilisateur

EVA Logik

EVA Logik ZW30 Manuel utilisateur

Leviton

Leviton ODCØP-S0W Manuel utilisateur
