SimpliFire VENTURE26-MA Manuel utilisateur

SimpliFire • VENTURE26-MA • 2040-914 • 3/14

VENTURE26-MA

- Assembly Instructions -

PREPARATION

Before beginning installation of the cabinet, verify that the

walls and oor in the area of the installation are clean, level

and have an electrical source. Any major deviation should be

remedied before installing the replace or cabinet.

These questions should also be considered and answered

before beginning installation of the cabinet.

a. Where are the electrical outlets?

b. Is there enough distance between windows and edge

of cabinet?

c. Is the cabinet centered between walls?

Tools and supplies needed:

• #2 Phillips Screwdriver

•Rubber Mallet

•Level

CAUTION! Risk of Cuts, Abrasions or Flying Debris.

Wear protective gloves and safety glasses during instal-

lation.

Leave this manual with party responsible for use

and operation.

CAUTION! Risk of Injury! It is recommended that two

people assemble the cabinet due to the weight and up-

right positioning of the cabinet.

NOTE:

• Theseinstructionsapplyonlytothecabinetandfacing

materialthatwillsurroundthereplace.

• Seereplacemanufacturer’sinstallationinstructionsto

ensure that all clearance and installation requirements

are met.

Model: VENTURE26-MA

SimpliFire, a brand of Hearth & Home Technologies

7571 215th Street West, Lakeville, MN 55044

www.hearthnhome.com

Please contact the SimpliFire customer/technical

support hotline at 877-320-0730 with any questions

or concerns.

SimpliFire • VENTURE26-MA • 2040-914 • 3/14 2

FGH

I J

A. TOP PANEL 1PC B. BOTTOM BASE 1PC

C. PARTITION 2PCS E. SIDE PANEL 2PCS

F. TOP (GLASS) 1PC G. DOOR (GLASS) 2PCS H. ADJUSTABLE

SHELF 2PCS

J. RIGHT SIDE BACK PANEL 1PCI. LEFT SIDE BACK PANEL 1PC

PARTS LIST:

D. FIREBOX SUPPORT 1PC

SimpliFire • VENTURE26-MA • 2040-914 • 3/14

HARDWARE LIST:

K. CAM BOLTS 16PCS

(Ø6x36mm)

L. CAM LOCK 16PCS

(Ø15x9mm)

M. ROUND HEAD SCREW 36PCS

(Ø3x15mm)

N. MAGNET 2PCS

O. METAL POST 8PCS

(Ø30x76mm)

P. BOLT 8PCS

(Ø5/16"x38mm)

Q. ALLEN WRENCH IPC R. PIN 8PCS

S. PLASTIC PLUG 4PCS

T. PIVOT HINGE 2PCS

U. PIVOT HINGE 2PCS

V. NON-SKID BUMPER 8PCS

(Ø15x2mm)

W. PUSH PLATE 2PCS

X. WOOD DOWEL 16PCS

(Ø8x30mm)

AA. TOUCH-UP MARKER 1PC

Z. WOOD SCREW 3PCS

(Ø4x25mm)

SimpliFire • VENTURE26-MA • 2040-914 • 3/14 4

STEP 1

SimpliFire • VENTURE26-MA • 2040-914 • 3/14

STEP 2

STEP 3

LOCK

UNLOCK

LOCK

UNLOCK

SimpliFire • VENTURE26-MA • 2040-914 • 3/14 6

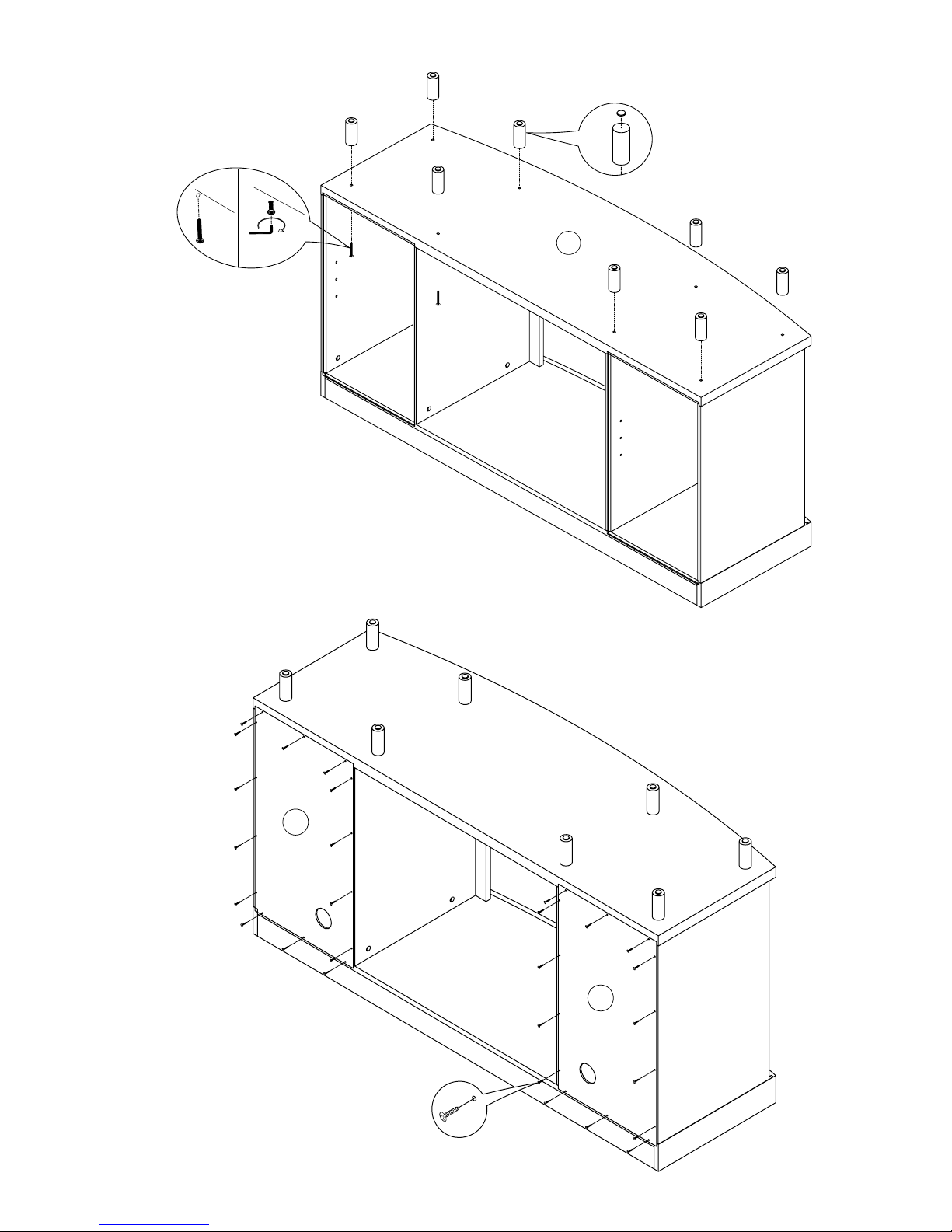

STEP 4

STEP 5

P Q

SimpliFire • VENTURE26-MA • 2040-914 • 3/14

STEP 6

Important Note:

• Make sure cord is free of Part

D prior to securing.

• Once rebox is secured in the

cabinet, move the cabinet to

desired location before pro-

ceeding to the next steps.

STEP 7

Install Fireplace in cabinet

from the back of the cabinet.

SimpliFire • VENTURE26-MA • 2040-914 • 3/14 8

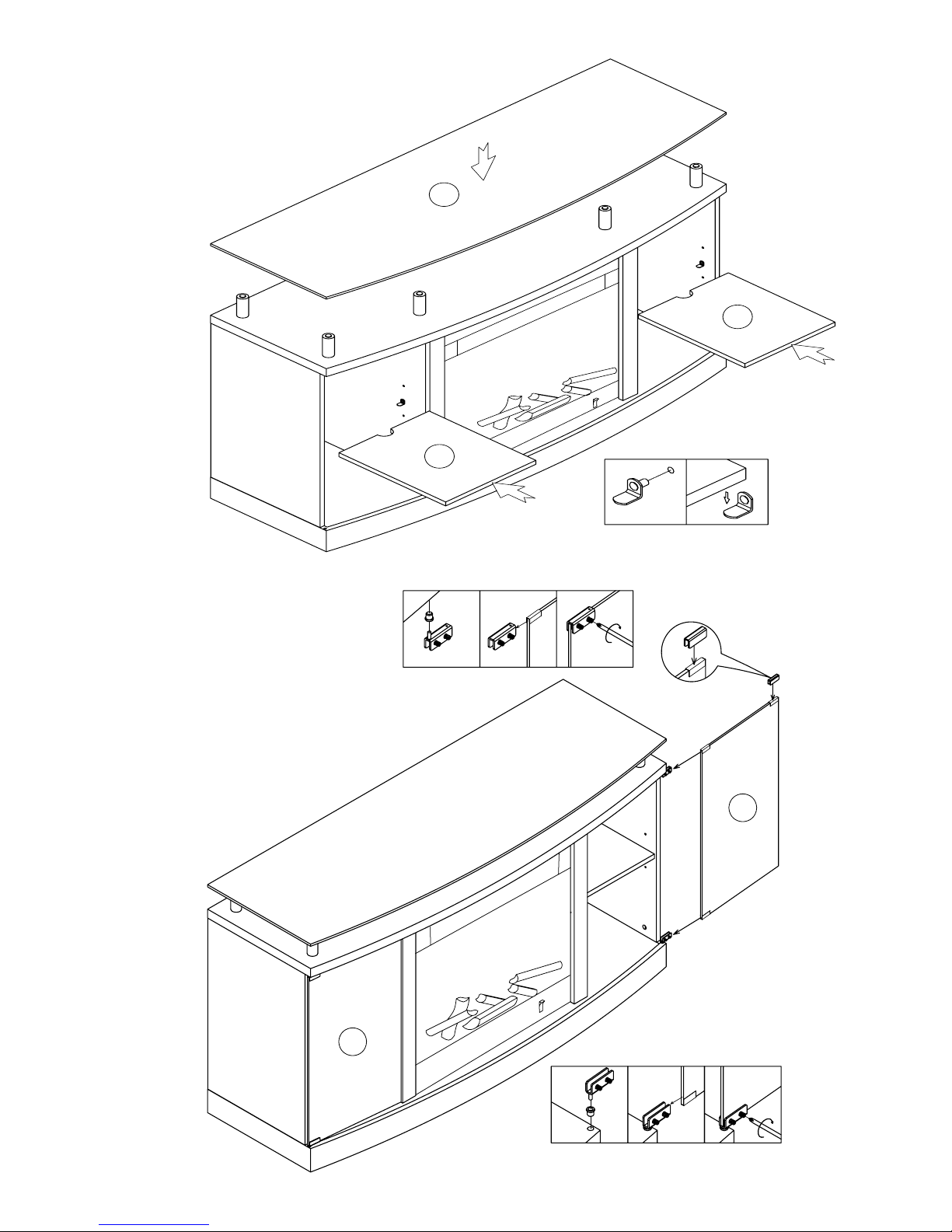

STEP 9

STEP 8
