Simplified MFG SP14CAT50 Manuel utilisateur

SP14CAT50

18Gbps HDMI 1×4 50m splitter

over category cable

VER 2.0

Thank you for purchasing this device

The Simplified MFG SP14CAT50 was designed to provide years of reliable

service. Please read this manual thoroughly before connecting, operating, or

adjusting this device. Please keep this manual for future reference.

Surge protection device recommended

This product contains sensitive electrical components that may be damaged

by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge

protection systems is highly recommended to protect and extend the life of

your equipment. The HDSURGE is designed to protect your system when

using cable and satellite boxes. It is highly recommended that you use one

with these types of sources.

Table of Contents

1. Introduction...............................................................................

2. Features. ....................................................................................

3. Package Contents.......................................................................

4. Specifications. ............................................................................

5. Operation Controls and Functions..............................................

5.1 Transmitter. ..........................................................................

5.2 UTP (Cat) Receiver................................................................

5.3 IR Pin Definition ...................................................................

6. EDID Mode. ................................................................................

7. ASCII Commands. ......................................................................

Application Example.................................................................. 11

Warranty and Contact………………………………………….…………12

-1-

1. Introduction

The SP14CAT50 HDMI 1x4 on category cable splitter can distribute 1

source signal to any 4 display devices. The HDMI signal transmission

distance can be extended up to 50 meters at the resolution of

4K2K@60Hz, or 70 meters at 1080P@60Hz via a single CAT6/6a/7 cable.

The SP14CAT50 supports IR return from RX and advanced EDID

management.

2. Features

•HDMI 2.0b (18Gbps), HDCP 2.2 and HDCP 1.x compliant

•Supports video resolution up to 4K2K@60Hz 4

•Supports HDR, HDR10+, and HLG

•Supports all HDMI audio formats pass-through

•Audio Breakout is available in stereo (3.5mm mini-jack) and Coaxial

S/PDIF at TX

•Distance over Cat6/6a/7 is 50m (165ft) at 4K / 70m (231ft) at 1080p

•Input is one HDMI Type-A with 1 HDMI loop output and 4 UTP outputs

•EDID can be copied or can be provided by internal EDID library

•RX Devices are powered by TX unit

•Compact design

3. Package Contents

1 × SP14CAT50 main chassis transmitter

4 × RX devices

1 × IR blaster cables (1.5 meters)

4 × 20K~60KHz IR receiver cables (1.5 meters)

1 × 12V/2.5A DC locking power adapter

1 × User manual

-2-

4. Specifications

Technical

HDMI Compliance

HDMI 2.0b

HDCP Compliance

HDCP 2.2/1.x

Video Bandwidth

594MHz/18Gbps

Video Resolution Up to 4k2k@60Hz 4:4:4

Color Depth

8-bit,10-bit,12-bit(1080p@60Hz) 8-bit

(4K2K@60Hz YUV4:4:4)

8-bit,10-bit,12-bit(4K2K@60Hz YCbCr 4:2:2/4:2:0)

Color Space

RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 /4:2:0

HDR Support HDR, HDR10+, and HLG

HDMI Audio Formats

LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby

Digital+, Atmos, DTS-ES, DTS HD Master, DTS HD-HRA,

DTS-X

Coaxial Audio Formats

PCM2.0, Dolby Digital / Plus, DTS 2.0/5.1

Analog Audio Formats

PCM 2.0CH

ESD Protection

Human body model—±8kV (Air-gap discharge) &

±4kV (Contact discharge)

Connection

Input 1×HDMI Type A (19-pin female)

Output

1×HDMI Type A (19-pin female

）

4x UTP OUT [RJ45]

1x Coaxial Audio OUT [RCA]

1x 3.5mm Audio OUT [3.5mm mini jack]

Control

1×RS-232 (3-pin phoenix connector

）

1x EDID DIP switch [5-pin]

1x IR IN [3.5mm Stereo Mini-jack] 1x IR

OUT [3.5mm Stereo Mini-jack]

-3-

Mechanical

Housing Metal Enclosure

Silkscreen Color

Black

Dimensions

Transmitter: 440mm (W) × 130mm (D) × 44mm (H)

Receiver: 140mm (W) × 65mm (D) × 18mm (H)

Weight Transmitter: 1.62kg Receiver:

246g

Power Supply Input: AC100 - 240V 50/60Hz, Output: DC 24V/3.75A

(US/EU standards, CE/FCC/UL certified)

Power Consumption

72W

Operation

Temperature 0°C ~ 40°C / 32°F ~ 104°F

Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F

Relative Humidity 20~90% RH (non-condensing)

5. Operation Controls and Functions

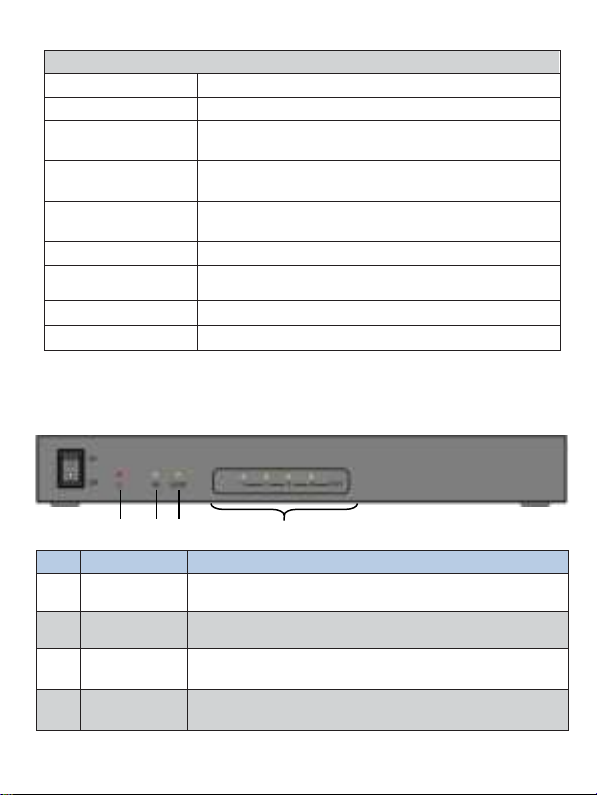

5.1 Transmitter

❶❷❸❹

No.

Name

Function Description

1POWER LED

When the SP14CAT50 is powered on, the red power LED will

be illuminated

2IN LED

When the HDMI IN port is connected to an active source

device, the green LED will be illuminated

3LOOP LED When the HDMI LOOP OUT port connects an active display

device, the green LED will be illuminated

4OUT (1~8) LED When the

UTP

OUTPUT port connects to a RX device, the

corresponding green OUT LED will be illuminated

-4-

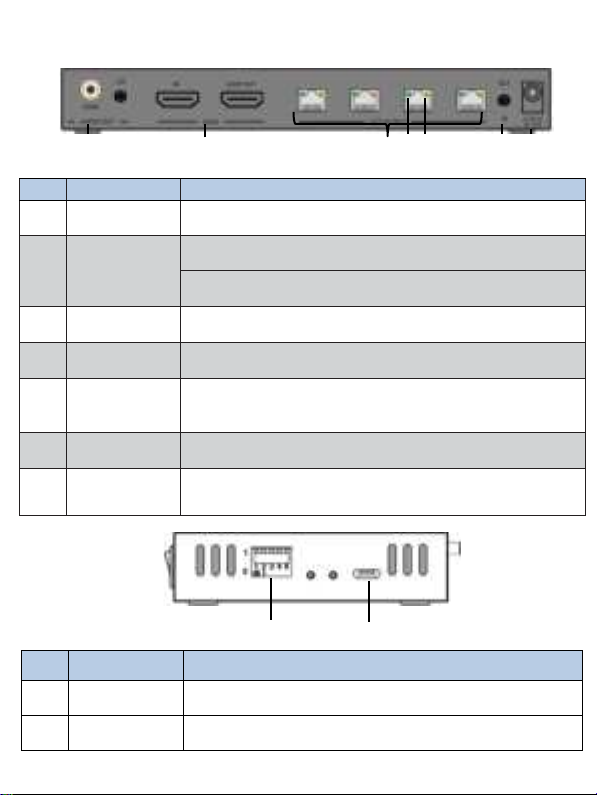

Rear Panel

❶❷❸❹❺ ❻❼

No.

Name

Function Description

1AUDIO OUT

COAX for multi-channel audio breakout and 3.5mm mini jack for

stereo breakout for connection to amplifier

HDMI Ports

IN: HDMI input port. Connect to HDMI source such as a

HDMI stream, BRP, or STB with HDMI cable

LOOP OUT: This port can be used to go to a local display

or a second splitter

CAT OUTPUT

port (1~4)

Connect to the supplied RX devices with Cat 6/6A/7 category

cable

Link Signal LED

(Green)

Illuminated: TX and RX are connected well

Dark: No or poor connection from TX to RX

5Data Signal LED

(Orange)

Illuminated: Active HDMI connection



Dark: No signal transmission

Flashing: HDMI signal without HDCP

6IR OUT For connecting the IR blaster which outputs the IR signals that

the RX devices receive via the supplied IR receivers

DC 12V

DC 12V power supply connection for the supplied adapter that

connects to an AC outlet. (Note: The RX devices are powered

by the TX device via the category cable)

❶❷

No.

Name

Function Description

EDID DIP

Switch

Used to set the EDID shown to the source. Please refer to

section number 6 for more information

SERVICE Port

Used for firmware update or for serial control. Please refer

to section number 7 for more information

-5-

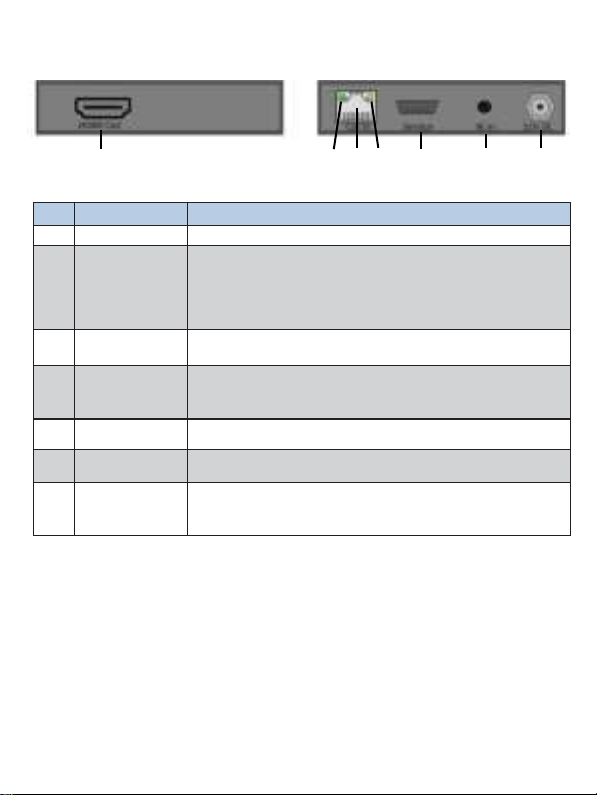

5.2 Receiver

❶❸❷❹ ❺❻❼

No.

Name

Function Description

HDMI OUT

Connects to a display via an HDMI Cable

Connection

Signal Indicator

LED (Green)



Illuminated: Transmitter and Receiver are in good

connection status

Flashing: Transmitter and Receiver are in poor

connection status

Dark: Transmitter are Receiver are not connected

3UTP IN

Connect to the UTP OUTPUT port on the transmitter

with a CAT cable

Data Signal

Indicator LED

(Orange)

▪Illuminating: HDMI signal with HDCP

▪Flashing: HDMI signal without HDCP

▪Dark: No HDMI signal

5SERVICE Port

Used for firmware updates

6IR INPUT

The IR Receiver is plugged in here. IR signals from the TX

are sent back the TX unit and are output via IR OUT

DC 12V Input

Plug DC 12V/1A power supply into the unit and connect

the adapter to an AC outlet (Note: The UTP receiver is

-6-

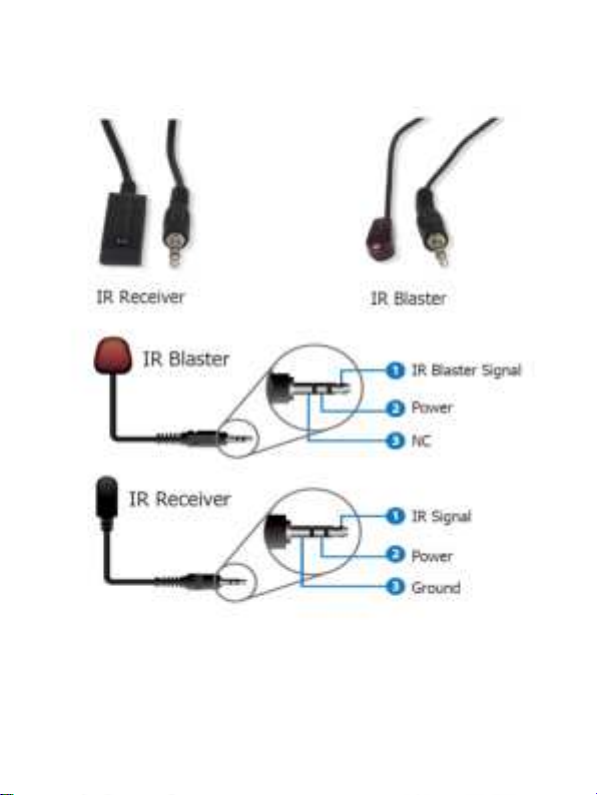

5.3 IR Pin Definition

Note: When the angle between the IR receiver and the remote control is ± 45 °, the

transmission distance is 0-5 meters; when the angle between the IR receiver and the

remote control is ± 90 °, the transmission distance is 0-8 meters.

-7-

6. EDID Mode

The defined EDID setting list of the product is shown as below:

EDID Mode EDID Description

11111 1080p, Stereo Audio 2.0

11110 1080p, Dolby/DTS 5.1

11101 1080p, HD Audio 7.1

11100 1080i, Stereo Audio 2.0

11011 1080i, Dolby/DTS 5.1

11010 1080i, HD Audio 7.1

11001 1080p 3D, Stereo Audio 2.0

11000 1080p 3D, Dolby/DTS 5.1

10111 1080p 3D, HD Audio 7.1

10110 4K2K 30Hz 4:4:4, Stereo Audio 2.0

10101 4K2K 30Hz 4:4:4, Dolby/DTS 5.1

10100 4K2K 30Hz 4:4:4, HD Audio 7.1

10011 4K2K 60Hz 4:2:0, Stereo Audio 2.0

10010 4K2K 60Hz 4:2:0, Dolby/DTS 5.1

10001 4K2K 60Hz 4:2:0, HD Audio 7.1

10000 4K2K 60Hz 4:4:4, Stereo Audio 2.0

011114K2K 60Hz 4:4:4, Dolby/DTS 5.1

01110 4K2K 60Hz 4:4:4, HD Audio 7.1

01101 4K2K 60Hz 4:4:4, Stereo Audio 2.0 HDR

01100 4K2K 60Hz 4:4:4, Dolby/DTS 5.1 HDR

01011 4K2K 60Hz 4:4:4, HD Audio 7.1 HDR

01010 Copy From Loop Out

01001 Copy From Cat 1 OUT

01000 Copy From Cat 2 OUT

00111 Copy From Cat 3 OUT

00110 Copy From Cat 4 OUT

00101 1080p, Stereo Audio 2.0

00100 1080p, Stereo Audio 2.0

00011 1080p, Stereo Audio 2.0

00010 1080p, Stereo Audio 2.0

00001 1080p, Stereo Audio 2.0

00000 Control Mode

-8-

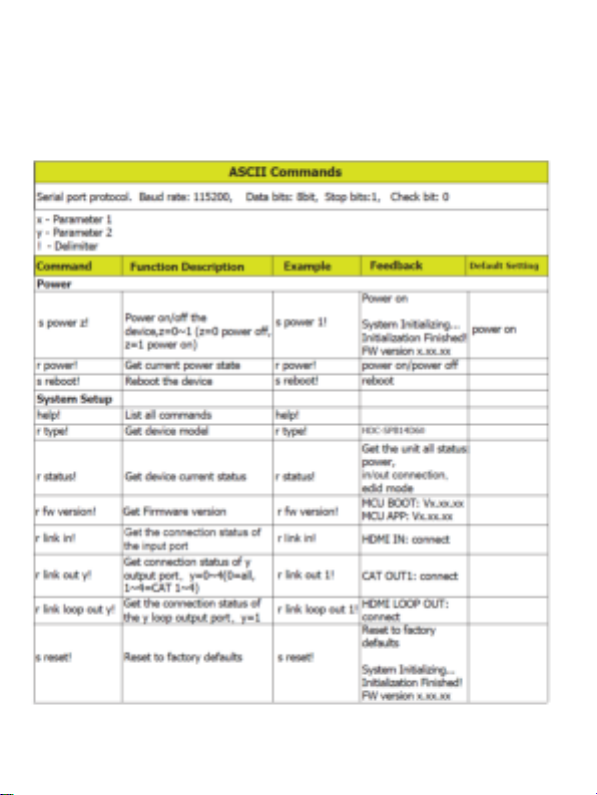

7. ASCII Commands

The SP14CAT50 also supports ASCII command control. Connect to the SERVICE port on

the SP14CAT50 to send ASCII commands to the unit. The ASCII command list about

the product is shown as below:
