Simplified MFG MX44KT Manuel utilisateur

MX44KT

50m/70m Scaling 18Gbps

4 x 4 HDMI Matrix Kit

VER 1.02

Thank you for purchasing the MX44KT

The Simplified Manufacturing MX44KT is designed to provide years of reliable service. At Simplified

MFG, we want the experience with this device to be the best possible and are committed to helping

achieve that experience. Please keep this manual for future reference.

Surge protection device recommended

This product contains sensitive electrical components that may be damaged by electrical

spikes, surges, electric shock, lighting strikes, etc. Use of surge protection systems is highly

recommended to protect and extend the life of your equipment. Simplified MFG HIGHLY

recommends a HDSURGE to be used on set top boxes (STB) like cable and satellite boxes.

Table of Contents

Introduction. ....................................................................................................................

Features. ..........................................................................................................................

Package Contents. .....................................................................................................

Specifications. ...........................................................................................................

Operation Controls and Functions. ............................................................................

5.1.

Matrix Panel. .....................................................................................................

5.2.

CAT Receiver Panel. ..........................................................................................

IR Remote ........................................................................................................................

IR Cable Pin Assignment. ..........................................................................................

EDID Management. ..........................................................................................................

Web GUI User Guide. .................................................................................................

10.

RS-232 Control Command. ......................................................................................

11.

Application Example…….………………………………………………………………….21

12.

Warranty……..……………………………………………………………………………….22

13.

Contact……………………………………………………………………………………………..22

- 3 / 24 -

Introduction

The MX44KT is a sub 1RU (see dimensions in specs) 18Gbps 4x4 HDMI Matrix can connect

four HDMI sources up to eight displays. The MX44KT features four mirrored HDMI/Category

Cable outputs. Each of the 4 output channels feature an HDMI and UTP output that can

scale with each other by channel. The MX44KT supports the transmission of 4K (18Gbps)

video up to 50m (164ft.) and 1080p up to 70m (232ft.). The MX44KTsupports HD digital

audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Atmos and DTS-HD

Master Audio. The kit includes four small receivers that connect to the matrix via a category

cable to each of the CAT-Cable outputs to extend the HDMI signal up to 230ft/70m at 1080p

and 164ft/50m at 4K. Each HDMI/CAT output supports Auto/Bypass/4K2K to 1080P

downscaling together by channel. The MX44KT can be controlled via front panel buttons, IR

remote, RS-232, LAN, and Web GUI.

Features

•HDMI 2.0b and HDCP2.2/1.x Compliant

•Supports resolutions up t0 4Kx2K@60Hz. (YUV4:4:4) on all ports (HDMI & Category)

•4 HDMI Inputs matrix switched to 4 Outputs (Mirrored HDMI & Category)

•HDMI/Cat ports are 18Gbps bandwidth, Cat does not Support DolbyVision™

•Each Output can be scaled individually

•HDR/HDR10/HDR10+/DolbyVision™/HLG support (HDMI Out, Cat does not support

DolbyVision™)

•Category (UTP) outputs are rated 70m (232Ft.) at 1080p/50m (164Ft.) at 4K on Cat 6

cable

•All HDMI audio formats are supported including Atmos, Dolby+ and DTS-X

•Advanced EDID management

•CEC Control and Web GUI page dedicated to CEC Control

•All RX devices are powered via POE

•Control via Front Panel, Supplied IR Remote, RS232, LAN, and web GUI

Package Contents

1 x 18Gbps 4x4 HDMI Matrix

4 x CAT Receiver

1 x Matrix IR Remote

1 x 12V2.5A Power Supply

1 x RS-232 serial Cable (1.5 meters, male to female head)

1 x 3-pin Phoenix Connector

4 x IR Blaster Cable (1.5 meters)

4 x IR Receiver Cable (1.5 meters)

10 x Mounting Ear (Matrix and Receiver)

1x User Manual

- 4 / 24 -

Specifications

Technical

HDMI Compliance

HDMI 2.0b

HDCP Compliance

HDCP 2.2/1.x

Video Bandwidth

18Gbps

Video Resolution

Up to 4K2K@50/60Hz (4:4:4)

Color Space

RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0

Color Depth

8-bit, 10-bit, 12-bit

(1080p@60Hz) 8-bit (4K2K@60Hz

YUV4:4:4)

8-bit

，

10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0

）

HDR

Through HDMI: HDR10, HDR10+, Dolby Vision™, HLG

Through Cat RX: HDR10, HDR10+, HLG

HDMI Audio Formats

LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD,

Dolby Digital Plus (DD+), Atmos, DTS-ES, DTS HD Master,

DTS HD-HRA, DTS-X

Transmission Distance

50m (164Ft.) 4K @ 60Hz. / 70m (232Ft.) 1080p

ESD Protection

Human-body Model:

±8kV (Air-gap discharge) , ±4kV (Contact discharge)

- 5 / 24 -

Connection

Matrix

Inputs: 4 x HDMI Type A [19-pin female]

Outputs: 4 x HDMI Type A [19-pin female]

4 x CAT port [RJ45]

4 x IR OUT [3.5mm Stereo Mini jack]

Controls: 1 x TCP/IP [RJ45]

1 x RS-232 [3-pin phoenix connector]

CAT Receiver

Inputs: 1x IR IN [3.5mm Stereo Mini jack]

1x CAT port [RJ45]

Output: 1x HDMI Type A [19-pin female] Control:

1x SERVICE [Micro USB, Update port]

Mechanical

Housing

Metal Enclosure

Color

Black

Dimensions

Matrix: 320mm [12.6”] (W) × 100mm [3.9”] (D) × 36mm

1.42”] (H)

Receiver: 61mm [2.4”] (W) x 88mm [3.5”] (D) x 18mm

[0.7”] (H)

Weight Matrix: 915g [2lb. .2oz], Receiver: 155g [5.5oz.]

Power Supply

Input: AC 90 - 260V 50/60Hz

Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified)

Power Consumption

19.68W (Max)

Operating Temperature

0°C ~ 40°C / 32°F ~ 104°F

Storage Temperature

-20°C ~ 60°C / -4°F ~ 140°F

Relative Humidity 20~90% RH (non-condensing)

- 6 / 24 -

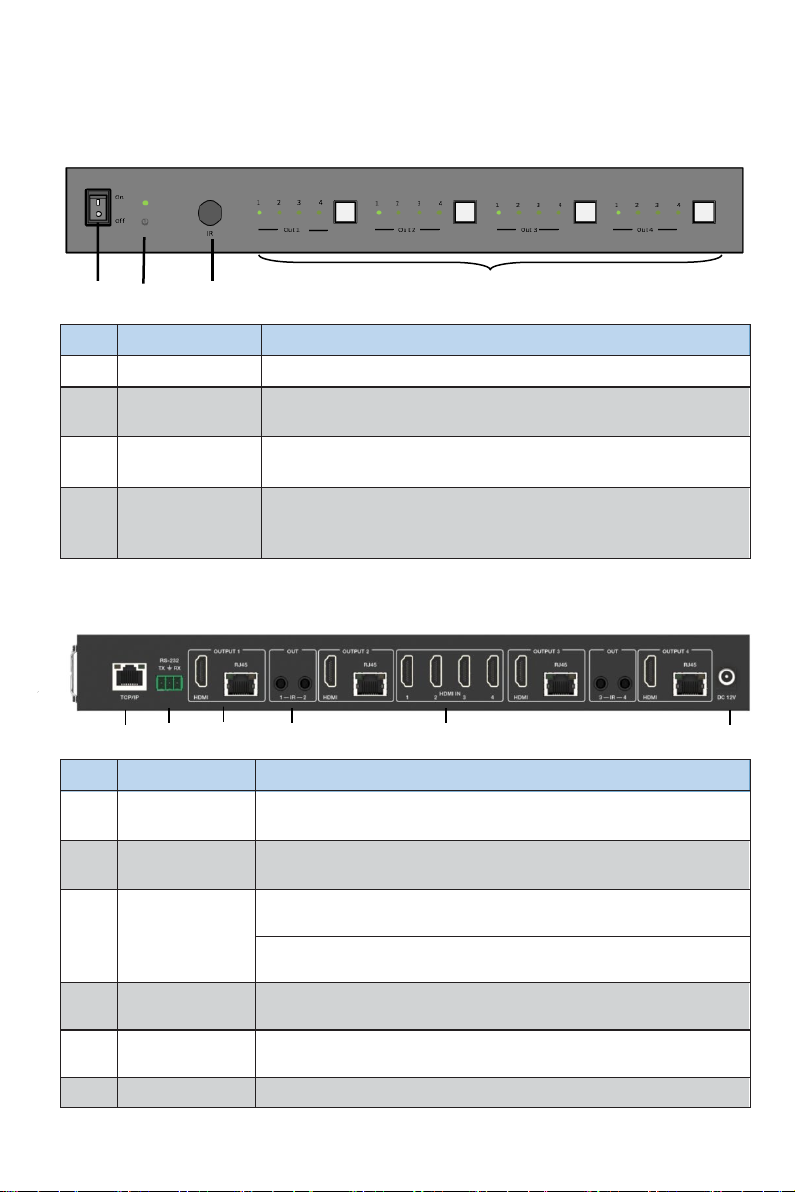

Operation Controls andFunctions

5.1

Matrix Panel

Front Panel

❶❷❸❹

NO.

Name

Function Description

Power switch

Press the switch to power on/off the Matrix.

2Power LED

The LED will illuminate green when the Matrix is operating

normally, and red when the Matrix is on standby.

3IR Window

IR receiver window for signals from IR Remote Control

supplied with this kit

OUT 1-4 buttons

Source LED 1~4

Press the OUT 1/2/3/4 button to toggle HDMI source signal

for the corresponding output port, then the corresponding

source LED will be on.

Rear Panel

❶❷❸❹❺❻

No.

Name

Function Description

1TCP/IP port

LAN Port [RJ-45] Connect to an active Ethernet link with a

category cable to network for IP Control or web GUI access

2RS-232 port RS-232 command control port.

For RS232 communication with

third party control systems

OUTPUT 1-4

ports

HDMI output ports for local connection or use with an

extender with different features or distance capability

Category [RJ-45]

mirrored output

ports connect to supplied

50m [165ft] receivers. Matrix provides power to RX

4IR OUT 1-4

ports

Connect to IR blaster cable, the IR signal is from the “IR IN”

port of the RX device in the zone [1-4]

HDMI IN 1-4

ports

HDMI input from cable/sat box, Blu-Ray, streaming device,

computer or another HDMI device

DC 12V

DC 12V power supply port

- 7 / 24 -

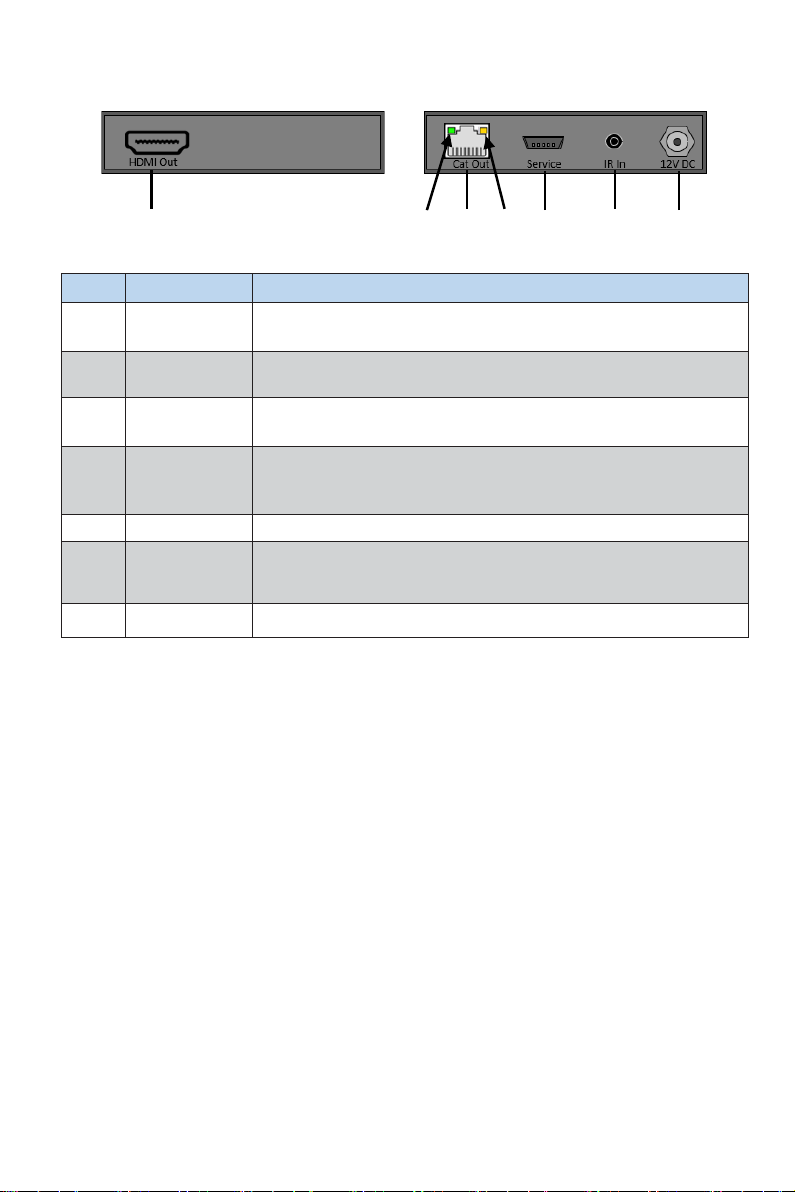

5.2

CAT Receiver Panel

❶❸❷❹❺❻❼

No.

Name

Function Description

1HDMI OUT

HDMI output port, connect to HDMI display device such as

TV or Projector with an HDMI cable

2CAT IN

Connect to the CAT output port on the matrix with a category

cable [up to 50m on Ca6/6a/7]

3Power

Indicator

LED (Green)

This LED indicates that the category cable is connected,

and that the RX device has power from the matrix

Data signal

Indicator LED

(Orange)

This LED indicates that the HDMI signal circuit is complete

from the matrix to the display

SERVICE port

Used for firmware update at factory

6IR IN

Connect to the IR Receiver cable. The IR signal will be sent

to the IR output port of the matrix for source and matrix

control

DC 12V

Not used as the RX is powered via POE from the matrix.

- 8 / 24 -

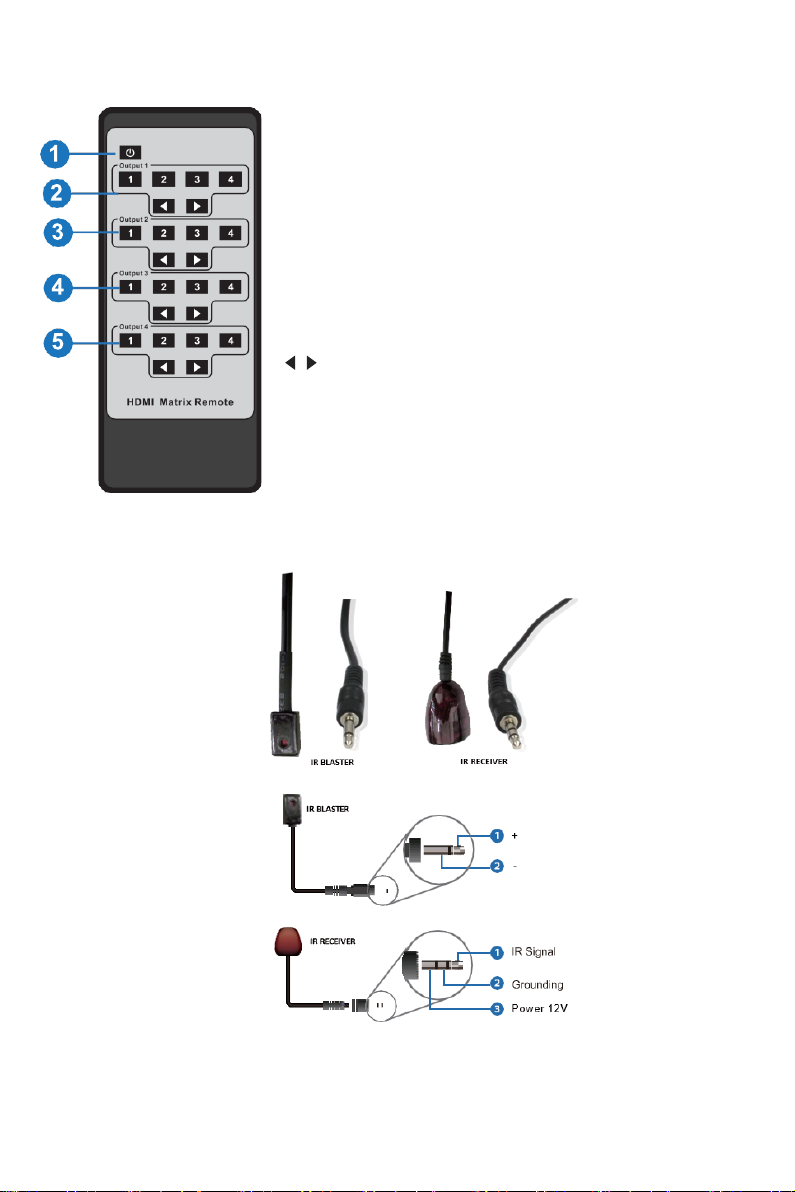

IR Remote

①Power on or Standby: Power on the Matrix or set

it to standby mode.

②Output 1: Press 1\2\3\4 button to select input source

to HDMI OUTPUT 1.

③Output 2: Press 1\2\3\4 button to select input source

to HDMI OUTPUT 2.

④Output 3: Press 1\2\3\4 button to select input source

to HDMI OUTPUT 3.

⑤Output 4: Press 1\2\3\4 button to select input source

to HDMI OUTPUT 4.

: Select the last or next input source button.

IR Cable Pin Assignment

- 9 / 24 -

EDID Management

This MX44KT includes an EDID library with 21 EDID settings, 2 user-defined EDID modes and 8

copy EDID modes. The EDID can be selected from the library, input via a file, or copied from an

output. This can be accomplished through RS-232 control or via the Web GUI.

RS-232 control operation: Connect the Matrix to PC with a serial cable, then open a Serial

Command tool on PC to send ASCII command “s edid in x from z!” to set EDID. For details,

please refer to “EDID Setting” in the ASCII command list of “10. RS-232 Control Command”.

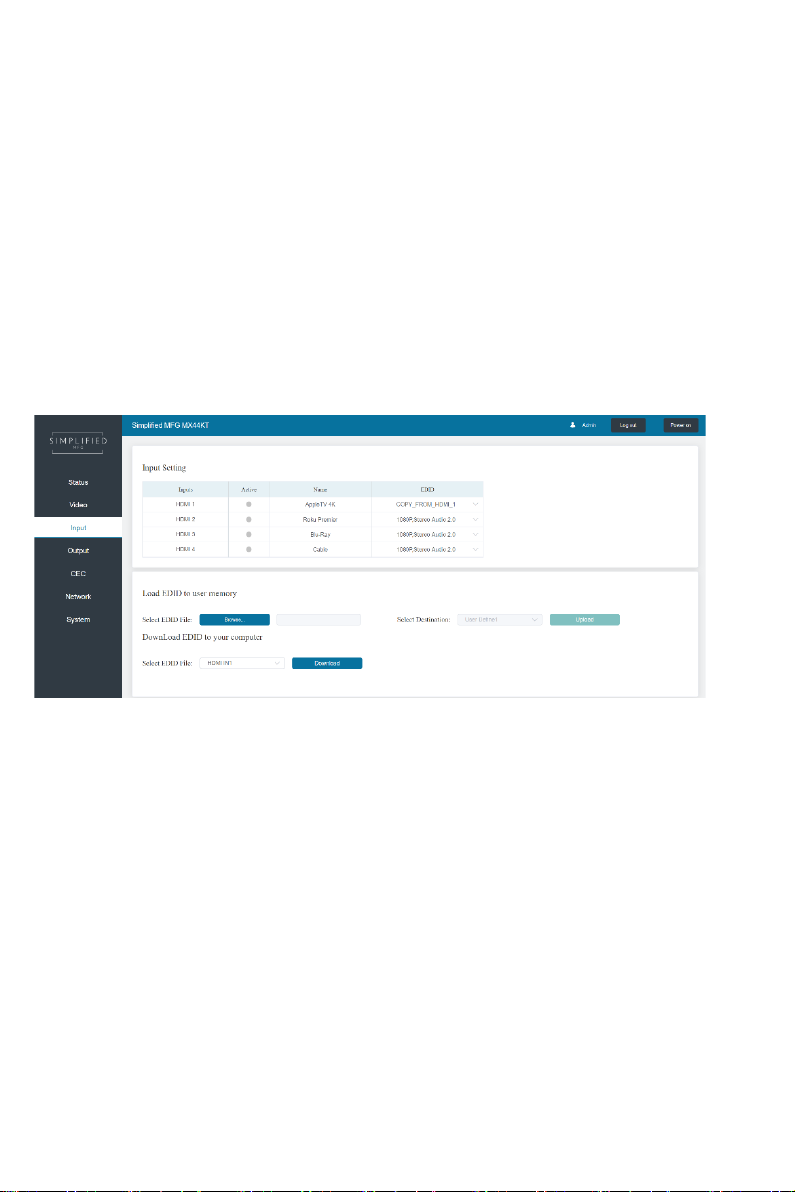

Web GUI Operation: Please check the EDID management in the Input page of the

Web GUI User Guide.

- 10 / 24 -

The defined EDID setting list of the MX44KT is shown as below:

EDID

Mode

EDID Description

1080P, Stereo Audio 2.0

1080P, Dolby/DTS 5.1

1080P, HD Audio 7.1

1080I, Stereo Audio 2.0

1080I, Dolby/DTS 5.1

1080I, HD Audio 7.1

3D, Stereo Audio 2.0

3D, Dolby/DTS 5.1

3D, HD Audio 7.1

4K2K30_444, Stereo Audio 2.0

4K2K30_444, Dolby/DTS 5.1

4K2K30_444, HD Audio 7.1

4K2K60_420, Stereo Audio 2.0

4K2K60_420, Dolby/DTS 5.1

4K2K60_420, HD Audio 7.1

4K2K60_444, Stereo Audio 2.0

4K2K60_444, Dolby/DTS 5.1

4K2K60_444, HD Audio 7.1

4K2K60, Stereo Audio 2.0 HDR

4K2K60, Dolby/DTS 5.1 HDR

4K2K60, HD Audio 7.1HDR

User Define1

User Define2

COPY_FROM_HDMI 1

COPY_FROM_HDMI 2

COPY_FROM_HDMI 3

COPY_FROM_HDMI 4

COPY_FROM_CAT 1

COPY_FROM_CAT 2

COPY_FROM_CAT 3

COPY_FROM_CAT 4
