Simplicity Snower Thrower Guide de configuration

Attachment

Illustrated

Parts List

Rev. 11/2003

500 N. Spring Street / PO Box 997

Port Washington, WI 53074-0997 USA

www.simplicitymfg.com

MANUFACTURING, INC.

. No. Descri

tion

Attachment

1694404 47" Two Stage Snower Thrower

Auger Gearbox & Shaft

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

G985784

The above parts group applies to the following Mfg. Nos.:

2003 1

1694404 - 47" Two Sta

TP 400-3880-00-AT-SMAN

PART NO. DESCRIPTIONREF NO. QTY.

Auger Gearbox & Shaft

Footnotes

1 1917372 8 NUT, Hex, 5/16-18

2 1917356 8 LOCKWASHER, 5/16

3 1725611 1 KEY, 1/4 x 1/4 x 51/64

4 1709669 1 SHAFT, Output

5 1709673 1 SEAL, Oil, 1.0 ID x 2.0 OD

6 1709663 1 CASE, Gearbox (2-halves)

7 1709635 1 VENT, Relief

8 1709668 1 PLUG

9 1709672 1 RING, Retaining

10 1709676 2 RACE, Bearing

11 1709670 2 BEARING, Roller

12 1709671 1 GEAR, Worm

13 1921719 4 CAPSCREW, Hex Head, 5/16-18 x 2-1/2

14 1709665 2 SEAL, Oil

15 1668971 1 FITTING, Reducer, 1/4 Male x 1/8 Female

16 1720487 1 PLUG

17 1921977 2 CAPSCREW, Hex Head, 5/16-18 x 1-1/4

18 1709675 2 RACE, Bearing

19 1709666 2 BEARING, Roller

20 1709667 1 WORM

21 1709674 1 RING, Retaining

22 1720368 1 PIN, Dowel, 1/4 x 1-1/8

23 1721781 1 SHAFT, Input

The above parts group applies to the following Mfg. Nos.:

2003 2

1694404 - 47" Two Sta

TP 400-3880-00-AT-SMAN

Auger Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Assemble with ends up

985784

The above parts group applies to the following Mfg. Nos.:

2003 3

1694404 - 47" Two Sta

TP 400-3880-00-AT-SMAN

PART NO. DESCRIPTIONREF NO. QTY.

Auger Group

Footnotes

1 1960282 2 CARRIAGE BOLT, 5/16-18 x 3/4

2 1917356 17 LOCKWASHER, 5/16

3 1917372 17 NUT, Hex, 5/16-18

4 921133 2 FITTING, Lube

5 1709679 1 AUGER ASSEMBLY, RH (As viewed from the front)

6 1721780 1 GEAR BOX & SHAFT ASSEMBLY (see Auger Gearbox & Shaft in this

Document)

7 1709678 1 AUGER ASSEMBLY, LH (As viewed from the front)

8 172279 2 FLANGE, Bearing

9 173934 2 BEARING CARTRIDGE

10 1919326 6 WASHER, 5/16

11 1960282 6 GARRIAGE BOLT, 5/16-18 x 3/4

12 1921719 2 CAPSCREW, Hex Head, 5/16-18 x 2-1/2

13 1918265 2 WASHER, 5/16

14 1922127 1 CAPSCREW, Hex Head, 5/16-18 x 1-3/4

15 1721757 1 PLATE & TUBE ASSEMBLY

16 1916622 1 NUT, Hex, 1/4-20

17 1916964 1 LOCKWASHER, 1/4

18 1709681 1 IMPELLER ASSEMBLY W/BUSHINGS

19 1921960 1 CAPSCREW, Hex Head, 1/4-20 x 1

20 1709683 1 SUPPORT, Auger

21 1931335 6 CARRIAGE BOLT, 5/16-18 x 1

22 1720248 1 SCRAPER, Cutting Edge, 45-3/4"

The above parts group applies to the following Mfg. Nos.:

2003 4

1694404 - 47" Two Sta

TP 400-3880-00-AT-SMAN

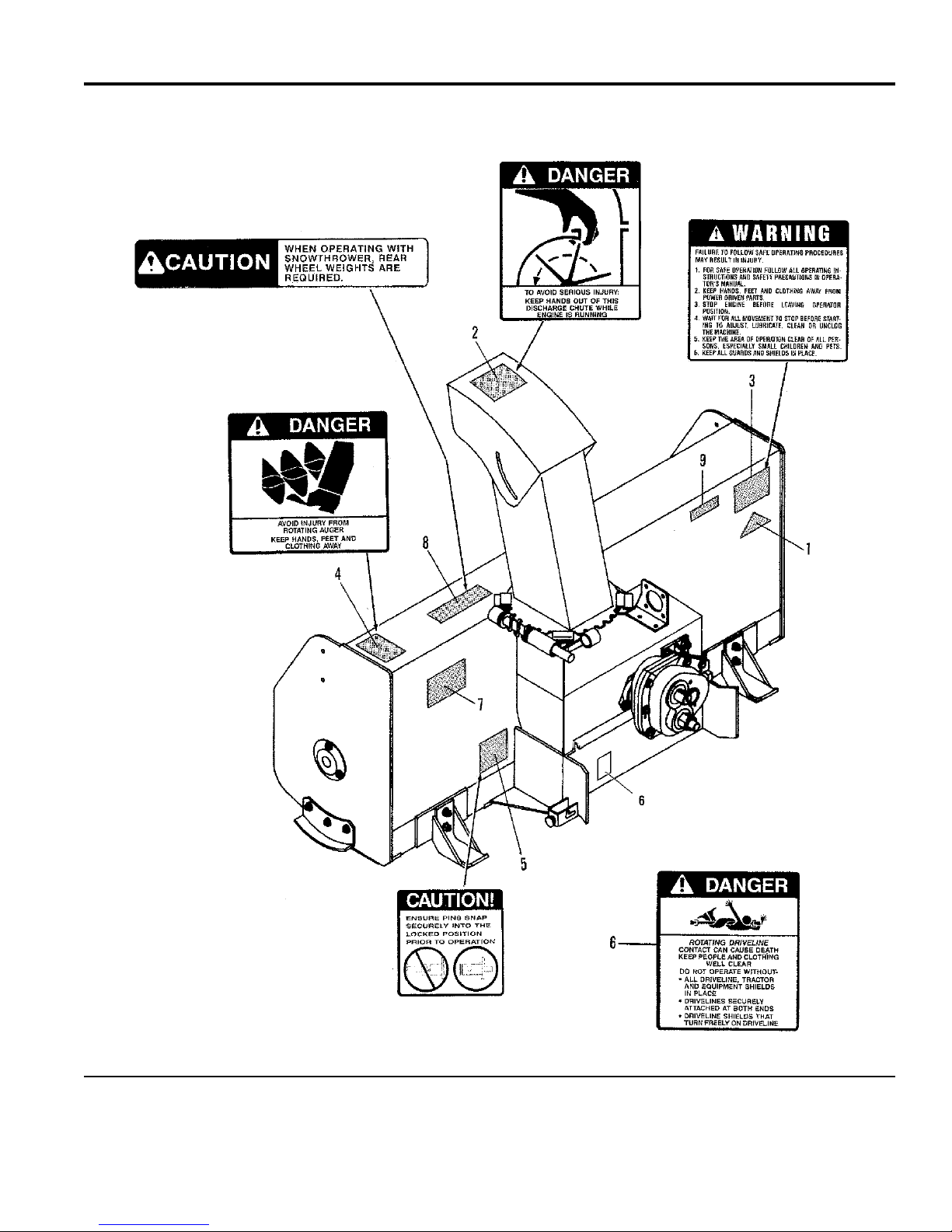

Decals Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986389

The above parts group applies to the following Mfg. Nos.:

2003 5

1694404 - 47" Two Sta

TP 400-3880-00-AT-SMAN

PART NO. DESCRIPTIONREF NO. QTY.

Decals Group

Footnotes

1 * 1 DECAL, OPEI (Not Serviced)

2 1722674 1 DECAL, Danger, Blower

3 1716531 1 DECAL, Caution

4 1716532 1 DECAL, Danger, Auger

5 1709688 2 DECAL, Danger, Shot-Pins

6 1709689 1 DECAL, Danger, Rotating Driveline

7 1722093 1 DECAL, Important, Shear Bolt

8 1716540 1 DECAL, Caution, Rear Wheel Weights

9 * 1 DECAL, I. D. Plate (Not Serviced)

The above parts group applies to the following Mfg. Nos.:

2003 6

1694404 - 47" Two Sta

TP 400-3880-00-AT-SMAN

Front PTO Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986353

The above parts group applies to the following Mfg. Nos.:

2003 7

1694404 - 47" Two Sta

TP 400-3880-00-AT-SMAN

PART NO. DESCRIPTIONREF NO. QTY.

Front PTO Group

Footnotes

1 1931335 2 CARRIAGE BOLT, 5/16-18 x 1

2 1715419 2 BALL BEARING W/FLANGE

3 1725257 1 PLATE & NUT ASSEMBLY

4 1919438 2 NUT, Hex, Lock ESNA Light, 5/16-18

5 1933260 2 CAPSCREW, Hex Head, Whiz Lock, 3/8-16 x 3/4

6 1725023 1 DRIVE SHAFT ASSEMBLY

7 1685480 1 SPRING LOCK REPAIR KIT

8 1709350 1 YOKE ASSEMBLY, Spring Lock

9 1679003 2 CROSS & BEARING KIT

10 1725451 1 DRIVE SHAFT CENTER

11 1725452 1 YOKE & SPINDLE ASSEMBLY

The above parts group applies to the following Mfg. Nos.:

2003 8

1694404 - 47" Two Sta

TP 400-3880-00-AT-SMAN

Housing & Chain Case Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986388

The above parts group applies to the following Mfg. Nos.:

2003 9

1694404 - 47" Two Sta

TP 400-3880-00-AT-SMAN
