Simplicity 1694874 Guide de configuration

Attachment

Illustrated

Parts List

Rev. 04/2007

500 N. Spring Street / PO Box 997

Port Washington, WI 53074-0997 USA

www.simplicitymfg.com

MANUFACTURING, INC.

. No. Descri

tion

Attachment

1694874 42" Two-Stage Snowthrower

1734833

Part No.:

Table Of Content

Torque Specification Chart ..................................................................... Inside Back Cover

PRODUCT COMPONENTS PAGES

Auger Drive Group ............................................................................................................................................... 4

Auger Housing & Chute Group ............................................................................................................................ 6

Decals Group ....................................................................................................................................................... 10

Auger Drive Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

987160

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694874 - 42" Two-Sta

e Snowthrower

TP 400-4554-00-AT-SMA

PART NO. DESCRIPTIONREF NO QTY.

Auger Drive Group

Footnotes

KEY, Woodruff, 47/250 x 5/81 2818312SM 1

NUT, Hex Nylock, 5/16-182 1919438SM 1

NUT, Hex Lock ESNA Light, 1/4-20NC-3B3 1920397SM 3

IMPELLER ASSEMBLY4 1723994ASM 1

CARRIAGE BOLT, 5/16-18 x 15 1931335SM 1

GEARBOX ASSEMBLY6 1723950SM 1

CAPSCREW, Whiz, 3/8-16 x 3/47 1933260SM 4

CAPSCREW, 1/4-20 x 1.888 1960506SM 1

PULLEY, Input9 1724003SM 1

SCREW, Set Square Head Cup Point, 5/16-18 x 1/2 G810 1928721SM 2

BUSHING11 1723997SM 1

SHAFT ASSEMBLY, Worm12 1723995SM 1

SEAL, Oil 1/4" Thick13 1612093SM 1

BUSHING, 377/500 ID x 1-1/10 OD x 1-1/100 LG Powerdered Metal14 1612149SM 2

COLLAR, Thrust 3/4 LG15 1612127SM 1

GEAR, Worm 1-3/8 LG16 1612142SM 1

WASHER, Thrust17 2168111SM 1

PIN, Drive Lock Type A 3/16 x 1-1/218 2836098SM 1

GASKET, Gear Case19 1612124SM 1

CASE, Gear L.H.20 1612136SM 1

CAPSCREW, Hex Head, 1/4-20 x 2-1/2 G521 1923282SM 2

SEAL, Oil, 1/4" Thick22 2118118SM 2

CAPSCREW, Hex Head, 1/4-20 x 2-1/4 G523 1960346SM 4

FITTING, Pipe Plug, Square Head24 1668971SM 1

SHAFT, E-Coat, 5 LG25 1723931SM 2

CAPSCREW, Hex Head, 1/4-20 x 1-3/4 G526 1921962SM 2

BUSHING, Plastic27 1709894SM 2

AUGER ASSEMBLY, L.H.28 1731325SM 1

PIN, Flat Head Drilled29 1668344SM 2

PIN, Cotter 47/50 x 3/430 1918447SM 2

FITTING, Lube 1/4 Drive, No Check Ball31 2821133SM 2

AUGER ASSEMBLY, R.H.32 1731326SM 1

KEY, Woodruff 1/4 x 3/433 2830246SM 1

SHAFT, 16 LG Auger 3 Holes34 1731916SM 1

WASHER, Thrust35 2118315SM 2

GEAR, Worm 7/8 LG36 1612141SM 1

CASE, Gear R.H.37 1612137SM 1

NUT, Hex Flange, 1/4-20 Toplock Small38 1930642SM 8

NUT, Hex Flange, 5/16-18, Whiz Lock Small39 1931277SM 2

CARRIAGE BOLT, 5/16-18 x 3/4 G540 1931333SM 2

SUPPORT, Gear Box 10GA41 1723922ASM 1

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694874 - 42" Two-Sta

e Snowthrower

TP 400-4554-00-AT-SMA

Auger Housing & Chute Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

987049

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694874 - 42" Two-Sta

e Snowthrower

TP 400-4554-00-AT-SMA

PART NO. DESCRIPTIONREF NO QTY.

Auger Housing & Chute Group

Footnotes

AUGER HOUSING ASSEMBLY, 42"1 1732272ASM 1

SCRAPER BAR, 42"2 1723986ASM 1

BOLT, Carriage, 5/16 - 18 x 3/43 1931333SM 11

LOCKNUT, Flange, 5/16 - 184 1935048SM 9

BEARING, Flange6 2172278ASM 4

BEARING, Cartridge7 1733105SM 2

SKID SHOE8 1725747ASM 2

BOLT, Carriage, 3/8 - 16 x 19 1960702SM 4

NUT, ESNA Flange, 3/8 - 1610 1960687SM 4

DRIFT CUTTERS11 1729642ASM 2

SCREW, Hex Washer Head Taptite, 5/16 - 18 x 3/412 1664847SM 2

NUT, Keps Washer, 5/16 - 1813 1960684SM 2

COVER, Gear14 1733934SM 1

MOTOR, Electric15 1728965SM 1

GEAR, Pinion16 1728967SM 1

SCREW, Hex Washer, #10 - 24 x 1-1/417 2860604SM 3

NUT, Hex Keps, #10 - 2418 1960745SM 3

NUT, Hex Flange Whizlock, 5/16 - 1821 1931277SM 6

SCREW, Hex Head, 5/16 - 18 x .6222 1925205SM 6

BRACKET, Cable25 1726411ASM 1

CHUTE RETAINERS26 1666613SM 3

SCREW, Plastite27 1960001SM 3

NUT, Push, 1/428 1960126SM 2

WASHER, Nylon29 2860210SM 1

SCREW, Hex Washer Head Taptite, 1/4 - 20 x 3/830 1929000SM 1

NUT, Hex Flange ESNA, 5/16 - 1831 1960686SM 1

SPACER32 1702219SM 3

ROD, Spring33 1611945SM 1

SPRING, Compression34 1611939SM 1

GUIDE ASSEMBLY, Cable37 1717591ASM 1

HARNESS, Spout Rotator38 1722735SM 1

HARNESS, Power Outlet39 1716987SM 1

HARNESS ASSEMBLY, Chute40 1732236SM 1

BRACKET, Cable Mount41 1721590ASM 1

CAPSCREW, 1/4 - 20 x 7/842 1924009SM 2

WASHER, Special43 1960151SM 2

NUT, Hex Keps, 1/4 - 2044 1960685SM 2

HAIRPIN, 1/1645 1960221SM 1

CABLE ASSEMBLY46 1724568SM 1

PIN, Flat Head47 1668344SM 1

GEAR, Chute48 1717477ASM 1

CHUTE ASSEMBLY49 1731437SM 1

CABLE TIE51 2825094SM 1

SPRING ANCHOR52 1724641ASM 1

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694874 - 42" Two-Sta

e Snowthrower

TP 400-4554-00-AT-SMA

Auger Housing & Chute Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

987049

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694874 - 42" Two-Sta

e Snowthrower

TP 400-4554-00-AT-SMA

PART NO. DESCRIPTIONREF NO QTY.

Auger Housing & Chute Group

Footnotes

CAPSCREW, 5/16 - 18 x 4-1/256 1722357SM 1

SPRING ANCHOR ASSEMBLY57 1732127ASM 1

WASHER58 1933468SM 1

NUT, Pushpal, 5/16 - 1859 1935255SM 1

SWITCH, Chute Control64 1724210SM 1

CLIP, Wire65 1715956SM 1

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694874 - 42" Two-Sta

e Snowthrower

TP 400-4554-00-AT-SMA

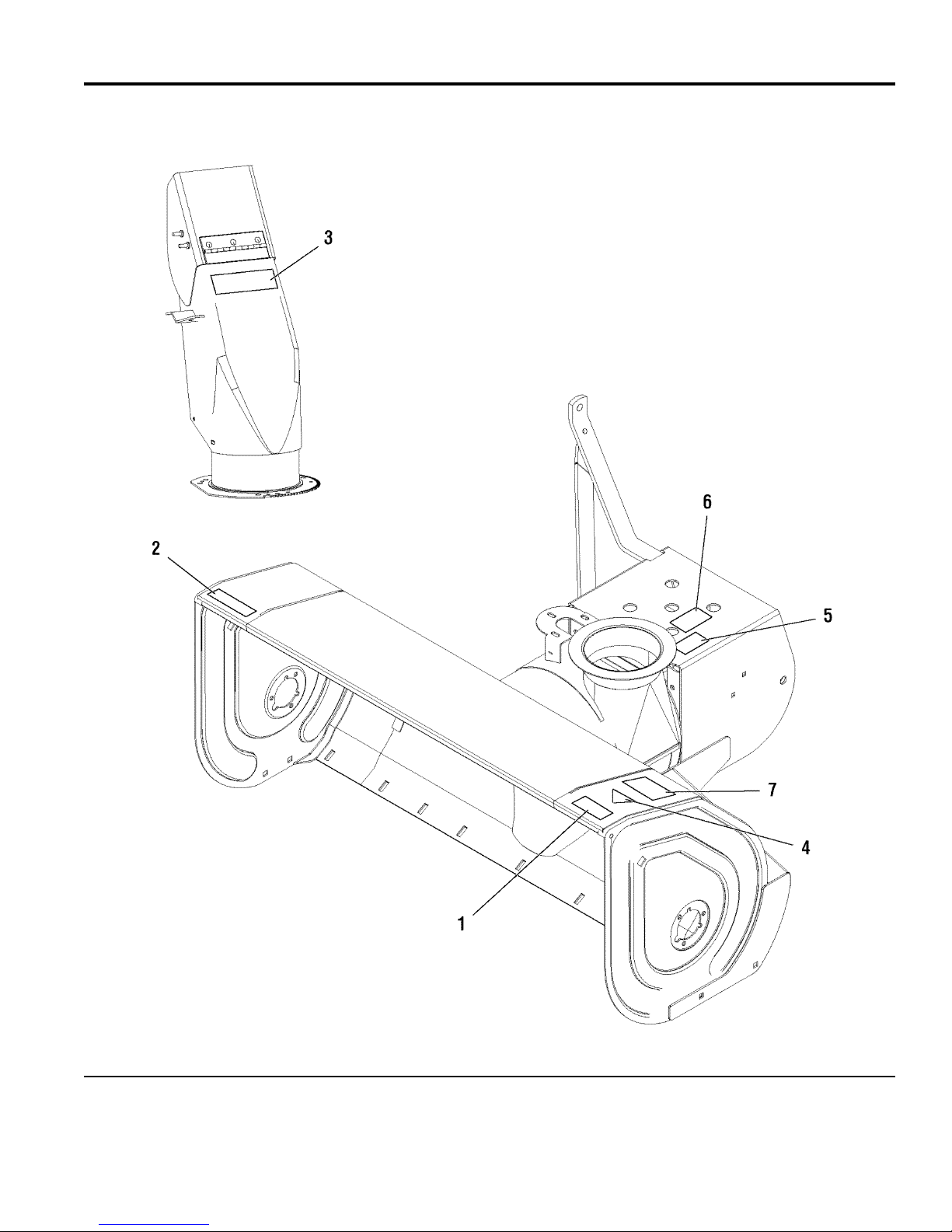

Decals Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986173

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694874 - 42" Two-Sta

e Snowthrower

TP 400-4554-00-AT-SMA
