Simmons SD7K Manuel utilisateur

digital drum assembly instructions

SD7K

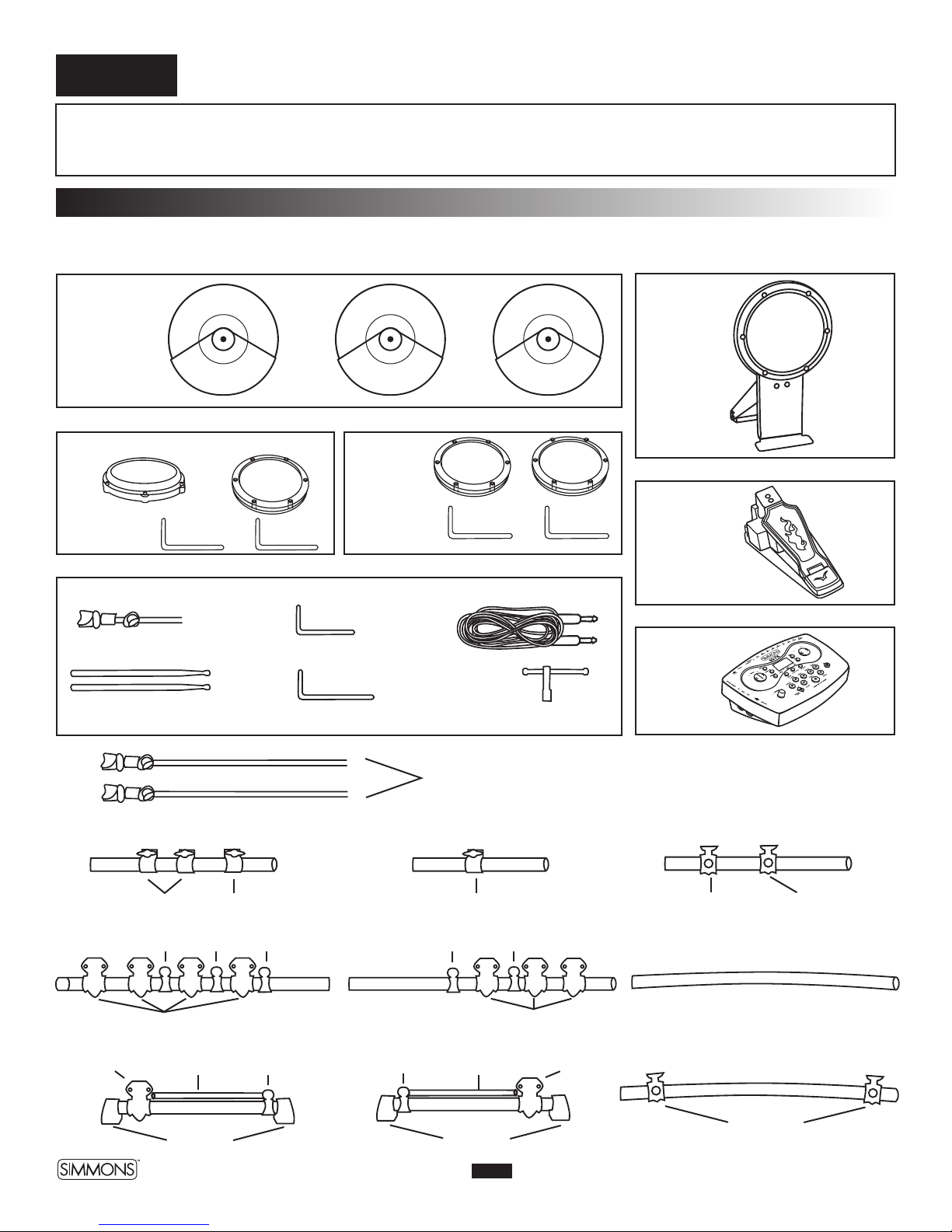

Inside this package

Before assembly, please make sure that all the items listed below are present.

CAUTION!

As a by-product of the manufacturing process, occasionally some metal shavings or burs will unavoidably remain.

To avoid injury, please watch your ﬁngers when adjusting clamps, or when working around pipe-ends and screw-ends.

Cymbal 3pcs

Drum Pads

Accessories

Kick Pad

Leg (L) Leg (R) Center Pipe (1)

3 Cymbal Pads

2 Tom Pads

2 Metal Rods

Kick Pad

Hi-Hat Pedal

Hi-Hat

Control Pedal

Drum Pads

2 Cymbal Holders (Long)

2 Drumsticks

Side Arm (L2)

Holder Clamp

Side Arm (R)

Cymbal Holder Clamp Holder Clamp

Clamp ConnectorCross Pipe

Rubber Feet

SD7K Assembly instructions

Cymbal Holder (Short) Metal Rod

Pillar (R)

Connector

Clamp

Side Arm (L1)

Holder ClampCymbal Holder Clamp

Pillar (L) Center Pipe (2)

Connector

ClampConnector Cross Pipe

Tom Pad

Snare Pad

Lock Lock Lock

Drum Module

Clamp

Rubber Feet

Holder Clamp

AC Adaptor Instruction Manual Assembly Instructions

Hexagon Key (5mm)

Drum Key

9 Connecting Cables

2 Metal Rods

digital drum assembly instructions

SD7K

Pillar (L)

Side Arm (L1)

Diagram 7

Assembly

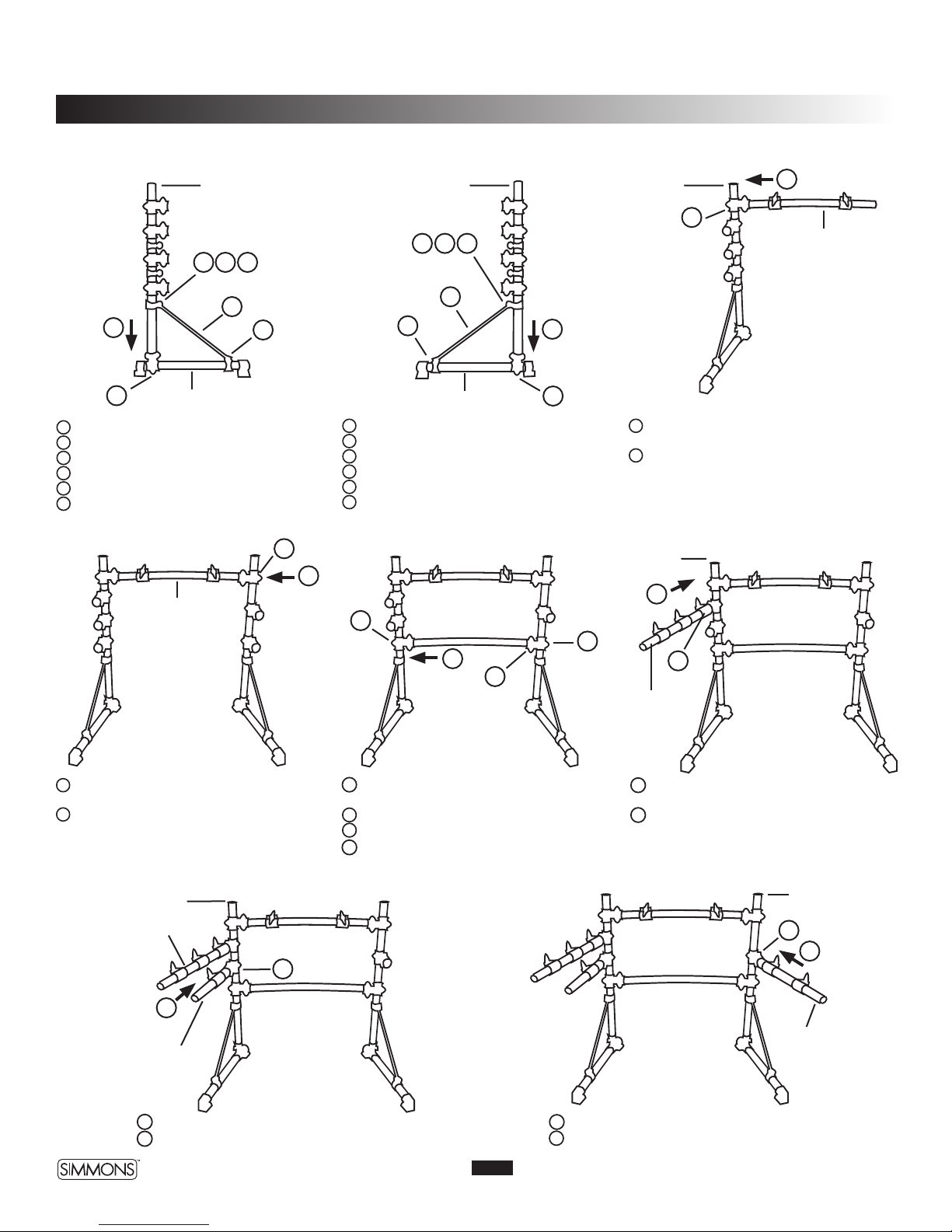

I. Setting up the frame of the digital drum KIT

Pillar (L)

Leg (L)

3 5 6

Diagram 1

Left Leg Assembly

Center Pipe

Diagram 4

Diagram 5

Pillar (L)

Side Arm (L1)

Diagram 6

Side Arm (L2)

Attach the Pillar (L) to the clamp on the Leg (L).

Using the drum key, tighten the screws on the clamp.

Remove the screw attached to the connector.

Attach the cross pipe to the connector.

Re-attach the screw into the connector.

Tighten the screw on the connector.

Attach the Pillar (R) to the clamp on the Leg (R).

Tighten the screws on the clamp.

Remove the screw attached to the connector.

Attach the cross pipe to the connector.

Re-attach the screw into the connector

Tighten the screw on the connector.

Attach Center Pipe(1) to the clamp on the

Left Leg Assembly.

Tighten the screws on the clamp.

Attach the Right Leg Assembly to the

Center Pipe(1) .

Tighten the screws on the clamp.

15 Attach Center Pipe (2) to the clamp on the

Left Leg Assembly

Tighten the screws on the clamp.

Attach the Right Leg Assembly to the Center Pipe(2).

Tighten the screws on the clamp.

Attach the Side Arm (L2) to the clamp on the Pillar (L).

Tighten the screws on the clamp.

Pillar (R)

Side Arm (R)

Diagram 8

Attach the Side Arm (R) to the clamp on the Pillar (R)

Tighten the screws on the clamp.

Pillar (R)

Leg (R)

12 11 9

Diagram 2

Right Leg Assembly

Pillar (L)

Center Pipe

Diagram 3

Attach the Side Arm (L1) to the clamp on

the Pillar (L)

Tighten the screws on the clamp.

digital drum assembly instructions

SD7K

Cymbal Holder (L)

Cymbal Holder (S)

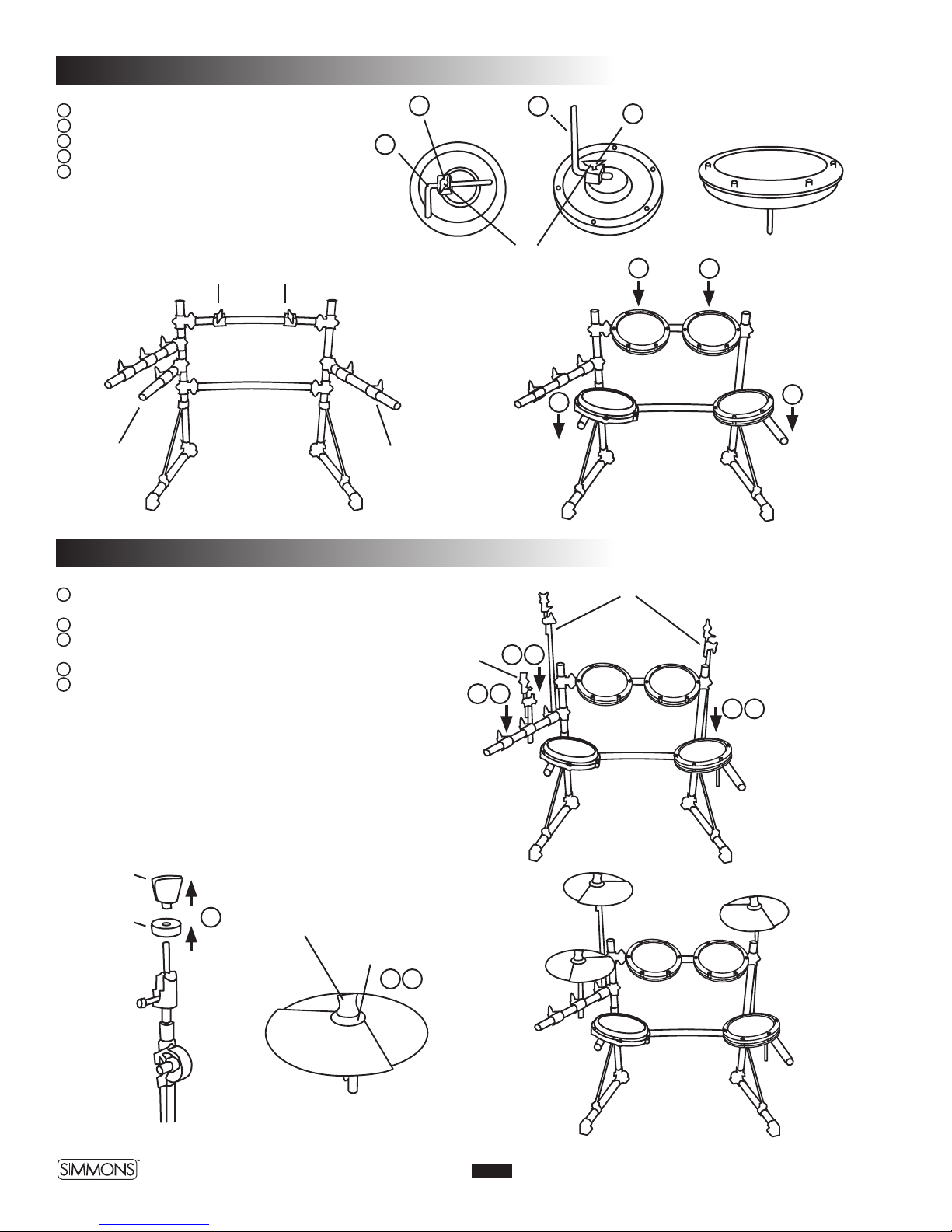

2. Attaching the drum pads

3. Attaching the cymbal pads

Wing Nut

Drum Pad Assembly

Holder Clamp Holder Clamp

Wing Nut

Felt Washer

1 3 4

1 2

4 5

Wing Nut

Felt Washer

Loosen the Wing Nuts on the drum pads.

Remove the Metal Rods.

Re-attach the Metal Rods to the drum pads.

Tighten the Wing Nuts.

Attach the drum pads assemblies to the holder clamps

and adjust their position, then tighten the wing nuts on

the Holder clamps.

Repeat for other pads.

Attach the Cymbal Holders to the Cymbal

Holder clamps on the Side Arms.

Tighten the Wing Nuts on the Holder clamps.

Remove the Wing Nut and the Felt Washer

of each Cymbal Holder.

Attach the Cymbal pads to the Cymbal Holders.

Re-attach the Felt Washer and Wing Nut, then tighten

the Wing Nut of each Cymbal Holder.

Repeat for other cymbals.

digital drum assembly instructions

SD7K

3 4

5. congratulations

Cymbal Pad

Tom Pad

Cymbal Pad

Snare Pad

Tom Pad

Drum Module

Kick Pad

0704-7917

Wing Screw

Metal Rod

Hi-Hat Control Pedal

You’ve successfully assembled your new Simmons SD7K electronic drum kit.

You can now attach your own bass drum pedal to the kick pad. Also, be sure

to attach the clearly marked cables from the pads to the correct inputs on the

drum module.

For connection instructions and more information on your new kit, please refer

to the User Manual or more visit www.simmonsdrums.net.

Attach the Metal Rod to the Drum Module.

Tighten the Wing Screw securely on the Drum Module.

Attach the Metal Rod to the Holder Clamp on the

Side Arm (L1) and adjust the position.

Tighten the Wing Nut on the Holder Clamp.

4. Attaching the drum module
