CAUTION!

While Simmons makes every effort to provide the highest quality products, metal shavings and/or burrs occasionally remain as a by-product

of the manufacturing process. To avoid injury, please use caution when adjusting clamps, or when working with pipe and screw ends.

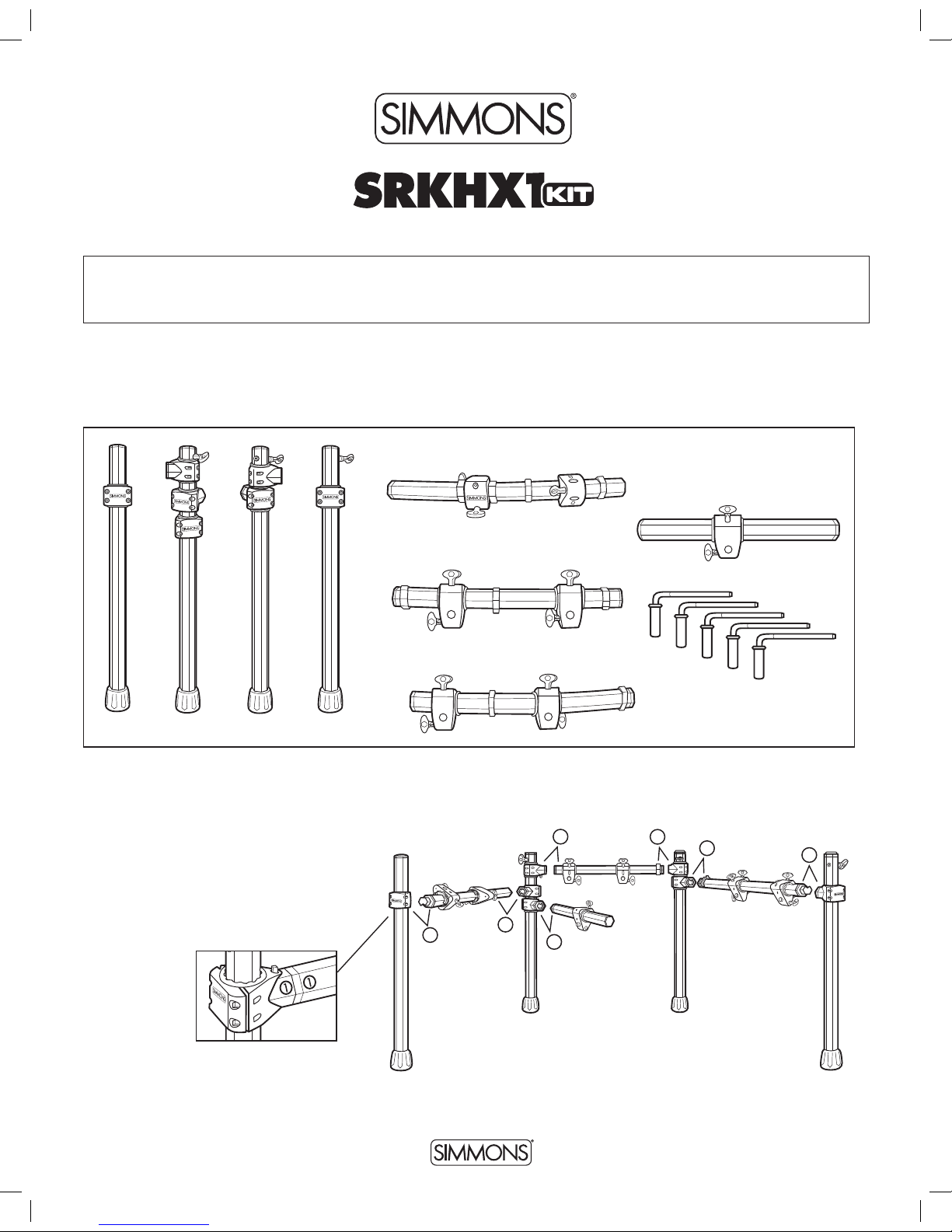

Drum Rack Components

ASSEMBLY INSTRUCTIONS

The first name in electronic drums.

Before assembly, please check that all the items listed below are present.

Inside this package

rack assembly

1. Remove all preassembled tubing with clamps

from packaging.

2. Each T-Fitting and tube end-ﬁtting is labeled with

a number. Lay the vertical and horizontal tubes

on the ﬂoor with the numbers matching.

L–Rods for Pads x5

Please note the numbers stamped on each

tube-end and tube-ﬁtting

1

2

7

34

56

Left Left Center Right Center Right

Snare Drum

Pad Tube

Sound Module/Hi-Hat Tube

Tom Pad

Tube, Center

Tom Pad

Tube, Right

2

SD1500 ELECTRONIC DRUM KIT ASSEMBLY SHEET

8. If further adjustments of height and angle are required, loosen

the appropriate T-ﬁttings with the 4 Drum Key Fasteners and

rotate, raise, or lower into desired positions. Retighten Drum

Key Fasteners making sure the gaps between the ﬁttings are

close to even.

3. There is a Drum Key Fastener location on the end of each

ﬁtting. Back this fastener out until the pointed end is no longer

protruding inside, but do not remove it. Do this for all the

ﬁttings that have this feature on the vertical leg-ﬁttings .

7. Loosen the Drum Key Fastener on ﬁtting as above. Insert

Snare Drum into ﬁtting and tighten. Loosen T-ﬁtting with

the 4 Drum Key Fasteners and rotate into desired position.

Retighten Drum Key Fasteners making sure the gaps between

the ﬁttings are close to even.

6. After you have the rack assembled, double check the

Drum Key Fastener and make sure they are all snug (do

not over tighten).

rack assembly CONTINUED

Match Numbers

9. Loosen L-rod wing knobs on tom clamps.

Insert black plastic end of L-rod into tom

clamps and tighten wing nuts.

4. Begin with T-ﬁtting/tube end number and insert into the

corresponding left vertical leg. The surfaces of the ﬁtting

should almost touch. Tighten the Drum Key Fastener until

snug (do not over tighten).

1

5. Continue assembling the rack working your way around to

T-ﬁtting/tube end number (to the vertical right leg).

6

7

7

Completed Assembly
