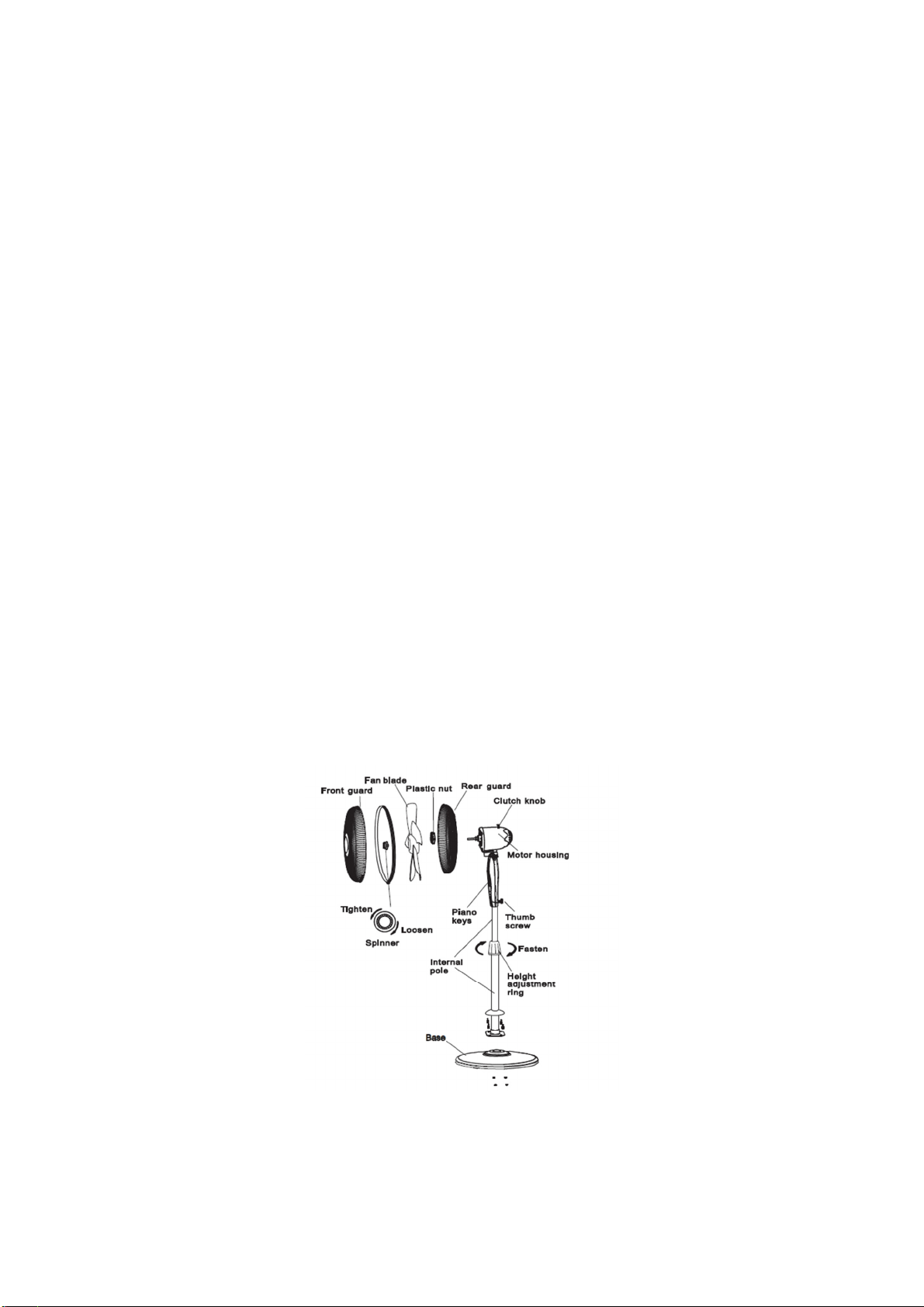

ASSEMBLY
Assembly of Base

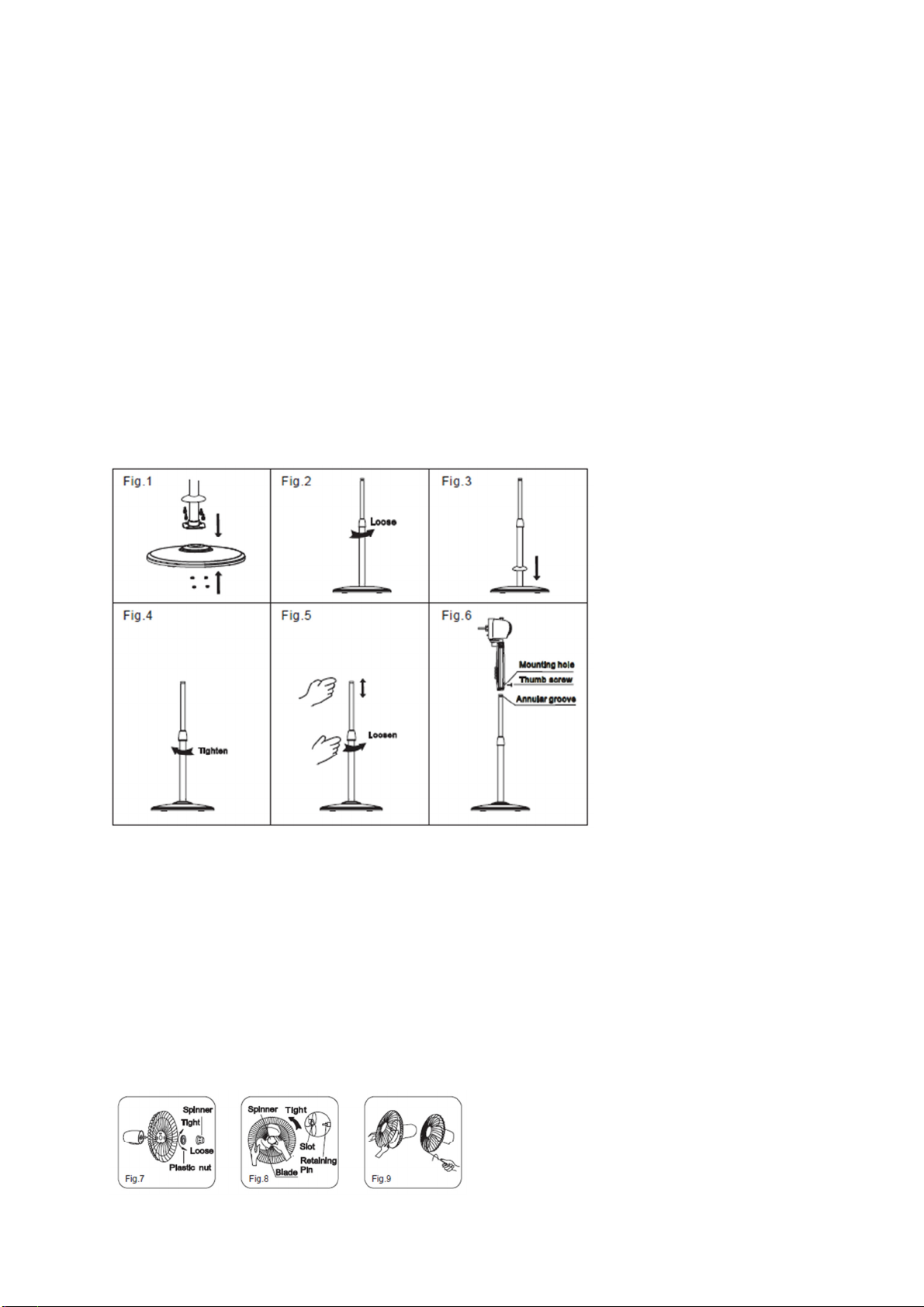

1. Loose 4 sets of screws, washers and spring washers which are beforehand fitted
in the center section on the base and assembly the extension pole onto the base
enclosure with these fastenings. (Fig.1)
2. Loose the height adjustment ring, lift the internal pole to the max height and
prevent the internal pole from slipping into the extension pole, then screw out the
height adjustment ring. (Fig.2)
. To attach the decorating cover (cover for the base enclosure), slide the decorating
cover down the extension pole. (Fig. )
4. Reattach the height adjustment ring. (Fig.4)
5. From the extension pole loosen the height adjustment ring and adjust the internal
pole to the desired height. (Note: If you can’t find the internal pole, it slides inside
the extension pole. You can pull it out from the extension pole.) (Fig.5)
6. To attach the head unit to the extension pole, loosen the thumb screw on the
bottom of the head unit. Place the head unit on the extension pole and tighten the
thumb screw in alignment with the groove on the internal pole. (Fig.6)
Assembly Of Blade Of Grilles
1. Unscrew the spinner clockwise (or take the spinner out from the bag) and the
plastic nut counter clockwise to remove both of them. Fix the rear guard to the
motor then tighten the plastic nut again. (Fig.7)
2. Discard PVC sleeve on shaft. Insert the blade into shaft, and make sure the rotor
shaft pin is fitted into groove of the blade. Turn the spinner counter clockwise to
tighten the blade. (Fig.8)
. Fix the front guard and the rear guard with circlip and then use the fasten clip to
tighten the fan guard. (Fig.9)
